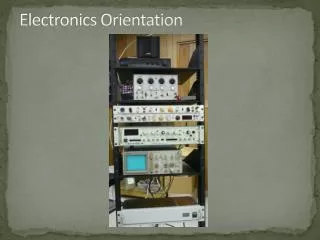

  1. Electronics Orientation

  2. ‘Rig’ components Audio Amplifier/Speaker Stimulator DC Strain Gauge Amplifier AC Amplifier AM Amplifier Analog Oscilloscope Power Supply

  3. Faraday Cage & plate Metal plate is on tennis balls for vibration isolation .

  4. Cables/Connections Banana plugs BNC cables Alligator Clips Adapters BNC-to-Alligator BNC-to-Banana (male/female) Combinations (male/female) Splitters BNC – ‘T’ Head Stage AC Head Stage (male-female) DC Head Stage (female-female) Strain Gauge

  5. BNC cables

  6. Banana plugs

  7. Alligator Clips

  8. Adapters/Splitters

  9. Head Stage: AC & DC

  10. Signal Generator

  11. Fiber Optic Light Source

  12. Manipulators: Prior & WPI

  13. Magnetic Bases

  14. Nerve Chamber

  15. Suction Electrode

  16. Strain Gauge

  17. Electronics Orientation Exercise • Other Equipment Pipette Pullers Stroboscope

  18. Signal Analysis System Setup Adapters: 2 T’s, 3 BNC’S Plug in equipment Signal generator to oscilloscope Ch 2 Adapters: alligator-to-BNC Connect to oscilloscope channel 2 Head Stage connected to AC amplifier Connect AC Amp output (via T and BNC) to three data analysis devices To audio amp A/V adapter on rear To 0scilloscope (channel 1) To PC: connect to Ch 0 on rack (upper left) Work through part one of the electronics orientation handout

  19. VI input Audio Stimulator AC Amp DC AMP AM Systems AMP Oscilloscope Power supply Using alligators, ground plate to cage and cage to rack G1 G2 Com Input Output Stimulus Generator Headstage (input)

  20. Make sure signal generator is off, remove connection from oscilloscope Connect to signal generator to AC headstage Alligator to G1 and G2, not COM Before turning on signal generator, check level of amplification- set amplifier to lowest amplification. Work through part two of the equipment testing handout PLEASE HAVE SOMEONE CHECK YOUR SETTINGS BEFORE TURNING ON AMPLIFIER

  21. VI input Audio Stimulator AC Amp DC AMP AM Systems AMP Oscilloscope Power supply Stimulus Generator Using alligators, ground plate to cage and cage to rack G1 G2 Com Input Output Headstage (input)

  22. Electronics Problem solving • Get your electronics set before getting the specimin • Is it plugged in? • Is it turned on? • Check connections • Check grounds (plate to cage, cage to rack) • Is your amplification correct? Check settings in handout • Is your scaling (time base and gain/voltage) correct? • You can check the connections and settings on the demo rig or on a classmate’s rig.
