Production of Prilled Urea. Sule Alabi Jonathan Arana Elizabeth Moscoso Oleg Yazvin Mentor: Dan Rusinak – Middough. BFD of Urea & Prill Plant. Output NH3 Purge & Urea Solution To Amm. Nitrate & UAN Plants. Urea Production Plant. CO2 & NH3 Recycled Gas. Inlet NH3 & CO2 from NH3 Plant.

trung
Download Presentation

Production of Prilled Urea

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Production of Prilled Urea Sule Alabi Jonathan Arana Elizabeth Moscoso Oleg Yazvin Mentor: Dan Rusinak – Middough

  2. BFD of Urea & Prill Plant Output NH3 Purge & Urea SolutionTo Amm. Nitrate & UAN Plants Urea Production Plant CO2 & NH3 Recycled Gas Inlet NH3 & CO2from NH3 Plant Waste Water Treatment Plant "Dirty Water" Rich in NH3, CO2 & Impurities Clean Water from CHP Plant Urea Solution (72%) Cleaned Air Out Condensate Water Prilling Tower Evaporator Unit Prilled Urea (99.3%)Product Solid Urea (99.3%) Air In

  3. Urea Production Plant PFD 14 water 6 13 5 Un-reacted Gases 3 11 1 2 DECOMPOSER 10 12 4 8 7 9 Urea (72%)Solution

  4. Urea Production Plant Calculations • Some Assumptions: • Calculations:

  5. Material & Energy Balance for Decomposer Unit Basis: 1893 TPD of Urea produced Composition of Urea 72% Q = 177 BTU/ton

  6. Waste Water Treatment Plant PFD 33 31 13 32

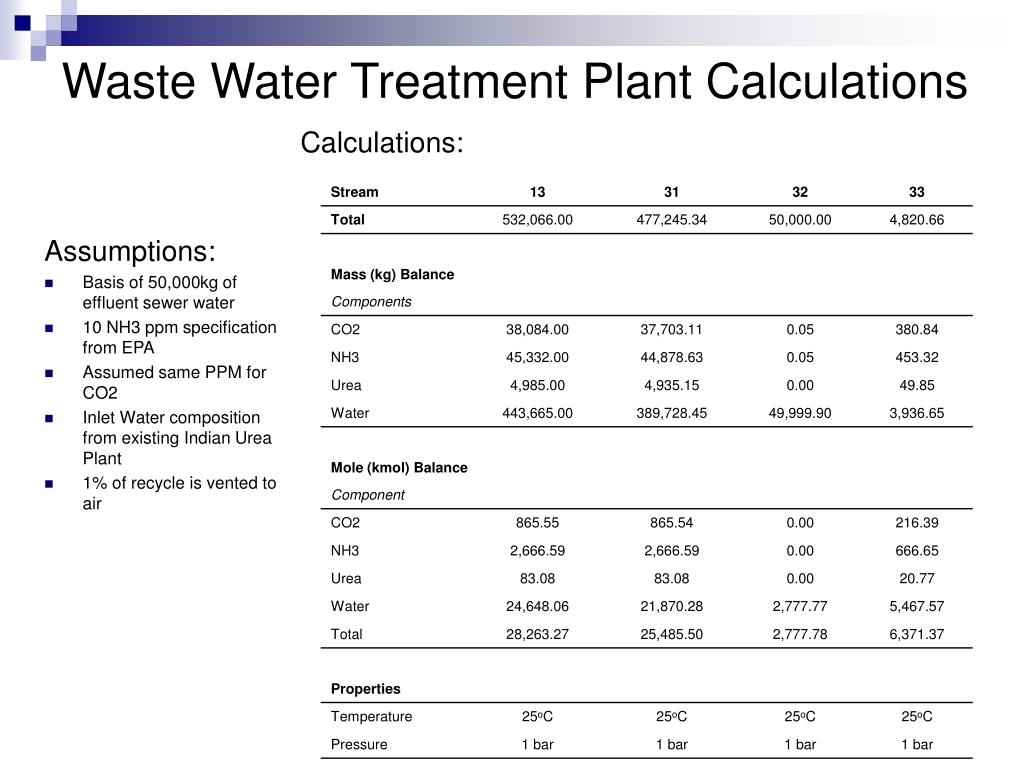

  7. Waste Water Treatment Plant Calculations Calculations: Assumptions: • Basis of 50,000kg of effluent sewer water • 10 NH3 ppm specification from EPA • Assumed same PPM for CO2 • Inlet Water composition from existing Indian Urea Plant • 1% of recycle is vented to air

  8. 23 21 Condenser Streams 21, 26, 19: To Waste Water Treatment 24 17 H.P. Steam 22 Evap1 Eductor Evap2 25 Product Urea (99.8%) 27 19 26 15 Urea Solution (72%) 18 20 16 Storage Tank Evaporator Unit PFD

  9. Evaporator Unit Calculations • Assumptions: • Calculations:

  10. Cleaned Air Cyclone 30 Prilling Tower Bag House 27 Urea Melt (99.8%) Pump Melting Furnace Dehumidifier 28 Air from Atm Screen 29 Prilled Urea (99.8%) Prilling Tower PFD

  11. Prilling Tower Calculations Calculations: Assumptions: • Mass flow rate of Prilled Urea is 738.22 TPD • According to the EPA the allowed urea dust is 3.8 lb/ton of Prilled Urea. For ammonia dust the allowed emission is 0.87 lb/ton of Prilled Urea.

  12. Estimated Economics

  13. Estimated Total Cost • 2009- Q’atar built a 3,836 TPD Urea Plant • Plant Cost: $610 Million Dollars. • Urea Plant Produces 1,384 TPD • Using 6/10ths rule and 2010 Cost Index • Plant Cost: $389.4 Million Dollars. • About 10 years to break even

  14. Questions?
