DVR

DVR. H.264 4ch/8ch/16ch Stand Alone DVR. EH-Series. Key Features. • 4/8/16ch Stand-alone DVR with H.264 and JPEG dual codec • Max. 120/100ips(4ch at D1), 240/200ips(8ch at Half D1), 480/400ips(16ch at CIF) recording (30/25ips per channel)

trung
Download Presentation

DVR

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

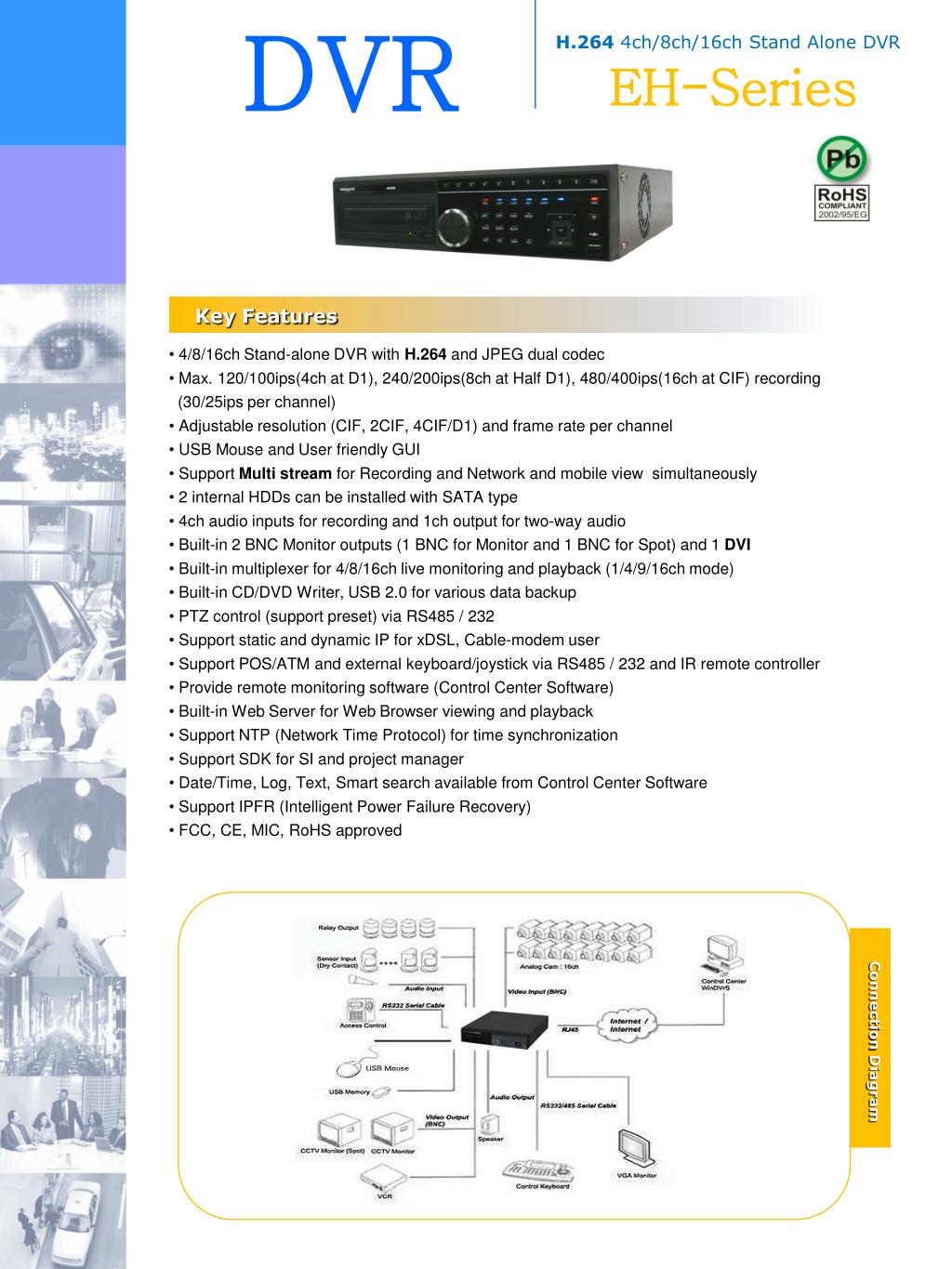

  1. DVR H.264 4ch/8ch/16ch Stand Alone DVR EH-Series Key Features • • 4/8/16ch Stand-alone DVR with H.264 and JPEG dual codec • • Max. 120/100ips(4ch at D1), 240/200ips(8ch at Half D1), 480/400ips(16ch at CIF) recording • (30/25ips per channel) • • Adjustable resolution (CIF, 2CIF, 4CIF/D1) and frame rate per channel • USB Mouse and User friendly GUI • • Support Multi stream for Recording and Network and mobile view simultaneously • • 2 internal HDDs can be installed with SATA type • • 4ch audio inputs for recording and 1ch output for two-way audio • • Built-in 2 BNC Monitor outputs (1 BNC for Monitor and 1 BNC for Spot) and 1 DVI • • Built-in multiplexer for 4/8/16ch live monitoring and playback (1/4/9/16ch mode) • • Built-in CD/DVD Writer, USB 2.0 for various data backup • • PTZ control (support preset) via RS485 / 232 • • Support static and dynamic IP for xDSL, Cable-modem user • • Support POS/ATM and external keyboard/joystick via RS485 / 232 and IR remote controller • • Provide remote monitoring software (Control Center Software) • • Built-in Web Server for Web Browser viewing and playback • • Support NTP (Network Time Protocol) for time synchronization • • Support SDK for SI and project manager • • Date/Time, Log, Text, Smart search available from Control Center Software • • Support IPFR (Intelligent Power Failure Recovery) • • FCC, CE, MIC, RoHS approved Connection Diagram

  2. Specification (EH Series)
