DVR

DVR. H.264 16CH DVR. MH1600M. Key Features. • 16ch Stand-alone DVR • All Channels real-time Monitoring / Recording (240ips at D1 Resolution) • Adjustable resolution and recording speed per channel • Support Multi stream for Recording and Network and Mobile view simultaneously

joie
Download Presentation

DVR

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

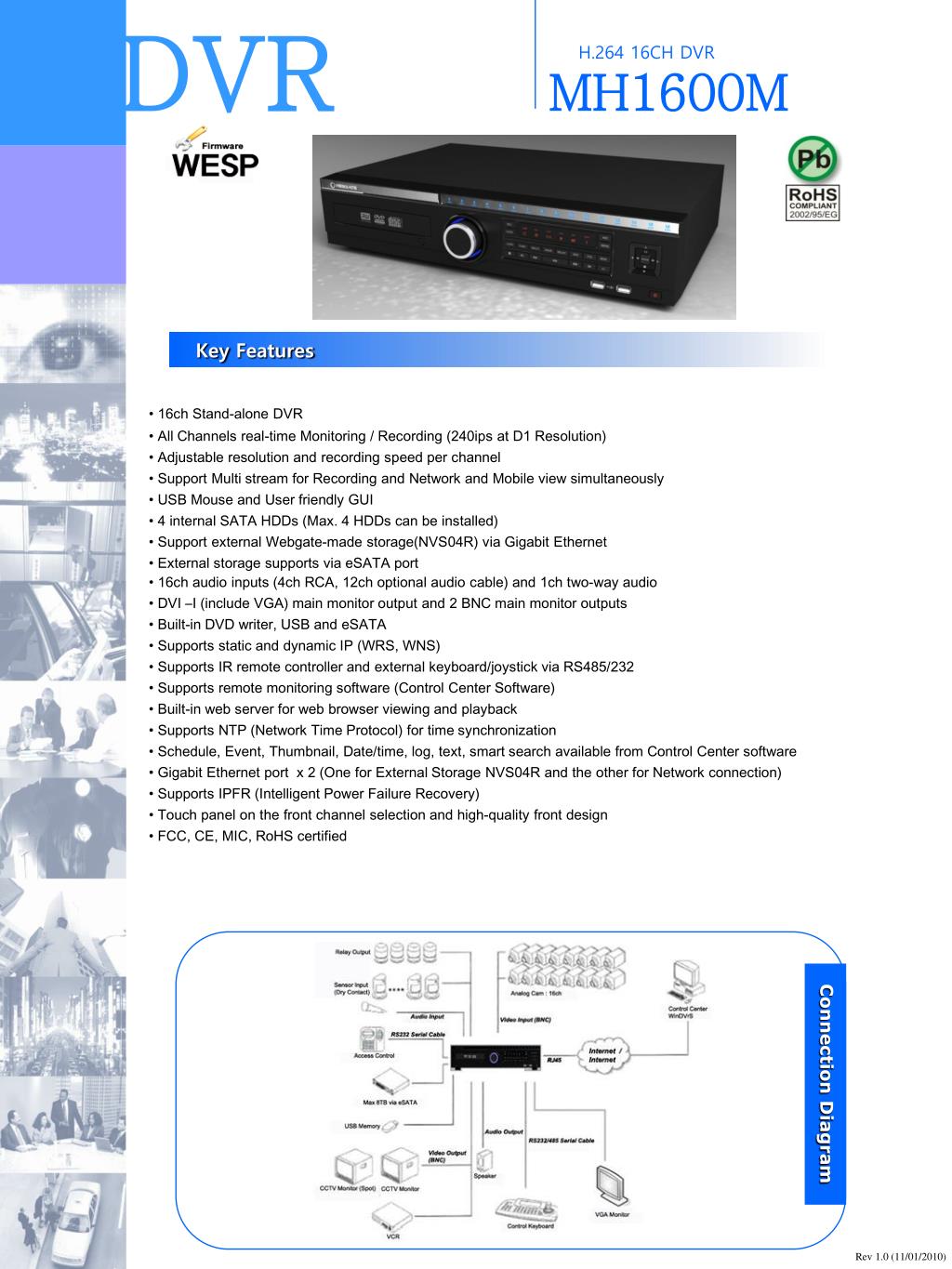

  1. DVR H.264 16CHDVR MH1600M Key Features • • 16chStand-alone DVR • • All Channels real-time Monitoring / Recording (240ips at D1 Resolution) • • Adjustable resolution and recording speed per channel • • Support Multi stream for Recording and Network and Mobile view simultaneously • • USB Mouse and User friendly GUI • • 4 internal SATA HDDs (Max. 4 HDDs can be installed) • • Support external Webgate-made storage(NVS04R) via Gigabit Ethernet • • External storage supports via eSATA port • • 16ch audio inputs (4ch RCA, 12ch optional audio cable) and 1ch two-way audio • • DVI –I (include VGA) main monitor output and 2 BNC main monitor outputs • • Built-in DVD writer, USB and eSATA • • Supports static and dynamic IP (WRS, WNS) • • Supports IR remote controller and external keyboard/joystick via RS485/232 • • Supports remote monitoring software (Control Center Software) • • Built-in web server for web browser viewing and playback • • Supports NTP (Network Time Protocol) for time synchronization • • Schedule, Event, Thumbnail, Date/time, log, text, smart search available from Control Center software • • Gigabit Ethernet port x 2 (One for External Storage NVS04R and the other for Network connection) • • Supports IPFR (Intelligent Power Failure Recovery) • Touch panel on the front channel selection and high-quality front design • • FCC, CE, MIC, RoHS certified Connection Diagram Rev 1.0 (11/01/2010)

  2. SPECIFICATION (MH1600M) DVR / MH1600M Rear Panel Rev 1.0 (11/01/2010)
