  1. Screens from ProFAA Demonstration 1

  2. ProFAA Computer ProgramBasic Index Display 2

  3. ProFAA Computer ProgramZoomed Display 3

  4. ProFAA Computer ProgramRight-Click Straightedge Detail 4

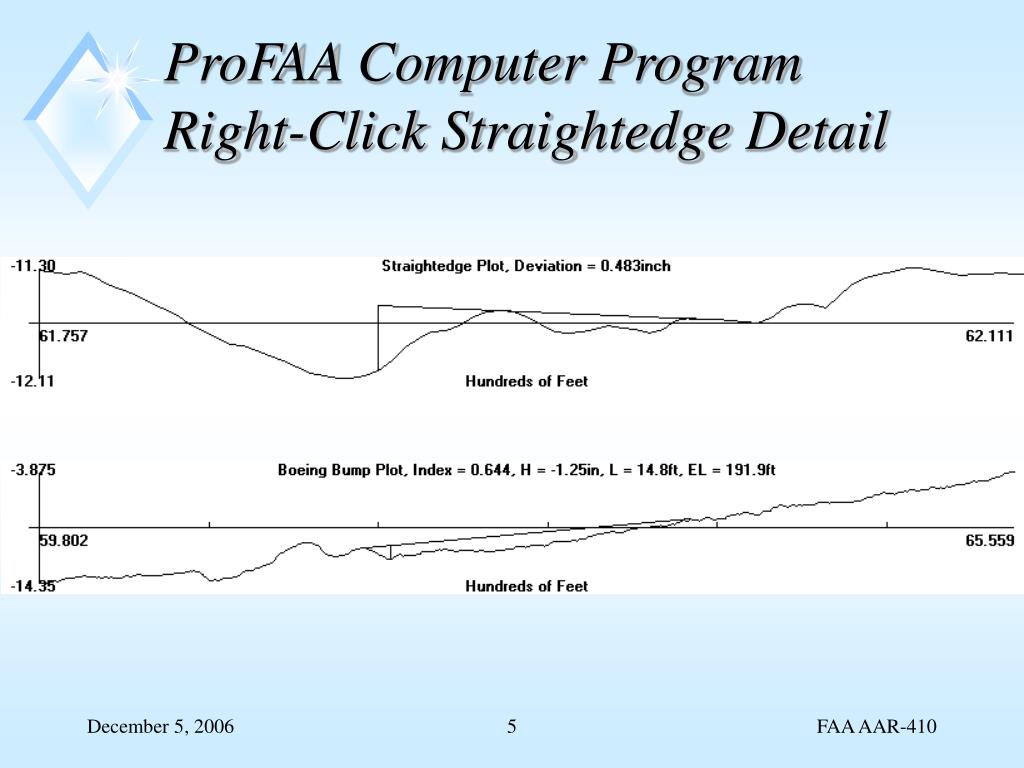

  5. ProFAA Computer ProgramRight-Click Straightedge Detail 5

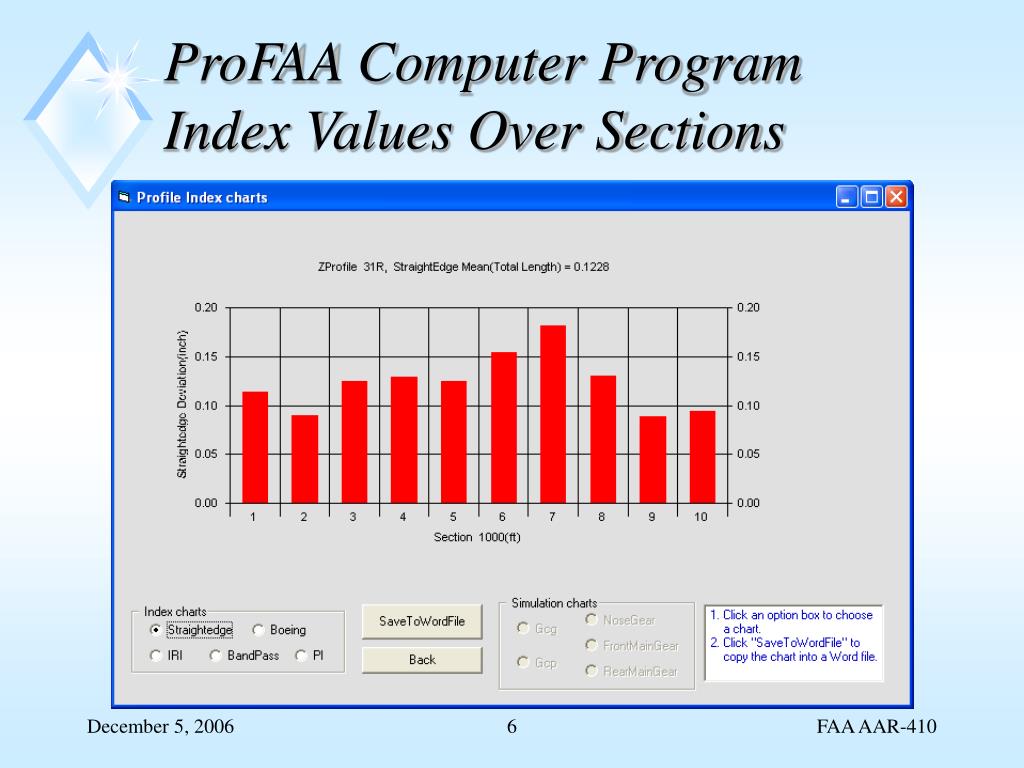

  6. ProFAA Computer ProgramIndex Values Over Sections 6

  7. ProFAA Computer ProgramIndex Values Over Sections 7

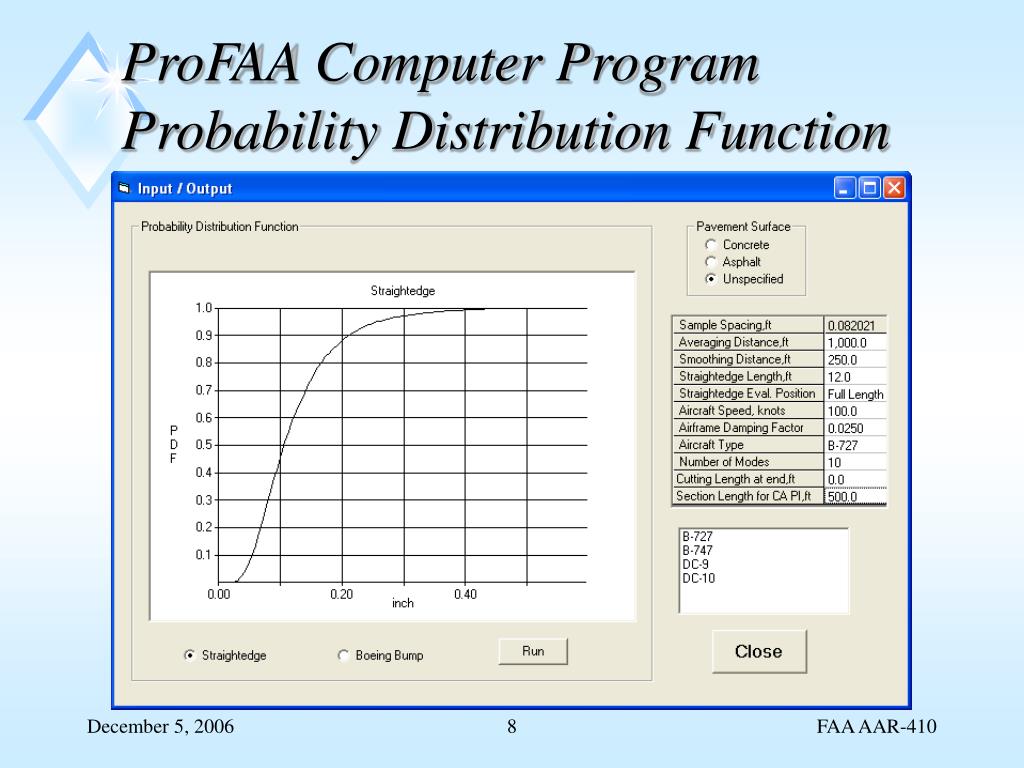

  8. ProFAA Computer ProgramProbability Distribution Function 8

  9. ProFAA Computer ProgramInput / Output Options 9

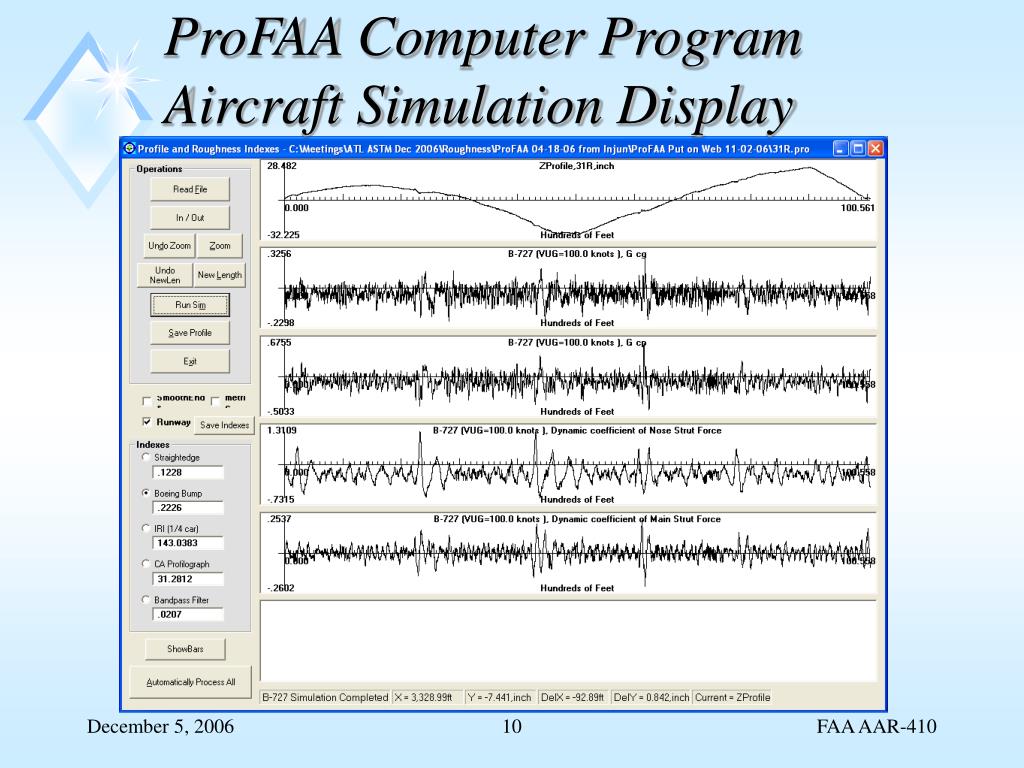

  10. ProFAA Computer ProgramAircraft Simulation Display 10

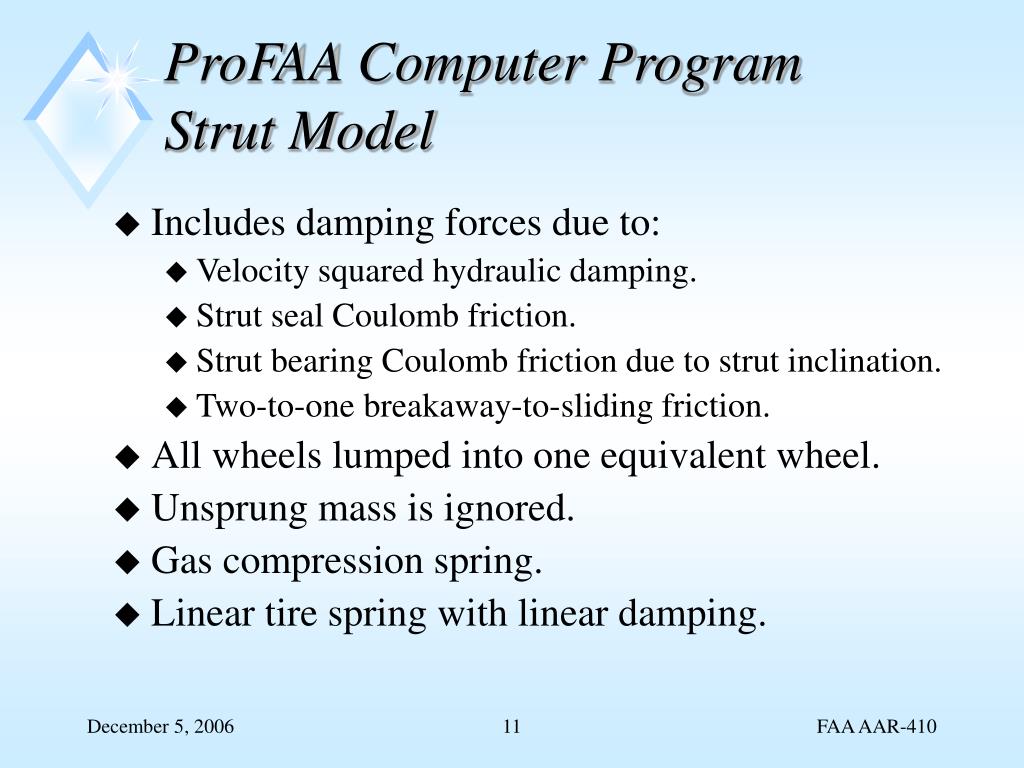

  11. ProFAA Computer ProgramStrut Model • Includes damping forces due to: • Velocity squared hydraulic damping. • Strut seal Coulomb friction. • Strut bearing Coulomb friction due to strut inclination. • Two-to-one breakaway-to-sliding friction. • All wheels lumped into one equivalent wheel. • Unsprung mass is ignored. • Gas compression spring. • Linear tire spring with linear damping. 11

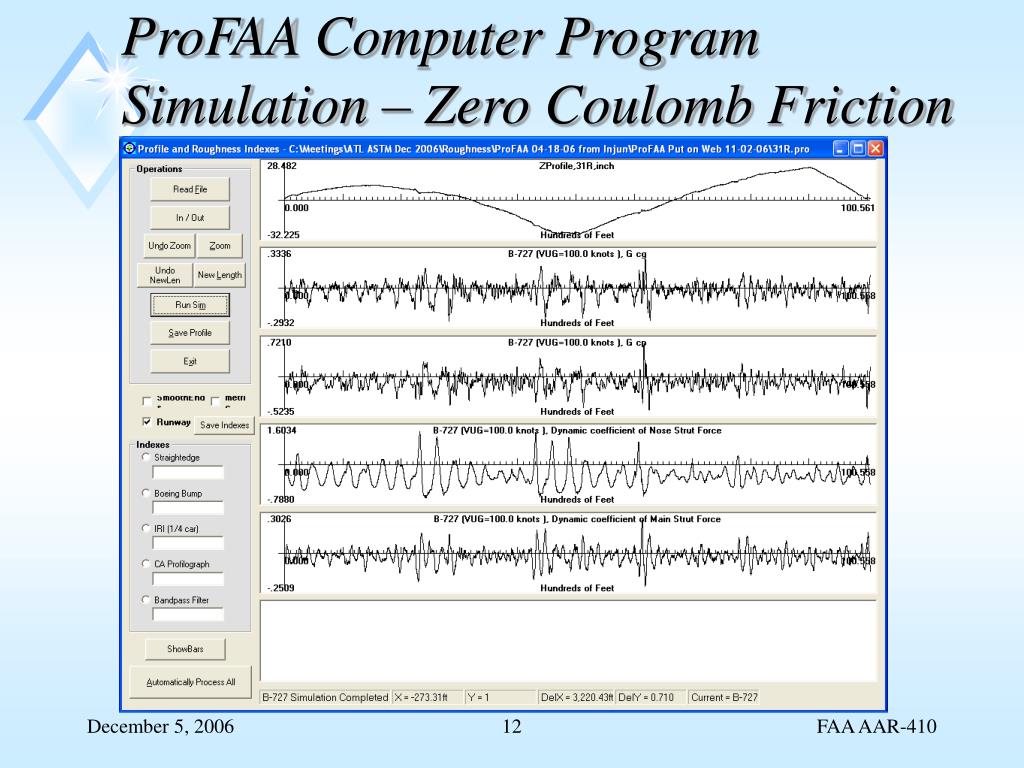

  12. ProFAA Computer ProgramSimulation – Zero Coulomb Friction 12

  13. ProFAA Computer Program Simulation – 4 x Coulomb Friction 13

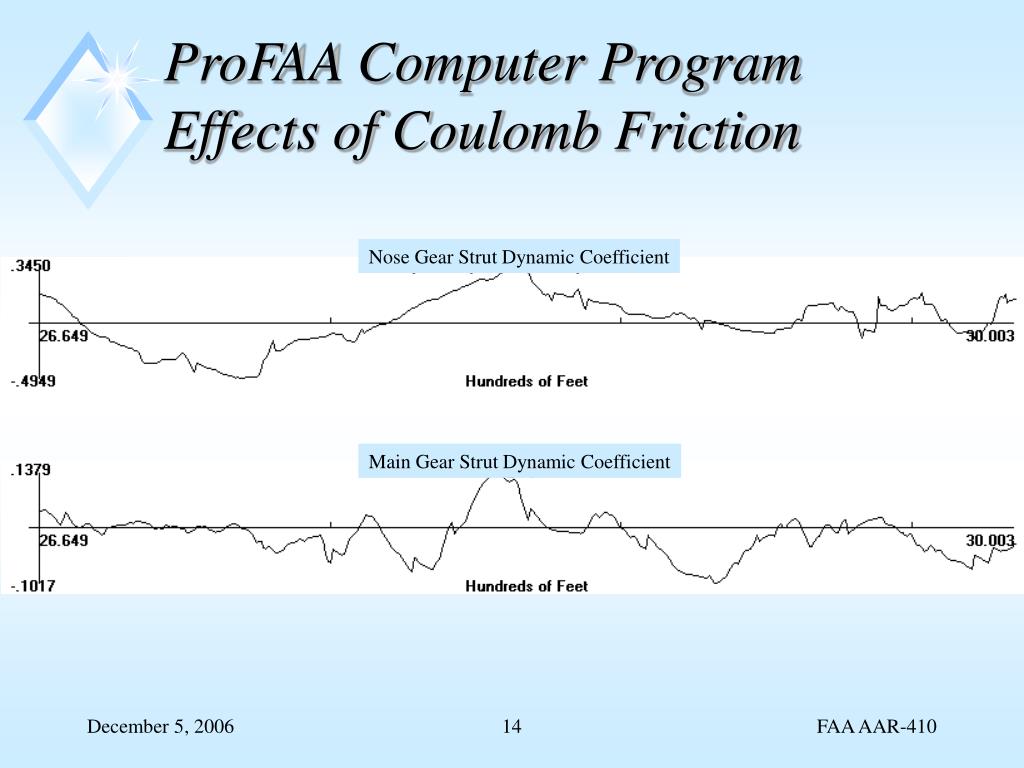

  14. ProFAA Computer ProgramEffects of Coulomb Friction Nose Gear Strut Dynamic Coefficient Main Gear Strut Dynamic Coefficient 14
