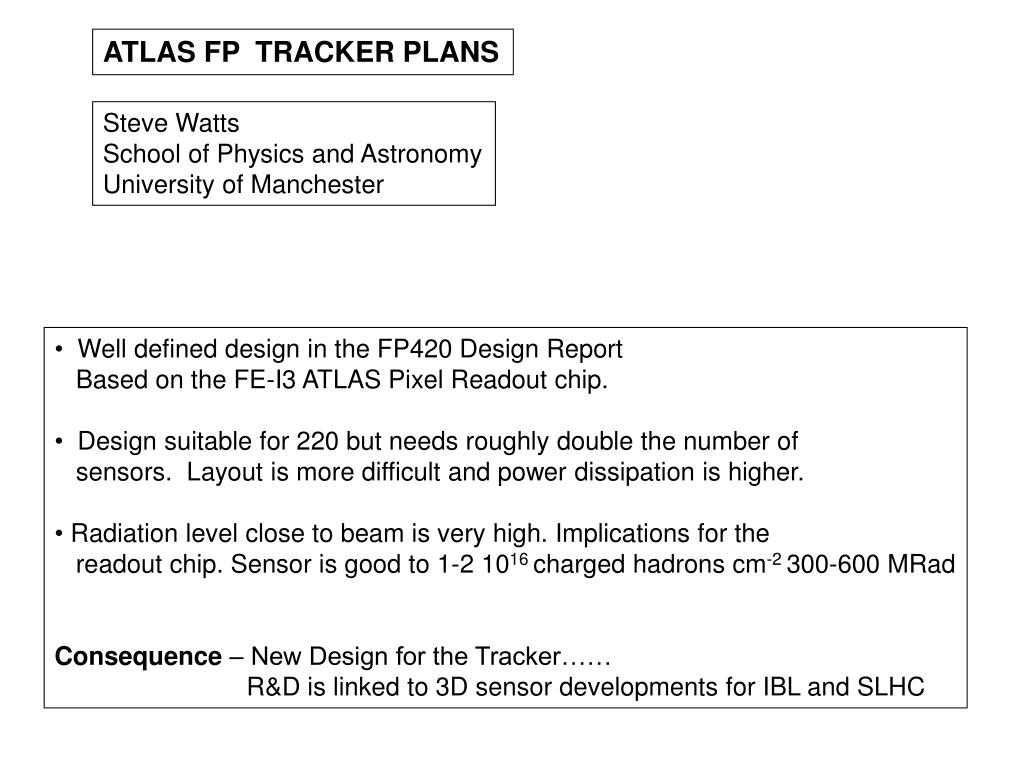

ATLAS FP TRACKER PLANS

Steve Watts

School of Physics and Astronomy

University of Manchester

  • Well defined design in the FP420 Design Report
  • Based on the FE-I3 ATLAS Pixel Readout chip.
  • Design suitable for 220 but needs roughly double the number of
  • sensors. Layout is more difficult and power dissipation is higher.
  • Radiation level close to beam is very high. Implications for the
  • readout chip. Sensor is good to 1-2 1016 charged hadrons cm-2 300-600 MRad
  • Consequence – New Design for the Tracker……
  • R&D is linked to 3D sensor developments for IBL and SLHC
slide2

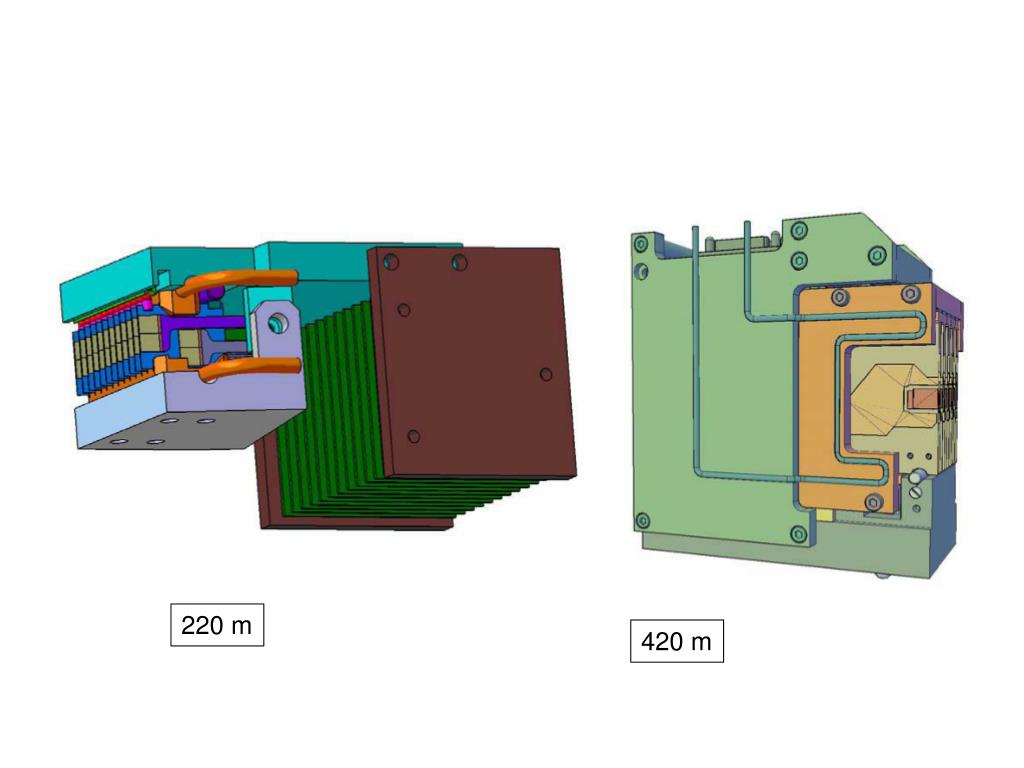

220 m

420 m

slide3

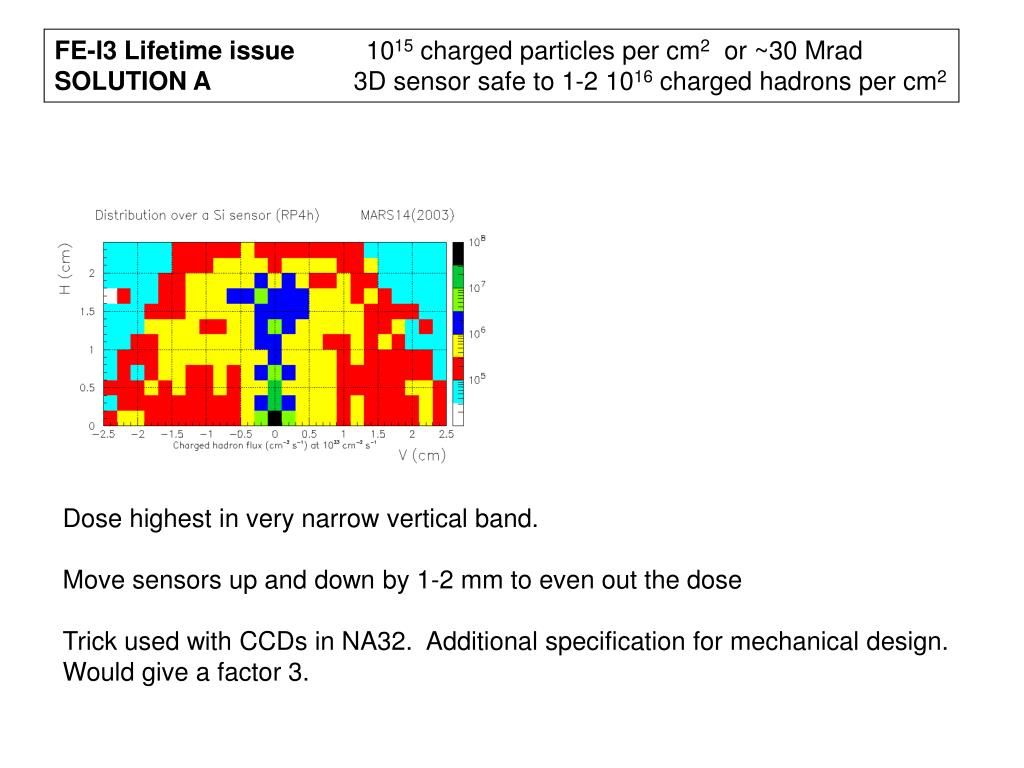

FE-I3 Lifetime issue 1015 charged particles per cm2 or ~30 Mrad

SOLUTION A 3D sensor safe to 1-2 1016 charged hadrons per cm2

Dose highest in very narrow vertical band.

Move sensors up and down by 1-2 mm to even out the dose

Trick used with CCDs in NA32. Additional specification for mechanical design.

Would give a factor 3.

slide4

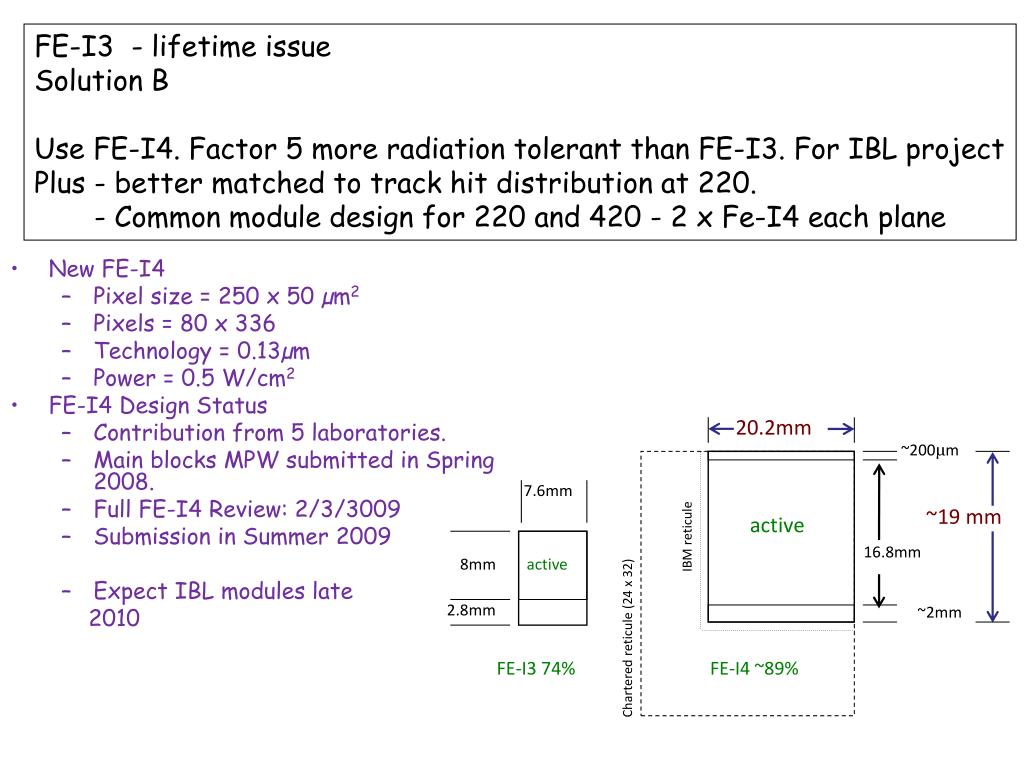

FE-I3 - lifetime issue

Solution B

Use FE-I4. Factor 5 more radiation tolerant than FE-I3. For IBL project

Plus - better matched to track hit distribution at 220.

- Common module design for 220 and 420 - 2 x Fe-I4 each plane

20.2mm

~200μm

7.6mm

~19 mm

active

IBM reticule

16.8mm

8mm

active

2.8mm

~2mm

Chartered reticule (24 x 32)

FE-I3 74%

FE-I4 ~89%

  • New FE-I4
    • Pixel size = 250 x 50 µm2
    • Pixels = 80 x 336
    • Technology = 0.13µm
    • Power = 0.5 W/cm2
  • FE-I4 Design Status
    • Contribution from 5 laboratories.
    • Main blocks MPW submitted in Spring 2008.
    • Full FE-I4 Review: 2/3/3009
    • Submission in Summer 2009
    • Expect IBL modules late

2010

slide7

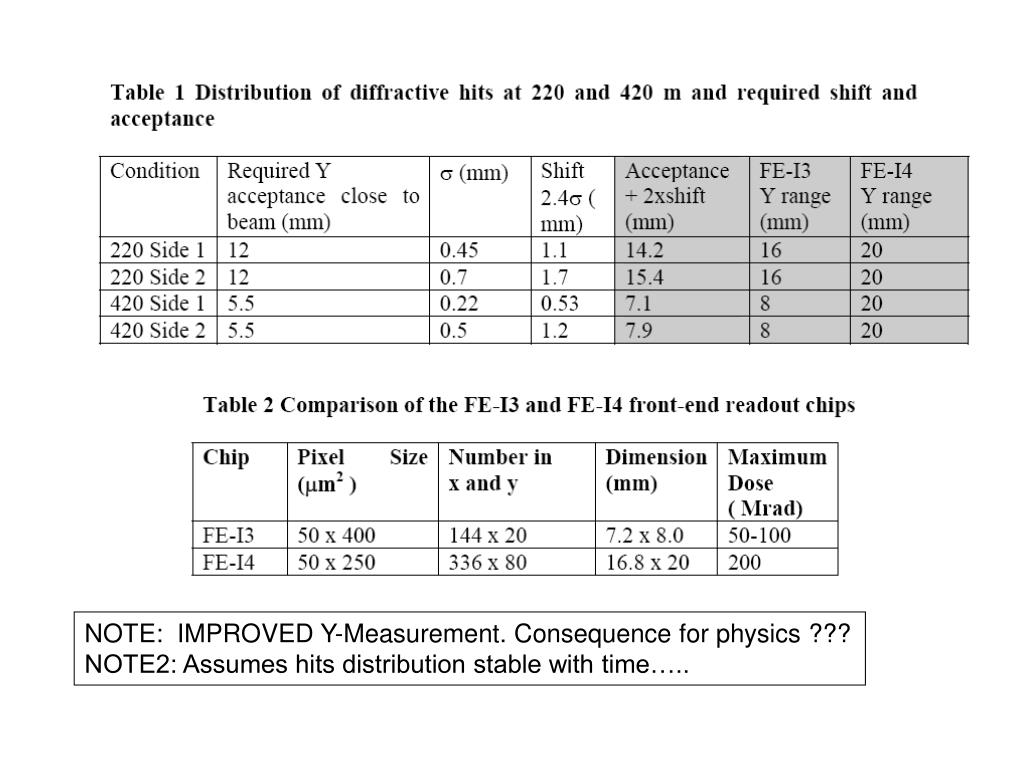

NOTE: IMPROVED Y-Measurement. Consequence for physics ???

NOTE2: Assumes hits distribution stable with time…..

slide8

FE-I3 versus FE-I4

  • FE-I3 run had very poor yield. There will be another run in 2010.
  • FE-I4 First run will produce chips in summer/Autumn 2010
  • ASIC designs always take more than one iteration.
  • FE-I4 3D sensor is larger and thus yields will be lower.
  • Conclusion
  • FE-I4 baseline. There will be 3D/FE-I4 detectors developed for IBL.
  • Mechanics/electronics engineers to look at FE-I4 design.
  • FE-I4 - common 220/420 mechanics design
