slide1

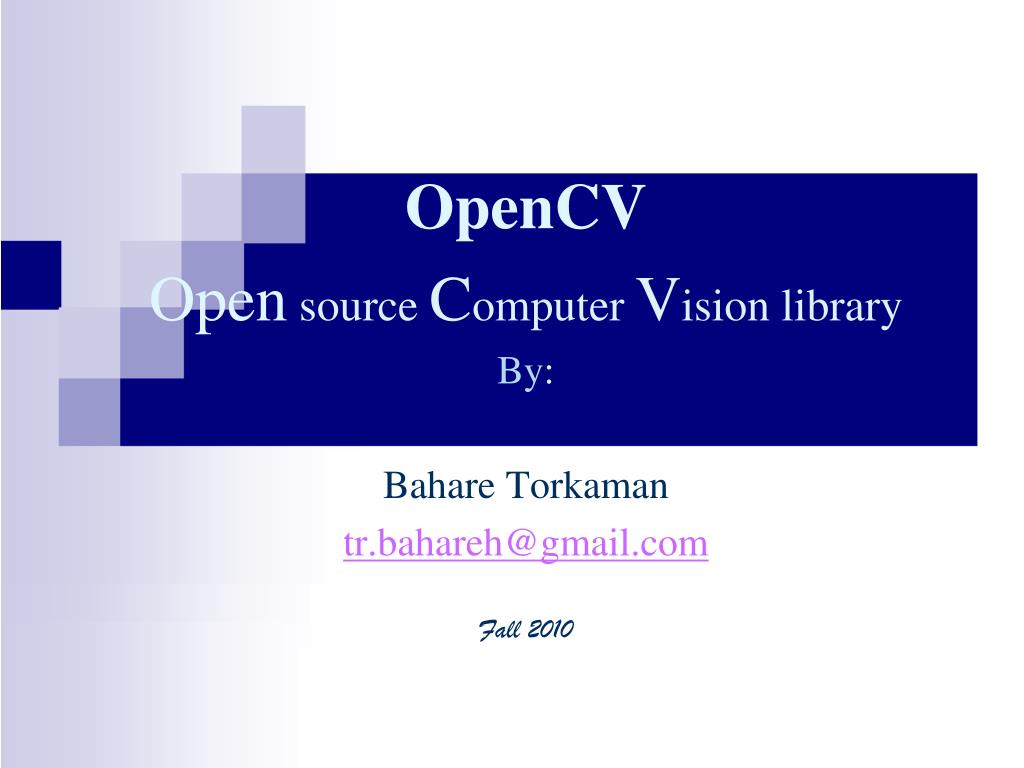

OpenCV

Open source Computer Vision library

By:

BahareTorkaman

tr.bahareh@gmail.com

Fall 2010

slide2

General description

    • Open source computer vision library in C/C++
    • Highlevelfunctions for computer vision and image processing
    • Both low and high level API
    • Optimized and intended for real-time applications
  • OpenCVmodules:
    • cv - Main OpenCV functions.
    • cvaux - Auxiliary (experimental) OpenCV functions.
    • cxcore - Data structures and linear algebra support.
    • highgui - GUI functions.
slide3

Resources

  • Official webpage: http://www.intel.com/technology/computing/opencv/
    • Software download: http://sourceforge.net/projects/opencvlibrary/
    • Books:
    • Learning OpenCV by Gary R. Bradski and Adrian Pisarevsky, O’Reilly (September 2008: First Edition)
slide4

Other webpages:

http://www.cs.iit.edu/~agam/cs512/lect-notes/opencv-intro/opencv-intro.html

http://www.site.uottawa.ca/~laganier/tutorial/opencv+directshow/cvision.htm

http://opencv.willowgarage.com/documentation/cpp/index.html

http://www.seas.upenn.edu/~bensapp/opencvdocs/ref/opencvref_cv.htm

http://tech.groups.yahoo.com/group/OpenCV/messages

http://opencv.willowgarage.com/wiki/

http://www.aishack.in/2010/02/capturing-images/

http://www.site.uottawa.ca/~laganier/tutorial/opencv+directshow/

http://www.sharifi.id.ir/2010/08/opencv-1.html

slide5

Installation

OpenCV-2.1.0-win32-vs2008

slide21

Add library

cv210.lib cvaux210.lib cxcore210.lib cxts210.lib highgui210d.lib ml210d.lib opencv_ffmpeg210d.lib cv210d.lib cvaux210d.lib cxcore210d.lib highgui210.lib ml210.lib opencv_ffmpeg210.lib

slide22

Tools  options  project and solutions  vc++ directories 

    • executable files  C:\OpenCV2.1\bin
    • Include files  C:\OpenCV2.1\include\opencv
    • Library files  C:\OpenCV2.1\lib
  • File  new project  win32  win32 console application  application settings empty project … project  add new item  c++ file(.cpp)
  • Project  properties configuration properties  linker  input  additional dependencies 
  • cv210.lib cvaux210.lib cxcore210.lib cxts210.lib highgui210d.lib ml210d.lib opencv_ffmpeg210d.lib cv210d.lib cvaux210d.lib cxcore210d.lib highgui210.lib ml210.lib opencv_ffmpeg210.lib
slide23

Load a picture

#include <cv.h>

#include <highgui.h>

int main()

{

IplImage* img = cvLoadImage("C:\\orangeman.jpg");

cvNamedWindow("Original");

cvShowImage("Original", img);

// We add processing code here

cvWaitKey(0);

cvReleaseImage(&img);

return 0;

}

Load video

Load camera

cut a piece of image

slide24

#include <cv.h>

#include <highgui.h>

#include <cxcore.h>

IplImage*frame = 0,*flip=0;

intmain()

{

CvCapture* capture = 0;

capture = cvCaptureFromFile("C:\\cap2.avi");

if(!capture)

{

printf("Could not initialize capturing...\n");

return -1;

}

while(true)

{IplImage* frame = 0;

frame = cvQueryFrame(capture);

if(!frame)

break;

cvShowImage("video", frame);

//cvFlip(frame,flip,0);

cvShowImage("flip", frame);

int c = cvWaitKey(20);

if((char)c==27 )

break;

}

cvReleaseCapture(&capture);

return 0;

}

Load a picture

Load video

Load camera

cut a piece of image

slide25

#include <stdio.h>

#include "cv.h"

#include "highgui.h"

IplImage *frame = 0,*capture= 0;

int main( intargc, char **argv )

{

CvCapture*capture =cvCreateCameraCapture(-1);

IplImage *img;

while(1)

{

img=cvQueryFrame(capture);

if(!img)break;

cvShowImage("Original", img);

char c=cvWaitKey(33);

if(c==27) break;

}

cvReleaseCapture(&capture);

cvDestroyWindow("Original");

return 0;

}

Load a picture

Load video

Load camera

cut a piece of image

slide26

#include <cv.h>

#include <highgui.h>

#include <cxcore.h>

intmain()

{

CvCapture* capture = 0;

capture = cvCaptureFromCAM(0);

while(true)

{

IplImage* frame = 0;

frame = cvQueryFrame(capture);

if(!frame)

break;

cvShowImage("video", frame);

cvSetImageROI( frame, cvRect( 10,60, 100,200 ) );

IplImage *img2 = cvCreateImage

(cvGetSize(frame),frame->depth,frame->nChannels);

cvCopy( frame, img2 );

cvShowImage("video2", img2);

cvResetImageROI( frame );

intc = cvWaitKey(20);

if((char)c==27 )

break;

}

cvReleaseCapture(&capture);

return 0;

}

Load a picture

Load video

Load camera

cut a piece of image

slide27

IplImage

  • This structure, called IplImage
  • OpenCV uses this structure to handle all kinds of images: single-channel, multichannel, integer-valued, floating-point-valued, et cetera.

cvLoadImage()

  • is a high-level routine
  • determines the file format to be loaded based on the file name
  • automatically allocates the memory needed for the image data structure
  • can read a wide variety of image formats: BMP,DIB,JPEG, JPE,PNG,PBM,PGM,PPM,SR,RAS, and TIFF
slide28

cvNamedWindow()

  • Opens a window on the screen that can contain and display an image
  • provided by the HighGUIlibrary
  • Assigns a name to the window
  • The second argument to cvNamedWindow() defines window properties
    • 0 (the default value) : size of the window ↔ image size
                  • image will be scaled to fit within the window
    • CV_WINDOW_AUTOSIZE :
      • the window will expand or contract automatically when an image is loaded so as to accommodate the image’s true size
      • image in the form of an IplImage* pointer
slide29

cvShowImage()

  • The cvShowImage() function requires that a named window already exist (created by cvNamedWindow())

cvWaitKey(0)

  • asks the program to stop and wait for a keystroke
  • argument:
    • positive : the program will wait for that number of milliseconds and then continue even if nothing is pressed
    • Zero or negative: the program will wait indefinitely for a keypress
slide30

cvReleaseImage( &img )

  • OpenCVexpects a pointer to the IplImage* pointer for this operation
  • After the call is completed, the pointer img will be set to NULL
  • free the allocated memory

cvDestroyWindow()

  • close the window
  • de-allocate any associated memory usage

cvReleaseCapture(&capture)

  • free the memory associated with the CvCapture structure
  • close any open file handles to the AVI file
slide31

cvQueryFrame()

  • cvQueryFrame() takes as its argument a pointer to a CvCapture structure
  • grabs the next video frame into memory (memory that is actually part of the CvCapture structure)

cvCreateCameraCapture (int index)

  • index:
    • If there is only one camera or it does not matter what camera to use -1 may be passed
    • this is important only when multiple cameras are available
slide32

cvFlip

  • Flip an array about a selected axis, around the x-axis, the y-axis, or both
  • the argument flip_mode is set to:
    • 0: image will be flipped around the x-axis
    • positive: image will be flipped around the y-axis
    • negative: image will be flipped around both axis

cvSetImageROI

  • cvSetImageROI(src1, cvRect(x,y,width,height));
  • Given a rectangular subregion of interest
  • “turn off ” by cvResetImageROI()
slide33

cvSetImageROI

Int height

(int x, int y)

Int width

slide34

cvCopy

  • void cvCopy(const CvArr* src,CvArr* dst,constCvArr* mask = NULL);
  • Copy elements of one array to another
  • The cvCopy() function expects both arrays to have the same type, the same size, and the same number of dimensions

cvGetSize

  • cvGetSize (const CvArr* arr )
  • Get size of a two-dimensional array and return as CvSize
slide36
