PHY203: Thermal Physics Topic 4: Second Law of Thermodynamics

1. PHY203: Thermal Physics Topic 4: Second Law of Thermodynamics • Heat Engines • Statements of the Second Law (Kelvin, Clausius) • Carnot Cycle • Efficiency of a Carnot engine • Carnot’s theorem • Introduction to idea of entropy • Entropy as a function of state • Entropy form of second law • Example calculations

2. Engine W Heat Engines • Heat engines operate in a cycle, converting heat to work then returning to original state at end of cycle. • A gun (for example) converts heat to work but isn’t a heat engine because it doesn’t operate in a cycle. • In each cycle the engine takes in heat Q1 from a “hot reservoir”, converts some of it into work W, then dumps the remaining heat (Q2) into a “cold reservoir” HOT Q1 Q2 COLD

3. Definition: HOT Q1 Engine W Q2 COLD Efficiency of a heat engine • Because engine returns to original state at the end of each cycle, U(cycle) = 0, so W = Q1 - Q2 • Thus:

4. Efficiency of a heat engine • According to the first law of thermodynamics (energy conservation) you can (in principle) make a 100% efficient heat engine. • BUT…………. • The second law of thermodynamics says you can’t:

5. Kelvin Statement of Second Law: “No process is possible whose SOLE RESULT is the complete conversion of heat into work”  William Thomson, LordKelvin (1824-1907)

6. Q WARM WARM Q COLDER HOTTER Heat flow COLD HOT Both processes opposite are perfectly OK according to First Law (energy conservation) But we know only one of them would really happen – Second Law COLD HOT

7. Clausius Statement of Second Law: “No process is possible whose SOLE RESULT is the net transfer of heat from an object at temperature T1 to another object at temperature T2, if T2 > T1” Rudolf Clausius (1822-1888)

8. How to design a “perfect” heat engine • Don’t waste any work • So make sure engine operates reversibly (always equilibrium conditions, and no friction). • Don’t waste any heat • So make sure no heat is used up changing the temperature of the engine or working substance, ie ensure heat input/output takes place isothermally  Sadi Carnot (1796-1832)

9. Hot Source Q T 1 1 The Carnot Cycle (I): isothermal expansion Gas Working substance (gas) expands isothermallyattemperature T1, absorbing heat Q1 from hot source. T1 Piston a b

10. b c The Carnot Cycle (II): adiabatic expansion Gas isolated from hot source, expands adiabaticallyand temperature falls from T1to T2. Gas Gas isolated from hot source, expands adiabatically, and temperature falls from T1toT2 Piston

11. 3) isothermally Gas is compressed T at temperature expelling heat Cold 2 Q to cold sink. Sink 2 T Q 2 2 The Carnot Cycle (III): isothermal compression Gas is compressed isothermally at temperature T2expelling heat Q2 to cold sink. Gas T2 d Piston c

12. The Carnot Cycle (IV): adiabatic compression Gas is compressed adiabatically, temperature rises from T2 to T1 and the piston is returned to its original position. Work done is the shaded area. Gas Gas is compressed adiabatically, temperature rises from T2to T1 and the piston is returned to its original position. The work done per cycle is the shaded area. a d Piston

13. Efficiency of ideal gas Carnot engine • We can calculate the efficiency using our knowledge of the properties of ideal gases

14. Isothermal expansion (ideal gas)

15. Isothermal compression (ideal gas)

16. Efficiency of ideal gas Carnot engine Adiabatic processes

17. Can you do better than a Carnot? HOT Q3 Q1 “Super Carnot” W W Carnot Q4 Q2 COLD

18. Engine Engine A Carnot engine is reversible…….. HOT HOT Q1 Q1 W W Q2 Q2 COLD COLD …..so you can drive it backwards

19. Drive Carnot backwards with work output from “Super Carnot” • Heat leaving hot reservoir =Q3 – Q1, which is negative • So, net heat enters the hot reservoir • Since the composite engine is an isolated system, this heat can only have come from the cold reservoir • Net result, transfer of heat from cold body to hot body, FORBIDDEN BY CLAUSIUS STATEMENT OF SECOND LAW HOT Q3 Q1 W “Super Carnot” Carnot Q4 Q2 COLD

20. Carnot’s Theorem: • “No heat engine operating between a hot (Th) and a cold (Tc) reservoir can be more efficient than a Carnot engine operating between reservoirs at the same temperatures” • It follows, by exactly the same argument, that ALL Carnot engines operating between reservoirs at same Tc, Th, are equally efficient (ie independent of “working substance”) – our ideal gas result holds for all Carnot Cycles HOT Q3 Q1 W “Super Carnot” Carnot Q4 Q2 COLD

21. So…….. For all Carnot Cycles, the following results hold: Conservation of “Q/T” What about more general cases?????

22. The expression Was derived from expressions for efficiency, where only the magnitude of the heat input/output matters. If we now adopt the convention that heat input is positive, and heat output is negative we have:

23. Q3 Q1 Q2 Q4 Arbitrary reversible cycle Arbitrary reversible cycle can be built up from tiny Carnot cycles (CCs) For 2 CCs shown: For whole reversible cycle: In infinitesimal limit, Q→dQ, → ,fit to cycle becomes exact: For anyreversible cycle:

24. Entropy To emphasise the fact that the relationship we have just derived is true for reversible processes only, we write: We now introduce a new quantity, called ENTROPY(S) Entropy is conserved for a reversible cycle

25. Is entropy a function of state? For whole cycle: Reversible cycle B P path1 path2 A V Entropy change is path independent → entropy is a thermodynamic function of state

26. Example calculation: Calculate the entropy change of a 10g ice cube at an initial temperature of -10°C, when it is reversibly heated to completely form liquid water at 0°C…….. Specific heat capacity of ice = 2090 J kg-1K-1 Specific latent heat of fusion for water = 3.3105 J kg-1

27. Irreversible Engine Irreversible processes Carnot Engine For irreversible case:

28. Irreversible processes Following similar argument to that for arbitrary reversible cycle: For irreversible cycle Irreversible cycle B P Path 1 (irreversible) Path 2 (reversible) A V

29. Irreversible processes General Case Equality holds for reversible change, inequality holds for irreversible change

30. “Entropy statement” of Second Law We have shown that: For a thermally isolated (or completely isolated) system, dQ = 0 “The entropy of an isolated system cannot decrease”

31. What is an “isolated system” The Universe itself is the ultimate “isolated system”, so you sometimes see the second law written: “The entropy of the Universe cannot decrease” (but it can, in principle, stay the same (for a reversible process)) It’s usually a sufficiently good enough approximation to assume that a given system, together with its immediate surroundings constitute our “isolated system” (or universe)………

32. Entropy changes: a summary For a reversible cycle: S(system) = S(surroundings) = 0 S(universe) = S(system) + S(surroundings) = 0 For a reversible change of state (A→B): S(system) = -S(surroundings) = not necessarily 0 S(universe) = S(system) + S(surroundings) = 0 For an irreversible cycle S(system) = 0; S(surroundings) > 0 For a irreversible change of state (A→B): S(system) ≠ - S(surroundings) S(universe) = S(system) + S(surroundings) > 0

33. Example: entropy changes in a Carnot Cycle

34. Entropy calculations for irreversible processes • Suppose we add or remove heat in an irreversible way to our system, changing state from A to B • At first sight we might think it’s a problem to use the relation: • However, because S is a function of state, S for the change of state must be the same for all paths, reversible or not. • So, we can “pretend” the heat required to produce the given change of state was added or removed reversibly and use the formula anyway! • BUT… the entropy change of the surroundings must be different for the reversible (S(universe)=0) and irreversible (S(universe)>0) cases.

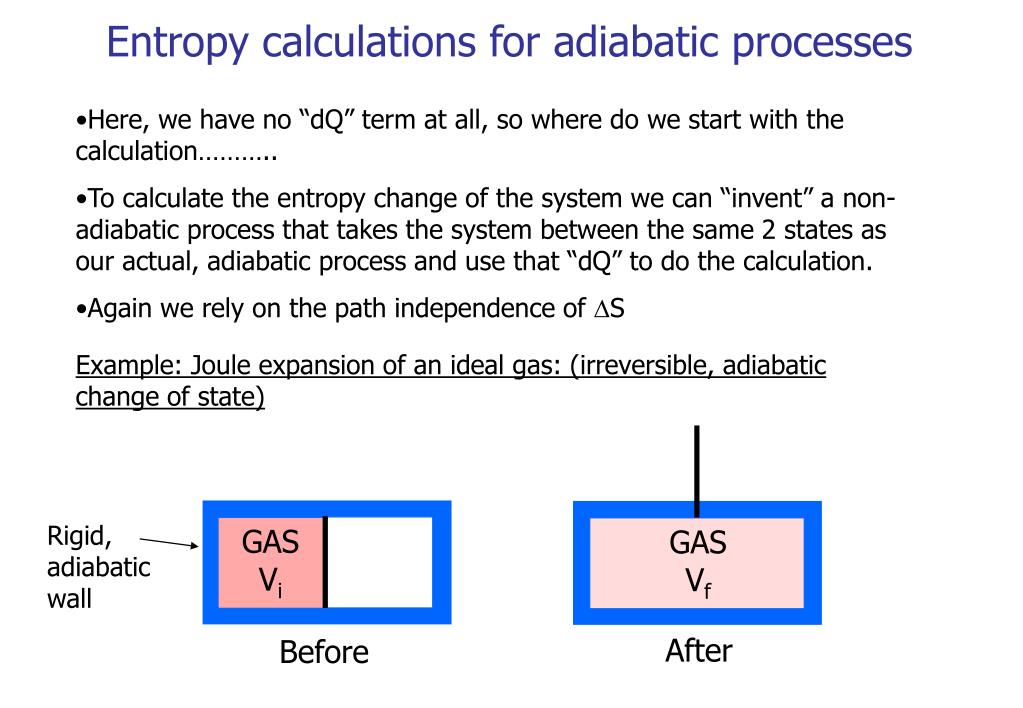

35. Rigid, adiabatic wall GAS Vi GAS Vf After Before Entropy calculations for adiabatic processes • Here, we have no “dQ” term at all, so where do we start with the calculation……….. • To calculate the entropy change of the system we can “invent” a non-adiabatic process that takes the system between the same 2 states as our actual, adiabatic process and use that “dQ” to do the calculation. • Again we rely on the path independence of S • Example: Joule expansion of an ideal gas: (irreversible, adiabatic change of state)

36. Rigid, adiabatic wall GAS Vi GAS Vf After Before Joule expansion of an ideal gas • For this process, U(gas)=0 • For ideal gas, U is a function of T only, so T = 0 • So, our “model” process is a reversible, isothermal expansion from Vi to Vf (S(gas) = nRln(Vf/Vi), see Carnot cycle calculation) • But, for Joule expansion, S(universe) = S(gas): gas is an isolated system • For reversible isothermal expansion, S(surroundings) =-nRln(Vf/Vi), S(universe) = 0

37. Some past (part) exam questions…. • A copper block of heat capacity 150J/K, at an initial temperature of 60°C is placed in a lake at a temperature of 10°C. Calculate the entropy change of the universe as a result of this process • A thermally insulated 20 resistor carries a current of 10A for 1 second. The initial temperature of the resistor is 10C, its mass is 5x10-3kg, and its heat capacity is 850 Jkg-1K-1. Calculate the entropy change in a) the resistor and b) the universe.
