  1. Triana Single Design Review TRIANA COMPUTATION HUB Quang Nguyen/Code 561 NASA/Goddard Space Flight Center Computation Hub Triana SDR June 7 - 9, 1999

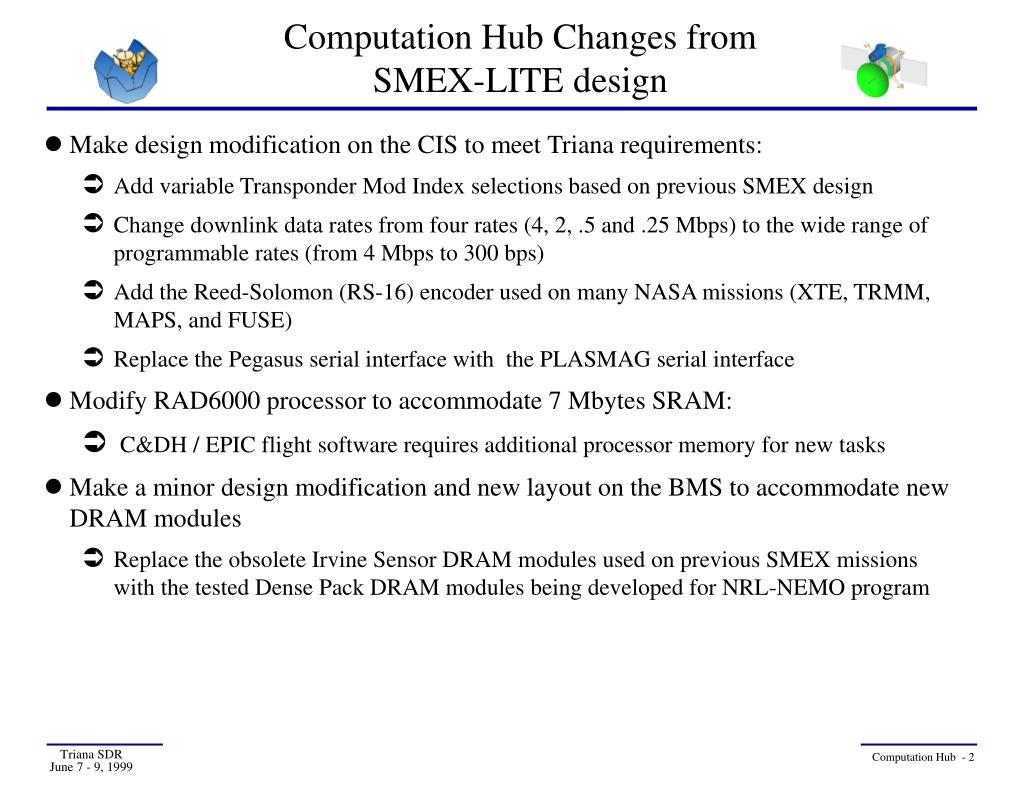

  2. Computation Hub Changes from SMEX-LITE design • Make design modification on the CIS to meet Triana requirements: • Add variable Transponder Mod Index selections based on previous SMEX design • Change downlink data rates from four rates (4, 2, .5 and .25 Mbps) to the wide range of programmable rates (from 4 Mbps to 300 bps) • Add the Reed-Solomon (RS-16) encoder used on many NASA missions (XTE, TRMM, MAPS, and FUSE) • Replace the Pegasus serial interface with the PLASMAG serial interface • Modify RAD6000 processor to accommodate 7 Mbytes SRAM: • C&DH / EPIC flight software requires additional processor memory for new tasks • Make a minor design modification and new layout on the BMS to accommodate new DRAM modules • Replace the obsolete Irvine Sensor DRAM modules used on previous SMEX missions with the tested Dense Pack DRAM modules being developed for NRL-NEMO program Triana SDR June 7 - 9, 1999

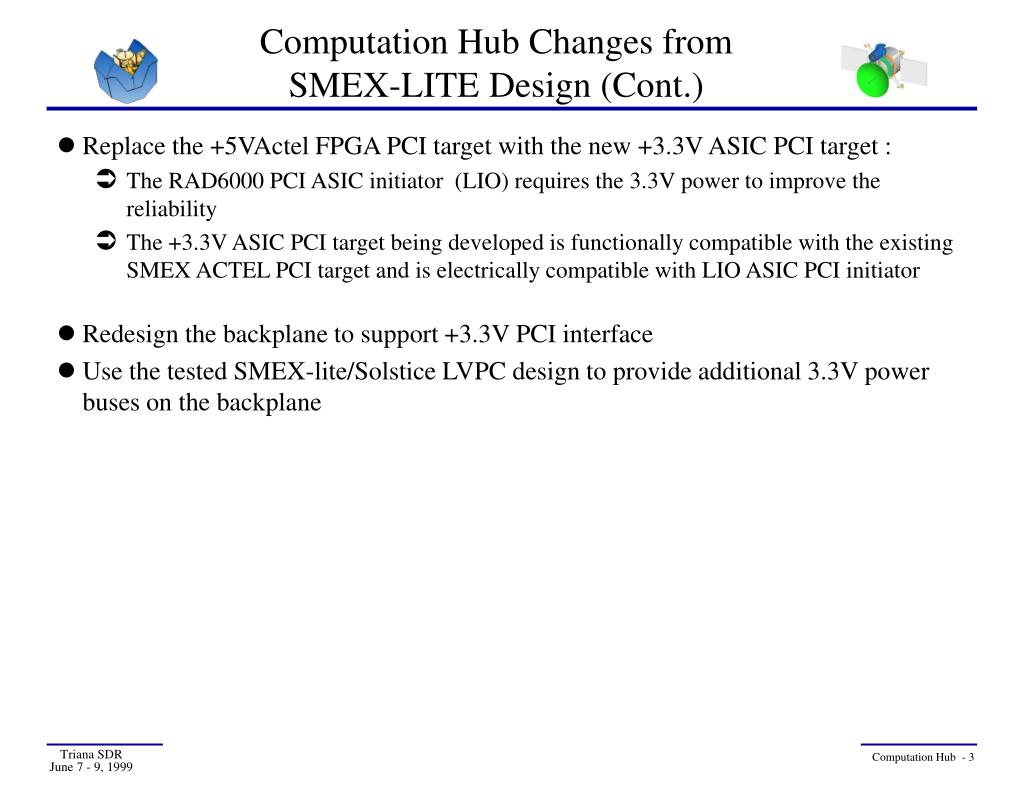

  3. Computation Hub Changes from SMEX-LITE Design (Cont.) • Replace the +5VActel FPGA PCI target with the new +3.3V ASIC PCI target : • The RAD6000 PCI ASIC initiator (LIO) requires the 3.3V power to improve the reliability • The +3.3V ASIC PCI target being developed is functionally compatible with the existing SMEX ACTEL PCI target and is electrically compatible with LIO ASIC PCI initiator • Redesign the backplane to support +3.3V PCI interface • Use the tested SMEX-lite/Solstice LVPC design to provide additional 3.3V power buses on the backplane Triana SDR June 7 - 9, 1999

  4. Computation Hub Implementation • Make necessary changes to existing SMEX-LITE Computation Hub design for Triana requirements • Use EEE parts from SMEX-LITE inventory • Provide technical support to Triana instrument design teams • GFE flight boards and subsystems to Triana instrument teams: • LM - EPIC Computer Hub • Flight RAD 6000 • Flight Memory and 1553 Summit card • Flight EPIC Camera Interface card • Flight LVPC • Flight backplane • Flight enclosure • PCI ASIC target and user interface design • Computation Hub documentation • Spacecraft simulator for software/hardware development • Ball - NISTAR • Flight RAD 6000 • Flight Memory and 1553 Summit card • Computation Hub documentation • Spacecraft simulator for software/hardware development Triana SDR June 7 - 9, 1999

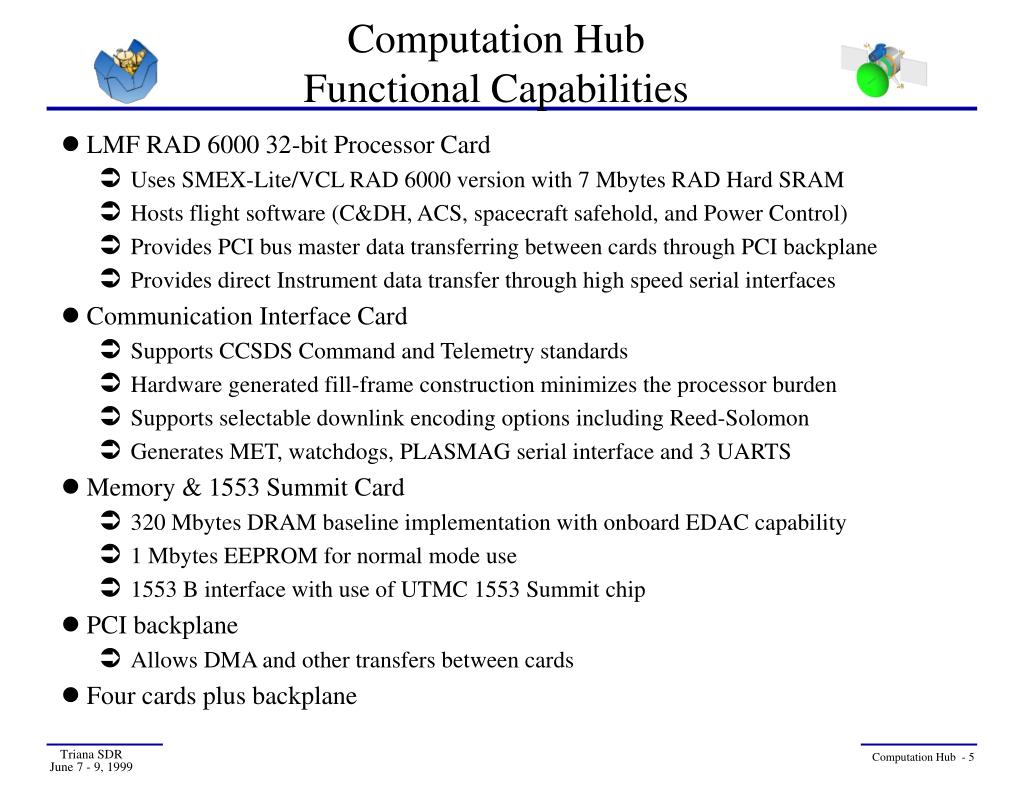

  5. Computation Hub Functional Capabilities • LMF RAD 6000 32-bit Processor Card • Uses SMEX-Lite/VCL RAD 6000 version with 7 Mbytes RAD Hard SRAM • Hosts flight software (C&DH, ACS, spacecraft safehold, and Power Control) • Provides PCI bus master data transferring between cards through PCI backplane • Provides direct Instrument data transfer through high speed serial interfaces • Communication Interface Card • Supports CCSDS Command and Telemetry standards • Hardware generated fill-frame construction minimizes the processor burden • Supports selectable downlink encoding options including Reed-Solomon • Generates MET, watchdogs, PLASMAG serial interface and 3 UARTS • Memory & 1553 Summit Card • 320 Mbytes DRAM baseline implementation with onboard EDAC capability • 1 Mbytes EEPROM for normal mode use • 1553 B interface with use of UTMC 1553 Summit chip • PCI backplane • Allows DMA and other transfers between cards • Four cards plus backplane Triana SDR June 7 - 9, 1999

  6. TRIANA PROCESSOR Main Memory EEPROM EPIC computer High Speed Serial IF SUROM RAD6000 OSC Timer/Time-Out Intr/Discretes Local I/O Interfaces RS232 Hardware Test IF PCI Local Bus JTAG Downlink I/F 320 Mbytes DRAM 1 Mbytes EEPROM 1553B Uplink I/F Uplink Downlink MET UARTS HW CMD +5V & 3.3V ONLY To Mag_Plasma UART 1 UARTS LVPC Communication I/F card Memory & 1553 Sum card 1553b BUS 1553 A 1553 B Lockheed Martin Design ( one card) SMEX Designs ( three cards) TRIANA COMPUTATION HUB TOP LEVEL BLOCK Triana SDR June 7 - 9, 1999

  7. TRIANA COMPUTATION HUB FUNCTIONAL REQUIREMENTS (1) • Transponder interface for telemetry and command links • CCSDS COP-1 uplink command decoding 2 Kbps • CCSDS downlink telemetry encoding • Hardware generation of CCSDS telemetry fill frames • Spacecraft clock, time distribution, and synchronization • EPIC Science data collection over high speed serial interface • 5 Mbps (max.) data rate • RS-422 electrical interface • Bulk telemetry data storage with EDAC • 256 Mbytes science data + 64 Mbytes EDAC = 320 Mbytes total Triana SDR June 7 - 9, 1999

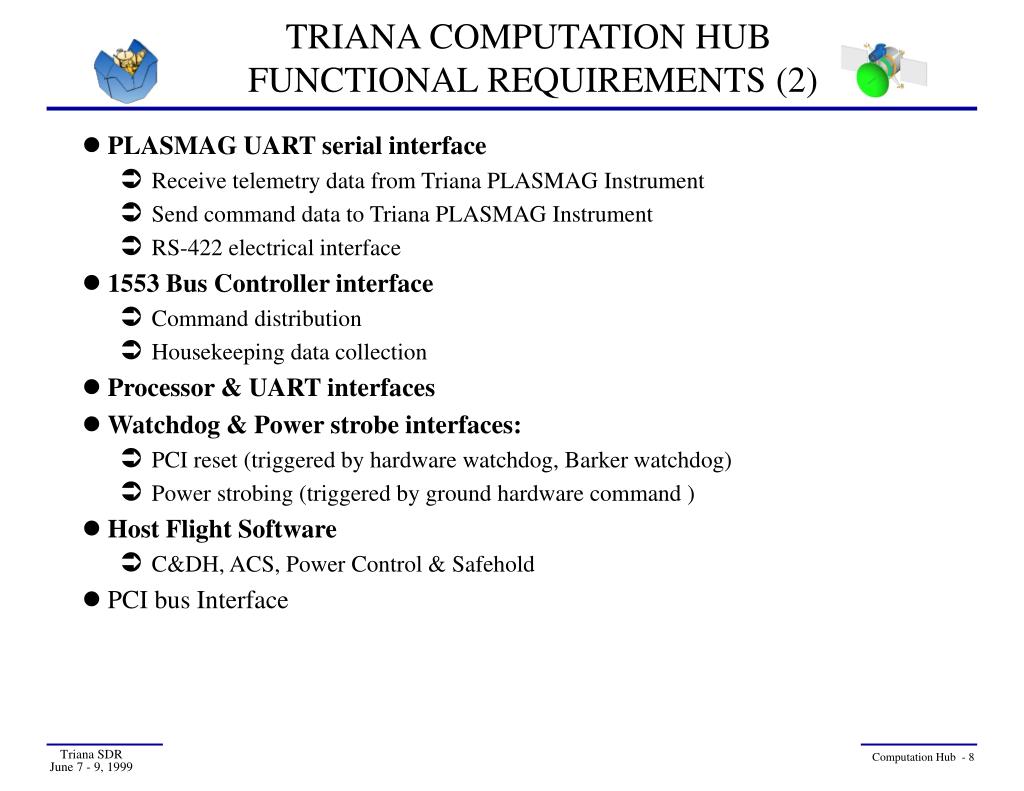

  8. TRIANA COMPUTATION HUB FUNCTIONAL REQUIREMENTS (2) • PLASMAG UART serial interface • Receive telemetry data from Triana PLASMAG Instrument • Send command data to Triana PLASMAG Instrument • RS-422 electrical interface • 1553 Bus Controller interface • Command distribution • Housekeeping data collection • Processor & UART interfaces • Watchdog & Power strobe interfaces: • PCI reset (triggered by hardware watchdog, Barker watchdog) • Power strobing (triggered by ground hardware command ) • Host Flight Software • C&DH, ACS, Power Control & Safehold • PCI bus Interface Triana SDR June 7 - 9, 1999

  9. TRIANA PROCESSOR Main Memory EEPROM EPIC computer High Speed Serial IF SUROM RAD6000 OSC Timer/Time-Out Intr/Discretes Local I/O Interfaces RS232 Hardware Test IF PCI Local Bus JTAG Downlink I/F 320 Mbytes DRAM 1 Mbytes EEPROM 1553B Uplink I/F Uplink Downlink MET UARTS HW CMD +5V & 3.3V ONLY PLASMAG TLM/CMD UART LVPC Communication I/F card Memory & 1553 Sum card 1553b BUS 1553 A 1553 B Lockheed Martin Design ( one card) SMEX Designs ( three cards) TRIANA COMPUTATION HUB TOP LEVEL BLOCK Triana SDR June 7 - 9, 1999

  10. FLIGHT PROCESSOR CARD • Side A: Side B: S/N 001 Triana SDR June 7 - 9, 1999

  11. EEPROM 1 Mbytes SUROM 64Kbytes UART-RS422 H/W Test IF TRIANA FLIGHT PROCESSOR TOP LEVEL BLOCK Main Memory 7 Mbytes RHSRAM Pipeline Control Unit RAD6000 Fixed Point Unit I/O Sequencer Unit Floating Point Unit Fetch/Instruction Buff Unit Cache Unit (8K) Memory Interface Unit w/ EDAC Address Translation Unit 20 Mhz OSC SUROM Control Function LIO Timer/Time-Out Interrupt Collection & Reporting Function Local Memory Address & Control Function Intr/Discretes UART Interface Function Interrupts/Discretes Function JTAG Master Function Clocks & Timers Function High Speed Serial IF(QHSS) Proc Avail Seq Function RS-422 Reset Control Chip Test/Diags Functions PCI Bridge Function PCI Master/Central Arbiter +5V DC JTAG +3.3 V DC PCI Local Bus Computation Hub Backplane Triana SDR June 7 - 9, 1999

  12. PCI Industry Standard Interface Any qualified PCI component will interface to TRIANA Comp-Hub Future upgrade path to any PCI Master processor w/out ripple through system interfaces Delivers RAD-hard performance needed to accommodate additional software requirements Boot mode safehold, power control Processor hardware debug environment available off-the-shelf RISCwatch, JTAG, VMETRO PCI Bus Analyzers Real Time Multi-tasking Kernel support VxWorks Operating System Flight Processor Card (1) Triana SDR June 7 - 9, 1999

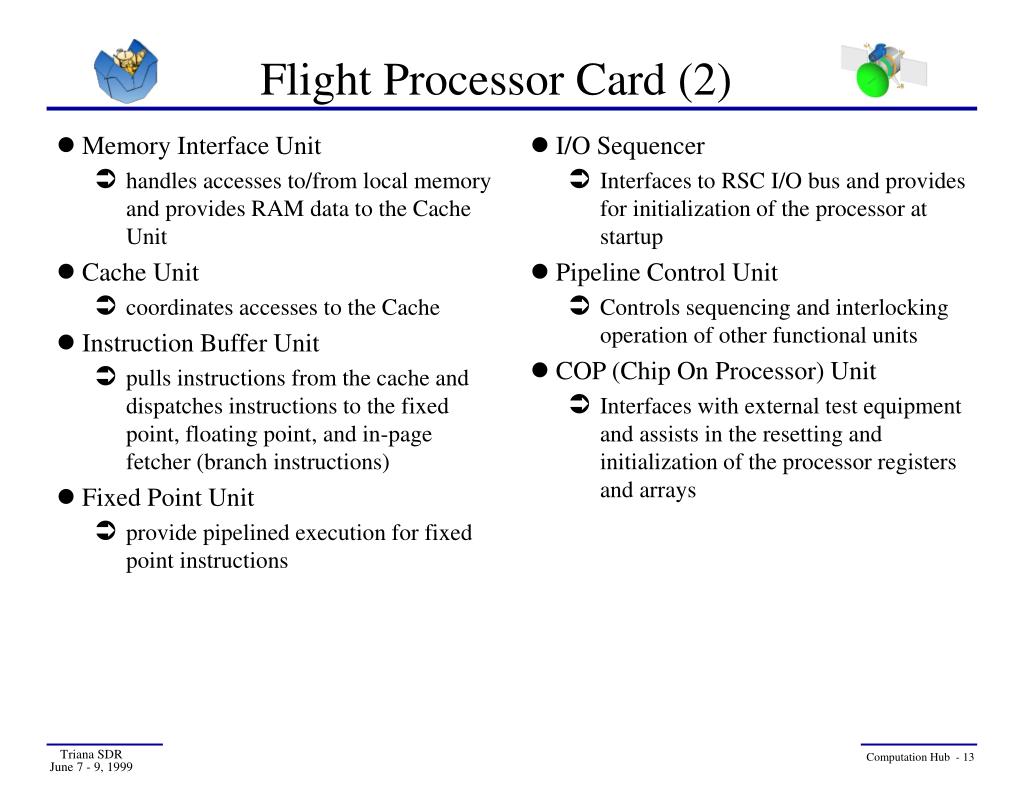

  13. Memory Interface Unit handles accesses to/from local memory and provides RAM data to the Cache Unit Cache Unit coordinates accesses to the Cache Instruction Buffer Unit pulls instructions from the cache and dispatches instructions to the fixed point, floating point, and in-page fetcher (branch instructions) Fixed Point Unit provide pipelined execution for fixed point instructions I/O Sequencer Interfaces to RSC I/O bus and provides for initialization of the processor at startup Pipeline Control Unit Controls sequencing and interlocking operation of other functional units COP (Chip On Processor) Unit Interfaces with external test equipment and assists in the resetting and initialization of the processor registers and arrays Flight Processor Card (2) Triana SDR June 7 - 9, 1999

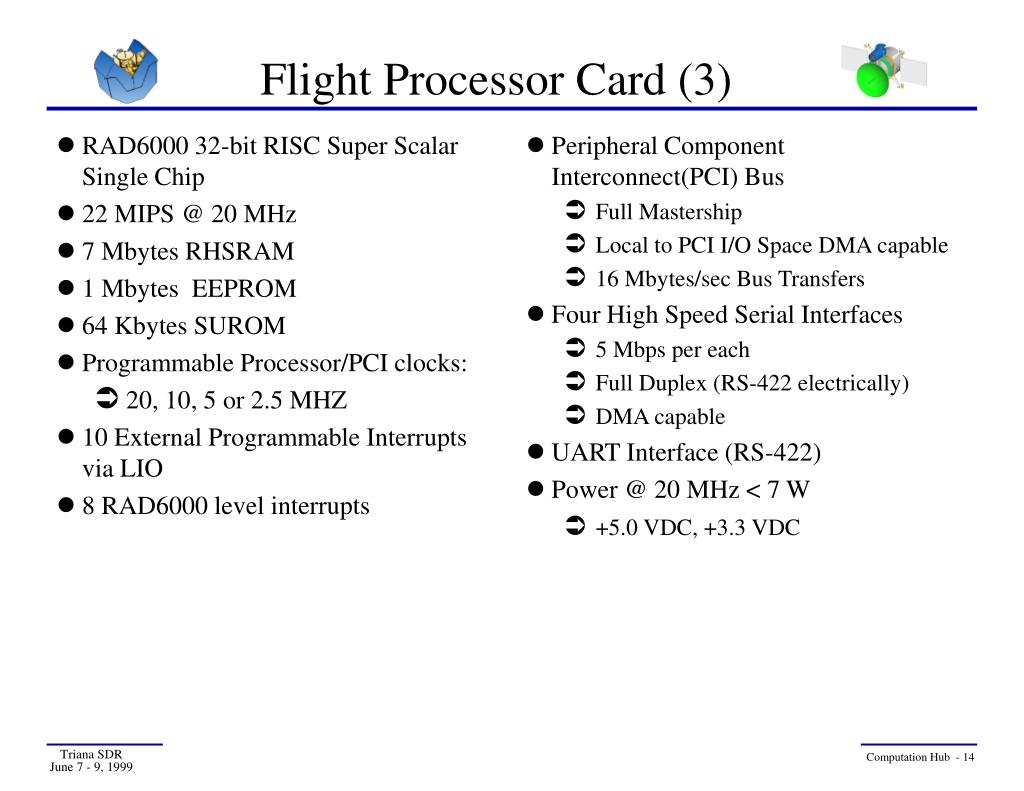

  14. RAD6000 32-bit RISC Super Scalar Single Chip 22 MIPS @ 20 MHz 7 Mbytes RHSRAM 1 Mbytes EEPROM 64 Kbytes SUROM Programmable Processor/PCI clocks: 20, 10, 5 or 2.5 MHZ 10 External Programmable Interrupts via LIO 8 RAD6000 level interrupts Peripheral Component Interconnect(PCI) Bus Full Mastership Local to PCI I/O Space DMA capable 16 Mbytes/sec Bus Transfers Four High Speed Serial Interfaces 5 Mbps per each Full Duplex (RS-422 electrically) DMA capable UART Interface (RS-422) Power @ 20 MHz < 7 W +5.0 VDC, +3.3 VDC Flight Processor Card (3) Triana SDR June 7 - 9, 1999

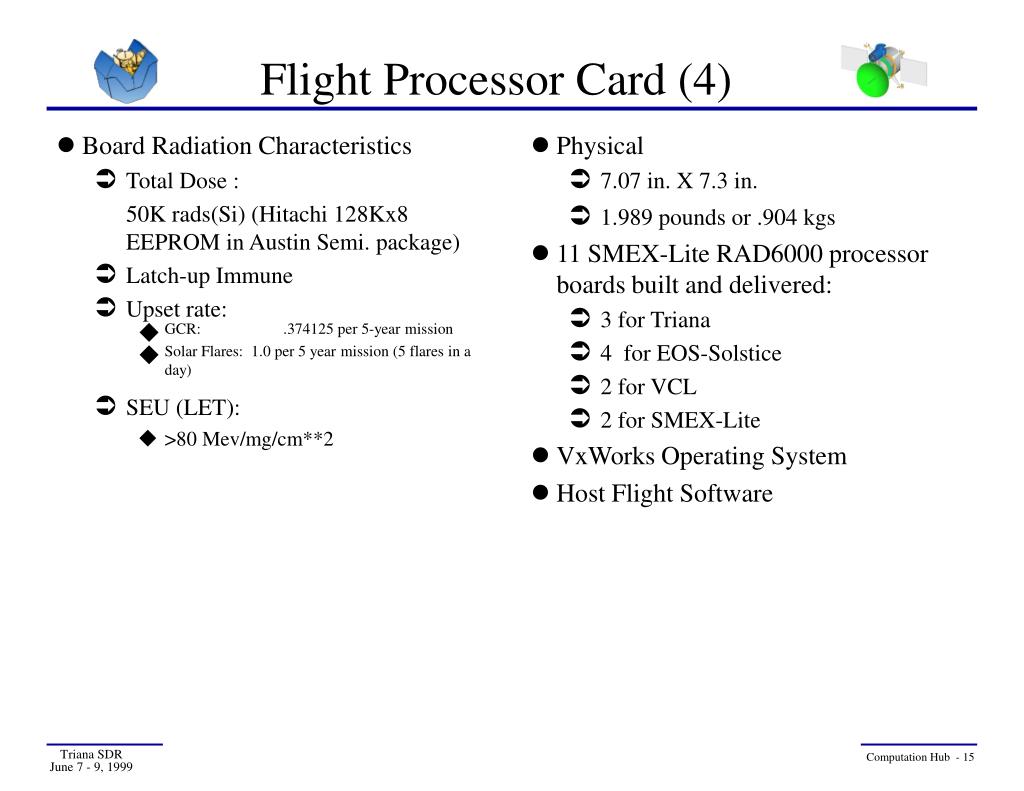

  15. Board Radiation Characteristics Total Dose : 50K rads(Si) (Hitachi 128Kx8 EEPROM in Austin Semi. package) Latch-up Immune Upset rate: GCR: .374125 per 5-year mission Solar Flares: 1.0 per 5 year mission (5 flares in a day) SEU (LET): >80 Mev/mg/cm**2 Physical 7.07 in. X 7.3 in. 1.989 pounds or .904 kgs 11 SMEX-Lite RAD6000 processor boards built and delivered: 3 for Triana 4 for EOS-Solstice 2 for VCL 2 for SMEX-Lite VxWorks Operating System Host Flight Software Flight Processor Card (4) Triana SDR June 7 - 9, 1999

  16. TRIANA PROCESSOR Main Memory EEPROM EPIC computer High Speed Serial IF SUROM RAD6000 OSC Timer/Time-Out Intr/Discretes Local I/O Interfaces UART-RS422 Hardware Test IF PCI Local Bus JTAG Downlink I/F Uplink I/F 320 Mbytes DRAM 1 Mbytes EEPROM 1553B Uplink Downlink MET UARTS HW CMD +5V & 3.3V ONLY To PLASMAG UART LVPC UART Communication I/F card Memory & 1553 Sum card 1553b BUS 1553 A 1553 B Lockheed Martin Design ( one card) SMEX Designs ( three cards) 6/6/96 TRIANA COMPUTATION HUB TOP LEVEL BLOCK Triana SDR June 7 - 9, 1999

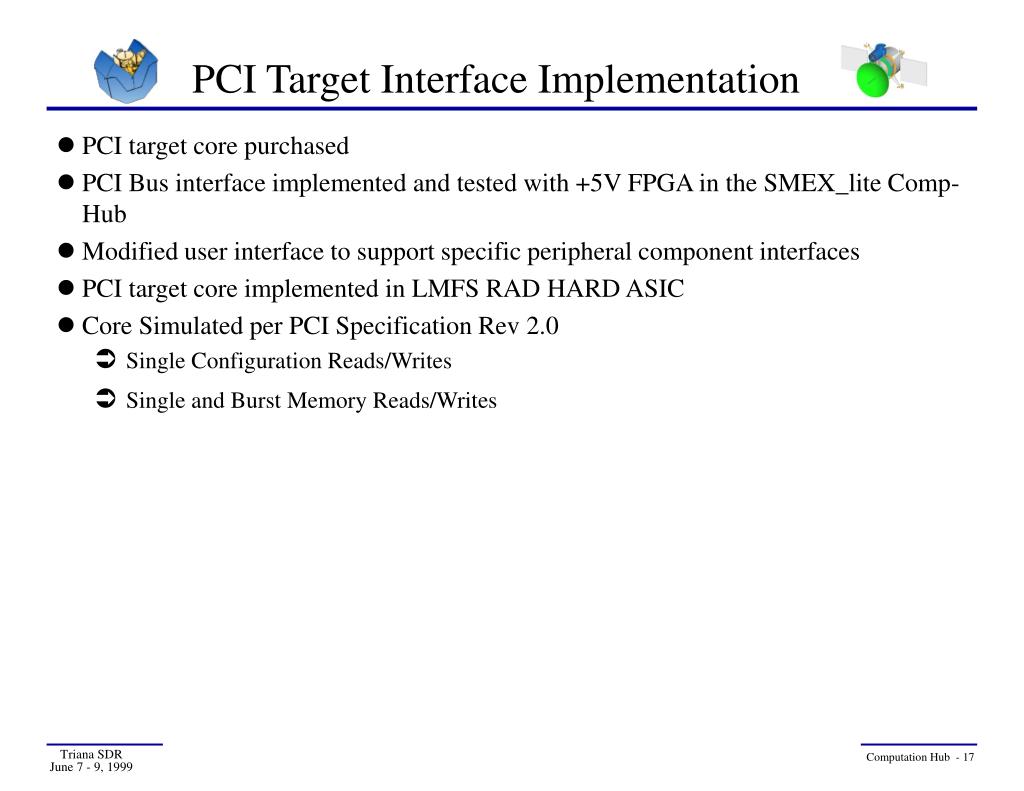

  17. PCI Target Interface Implementation • PCI target core purchased • PCI Bus interface implemented and tested with +5V FPGA in the SMEX_lite Comp-Hub • Modified user interface to support specific peripheral component interfaces • PCI target core implemented in LMFS RAD HARD ASIC • Core Simulated per PCI Specification Rev 2.0 • Single Configuration Reads/Writes • Single and Burst Memory Reads/Writes Triana SDR June 7 - 9, 1999

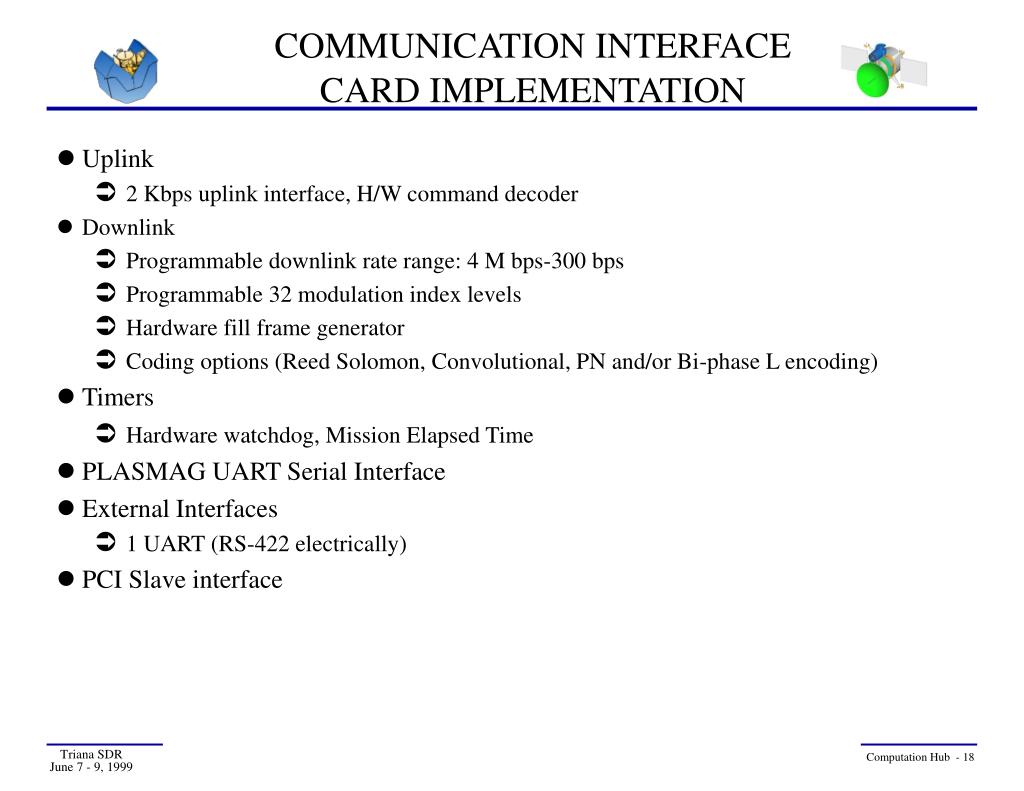

  18. COMMUNICATION INTERFACE CARD IMPLEMENTATION • Uplink • 2 Kbps uplink interface, H/W command decoder • Downlink • Programmable downlink rate range: 4 M bps-300 bps • Programmable 32 modulation index levels • Hardware fill frame generator • Coding options (Reed Solomon, Convolutional, PN and/or Bi-phase L encoding) • Timers • Hardware watchdog, Mission Elapsed Time • PLASMAG UART Serial Interface • External Interfaces • 1 UART (RS-422 electrically) • PCI Slave interface Triana SDR June 7 - 9, 1999

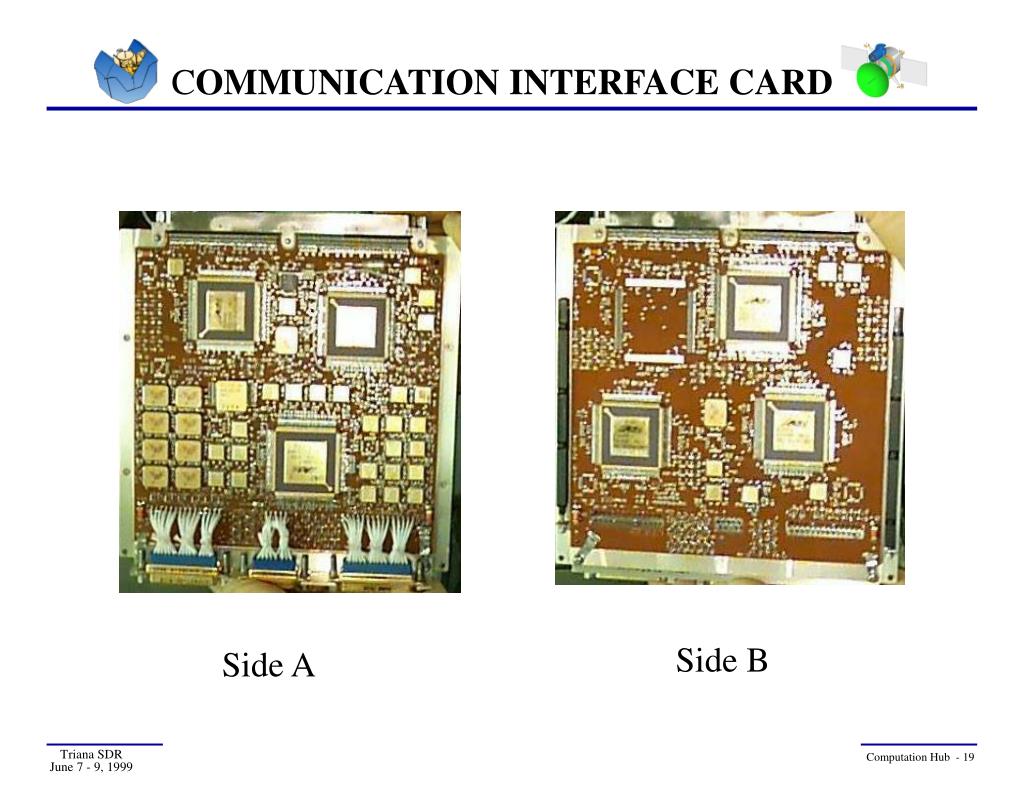

  19. COMMUNICATION INTERFACE CARD Side B Side A Triana SDR June 7 - 9, 1999

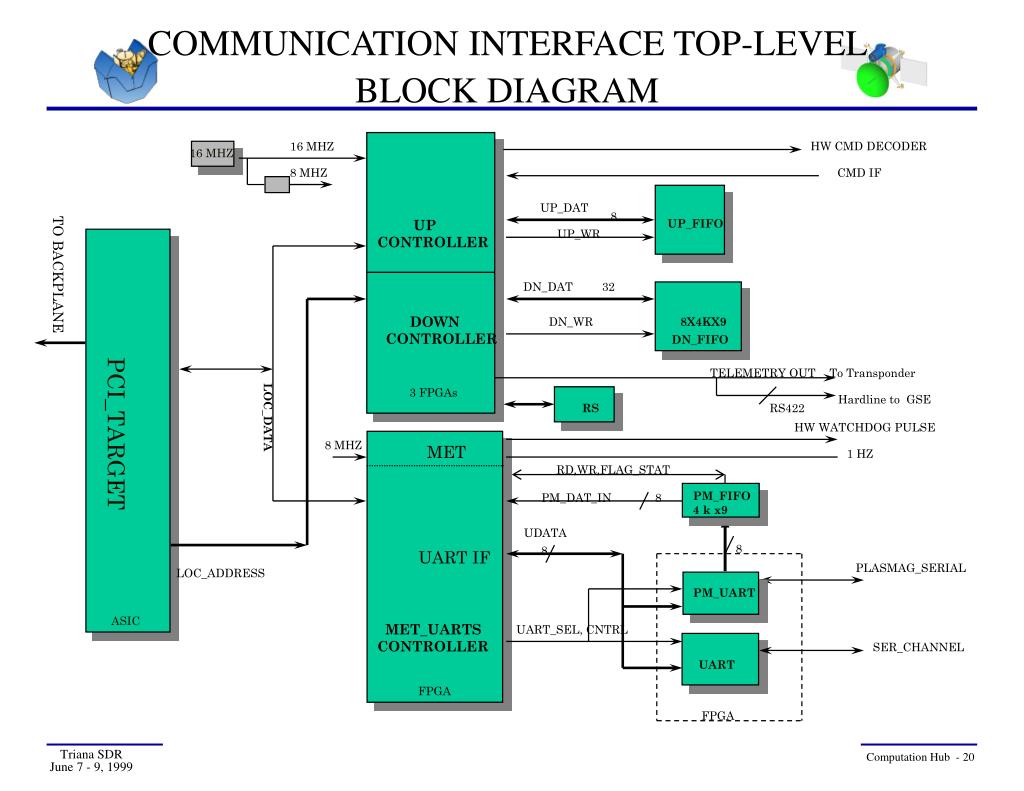

  20. COMMUNICATION INTERFACE TOP-LEVEL BLOCK DIAGRAM HW CMD DECODER 16 MHZ 16 MHZ 8 MHZ CMD IF UP_DAT 8 UP CONTROLLER UP_FIFO UP_WR TO BACKPLANE DN_DAT 32 DOWN CONTROLLER DN_WR 8X4KX9 DN_FIFO TELEMETRY OUT To Transponder 3 FPGAs Hardline to GSE RS RS422 LOC_DATA HW WATCHDOG PULSE PCI_TARGET 8 MHZ MET 1 HZ RD,WR,FLAG_STAT PM_FIFO 4 k x9 PM_DAT_IN 8 UDATA 8 8 UART IF LOC_ADDRESS PLASMAG_SERIAL PM_UART ASIC MET_UARTS CONTROLLER UART_SEL, CNTRL SER_CHANNEL UART FPGA FPGA Triana SDR June 7 - 9, 1999

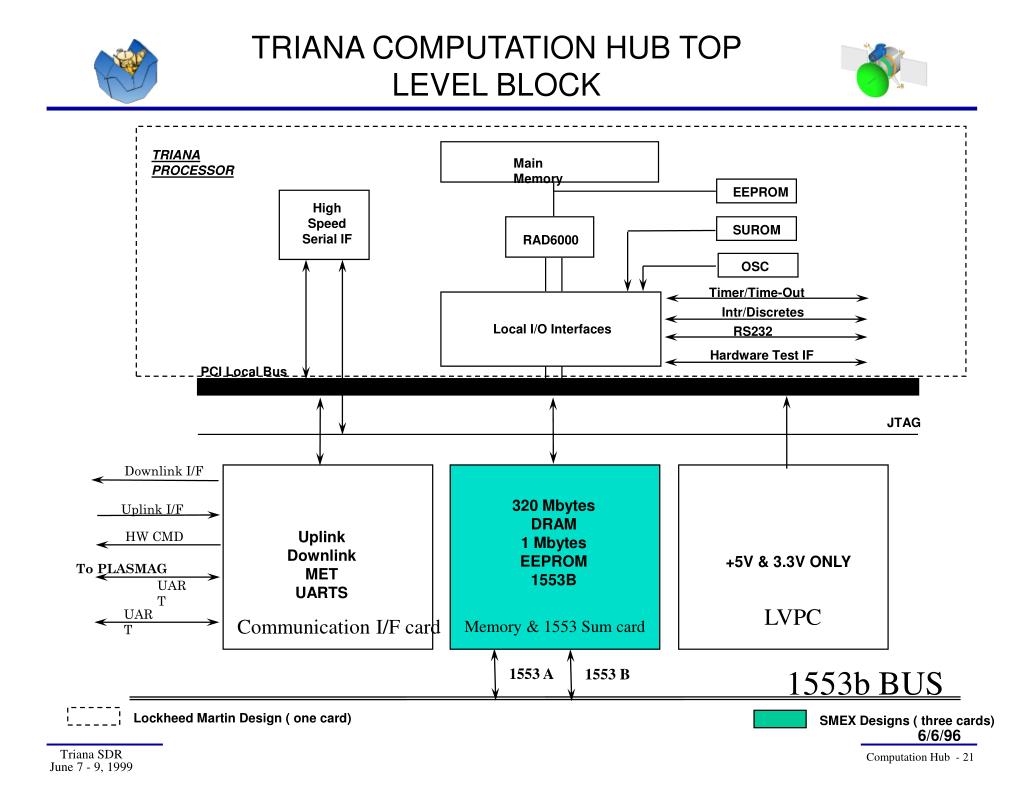

  21. TRIANA PROCESSOR Main Memory EEPROM High Speed Serial IF SUROM RAD6000 OSC Timer/Time-Out Intr/Discretes Local I/O Interfaces RS232 Hardware Test IF PCI Local Bus JTAG Downlink I/F 320 Mbytes DRAM 1 Mbytes EEPROM 1553B Uplink I/F Uplink Downlink MET UARTS HW CMD +5V & 3.3V ONLY To PLASMAG UART LVPC UART Communication I/F card Memory & 1553 Sum card 1553b BUS 1553 A 1553 B Lockheed Martin Design ( one card) SMEX Designs ( three cards) TRIANA COMPUTATION HUB TOP LEVEL BLOCK 6/6/96 Triana SDR June 7 - 9, 1999

  22. MEMORY & 1553 SUMMIT CARD • DRAM Bulk Memory • 320 Mbytes of data storage using 10 32Mx8 bit DRAM modules (Dense-pac DPD32MX8RG5-06C): • Organized into 2 160-Mbyte banks • DRAM module consists of 4 64M bit Samsung DRAM (KM48C8000AS-6, 5.0V, REV A) chips stacked in a module by Dense-Pac • EDAC with single & multi bit error interrupts • DRAM Refresh Controller • EEPROM Memory • 1Mbytes of normal mode code storage • Use 8 128Kx8 Hitachi CMOS EEPROM dies packaged by Austin Semiconductor • On-orbit programmable • 1553 Bus Controller Interface • PCI Slave Interface Triana SDR June 7 - 9, 1999

  23. MEMORY & 1553 SUMMIT CARD Side A Side B Triana SDR June 7 - 9, 1999

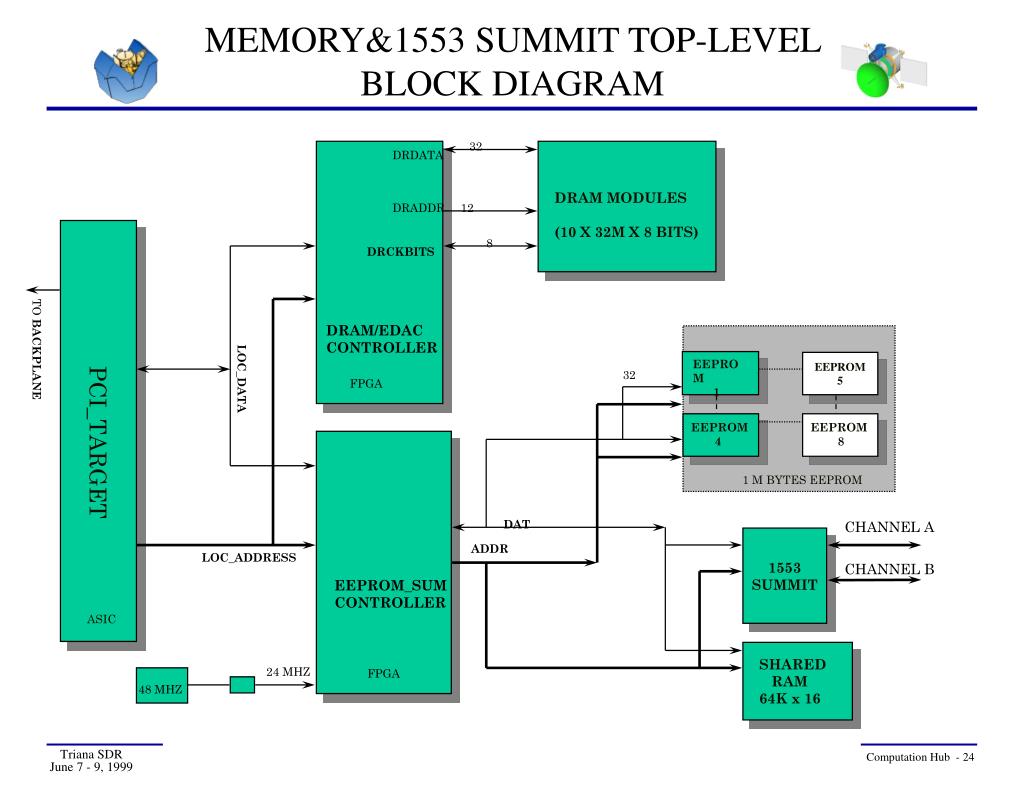

  24. MEMORY&1553 SUMMIT TOP-LEVEL BLOCK DIAGRAM 32 DRDATA DRAM MODULES (10 X 32M X 8 BITS) DRADDR 12 8 DRCKBITS DRAM/EDAC CONTROLLER TO BACKPLANE EEPROM 1 EEPROM 5 32 LOC_DATA FPGA EEPROM 4 EEPROM 8 PCI_TARGET 1 M BYTES EEPROM DAT CHANNEL A 1553 SUMMIT ADDR LOC_ADDRESS CHANNEL B EEPROM_SUM CONTROLLER ASIC SHARED RAM 64K x 16 24 MHZ FPGA 48 MHZ Triana SDR June 7 - 9, 1999

  25. TRIANA PROCESSOR Main Memory EEPROM High Speed Serial IF SUROM RAD6000 OSC Timer/Time-Out Intr/Discretes Local I/O Interfaces RS232 Hardware Test IF PCI Local Bus JTAG Downlink I/F 320 Mbytes DRAM 1 Mbytes EEPROM 1553B Uplink I/F Uplink Downlink MET UARTS HW CMD +5V & 3.3V ONLY To PLASMAG UART UART LVPC Communication I/F card Memory & 1553 Sum card 1553b BUS 1553 A 1553 B Lockheed Martin Design ( one card) SMEX Designs ( three cards) 6/6/96 TRIANA COMPUTATION HUB TOP LEVEL BLOCK Triana SDR June 7 - 9, 1999

  26. Low Voltage Power Converter • LVPC: • Uses SMEX-Lite/Solstice LVPC version • Uses the COTS Interpoint EMI filter and DC-to-DC converters • Complies 461 EMI specification • Converts +28V input to +5V and +3.3V outputs • Provides +5V to Communication I/F, Memory & 1553 Summit, Processor, & Backplane terminations • Provides +3.3V to Flight Processor and PCI target ASICs • Generates PCI Reset (POR 0) signal Triana SDR June 7 - 9, 1999

  27. Low Voltage Power Converter Triana SDR June 7 - 9, 1999

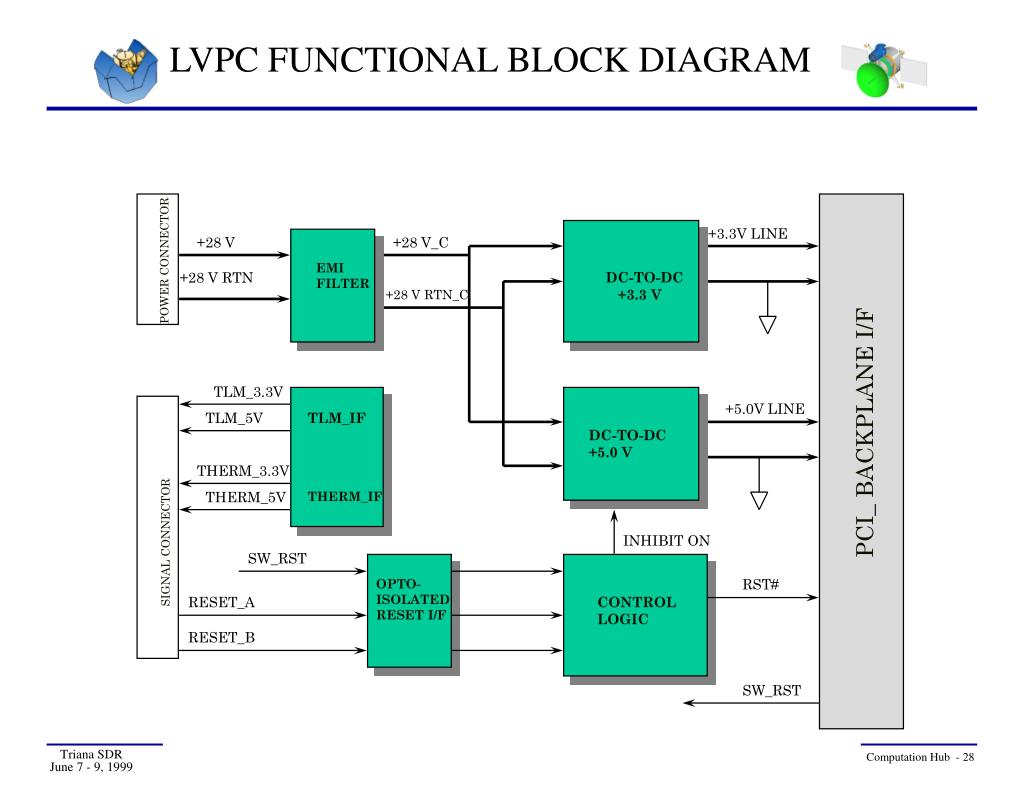

  28. LVPC FUNCTIONAL BLOCK DIAGRAM +3.3V LINE +28 V +28 V_C POWER CONNECTOR EMI FILTER DC-TO-DC +3.3 V +28 V RTN +28 V RTN_C TLM_3.3V +5.0V LINE TLM_5V TLM_IF PCI_ BACKPLANE I/F DC-TO-DC +5.0 V THERM_3.3V THERM_5V THERM_IF INHIBIT ON SIGNAL CONNECTOR SW_RST RST# OPTO- ISOLATED RESET I/F CONTROL LOGIC RESET_A RESET_B SW_RST Triana SDR June 7 - 9, 1999

  29. Computation Hub Backplane • Support PCI Interface • Signals (48) • Pull-up resistors • Support discrete signals • Interrupts(4) • Reset • Distribute Power • +5.0V DC at 8 Amp. (max.) • DRAM/1553B/EEPROM • Communications Interface • Flight Processor • +3.3V DC at 3 Amp. (max.) • Flight Processor ASICs • 2 PCI target ASICs CompHub Backplane +5.0 V & +3.3 V Power PCI Bus Signal Interface Interrupts(4) & HW Reset DRAM/1553/EEPROM card Low Voltage Power Converter RAD6000 Processor Communication Interface card Triana SDR June 7 - 9, 1999

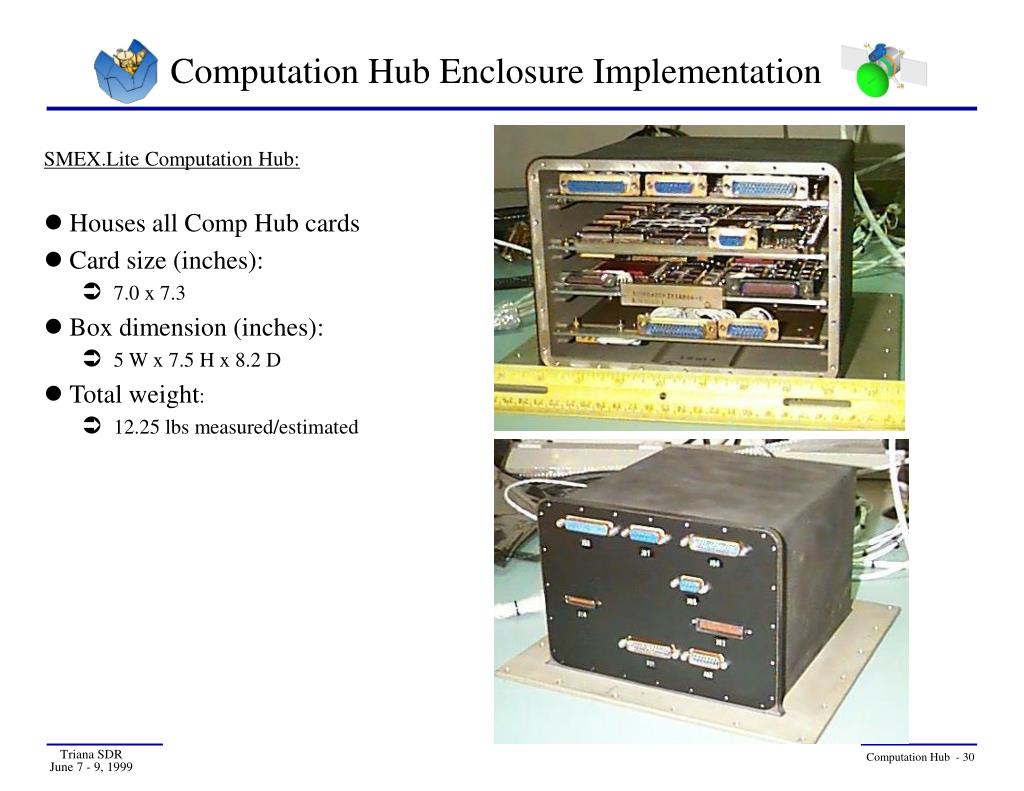

  30. Computation Hub Enclosure Implementation SMEX.Lite Computation Hub: • Houses all Comp Hub cards • Card size (inches): • 7.0 x 7.3 • Box dimension (inches): • 5 W x 7.5 H x 8.2 D • Total weight: • 12.25 lbs measured/estimated Triana SDR June 7 - 9, 1999
