  1. Tivoli Workload Scheduler for z/OS z/OS Connector 8.3 InstallationStefan Franke EMEA Lvl2 Support

  2. Agenda • Architecture • Finding the installation image • Types of installations • Install the z/OS connector • Associate a RACF userid • Define a new engine in JSC • Problem Determination

  3. Architecture

  4. Architecture

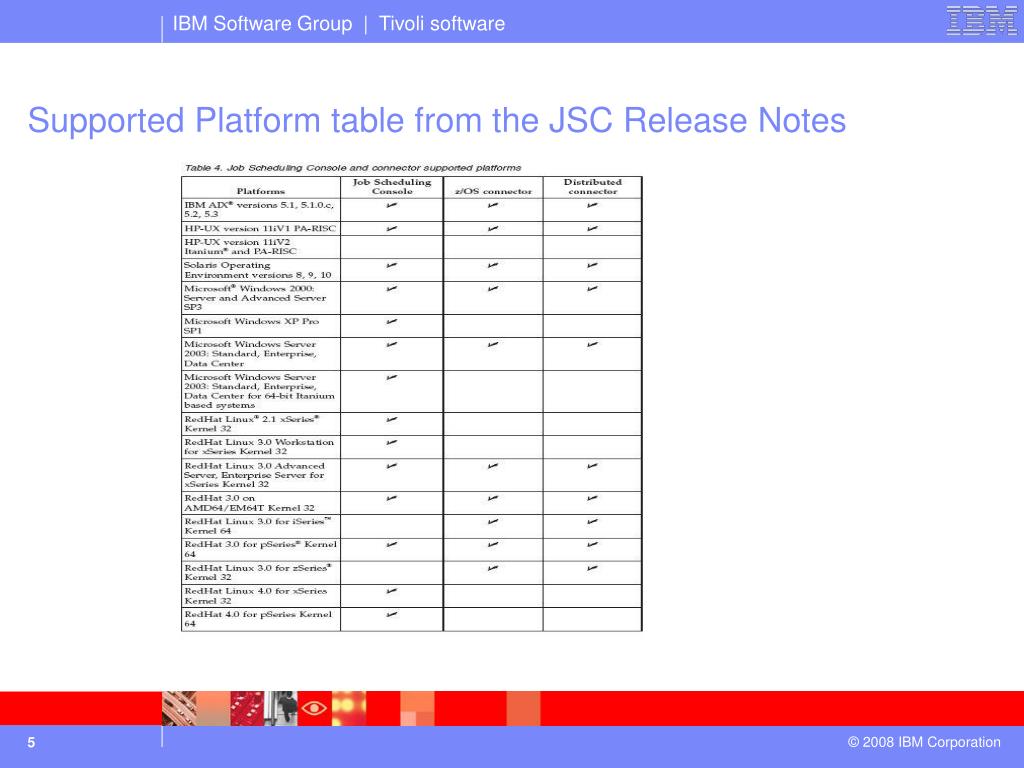

  5. Supported Platform table from the JSC Release Notes

  6. Interoperability table from the fix pack readme file

  7. Finding the installation image • Finding the installation image at Xtreme leverage server:

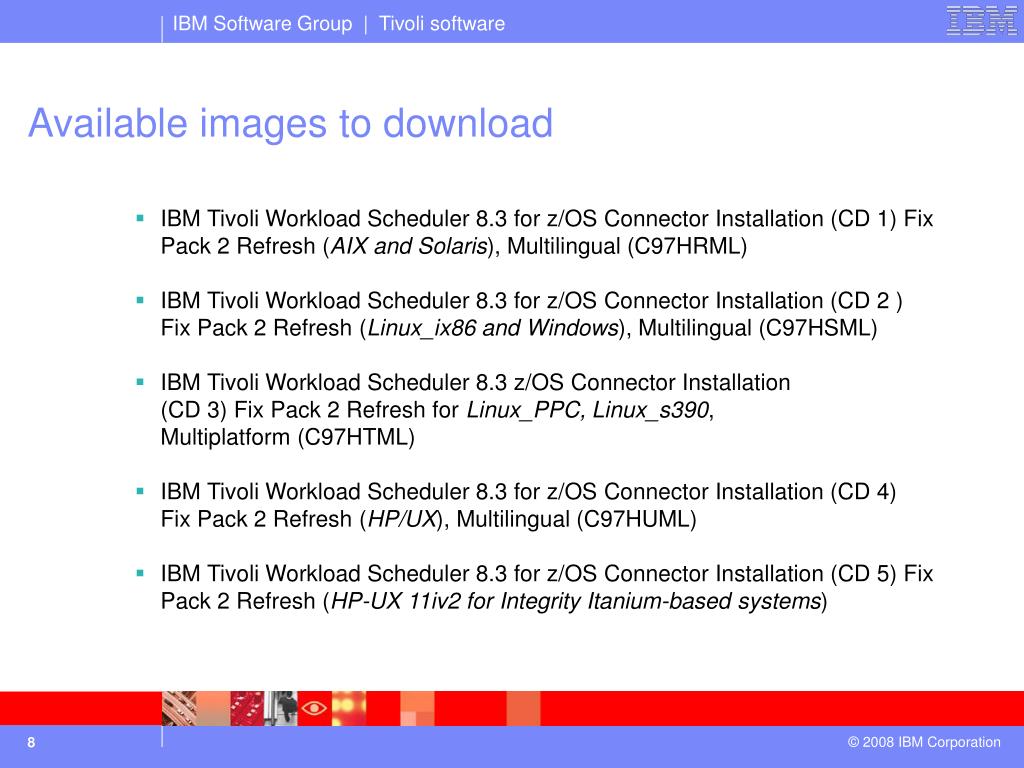

  8. Available images to download • IBM Tivoli Workload Scheduler 8.3 for z/OS Connector Installation (CD 1) Fix Pack 2 Refresh (AIX and Solaris), Multilingual (C97HRML) • IBM Tivoli Workload Scheduler 8.3 for z/OS Connector Installation (CD 2 ) Fix Pack 2 Refresh (Linux_ix86 and Windows), Multilingual (C97HSML) • IBM Tivoli Workload Scheduler 8.3 z/OS Connector Installation (CD 3) Fix Pack 2 Refresh for Linux_PPC, Linux_s390, Multiplatform (C97HTML) • IBM Tivoli Workload Scheduler 8.3 for z/OS Connector Installation (CD 4) Fix Pack 2 Refresh (HP/UX), Multilingual (C97HUML) • IBM Tivoli Workload Scheduler 8.3 for z/OS Connector Installation (CD 5) Fix Pack 2 Refresh (HP-UX 11iv2 for Integrity Itanium-based systems)

  9. Available languages • Chinese Simplified • Chinese Traditional • English • French • German • Italian • Japanese • Korean • Portuguese • Brazilian • Spanish

  10. Types of installations • ISMP (Graphical Installation dialog, also known as ‘Wizzard‘) Run the setup according to the OS where you are installing: * Windows: setup.exe * UNIX: setup.bin • Silent installation To install in silent mode on Windows, navigate to the directory where the setup.exe file resides and enter the following command: ‘setup.exe -silent -options filename‘ Note: The z/OS connector requires the embedded version of ‘WebSphere Application Server Express version 6.0 ‘(also known as Bobcat ) The installation image already includes ‘WAS‘ and install it undercover. If you have a previous version (1.3,1.4) of the z/OS connector installed, uninstall it before you install the new version.

  11. Installing z/OS connector

  12. Installing z/OS connector

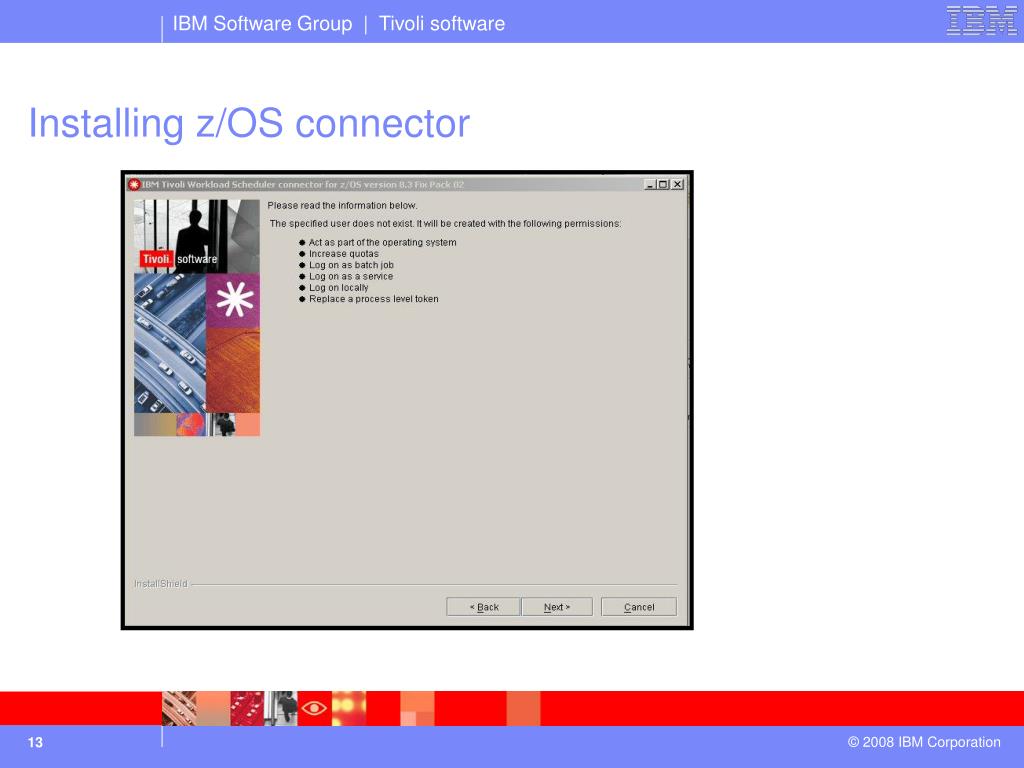

  13. Installing z/OS connector

  14. Installing z/OS connector

  15. Installing z/OS connector

  16. Installing z/OS connector Free of choice

  17. Installing z/OS connector

  18. Installing z/OS connector

  19. Installing z/OS connector In case of errors, refer to ‘summary.log‘ file.

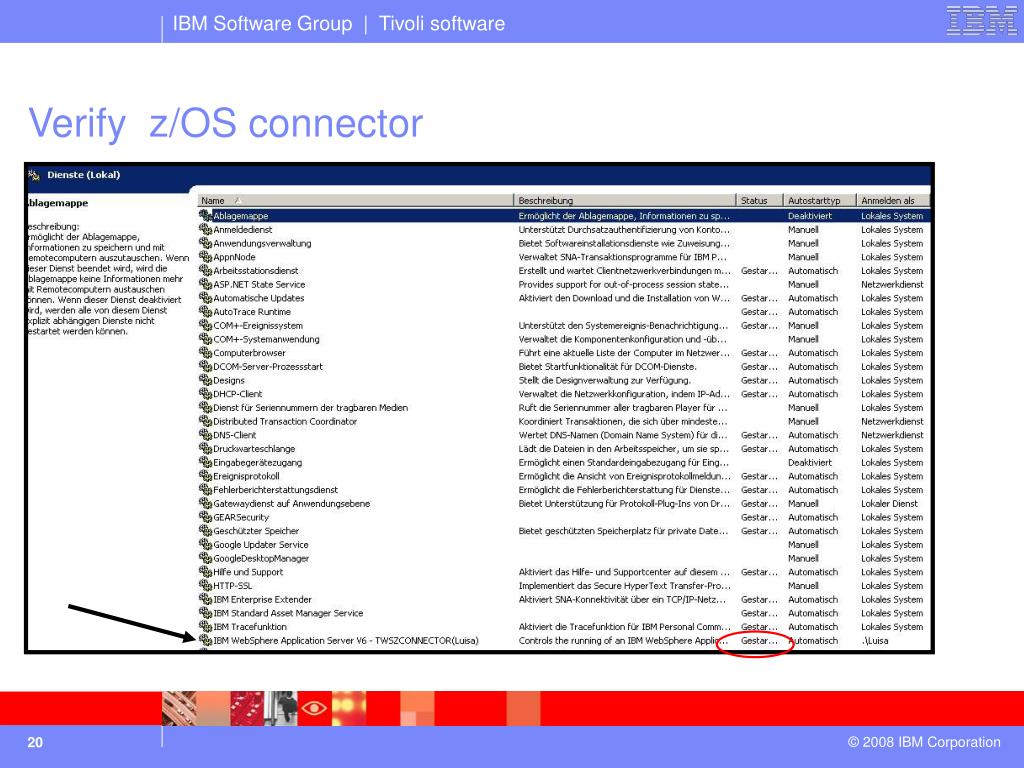

  20. Verify z/OS connector

  21. Associate a RACF userid Two ways are possible: • Create a TMEADMIN RACF class. (see chapter ‘1.3.2.5.1 Creating the TMEADMIN class to associate a RACF user ID‘ in ‘Customization and Tuning‘) • Create ‘Usermap‘ file. For demonstration purposes we choose the ‘Usermap‘ way, even we recommend to use the RACF Class for security reasons.

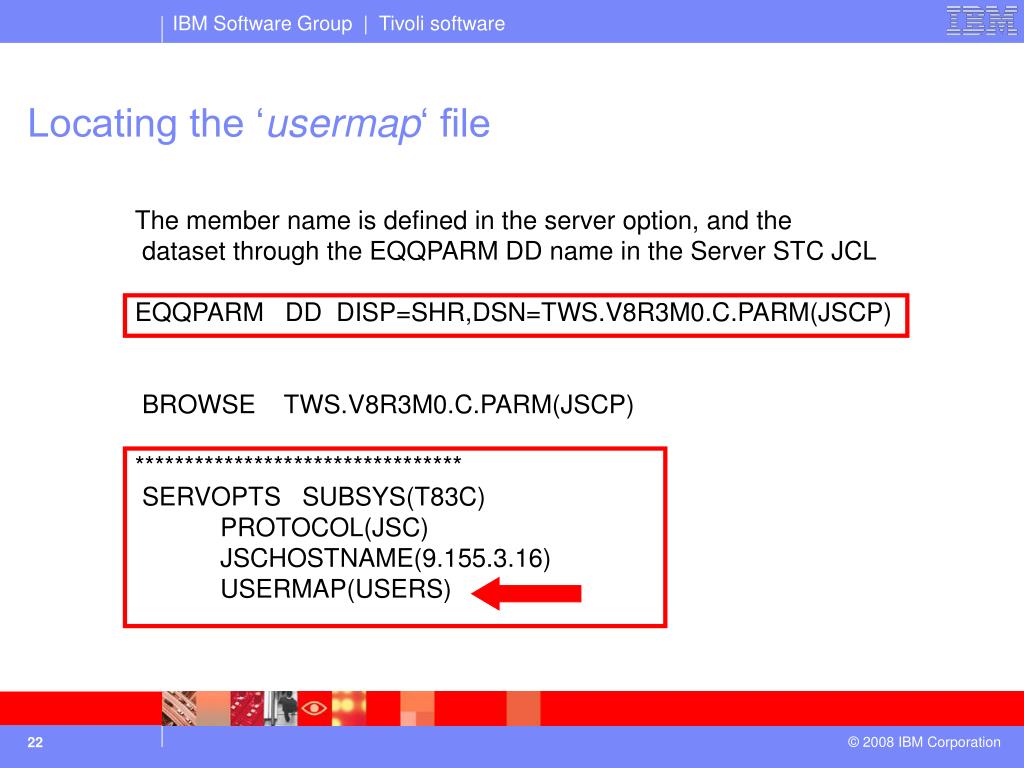

  22. Locating the ‘usermap‘ file The member name is defined in the server option, and the dataset through the EQQPARM DD name in the Server STC JCL EQQPARM DD DISP=SHR,DSN=TWS.V8R3M0.C.PARM(JSCP) BROWSE TWS.V8R3M0.C.PARM(JSCP) ********************************* SERVOPTS SUBSYS(T83C) PROTOCOL(JSC) JSCHOSTNAME(9.155.3.16) USERMAP(USERS)

  23. Defining userid to the usermap Every changes to the usermap requires a JSC server restart

  24. Define new engine in JSC • Note that the JSC Users Guide and help panels are totally confusing about Engine defintion. Please use Technote #1240845 for clarification. • Technotes can be found when entering technote id into upper right search field of ‘ www.ibm.com‘

  25. Define new engine in JSC Free of choice

  26. Finish engine and users definitions • The blue cogwheel indicates a successful connection to the TWS z/OS controller through the z/os connector. Database objects can now be retrieved.

  27. Connection Flow

  28. Security flow UUser ‘Luisa‘ and localhostname ‘Zidane@mainz.de.ibm.com‘ are merged to “Luisa@zidane.mainz.de.ibm.com“

  29. Managing z/OS engines using WebSphere Application Server tools • To list all the z/OS connector instances perform the following steps: • 1. Log on to the computer where Tivoli Workload Scheduler is installed as the following user: UNIX root Windows Any user in the Administrators group. • 2. Access the directory: wastools. • (<installation_directory\wastools>) • 3. From this directory run the following command: UNIX ”listZosEngine.sh” Windows “listZosEngine”

  30. Managing z/OS engines using WebSphere Application Server tools To display a z/OS connector instance, perform the following steps: • 1. Log on to the computer where Tivoli Workload Scheduler is installed as the following user: UNIX root Windows Any user in the Administrators group. • 2. Access the wastools directory. • 3. From this directory run the following command: UNIX “displayZosEngine.sh“ <engineName> Windows “displayZosEngine.bat“ <engineName>

  31. Managing z/OS engines using WebSphere Application Server tools • OUTPUT of : “Programme\IBM\TWSZOS\Luisa\wastools\displayzosengine.bat Luisas_MVS“ More ‘WAS‘ commands can be found in chapter 62 of ‘TWS JSC 8.3 User‘s Guide‘

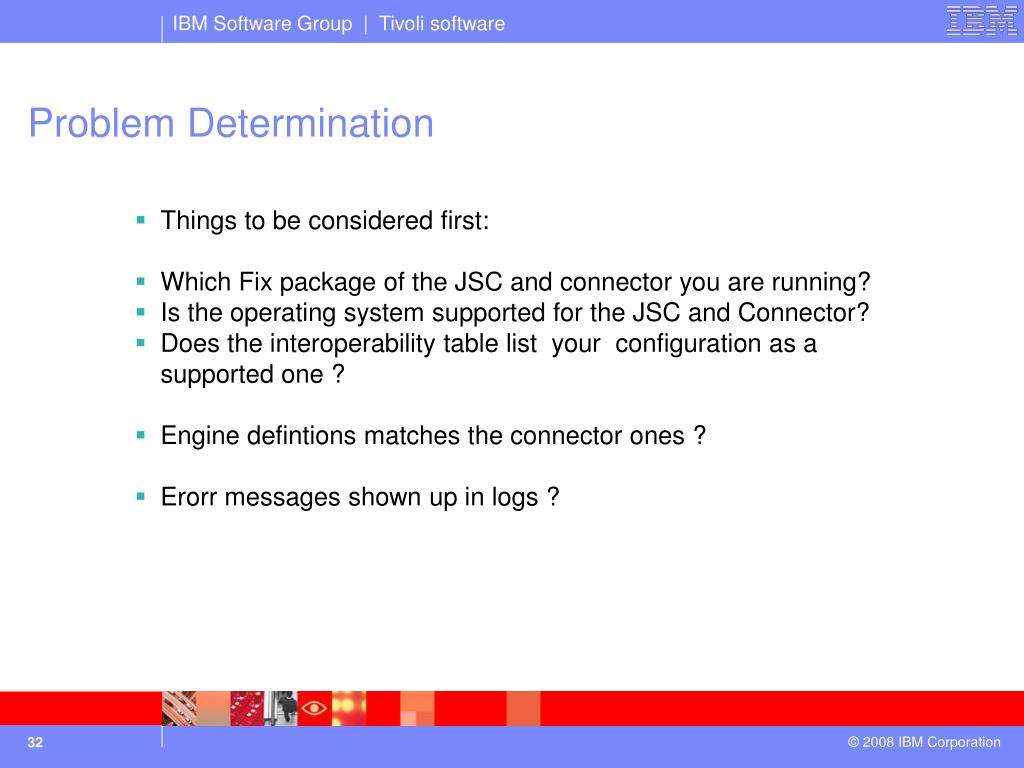

  32. Problem Determination • Things to be considered first: • Which Fix package of the JSC and connector you are running? • Is the operating system supported for the JSC and Connector? • Does the interoperability table list your configuration as a supported one ? • Engine defintions matches the connector ones ? • Erorr messages shown up in logs ?

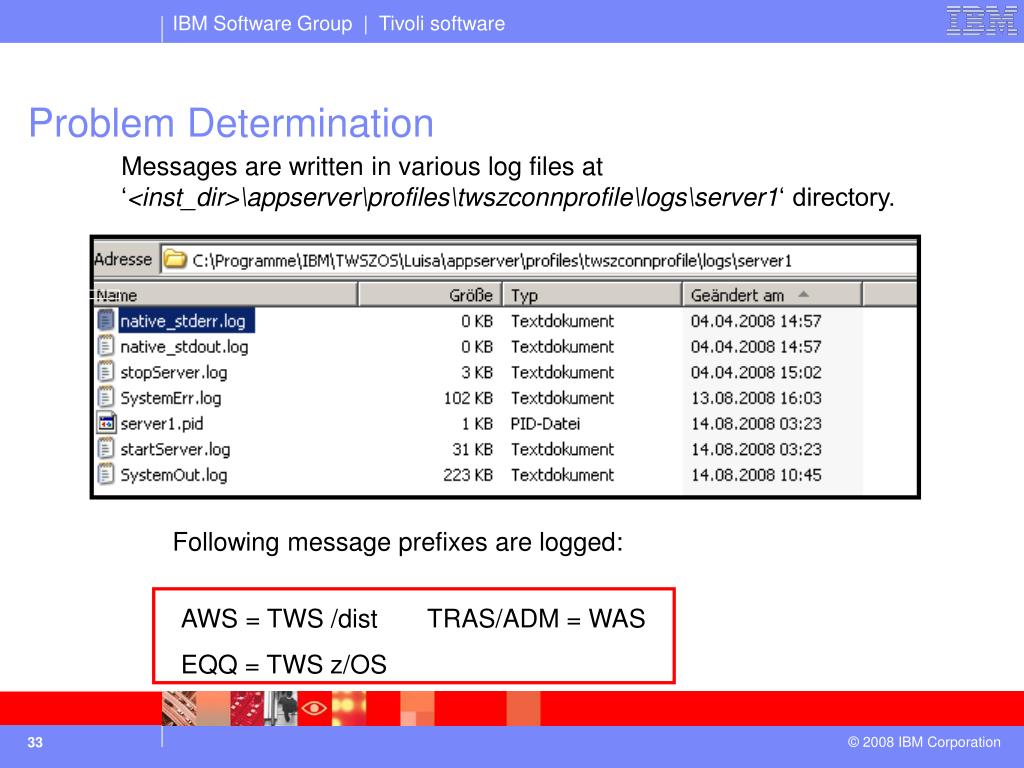

  33. Problem Determination Messages are written in various log files at ‘<inst_dir>\appserver\profiles\twszconnprofile\logs\server1‘ directory. Following message prefixes are logged: AWS = TWS /dist TRAS/ADM = WAS EQQ = TWS z/OS

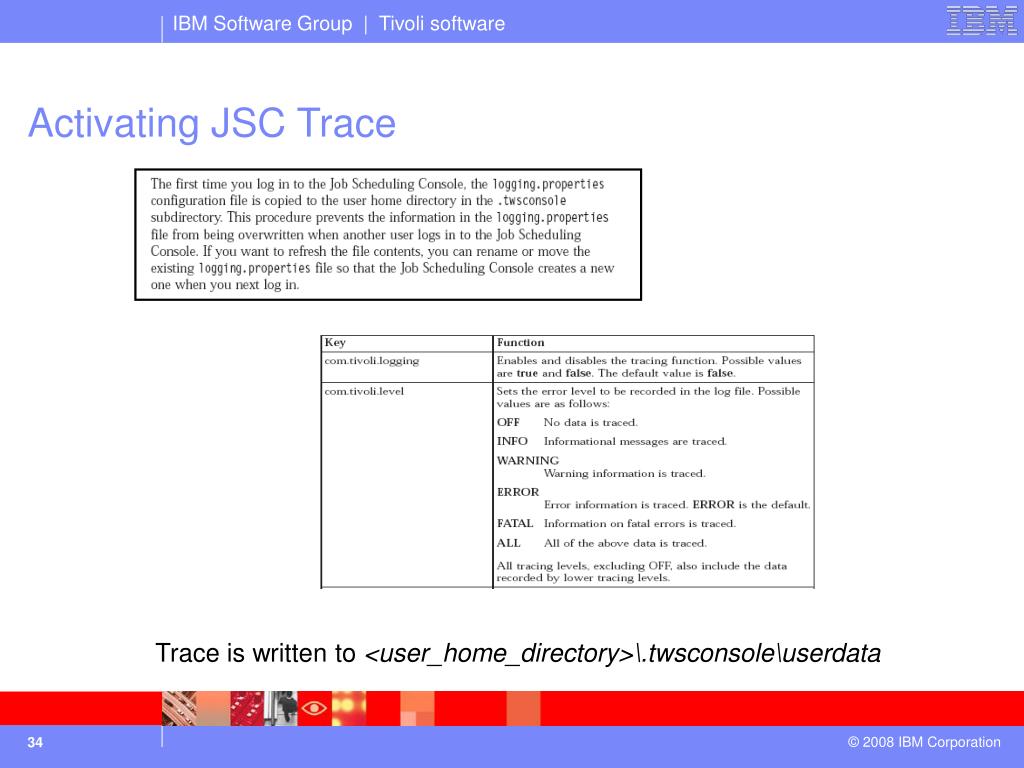

  34. Activating JSC Trace Trace is written to <user_home_directory>\.twsconsole\userdata

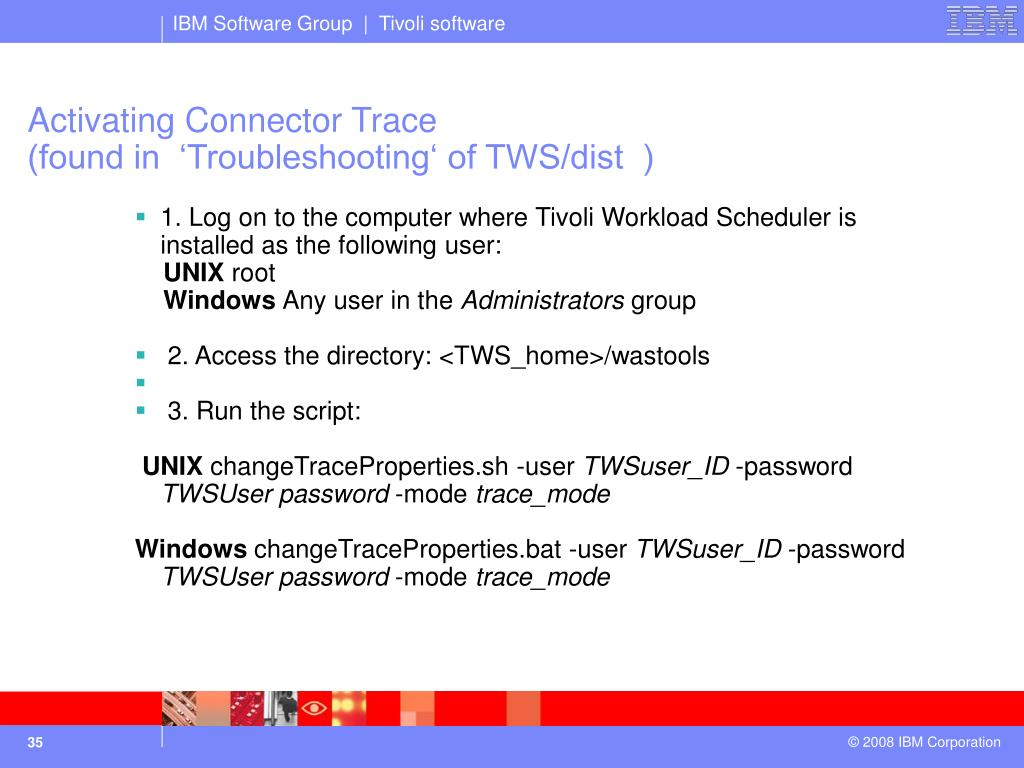

  35. Activating Connector Trace (found in ‘Troubleshooting‘ of TWS/dist ) • 1. Log on to the computer where Tivoli Workload Scheduler is installed as the following user: UNIX root Windows Any user in the Administrators group • 2. Access the directory: <TWS_home>/wastools • 3. Run the script: UNIX changeTraceProperties.sh -user TWSuser_ID -password TWSUser password -mode trace_mode Windows changeTraceProperties.bat -user TWSuser_ID -password TWSUser password -mode trace_mode

  36. Trace modes Where trace_mode is one of the following: • tws_all All Tivoli Workload Scheduler communications are traced. • tws_db All Tivoli Workload Scheduler database communications are traced. • tws_planner All Tivoli Workload Scheduler planner communications are traced. • tws_cli All Tivoli Workload Scheduler command line communications are traced. • tws_utils All Tivoli Workload Scheduler utility communications are traced. • tws_conn All Tivoli Workload Scheduler connector communications are traced. • tws_info No tracing - the default value. • To reset the traces to null, either run the above procedure with trace_mode as tws_info, or just stop and start the server. • Trace can be found in : <inst_dir>/appserver/profiles/twszconnprofile/logs/server1/trace.log 1.3.2.5.1 Creating the TMEADMIN class to associate a RACF user ID

  37. Determine the JSC Fix pack

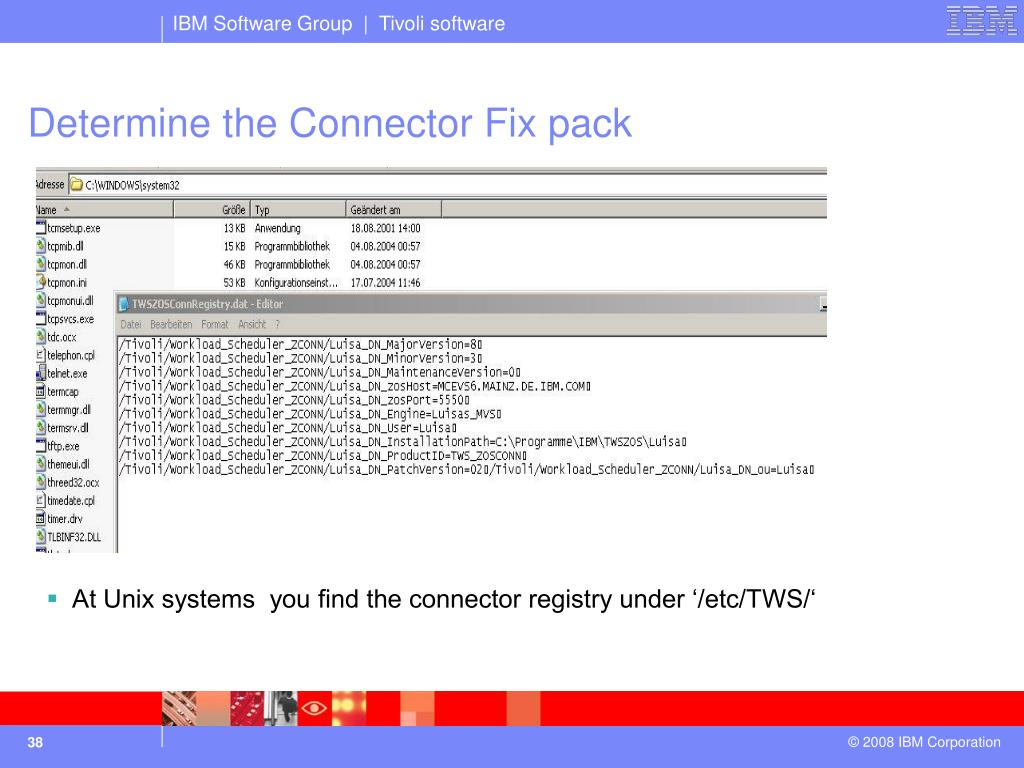

  38. Determine the Connector Fix pack • At Unix systems you find the connector registry under ‘/etc/TWS/‘

  39. Where can you find connector fix packs ? Anonymous Server ‘Ftp.software.ibm.com‘

  40. Questions ?
