slide1

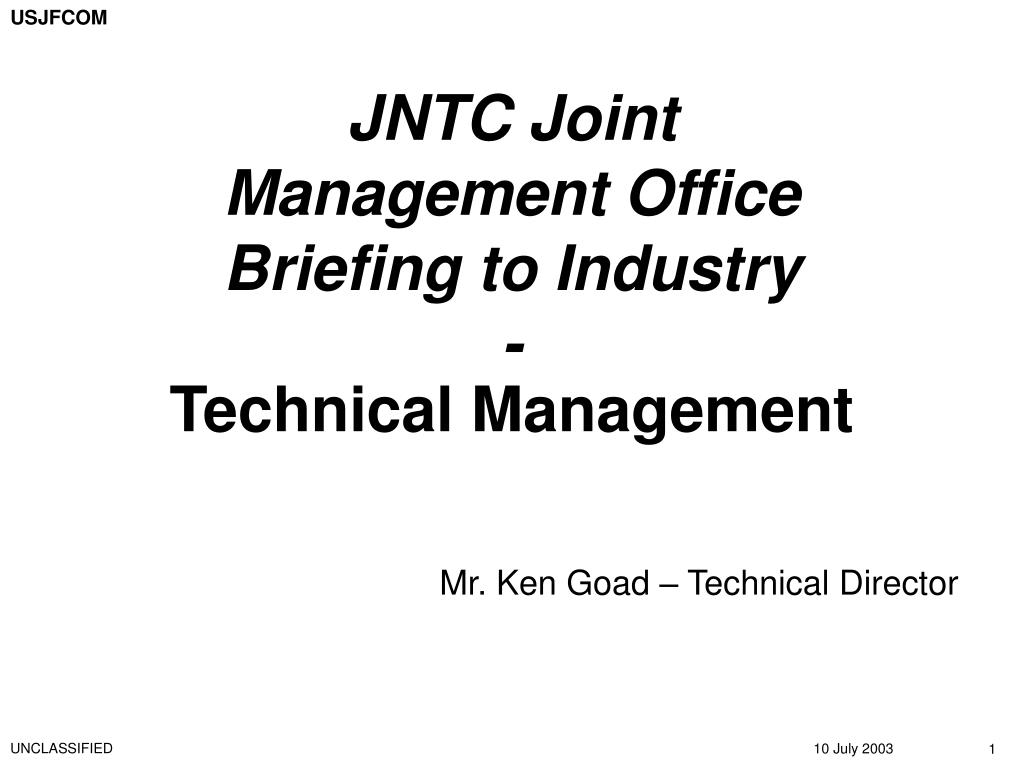

USJFCOM

JNTC Joint Management Office

Briefing to Industry

-

Technical Management

Mr. Ken Goad – Technical Director

UNCLASSIFIED

10 July 2003

1

technical focus areas
Technical Focus Areas

Global Joint

Training Infrastructure

Advanced Training

Technology

Technical Certification

Configuration Management

Joint Standards and Arch

Tech Development and Integration

Joint Live

Virtual

Constructive

Environment

Opposing Forces Technology

Joint

C4I

Joint

Instrumentation

Data Collection

AAR

Info / Knowledge

Mgmt

Existing & Planned Service, COCOM

& JFCOM Capabilities

think big start small evolve

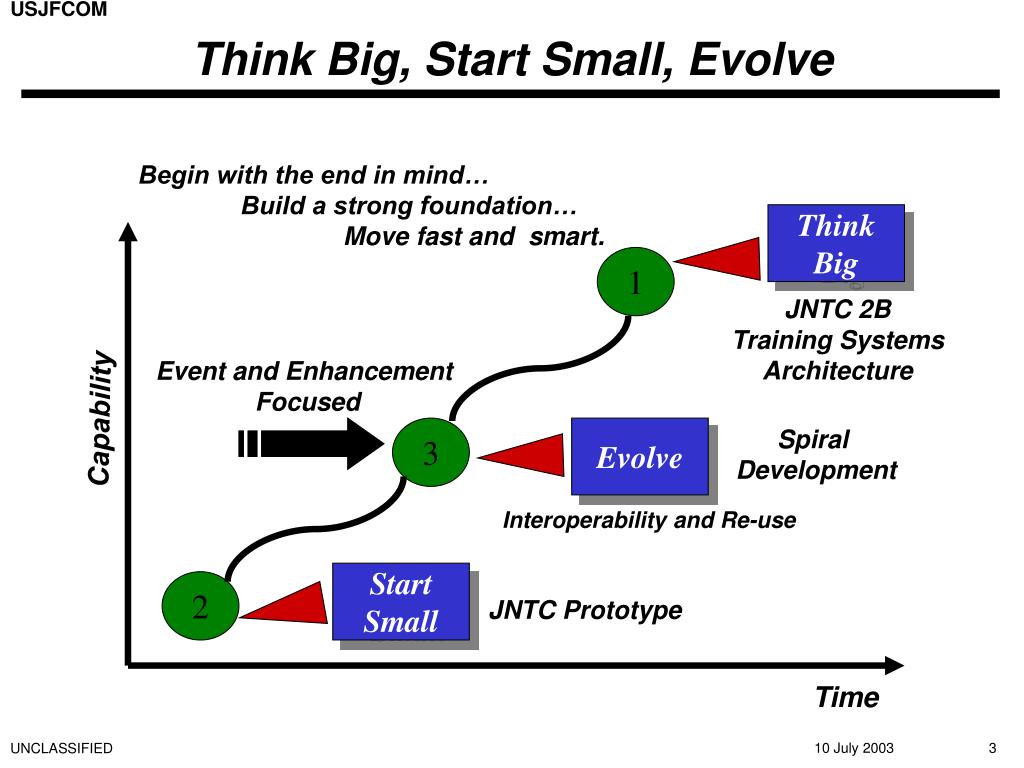

Think Big, Start Small, Evolve

Begin with the end in mind…

Build a strong foundation…

Move fast and smart.

Think

Big

1

JNTC 2B

Training Systems Architecture

Event and Enhancement

Focused

Capability

3

Evolve

Spiral

Development

Interoperability and Re-use

Start

Small

2

JNTC Prototype

Time

jntc common architecture

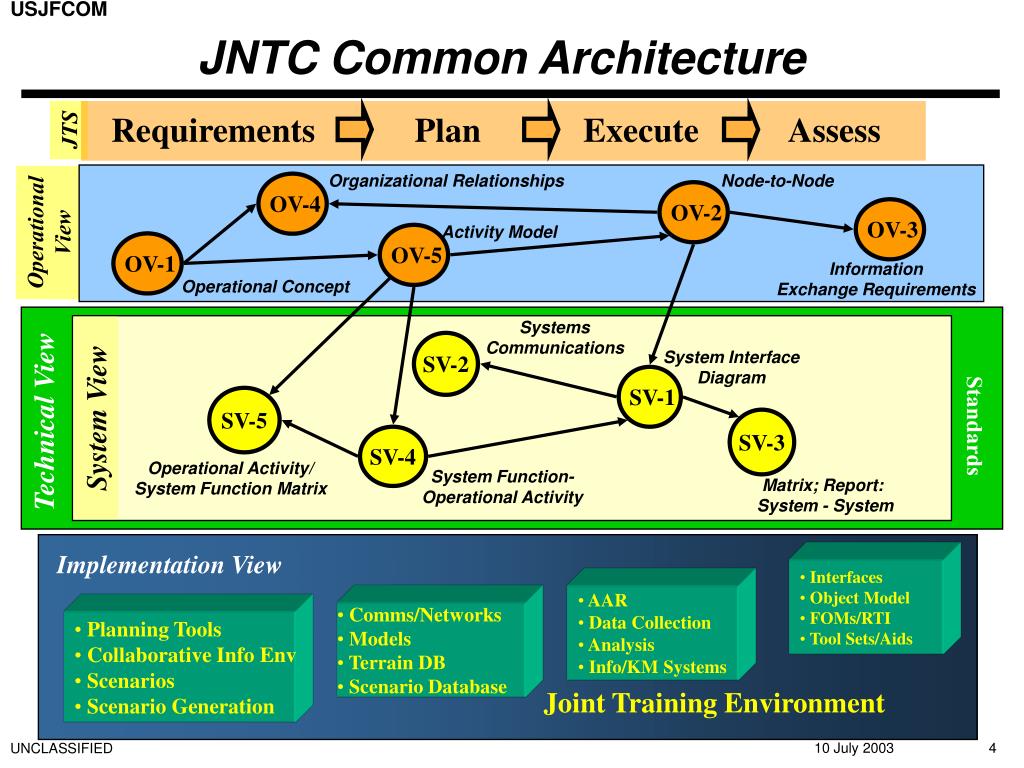

JNTC Common Architecture

JTS

Requirements

Plan

Execute

Assess

Organizational Relationships

Node-to-Node

OV-4

OV-2

OV-3

Operational

View

Activity Model

OV-5

OV-1

Information

Exchange Requirements

Operational Concept

Systems

Communications

SV-2

System Interface

Diagram

SV-1

SV-5

System View

Technical View

Standards

SV-3

SV-4

Operational Activity/

System Function Matrix

System Function-

Operational Activity

Matrix; Report:

System - System

Implementation View

  • Interfaces
  • Object Model
  • FOMs/RTI
  • Tool Sets/Aids
  • AAR
  • Data Collection
  • Analysis
  • Info/KM Systems
  • Comms/Networks
  • Models
  • Terrain DB
  • Scenario Database
  • Planning Tools
  • Collaborative Info Env
  • Scenarios
  • Scenario Generation

Joint Training Environment

neighbor architectures guidance processes

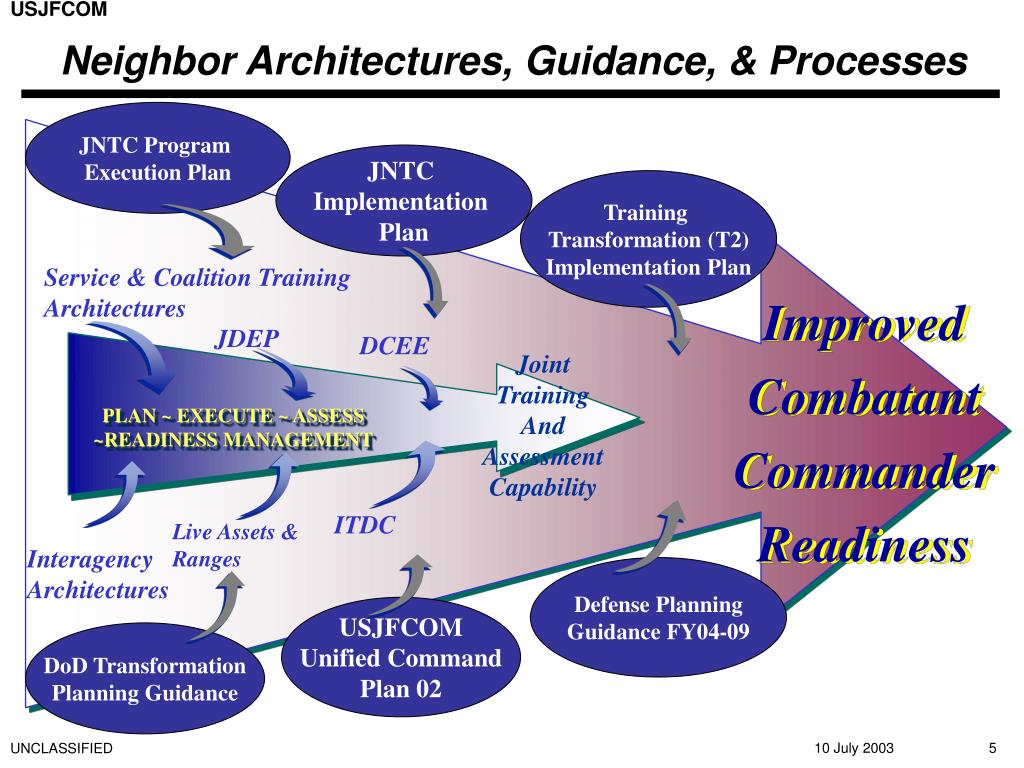

Neighbor Architectures, Guidance, & Processes

JNTC Program

Execution Plan

JNTC

Implementation

Plan

Training

Transformation (T2)

Implementation Plan

Service & Coalition Training

Architectures

Improved

Combatant

Commander

Readiness

JDEP

DCEE

Joint

Training

And

Assessment

Capability

PLAN ~ EXECUTE ~ ASSESS

~READINESS MANAGEMENT

ITDC

Live Assets &

Ranges

Interagency

Architectures

Defense Planning

Guidance FY04-09

USJFCOM

Unified Command

Plan 02

DoD Transformation

Planning Guidance

joint c4i

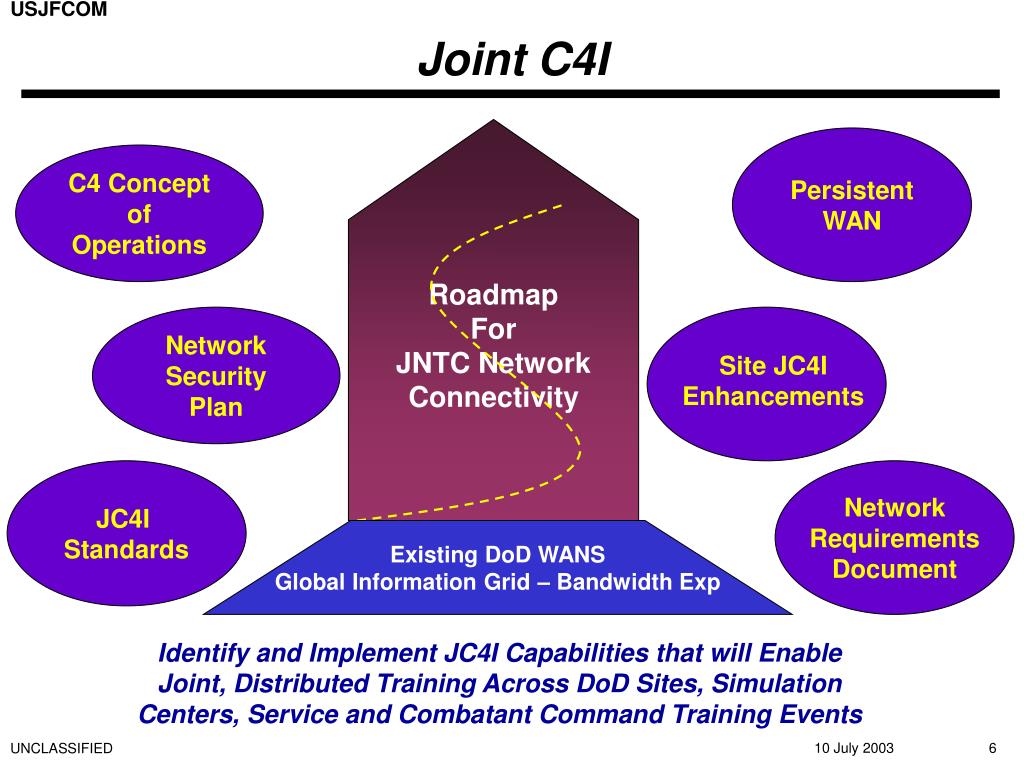

Joint C4I

Persistent WAN

C4 Concept

of

Operations

Roadmap

For

JNTC Network

Connectivity

Network

Security

Plan

Site JC4I Enhancements

JC4I

Standards

Network

Requirements

Document

Existing DoD WANS

Global Information Grid – Bandwidth Exp

Identify and Implement JC4I Capabilities that will Enable

Joint, Distributed Training Across DoD Sites, Simulation

Centers, Service and Combatant Command Training Events

lvc development strategy

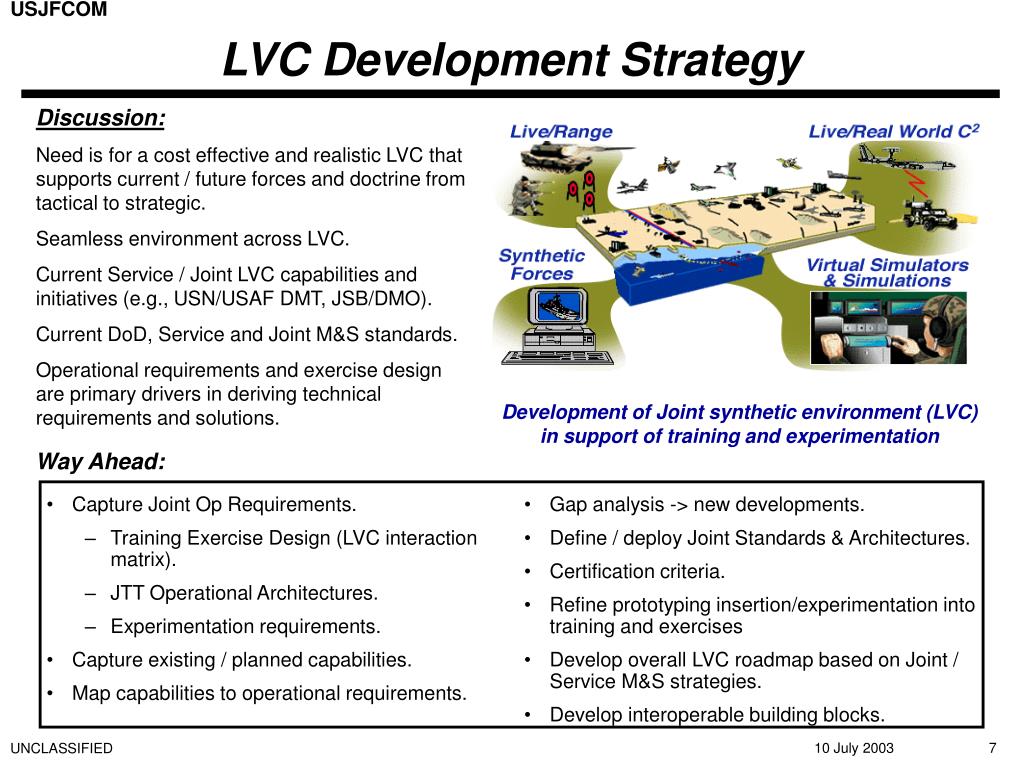

LVC Development Strategy

Discussion:

Need is for a cost effective and realistic LVC that supports current / future forces and doctrine from tactical to strategic.

Seamless environment across LVC.

Current Service / Joint LVC capabilities and initiatives (e.g., USN/USAF DMT, JSB/DMO).

Current DoD, Service and Joint M&S standards.

Operational requirements and exercise design are primary drivers in deriving technical requirements and solutions.

Development of Joint synthetic environment (LVC) in support of training and experimentation

Way Ahead:

  • Capture Joint Op Requirements.
    • Training Exercise Design (LVC interaction matrix).
    • JTT Operational Architectures.
    • Experimentation requirements.
  • Capture existing / planned capabilities.
  • Map capabilities to operational requirements.
  • Gap analysis -> new developments.
  • Define / deploy Joint Standards & Architectures.
  • Certification criteria.
  • Refine prototyping insertion/experimentation into training and exercises
  • Develop overall LVC roadmap based on Joint / Service M&S strategies.
  • Develop interoperable building blocks.
joint instrumentation data collection aar
Joint Instrumentation, Data Collection & AAR

Relocatable, Interoperable, and Integrated Instrumentation

To Support Joint Training Objectives

Mechanism to bring

Live to an Integrated

L-V-C Environment

Enable Data Collection

and Assessment of

Joint Tactical Task Execution

Provide Training

Audience Feedback

for Lessons Learned

Provide Live

Range Ground Truth

For Exercise Control

Capabilities Provided

Instrumentation

Data

Collection

Analysis

technology highlights
Technology Highlights
  • Communications requirements completed.
  • Developed and evaluated west coast site plans, including analysis of cost alternatives.
  • Purchased ($1.5M) and configured initial network equipment.
  • Developed M&S Interface Architecture to Service component C4I systems, e.g. TBMCS, Army Battle Command Systems (ABCS, GCCS-A, etc.), USMC IOS, etc.
  • Provided plan for implementation of Global Command and Control Center (GCCC) monitoring and control of JNTC C4 networks.
  • Successfully integrated the MC 02 federation at current software levels for use Thrust 1 event.
  • Completed West Coast Range terrain refinement for Ft. Irwin and 29 Palms area (DTED 2 vice DTED 0).
  • Conducted preliminary planning to integrate Virtual Flag / TACCSF into simulation federation.
  • Collaborative Information Environment requirements survey completed.
