  1. WorkManager Basics

  2. Course Outline • Importing existing 3D models to WorkManager • Modifying and Saving 3D models to WorkManager • Creating detail 2D prints with WorkManager • Updating Title Block Information with WorkManager

  3. Importing existing 3Dmodels to WorkManager • Load package from hard disk • Copy Data in OSD - creates unique system ID's to avoid conflicts in the future • Save 3D Data from Database menu • Enter default category code • Okay, Okay, Okay! Five easy steps:

  4. Importing existing 3Dmodels to WorkManager • Load package from hard disk Load Copy Save 3D Data Enter cat codes Okay, Okay, Okay!

  5. Importing existing 3Dmodels to WorkManager • Copy Data in OSD - creates unique system ID's to avoid conflicts in the future Load Copy Save 3D Data Enter cat codes Okay, Okay, Okay!

  6. Database Menu Saving New Data select part/assy Database Icon Importing existing 3Dmodels to WorkManager • Save 3D Data from Database menu Load Copy Save 3D Data Enter cat codes Okay, Okay, Okay!

  7. Use Cat Code Pulldowns Or Title String Pulldowns Importing existing 3Dmodels to WorkManager • Enter default category code Load Copy Save 3D Data Enter cat codes Okay, Okay, Okay!

  8. Confirm category codes Confirm masterdata Confirm document Importing existing 3Dmodels to WorkManager • Okay, Okay, Okay! Load Copy Save 3D Data Enter cat codes Okay, Okay, Okay!

  9. Modifying and Saving 3D models to WorkManager • Load models from WorkManager • Modify Data in OSD • Save 3D Data from Database menu - use Overwrite mode • Okay! Four easy steps:

  10. Select 3D Document Model In OSD Hit Load Modifying and Saving 3D models to WorkManager • Load models from WorkManager Load Modify Save 3D Data Okay!

  11. Ex: punch operation Modified data Note Modify Flag Modifying and Saving 3D models to WorkManager • Modify Data in OSD Load Modify Save 3D Data Okay!

  12. Database Menu Saving Modified Data select part/assy Database Icon Modifying and Saving 3D models to WorkManager • Save 3D Data from Database menu - use Overwrite mode Load Modify Save 3D Data Okay!

  13. Click Okay Modifying and Saving 3D models to WorkManager • Okay to confirm overwrite Load Modify Save 3D Data Okay!

  14. Creating detail 2D prints with WorkManager • Create new drawing - adds viewset to 3D model • WM-A, WM-B, WM-C, WM-D, WM-E, WM-5x1.5, or WM-5x2.0 title block • Update drawing • Save 3D Data from Database menu in OSD (Modeling) - use Overwrite mode • Save 2D Data from Database Menu in Annotation - use New Document mode • Enter drawing Description and Type • Okay to relate! Seven steps:

  15. Note Modify Flag New Viewset Creating detail 2D prints with WorkManager • Create new drawing - adds viewset to 3D model Create WM-X title block Update Save 3D Save 2D Enter Relate

  16. WorkManager Title blocks (Frames) Creating detail 2D prints with WorkManager • Choose title block: WM-A, WM-B, WM-C, WM-D, WM-E, WM-5x1.5, or WM-5x2.0 Create WM-X title block Update Save 3D Save 2D Enter Relate

  17. Creating detail 2D prints with WorkManager • Update drawing Create WM-X title block Update Save 3D Save 2D Enter Relate

  18. Database Menu Save Modified Data select part/assy Database Icon Creating detail 2D prints with WorkManager • Save 3D Data from Database menu - use Overwrite mode Create WM-X title block Update Save 3D Save 2D Enter Relate

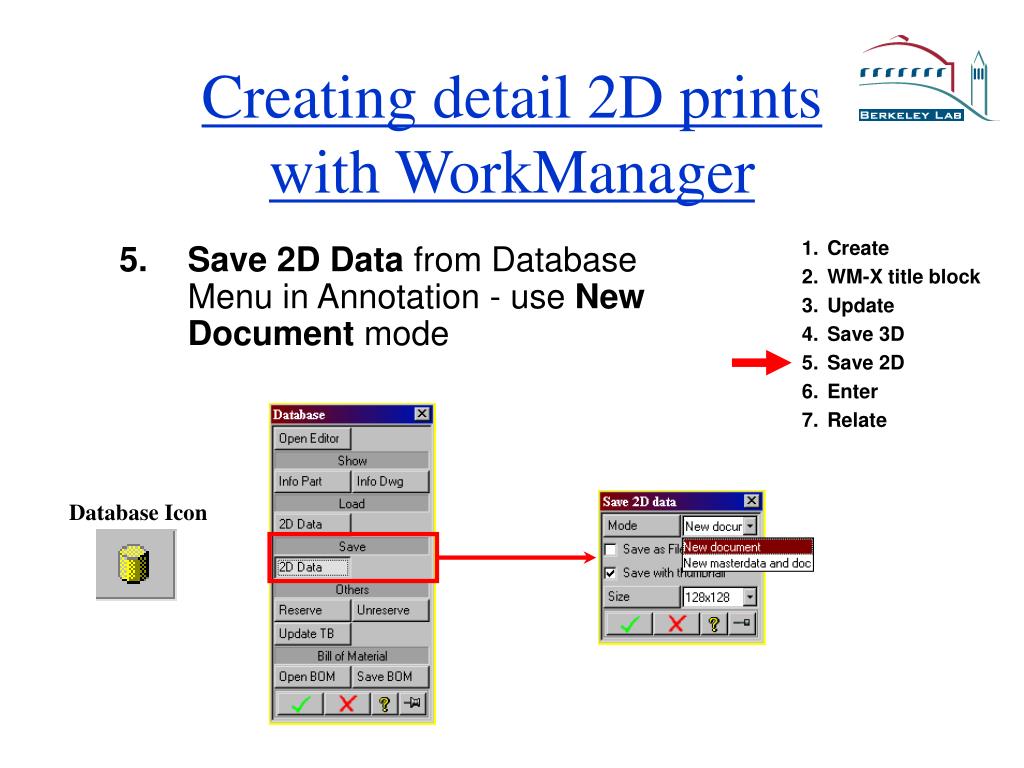

  19. Database Icon Creating detail 2D prints with WorkManager • Save 2D Data from Database Menu in Annotation - use New Document mode Create WM-X title block Update Save 3D Save 2D Enter Relate

  20. Click Okay Drawing Description Drawing Type Creating detail 2D prints with WorkManager • Enter drawing Description and Type Create WM-X title block Update Save 3D Save 2D Enter Relate

  21. Click Okay Print appears in related documents list Creating detail 2D prints with WorkManager • Okay to relate! Create WM-X title block Update Save 3D Save 2D Enter Relate

  22. Updating Title Block Information with WorkManager • Edit button in Masterdata editor • Modify data as desired & hit Okay • Update TB in OSD to see changes • Save 2D Data - use Overwrite mode Four easy steps:

  23. Must be Show (NOT Query) Edit Button Updating Title Block Information with WorkManager • Edit button used to initiate changes Edit button Modify & Okay Update TB Save 2D Data

  24. Hit Okay Modify Attributes Updating Title Block Information with WorkManager • Modify Masterdata attributes & hit Okay Edit button Modify & Okay Update TB Save 2D Data

  25. Database Icon Update TB Button Updating Title Block Information with WorkManager • Update TB from Database Menu in Annotation Edit button Modify & Okay Update TB Save 2D Data

  26. Database Icon Updating Title Block Information with WorkManager • Save 2D Data from Database Menu in Annotation - use Overwrite mode Edit button Modify & Okay Update TB Save 2D Data

  27. More Information • For more information Visit the ALS CAD/E/M home page: http://www-eng.lbl.gov/~als Read the online ALS WorkManager Introduction: http://www-eng .lbl.gov/~als/WorkManager/Intro_to_WM View this presentation or other class materials: http://www-eng .lbl.gov/~als/WorkManager/Training_Materials
