The problem • Mixed estate • Age • Size • Location • Use • Heating control • Rooms heated 8 – 20:00, Mon – Fri • Irrespective of actual use

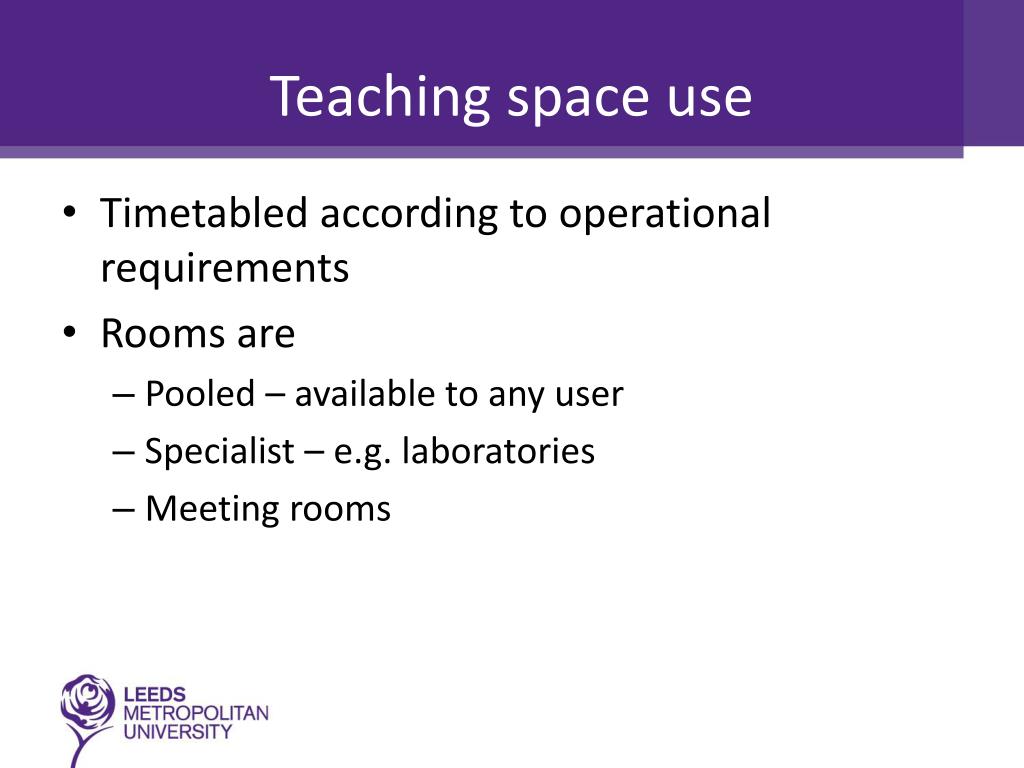

Teaching space use • Timetabled according to operational requirements • Rooms are • Pooled – available to any user • Specialist – e.g. laboratories • Meeting rooms

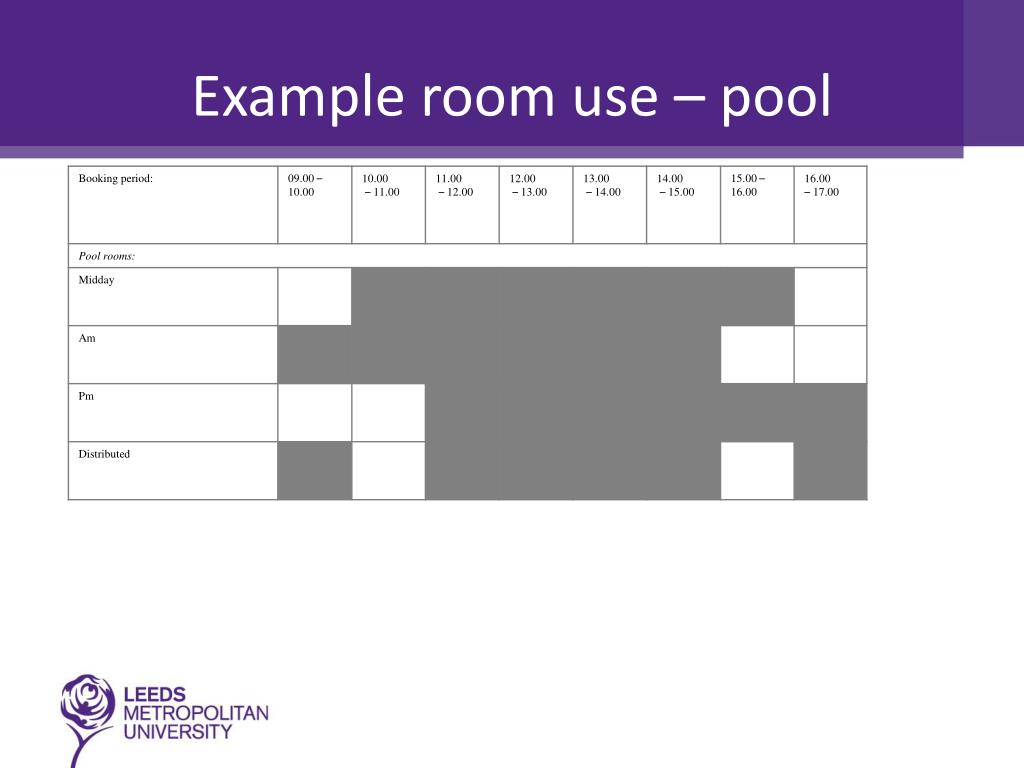

Example room use – pool

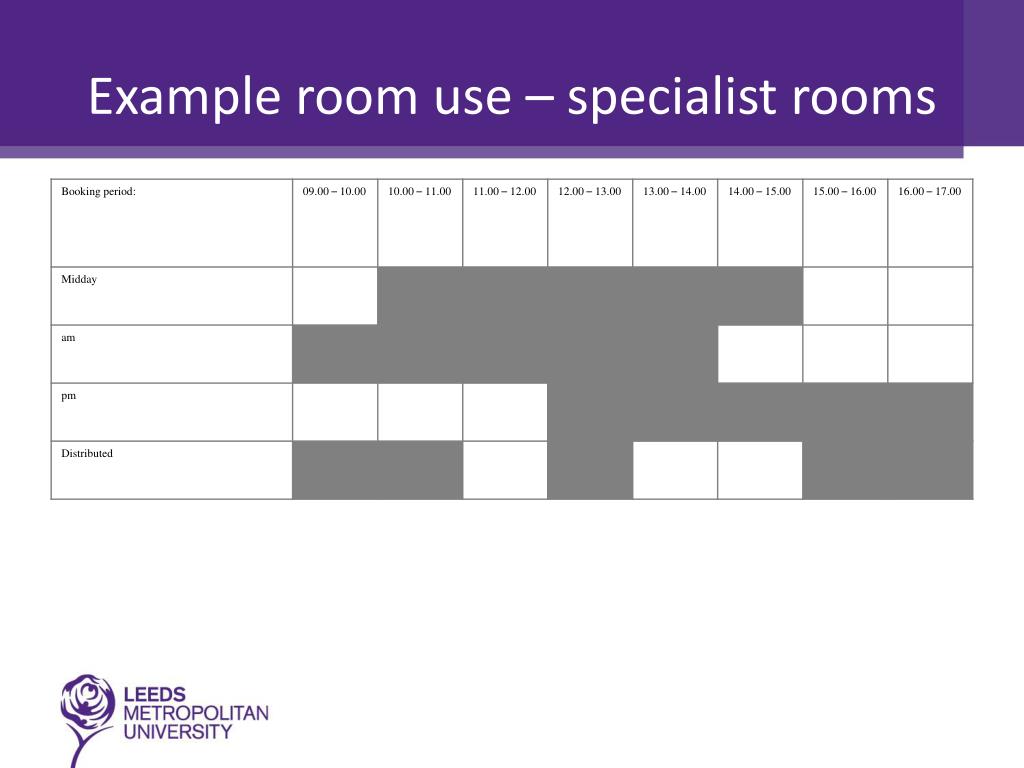

Example room use – specialist rooms

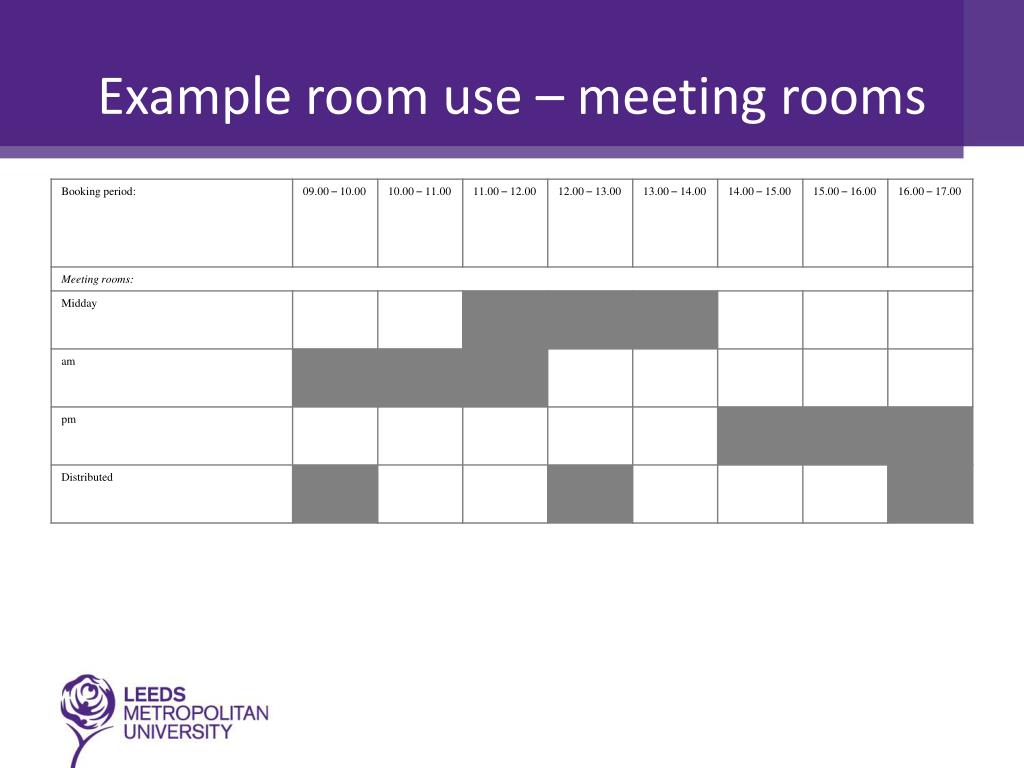

Example room use – meeting rooms

The timetable Centralised system (CMIS)

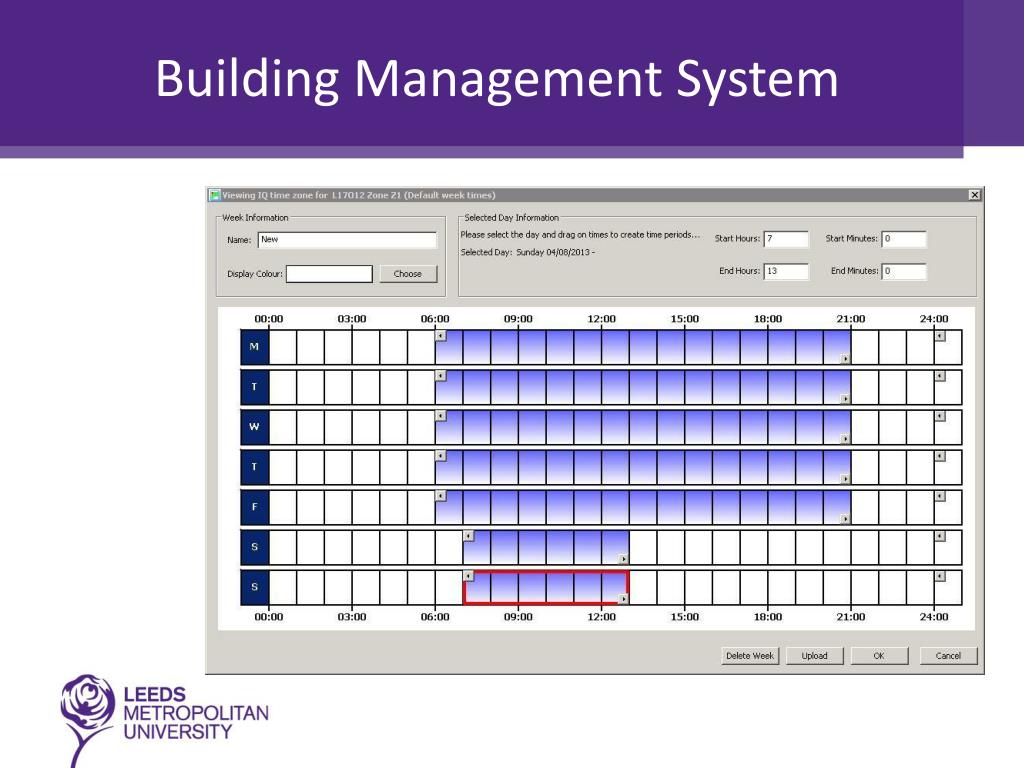

Building Management System

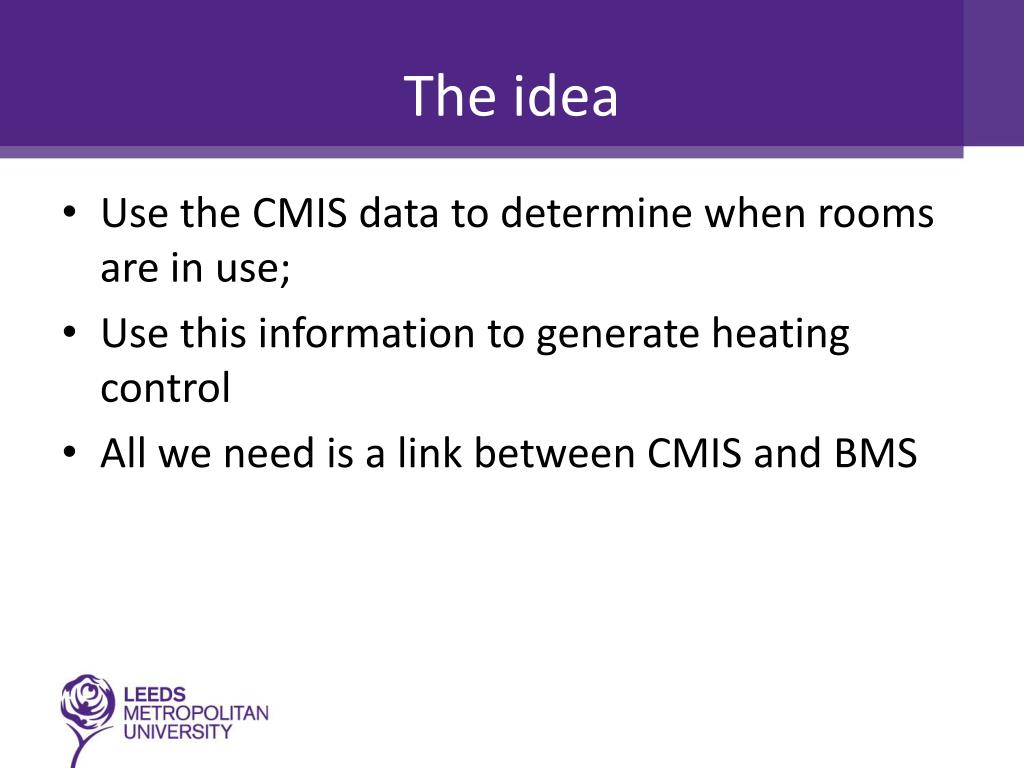

The idea • Use the CMIS data to determine when rooms are in use; • Use this information to generate heating control • All we need is a link between CMIS and BMS

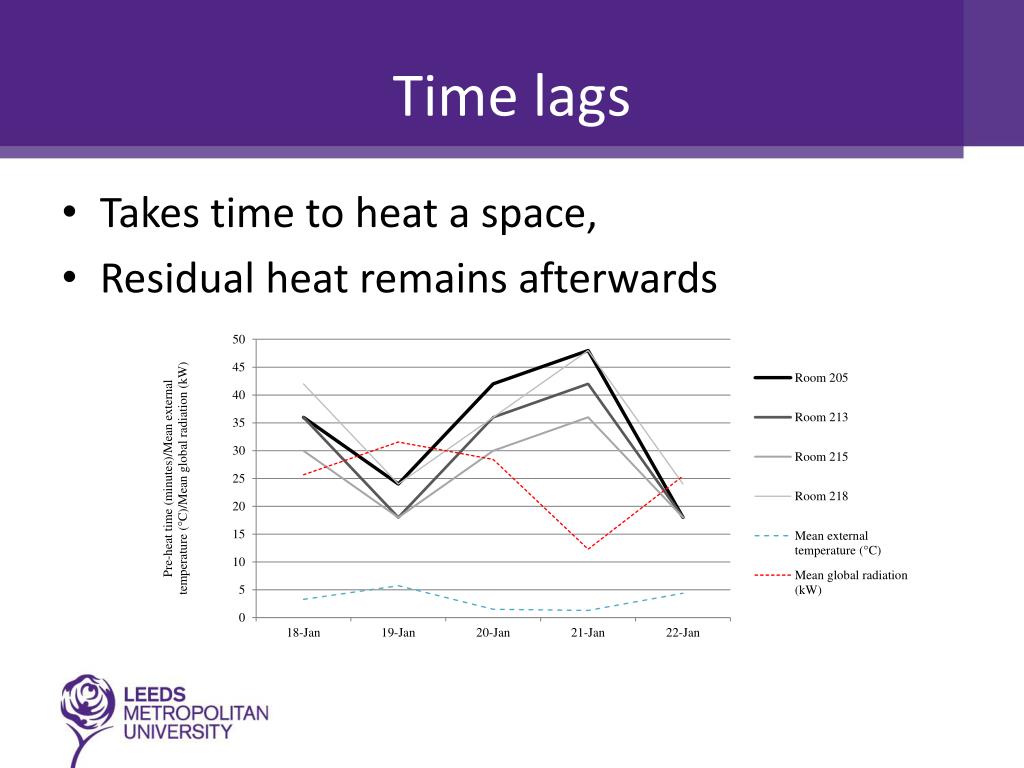

Time lags • Takes time to heat a space, • Residual heat remains afterwards

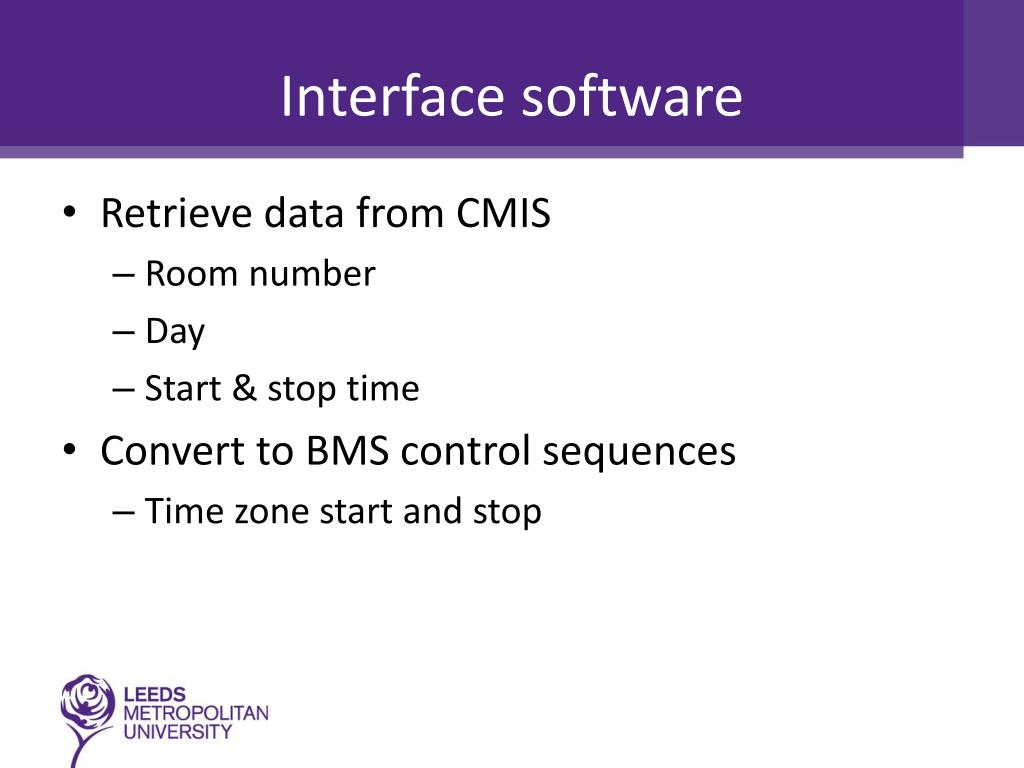

Interface software • Retrieve data from CMIS • Room number • Day • Start & stop time • Convert to BMS control sequences • Time zone start and stop

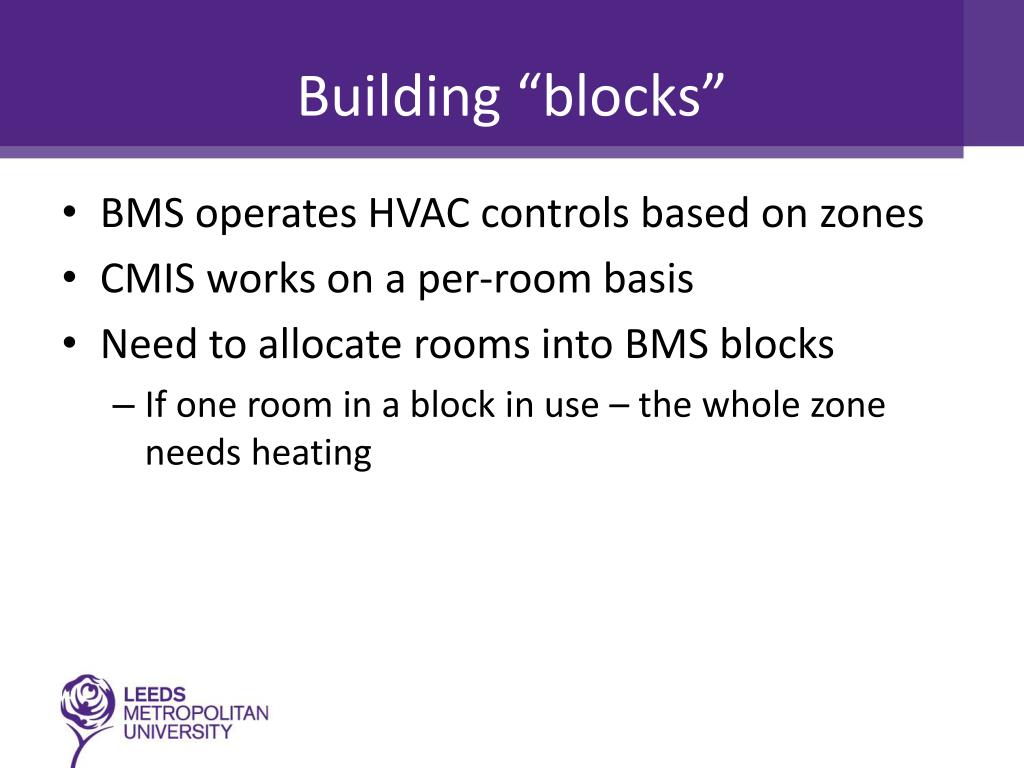

Building “blocks” • BMS operates HVAC controls based on zones • CMIS works on a per-room basis • Need to allocate rooms into BMS blocks • If one room in a block in use – the whole zone needs heating

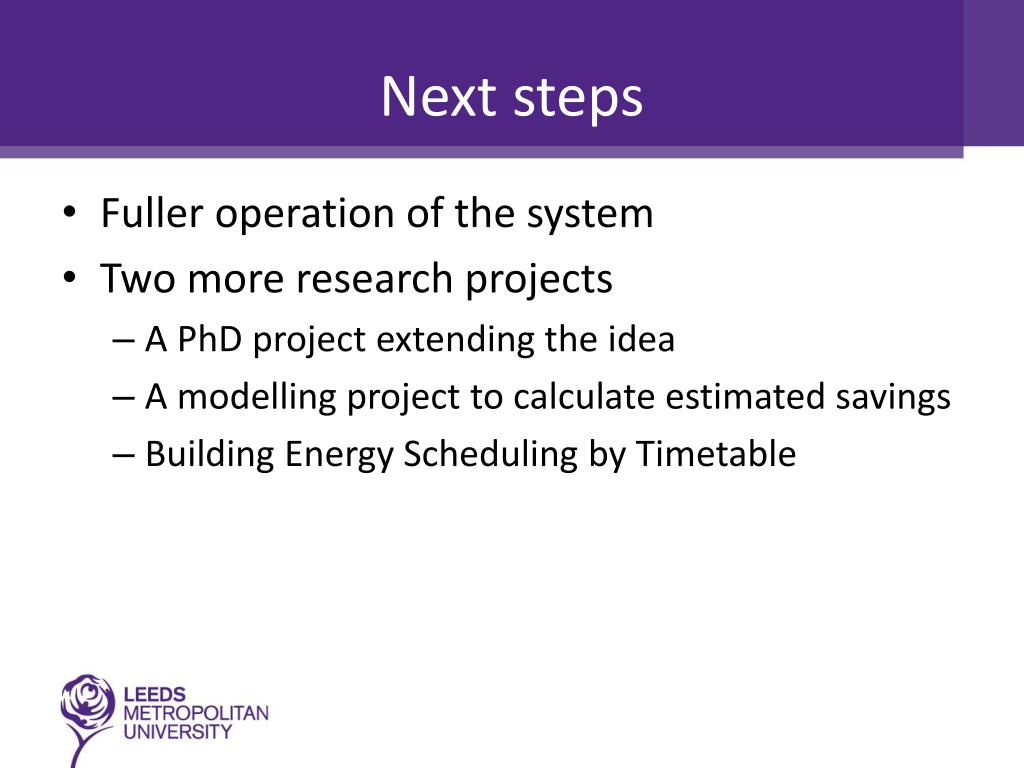

Next steps • Fuller operation of the system • Two more research projects • A PhD project extending the idea • A modelling project to calculate estimated savings • Building Energy Scheduling by Timetable

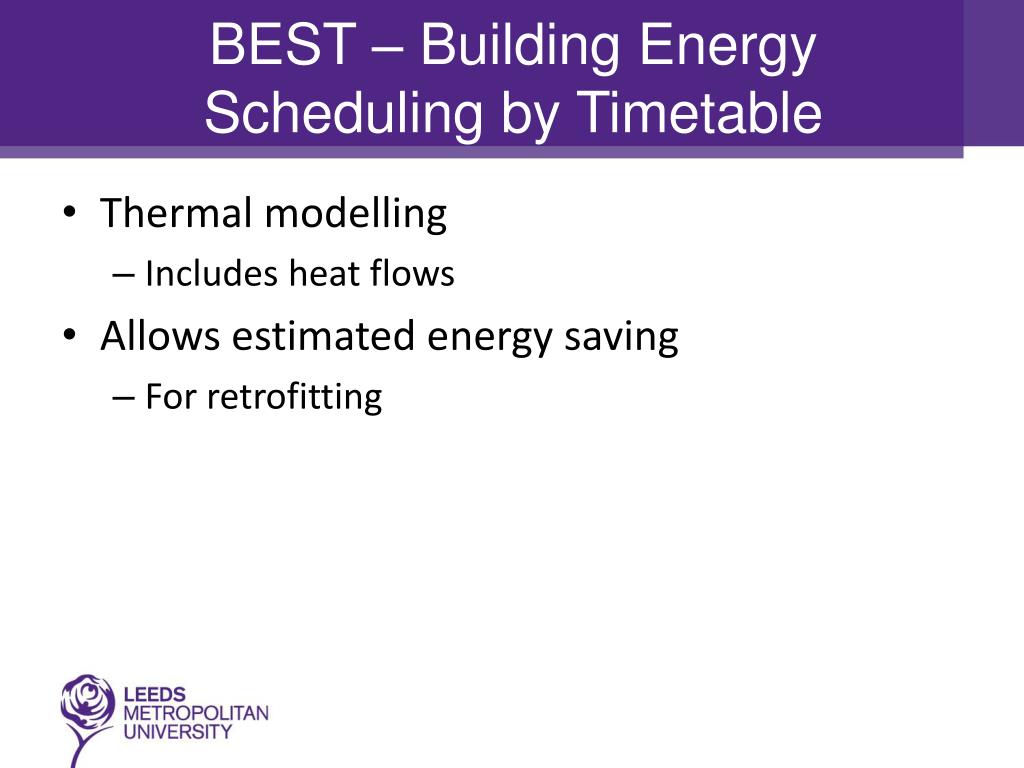

BEST – Building Energy Scheduling by Timetable • Thermal modelling • Includes heat flows • Allows estimated energy saving • For retrofitting

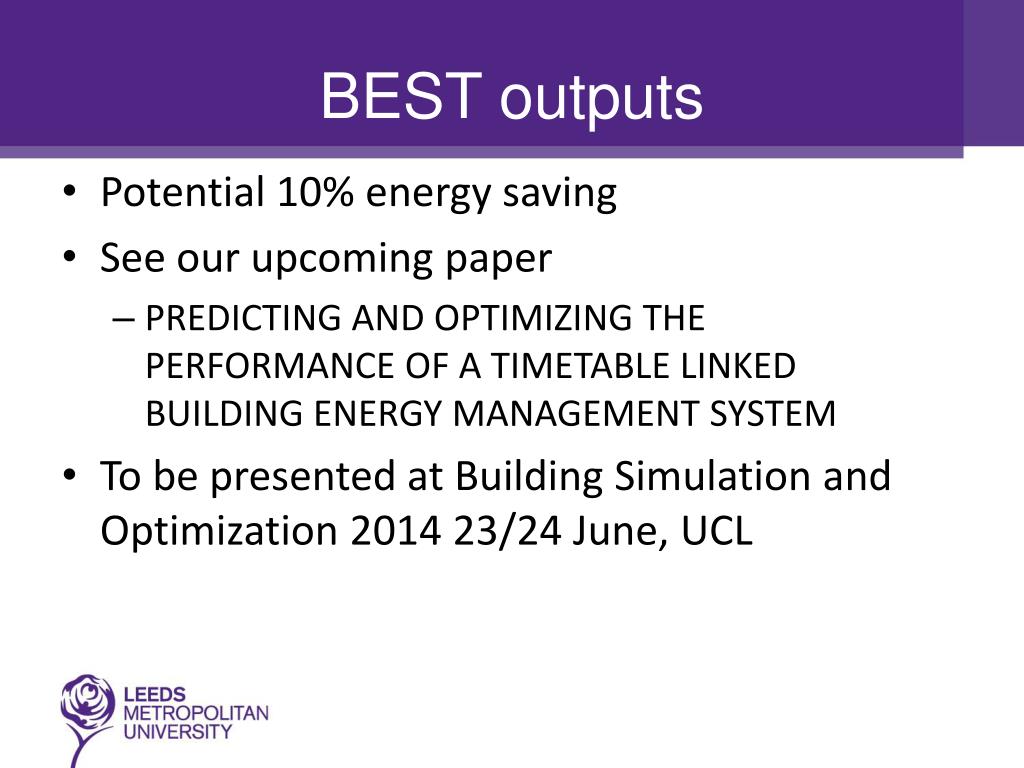

BEST outputs • Potential 10% energy saving • See our upcoming paper • PREDICTING AND OPTIMIZING THE PERFORMANCE OF A TIMETABLE LINKED BUILDING ENERGY MANAGEMENT SYSTEM • To be presented at Building Simulation and Optimization 2014 23/24 June, UCL

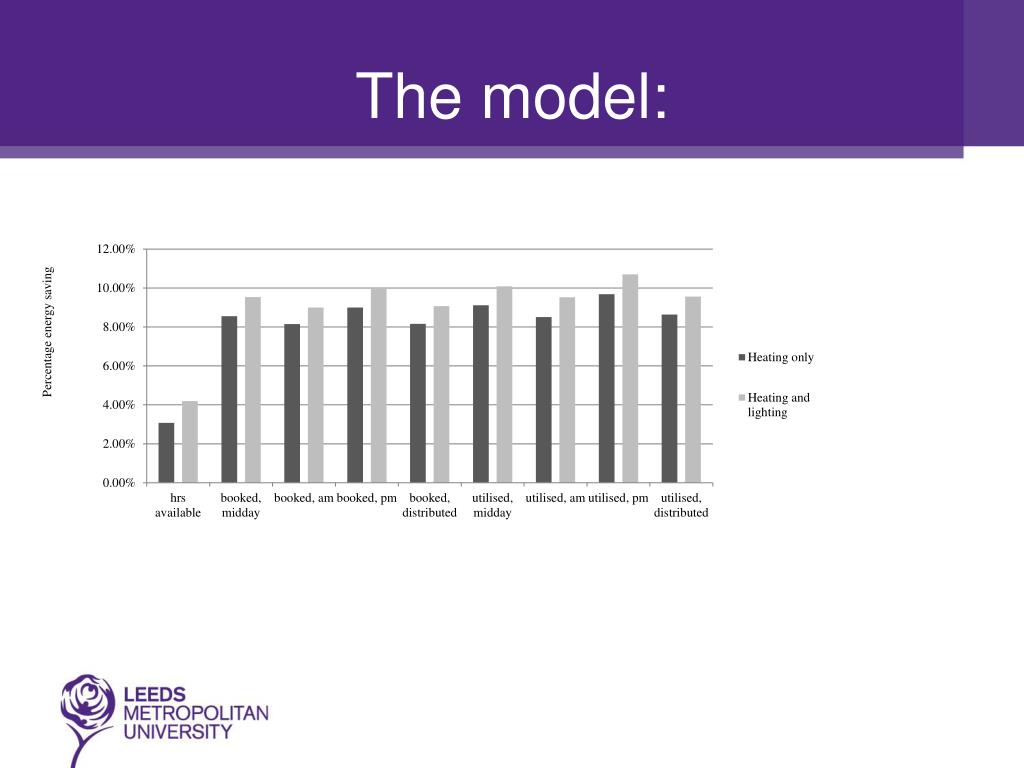

The model:
