  1. UMD T3 experiences UMD Tier-3 experiences Malina Kirn

  2. What are your service needs? • Basic cluster: • Submit Condor jobs to cluster • Submit CRAB jobs to grid • Run CMSSW • Download data registered in DBS (PhEDEx & srm client) • Computing element: • Service CRAB production jobs • Storage element: • Service all CRAB jobs UMD T3 experiences

  3. UMD cluster basics • Configuration • 1 HN, 8 WNs, ~9TB disk array • HN = Rocks HN, CE & SE (obviously not scalable) • WNs = 7 interactive WNs + 1 PhEDEx WN • Disk array RAID-6, xfs, logical volume, network mounted from HN (direct attached storage) • Cluster management: Rocks • Free, with software rolls such as Ganglia, Condor • “Clean reinstall” model for WN management • Network • All nodes have internal and external network connections • Scalable, but some view as risky UMD T3 experiences

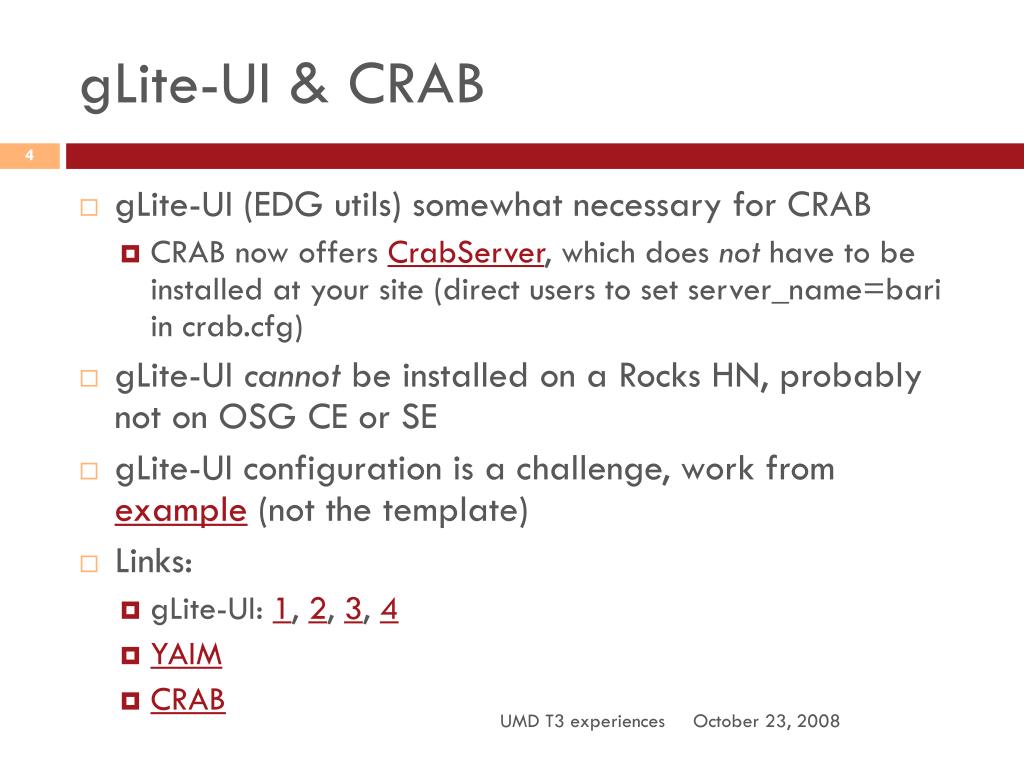

  4. gLite-UI & CRAB • gLite-UI (EDG utils) somewhat necessary for CRAB • CRAB now offers CrabServer, which does not have to be installed at your site (direct users to set server_name=bari in crab.cfg) • gLite-UI cannot be installed on a Rocks HN, probably not on OSG CE or SE • gLite-UI configuration is a challenge, work from example (not the template) • Links: • gLite-UI: 1, 2, 3, 4 • YAIM • CRAB UMD T3 experiences

  5. CMSSW • Can have CMSSW versions automatically installed and removed via OSG utilities. • ‘Production releases’ of CMSSW • email Bockjoo Kim • Alternatively, manually install,create link named <OSG APP>/cmssoft/cms& edit <OSG APP>/etc/grid3-locations.txt • Frontier DB queries require Squid web proxy • Support for CRAB jobs requires site-local-config.xml & storage.xml (examples) UMD T3 experiences

  6. site planning UMD T3 experiences

  7. BeStMan storage element (SE) • Lightweight, easy to install, configure, and use • Will manage files for you or provide a gateway to your existing file system • OSG also supports BeStMan on top of XrootdFS (requires two additional nodes, minimum) • OSG guide for BeStMan on XrootdFS is coming out, OSG guide for just BeStMan (you will want to set your own configuration options) • Getting to work with FNAL srm-client requires using special tags in calls or editing $SRM_CONFIG • webservice_path=srm/v2/server (.wsdl?) • access_latency=ONLINE • pushmode=true UMD T3 experiences

  8. Monitoring • Ganglia for cluster monitoring, comes with Rocks • RSV for OSG monitoring, comes with OSG • We don’t use SAM • Tests CMS-specific details, very nice! We use CRAB. • Enables participation in official production • SAM tests for BeStMan SEs under development UMD T3 experiences

  9. PhEDEx • You will probably want a “PhEDEx node” in addition to your OSG CE & SE node(s) • Transfer publicDBS data to or from your site • To site: does not require SE • To site & shown as host in DBS: requires SE • From site: requires dCache SE or a special PhEDEx client just for you at the receiving site • PhEDEx can run atop gLite-UI • gLite-UI required for advanced protocols • Otherwise uses srm • Also requires storage.xml, which can be different from CMSSW’s storage.xml. UMD T3 experiences

  10. Tricks • Always back up your OSG installation before any upgrade! pacman allow easy rollback of software from backup. • Use cp -p : permissions in OSG directory are important • Use soft links on your first install, then you can move it around for upgrades and fixes • Set shell for grid users to /bin/true • Deter brute-force ssh attacks (we use DenyHosts) • Keep a detailed log • Write a user guide • Train admin backup • Email OSG CMS Tier-3 hypernews to get help UMD T3 experiences
