Systems Engineering (SE) for ITS: Using FHWA’s New SE Handbook

1. Systems Engineering (SE) for ITS:Using FHWA’s New SE Handbook March 2007

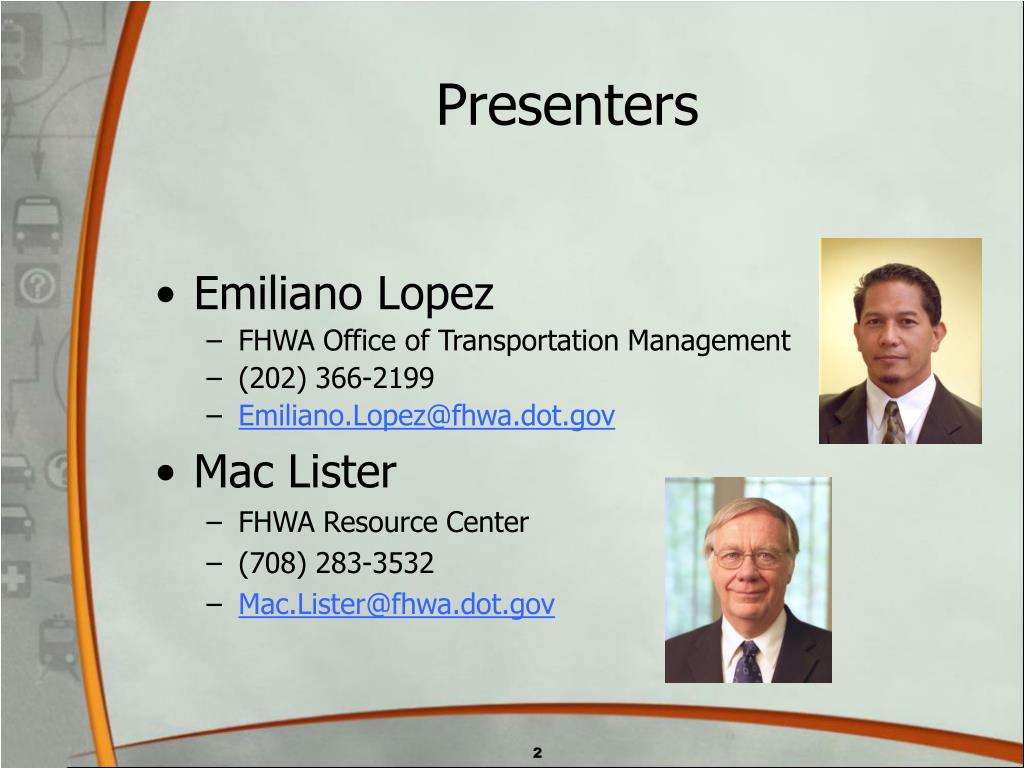

2. Presenters • Emiliano Lopez • FHWA Office of Transportation Management • (202) 366-2199 • Emiliano.Lopez@fhwa.dot.gov • Mac Lister • FHWA Resource Center • (708) 283-3532 • Mac.Lister@fhwa.dot.gov

3. Poll 1 Who’s Participating in this T3? • (Please reply with the most appropriate answer:) • Local/municipal agency • State agency • Federal agency • Education • Consultant • Other

4. Poll 2 Chances are that you already use some form of SE practice, but we would like to know your level of familiarity with SE. • (Please reply with the most appropriate answer:) • I am not familiar with SE. • I have heard of SE. • I am familiar with some SE concepts. • I have started using some SE methods.

5. Poll 3 Have you looked at or read the FHWA SE for ITS Handbook? • (Again, please reply with the most appropriate answer:) • No • I am aware of the Handbook • I have glanced at the Handbook • I have read portions of the Handbook • I have read most of the Handbook

6. Overview • Learning goals/outcomes • New SE for ITS Handbook • Benefits of using SE • ”V” Model • Overview of Handbook chapters • Available SE training & resources

7. Learning Goals/Outcomes • Identify what is in the Handbook • Describe the key features of the Handbook • List key content chapters in the Handbook including: • technical processes • project management processes • applying SE

8. New SE for ITS Handbook • About the Handbook • Developed by FHWA SE Deployment Team • Designed for Federal and public ITS professionals • Provides a basic understanding of SE and how to apply it to ITS projects • Assists those deploying ITS projects • Available via CD and online using the following link: http://ops.fhwa.dot.gov/publications/seitsguide/index.htm

9. Benefits of Using SE • Reduced risk of schedule and cost overruns • Increased likelihood that the implementation will meet user’s needs • Improved stakeholder participation • More adaptable and resilient systems • Verified functionality and fewer defects • Higher level of reuse from one project to the next • Better documentation

10. Project Success Rates Figure 6: Standish Group Chaos Report, 2004 Page 8 (Ch. 3)

11. Architecture and Standards Rule (940.11) The systems engineering analysis shall include, at a minimum: 1) Identification of portions of the regional ITS architecture being implemented (or if a regional ITS architecture does not exist, the applicable portions of the National ITS Architecture) 2) Identification of participating agencies roles and responsibilities 3) Requirements definitions 4) Analysis of alternative system configurations and technology options to meet requirements 5) Procurement options 6) Identification of applicable ITS standards and testing procedures 7) Procedures and resources necessary for operations and management of the system

12. ”V” Model • FHWA representation of SE methods • Representation of system development process • Addresses the project lifecycle • Aligns with the traditional project development process

13. “V” Model Page 11 (Ch. 3) Figure 7: “V” Model

14. Traditional Model vs. V Model Page 96 (Ch. 6) Figure 37: SE as an Extension to the Traditional Project Life Cycle

16. Design of the Handbook • Based on project level efforts • Focused on 3 primary Activities • Developing the right system • Based on user needs • Managing ITS elements on the project • Stay on time and on budget • Applying SE to projects • Modular to address different knowledge needs

17. Design of the Handbook (cont.) • Navigating the Document • Innovative use of icons • Tips • Cautions • Resources • Tailoring • Tool • Rule/Policy • Terminology

18. Key Sections of the Handbook Table of Contents Page i (Ch.1 -3)

19. Key Sections of the Handbook Building it right On time, on budget Table of Contents Page i (Ch. 4-7)

20. Chapter 4 of the Handbook Technical Processes Page i (Ch. 4)

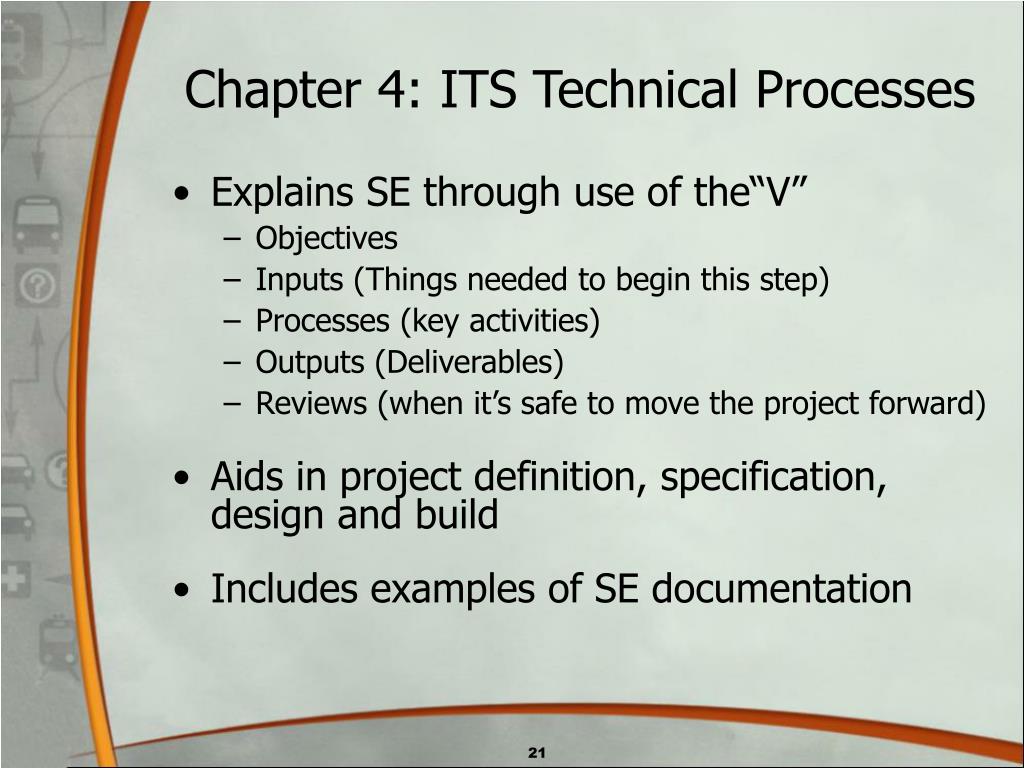

21. Chapter 4: ITS Technical Processes • Explains SE through use of the“V” • Objectives • Inputs (Things needed to begin this step) • Processes (key activities) • Outputs (Deliverables) • Reviews (when it’s safe to move the project forward) • Aids in project definition, specification, design and build • Includes examples of SE documentation

22. “V” Model Lifecycle Page 11 (Ch. 3) Figure 7: “V” Model

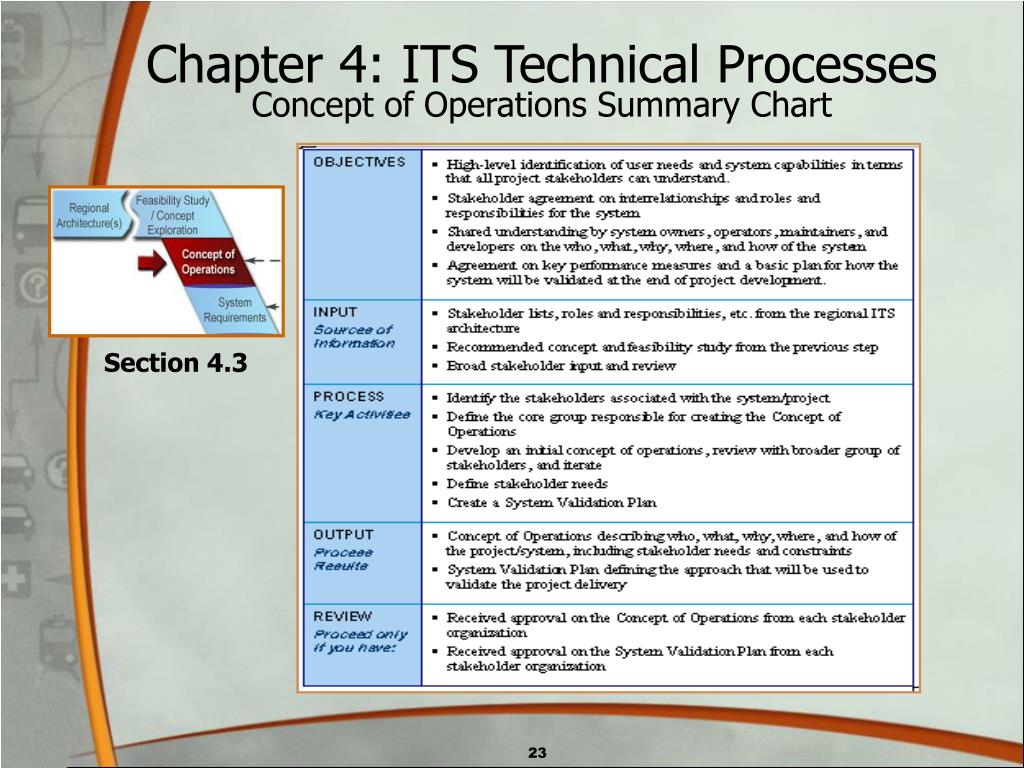

23. Chapter 4: ITS Technical Processes Concept of Operations Summary Chart Section 4.3

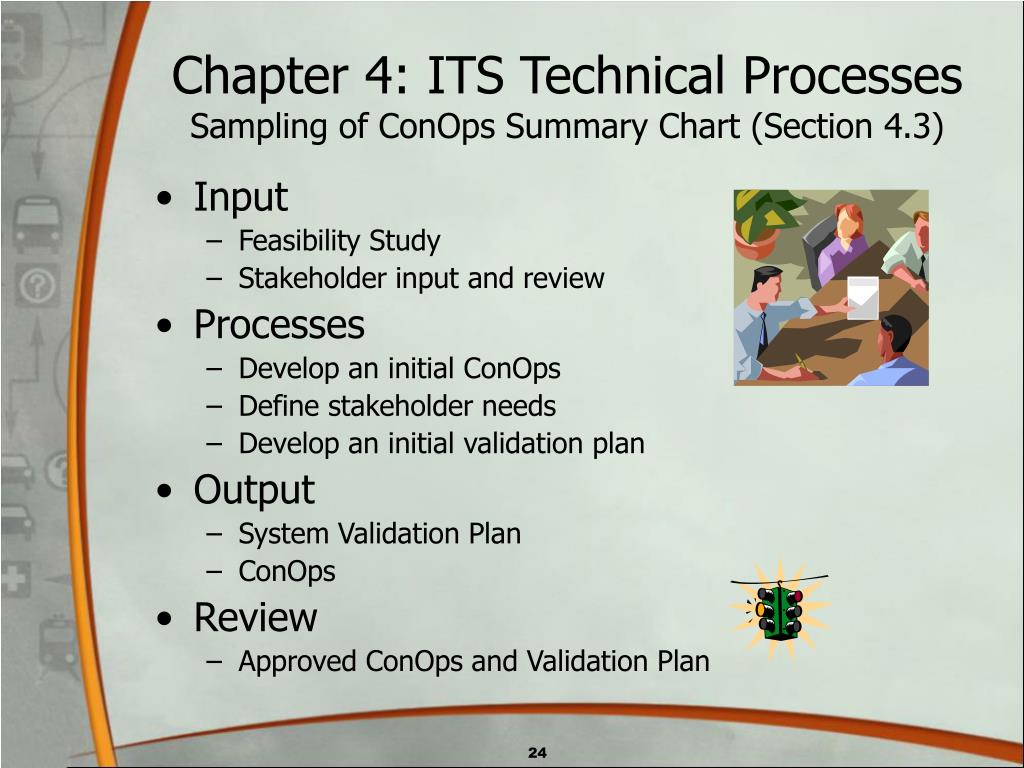

24. Chapter 4: ITS Technical Processes Sampling of ConOps Summary Chart (Section 4.3) • Input • Feasibility Study • Stakeholder input and review • Processes • Develop an initial ConOps • Define stakeholder needs • Develop an initial validation plan • Output • System Validation Plan • ConOps • Review • Approved ConOps and Validation Plan

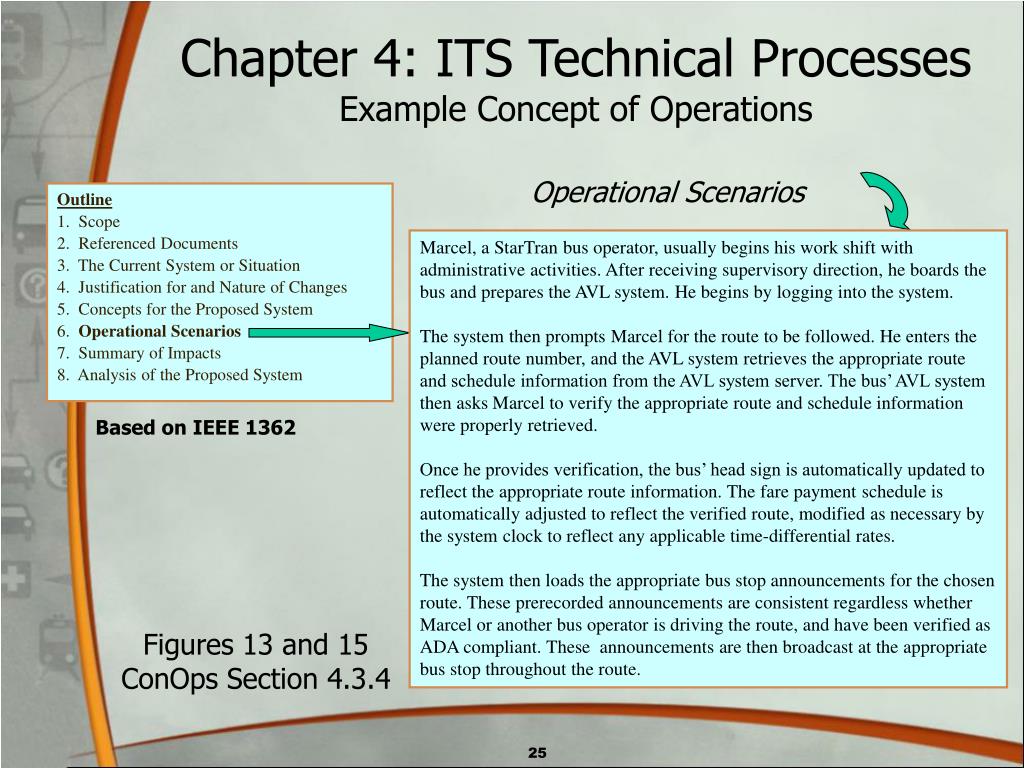

25. Chapter 4: ITS Technical Processes Example Concept of Operations Operational Scenarios Outline 1. Scope 2. Referenced Documents 3. The Current System or Situation 4. Justification for and Nature of Changes 5. Concepts for the Proposed System 6. Operational Scenarios 7. Summary of Impacts 8. Analysis of the Proposed System Marcel, a StarTran bus operator, usually begins his work shift with administrative activities. After receiving supervisory direction, he boards the bus and prepares the AVL system. He begins by logging into the system. The system then prompts Marcel for the route to be followed. He enters the planned route number, and the AVL system retrieves the appropriate route and schedule information from the AVL system server. The bus’ AVL system then asks Marcel to verify the appropriate route and schedule information were properly retrieved. Once he provides verification, the bus’ head sign is automatically updated to reflect the appropriate route information. The fare payment schedule is automatically adjusted to reflect the verified route, modified as necessary by the system clock to reflect any applicable time-differential rates. The system then loads the appropriate bus stop announcements for the chosen route. These prerecorded announcements are consistent regardless whether Marcel or another bus operator is driving the route, and have been verified as ADA compliant. These announcements are then broadcast at the appropriate bus stop throughout the route. Based on IEEE 1362 Figures 13 and 15 ConOps Section 4.3.4

26. Chapter 4: ITS Technical Processes System RequirementsSummary Chart From previous step Section 4.4

27. Chapter 4: ITS Technical Processes Sampling of System Requirements Chart (Section 4.4) • Input • Concept of Operations (stakeholder needs) • Processes • Develop requirements from user needs • Review and refine user needs • Trace requirements to user needs • Output • System Requirements Document • Traceability Matrix • Review • Approve system requirements

28. Chapter 4: ITS Technical Processes Example Validating Quality Attributes of Requirements Table 7 Requirements Section 4.4.2

29. Chapter 4: ITS Technical Processes System Design Summary Chart From previous step Section 4.5

30. Chapter 4: ITS Technical Processes SE Design Tailoring Advice (Section 4.5.1) • Leverage and optimize prior work • Reuse and build on existing design documentation • Update old documentation with new functionality or interfaces • Do not reinvent the wheel for each project

31. Chapter 4: ITS Technical Processes System Verification Summary Chart From previous step Section 4.7

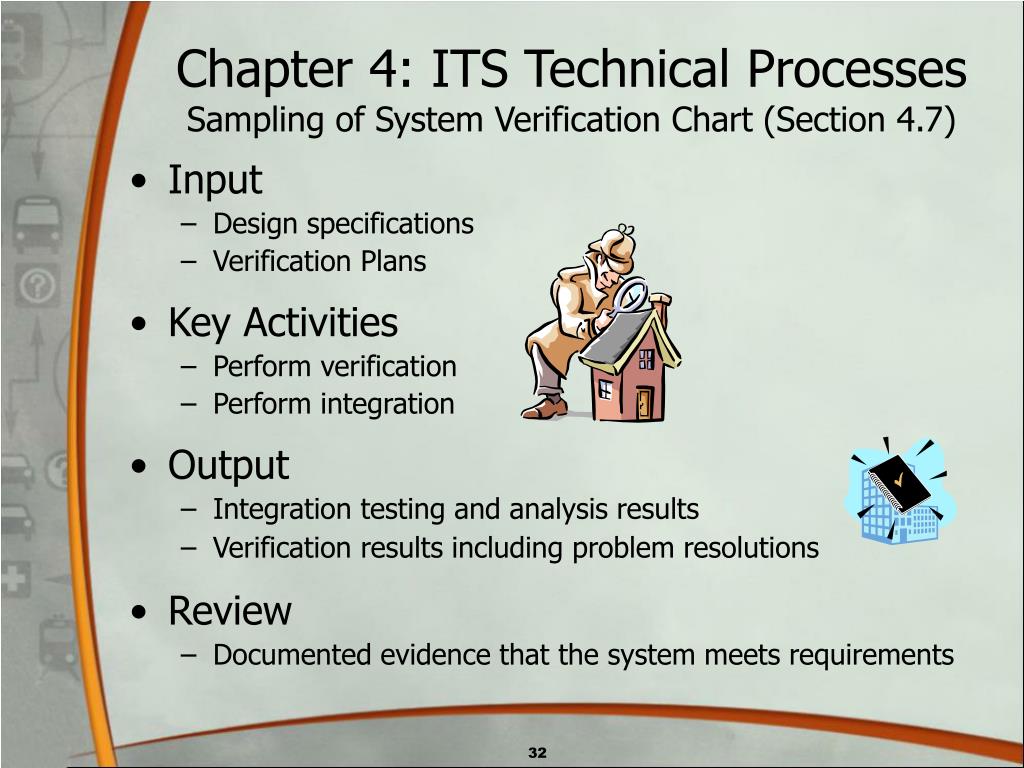

32. Chapter 4: ITS Technical Processes Sampling of System Verification Chart (Section 4.7) • Input • Design specifications • Verification Plans • Key Activities • Perform verification • Perform integration • Output • Integration testing and analysis results • Verification results including problem resolutions • Review • Documented evidence that the system meets requirements

33. Chapter 4: ITS Technical Processes System Verification Policy and Terminology(Section 4.7.2) • The systems engineering analysis requirements identified in FHWA Rule 940.11/FTA Policy Section VI require identification of testing procedures; verification procedures described in the Handbook cover this. • Verification Techniques • Inspection • Demonstration • Test • Analysis

34. Chapter 4: ITS Technical Processes System Verification Plans & Procedures Table 13: Verification Procedure Example: ODOT TripCheck Functional Test Plan (Excerpt) Table 15: ODOT TripCheck 2.0 System Test Results (Excerpt) Table 14: CHART II Integration Test Plan (Excerpt) System Verification Examples (Section 4.7.4)

35. Chapter 5 of the Handbook Project Management Processes Page i (Ch. 5)

36. Chapter 5Project Management Processes • Cross-cutting/project-wide processes • Project Planning • Project monitoring and control • Risk management • Configuration management

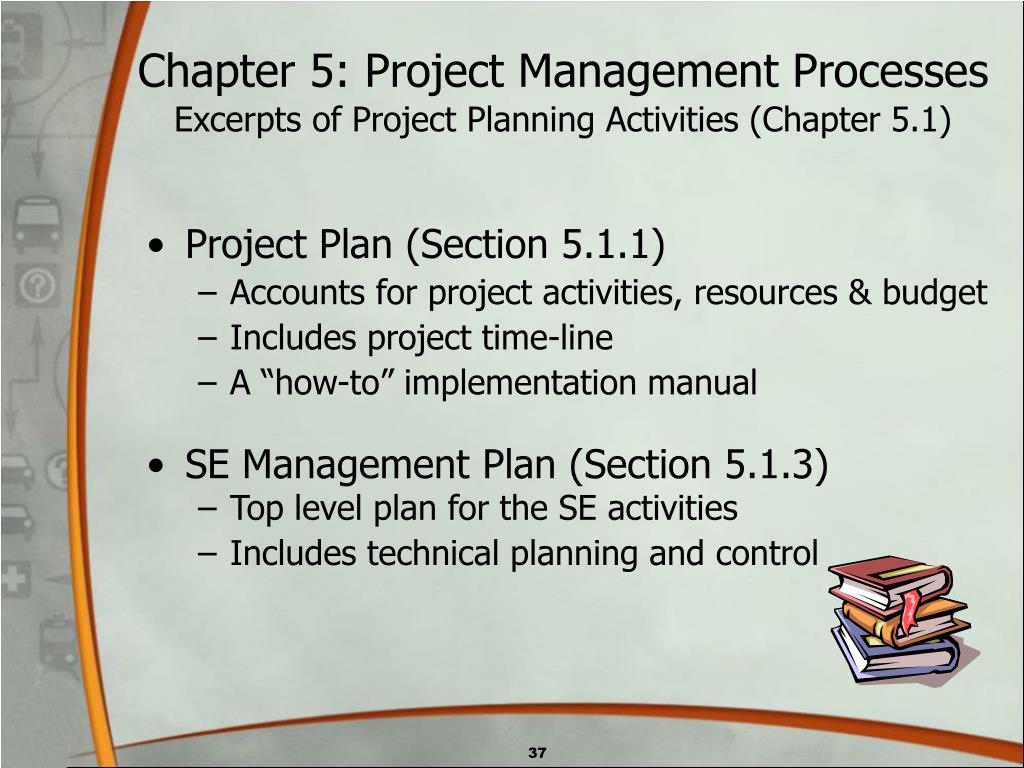

37. Chapter 5: Project Management ProcessesExcerpts of Project Planning Activities (Chapter 5.1) • Project Plan (Section 5.1.1) • Accounts for project activities, resources & budget • Includes project time-line • A “how-to” implementation manual • SE Management Plan (Section 5.1.3) • Top level plan for the SE activities • Includes technical planning and control

38. Chapter 5: Project Management ProcessesExcerpts of Project Monitoring/Control (Section 5.2) • Project Tracking (Section 5.2.1) • Methods for measuring progress against the plans/contract • Serves as a trend indicator for meeting budget and schedule • Project Reviews (Section 5.2.2) • Structured and organized communication of progress and product development • Formal or informally done • Typically conducted at the end of a V phase and before beginning the next phase

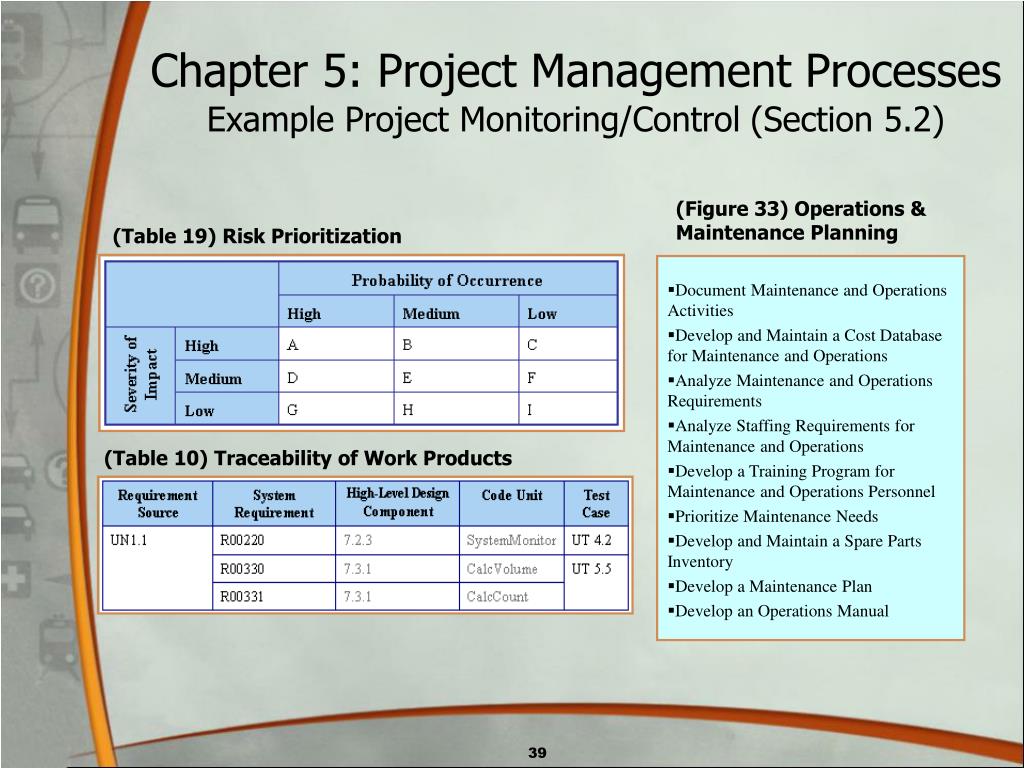

39. Chapter 5: Project Management ProcessesExample Project Monitoring/Control (Section 5.2) (Figure 33) Operations & Maintenance Planning (Table 19) Risk Prioritization • Document Maintenance and Operations Activities • Develop and Maintain a Cost Database for Maintenance and Operations • Analyze Maintenance and Operations Requirements • Analyze Staffing Requirements for Maintenance and Operations • Develop a Training Program for Maintenance and Operations Personnel • Prioritize Maintenance Needs • Develop and Maintain a Spare Parts Inventory • Develop a Maintenance Plan • Develop an Operations Manual (Table 10) Traceability of Work Products

40. Chapter 6 of the Handbook Applying Systems Engineering Page i (Ch. 6)

41. Chapter 6Applying Systems Engineering • Tailoring SE for your project • Enhances current project delivery practices • Helps focus on risky project steps • Allows selection of “as-needed” project deliverables and processes • Not an opportunity to skip steps! • Even the small projects need documented expectations

42. Chapter 6: Applying Systems EngineeringApplying SE in Your Organization (Section 6.3) • Include experienced Systems Engineers on each ITS project • Adopt a defined organizational process for SE • Acquire SE tools to help manage the process

43. Chapter 6: Applying Systems EngineeringSE Process Improvement (Section 6.3) • Develop repeatable processes • Incorporate SE into existing business processes and practices • Hold post project reviews to assess the application of SE (what worked – what needs to be refined) • Modify processes based on lessons learned

44. Traditional and V Relationship Page 96 (Ch. 6) Figure 37: SE as an Extension to the Traditional Project Life Cycle

45. Traditional and V Relationship Page 96 (Ch. 6) Figure 37: SE as an Extension to the Traditional Project Life Cycle

46. Chapter 7 of the Handbook SE Resources Page i (Ch. 7)

47. Chapter 7: Resources ITS-Specific Publications (Section 7.1) Checklists & Templates

48. CA SEGB Requirements Document Checklist CA SEGB Section 8.4.6

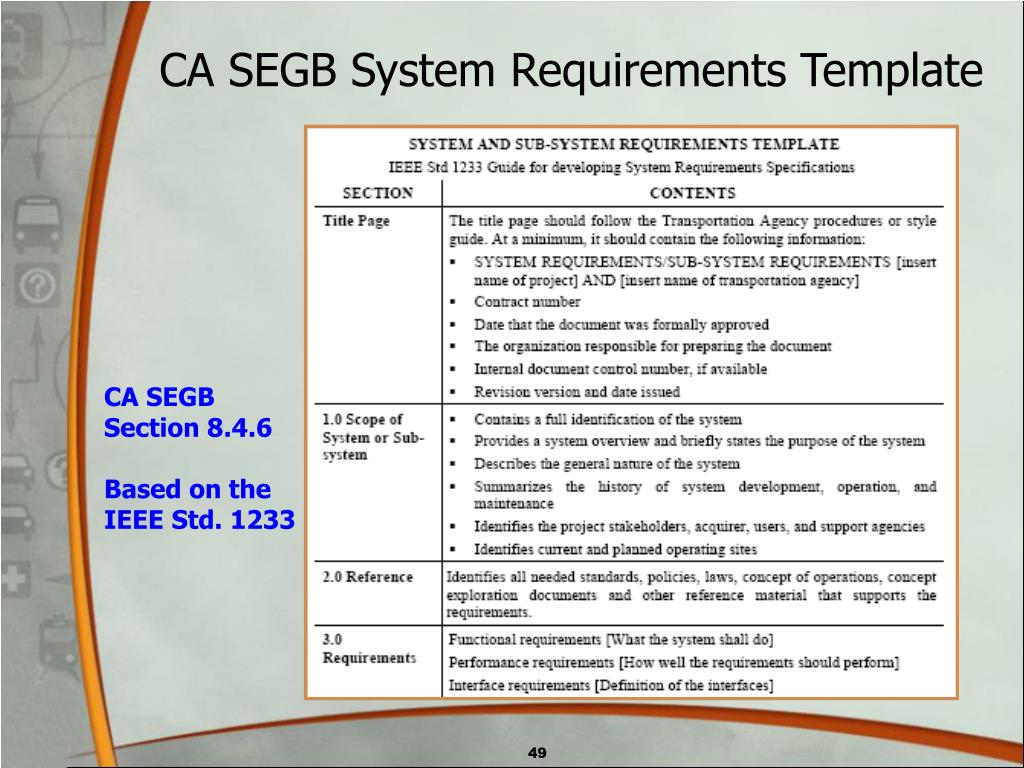

49. CA SEGB System Requirements Template CA SEGB Section 8.4.6 Based on the IEEE Std. 1233

50. Chapter 7: Resources SE General SE References (Section 7.2)
