enee 408c lab capstone project digital system design verilog tutorial

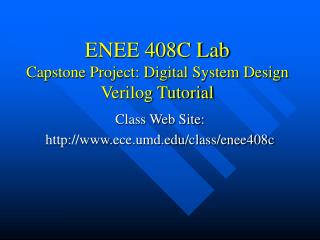

ENEE 408C LabCapstone Project: Digital System DesignVerilog Tutorial

Class Web Site:

http://www.ece.umd.edu/class/enee408c

structure description
Structure Description
  • primitive instantiation (AND, NAND, OR, NOR, XOR, XNOR, BUF, NOT, BUFIF, NOTIF)
  • parameter value assignment
structural description example
Structural Description Example

module weird_logic (a,b,c,d);

output a;

input b,c,d;

wire w;

nand g1(w,b,c);

nor g2(a,w,d);

endmodule

don’t forget

primitive

behavioral description 1
Behavioral Description 1
  • Boolean-Equation-Based Model

module weird_logic (a,b,c,d);

output a;

input b,c,d;

wire w;

assign w = ~(b & c);

assign a = ~(w | d);

endmodule

  • continuous assignment
  • level-sensitive
  • normally used for combinational circuits

continuous

assignment

behavioral description 2
Behavioral Description 2
  • Cyclic Behavior Model

module weird_logic (a,b,c,d);

output a;

input b,c,d;

reg w,a;

always@(b or c)

w = ~(b & c);

always@(d or posedge w)

a = ~(w | d);

endmodule

  • always block
  • can be both level and edge sensitive
  • do not expire after the last statements
behavioral description 21
Behavioral Description 2
  • Cyclic Behavior Model

module weird_logic (a,b,c,d);

output a;

input b,c,d;

wire w;

always@(b or c)

w = ~(b & c);

always@(d or posedge w)

a = ~(w | d);

endmodule

  • always block
  • can be both level and edge sensitive
  • do not expire after the last statements
testbench example
Testbench Example

module tb_weird_logic;

wire A;

reg B, C, D;

weird_logic instance1(A, C, D, B);

initial // two slashes introduce a single line comment

begin

$monitor ($time,,,

"A = %b B = %b C = %b D = %b", A, B, C, D);

//waveform for simulating the binaryToESeg driver

#10 B = 0; C = 0; D = 0;

#10 D = 1;

#10 C = 1; D = 0;

#10 $finish;

end

endmodule

using vectors to represent multi bit numbers in verilog
Using vectors to represent multi-bit numbers in Verilog
  • One dimensional: describe data with multiple bits.

e.g. reg [3:0] a;

a = 4’b1011; a = 4’d11; a = 4’hb;

  • Two dimension: describe a register array.

e.g. reg [3:0] b [0:2];

b[0] = 4’d11; b[1] = 4’d12; b[2] = 4’d13

represents the width of the data (from MSB to LSB)

represents the depth of the array (from address 0)

module hierarchy and module instantiation
Module Hierarchy and Module Instantiation
  • A module uses other defined modules to implement a function.
  • Example:
  • module fulladder (sum,cout,a,b,cin);
  • input a, b, cin;
  • output sum, cout;
  • assign sum = a ^ b ^ cin;
  • assign cout = a&b | b&cin | a&cin;
  • endmodule
  • module halfadder (sum, cout, a,b);
  • input a, b;
  • output sum, cout;
  • assign sum = a ^ b;
  • assign cout = a & b;
  • endmodule
  • module fulladder (sum,cout,a,b,cin);
  • input a, b, cin;
  • output sum, cout;
  • halfadder A1(.sum(w1), .cout(w2), .a(a), .b(b));
  • halfadder A2(.sum(sum), .cout(w3), .a(w1), .b(cin));
  • assign cout = w2 | w3;
  • endmodule
representing logical conditions
Representing Logical Conditions
  • if-else statement

reg n, m, p;

if (n == m) begin p = 1’b0; end

else begin p = 1’b1; end

  • case statement

case (n) begin

1’b0: begin m= 1’b0; end

1’b1: begin m= 1’b1; end

endcase

  • ? in continuous assignment

wire w1, w2, w3

assign w1 = (w2==1’b1) ? w3: 1’bx;

loop structure in verilog
Loop Structure in Verilog
  • while

while ( i < 4’d10) begin

end

  • for

for ( i = 0; i < 4’d10; i = i+1)

  • forever

All the loops are used ONLY in procedural assignments
