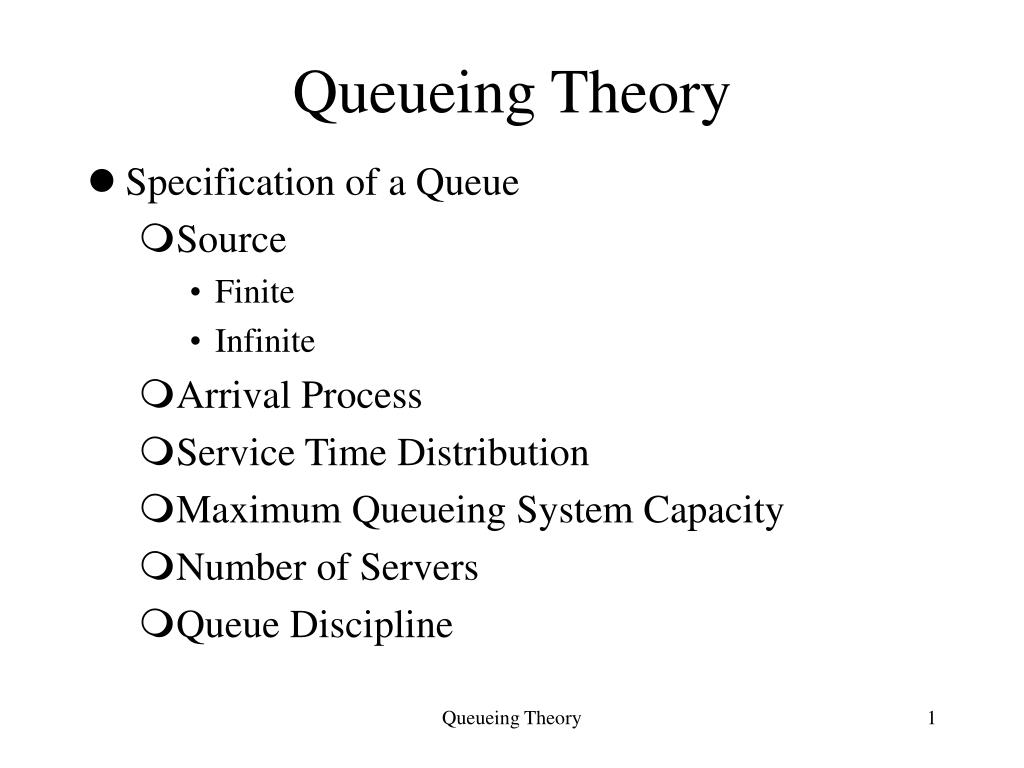

  1. Queueing Theory • Specification of a Queue • Source • Finite • Infinite • Arrival Process • Service Time Distribution • Maximum Queueing System Capacity • Number of Servers • Queue Discipline Queueing Theory

  2. Queueing Theory(cont.) • Specification of a Queue(cont.) • Traffic Intensity (l/m) Note: E[s] / E[t] = lE[s] = l/m • Server Utilization • Probability that N customers are in the system at time t. Queueing Theory

  3. Queueing Theory(cont.) • Relationships: • L = lW (L: avg # in the system) • Lq = lWq (Lq : avg # in queue) • W = Wq + 1/m (W: avg waiting time in sys.) (Wq: avg waiting time in queue) • Note: All four(L, Lq, W , Wq) can be determined after ONE is found Queueing Theory

  4. Birth-And-Death Process Queueing Theory

  5. Birth-And-Death Process(cont.) • Equation Expressing This: State Rate In = Rate Out 0 m1P1 = l0P0 1 l0P0 + m2P2 = (l1 + m1) P1 2 l1P1 + m3P3 = (l2 + m2) P2 .... ................... N-1 lN-2PN-2 + mNPN = (lN-1 + mN-1) PN-1 N lN-1PN-1 + mN+1PN+1 = (lN + mN) PN .... ................... Queueing Theory

  6. Birth-And-Death Process(cont.) • Finding Steady State Process: State 0: P1 = (l0 / m1) P0 1: P2 = (l1 / m2) P1 + (m1P1 - l0P0) / m2 = (l1 / m2) P1 + (m1P1 - m1P1) / m2 = (l1 / m2) P1 = Queueing Theory

  7. Birth-And-Death Process(cont.) • Finding Steady State Process(cont.): State n-1: Pn = (ln-1 / mn) Pn-1 + (mn-1Pn-1- ln-2Pn-2) / mn = (ln-1 / mn) Pn-1 + (mn-1Pn-1- mn-1Pn-1) / mn = (ln-1 / mn) Pn-1 Queueing Theory

  8. Birth-And-Death Process(cont.) • Finding Steady State Process(cont.): N: Pn+1 = (ln / mn+1) Pn+ (mnPn - ln-1Pn-1) / mn+1 = (ln / mn+1) Pn To Simplify: Let C = (ln-1ln-2 .... l0) / (mn mn-1 ......... m1) Then Pn = Cn P0 , N = 1, 2, .... Queueing Theory

  9. M/M/1 • Recall: r = l/ m< 1 (for steady-state) Cn = (l/ m)n = rn , for n = 1, 2, ... Pn = Cn × P0 The requirement that S¥n=0Pn = 1 => [1 + S¥n=1Cn]P0 = 1 => P0 = 1 / (1 + S¥n=1Cn) = 1 / (1 + S¥n=1 rn) = 1 / (r0 + S¥n=1 rn) (r0 = 1) Queueing Theory

  10. M/M/1(cont.) P0 = 1 / (S¥n=0 rn) = (S¥n=0 rn) -1 = {1 / (1 - r)} -1 = 1 - r Thus, Pn = (1 - r) rn , for n = 0, 1, 2,... Note: 1) Sni=0xi = (1 - xn+1) / (1 - x), for any x, 2) S¥n=0xn = 1 / (1 - x), if |x| < 1. Queueing Theory

  11. M/M/1(cont.) Consequently, Queueing Theory

  12. M/M/1(cont.) Similarly, Lq = S¥n=1(n - 1) Pn = S¥n=1nPn - S¥n=1Pn = S¥n=0nPn - (S¥n=0Pn - P0) = L - 1(1 - P0) = r / (1 - r) - 1 + (1 - r) = r2 / (1 - r) or = l2/ m(m - l) Queueing Theory

  13. M/M/1 Example I Traffic to a message switching center for one of the outgoing communication lines arrive in a random pattern at an average rate of 240 messages per minute. The line has a transmission rate of 800 characters per second. The message length distribution (including control characters) is approximately exponential with an average length of 176 characters. Calculate the following principal statistical measures of system performance, assuming that a very large number of message buffers are provided: Queueing Theory

  14. M/M/1 Example I (cont.) • (a) Average number of messages in the system • (b) Average number of messages in the queue waiting to be transmitted. • (c) Average time a message spends in the system. • (d) Average time a message waits for transmission • (e) Probability that 10 or more messages are waiting to be transmitted. • (f) 90th percentile waiting time in queue. Queueing Theory

  15. M/M/1 Example I (cont.) • E[s] = Average Message Length / Line Speed = {176 char/message} / {800 char/sec} = 0.22 sec/message or • m = 1 / 0.22 {message / sec} = 4.55 message / sec • l = 240 message / min = 4 message / sec • r = l E[s] = l / m = 0.88 Queueing Theory

  16. M/M/1 Example I (cont.) • (a) L= r / (1 - r) = 7.33 (messages) • (b) Lq = r2 / (1 - r) = 6.45 (messages) • (c) W = E[s] / (1 - r) = 1.83 (sec) • (d) Wq = r× E[s] / (1 - r) = 1.61 (sec) • (e) P [11 or more messages in the system] = r11 = 0.245 • (f) pq(90) = W ln{(100-90) r} = W ln(10r) = 3.98 (sec) Queueing Theory

  17. M/M/1 Example II A branch office of a large engineering firm has one on-line terminal that is connected to a central computer system during the normal eight-hourworking day. Engineers, who work throughout the city, drive to the branch office to use the terminal to make routine calculations. Statistics collected over a period of time indicate that the arrival pattern of people at the branch office to use the terminal has a Poisson (random) distribution, with a mean of 10 people coming to use the terminal each day. The distribution of time spent by an engineer at a terminal is exponential, with a Queueing Theory

  18. M/M/1 Example II (cont.) mean of 30 minutes. The branch office receives complains from the staff about the terminal service. It is reported that individuals often wait over an hour to use the terminal and it rarely takes less than an hour and a half in the office to complete a few calculations. The manager is puzzled because the statistics show that the terminal is in use only 5 hours out of 8, on the average. This level of utilization would not seem to justify the acquisition of another terminal. What insight can queueing theory provide? Queueing Theory

  19. M/M/1 Example II (cont.) • {10 person / day}×{1 day / 8hr}×{1hr / 60 min} = 10 person / 480 min = 1 person / 48 min ==> l = 1 / 48 (person / min) • 30 minutes : 1 person = 1 (min) : 1/30 (person) ==> m = 1 / 30 (person / min) • r = l / m = {1/48} / {1/30} = 30 / 48 = 5 / 8 Queueing Theory

  20. M/M/1 Example II (cont.) • Arrival Rate l = 1 / 48 (customer / min) • Server Utilization r = l / m = 5 / 8 = 0.625 • Probability of 2 or more customers in system P[N ³ 2] = r2 = 0.391 • Mean steady-state number in the system L = E[N] = r / (1 - r) = 1.667 • S.D. of number of customers in the system sN = sqrt(r) / (1 - r) = 2.108 Queueing Theory

  21. M/M/1 Example II (cont.) • Mean time a customer spends in the system W = E[w] = E[s] / (1 - r) = 80 (min) • S.D. of time a customer spends in the system sw = E[w] = 80 (min) • Mean steady-state number of customers in queue Lq = r2 / (1 - r) = 1.04 • Mean steady-state queue length of nonempty Qs E[Nq | Nq > 0] = 1 / (1 - r) = 2.67 • Mean time in queue Wq = E[q] = r×E[s] / (1 - r) = 50 (min) Queueing Theory

  22. M/M/1 Example II (cont.) • Mean time in queue for those who must wait E[q | q > 0] = E[w] = 80 (min) • 90th percentile of the time in queue pq(90) = E[w] ln (10 r) = 80 * 1.8326 = 146.6 (min) • 90th percentile of the time in system pw(90) = 2.3 * E[w] = 184 (min) Queueing Theory

  23. M/M/1 Example II (cont.) • Defined by equation P[w £pw(90)] = 0.9 response time of system pw(90) - amount of time in the system such that 90% of all arriving customers spend less than this amount of time in the system Queueing Theory

  24. M/M/s (s > 1) Queueing Theory

  25. M/M/s (cont.) State Rate In = Rate Out 0 mP1 = lP0 1 2mP2 + lP0 = (l + m) P1 2 3mP3 + lP1 = (l + 2m) P2 .... ................... s-1 smPs + lPs-2 = {l + (s-1)m} Ps-1 s smPs+1 + lPs-1 = (l + sm) Ps s+1 smPs+2 + lPs = (l + sm) Ps+1 .... ................... Queueing Theory

  26. M/M/s (cont.) • Now, solve for P1 , P2, P3... in terms of P0 P1 = (l/ m) P0 P2 = (l/ 2m) P1 = (1/2!) × (l/ m)2 P0 P3 = (l/ 3m) P2 = (1/3!) × (l/ m)3 P0 ......... Ps = (1/s!) × (l/ m)s P0 Ps+1 = (1/s) × (l/ m) Ps = Queueing Theory

  27. M/M/s (cont.) Queueing Theory

  28. M/M/s (cont.) Therefore, if we denote Pn = Cn× P0 , then (l/ m)n Cn = ---------- , for n = 1, 2, ...., s. n! and , for n = s+1, s+2,... Queueing Theory

  29. M/M/s (cont.) So, if l< sm => if 0 £ n £ s if s £ n Queueing Theory

  30. M/M/s (cont.) Now solve for Lq: Note, r = l/ sm Lq = S¥n=s(n - s) Pn = S¥j=0j Ps+j ;Note, n = s + j ¥ (l/ m)s = Sj ---------- rj P0 j=0s! (l/ m)s ¥ d = P0 ------------ r S ------ rj s! j=0 dr Queueing Theory

  31. M/M/s (cont.) (l/ m)s d ¥ Lq = P0 ------------ r ------ Srj s! dr j=0 (l/ m)s d 1 = P0 ------------ r ------ --------- s! dr (1 - r) (l/ m)s r = P0 ------------ --------- s! (1 - r)2 Queueing Theory

  32. M/M/s (cont.) (l/ m)s rLq = P0 ----------- --------- , r = l/ sms! (1 - r)2 (Lq : avg # in queue) Wq = Lq / l (Wq: avg waiting time in Q) W = Wq + 1 / m (W: avg waiting time in sys.) L = l (Wq + 1/m) (L: avg # in the system) = Lq + l/ m Queueing Theory

  33. Steady-State Parameters ofM/M/s Queue r = l / sm P(L(¥) ³ s) = {(l/m)s P0} / {s!(1- l/sm)} = {(sr)s P0} / {s! (1 - r)} Queueing Theory

  34. Steady-State Parameters ofM/M/s Queue (cont.) L= sr + {(sr)s+1 P0} / {s (s!) (1 - r)2} = sr + {r P (L(¥) ³ s) } / {1 - r} W= L / l Wq = W - 1/m Lq = l Wq = {(sr)s+1 P0} / {s (s!) (1 - r)2} = {r P (L(¥) ³ s) } / {1 - r} L - Lq = l / m = sr Queueing Theory

  35. M/M/s Case Example I Queueing Theory

  36. M/M/s Case Example I (cont.) = 0.429 (@ 43% of time, system is empty) as compared to s = 1: P0 = 0.20 (l/ m)s r Lq = P0 ----------- --------- s! (1 - r)2 = 0.429 × {0.82´ 0.4} / { 2! ´ (1 - 0.4)2 } = 0.152 Queueing Theory

  37. M/M/s Case Example I (cont.) Wq = Lq / l = 0.152 / (1/10) = 1.52 (min) W = Wq + 1 / m = 1.52 + 1 / (1/8) = 9.52 (min) What proportion of time is both repairman busy? (long run) P(N ³ 2) = 1 - P0 - P1 = 1 - 0.429 - 0.343 = 0.228 (Good or Bad?) Queueing Theory

  38. M/M/s Example II Many early examples of queueing theory applied to practical problems concerning tool cribs. Attendants manage the tool cribs while mechanics, assumed to be from an infinite calling population, arrive for service. Assume Poisson arrivals at rate 2 mechanics per minute and exponentially distributed service times with mean 40 seconds. Queueing Theory

  39. M/M/s Example II (cont.) l = 2 per minute, and m = 60/40 = 3/2 per minute. Since, the offered load is greater than 1, that is, since, l / m = 2 / (3/2) = 4/3 > 1, more than one server is needed if the system is to have a statistical equilibrium. The requirement for steady state is that s > l / m = 4/3. Thus, at least s = 2 attendants are needed. The quantity 4/3 is the expected number of busy server, and for s ³ 2, r = 4 / (3s) is the long-run proportion of time each server is busy. (What would happen if there were only s = 1 server?) Queueing Theory

  40. M/M/s Example II (cont.) Let there be s = 2 attendants. First, P0 is calculated as = {1 + 4/3 + (16/9)(1/2)(3)} -1 = {15 / 3}-1 = 1/5 = 0.2 The probability that all servers are busy is given by P(L(¥) ³ 2) = {(4/3)2 (1/5)} / {2!(1- 2/3)} = (8/3) (1/5) = 0.533 Queueing Theory

  41. M/M/s Example II (cont.) Thus, the time-average length of the waiting line of mechanics is Lq= {(2/3)(8/15)} / (1 - 2/3) = 1.07 mechanics and the time-average number in system is given by L = Lq+ l/m = 16/15 + 4/3 = 12/5 = 2.4 mechanics Using Little’s relationships, the average time a mechanic spends at the tool crib is W = L / l = 2.4 / 2 = 1.2 minutes while the avg time spent waiting for an attendant is Wq = W - 1/m = 1.2 - 2/3 = 0.533 minute Queueing Theory

  42. M/M/1/N (single server) Queueing Theory

  43. M/M/1/N (cont.) 1. Form Balance Equations: 2. Solve for P0: or P0 + (l/m)1 P0 + ×××× + (l/m)N P0 = 1 P0 {1+ (l/m)1 + ×××× + (l/m)N } = 1 P0 = 1 / { } = (1 - r) / (1 - rN+1) Queueing Theory

  44. M/M/1/N (cont.) So, , for n = 0, 1, 2, ..., N Hence, N L = Sn Pn n=0 1 - r Nd = ---------- r S----- rn 1- rN+1n=0 dr 1 - rd N = ---------- r ----- Srn 1- rN+1 dr n=0 Queueing Theory

  45. M/M/1/N (cont.) Queueing Theory

  46. M/M/1/N (cont.) As usual (when s = 1) Lq = L - (1- P0) W = L / le , where le = l (1 - PN) Wq = Lq / le Queueing Theory

  47. M/M/1/N Example The unisex barbershop can hold only three customers, one in service and two waiting. Additional customers are turned away when the system is full. Determine the measures of effectiveness for this system. The traffic intensity is l / m = 2 / 3. The probability that there are three customers in the system is computed by Pn = P3 = {(1-2/3) (2/3)3} / { 1 - (2/3)4} = 8 / 65 = 0.123 Queueing Theory

  48. M/M/1/N Example (cont.) The expected # of customers in the shop is given by 2/3 {1 - 4(2/3)3 + 3(2/3)4} 66 L = -------------------------------- = ------ {1 - (2/3)4} (1 - 2/3) 65 = 1.015 (customers) Now, the effective arrival rate, le , is given by le = l (1 - Pn) = 2(1 - 8/65) = 2 × 57 / 65 =114/65 = 1.754 (customers/hour) Then W can be calculated as W = L / le = 1.015 / 1.754 = 0.579 (hour) Queueing Theory

  49. M/M/1/N Example (cont.) In order to calculate Lq, first determine P0 as P0 = (1 - r) / (1 - rN+1) = (1 - 2/3) / {1 - (2/3)4} = {1/3} / {65/81} = 27 / 65 = 0.415 Then the average length of the queue is given by Lq = L - (1- P0) = 1.015 - (1 - 0.415) = 0.43 (customer) Queueing Theory

  50. M/M/1/N Example (cont.) Note that 1- P0 = 0.585 is the average number of customers being served, or equivalently, the probability that the single server is busy. Thus the server utilization, or proportion of time the server is busy in the long run, is given by r = 1- P0 = le / m = 0.585 Finally, the waiting time in the queue is determined by Little’s equation as Wq = Lq / le = 0.43 / 1.754 = 0.245 (hour) Queueing Theory
