Bipolar Junction Transistor Forward Current Gain Digital Meter. Group Members Amel Ahmed 980723636 Deema Omar 980424894 Mona Abdulla 980723631 Nada Ahmed 980723521 Sahar Khalid 980723832. Advisor. Dr. Jihad Mohaidat . Presentation Outline. Objectives. Methods .

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

Bipolar Junction Transistor Forward Current Gain Digital Meter


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
bipolar junction transistor forward current gain digital meter

Bipolar Junction Transistor Forward Current Gain Digital Meter

Group Members

Amel Ahmed 980723636

Deema Omar 980424894

Mona Abdulla 980723631

Nada Ahmed 980723521

Sahar Khalid 980723832

Advisor

Dr. Jihad Mohaidat

presentation outline
Presentation Outline

Objectives.

  • Methods.
  • Background Theory.
  • Results & Discussion.
  • Block Diagram.
  • Project Impact.
  • Flow Chart.
  • Conclusion.
objectives

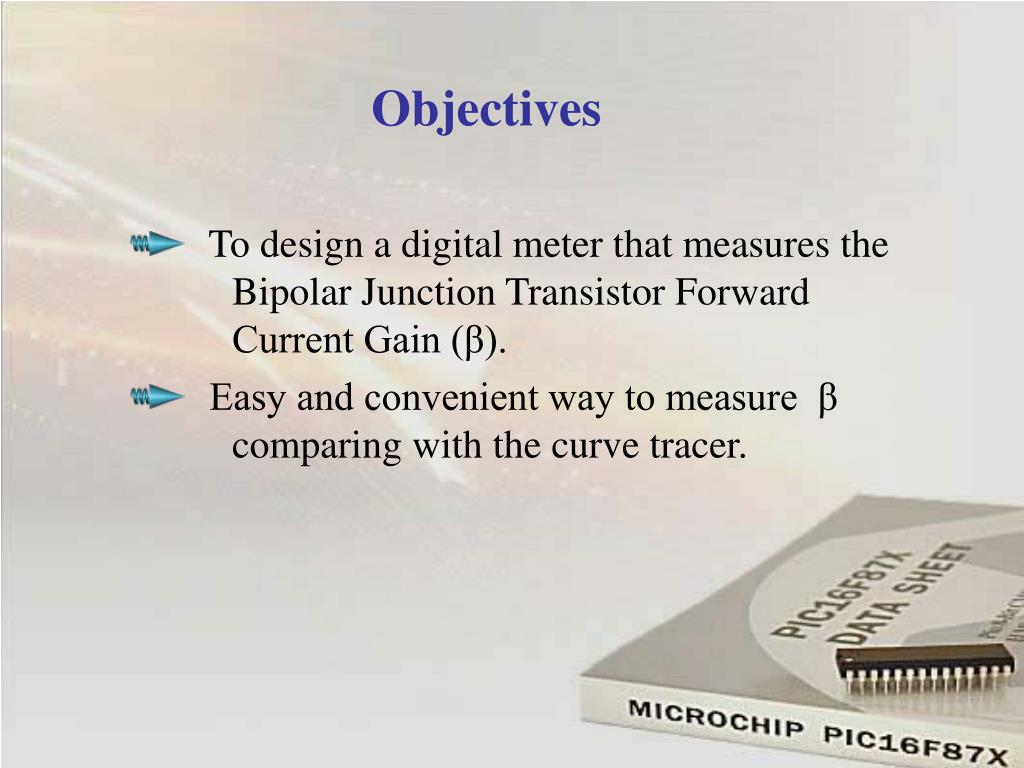

Objectives
  • To design a digital meter that measures the Bipolar Junction Transistor Forward Current Gain (β).
  • Easy and convenient way to measure β comparing with the curve tracer.
slide4

VCC

RB

RC

IC

VCE

IB

VBE

IE

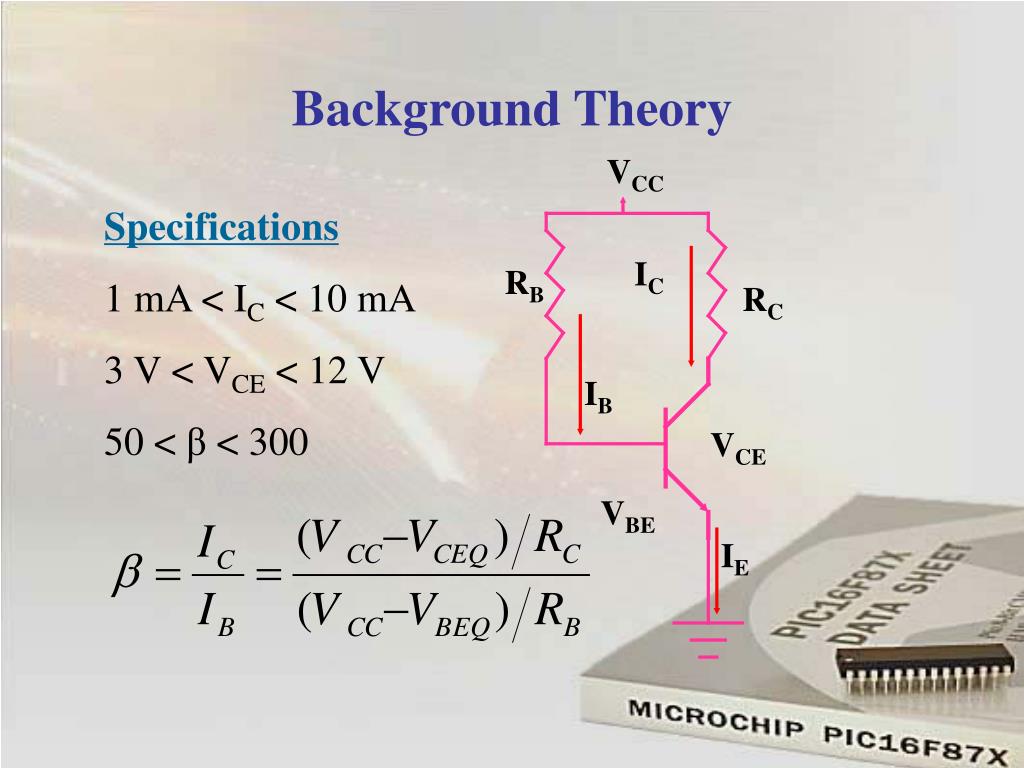

Background Theory

Specifications

1 mA < IC < 10 mA

3 V < VCE < 12 V

50 < β < 300

slide6

Microcontroller

Definition

A small Computer, , containing the CPU, code memory, data memory and peripheral I/O.

Characteristics of the PIC16F877

  • It’s a FLASH programmable device.
  • Built-in Analog to Digital conversion circuitry.
  • Built-in EEPROM.
  • Supported by various programming languages.
slide7

IC

IC

RC

RC

IB

IB

RB

RB

IE

IE

Voltage Polarity Detection

NPN

PNP

15V

-15V

15V

VCE

VCE

slide8

4×4 keypad matrix

Row connector

Column connector

Keypad Principles

slide9

1

5V

GND

2

Contrast adjustment voltage

3

Register select signal

4

Read/write select signal

5

Operation enable signal

6

Data bus

7-14

Liquid Crystal Display

The LCD is a smart device, which is used to display

the output visual information.

slide10

Relays

Types of the Relay

  • Normally Open
  • Normally Closed
slide11

Relays

Types of theRelay

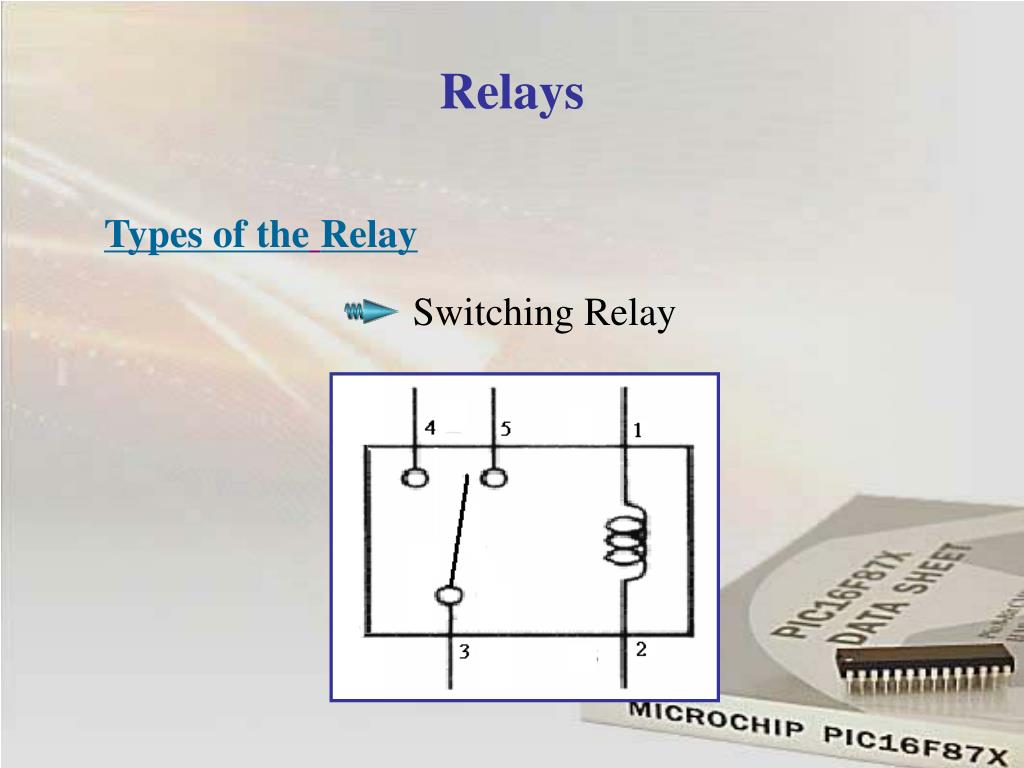

  • Switching Relay
slide12

Methods

Assembly Language

PicBasic Language

  • High Level Language
  • Portable from one device to another
  • Single instruction allows you to perform a complete task
slide13

Methods

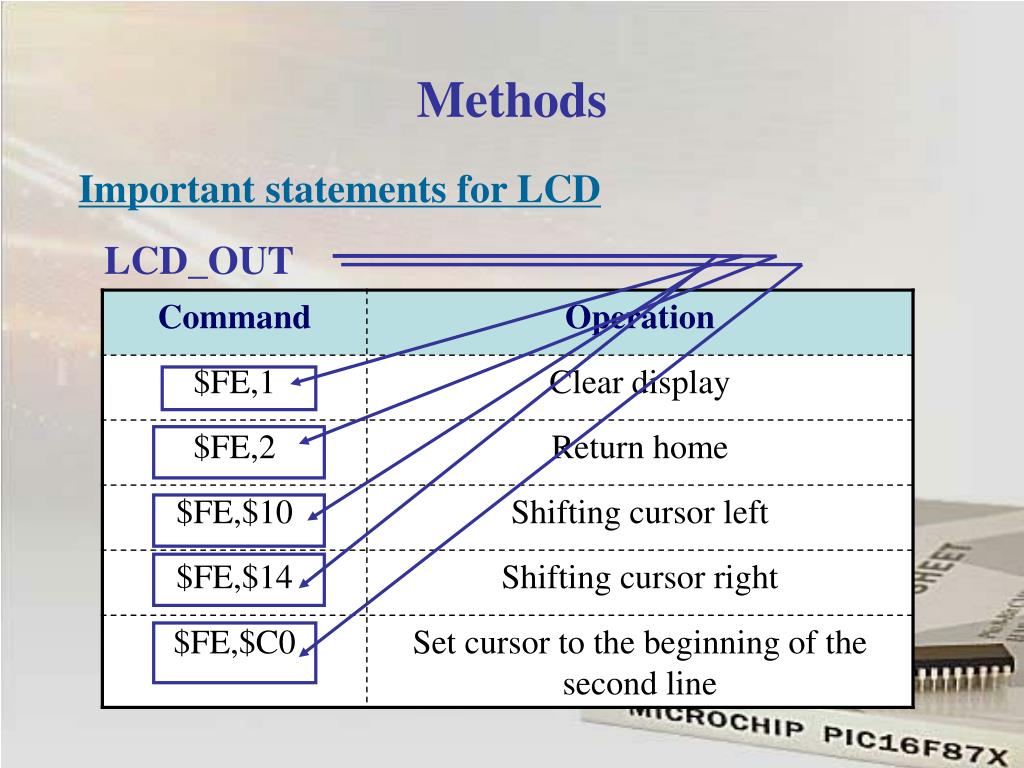

Important statements for LCD

LCD_OUT

slide14

Methods

Keypad Statements

slide15

Methods

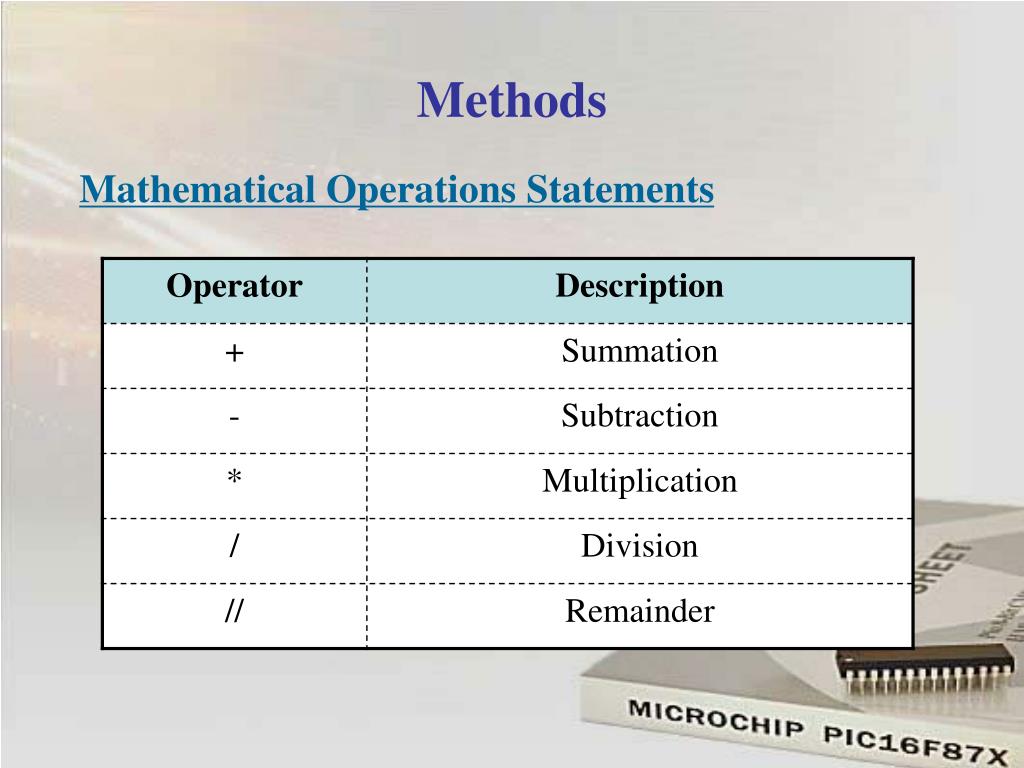

Mathematical Operations Statements

slide16

Methods

Mathematical Operations Statements

flow chart

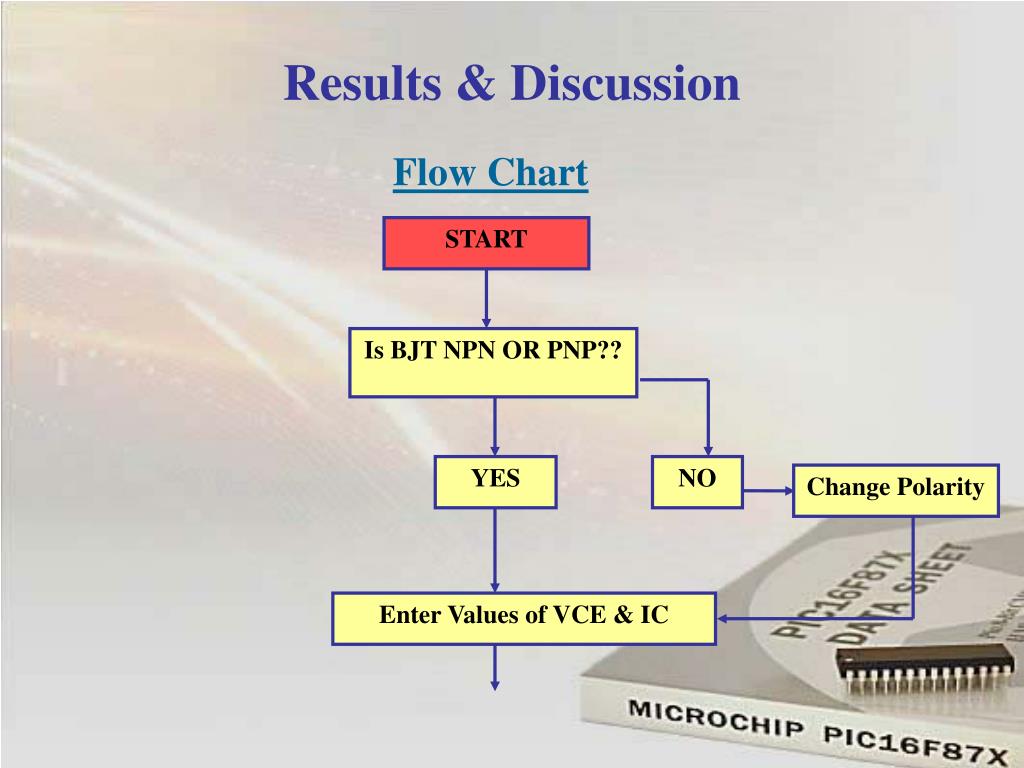

Flow Chart

Results & Discussion

START

Is BJT NPN OR PNP??

YES

NO

Change Polarity

Enter Values of VCE & IC

slide18

Results & Discussion

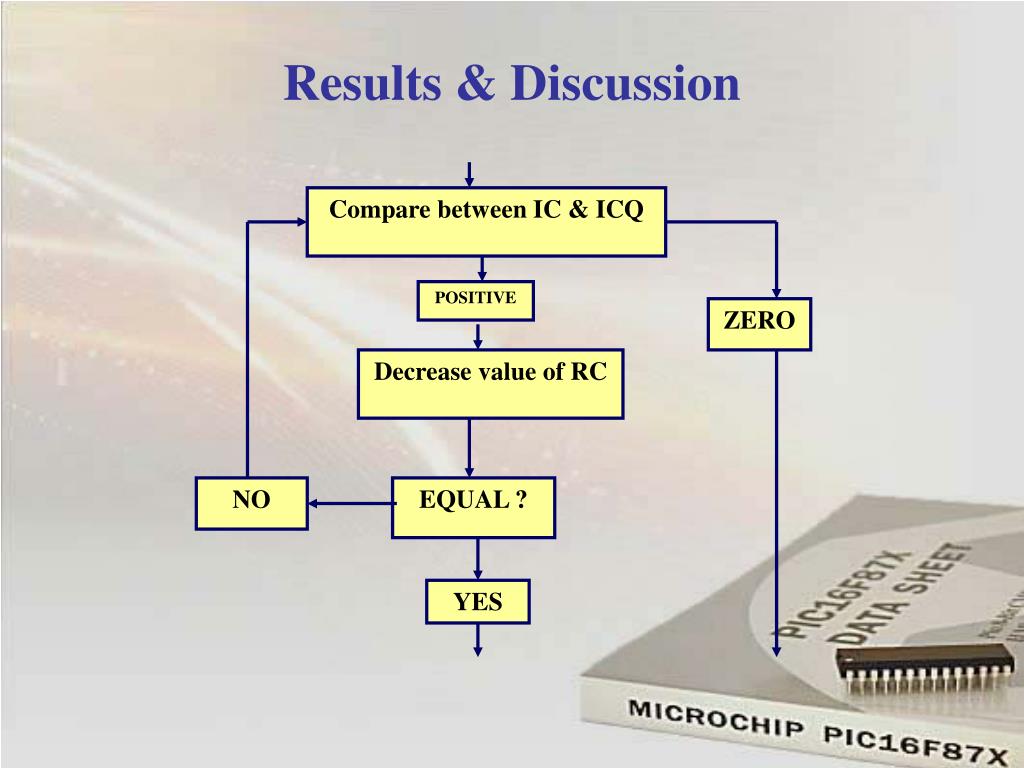

Compare between IC & ICQ

POSITIVE

ZERO

Decrease value of RC

NO

EQUAL ?

YES

slide19

Results & Discussion

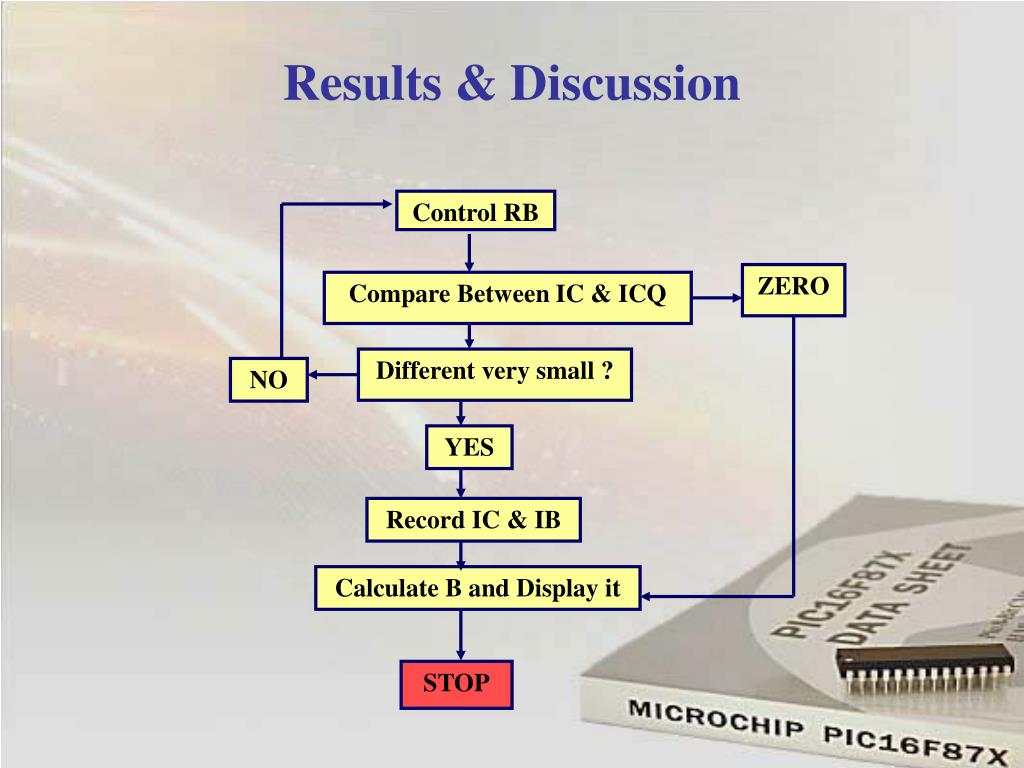

Control RB

ZERO

Compare Between IC & ICQ

Different very small ?

NO

YES

Record IC & IB

Calculate B and Display it

STOP

slide20

PORT A

PORT B

PORT E

PORT D

PORT C

Results & Discussion

slide21

Results & Discussion

LCD Connection

slide22

Results & Discussion

Keypad Connection

slide23

Results & Discussion

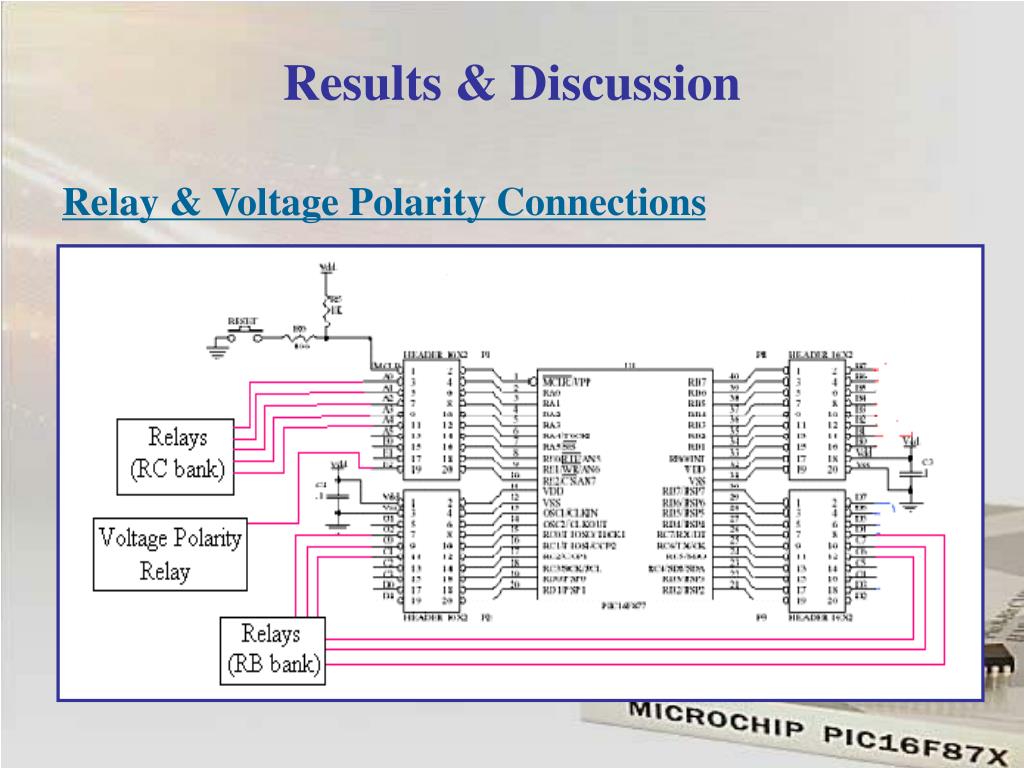

Relay & Voltage Polarity Connections

slide24

Results & Discussion

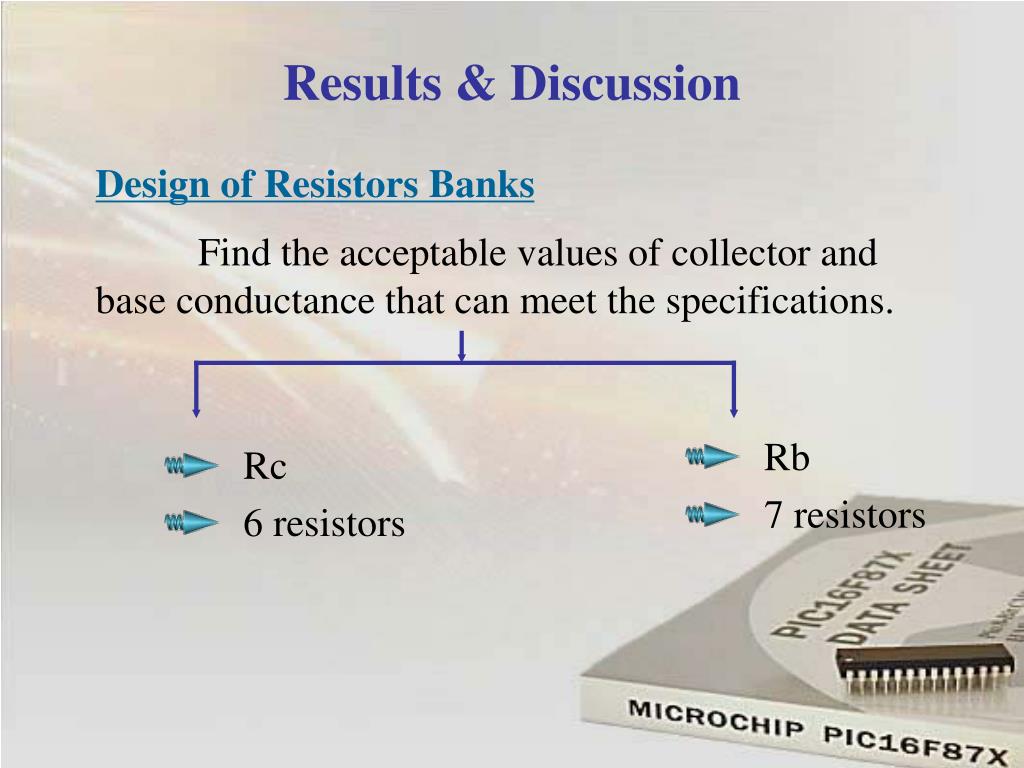

Design of Resistors Banks

Find the acceptable values of collector and base conductance that can meet the specifications.

  • Rb
  • 7 resistors
  • Rc
  • 6 resistors
slide25

Rc

Rb

Results & Discussion

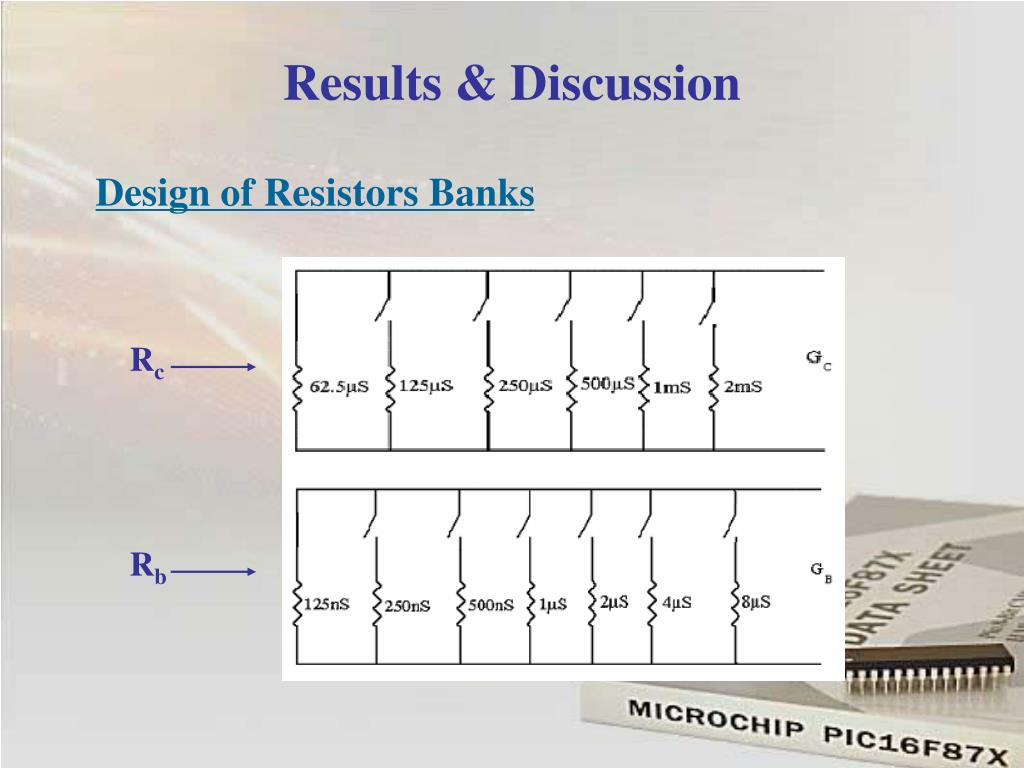

Design of Resistors Banks

slide26

Results & Discussion

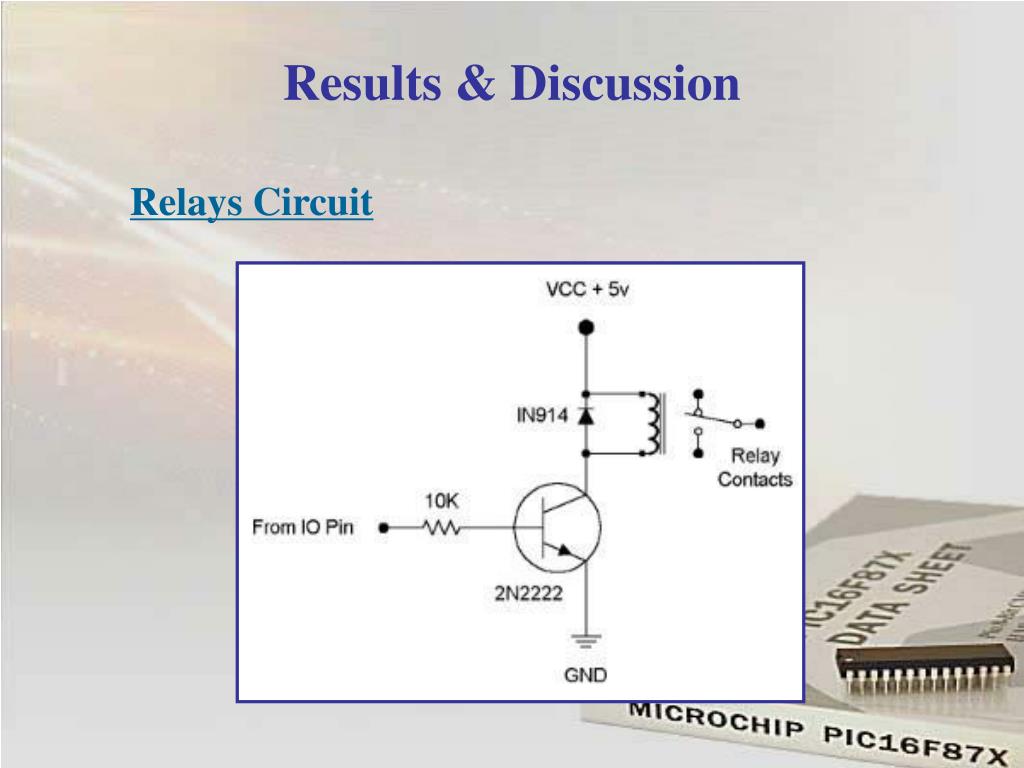

Relays Circuit

slide27

R2

R1

VO1

Vi1

Results & Discussion

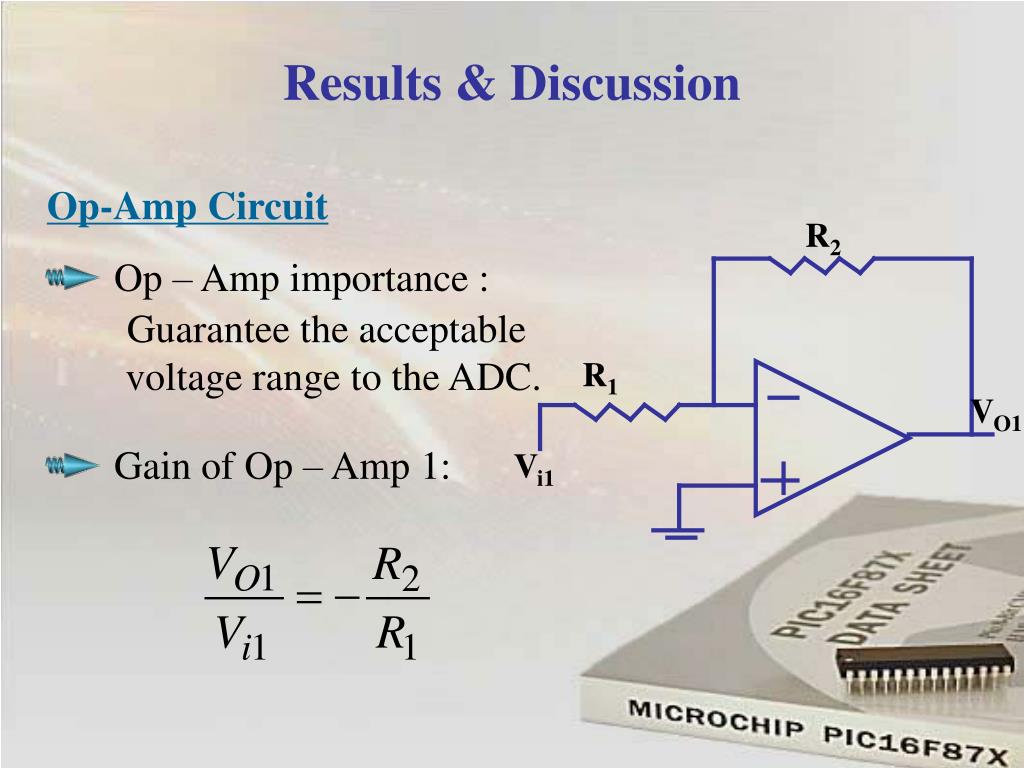

Op-Amp Circuit

  • Op – Amp importance :

Guarantee the acceptable voltage range to the ADC.

  • Gain of Op – Amp 1:
slide28

R2

R

R1

R

VO2

Vi1

Results & Discussion

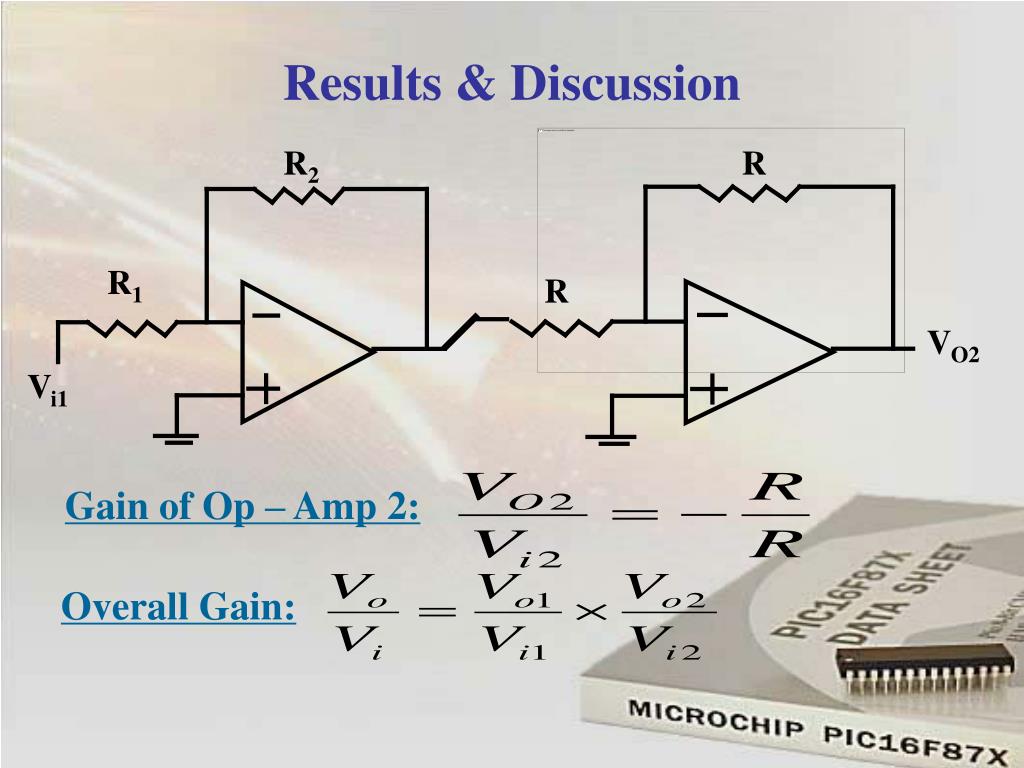

Gain of Op – Amp 2:

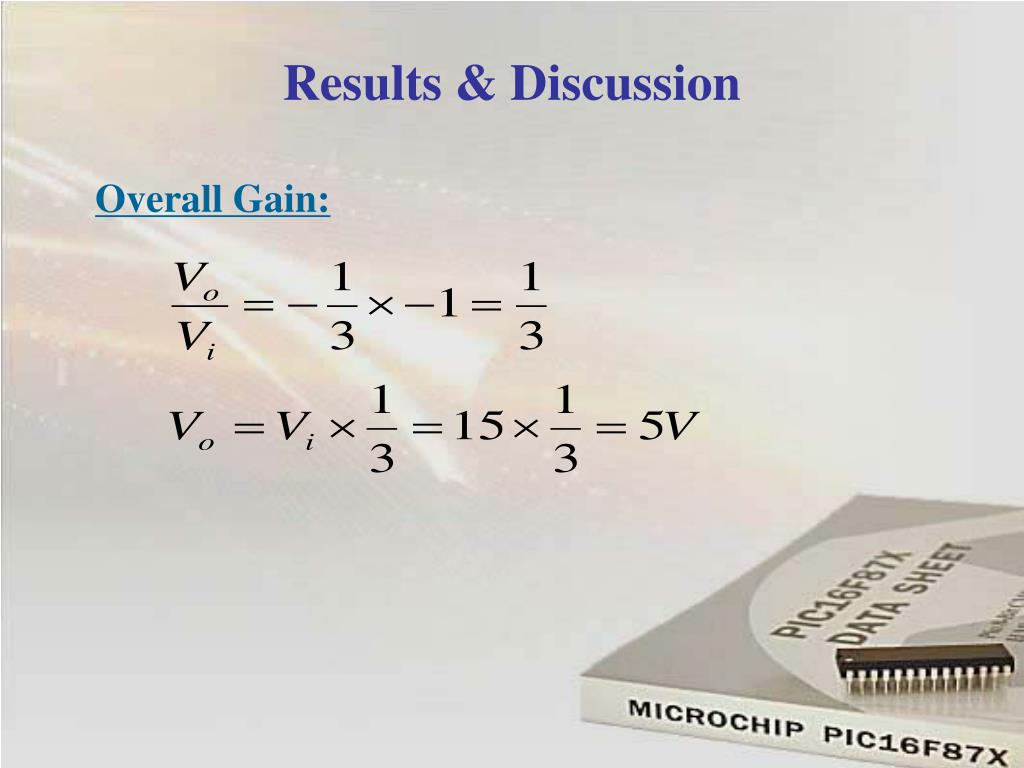

Overall Gain:

slide29

Results & Discussion

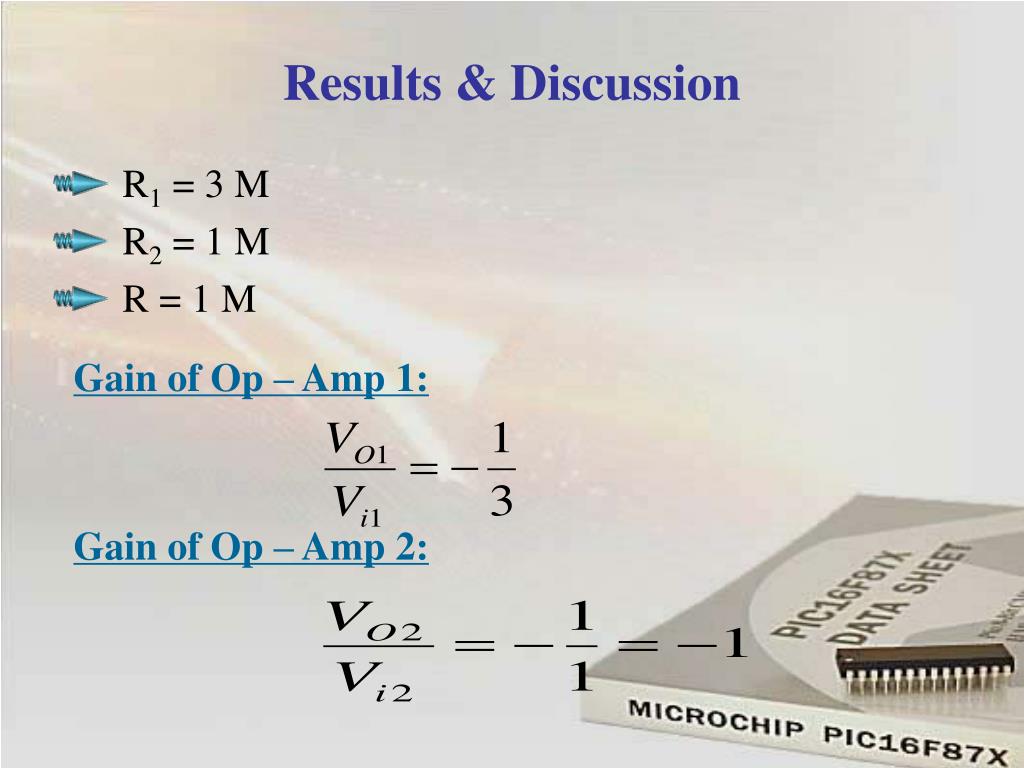

  • R1 = 3 M
  • R2 = 1 M
  • R = 1 M

Gain of Op – Amp 1:

Gain of Op – Amp 2:

slide31

Results & Discussion

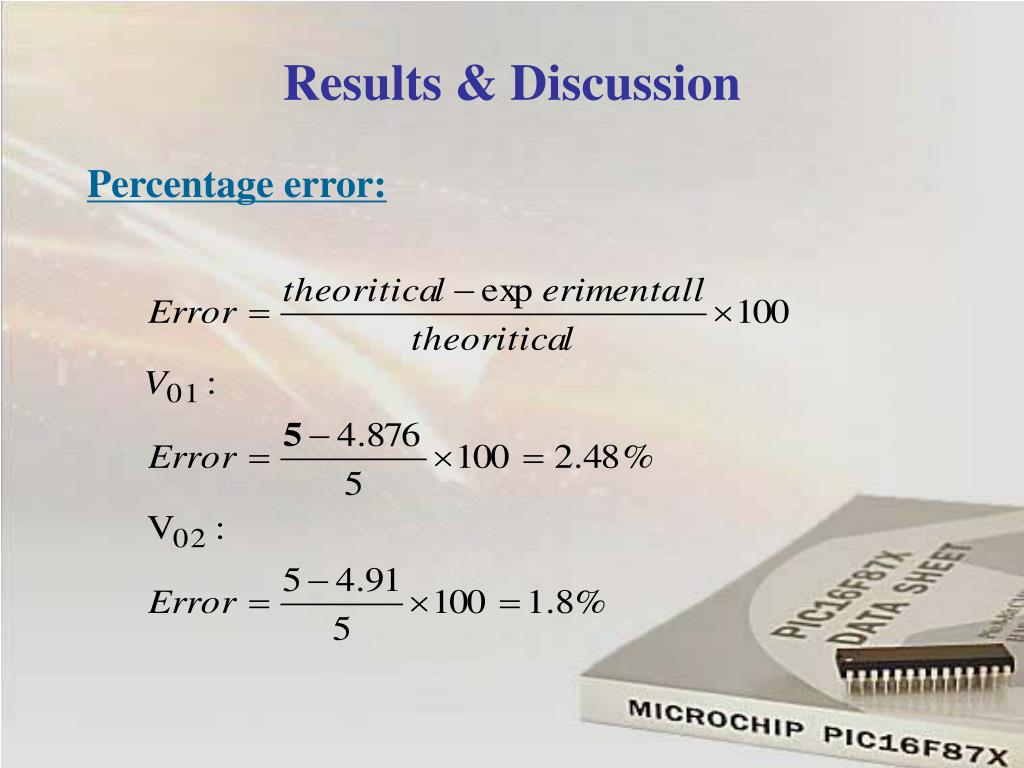

Percentage error:

slide32

R4

R2

1M

1M

V4

V2

15V

15V

R3

R1

U1

1M

+

3M

+

OPAMP5

U2

+

V1

OPAMP5

15V

V5

V3

-15V

-15V

Results & Discussion

slide35

Results & Discussion

Basic Pro programs

  • Program 1: Keypad controlling.
  • Program 2: Liquid Crystal Display controlling.
  • Program 3: Interfacing program between Keypad & LCD.
  • Program 4: Testing Microcontroller Mathematical operation.

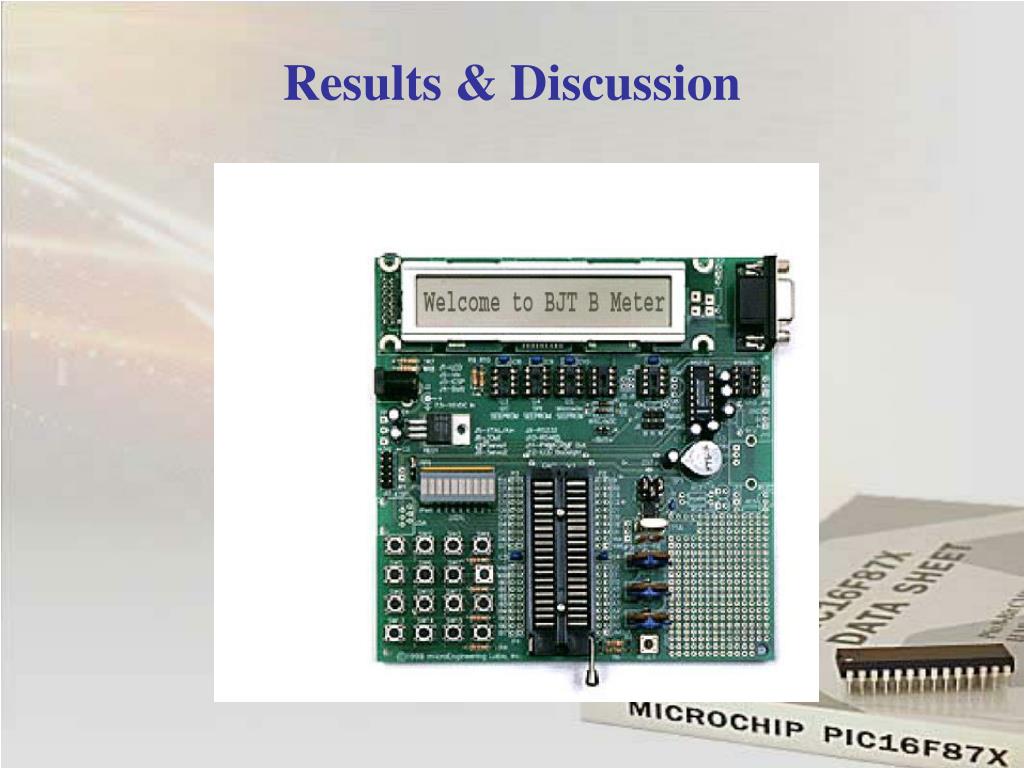

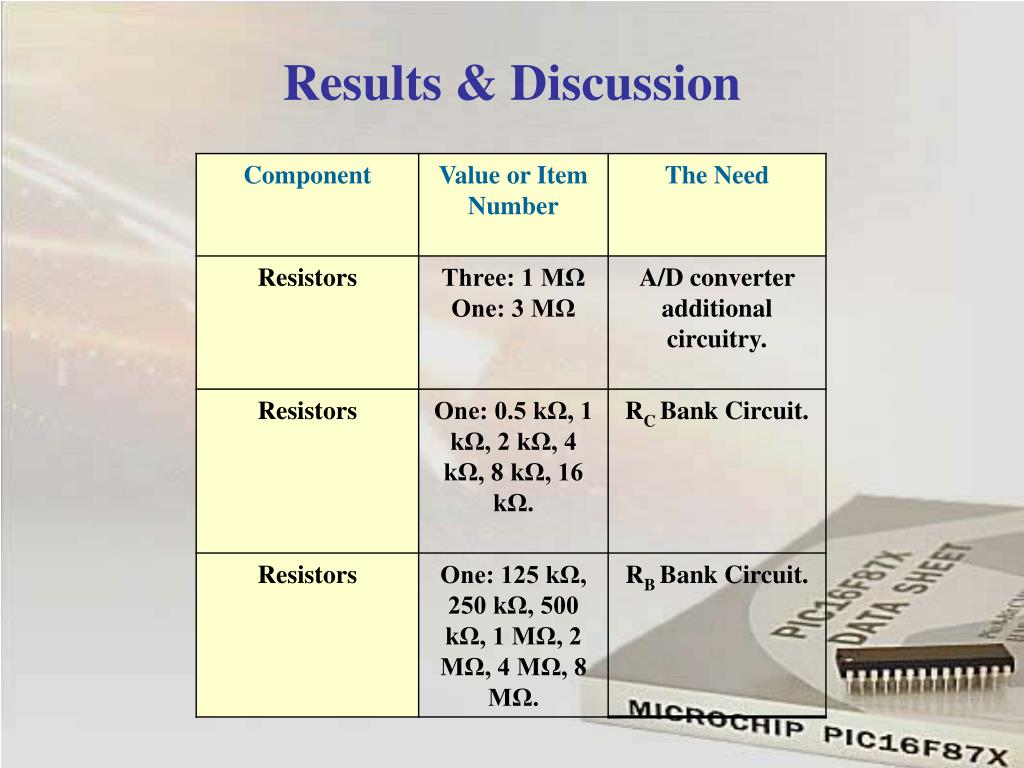

slide43

Project Impact

  • The project does not have any bad impact on the environment because it will not cause any damages, hazard, or pollution in the surrounding area.
  • The technology developed in this project can be used to protect the environment, for example design a microcontroller based system to monitor the pollution in the air, or oil contents in the water.
slide44

Conclusion

Problems Faced

  • Software. (Assembly Language, Basic Pro)
  • Budget. ( Not Available)
  • Components. (Lab-X1 Board)
