burette clamp

Titration. burette clamp. burette. erlenmeyer flask. ring stand. Describe an acid/base titration. Compare and contrast the end point and the equivalence point of a titration. Determine the concentration of an unknown acid or base using titration data.

teagan
Download Presentation

burette clamp

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

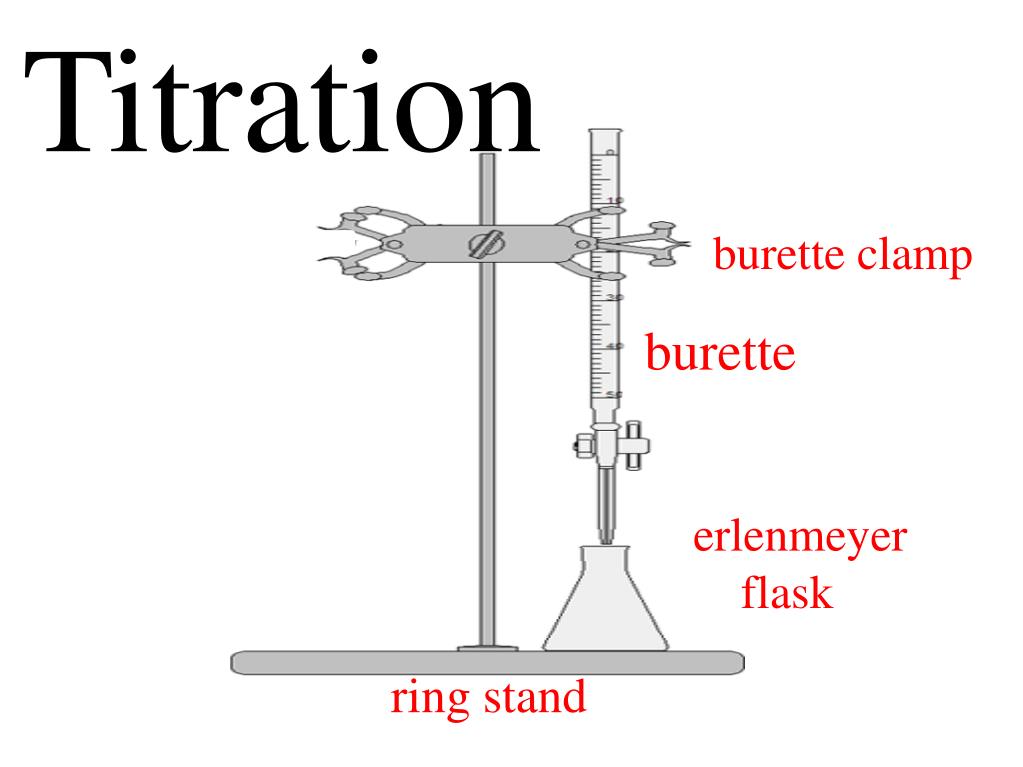

  1. Titration burette clamp burette erlenmeyer flask ring stand

  2. Describe an acid/base titration. • Compare and contrast the end point and the equivalence point of a titration. • Determine the concentration of an unknown acid or base using titration data. • Determine the mass of an unknown acid or base using titration data

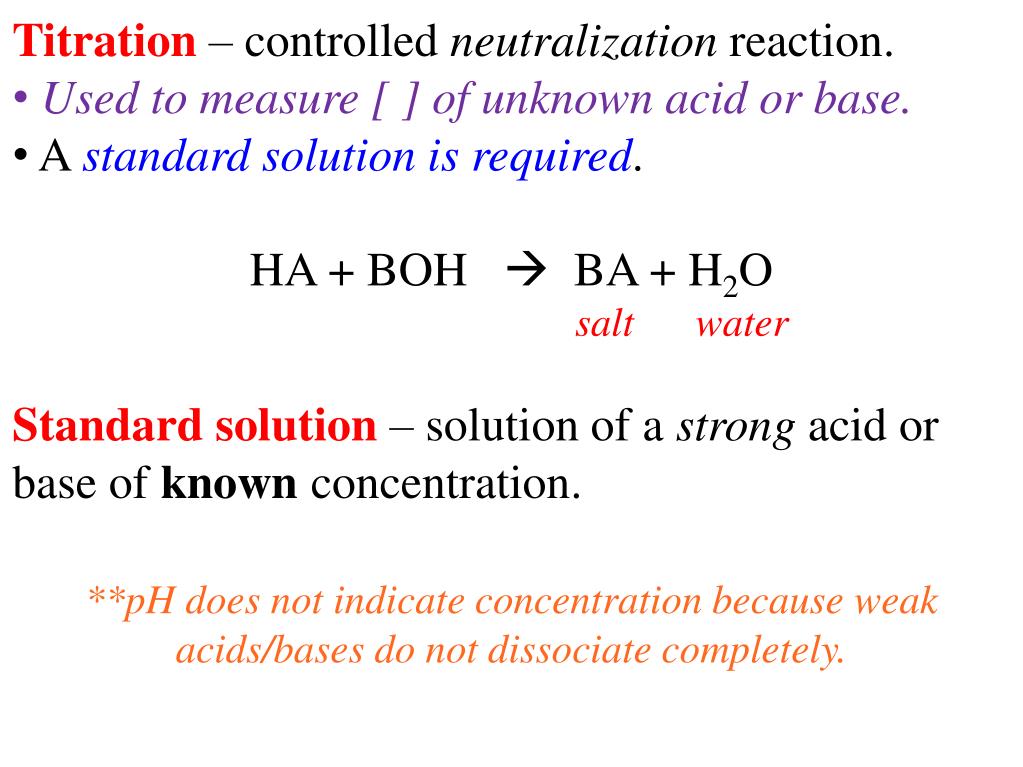

  3. Titration – controlled neutralization reaction. • Used to measure [ ] of unknown acid or base. • A standard solution is required. HA + BOH  BA + H2O salt water Standard solution – solution of a strong acid or base of known concentration. **pH does not indicate concentration because weak acids/bases do not dissociate completely.

  4. Titration Apparatus burette clamp burette buret ring stand erlenmeyer flask

  5. Equivalence point – amount of standard added neutralizes the unknown sample. moles H+ = moles OH- (pH = 7) • Endpoint – the indicator changes colour. • Determined by adding a pH indicator. Eq. point - defined by reaction stoichiometry. Endpoint - determined by the choice of indicator.

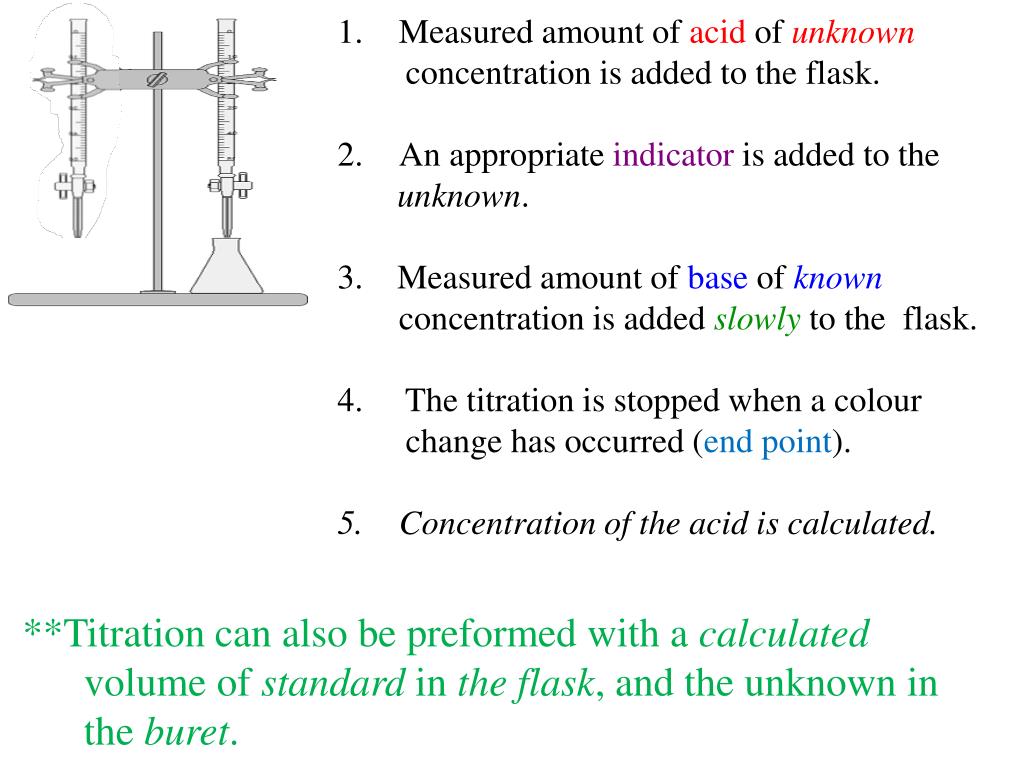

  6. Measured amount of acid of unknown • concentration is added to the flask. • An appropriate indicator is added to the • unknown. • 3. Measured amount of base of known concentration is added slowly to the flask. • 4. The titration is stopped when a colour • change has occurred (end point). • Concentration of the acid is calculated. **Titration can also be preformed with a calculated volume of standard in the flask, and the unknown in the buret.

  7. HCl(aq) + NaOH(aq) NaCl(aq) + H2O(l) Calculate the concentration of hydrochloric acid, if 25.00 mL is just neutralized by 40.00 ml of a 0.150 mol/L sodium hydroxide solution. 0.150 mol 0.04 L = 0.006 moles NaOH 1 L 1:1 ratio 0.00600 moles of HCl 0.006 mol = 0.240 M HCl 0.025 L

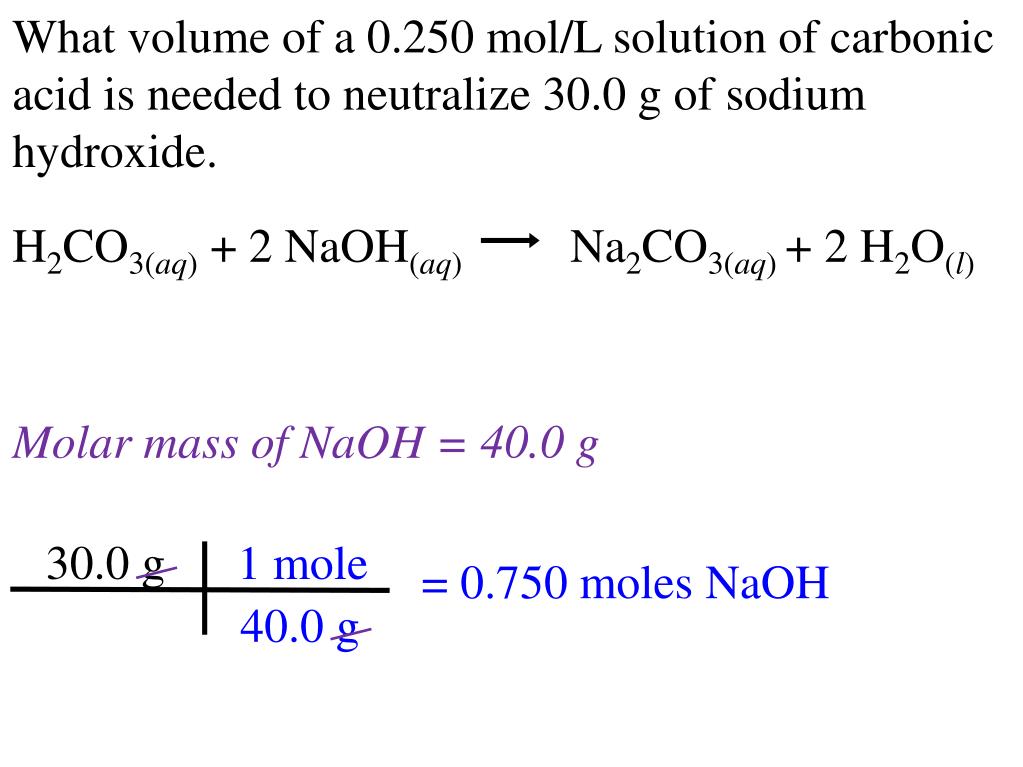

  8. H2CO3(aq) + 2 NaOH(aq) Na2CO3(aq) + 2 H2O(l) What volume of a 0.250 mol/L solution of carbonic acid is needed to neutralize 30.0 g of sodium hydroxide. Molar mass of NaOH = 40.0 g 30.0 g 1 mole = 0.750 moles NaOH 40.0 g

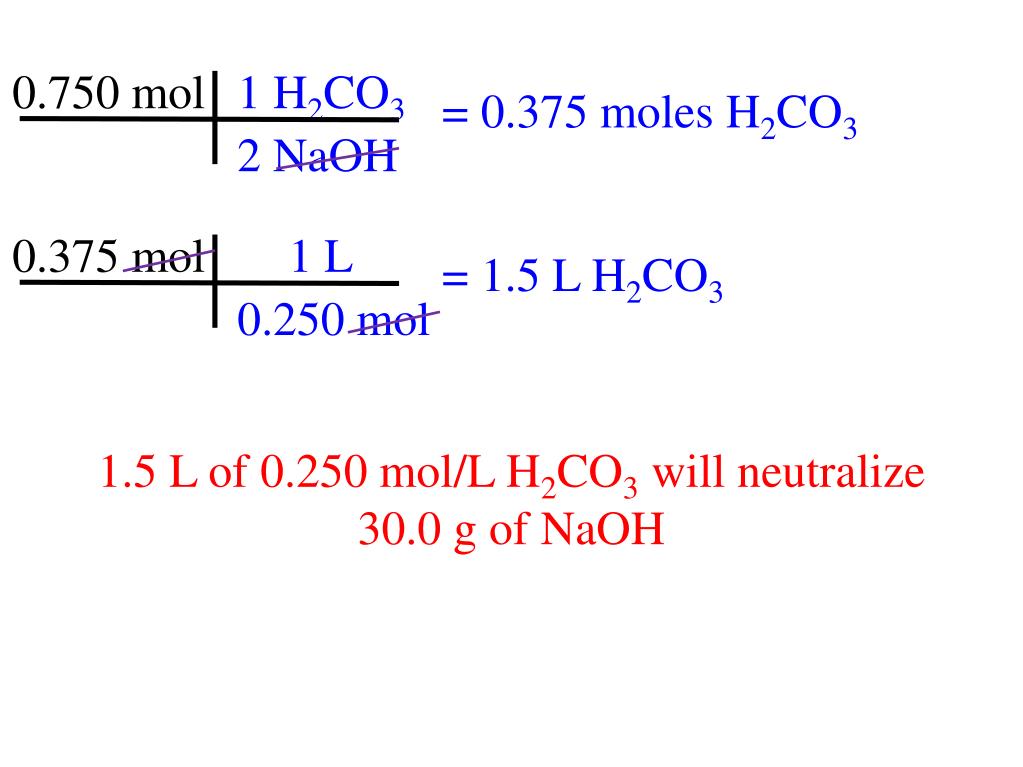

  9. 0.750 mol 1 H2CO3 = 0.375 moles H2CO3 2 NaOH 0.375 mol 1 L = 1.5 L H2CO3 0.250 mol 1.5 L of 0.250 mol/L H2CO3 will neutralize 30.0 g of NaOH

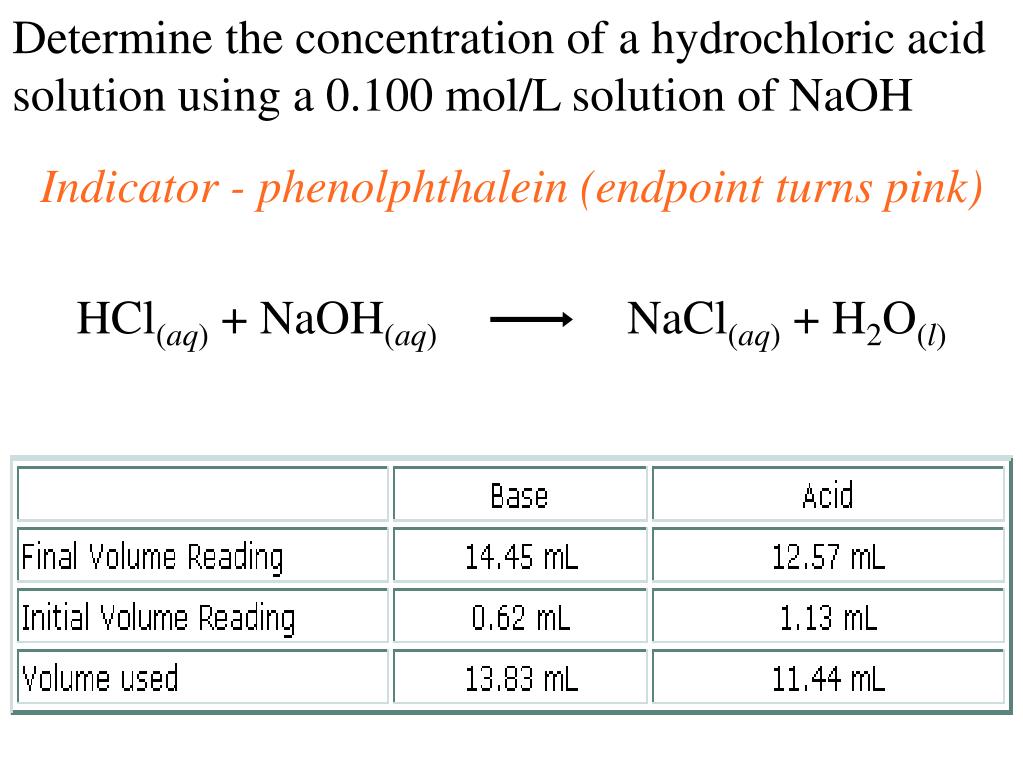

  10. HCl(aq) + NaOH(aq) NaCl(aq) + H2O(l) Determine the concentration of a hydrochloric acid solution using a 0.100 mol/L solution of NaOH Indicator - phenolphthalein (endpoint turns pink)

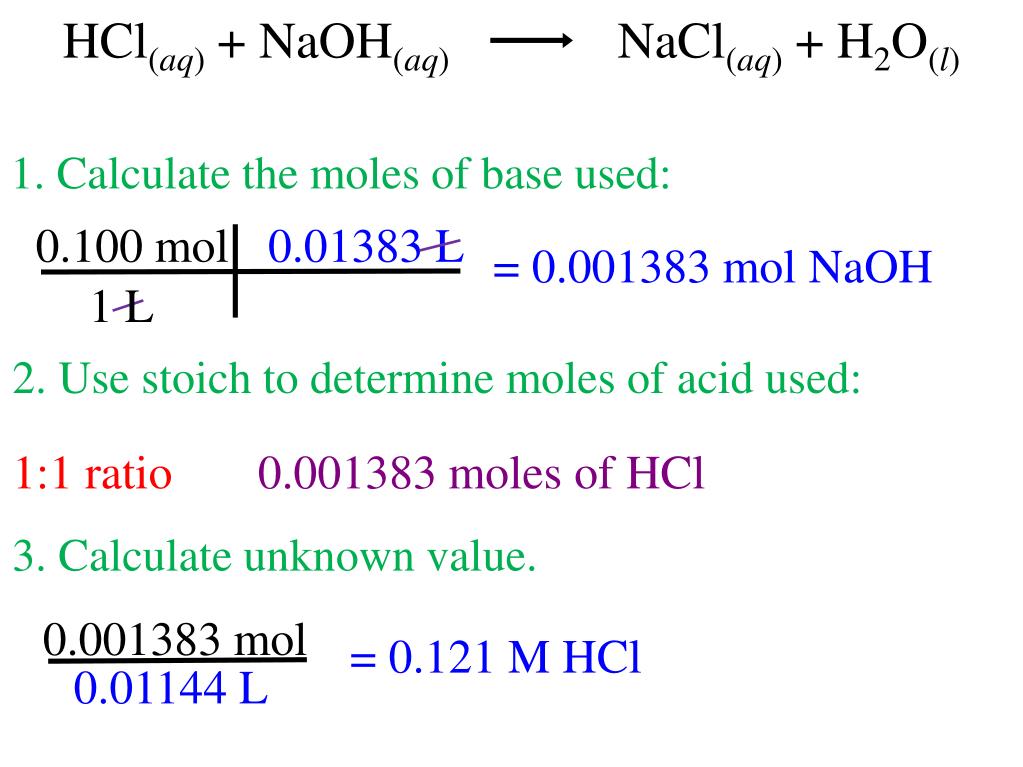

  11. HCl(aq) + NaOH(aq) NaCl(aq) + H2O(l) 1. Calculate the moles of base used: 0.100 mol 0.01383 L = 0.001383 mol NaOH 1 L 2. Use stoich to determine moles of acid used: 1:1 ratio 0.001383 moles of HCl 3. Calculate unknown value. 0.001383 mol = 0.121 M HCl 0.01144 L

  12. HX(aq) + NaOH(aq) NaX(aq) + H2O(l) A solidmonoprotic acid (97.09 g/mol), is dissolved in water to make 100.0 mL of solution. A 12.00 mL aliquot is titrated with 0.0985 mol/L sodium hydroxide. If 13.38 mL of the base is needed to reach the endpoint, what was the mass of the sample of acid ?

  13. 0.0985 mol 0.01338 L = 0.001318 mol NaOH 1 L 1:1 ratio 0.001318 moles of HX – (aliquot) 0.001318 mol = 0.1098 M HX 0.01200 L Total moles in the 100.0 mL sample: 0.1098 mol 0.1 L = 0.01098 mol HX (totalused) 1 L

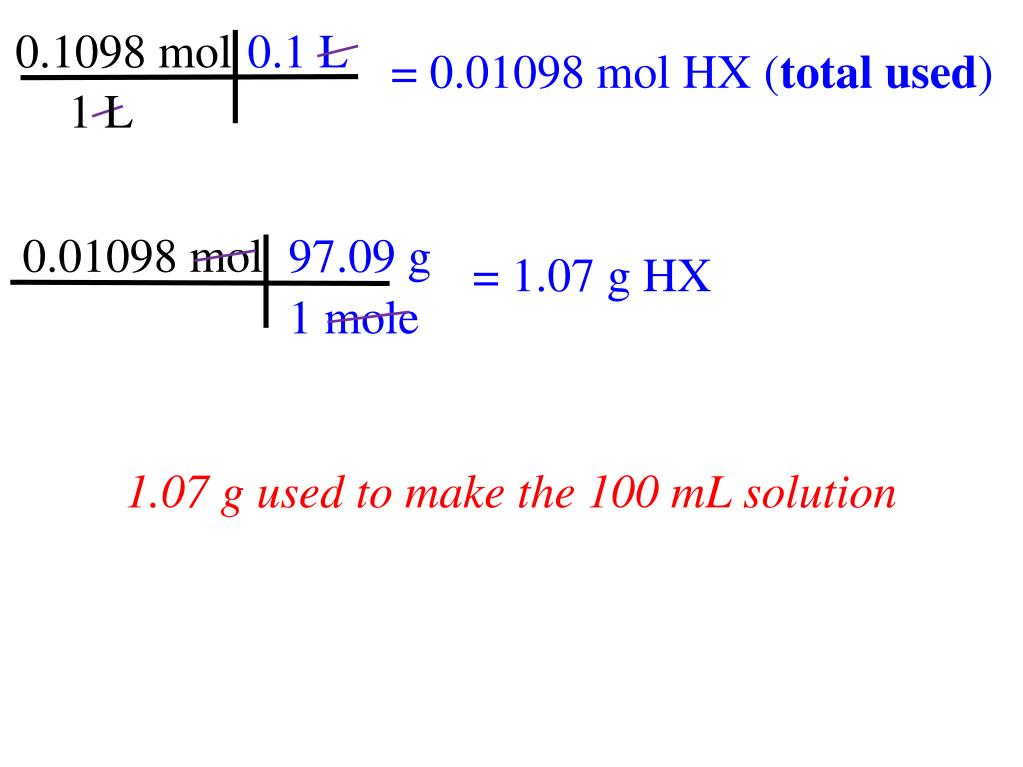

  14. 0.1098 mol 0.1 L = 0.01098 mol HX (totalused) 1 L 0.01098 mol 97.09 g = 1.07 g HX 1 mole 1.07 g used to make the 100 mL solution

  15. Titration Curves

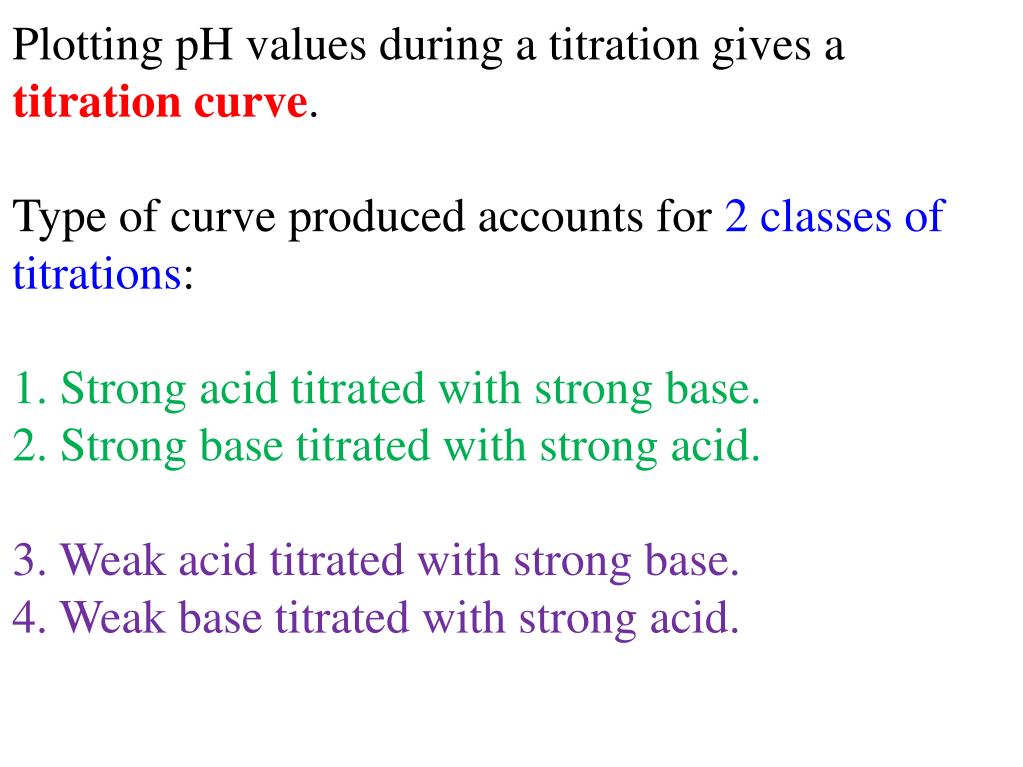

  16. Plotting pH values during a titration gives a titration curve. Type of curve produced accounts for 2 classes of titrations: 1. Strong acid titrated with strong base. 2. Strong base titrated with strong acid. 3. Weak acid titrated with strong base. 4. Weak base titrated with strong acid.

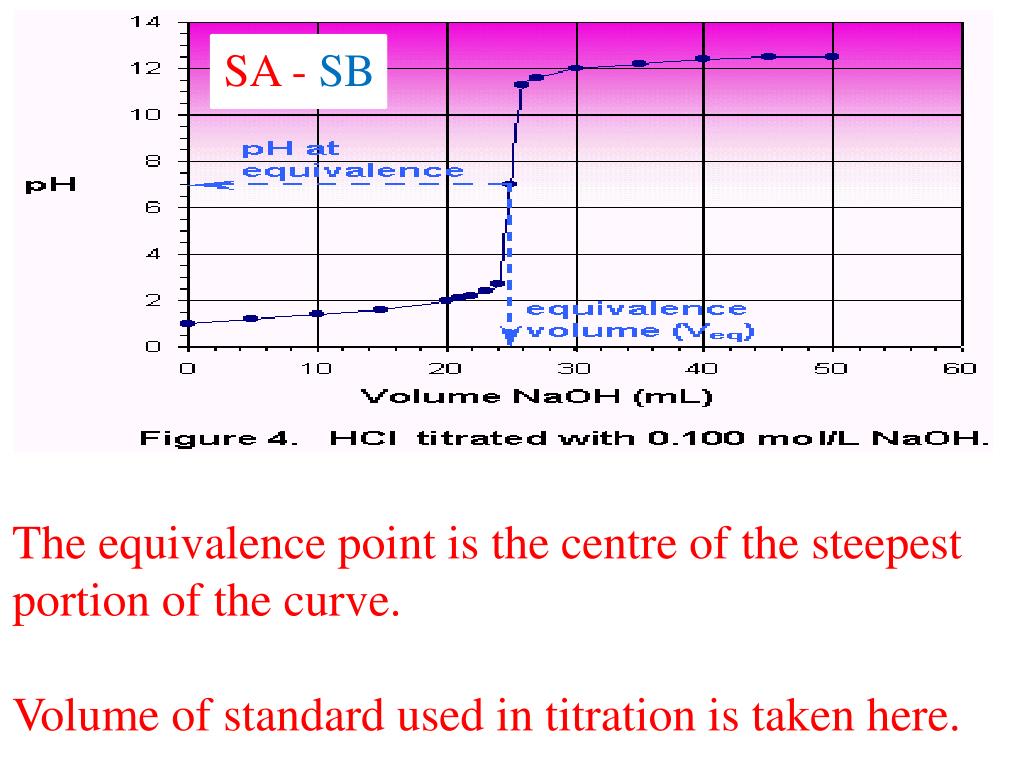

  17. SA - SB The equivalence point is the centre of the steepest portion of the curve. Volume of standard used in titration is taken here.

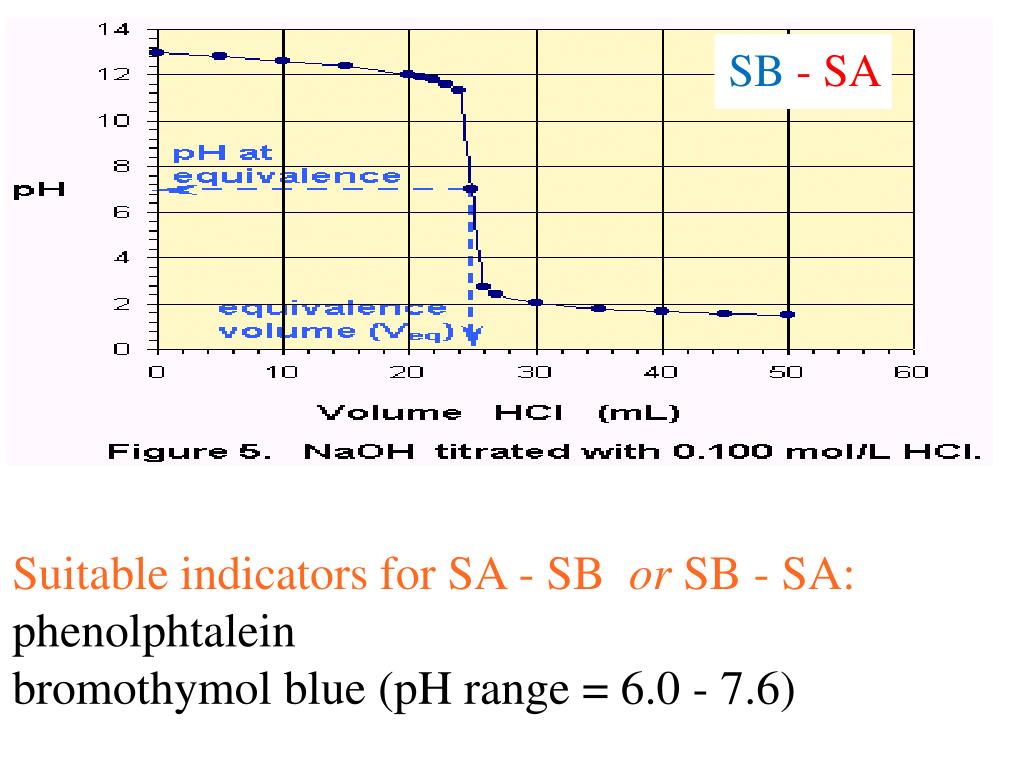

  18. SB - SA Suitable indicators for SA - SB or SB - SA: phenolphtalein bromothymol blue (pH range = 6.0 - 7.6)

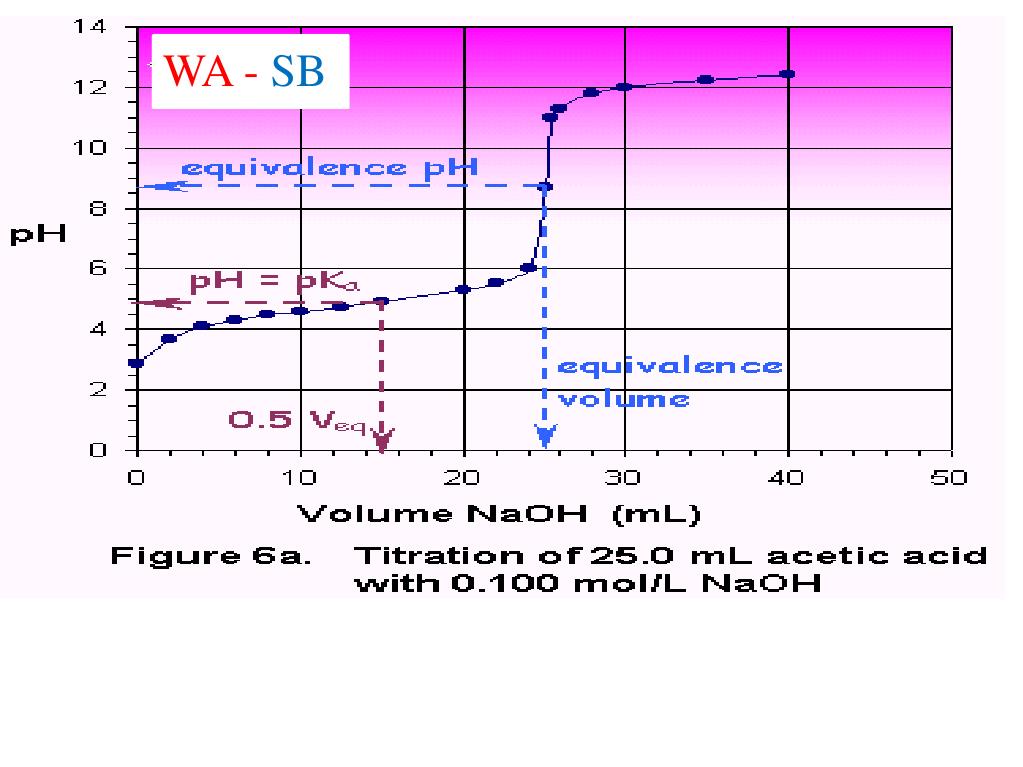

  19. WA - SB

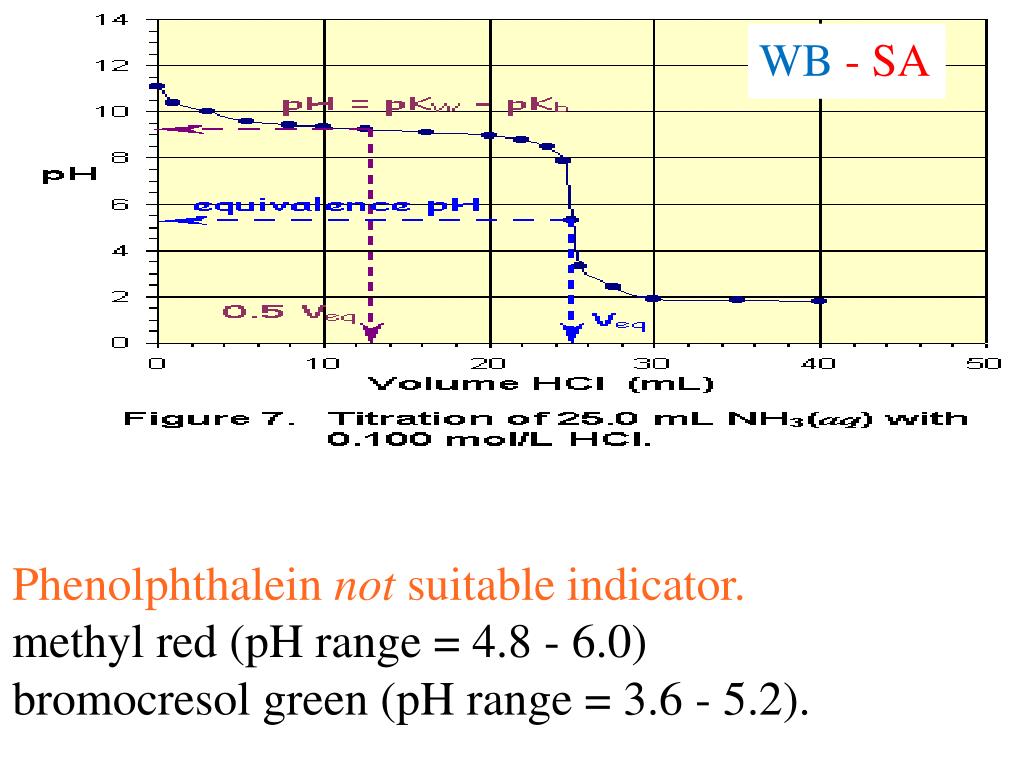

  20. WB - SA Phenolphthalein not suitable indicator. methyl red (pH range = 4.8 - 6.0) bromocresol green (pH range = 3.6 - 5.2).

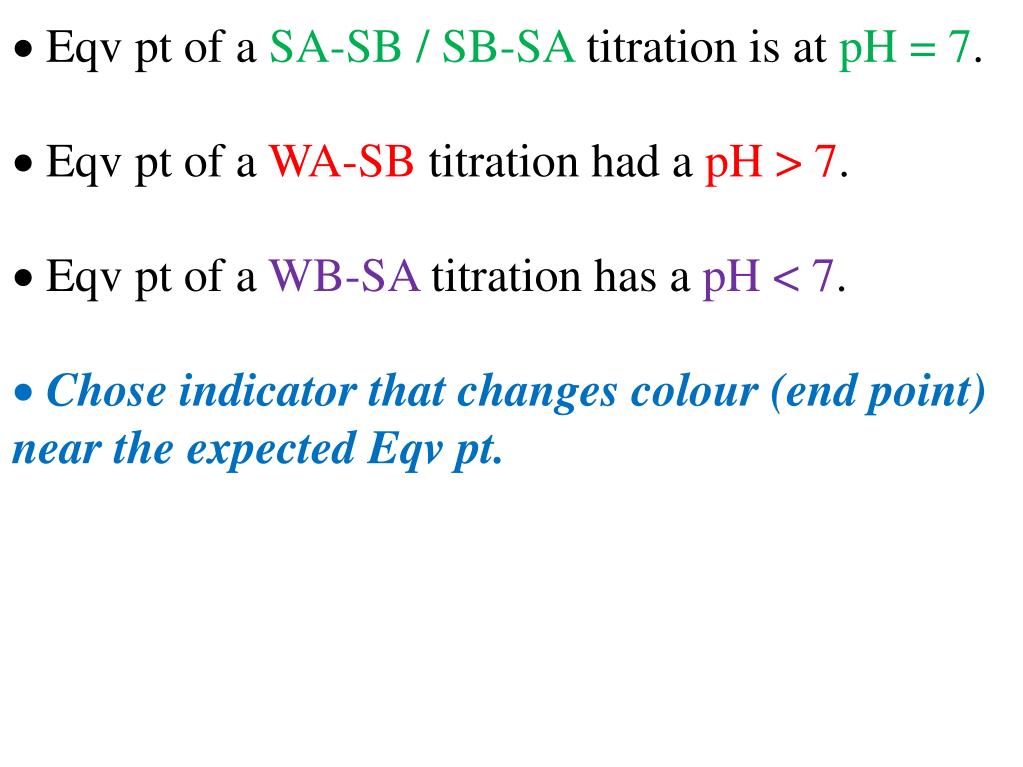

  21. Eqv pt of a SA-SB / SB-SA titration is at pH = 7. • Eqv pt of a WA-SB titration had a pH > 7. • Eqv pt of a WB-SA titration has a pH < 7. • Chose indicator that changes colour (end point) near the expected Eqv pt.
