  1. Transformations of Functions Learn the meaning of transformations. Use vertical or horizontal shifts to graph functions. Use reflections to graph functions. Use stretching or compressing to graph functions. SECTION 2.7 1 2 3 4

  2. TRANSFORMATIONS If a new function is formed by performing certain operations on a given function f , then the graph of the new function is called a transformationof the graph of f.

  3. Parent Functions – The simplest function of its kind. All other functions of its kind are Transformations of the parent.

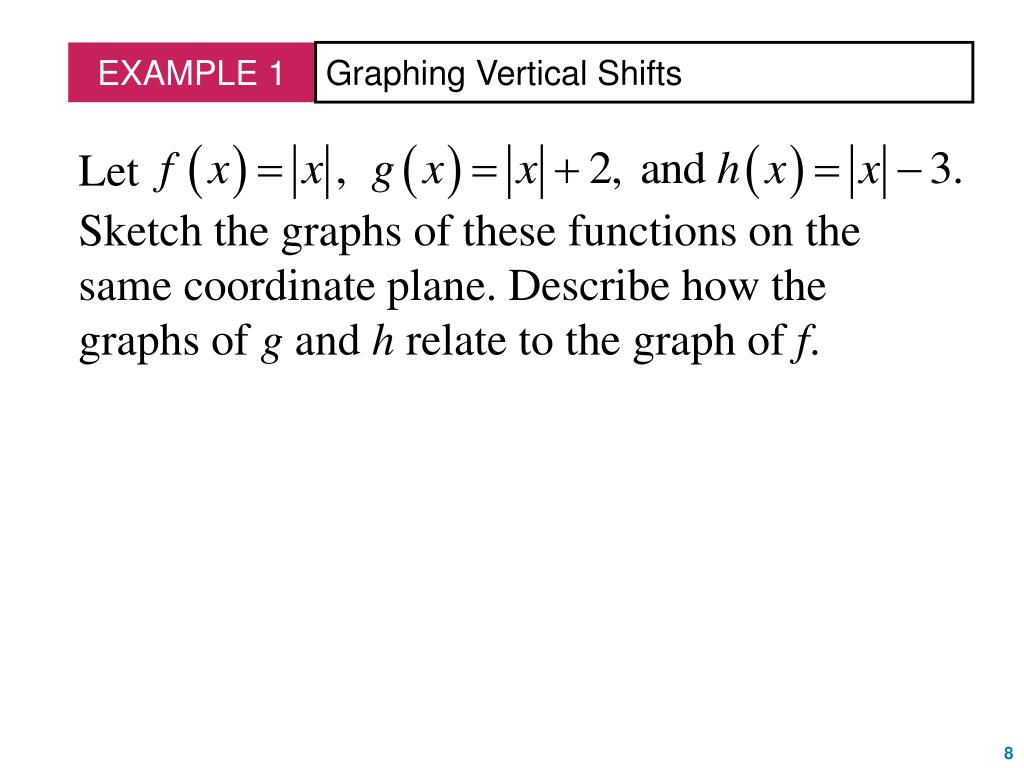

  4. Graphing Vertical Shifts EXAMPLE 1 Let Sketch the graphs of these functions on the same coordinate plane. Describe how the graphs of g and h relate to the graph of f.

  5. Make a table of values. Solution Graphing Vertical Shifts EXAMPLE 1

  6. Solution continued Graph the equations. The graph of y = |x| + 2 is the graph of y = |x| shifted two units up. The graph of y = |x| – 3 is the graph of y = |x| shifted three units down. Graphing Vertical Shifts EXAMPLE 1

  7. VERTICAL SHIFT Let d > 0. The graph of y = f(x) + d is the graph of y = f(x) shifted d units up, and the graph of y = f(x) – d is the graph of y = f(x) shifted d units down.

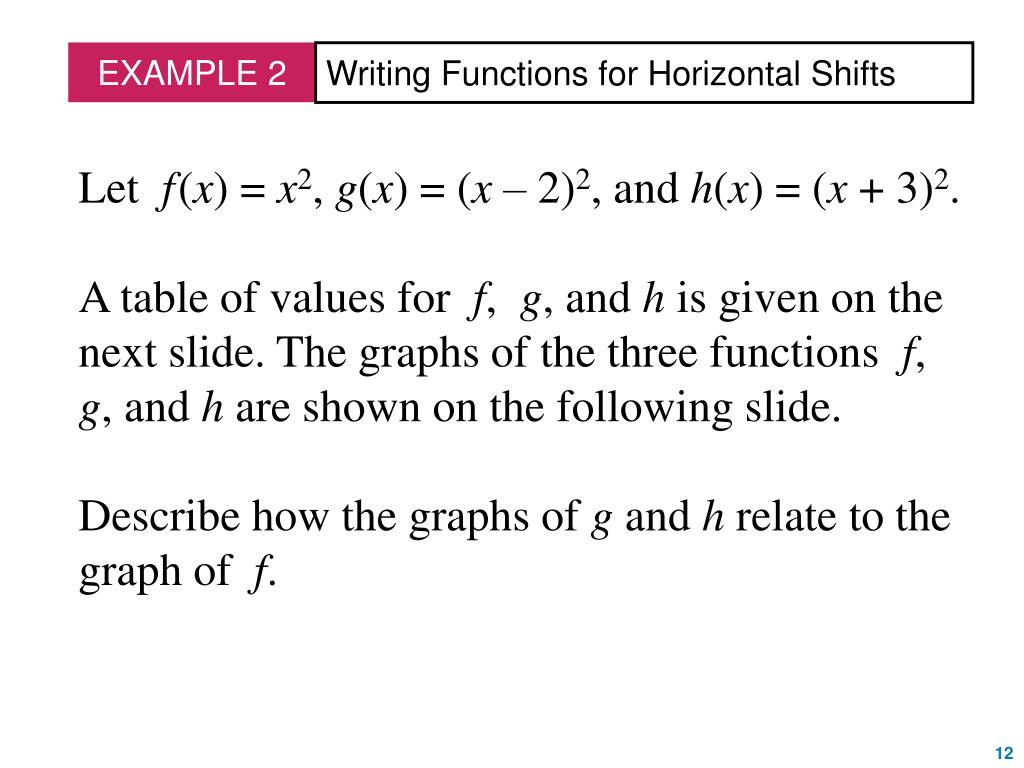

  8. EXAMPLE 2 Writing Functions for Horizontal Shifts Let f(x) = x2, g(x) = (x – 2)2, and h(x) = (x + 3)2. A table of values for f, g, and h is given on the next slide. The graphs of the three functions f, g, and h are shown on the following slide. Describe how the graphs of g and h relate to the graph of f.

  9. EXAMPLE 2 Writing Functions for Horizontal Shifts

  10. EXAMPLE 2 Writing Functions for Horizontal Shifts

  11. EXAMPLE 2 Writing Functions for Horizontal Shifts Solution All three functions are squaring functions. a. g is obtained by replacing x with x – 2 in f . The x-intercept of f is 0. The x-intercept of g is 2. For each point (x, y) on the graph of f , there will be a corresponding point (x + 2, y) on the graph of g. The graph of g is the graph of f shifted 2 units to the right.

  12. EXAMPLE 2 Writing Functions for Horizontal Shifts Solution continued b. h is obtained by replacing x with x + 3 in f . The x-intercept of f is 0. The x-intercept of h is –3. For each point (x, y) on the graph of f , there will be a corresponding point (x – 3, y) on the graph of h. The graph of h is the graph of f shifted 3 units to the left. The tables confirm both these considerations.

  13. HORIZONTAL SHIFT The graph of y = f(x – c) is the graph of y = f(x) shifted |c| units to the right, if c > 0, to the left if c < 0.

  14. Graphing Combined Vertical and Horizontal Shifts EXAMPLE 3 Sketch the graph of the function Solution Identify and graph the parent function

  15. Graphing Combined Vertical and Horizontal Shifts EXAMPLE 3 Solution continued Translate 2 units to the left Translate 3 units down

  16. REFLECTION IN THE x-AXIS The graph of y = – f(x) is a reflection of the graph of y = f(x) in the x-axis. If a point (x, y) is on the graph of y = f(x), then the point (x, –y) is on the graph of y = – f(x).

  17. REFLECTION IN THE x-AXIS

  18. REFLECTION IN THE y-AXIS The graph of y = f(–x) is a reflection of the graph of y = f(x) in the y-axis. If a point (x, y) is on the graph of y = f(x), then the point (–x, y) is on the graph of y = f(–x).

  19. REFLECTION IN THE y-AXIS

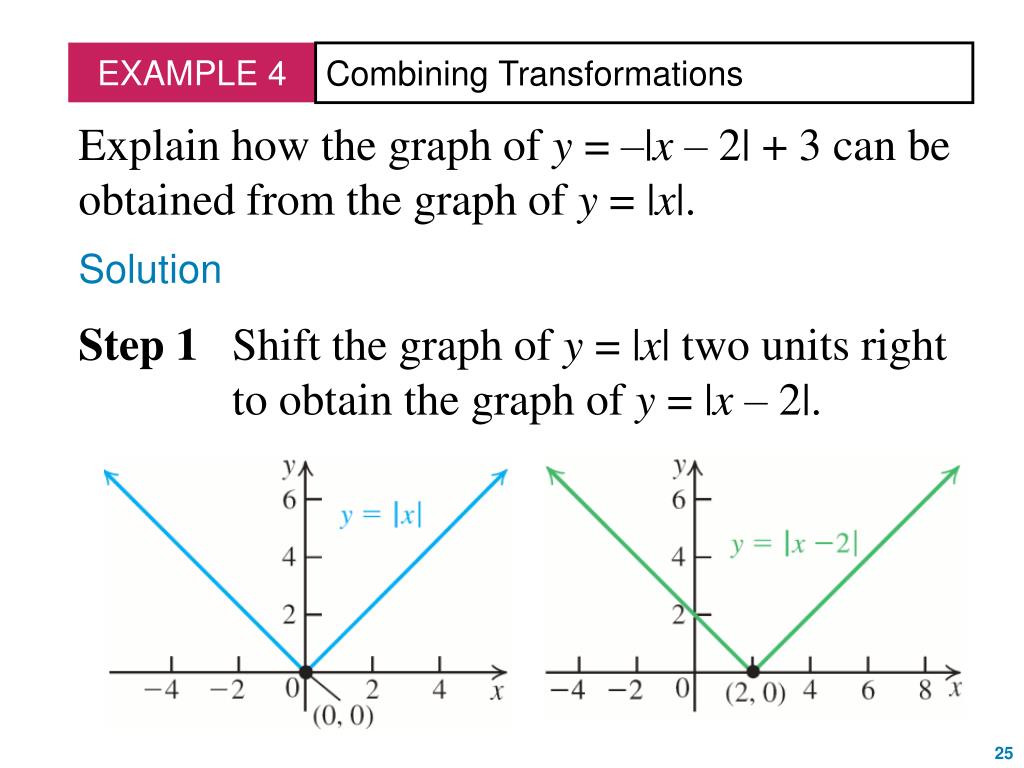

  20. Solution Step 1 Shift the graph of y = |x| two units right to obtain the graph of y = |x – 2|. EXAMPLE 4 Combining Transformations Explain how the graph of y = –|x – 2| + 3 can be obtained from the graph of y = |x|.

  21. EXAMPLE 4 Combining Transformations Solution continued Step 2 Reflect the graph of y = |x – 2| in the x–axis to obtain the graph of y = –|x – 2|.

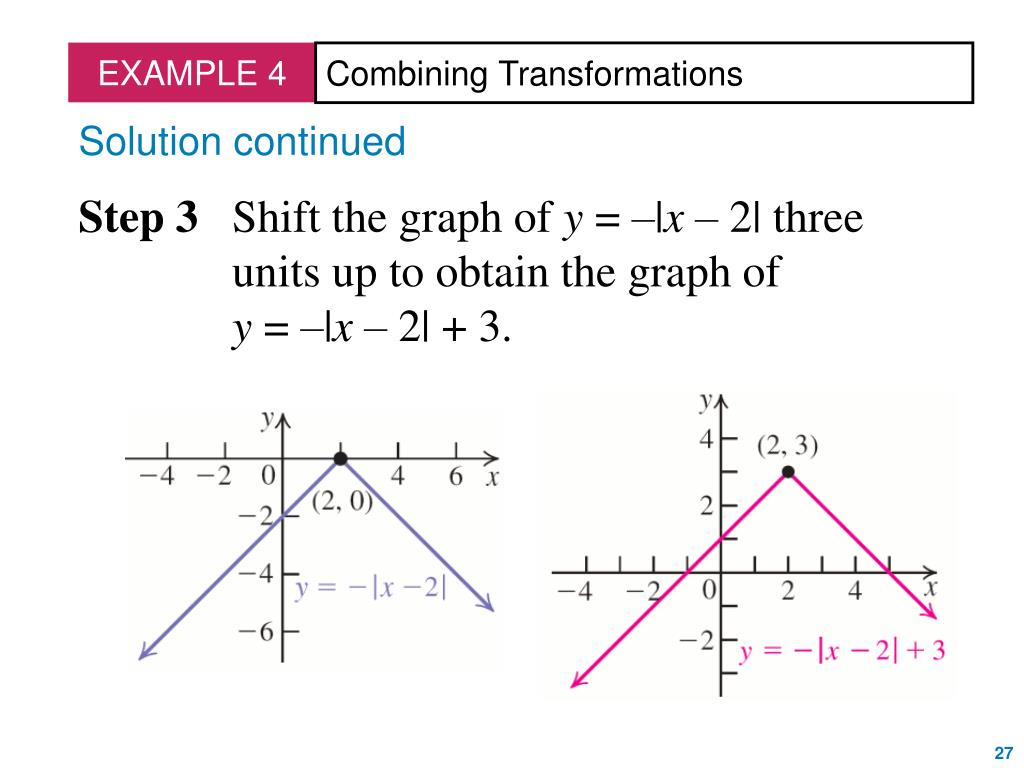

  22. EXAMPLE 4 Combining Transformations Solution continued Step 3 Shift the graph of y = –|x – 2| three units up to obtain the graph of y = –|x – 2| + 3.

  23. Stretching or Compressing a Function Vertically EXAMPLE 5 Let Sketch the graphs of f, g, and h on the same coordinate plane, and describe how the graphs of g and h are related to the graph of f. Solution

  24. Stretching or Compressing a Function Vertically EXAMPLE 5 Solution continued

  25. Stretching or Compressing a Function Vertically EXAMPLE 5 Solution continued The graph of y = 2|x| is the graph of y = |x| vertically stretched (expanded) by multiplying each of its y–coordinates by 2. The graph of |x| is the graph of y = |x| vertically compressed (shrunk) by multiplying each of its y–coordinates by .

  26. VERTICAL STRETCHING OR COMPRESSING The graph of y = af(x) is obtained from the graph of y = f(x) by multiplying the y-coordinate of each point on the graph of y = f(x) by a and leaving the x-coordinate unchanged. The result is • A vertical stretch away from the x-axis if • a > 1; • 2. A vertical compression toward the x-axis if • 0 < a < 1. If a < 0, the graph of f is first reflected in the x-axis, then vertically stretched or compressed.
