  1. HIFI consortium meetingGröningen20-21 October 2005High Resolution SpectrometerStatus - Planning

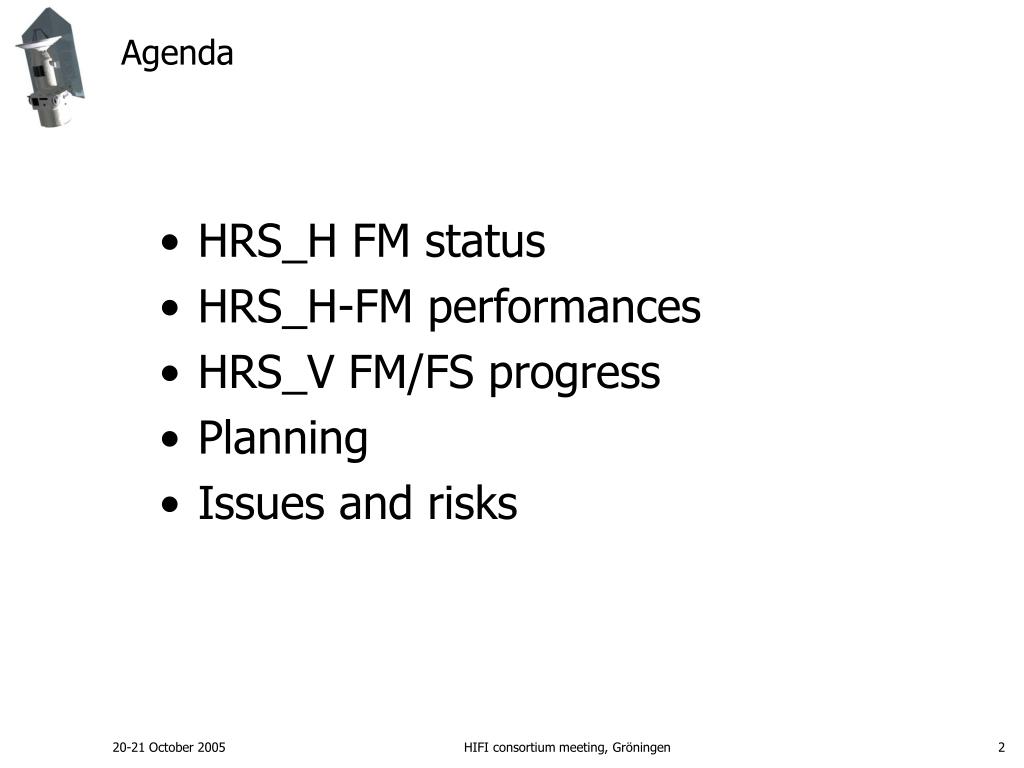

  2. Agenda • HRS_H FM status • HRS_H-FM performances • HRS_V FM/FS progress • Planning • Issues and risks HIFI consortium meeting, Gröningen

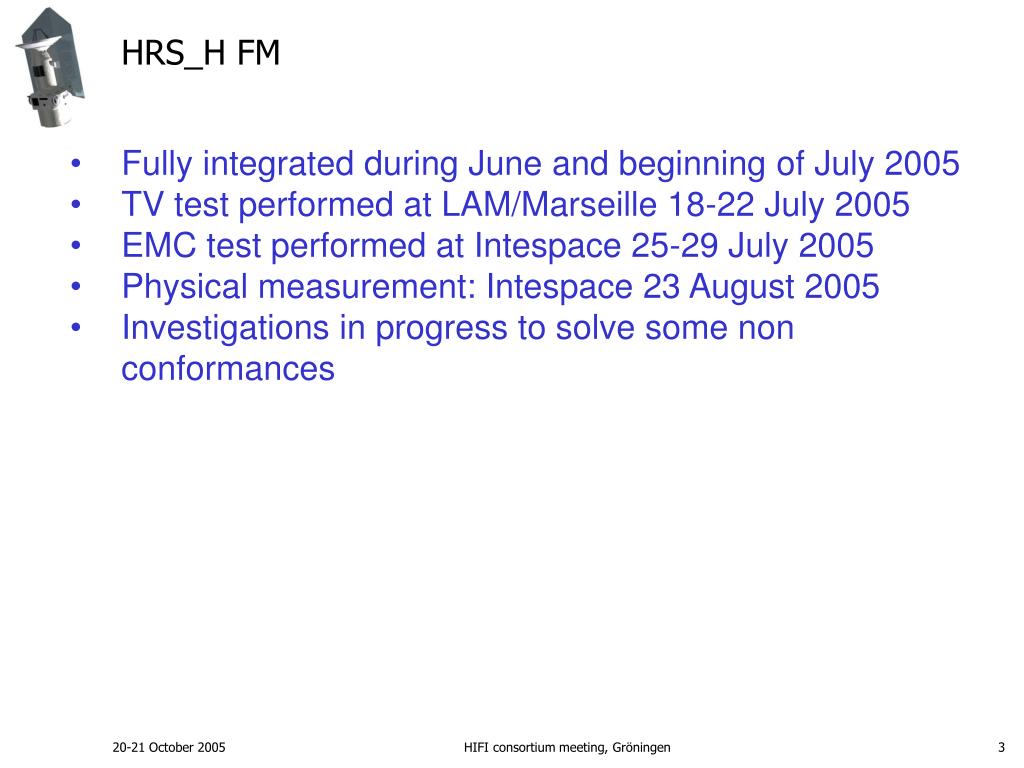

  3. HRS_H FM • Fully integrated during June and beginning of July 2005 • TV test performed at LAM/Marseille 18-22 July 2005 • EMC test performed at Intespace 25-29 July 2005 • Physical measurement: Intespace 23 August 2005 • Investigations in progress to solve some non conformances HIFI consortium meeting, Gröningen

  4. TV: results • 4 cycles performed according to the requirements • HRS operates permanently. • Specific testing at 0°, 10°, 20°, 30° and 40°C • Internal temperatures reached compared to the T° of the base plate: • GaAs: +26°C • CMOS: +48°C • Samplers: 14°C • DC/DC converter: 11°C<T<18°C • Three NCR’s issued: • Two bits stuck in the HRS-H correlator (solved) • Problem for cascading the GaAs ASICs (under investigation) • Gain instability (comes from one Converter IF module) HIFI consortium meeting, Gröningen

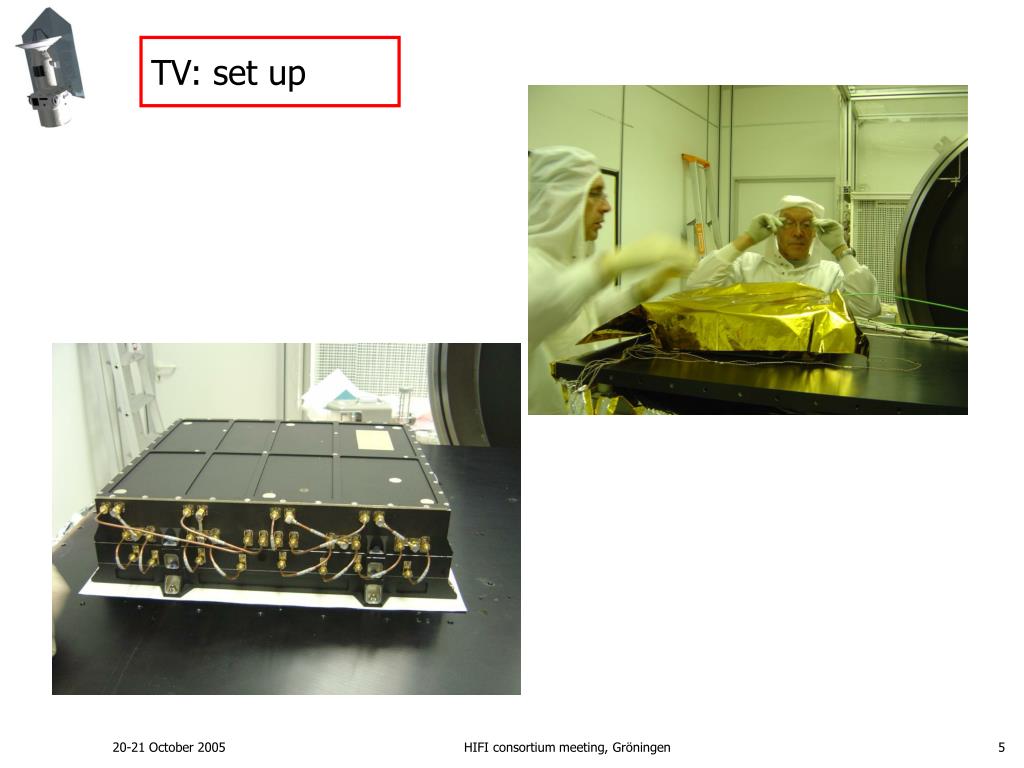

  5. TV: set up HIFI consortium meeting, Gröningen

  6. EMC: results • CE: compliant • CS: compliant • RE: Some minor non conformances • Non conformance in the notch frequencies (TM/TC frequencies). Already known from the QM program • NCR issued • RS: Rather large susceptibility in the measurement range (4-8 GHz) • Two NCR’s issued • RE: above specifications within the notch frequencies for some setting of LO 13-17 GHz. • RS: susceptibility. Strong reduction by shielding the connectors at the input of the HRS. HIFI consortium meeting, Gröningen

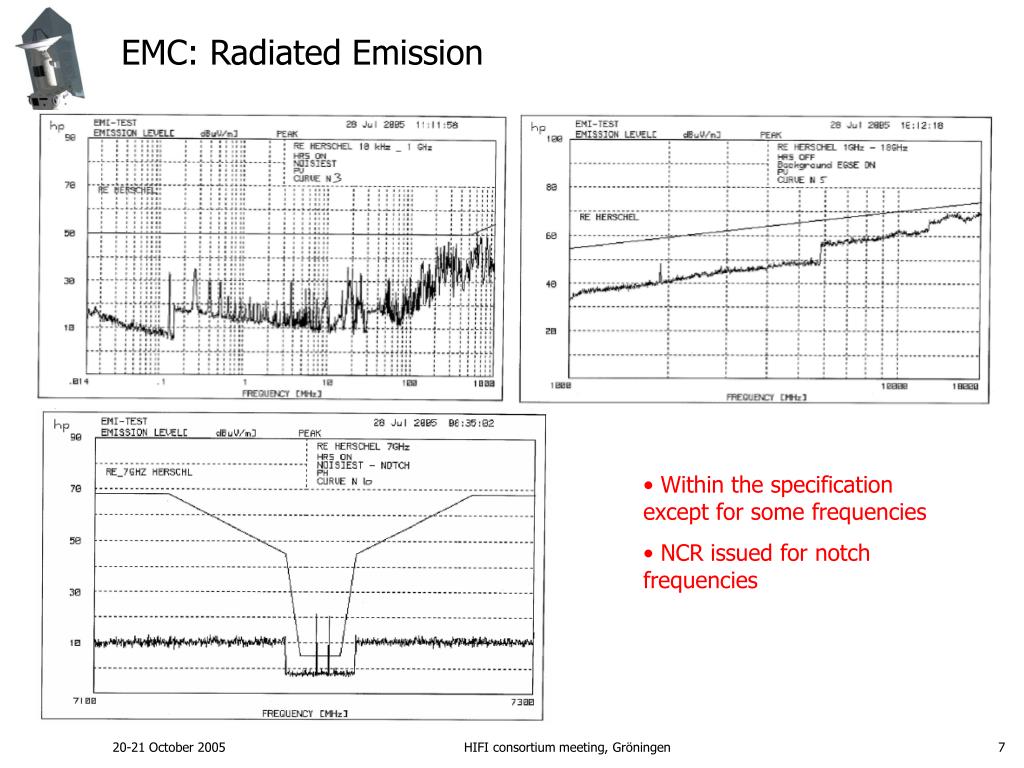

  7. EMC: Radiated Emission • Within the specification except for some frequencies • NCR issued for notch frequencies HIFI consortium meeting, Gröningen

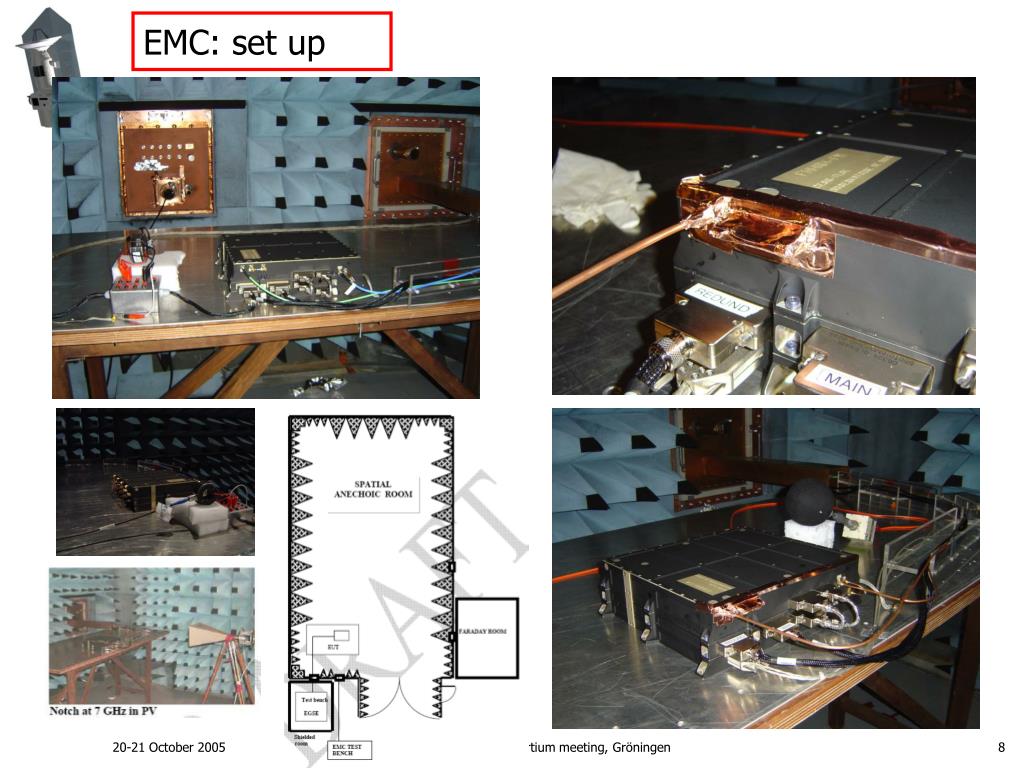

  8. EMC: set up HIFI consortium meeting, Gröningen

  9. Band-width measurements Aliasing The effective bandwidth is 235MHz per sub-band, >> The most appropriate sampling frequency is 490MHz Optimization of the spectral resolution HIFI consortium meeting, Gröningen

  10. Efficiency measurements Efficiency > 75% in the whole band HIFI consortium meeting, Gröningen

  11. Spectral resolution measurements Line-width = 126kHz instead of 120kHz (theoretical) (with fs = 490MHz and Hanning windowing)

  12. TV test - HRS gain versus temperature Gain drift: 0.028dB/°C

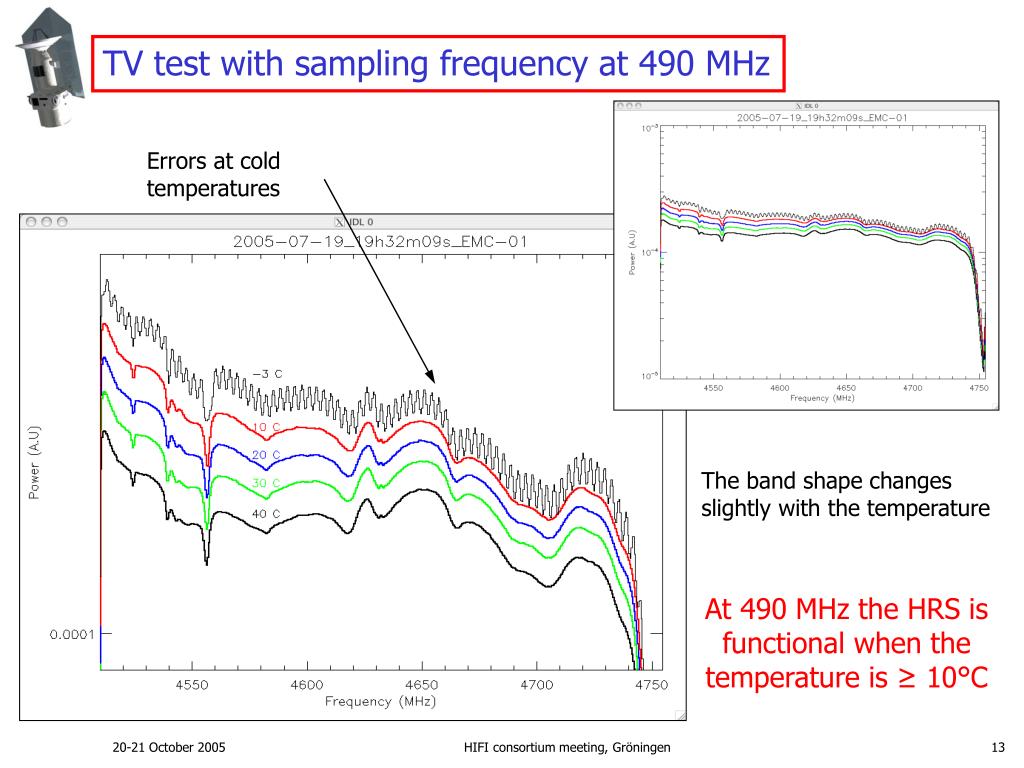

  13. TV test with sampling frequency at 490 MHz Errors at cold temperatures The band shape changes slightly with the temperature At 490 MHz the HRS is functional when the temperature is ≥ 10°C HIFI consortium meeting, Gröningen

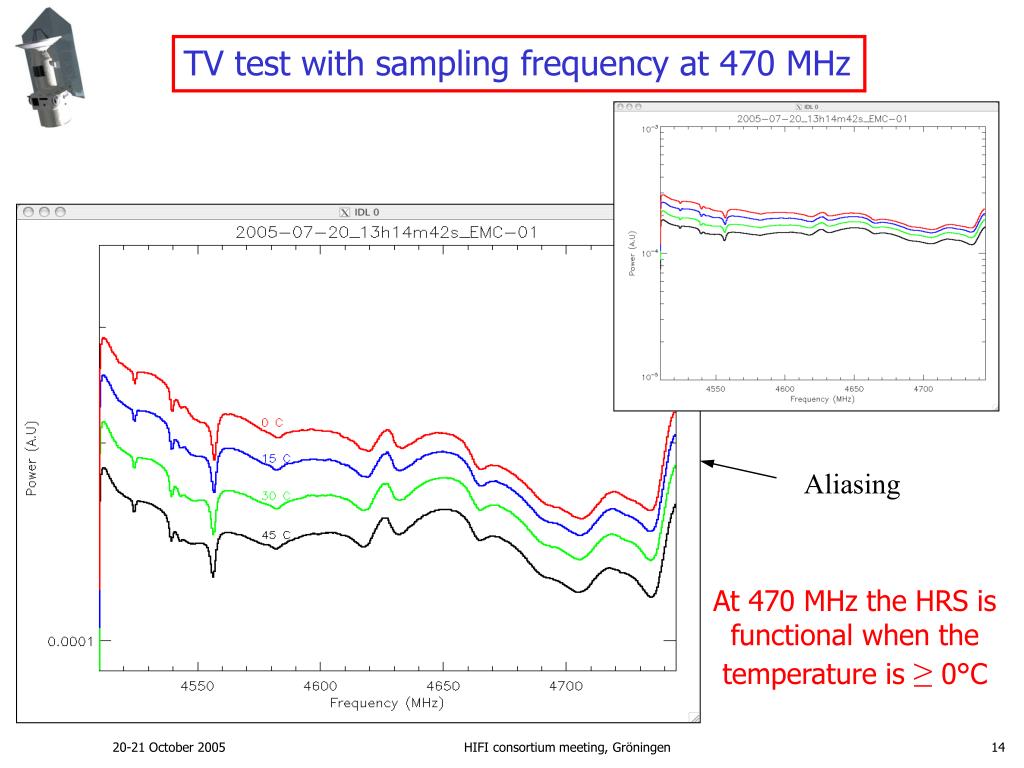

  14. TV test with sampling frequency at 470 MHz Aliasing At 470 MHz the HRS is functional when the temperature is ≥ 0°C HIFI consortium meeting, Gröningen

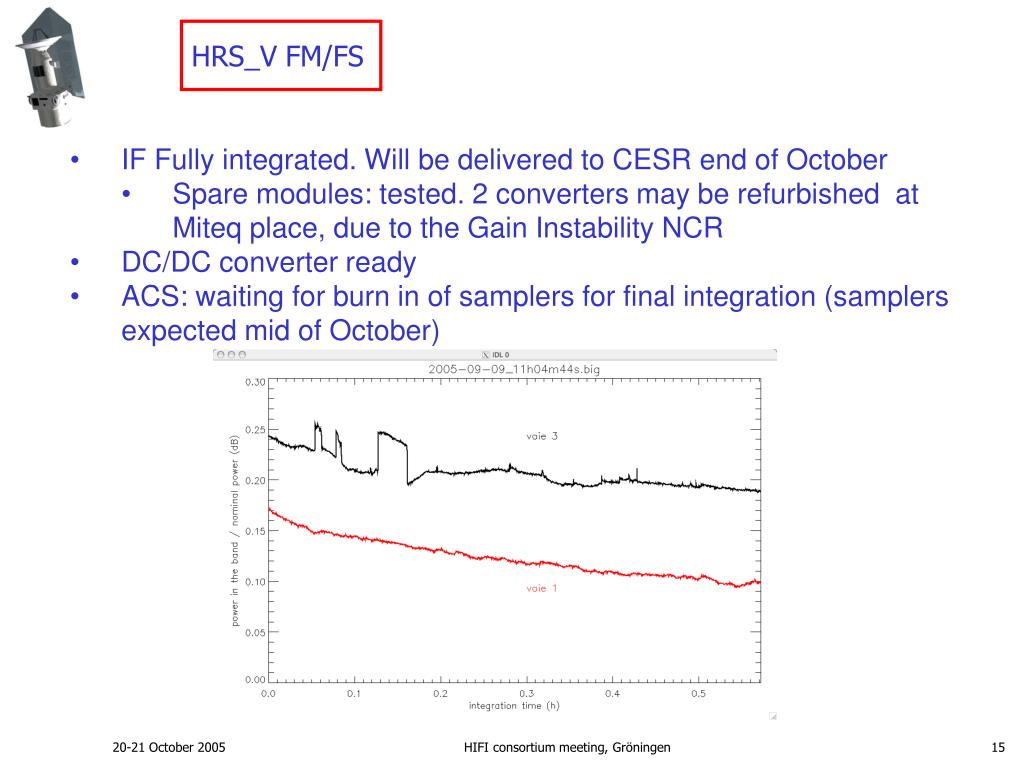

  15. HRS_V FM/FS • IF Fully integrated. Will be delivered to CESR end of October • Spare modules: tested. 2 converters may be refurbished at Miteq place, due to the Gain Instability NCR • DC/DC converter ready • ACS: waiting for burn in of samplers for final integration (samplers expected mid of October) HIFI consortium meeting, Gröningen

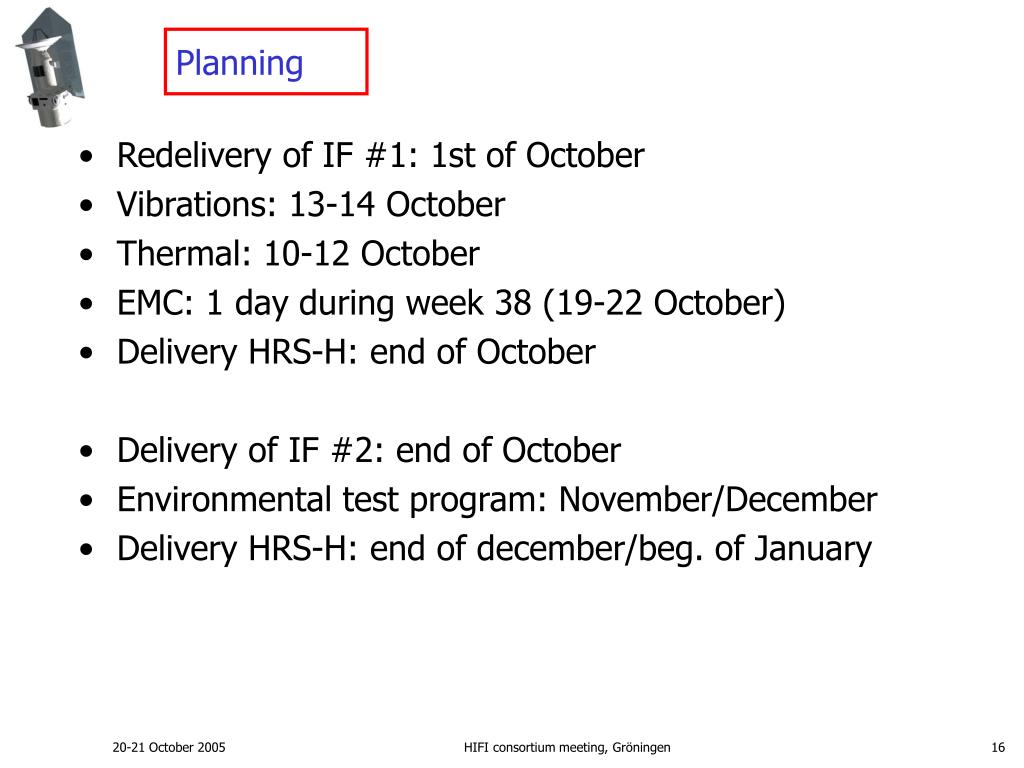

  16. Planning • Redelivery of IF #1: 1st of October • Vibrations: 13-14 October • Thermal: 10-12 October • EMC: 1 day during week 38 (19-22 October) • Delivery HRS-H: end of October • Delivery of IF #2: end of October • Environmental test program: November/December • Delivery HRS-H: end of december/beg. of January HIFI consortium meeting, Gröningen

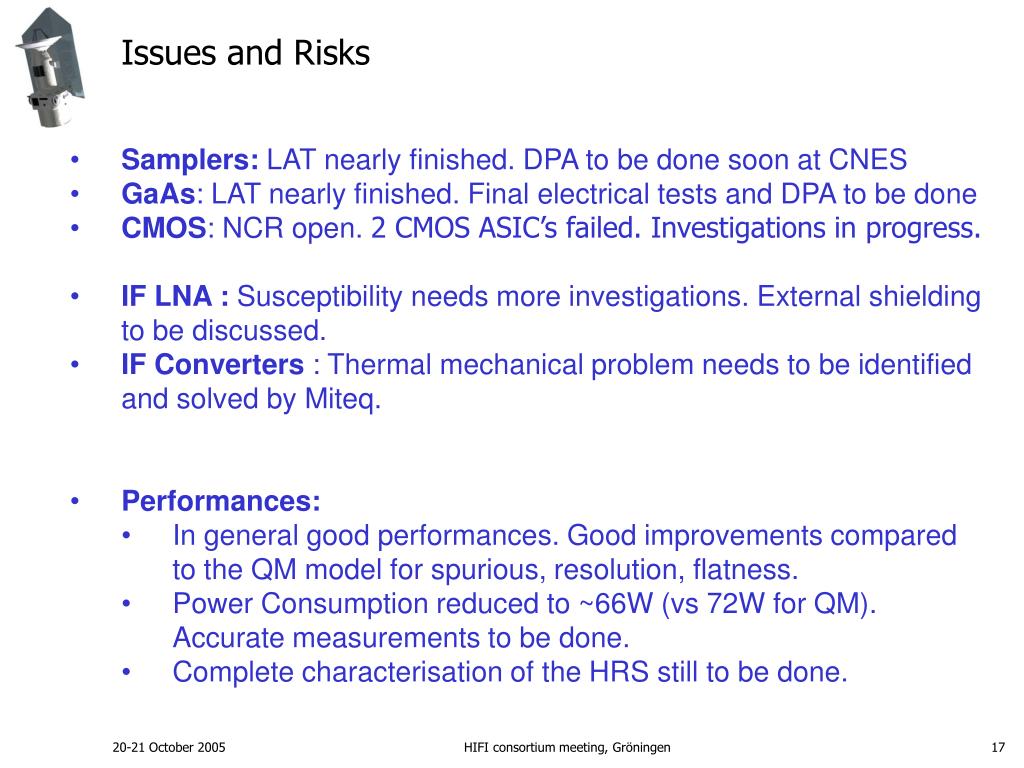

  17. Issues and Risks • Samplers: LAT nearly finished. DPA to be done soon at CNES • GaAs: LAT nearly finished. Final electrical tests and DPA to be done • CMOS: NCR open. 2 CMOS ASIC’s failed. Investigations in progress. • IF LNA : Susceptibility needs more investigations. External shielding to be discussed. • IF Converters : Thermal mechanical problem needs to be identified and solved by Miteq. • Performances: • In general good performances. Good improvements compared to the QM model for spurious, resolution, flatness. • Power Consumption reduced to ~66W (vs 72W for QM). Accurate measurements to be done. • Complete characterisation of the HRS still to be done. HIFI consortium meeting, Gröningen
