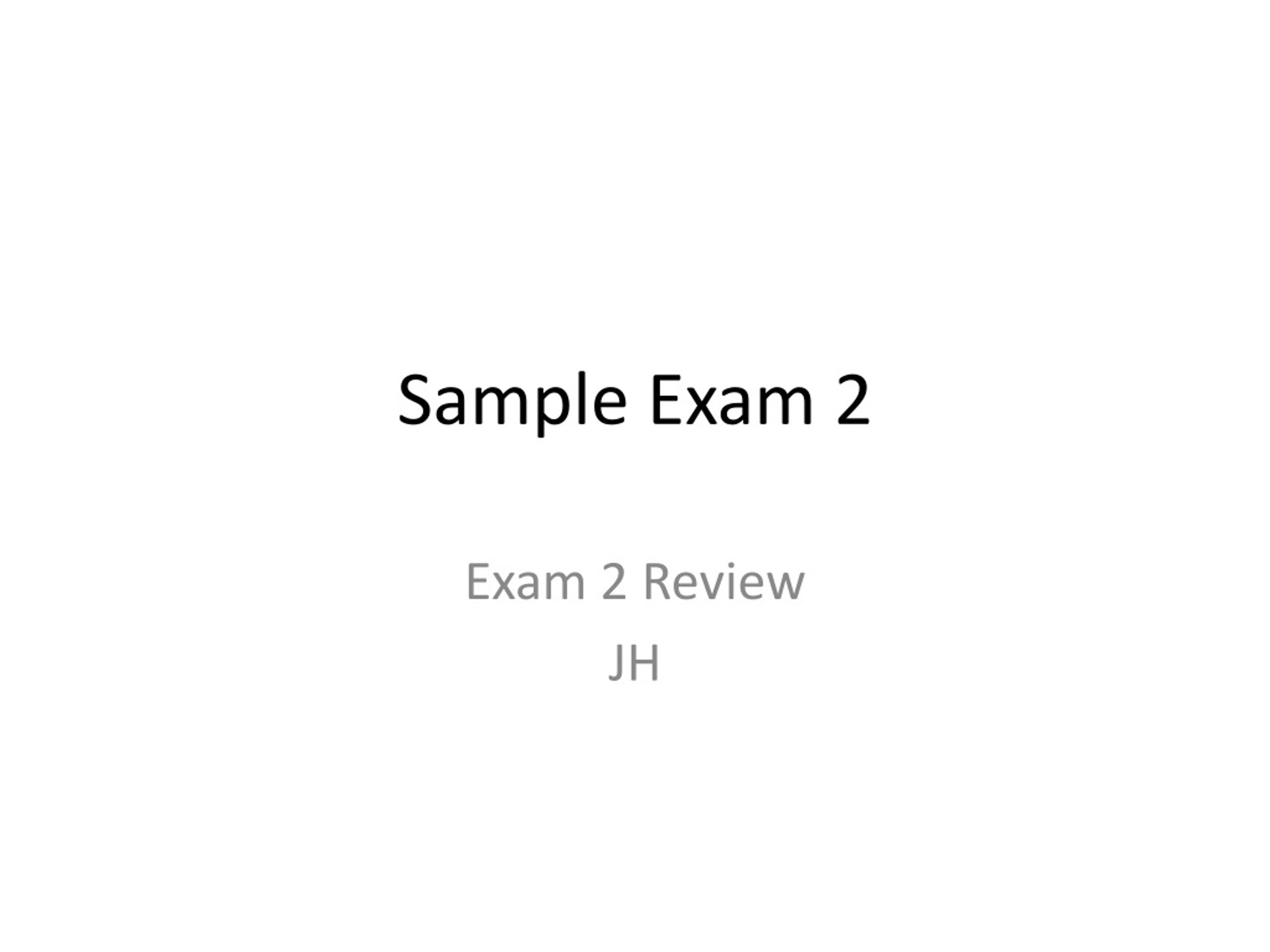

  1. Sample Exam 2 Exam 2 Review JH

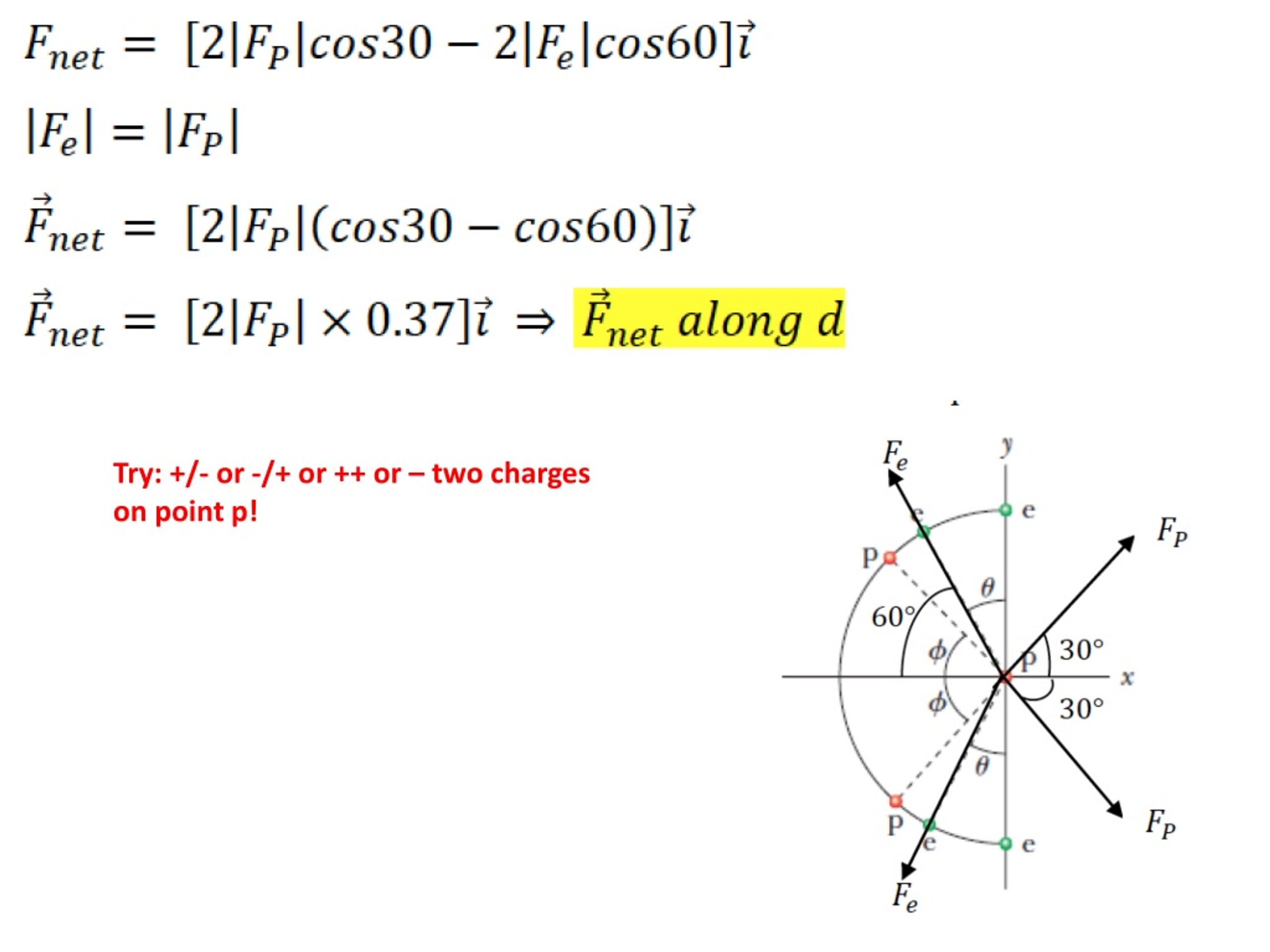

  2. Try: +/- or -/+ or ++ or – two charges on point p!

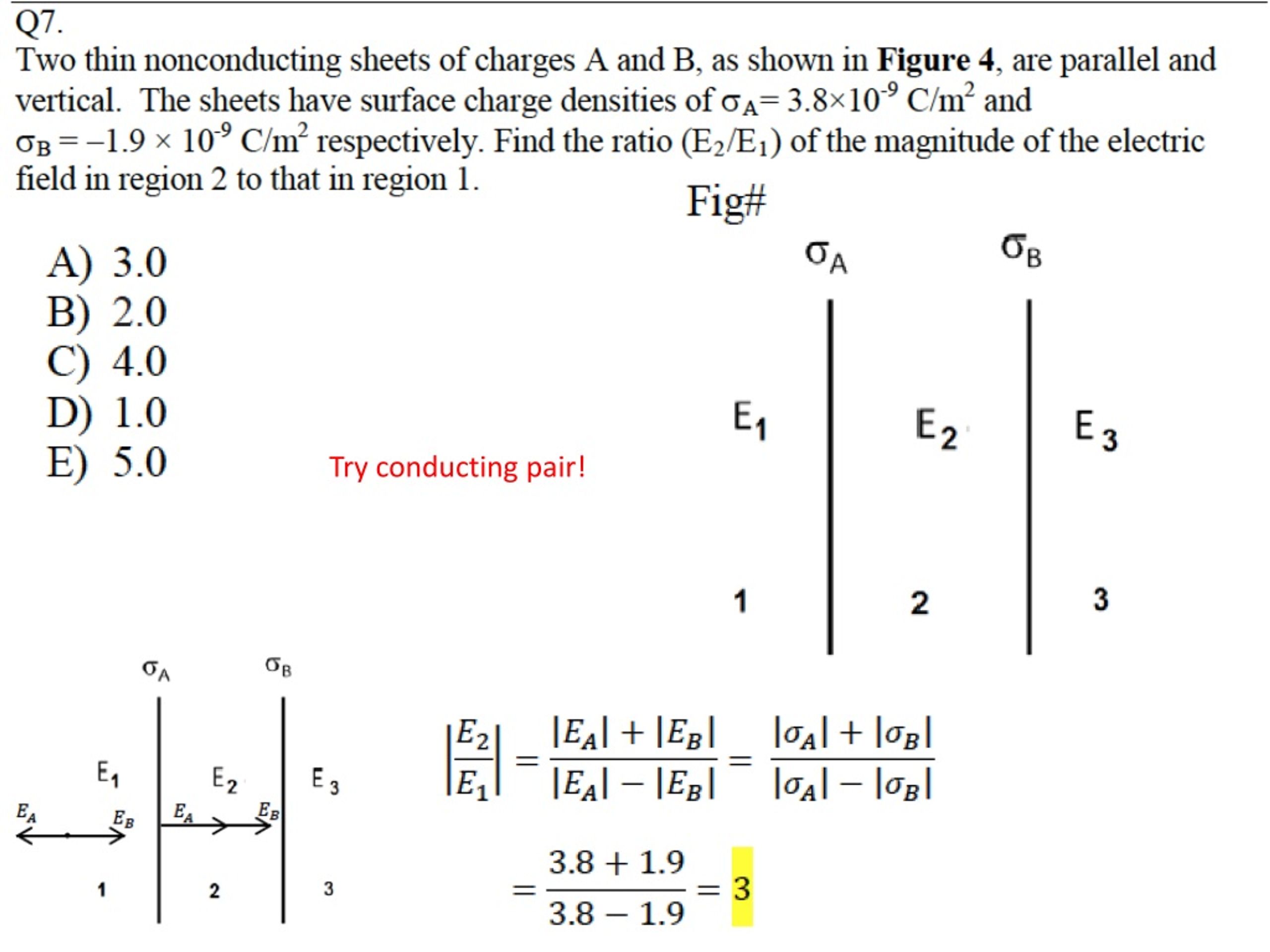

  3. Try conducting pair!

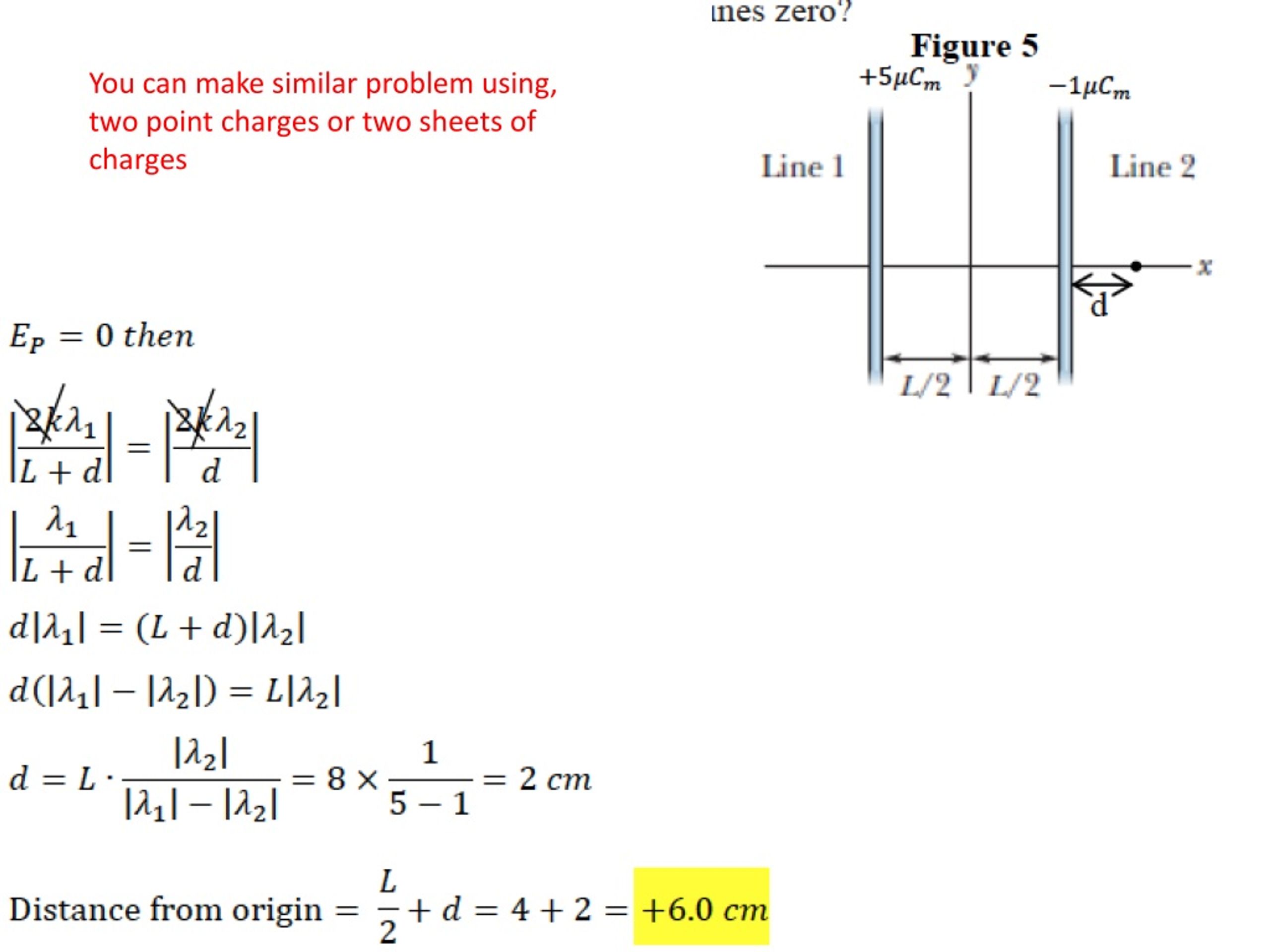

  4. You can make similar problem using, two point charges or two sheets of charges

  5. Maximum happens at the surface (even for conducting sphere). In this non-cond. With uniform charge the E drops like r/R Other factors can be used. Both inside and outside values can be generated.

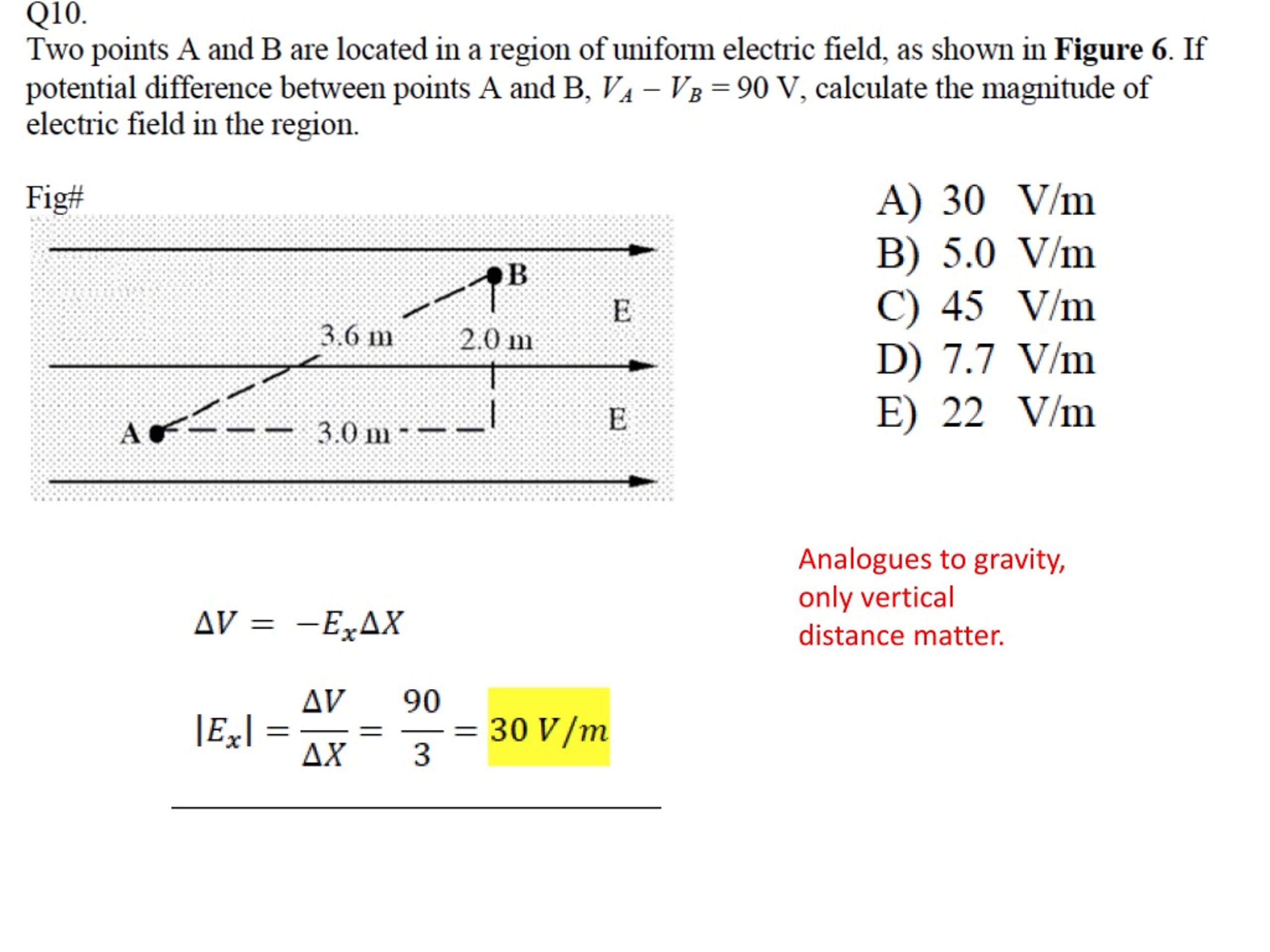

  6. Analogues to gravity, only vertical distance matter.

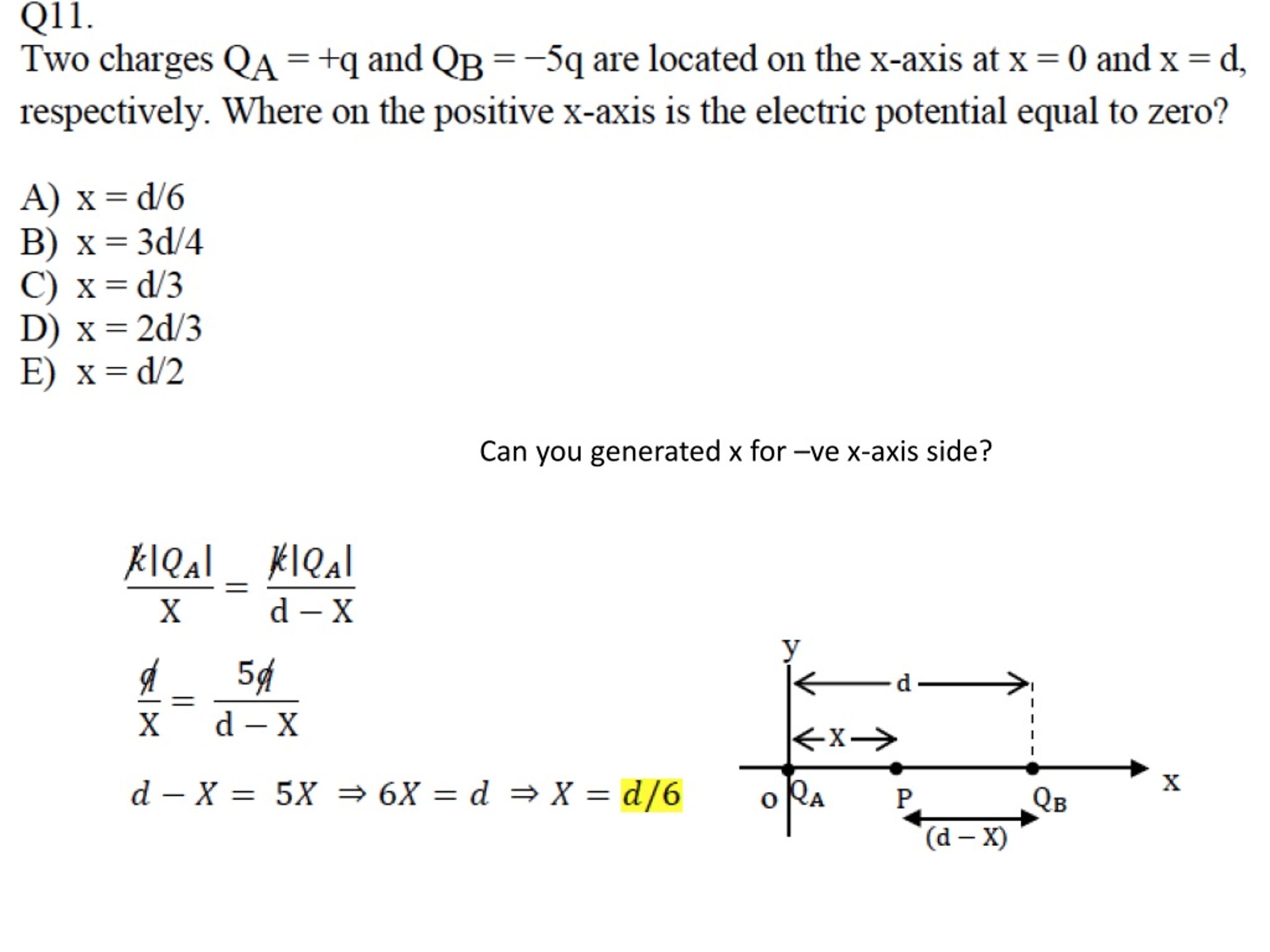

  7. Can you generated x for –ve x-axis side?

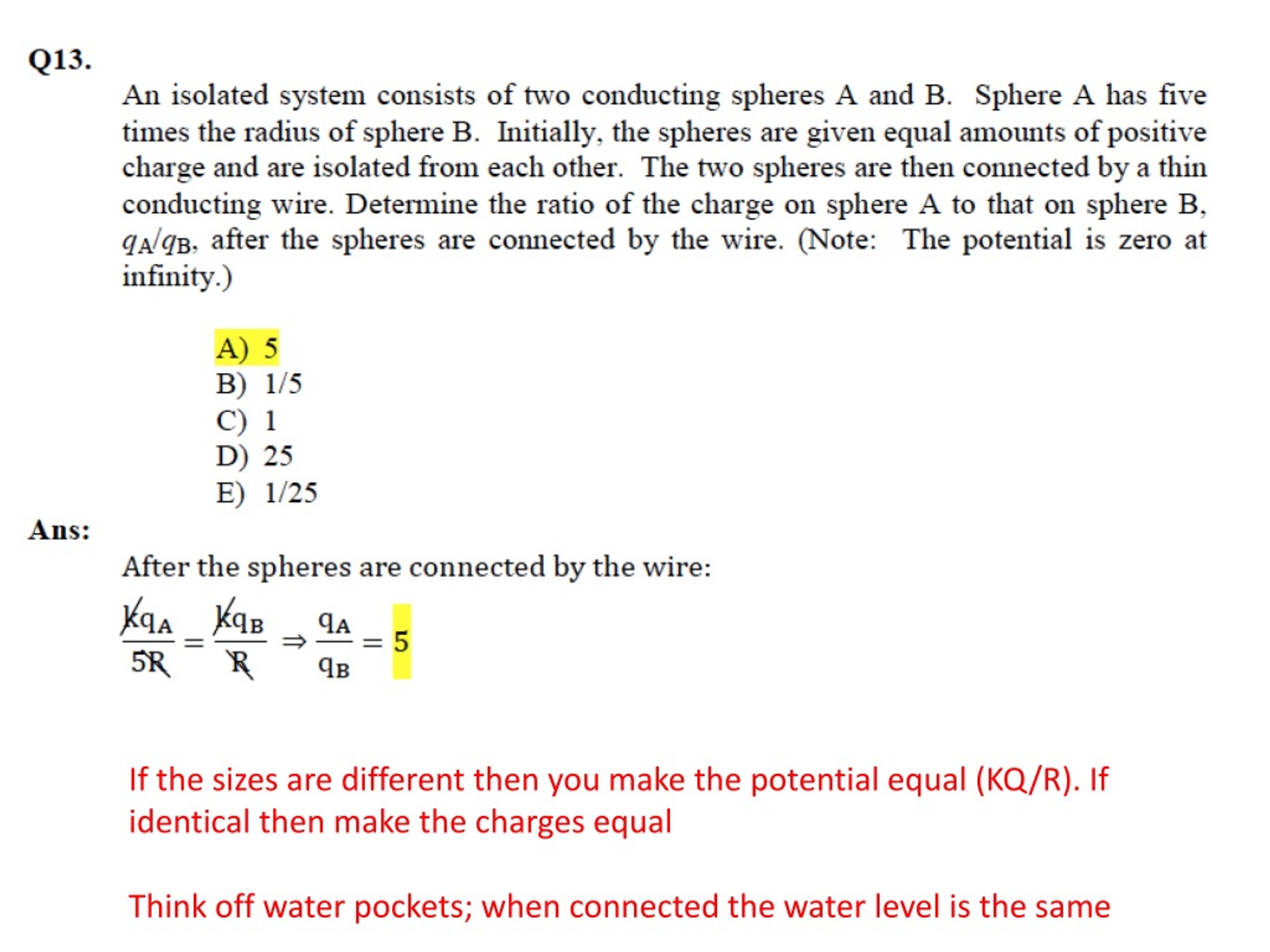

  8. If the sizes are different then you make the potential equal (KQ/R). If identical then make the charges equal Think off water pockets; when connected the water level is the same

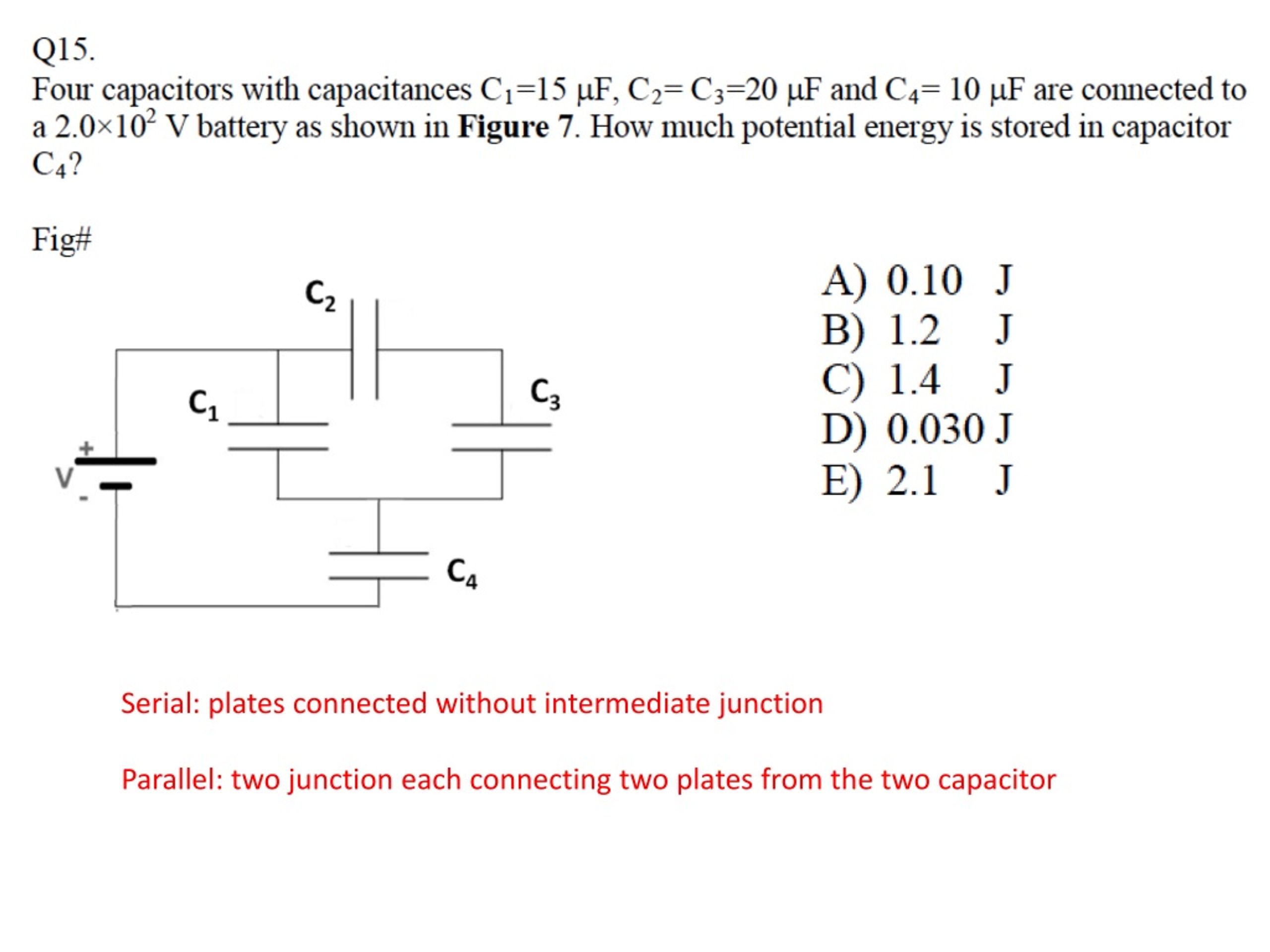

  9. Serial: plates connected without intermediate junction Parallel: two junction each connecting two plates from the two capacitor
