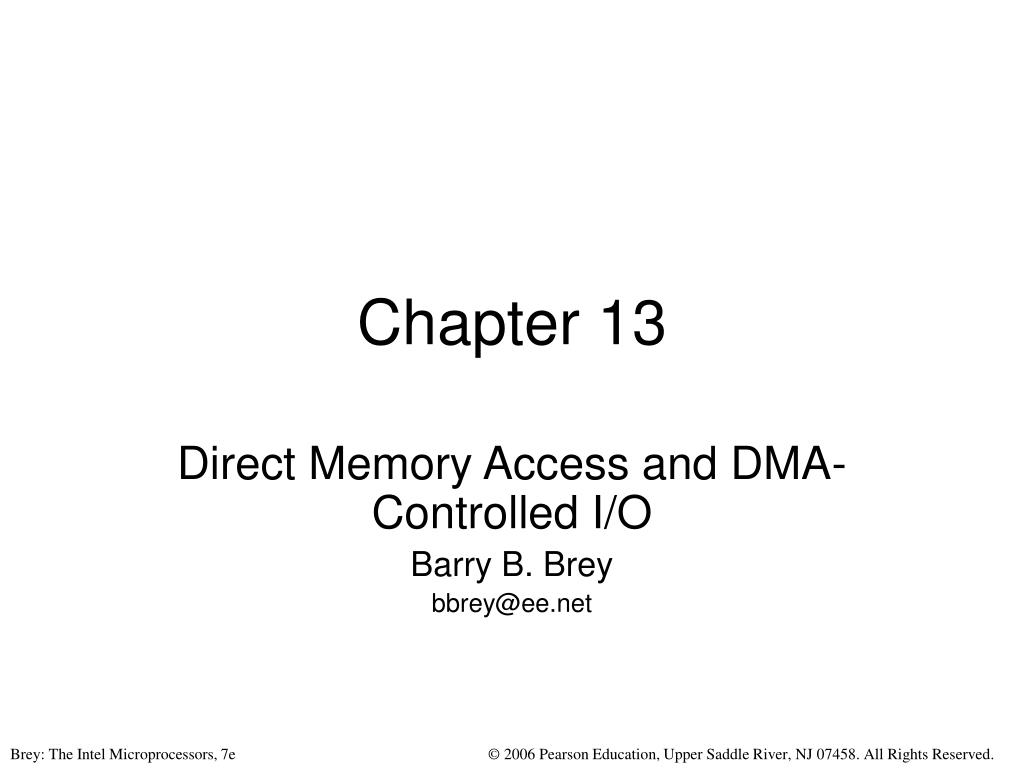

  1. Chapter 13 Direct Memory Access and DMA-Controlled I/O Barry B. Brey bbrey@ee.net

  2. DMA • Direct Memory Access (DMA) is a method whereby the memory and I/O space of the microprocessor can be accessed directly without the intervention of the microprocessor or a program. • During a DMA access the microprocessor is turned off by placing a logic one on the HOLD input. • After placing a logic one on HOLD, the microprocessor issues a logic one on the HLDA to indicate a hold is in effect.

  3. During a HOLD, the microprocessor stops running the program and it places its address, data, and control bus connections at their impedance state. This in effect is the same as removing the microprocessor from its socket! • While the microprocessor is held, other devices are free to gain access to its memory and I/O space to directly transfer data.

  4. HOLD has a higher priority than interrupts and HOLD takes effect in a clock or two. • The only input with a higher priority than HOLD is the RESET input to the microprocessor.

  5. DMA Control Signals • On early Intel microprocessor the control signals were not DMA compatible without additional circuitry. • Because during a DMA, the memory and I/O are accessed simultaneously, 4 control signals are needed. The next slide illustrates a multiplexer used to generate these signals.

  6. 8237 DMA Controller • The chipset in a modern computer contains a pair of 8237 DMA controllers to provide 8 DMA channels. • The only feature not supported by the chipset is the memory-to-memory DMA transfer described for the 8237 DMA controller integrated circuit. Intel removed this feature from the chipset because of the system architecture.

  7. DMA Command Register

  8. DMA Mode Register

  9. DMA Request Register

  10. Mask Set/Reset Register

  11. DMA Mask Register

  12. Status Register

  13. 8237 Port Assignments

  14. 8237 Channel Registers

  15. DMA Page Registers

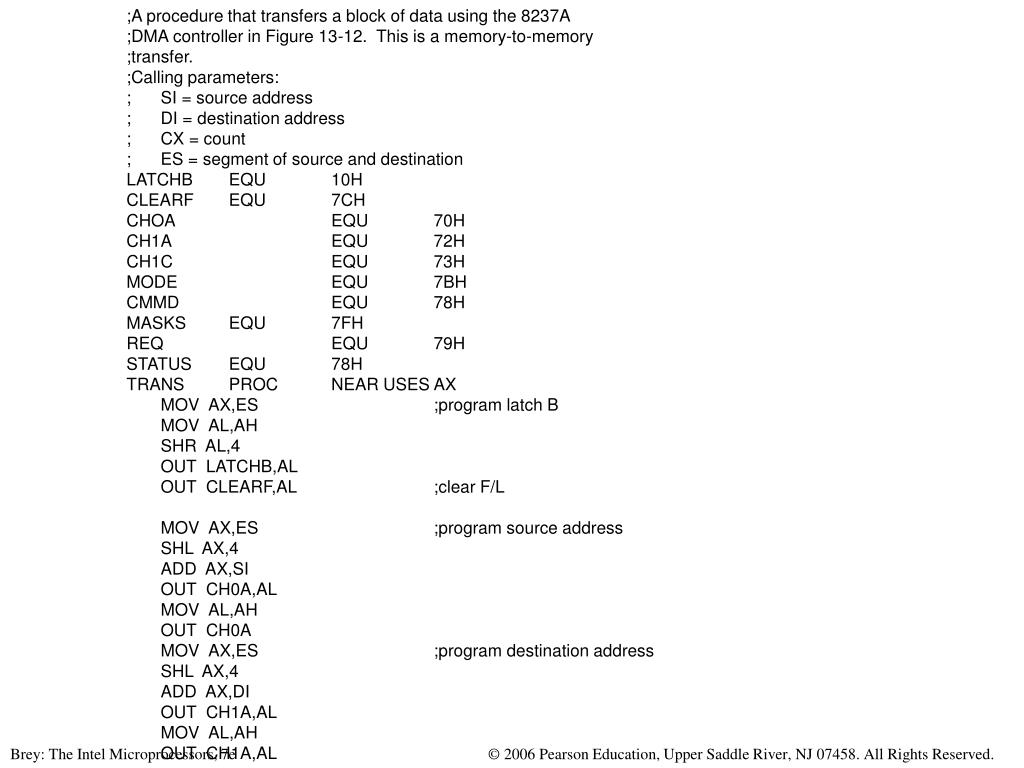

  16. ;A procedure that transfers a block of data using the 8237A ;DMA controller in Figure 13-12. This is a memory-to-memory ;transfer. ;Calling parameters: ; SI = source address ; DI = destination address ; CX = count ; ES = segment of source and destination LATCHB EQU 10H CLEARF EQU 7CH CHOA EQU 70H CH1A EQU 72H CH1C EQU 73H MODE EQU 7BH CMMD EQU 78H MASKS EQU 7FH REQ EQU 79H STATUS EQU 78H TRANS PROC NEAR USES AX MOV AX,ES ;program latch B MOV AL,AH SHR AL,4 OUT LATCHB,AL OUT CLEARF,AL ;clear F/L MOV AX,ES ;program source address SHL AX,4 ADD AX,SI OUT CH0A,AL MOV AL,AH OUT CH0A MOV AX,ES ;program destination address SHL AX,4 ADD AX,DI OUT CH1A,AL MOV AL,AH OUT CH1A,AL

  17. MOV AX,CX ;program count DEC AX OUT CH1C,AL MOV AL,AH OUT CH1C,AL MOV AL,88H ;program mode OUT MODE,AL MOV AL,85H OUT MODE,AL MOV AL,1 ;enable block transfer OUT CMMD,AL MOV AL,0EH ;unmask channel 0 OUT MASKS,AL MOV AL,4 ;start DMA OUT REQ,AL .REPEAT ;wait for completion IN AL,STATUS .UNTIL AL & 1 RET TRANS ENDP

  18. ;A procedure that clears the DOS mode video screen.= using the DMA ;controller as depicted in Figure 13-12. ;Calling sequence: ; DI = offset address of area cleared ; ES = segment address of area cleared ; CX = number of bytes cleared LATCHB EQU 10H CLEARF EQU 7CH CHOA EQU 70H CH1A EQU 72H CH1C EQU 73H MODE EQU 7BH CMMD EQU 78H MASKS EQU 7FH REQ EQU 79H STATUS EQU 78H ZERO EQU 0 CLEAR PROC NEAR USES AX MOV AX,ES ;program latch B MOV AL,AH SHR AL,4 OUT LATCHB,AL OUT CLEARF,AL ;clear F/L MOV AL,ZERO ;save zero in first byte MOV ES:[DI],AL MOV AX,ES ;program source address SHL AX,4 ADD AX,SI OUT CH0A,AL MOV AL,AH OUT CH0A

  19. MOV AX,ES ;program destination address SHL AX,4 ADD AX,DI OUT CH1A,AL MOV AL,AH OUT CH1A,AL MOV AX,CX ;program count DEC AX OUT CH1C,AL MOV AL,AH OUT CH1C,AL MOV AL,88H ;program mode OUT MODE,AL MOV AL,85H OUT MODE,AL MOV AL,03H ;enable block hold transfer OUT CMMD,AL MOV AL,0EH ;enable channel 0 OUT MASKS,AL MOV AL,4 ;start DMA OUT REQ,AL .REPEAT IN AL,STATUS .UNTIL AL & 1 RET CLEAR ENDP

  20. ;A procedure that prints data via the printer interface in ;Figure 13-13 ;Calling sequence: ; BX = offset address of printer data ; DS = segment address of printer data ; CX = number of bytes to print LATCHB EQU 10H CLEARF EQU 7CH CH3A EQU 76H CH1C EQU 77H MODE EQU 7BH CMMD EQU 78H MASKS EQU 7FH REQ EQU 79H PRINT PROC NEAR USES AX CX BX MOV EAX,0 MOV AX,DS ;program latch B SHR EAX,4 PUSH AX SHR EAX,16 OUT LATCHB,AL POP AX ;program address OUT CH3A,AL MOV AL,AH OUT CH3A,AL MOV AX,CX ;program count DEC AX OUT CH3C,AL MOV AL,AH OUT CH3C,AL MOV AL,0BH ;program mode OUT MODE,AL MOV AL,00H ;enable block mode transfer OUT CMMD,AL MOV AL,7 ;enable channel 3 OUT MASKS,AL RET PRINT ENDP

  21. ;A procedure that tests for completion of the DMA action STATUS EQU 78H TESTP PROC NEAR USES AX .REPEAT IN AL,STATUS .UNTIL AL & 8 RET TESTP ENDP
