Multiobjective Modeling and Optimization in Design

Progress Report

Qiang Chen, Derek Dalle,

Chad Griep, Jingwei Hu,

Jahmario Williams, Zhenqiu Xie

introduction
Introduction
  • Optimal design of subsonic aircraft
    • Study how changes in the shape of aircraft affect aerodynamics.
  • More importantly, figure out what to optimize.
  • Apply this to quiet supersonic aircraft.
    • Investigate intricacies and difficulties inherent in designing a cost-effective, efficient and quiet supersonic passenger aircraft.
slide3
Configuration Design

Variables for Conceptual Design

Reference wing area

Wing sweep angle

Wing aspect ratio

Wing taper ratio

Wing-thickness chord ratio

Gross weight

Thrust

Objective

Functions

Minimum gross weight

Minimum fuel burned

Maximum range

Minimum cost

Minimum NOx emissions

sweep angle

t

c

motivation typical engineer s method
MotivationTypical Engineer’s Method
  • Establish requirements.
  • Design an aircraft that successfully meets the requirements.
  • Try to optimize by changing one (or several) design variable at a time.
  • Ad hoc stopping criteria are used.
motivation problems with old methods
MotivationProblems with Old Methods
  • This process is slow.
  • Optimization occurs too late.
  • Engineers have been successful, but design is based on experience.
  • Some problems are too hard.
  • Real problems are massively multiobjective.
flight optimization system flops a mccullers

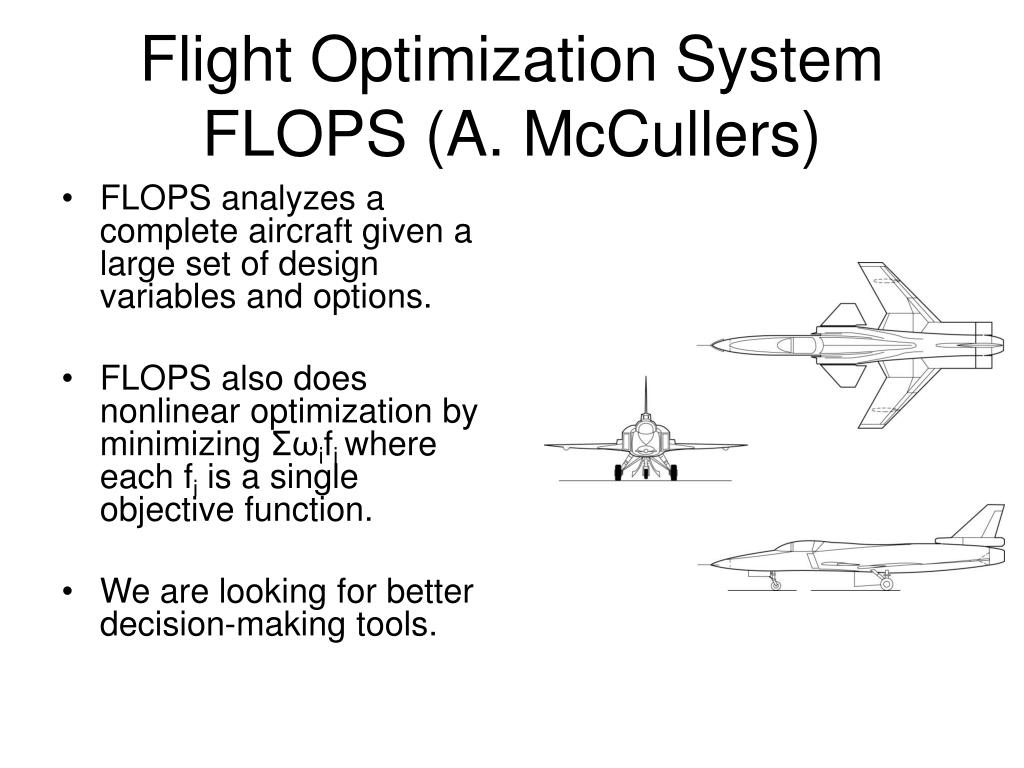

Flight Optimization System FLOPS (A. McCullers)
  • FLOPS analyzes a complete aircraft given a large set of design variables and options.
  • FLOPS also does nonlinear optimization by minimizing Σωifi where each fi is a single objective function.
  • We are looking for better decision-making tools.
relationships between design variables and objective functions

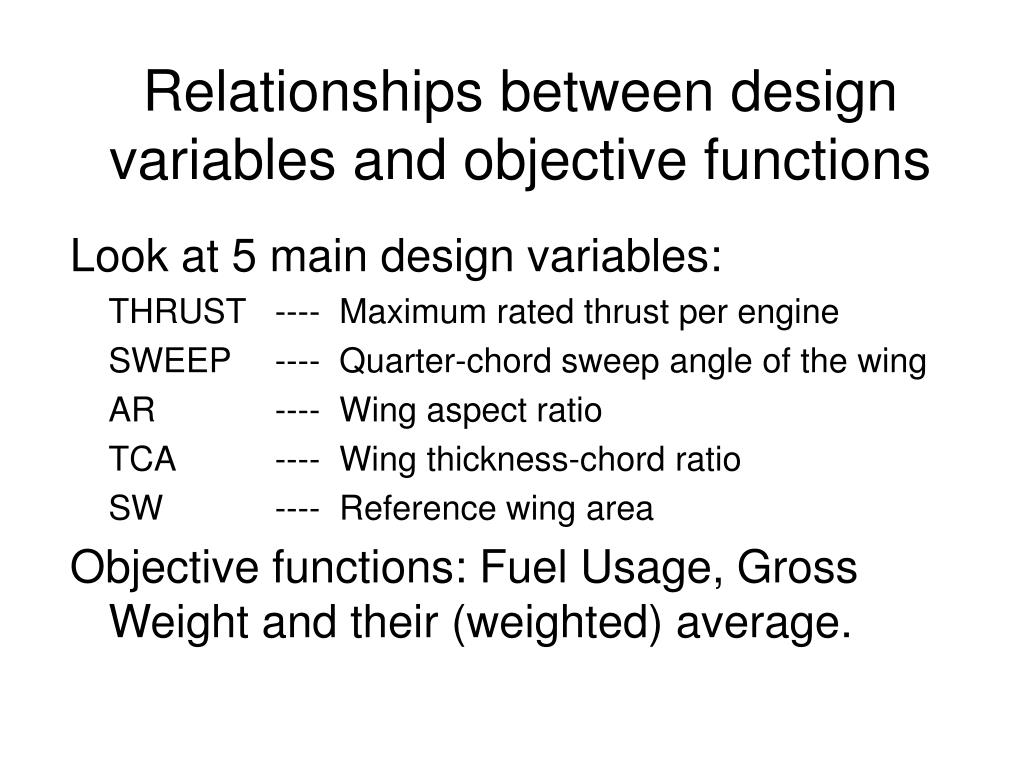

Relationships between design variables and objective functions

Look at 5 main design variables:

THRUST ---- Maximum rated thrust per engine

SWEEP ---- Quarter-chord sweep angle of the wing

AR ---- Wing aspect ratio

TCA ---- Wing thickness-chord ratio

SW ---- Reference wing area

Objective functions: Fuel Usage, Gross Weight and their (weighted) average.

slide8

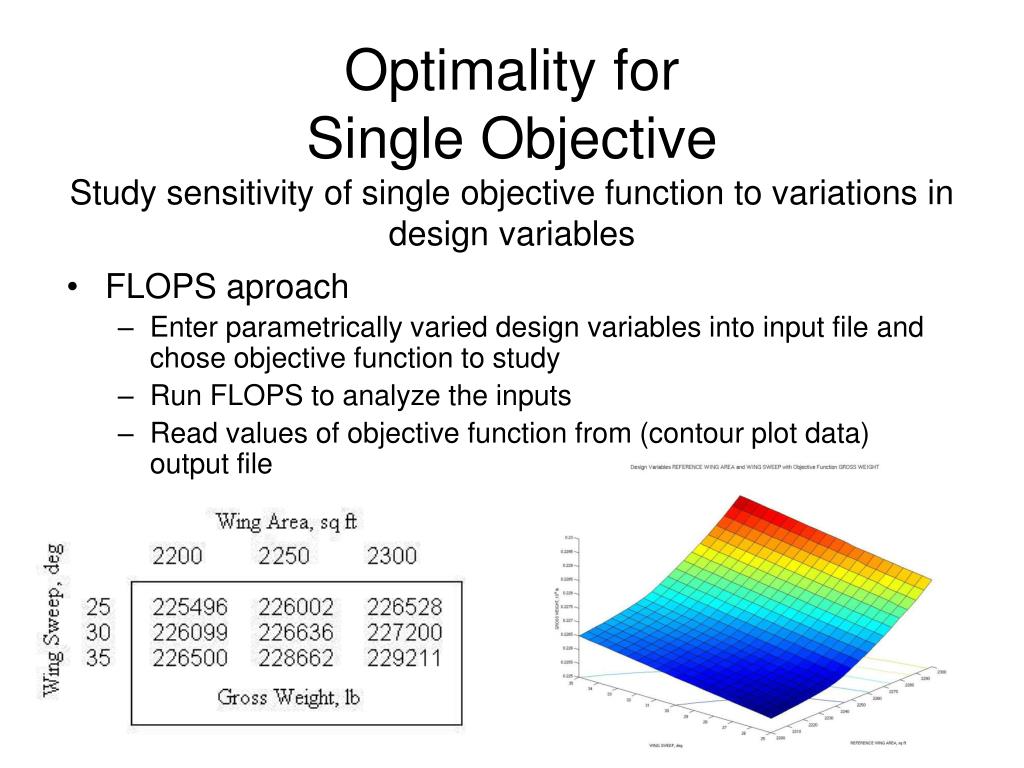

Optimality forSingle ObjectiveStudy sensitivity of single objective function to variations in design variables
  • FLOPS aproach
    • Enter parametrically varied design variables into input file and chose objective function to study
    • Run FLOPS to analyze the inputs
    • Read values of objective function from (contour plot data) output file
slide9

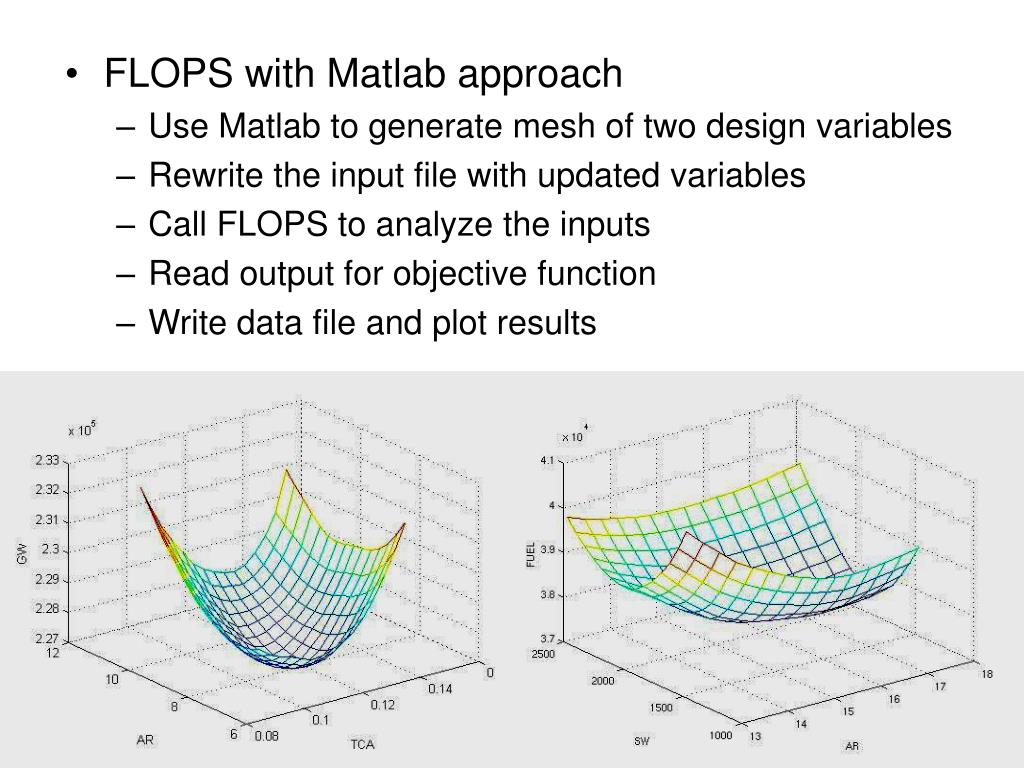

FLOPS with Matlab approach
    • Use Matlab to generate mesh of two design variables
    • Rewrite the input file with updated variables
    • Call FLOPS to analyze the inputs
    • Read output for objective function
    • Write data file and plot results
optimality for multiple objectives

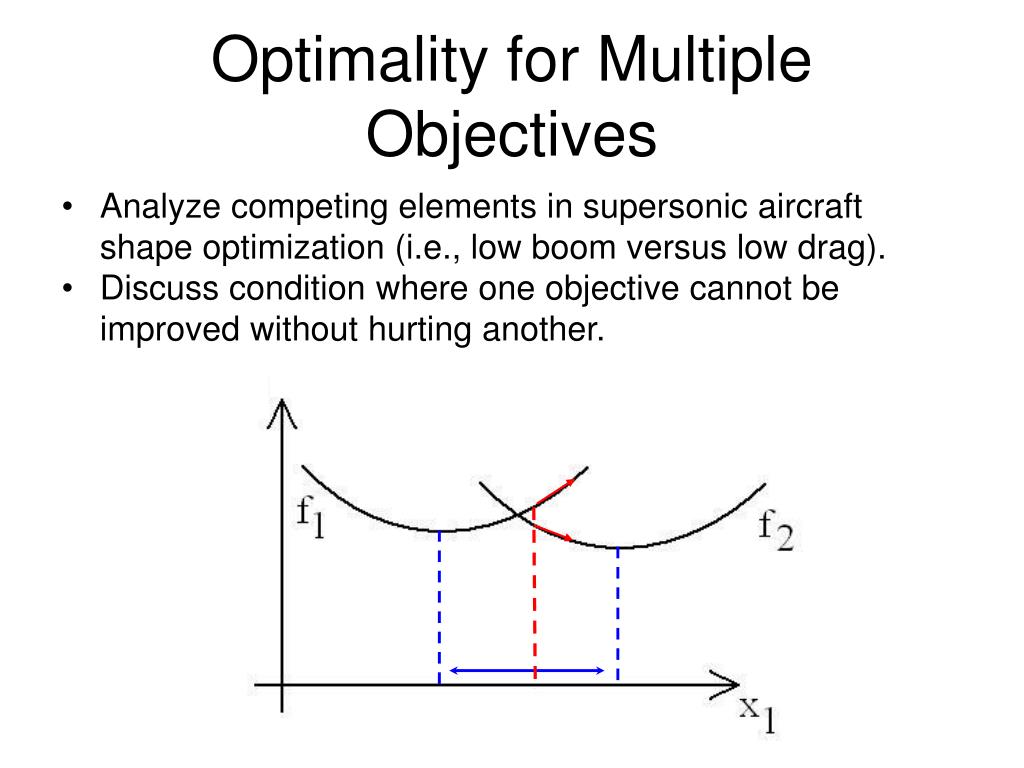

Optimality for Multiple Objectives
  • Analyze competing elements in supersonic aircraft shape optimization (i.e., low boom versus low drag).
  • Discuss condition where one objective cannot be improved without hurting another.
pareto optimality

F1

F2

Pareto optimality
  • Pareto optimality (or efficiency) occurs when one cannot decrease one objective without increasing another.
  • Decision making plays

an important role.

  • Choose proper weights
slide12
Not perfect curve.
  • Objective functions have many local minima (artifact of numerical procedures).
  • The graph implies that we need more work on optimization.
using other optimization codes
Using other optimization codes
  • To investigate alternative formulations, we need to use tools that are external to FLOPS.
  • NPSOL (Stanford Software, Gill et al.) is a set of Fortran subroutines for minimizing a smooth function subject to bounds on variables, linear constraints and smooth nonlinear constraints.
  • It uses a sequential quadratic programming (SQP) algorithm.
  • Call previous Matlab codes to adjust input variables, perform analysis and read output results.
  • Use NPSOL to minimize the result (weighted objective function)
slide14

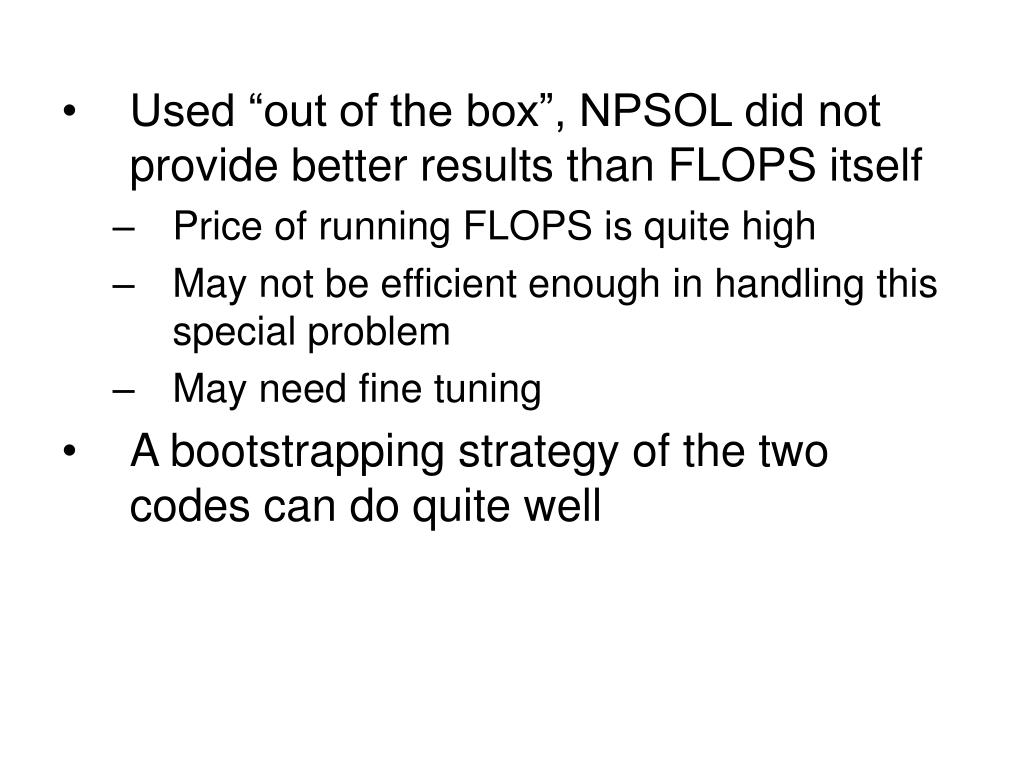

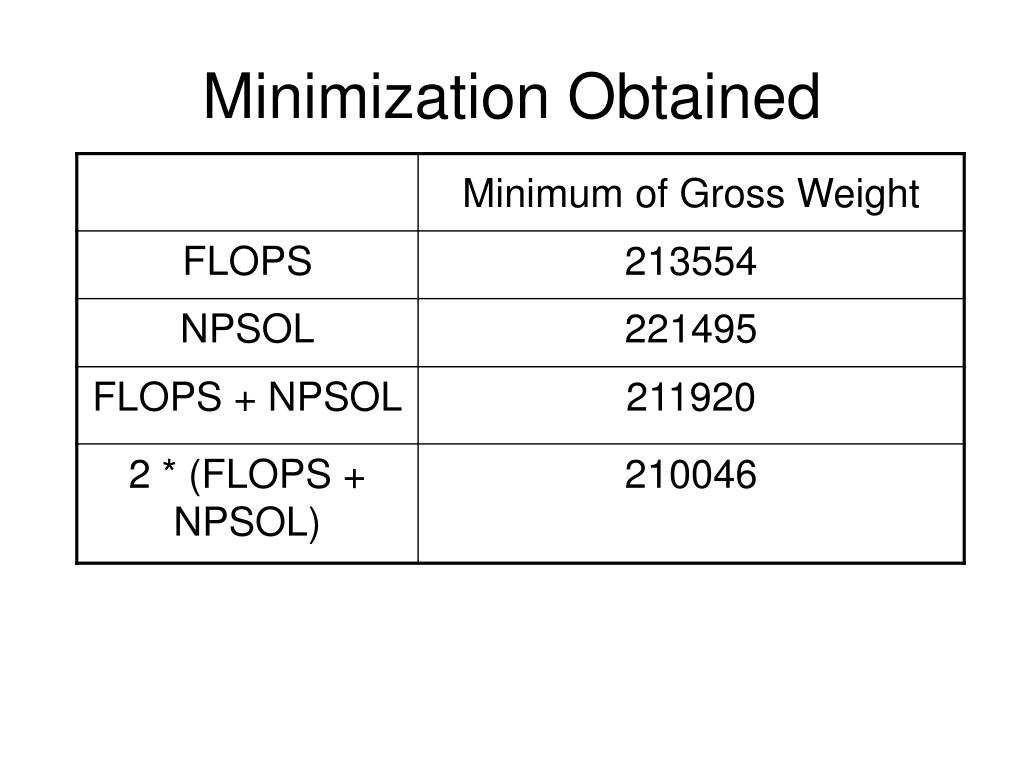

Used “out of the box”, NPSOL did not provide better results than FLOPS itself
    • Price of running FLOPS is quite high
    • May not be efficient enough in handling this special problem
    • May need fine tuning
  • A bootstrapping strategy of the two codes can do quite well
progress

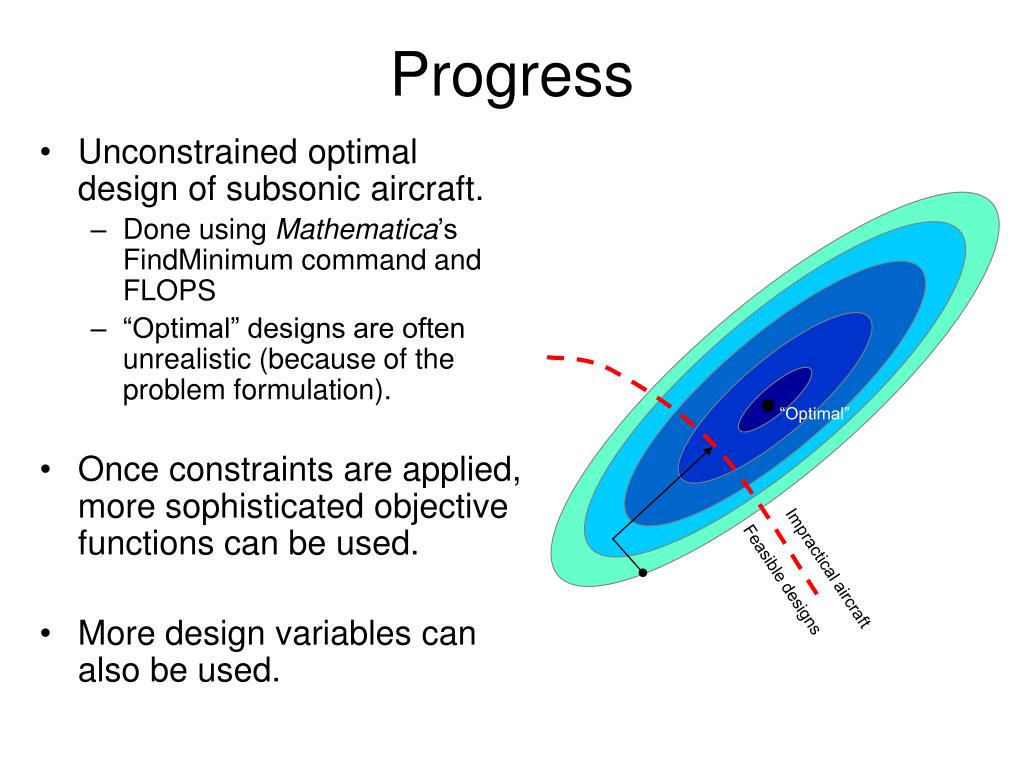

Progress
  • Unconstrained optimal design of subsonic aircraft.
    • Done using Mathematica’s FindMinimum command and FLOPS
    • “Optimal” designs are often unrealistic (because of the problem formulation).
  • Once constraints are applied, more sophisticated objective functions can be used.
  • More design variables can also be used.

“Optimal”

Impractical aircraft

Feasible designs

future work

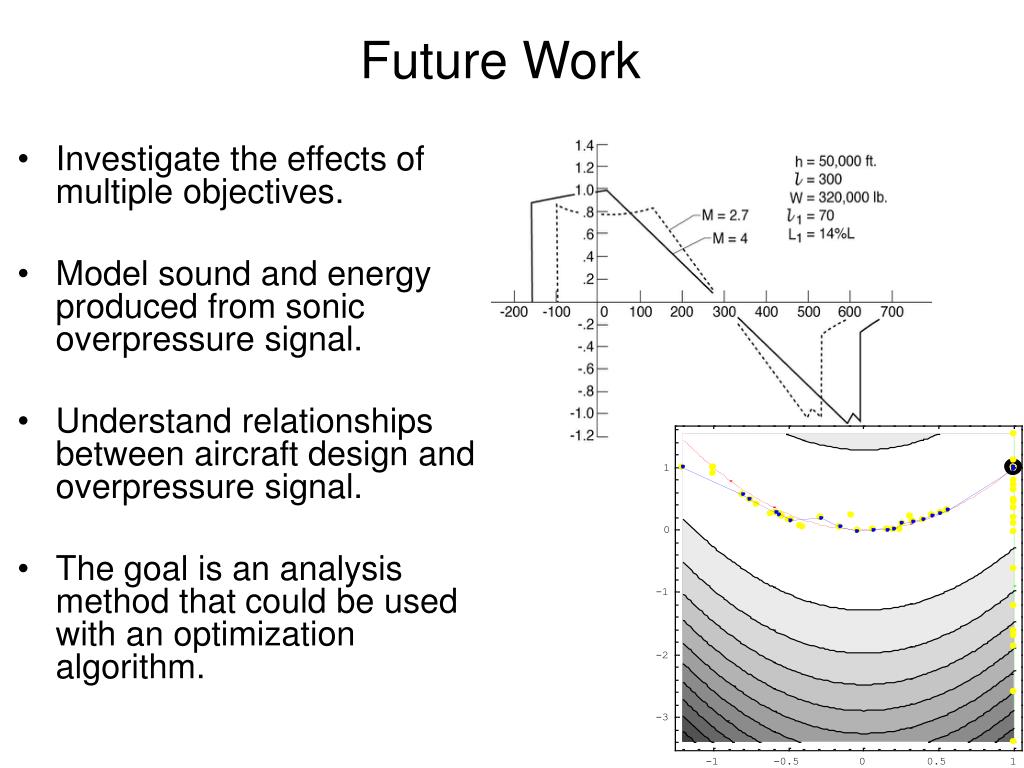

Future Work
  • Investigate the effects of multiple objectives.
  • Model sound and energy produced from sonic overpressure signal.
  • Understand relationships between aircraft design and overpressure signal.
  • The goal is an analysis method that could be used with an optimization algorithm.
