Presentation Transcript
Teaching about energy l.jpg

Teaching About Energy

Transparencies


Activity 1 l.jpg
Activity 1

Roller coaster brainstorming:

Factors to consider

  • Go up slowly and up a gentle incline to enhance anticipation.

  • Go up fast to provide thrills from the start.

  • Make first incline steep to reduce land area needed.

  • Make first incline gentle to reduce force required to pull cars up the hill.

  • Make first hill high enough for the roller coaster to reach the end.

  • Keep safety in mind at all times.

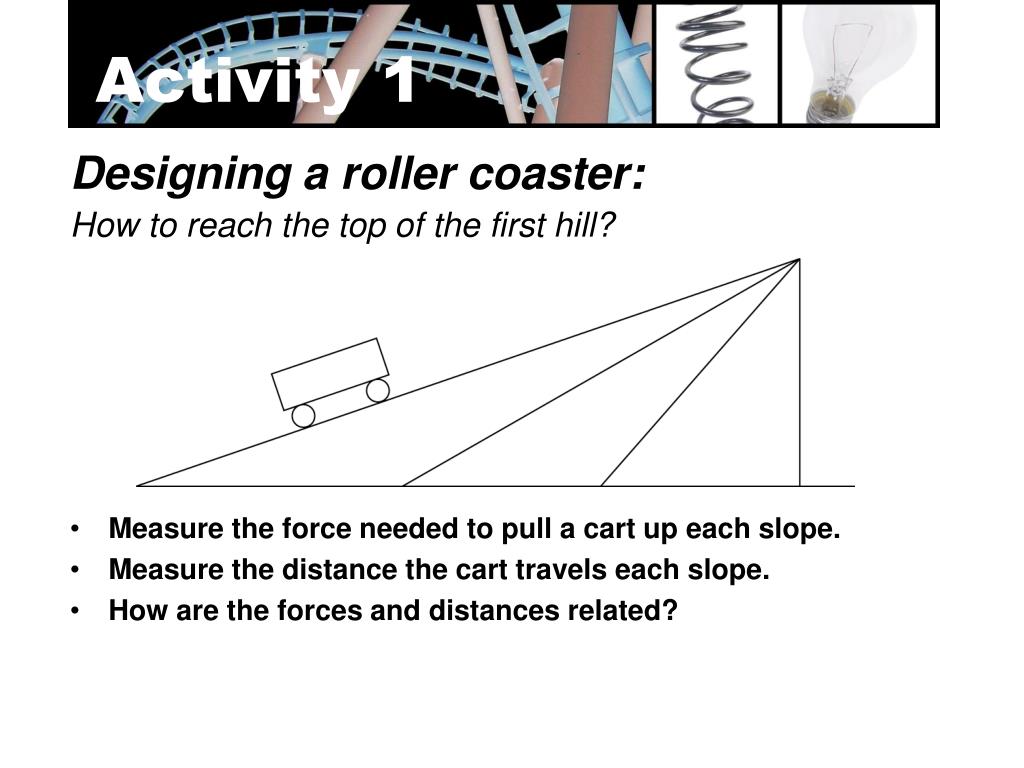

Slide3 l.jpg

Activity 1

Designing a roller coaster:

How to reach the top of the first hill?

  • Measure the force needed to pull a cart up each slope.

  • Measure the distance the cart travels each slope.

  • How are the forces and distances related?

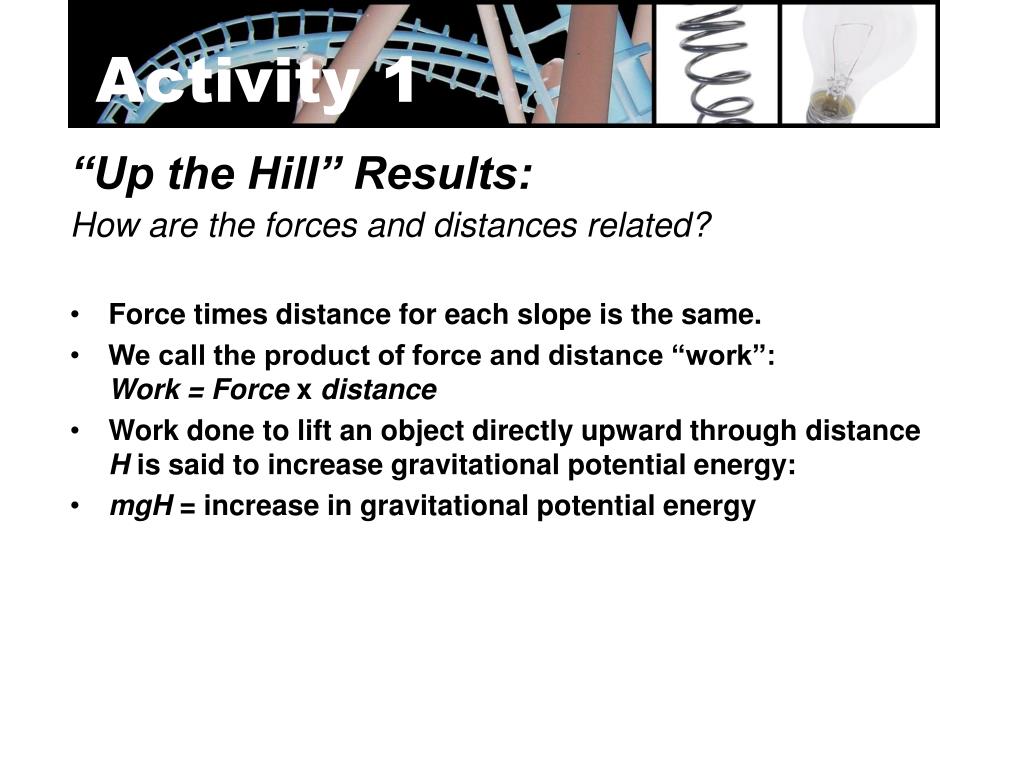

Activity 14 l.jpg
Activity 1

“Up the Hill” Results:

How are the forces and distances related?

  • Force times distance for each slope is the same.

  • We call the product of force and distance “work”: Work = Force x distance

  • Work done to lift an object directly upward through distance H is said to increase gravitational potential energy:

  • mgH = increase in gravitational potential energy


Activity 2 l.jpg
Activity 2

What happens when the coaster rolls

down the hill?

  • How does the decrease in gravitational potential energy depend on speed?

  • Measure the speed of the cart at different heights above the table.

  • Calculate the decrease in gravitational potential energy at each point.

  • Make a graph of decrease in gravitational potential energy vs. speed.

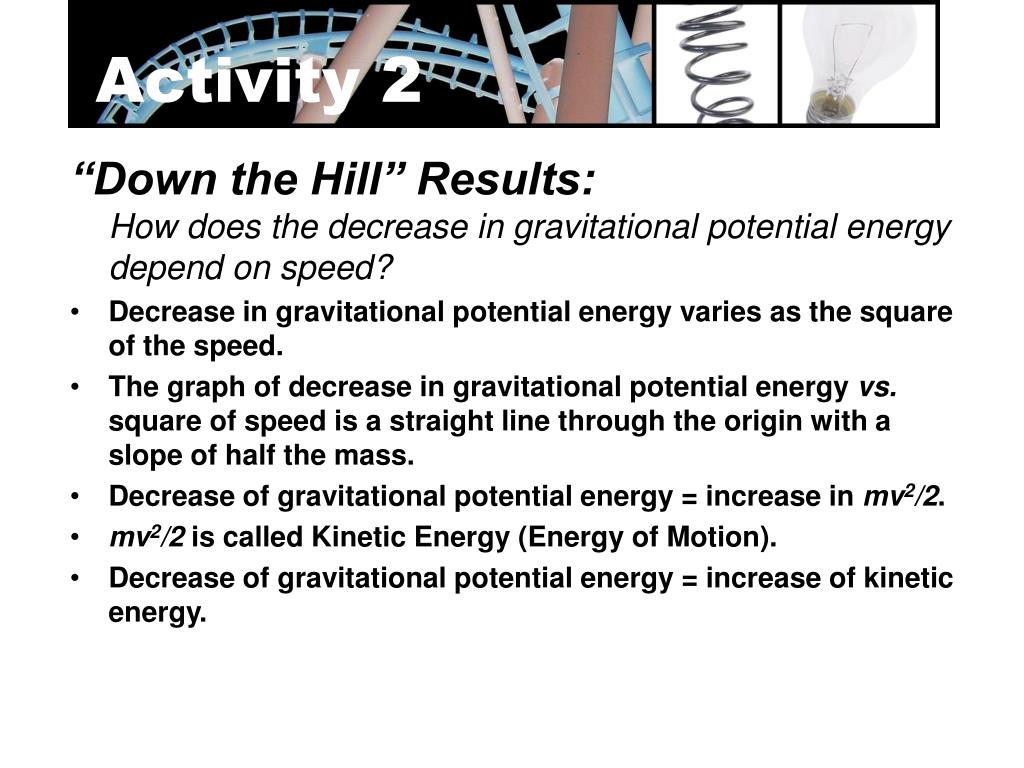

Activity 26 l.jpg
Activity 2

“Down the Hill” Results:

How does the decrease in gravitational potential energy depend on speed?

  • Decrease in gravitational potential energy varies as the square of the speed.

  • The graph of decrease in gravitational potential energy vs. square of speed is a straight line through the origin with a slope of half the mass.

  • Decrease of gravitational potential energy = increase in mv2/2.

  • mv2/2 is called Kinetic Energy (Energy of Motion).

  • Decrease of gravitational potential energy = increase of kinetic energy.


Activity 3 l.jpg
Activity 3

Elastic Potential Energy:

How does the potential energy of a spring depend on how much it is stretched?

  • Use Hooke’s Law to measure the spring constant (k).

  • Allow the spring (with mass m) to oscillate above a motion detector.

  • Calculate the KE of the mass at each time.

  • Consider the maximum KE to be the total energy of the oscillating mass (PE = 0 at this point).

  • Subtract the KE from E (total energy) at each point to determine PE.

  • Consider the position of the mass to represent zero displacement when KE = maximum. Subtract this value from positions at other times to determine the spring’s displacement.

  • Make a graph of PE vs. spring displacement.


Activity 38 l.jpg
Activity 3

Elastic Potential Energy Results:

How does the potential energy of a spring depend on how much it is stretched?

  • Potential energy varies as the square of the displacement of the spring.

  • The graph of potential energy vs. square of displacement is a straight line through the origin with a slope of half the spring constant (k). (Even if the straight line doesn’t pass through the origin, the y-intercept represents a constant, which is arbitrary for defining PE.)

  • The expression for elastic potential energy is ky2/2, where y = displacement from equilibrium.


Activity 39 l.jpg
Activity 3

Elastic Potential Energy Results:

(continued)

  • Since the equilibrium point for a mass m on the spring is mg/k lower than that of the bottom of the spring in a zero gravity environment, the expression for PE relative to the equilibrium point in zero gravity (y′ = y – mg/k) is

    (1/2)ky2 = (1/2)k(y′+ mg/k)2 =

    (1/2)ky′2 + mgy′+ (1/2)m2g2/k.

  • Thus, the quadratic dependence on displacement about equilibrium point (y = 0 or y′= -mg/k) includes both elastic and gravitational potential energy.


Activity 4 l.jpg
Activity 4

GPE to Thermal Energy:

How is temperature increase related to decrease of gravitational potential energy?

  • Insert temperature probe into container of metal shot. Record initial temperature.

  • Invert container 100 times and remeasure temperature.

  • Repeat this four more times (at intervals of 100 inversions for a total of 500).

  • Make a graph of temperature vs. number of inversions. What relationship does this indicate between the temperature increase and the number of inversions?

  • Determine the temperature increase for one inversion.


Activity 411 l.jpg
Activity 4

GPE to Thermal Energy:

(continued)

  • Calculate the gravitational potential energy decrease for one inversion. Divide this by the mass of the metal shot to calculate the gravitational potential energy decrease per unit mass for a single inversion.

  • If the decrease in gravitational potential energy is considered to equal the increase in thermal energy, what is the thermal energy increase per unit mass for each inversion?

  • Divide the thermal energy increase per unit mass for one inversion by the temperature increase for one inversion. This is known as the specific heat.

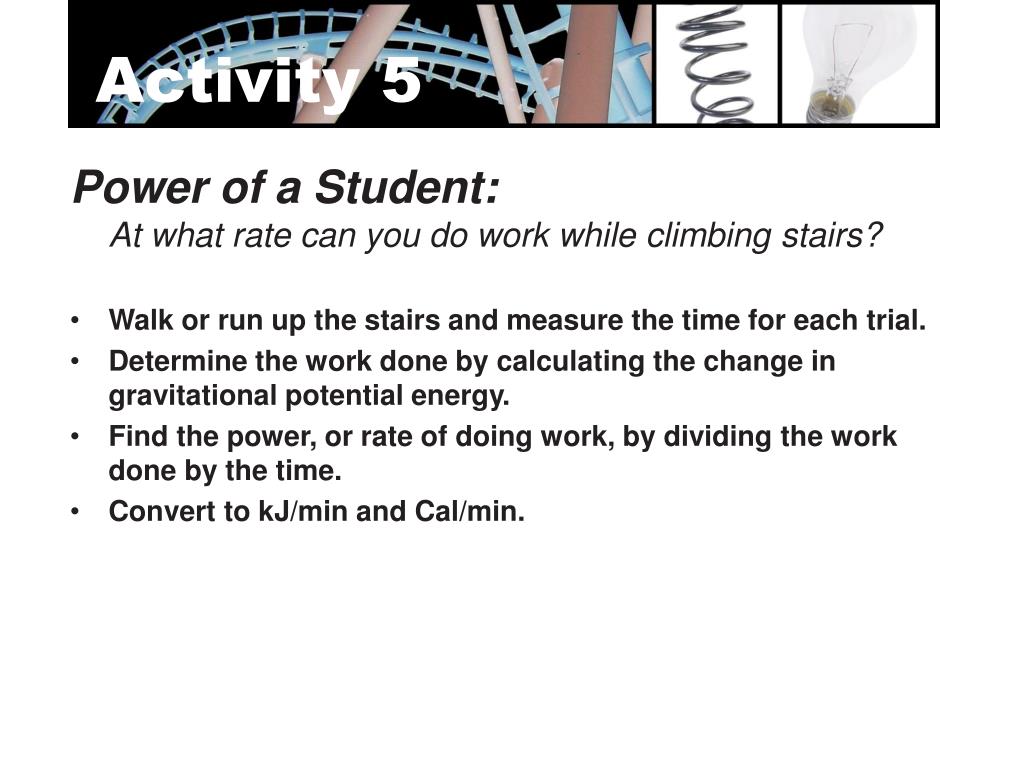

Activity 5 l.jpg
Activity 5

Power of a Student:

At what rate can you do work while climbing stairs?

  • Walk or run up the stairs and measure the time for each trial.

  • Determine the work done by calculating the change in gravitational potential energy.

  • Find the power, or rate of doing work, by dividing the work done by the time.

  • Convert to kJ/min and Cal/min.

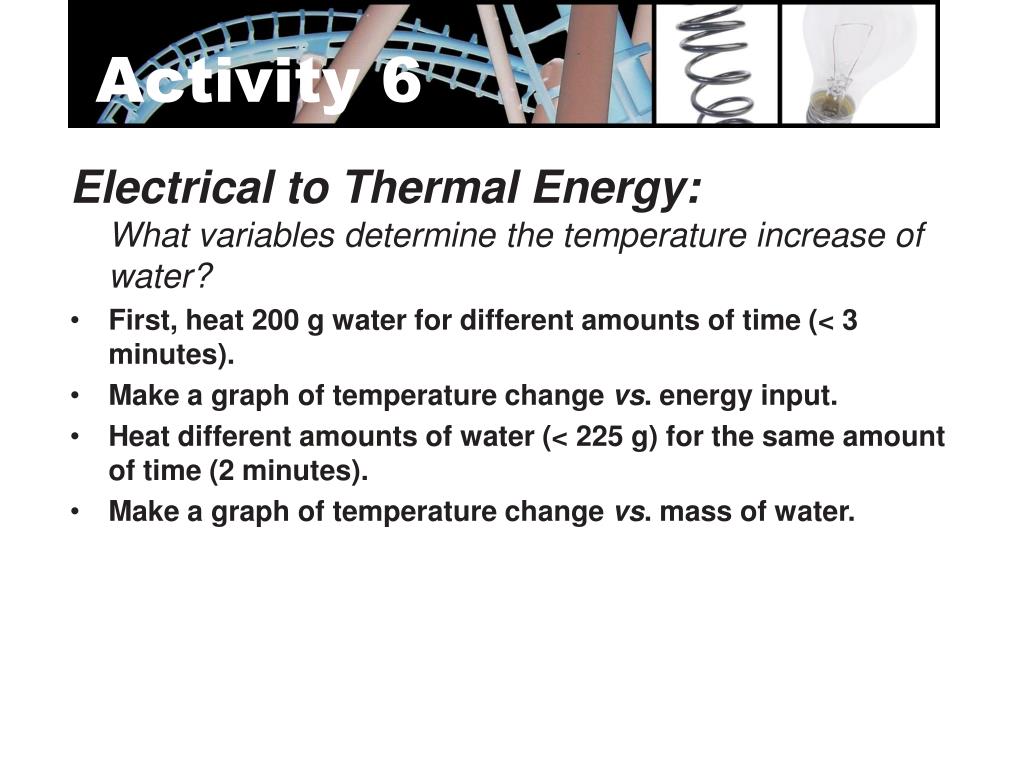

Activity 6 l.jpg
Activity 6

Electrical to Thermal Energy:

What variables determine the temperature increase of water?

  • First, heat 200 g water for different amounts of time (< 3 minutes).

  • Make a graph of temperature change vs. energy input.

  • Heat different amounts of water (< 225 g) for the same amount of time (2 minutes).

  • Make a graph of temperature change vs. mass of water.


Activity 614 l.jpg
Activity 6

Electrical to Thermal Energy:

How does temperature change depend on energy input and mass?

  • The graph of temperature increase vs. energy input is linear.

  • The graph of temperature increase vs. mass shows an inverse relationship.

  • Therefore

    ΔT = constant x energy input/m,

    or

    energy input = (new) constant x m x ΔT

    The (new) constant is known as the specific heat.

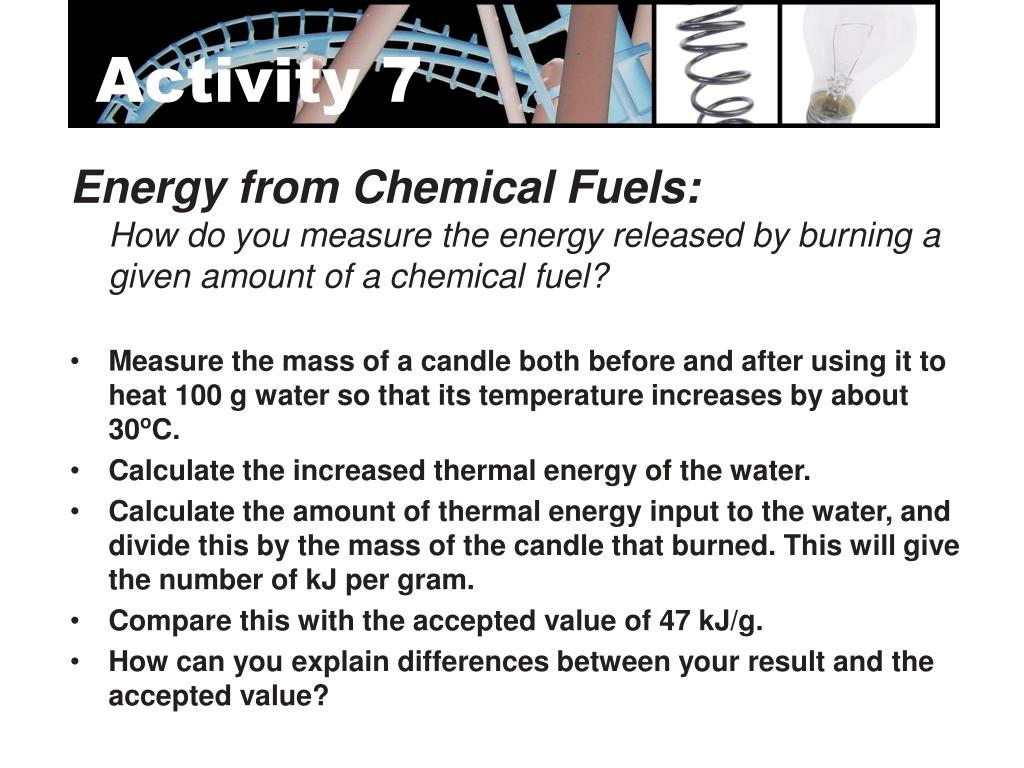

Activity 7 l.jpg
Activity 7

Energy from Chemical Fuels:

How do you measure the energy released by burning a given amount of a chemical fuel?

  • Measure the mass of a candle both before and after using it to heat 100 g water so that its temperature increases by about 30oC.

  • Calculate the increased thermal energy of the water.

  • Calculate the amount of thermal energy input to the water, and divide this by the mass of the candle that burned. This will give the number of kJ per gram.

  • Compare this with the accepted value of 47 kJ/g.

  • How can you explain differences between your result and the accepted value?

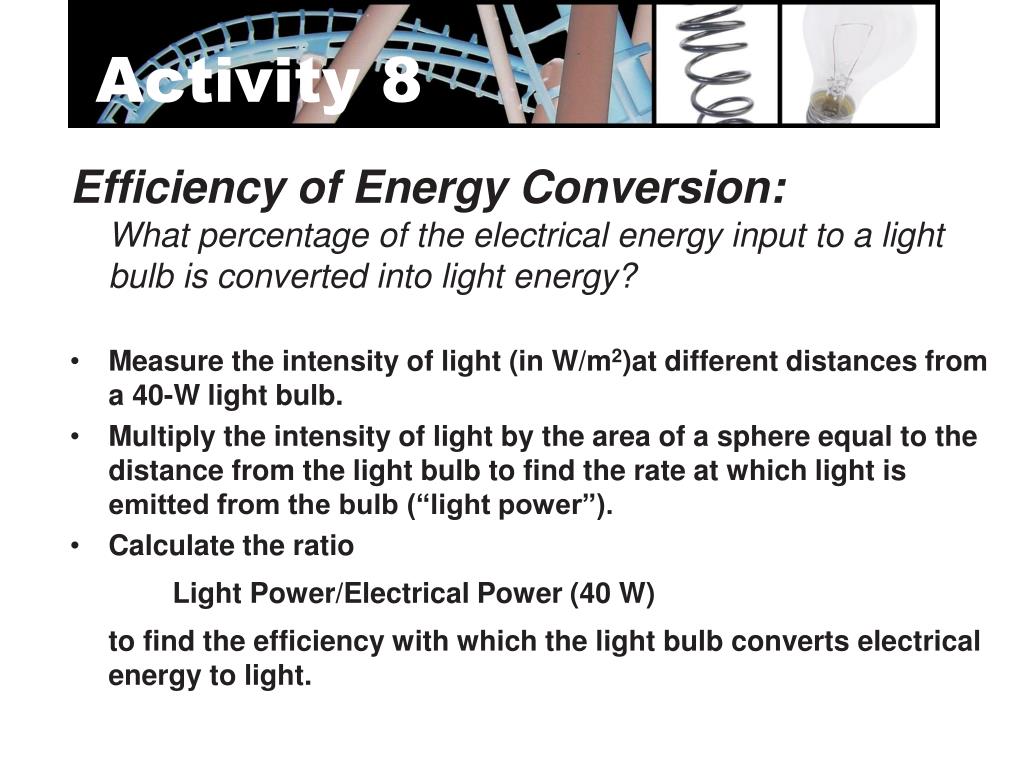

Activity 8 l.jpg
Activity 8

Efficiency of Energy Conversion:

What percentage of the electrical energy input to a light bulb is converted into light energy?

  • Measure the intensity of light (in W/m2)at different distances from a 40-W light bulb.

  • Multiply the intensity of light by the area of a sphere equal to the distance from the light bulb to find the rate at which light is emitted from the bulb (“light power”).

  • Calculate the ratio

    Light Power/Electrical Power (40 W)

    to find the efficiency with which the light bulb converts electrical energy to light.


Activity 817 l.jpg
Activity 8

Energy is neither produced nor used: it is transformed!

Energy “sources”: “more useful” forms of energy, to be transformed to meet our needs

Energy “production”: transformation of “more useful” forms of energy into a form that meets our needs

Energy “use”: transformation of energy in a form that met our needs into “less useful” forms

Energy “conservation”: “using” the least amount of a “more useful” form of energy to accomplish a given task
