  1. THORACIC INCISIONS PRESENTER: DR ANEFU, N. E MODERATOR:DR S. EDAIGBINI AHMADU BELLO UNIVERSITY TEACHING HOSPITAL,ZARIA,NIGERIA

  2. OUTLINE • INTRODUCTION • HISTORICAL PERSPECTIVES • ANATOMY OF THE CHEST • BASIS • GENERAL PRINCIPLE • TYPES OF THORACIC INCISIONS • CURRENT TREND • FUTURE TREND • CONCLUTION

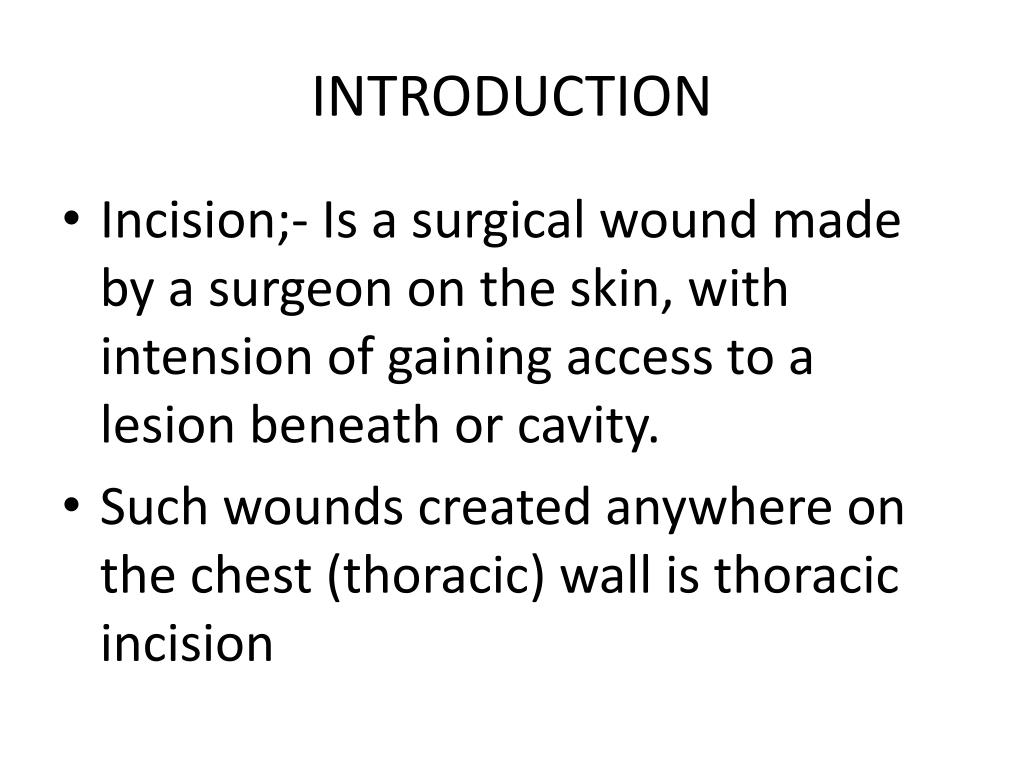

  3. INTRODUCTION • Incision;- Is a surgical wound made by a surgeon on the skin, with intension of gaining access to a lesion beneath or cavity. • Such wounds created anywhere on the chest (thoracic) wall is thoracic incision

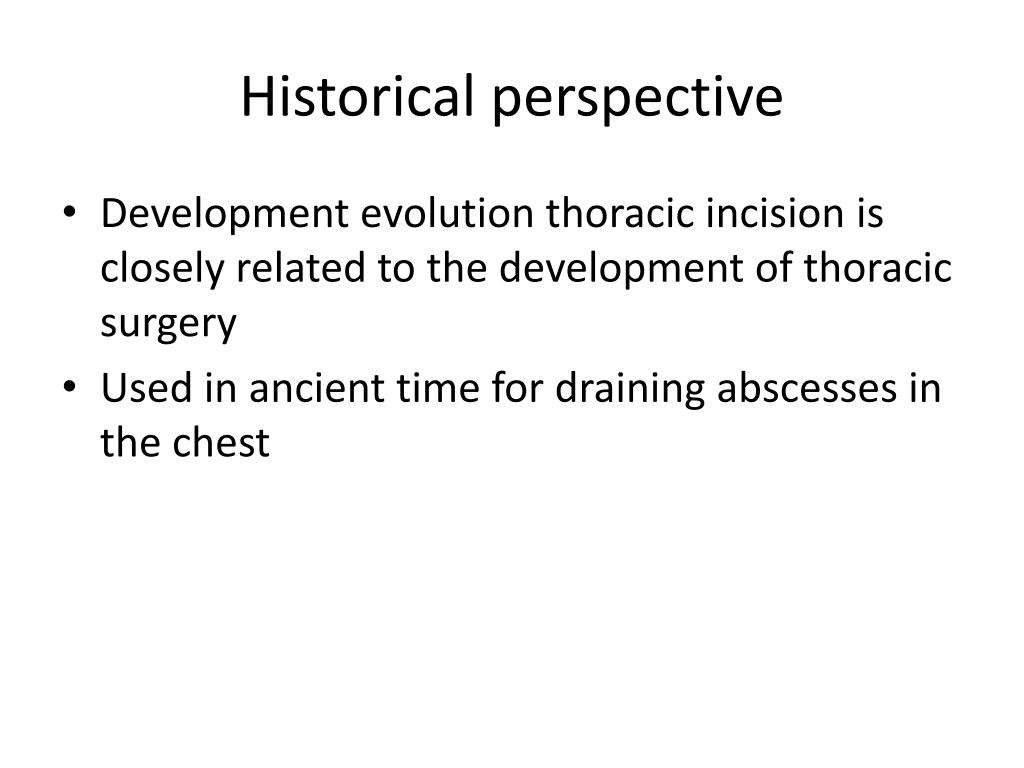

  4. Historical perspective • Development evolution thoracic incision is closely related to the development of thoracic surgery • Used in ancient time for draining abscesses in the chest

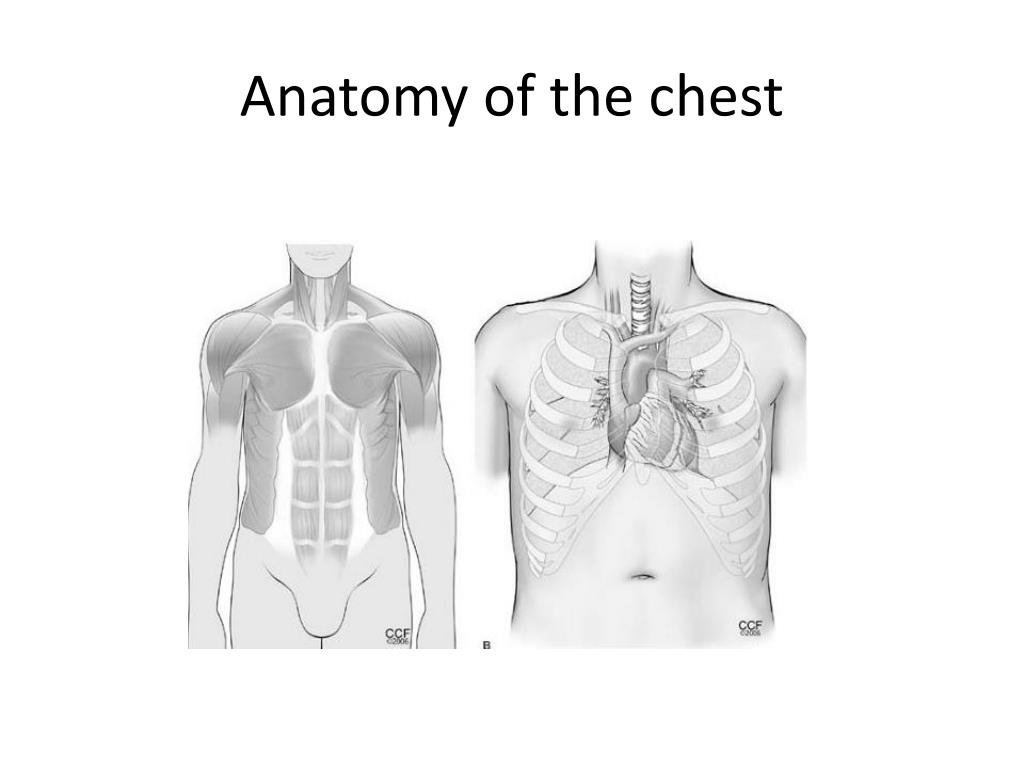

  5. Anatomy of the chest

  6. CHEST WALL • Bony rib cage;- manubrum, sternum, 12 pair of rib, coastal cartilage & thoracic vertebrae • Soft tissue covering:- muscles, neurovascular bundles, other connective tissues • Two aperture • Superior=root of the neck • Inferiorly=separated from abdominal cavity by diaphragm

  7. Lungs surface markings in the ribcage

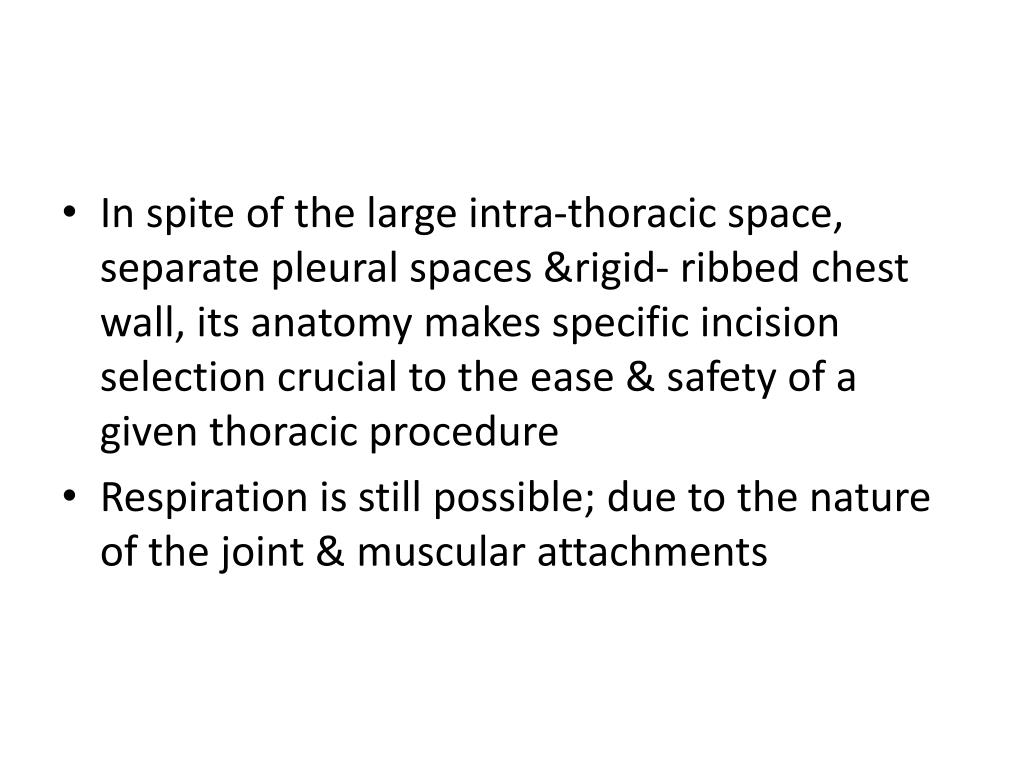

  8. In spite of the large intra-thoracic space, separate pleural spaces &rigid- ribbed chest wall, its anatomy makes specific incision selection crucial to the ease & safety of a given thoracic procedure • Respiration is still possible; due to the nature of the joint & muscular attachments

  9. General principles • Patient evaluation & clinical assessment • History, P.E, Lab & Radiological investigations-LFT, Spirometric measurement,SPO2,CXR, • Performance score rating • Patient education/counseling/consent • Start Chest physiotherapy • Peri-op monitoring/medications

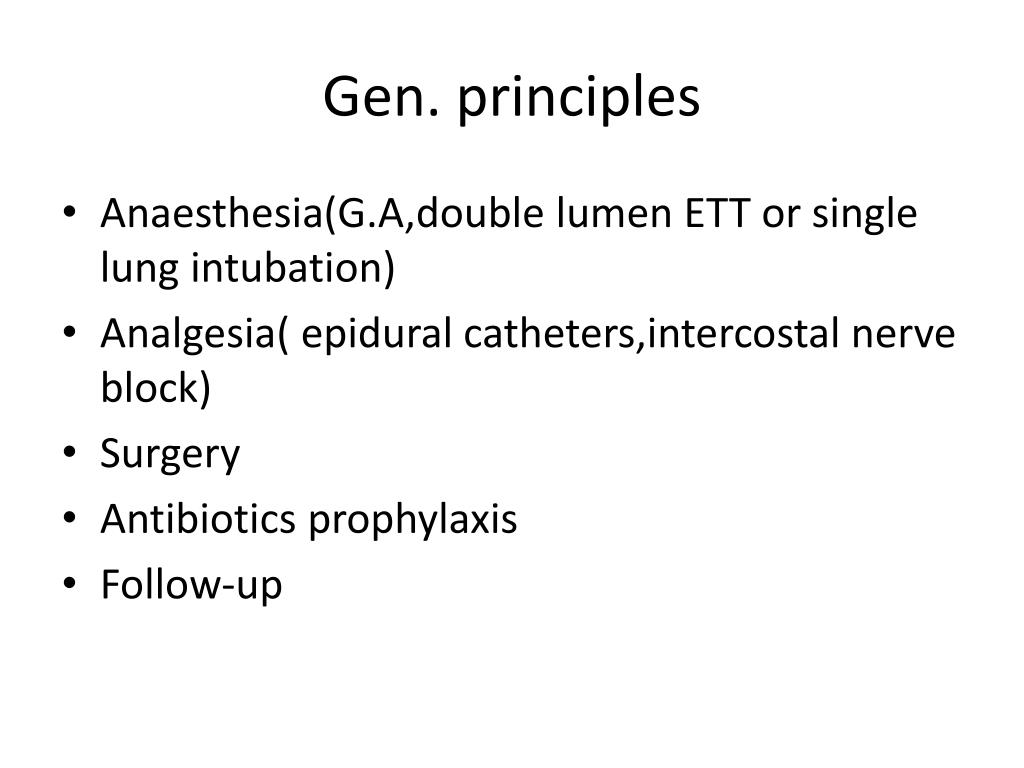

  10. Gen. principles • Anaesthesia(G.A,double lumen ETT or single lung intubation) • Analgesia( epidural catheters,intercostal nerve block) • Surgery • Antibiotics prophylaxis • Follow-up

  11. Analgesia CTU-ABUTH • Taken very seriously • Intra-op =I.V pentazoxine • Post-op =Triple px • Opioid; pentazoxine • NSAIDs;diclofenac • Acetaminophen;PCM

  12. Prophylactic Antibiotics-CTU • Intra-op =3rd generation cephalosporin e.gceftriaxone + metronidazole, repeated after 8hrs, • Post-op =same extended X 2-3/7

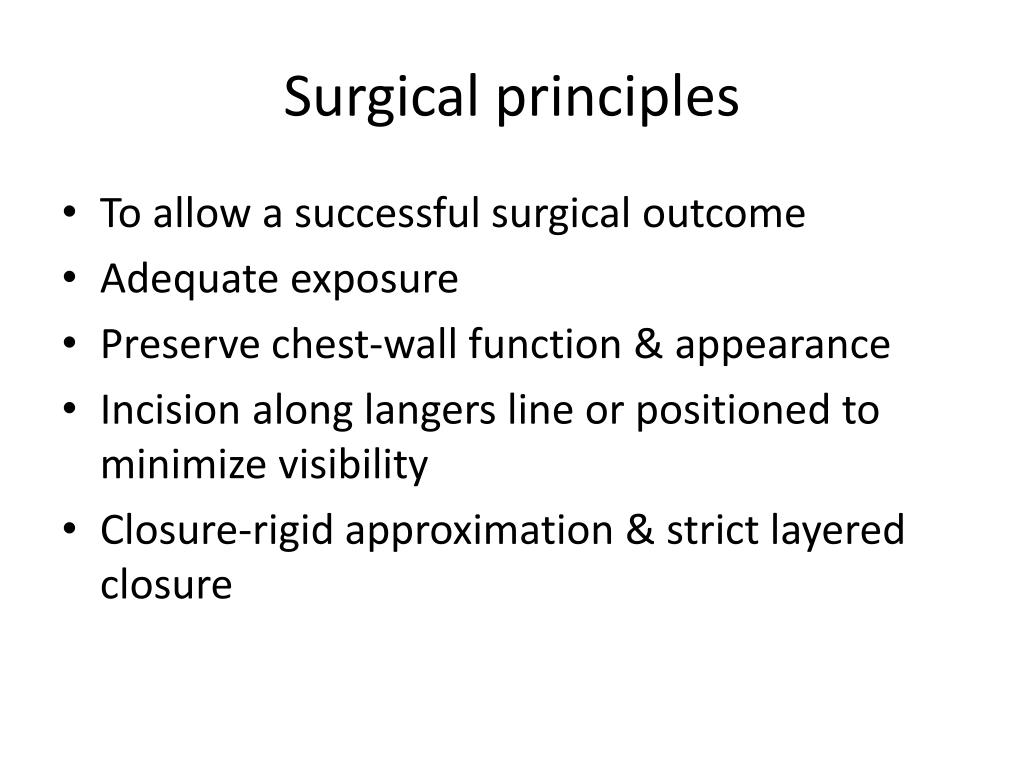

  13. Surgical principles • To allow a successful surgical outcome • Adequate exposure • Preserve chest-wall function & appearance • Incision along langers line or positioned to minimize visibility • Closure-rigid approximation & strict layered closure

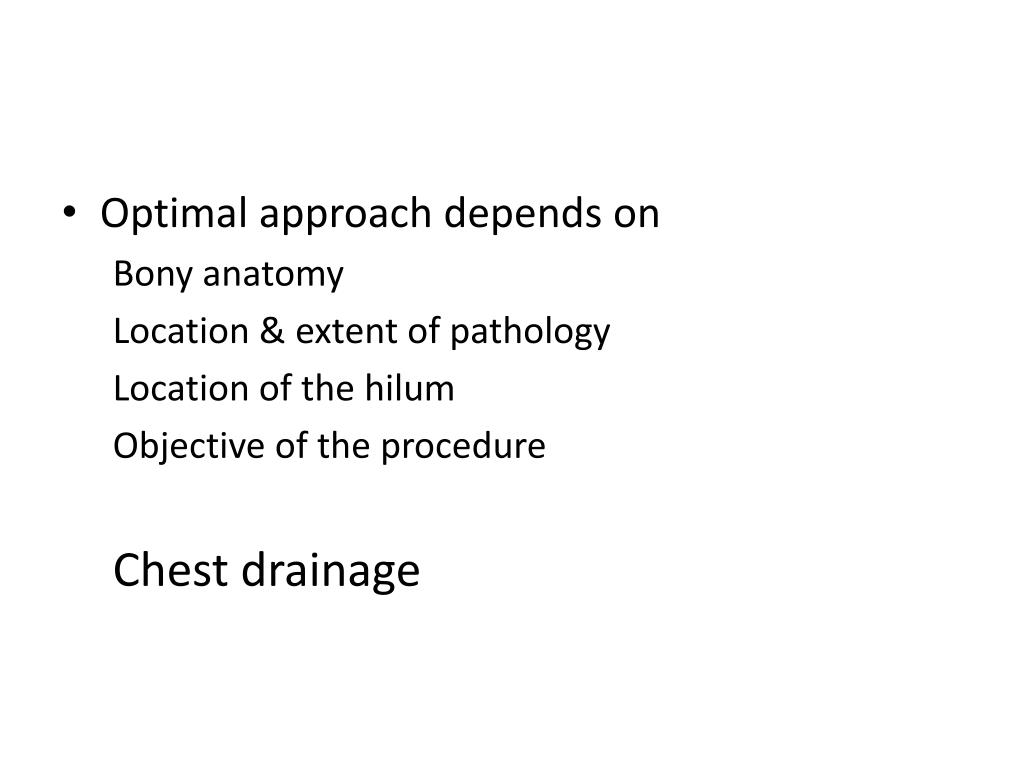

  14. Optimal approach depends on Bony anatomy Location & extent of pathology Location of the hilum Objective of the procedure Chest drainage

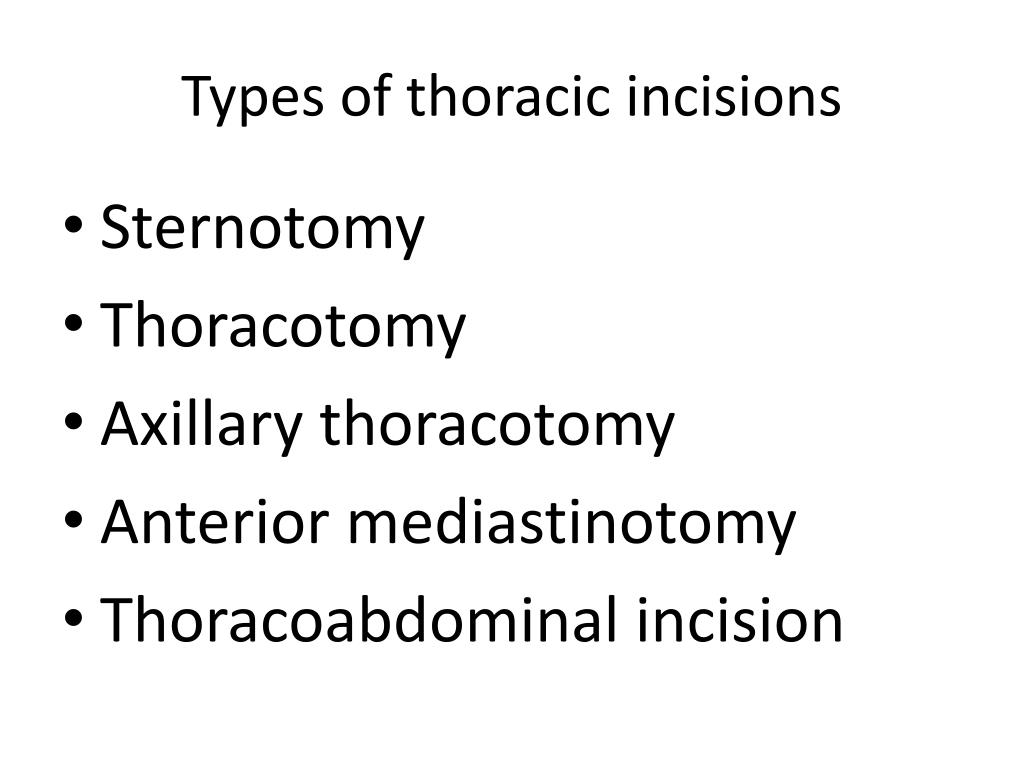

  15. Types of thoracic incisions • Sternotomy • Thoracotomy • Axillarythoracotomy • Anterior mediastinotomy • Thoracoabdominal incision

  16. Types cont… • Bilateral Trans-sternalthoracotomy( clam-shell incision) • Extra-thoracic approaches to the thorax

  17. Sternotomy incisions • Partial • Hemisternotomy (spares 6-8cm skin) • Complete • Suprasternalnotchxyphoid process • Cosmetically appealing type of incision e.ginframammary (bikini type) incision

  18. Median sternotomy incision

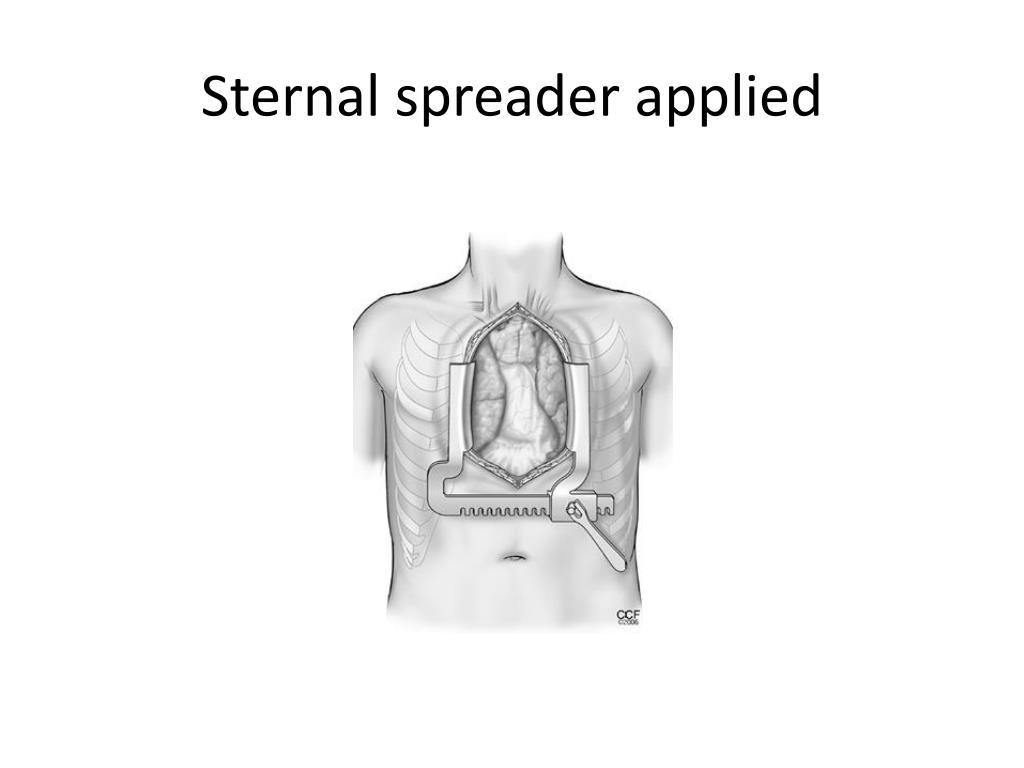

  19. Sternal spreader applied

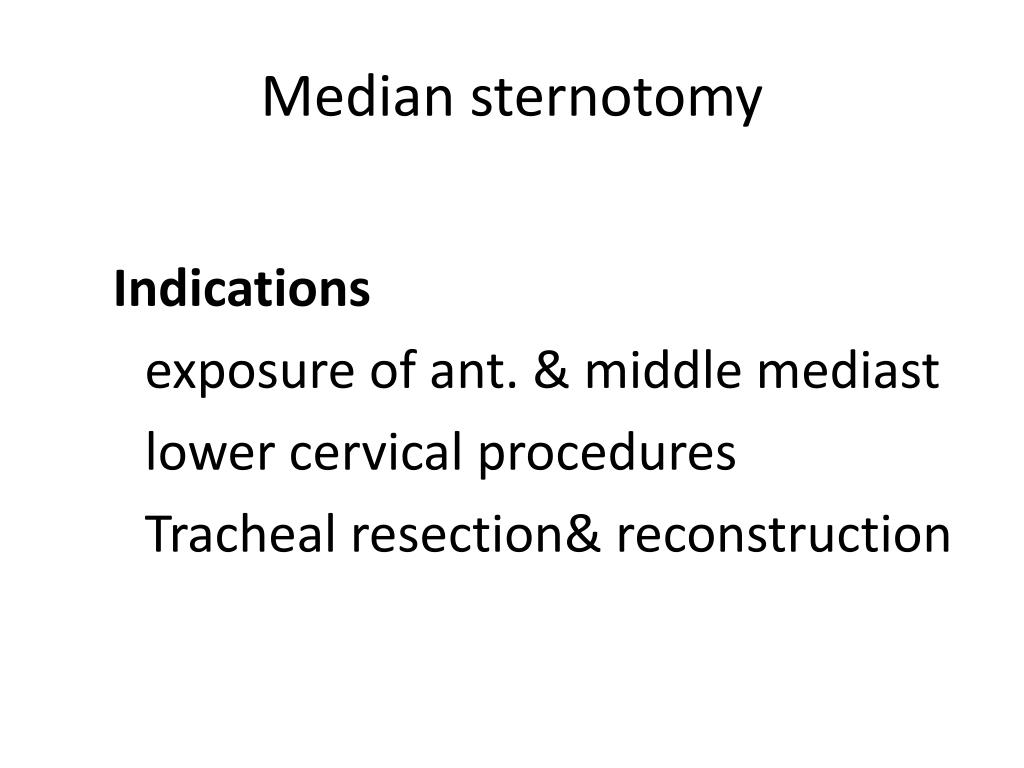

  20. Median sternotomy Indications exposure of ant. & middle mediast lower cervical procedures Tracheal resection& reconstruction

  21. Indications • Excision of thyroid masses & parathyroid adenomas • Excision of cervical oesophagealtumours • Exposure of heart & great vessels • In cardiopulmonary bypass

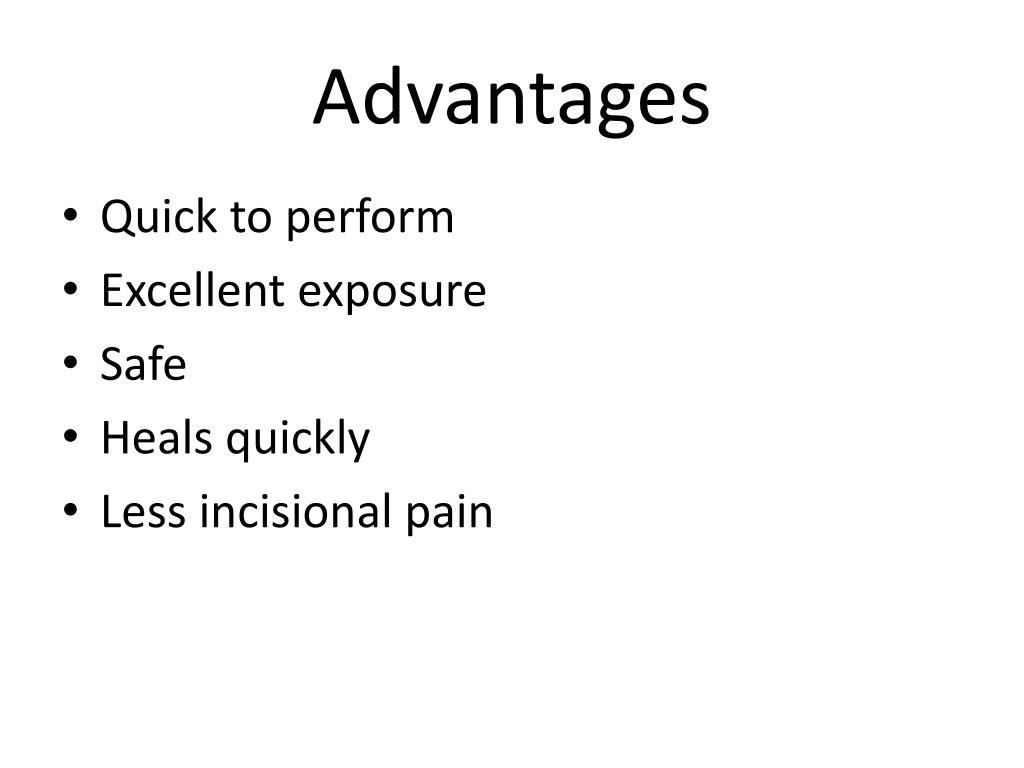

  22. Advantages • Quick to perform • Excellent exposure • Safe • Heals quickly • Less incisional pain

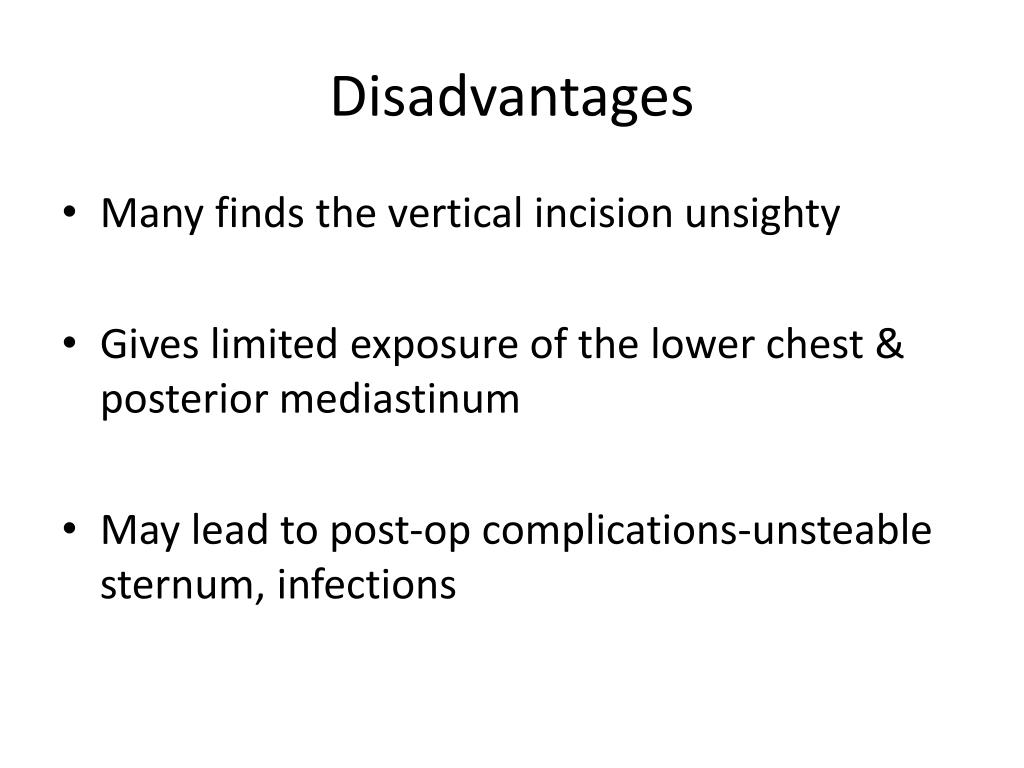

  23. Disadvantages • Many finds the vertical incision unsighty • Gives limited exposure of the lower chest & posterior mediastinum • May lead to post-op complications-unsteable sternum, infections

  24. Technique • Standard sternotomy • Open sternotomy • Re-operative sternotomy • Partial sternal split

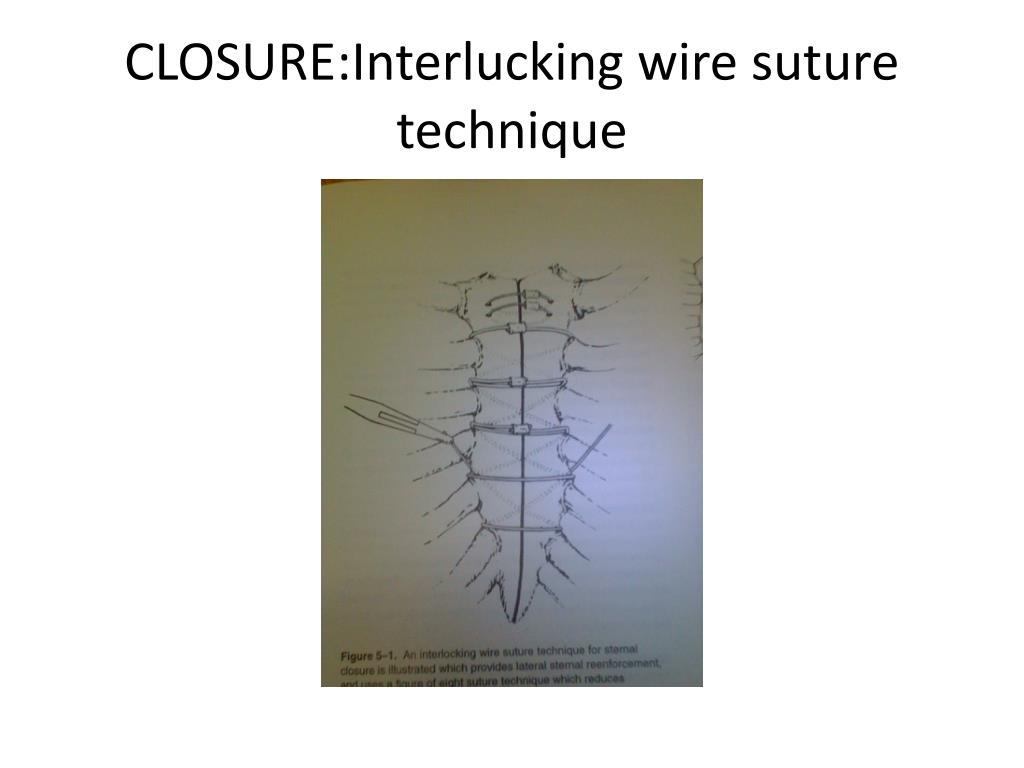

  25. CLOSURE:Interlucking wire suture technique

  26. Less invasive sternotomy incisions • Hemisternotomy- suprasternalnotch,tee-off to the R at interspace 4 or xyphoid,tee-off,R, at interspace 2 • Full sternotomy with skin sparing • Bikini-type (inframammary) incision- cosmesis

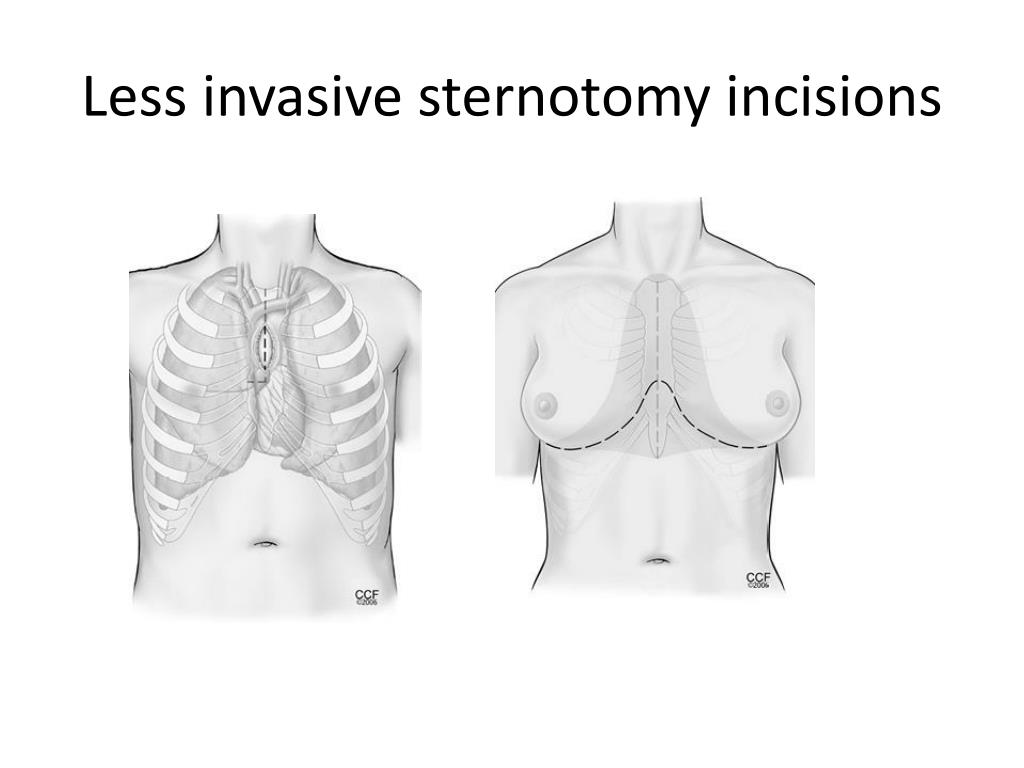

  27. Less invasive sternotomy incisions

  28. Post-op care • ICU MANAGEMENT/MONITORING • O2 DELIVERY VIA NEBULIZER • PAIN MANAGEMENT( I.Vanalgesics,Eidural nr block) • PHYSIOTHERAPY

  29. COMPLICATIONS • Anaesthetic:- arrhythmias, laryngeal spasm Specific :- Early; haemorrhage,injury to contiguous structures, pneumothorax, haemothorax, Late; infection, empyemathoracis, post surgery pain

  30. Complications • Mediastinitis (S.aureu31%,E.coli3%,enterococcus 2%) • Sternalosteomyelitis • Brachial plexus injury,incidence:1.4-6.5%

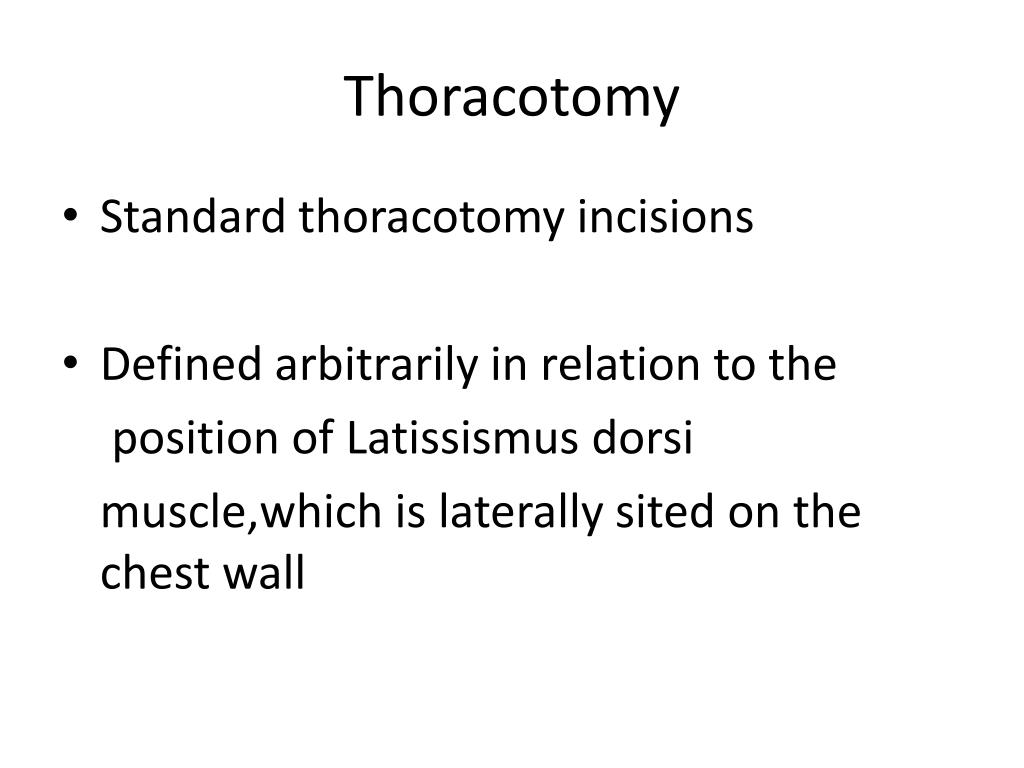

  31. Thoracotomy • Standard thoracotomy incisions • Defined arbitrarily in relation to the position of Latissismusdorsi muscle,which is laterally sited on the chest wall

  32. Types of thoracotomy incisions • Lateral • Anterior • Anterolateral • Posterolateral • Posterior • others

  33. The numenclature for std thoracotomy incisions

  34. Indications for posterolateral incision • Standard thoracotomy incisions can be used for a wide range of surgical procedures involving; • The Heart • Oesophagus • Mediastinum • Ipsilateral lung

  35. Advantages • Flexibility of the incision • Wide range of intra-thoracic exposure • Proven experience with these incisions has made them the standard thoracic incisional approach

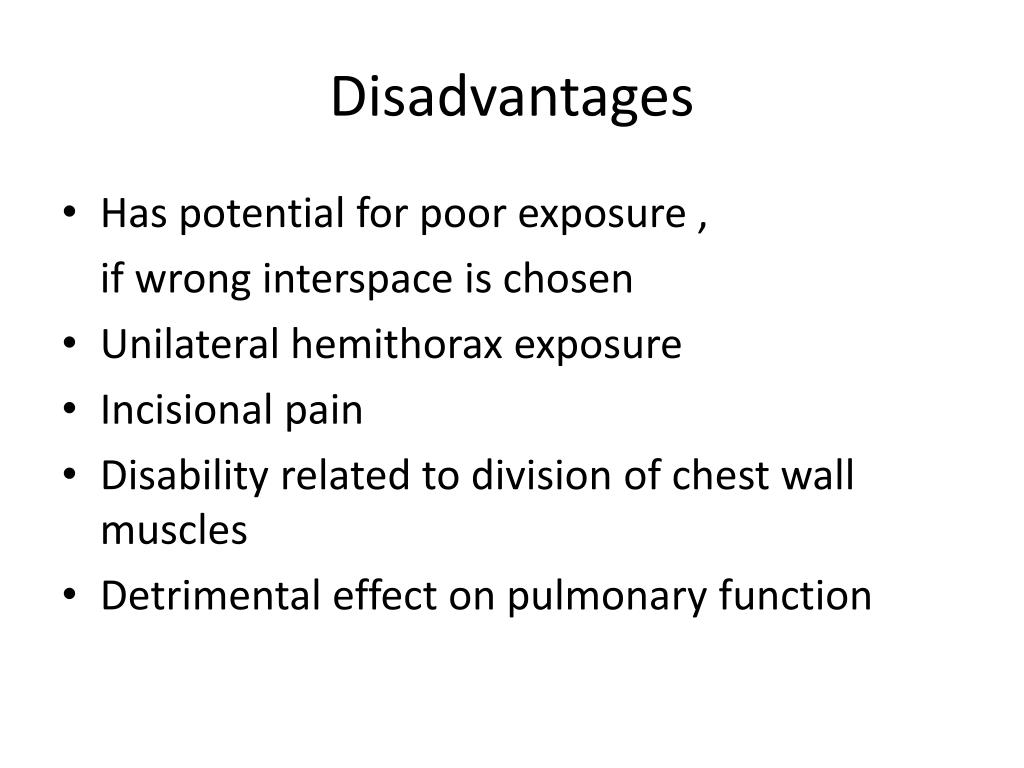

  36. Disadvantages • Has potential for poor exposure , if wrong interspace is chosen • Unilateral hemithorax exposure • Incisional pain • Disability related to division of chest wall muscles • Detrimental effect on pulmonary function

  37. Technique (posterolateral) • Induction using single/double lumen tube • Appropriate monitoring • Anaesthesia-G.A+ETT • Positioning –lateral decubitus position • Cleaning/drapping

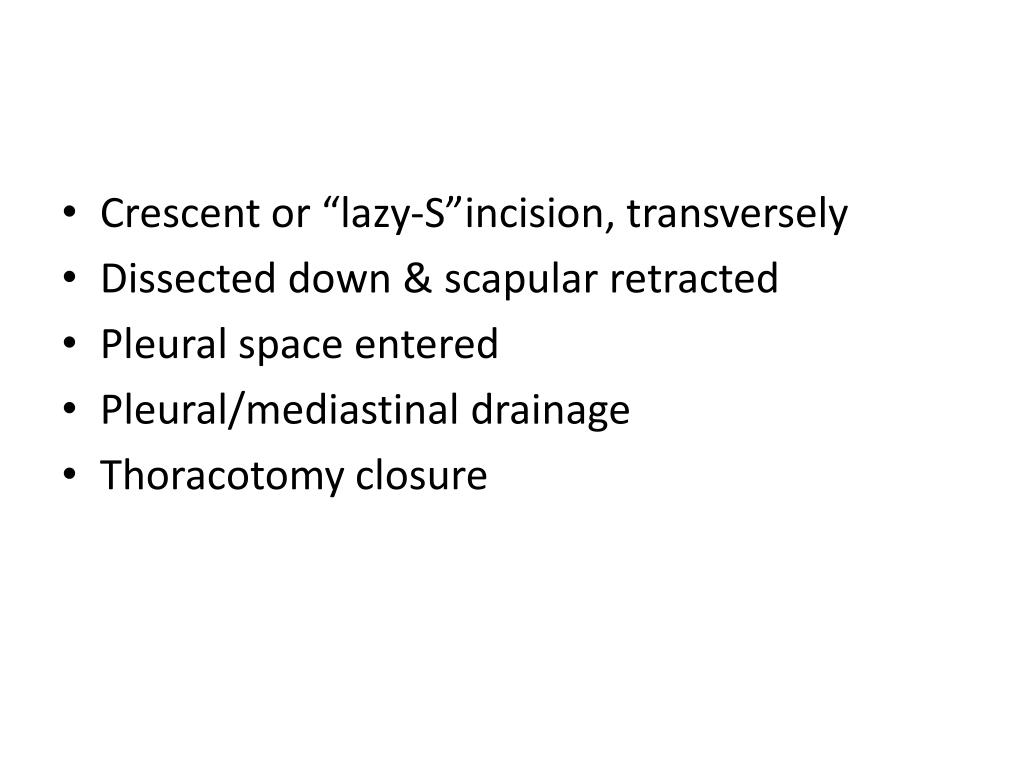

  38. Crescent or “lazy-S”incision, transversely • Dissected down & scapular retracted • Pleural space entered • Pleural/mediastinal drainage • Thoracotomy closure

  39. Option for entering the pleural space after posterolateralthoracotomy

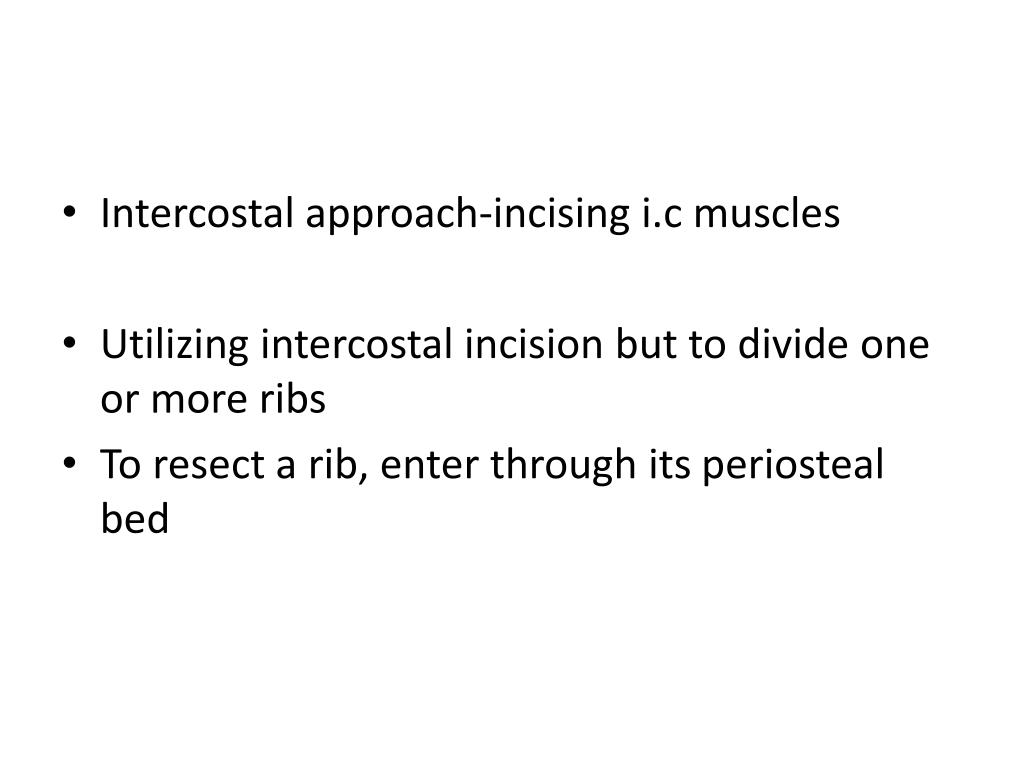

  40. Intercostal approach-incising i.c muscles • Utilizing intercostal incision but to divide one or more ribs • To resect a rib, enter through its periosteal bed

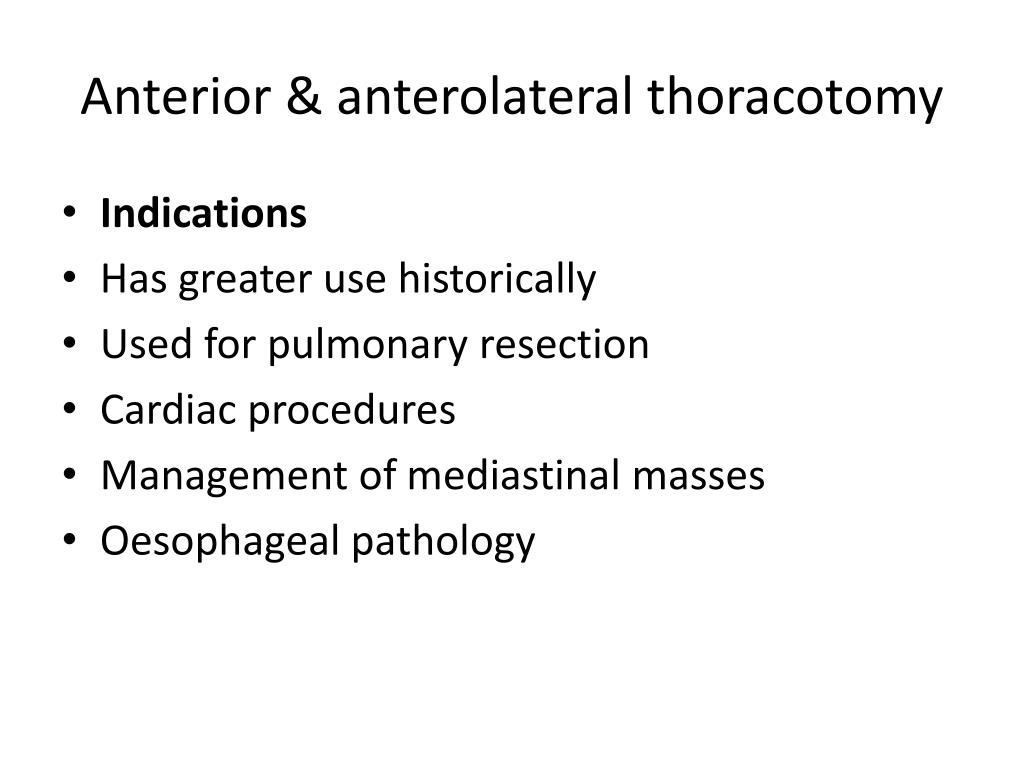

  41. Anterior & anterolateralthoracotomy • Indications • Has greater use historically • Used for pulmonary resection • Cardiac procedures • Management of mediastinal masses • Oesophageal pathology

  42. Technique • Monittoring • Anaesthesia are same as posterolatral • Supine position • Chest elevated at 30-45 • Curved submammary incision, extended laterally(anterolateral)

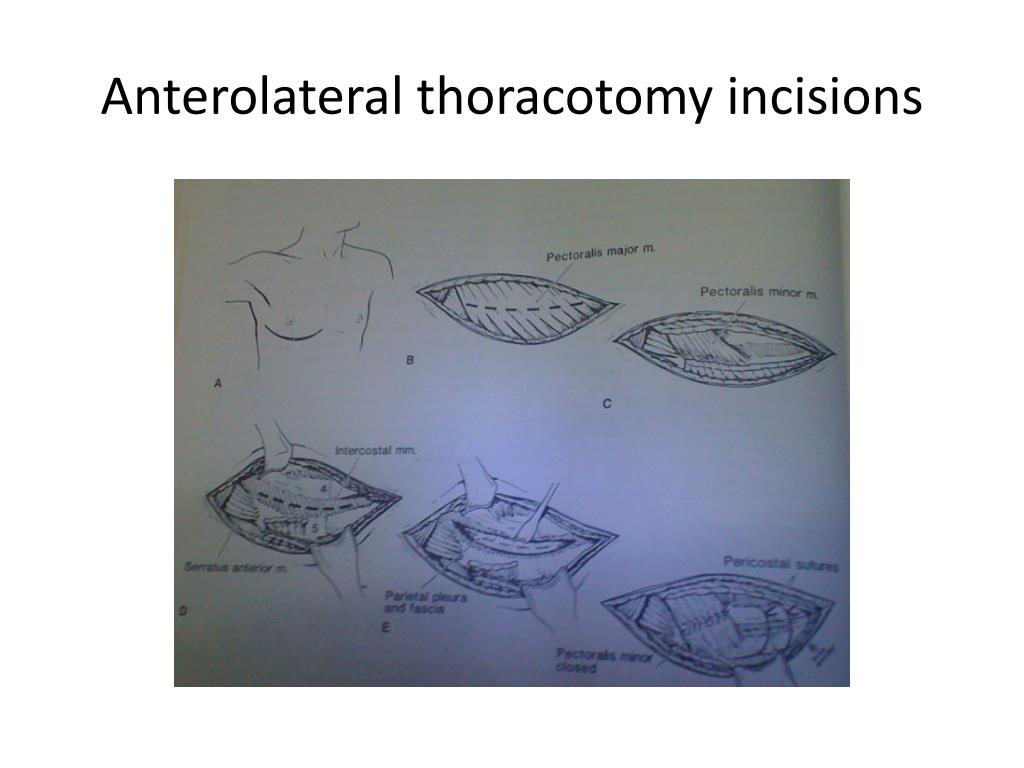

  43. Anterolateralthoracotomy incisions

  44. Lateral thoracotomy • Within confines of latissimusdorsi • Transverse incision • 1-2cm inferior to the scapular

  45. Complications • Post thoracotomy incision pain • Wound infection • Wound dehiscence • Bronchopleural fistula-8% • Empyema thoracis-2.2%

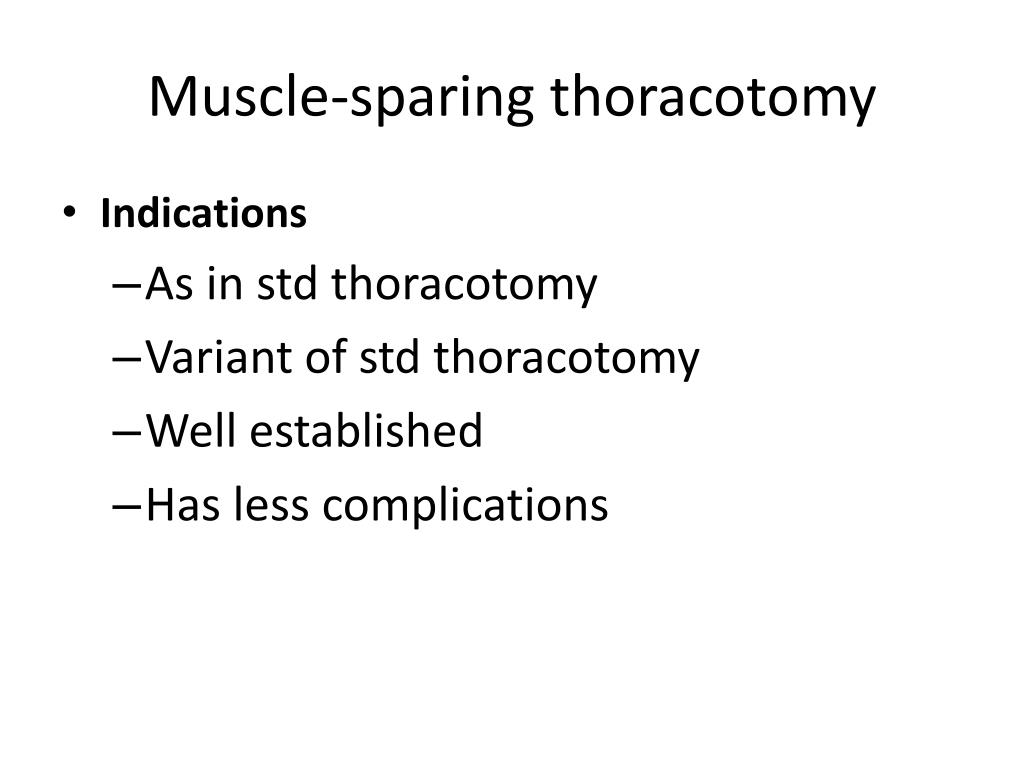

  46. Muscle-sparing thoracotomy • Indications • As in std thoracotomy • Variant of std thoracotomy • Well established • Has less complications

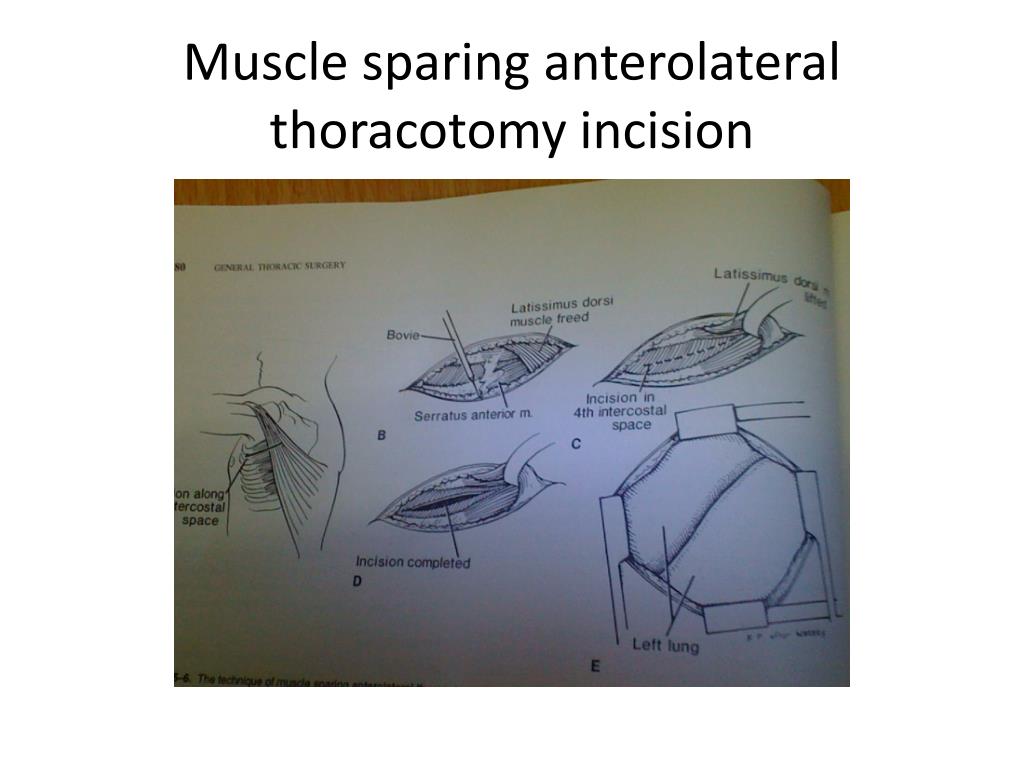

  47. Muscle sparing anterolateralthoracotomy incision

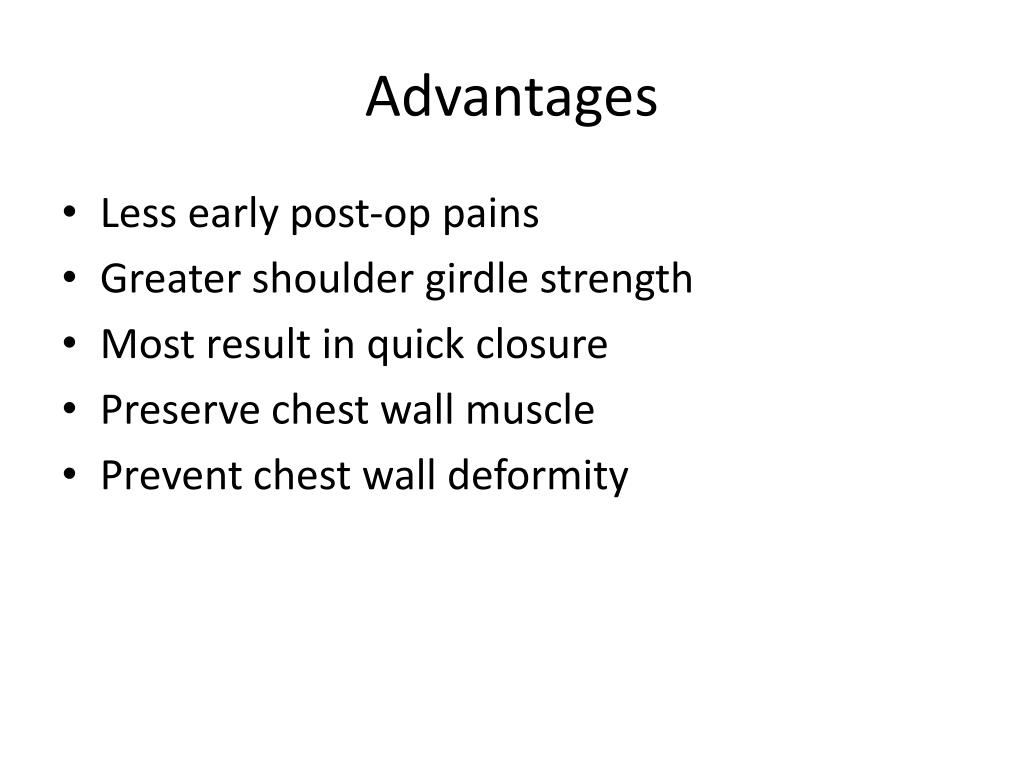

  48. Advantages • Less early post-op pains • Greater shoulder girdle strength • Most result in quick closure • Preserve chest wall muscle • Prevent chest wall deformity

  49. Axillarythoracotomy • Indications • 1st rib disection • Apical bleb Dx • Mgt of spontaneous pneumothorax with apical pleurectomy or pleurodesis • Staging of lung cancer

  50. Patient positioning & incision for a vertical axillary incision
