thoracic spine

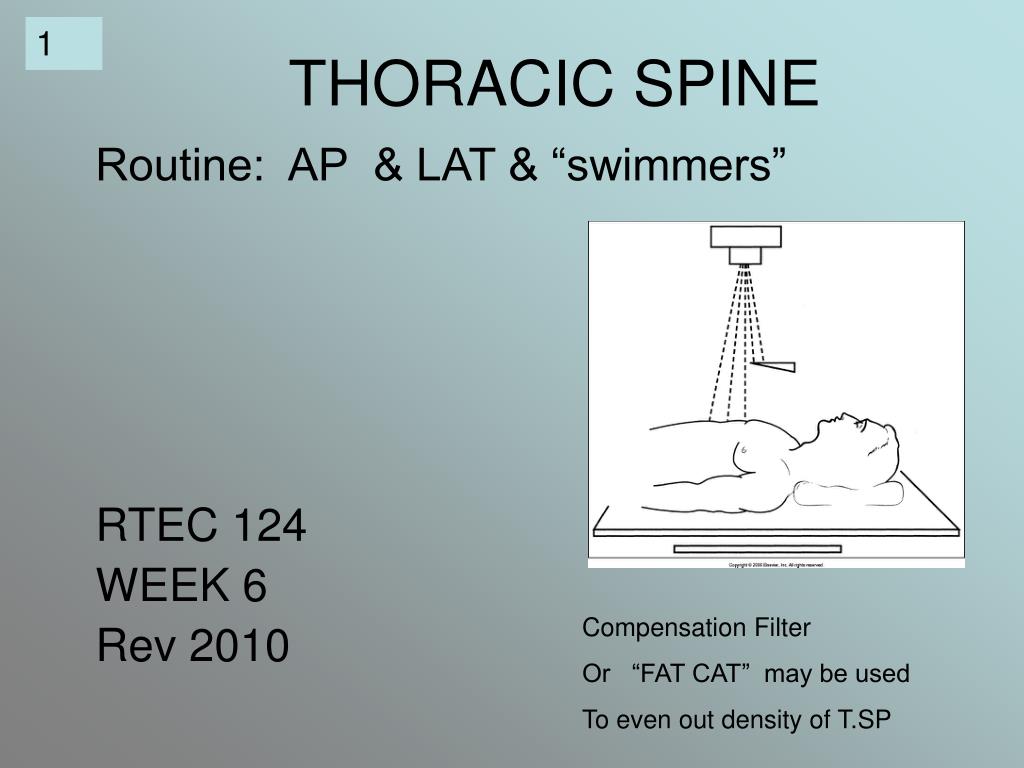

THORACIC SPINE

Routine: AP & LAT & “swimmers”

RTEC 124

WEEK 6

Rev 2010

Compensation Filter

Or “FAT CAT” may be used

To even out density of T.SP

slide4

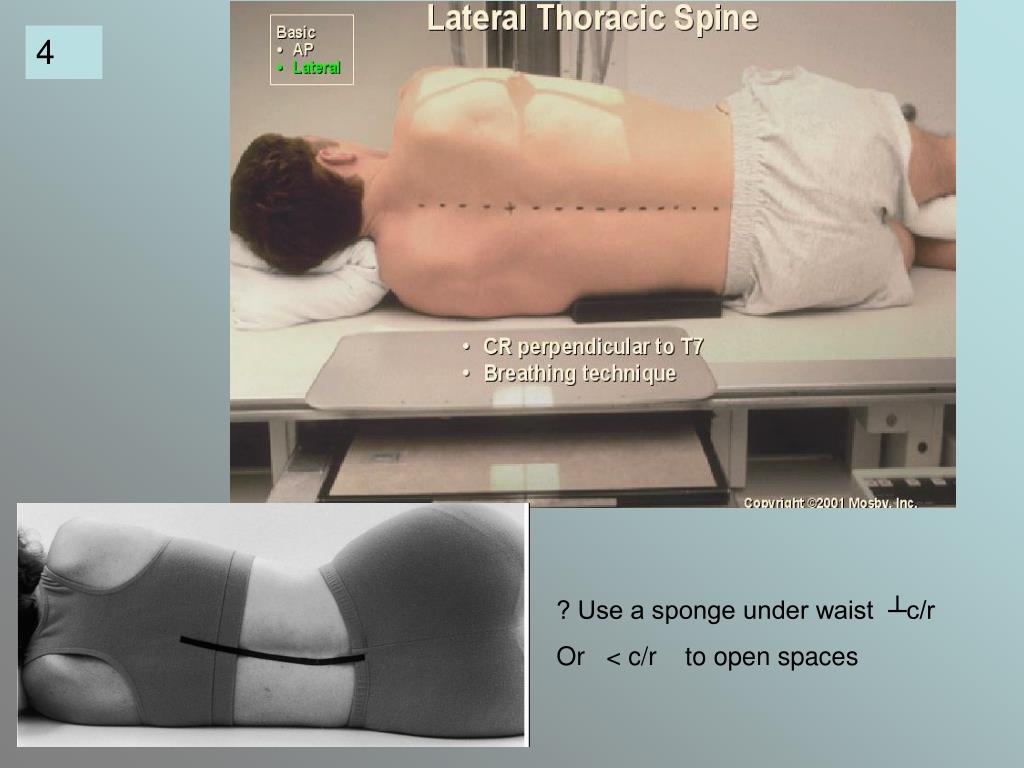

? Use a sponge under waist ┴c/r

Or < c/r to open spaces

slide6

AP: 70 kvp 25 mAs

LAT 70 kvp 100 mas

(25ma 4 sec)

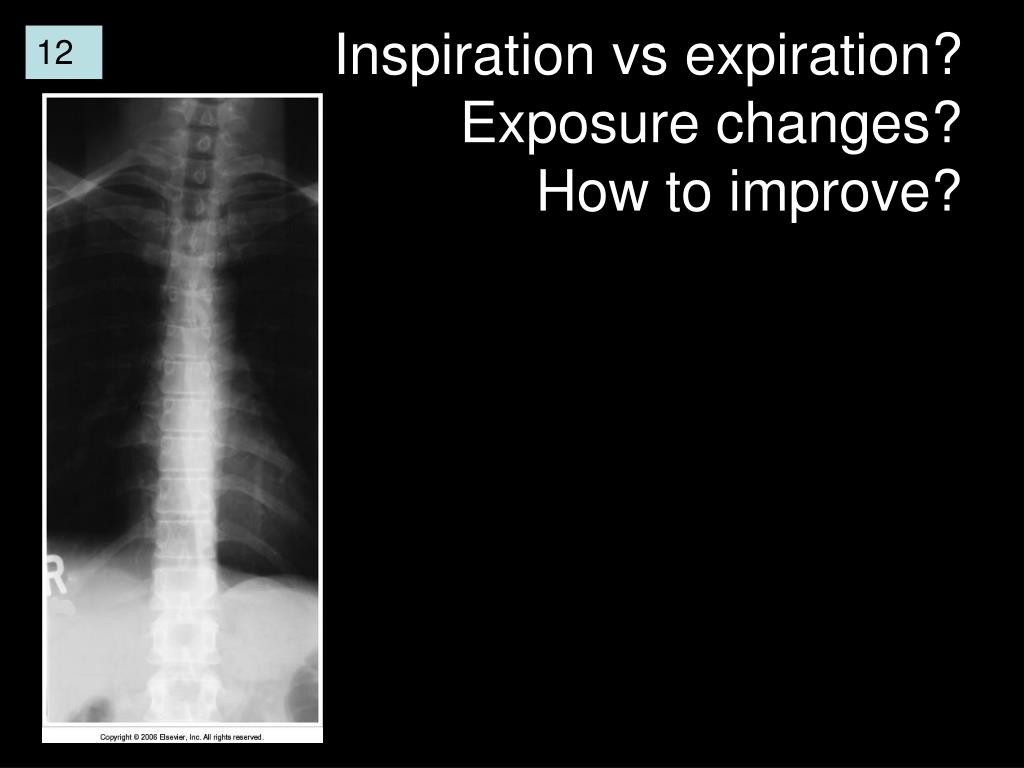

Use a breathing tech to blur ribs

slide8

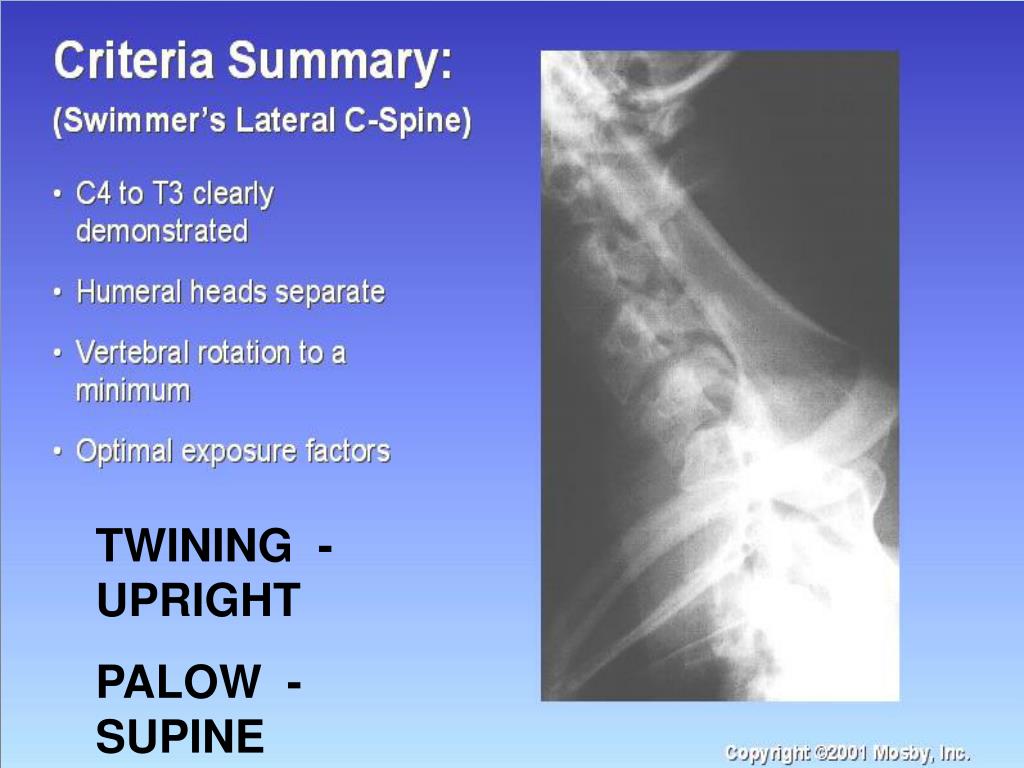

TWINING - UPRIGHT

PALOW - SUPINE

slide10

C/R @ T -2

PERP OR ANGLED 5 CAUD – IF SHOULDERS CANNOT BE

DEPRESSED

obliques

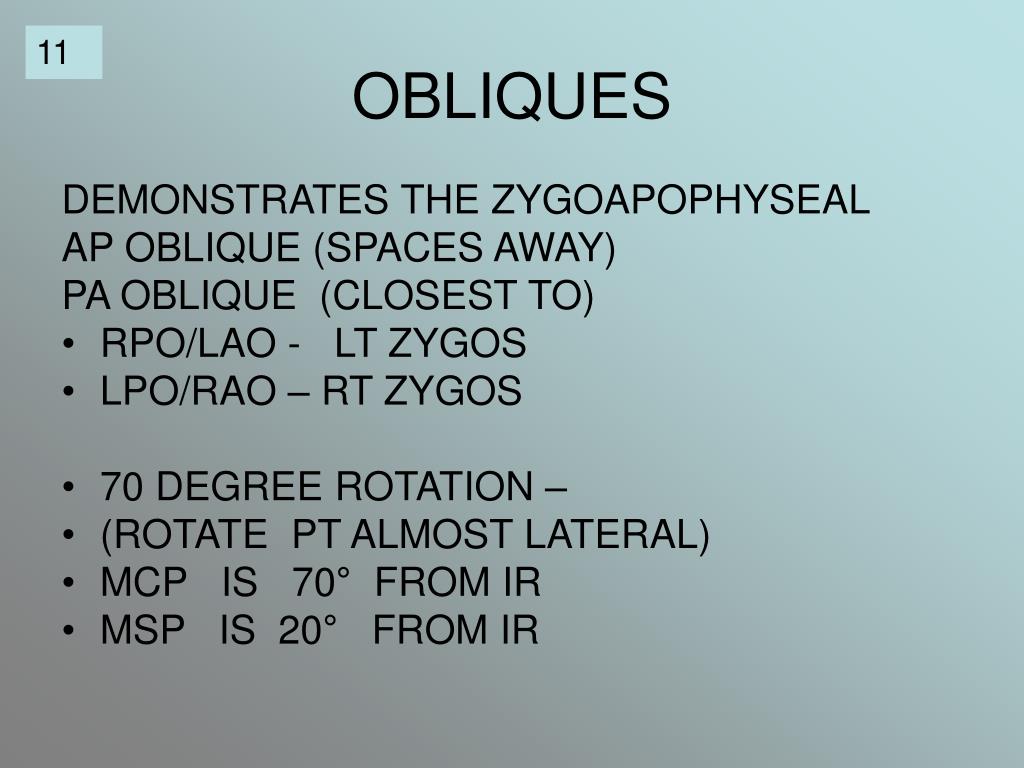

OBLIQUES

DEMONSTRATES THE ZYGOAPOPHYSEAL

AP OBLIQUE (SPACES AWAY)

PA OBLIQUE (CLOSEST TO)

  • RPO/LAO - LT ZYGOS
  • LPO/RAO – RT ZYGOS
  • 70 DEGREE ROTATION –
  • (ROTATE PT ALMOST LATERAL)
  • MCP IS 70° FROM IR
  • MSP IS 20° FROM IR

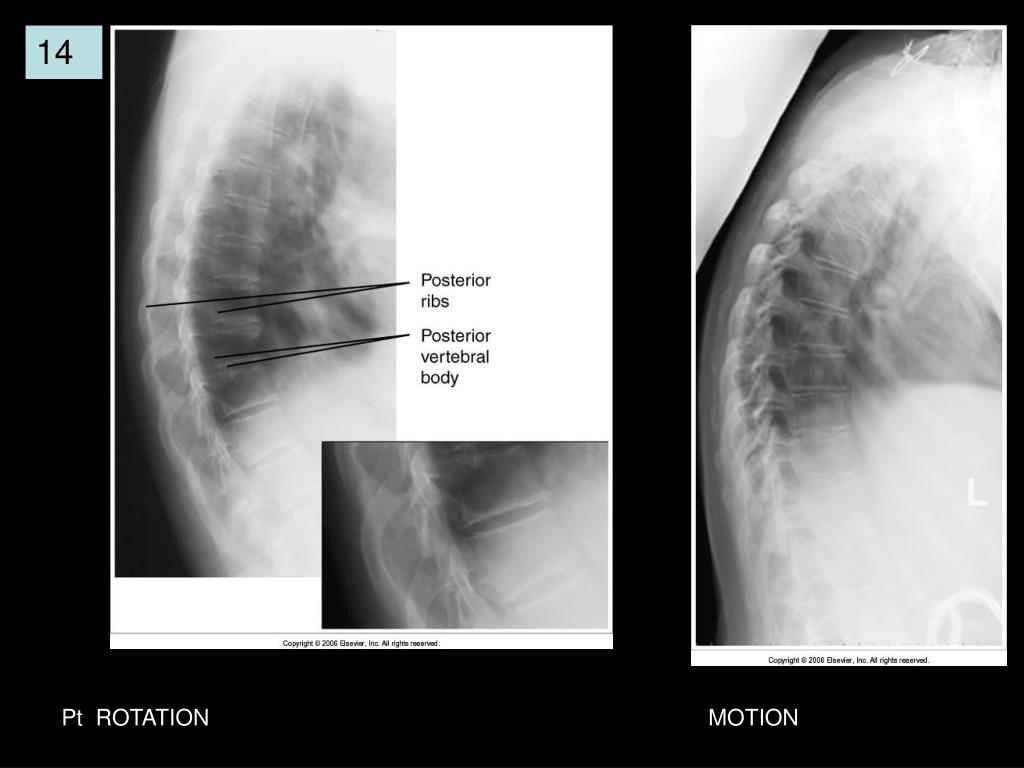

pt rotation flexion of legs

Problem?

Pt ROTATION FLEXION OF LEGS
slide15

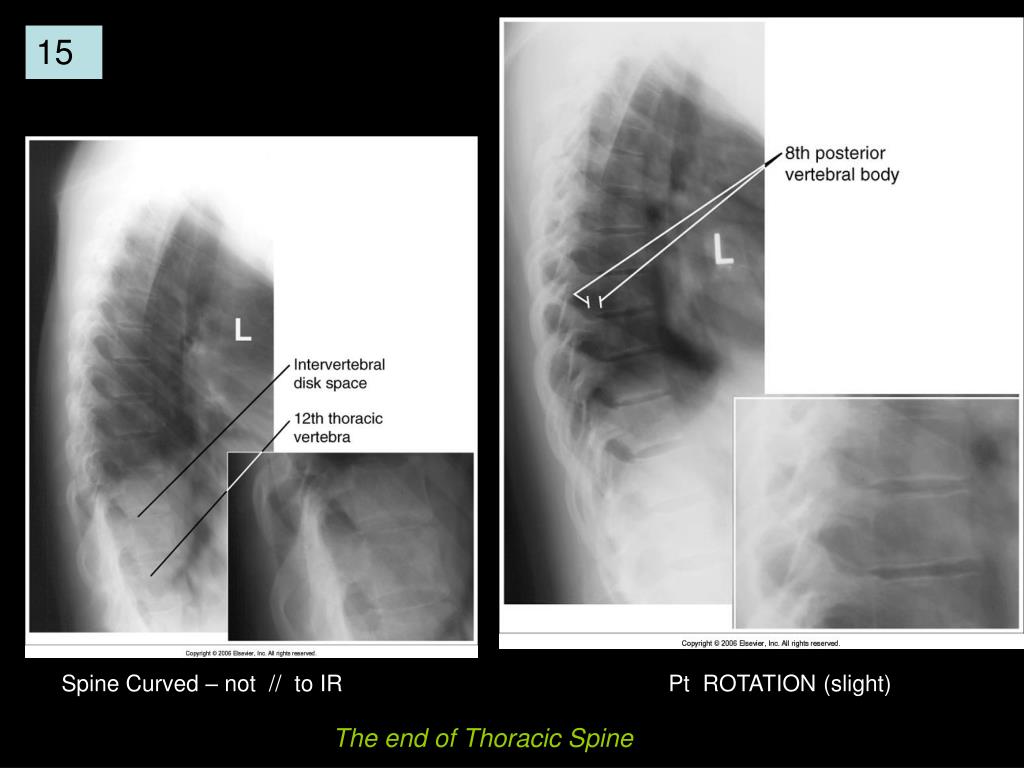

Spine Curved – not // to IR Pt ROTATION (slight)

The end of Thoracic Spine
