Chapter 14 Chemical Kinetics. Factors that Affect Reaction Rates. Kinetics is the study of how fast chemical reactions occur. There are 4 important factors which affect rates of reactions: reactant concentration, temperature, action of catalysts, and surface area.

Download Presentation
## Chapter 14 Chemical Kinetics

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

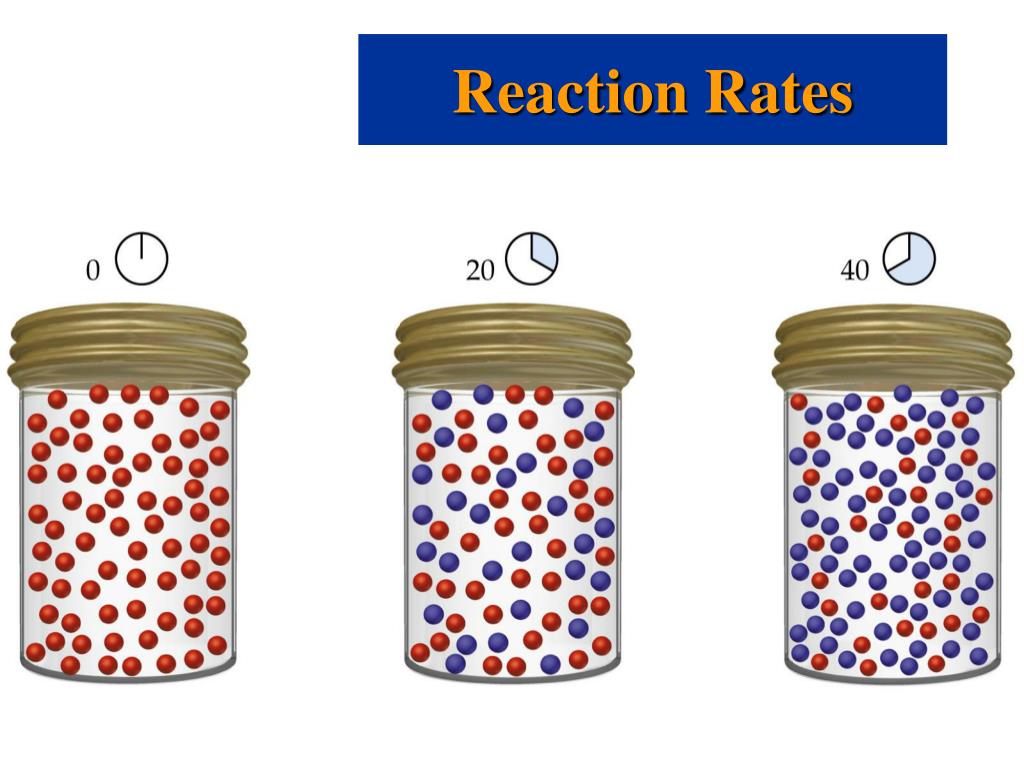

**Factors that Affect Reaction Rates**• Kinetics is the study of how fast chemical reactions occur. • There are 4 important factors which affect rates of reactions: • reactant concentration, • temperature, • action of catalysts, and • surface area. • Goal: to understand chemical reactions at the molecular level.**Reaction Rates**• Speed of a reaction is measured by the change in concentration with time. • For a reaction A B • Suppose A reacts to form B. Let us begin with 1.00 mol A.**Reaction Rates**• At t = 0 (time zero) there is 1.00 mol A (100 red spheres) and no B present. • At t = 20 min, there is 0.54 mol A and 0.46 mol B. • At t = 40 min, there is 0.30 mol A and 0.70 mol B. • Calculating,**Reaction Rates**• For the reaction A B there are two ways of measuring rate: • the speed at which the products appear (i.e. change in moles of B per unit time), or • the speed at which the reactants disappear (i.e. the change in moles of A per unit time).**Reaction Rates**• Change of Rate with Time • For the reaction A B there are two ways of • Most useful units for rates are to look at molarity. Since volume is constant, molarity and moles are directly proportional. • Consider: • C4H9Cl(aq) + H2O(l) C4H9OH(aq) + HCl(aq)**Reaction Rates**• Change of Rate with Time • C4H9Cl(aq) + H2O(l) C4H9OH(aq) + HCl(aq) • We can calculate the average rate in terms of the disappearance of C4H9Cl. • The units for average rate are mol/L·s or M/s. • The average rate decreases with time. • We plot [C4H9Cl] versus time. • The rate at any instant in time (instantaneous rate) is the slope of the tangent to the curve. • Instantaneous rate is different from average rate. • We usually call the instantaneous rate the rate.**Reaction Rates**• Reaction Rate and Stoichiometry • For the reaction • C4H9Cl(aq) + H2O(l) C4H9OH(aq) + HCl(aq) • we know • In general for • aA + bB cC + dD**Concentration and Rate**• In general rates increase as concentrations increase. • NH4+(aq) + NO2-(aq) N2(g) + 2H2O(l)**Concentration and Rate**• For the reaction • NH4+(aq) + NO2-(aq) N2(g) + 2H2O(l) • we note • as [NH4+] doubles with [NO2-] constant the rate doubles, • as [NO2-] doubles with [NH4+] constant, the rate doubles, • We conclude rate [NH4+][NO2-]. • Rate law: • The constant k is the rate constant.**Concentration and Rate**• Exponents in the Rate Law • For a general reaction with rate law • we say the reaction is mth order in reactant 1 and nth order in reactant 2. • The overall order of reaction is m + n + …. • A reaction can be zeroth order if m, n, … are zero. • Note the values of the exponents (orders) have to be determined experimentally. They are not simply related to stoichiometry.**Concentration and Rate**• Using Initial Rates to Determines Rate Laws • A reaction is zero order in a reactant if the change in concentration of that reactant produces no effect. • A reaction is first order if doubling the concentration causes the rate to double. • A reacting is nth order if doubling the concentration causes an 2n increase in rate. • Note that the rate constant does not depend on concentration.**The Change of Concentration with Time**• First Order Reactions • Goal: convert rate law into a convenient equation to give concentrations as a function of time. • For a first order reaction, the rate doubles as the concentration of a reactant doubles.**The Change of Concentration with Time**• First Order Reactions • A plot of ln[A]t versus t is a straight line with slope -k and intercept ln[A]0. • In the above we use the natural logarithm, ln, which is log to the base e.**The Change of Concentration with Time**• First Order Reactions**The Change of Concentration with Time**• Second Order Reactions • For a second order reaction with just one reactant • A plot of 1/[A]t versus t is a straight line with slope k and intercept 1/[A]0 • For a second order reaction, a plot of ln[A]tvs. t is not linear.**The Change of Concentration with Time**Second Order Reactions**The Change of Concentration with Time**• Half-Life • Half-life is the time taken for the concentration of a reactant to drop to half its original value. • For a first order process, half life, t½ is the time taken for [A]0 to reach ½[A]0. • Mathematically,**The Change of Concentration with Time**• Half-Life • For a second order reaction, half-life depends in the initial concentration:**Temperature and Rate**• The Collision Model • Most reactions speed up as temperature increases. (E.g. food spoils when not refrigerated.) • When two light sticks are placed in water: one at room temperature and one in ice, the one at room temperature is brighter than the one in ice. • The chemical reaction responsible for chemiluminescence is dependent on temperature: the higher the temperature, the faster the reaction and the brighter the light.**Temperature and Rate**• The Collision Model • As temperature increases, the rate increases.**Temperature and Rate**• The Collision Model • Since the rate law has no temperature term in it, the rate constant must depend on temperature. • Consider the first order reaction CH3NC CH3CN. • As temperature increases from 190 C to 250 C the rate constant increases from 2.52 10-5 s-1 to 3.16 10-3 s-1. • The temperature effect is quite dramatic. Why? • Observations: rates of reactions are affected by concentration and temperature.**Temperature and Rate**• The Collision Model • Goal: develop a model that explains why rates of reactions increase as concentration and temperature increases. • The collision model: in order for molecules to react they must collide. • The greater the number of collisions the faster the rate. • The more molecules present, the greater the probability of collision and the faster the rate.**Temperature and Rate**• The Collision Model • The higher the temperature, the more energy available to the molecules and the faster the rate. • Complication: not all collisions lead to products. In fact, only a small fraction of collisions lead to product. • The Orientation Factor • In order for reaction to occur the reactant molecules must collide in the correct orientation and with enough energy to form products.**Temperature and Rate**• The Orientation Factor • Consider: • Cl + NOCl NO + Cl2 • There are two possible ways that Cl atoms and NOCl molecules can collide; one is effective and one is not.**Temperature and Rate**The Orientation Factor**Temperature and Rate**• Activation Energy • Arrhenius: molecules must posses a minimum amount of energy to react. Why? • In order to form products, bonds must be broken in the reactants. • Bond breakage requires energy. • Activation energy, Ea, is the minimum energy required to initiate a chemical reaction.**Temperature and Rate**• Activation Energy • Consider the rearrangement of methyl isonitrile: • In H3C-NC, the C-NC bond bends until the C-N bond breaks and the NC portion is perpendicular to the H3C portion. This structure is called the activated complex or transition state. • The energy required for the above twist and break is the activation energy, Ea. • Once the C-N bond is broken, the NC portion can continue to rotate forming a C-CN bond.**Temperature and Rate**• Activation Energy • The change in energy for the reaction is the difference in energy between CH3NC and CH3CN. • The activation energy is the difference in energy between reactants, CH3NC and transition state. • The rate depends on Ea. • Notice that if a forward reaction is exothermic (CH3NC CH3CN), then the reverse reaction is endothermic (CH3CN CH3NC).**Temperature and Rate**• Activation Energy • How does a methyl isonitrile molecule gain enough energy to overcome the activation energy barrier? • From kinetic molecular theory, we know that as temperature increases, the total kinetic energy increases. • We can show the fraction of molecules, f, with energy equal to or greater than Ea is • where R is the gas constant (8.314 J/mol·K).**Temperature and Rate**Activation Energy**Temperature and Rate**• The Arrhenius Equation • Arrhenius discovered most reaction-rate data obeyed the Arrhenius equation: • k is the rate constant, Eais the activation energy, R is the gas constant (8.314 J/K-mol) and T is the temperature in K. • A is called the frequency factor. • A is a measure of the probability of a favorable collision. • Both A and Ea are specific to a given reaction.**Temperature and Rate**• Determining the Activation Energy • If we have a lot of data, we can determine Ea and A graphically by rearranging the Arrhenius equation: • From the above equation, a plot of ln k versus 1/T will have slope of –Ea/R and intercept of ln A.**Temperature and Rate**• Determining the Activation Energy • If we do not have a lot of data, then we recognize**Reaction Mechanisms**• The balanced chemical equation provides information about the beginning and end of reaction. • The reaction mechanism gives the path of the reaction. • Mechanisms provide a very detailed picture of which bonds are broken and formed during the course of a reaction. • Elementary Steps • Elementary step: any process that occurs in a single step.**Reaction Mechanisms**• Elementary Steps • Molecularity: the number of molecules present in an elementary step. • Unimolecular: one molecule in the elementary step, • Bimolecular: two molecules in the elementary step, and • Termolecular: three molecules in the elementary step. • It is not common to see termolecular processes (statistically improbable).**Reaction Mechanisms**• Multistep Mechanisms • Some reaction proceed through more than one step: • NO2(g) + NO2(g) NO3(g) + NO(g) • NO3(g) + CO(g) NO2(g) + CO2(g) • Notice that if we add the above steps, we get the overall reaction: • NO2(g) + CO(g) NO(g) + CO2(g)**Reaction Mechanisms**• Multistep Mechanisms • If a reaction proceeds via several elementary steps, then the elementary steps must add to give the balanced chemical equation. • Intermediate: a species which appears in an elementary step which is not a reactant or product.**Reaction Mechanisms**• Rate Laws for Elementary Steps • The rate law of an elementary step is determined by its molecularity: • Unimolecular processes are first order, • Bimolecular processes are second order, and • Termolecular processes are third order. • Rate Laws for Multistep Mechanisms • Rate-determining step: is the slowest of the elementary steps.**Reaction Mechanisms**Rate Laws for Elementary Steps**Reaction Mechanisms**• Rate Laws for Multistep Mechanisms • Therefore, the rate-determining step governs the overall rate law for the reaction. • Mechanisms with an Initial Fast Step • It is possible for an intermediate to be a reactant. • Consider • 2NO(g) + Br2(g) 2NOBr(g)**Reaction Mechanisms**• Mechanisms with an Initial Fast Step • 2NO(g) + Br2(g) 2NOBr(g) • The experimentally determined rate law is • Rate = k[NO]2[Br2] • Consider the following mechanism**Reaction Mechanisms**• Mechanisms with an Initial Fast Step • The rate law is (based on Step 2): • Rate = k2[NOBr2][NO] • The rate law should not depend on the concentration of an intermediate (intermediates are usually unstable). • Assume NOBr2 is unstable, so we express the concentration of NOBr2 in terms of NOBr and Br2 assuming there is an equilibrium in step 1 we have**Reaction Mechanisms**• Mechanisms with an Initial Fast Step • By definition of equilibrium: • Therefore, the overall rate law becomes • Note the final rate law is consistent with the experimentally observed rate law.
