The Krebs Cycle

The Krebs Cycle. Occurs in the matrix of the mitochondrion Aerobic phase (requires oxygen) 2-carbon acetyl CoA joins with a 4-carbon compound to form a 6- carbon compound called Citric acid. Citric acid (6C) is gradually converted back to the 4-carbon compound

talasi
Download Presentation

The Krebs Cycle

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

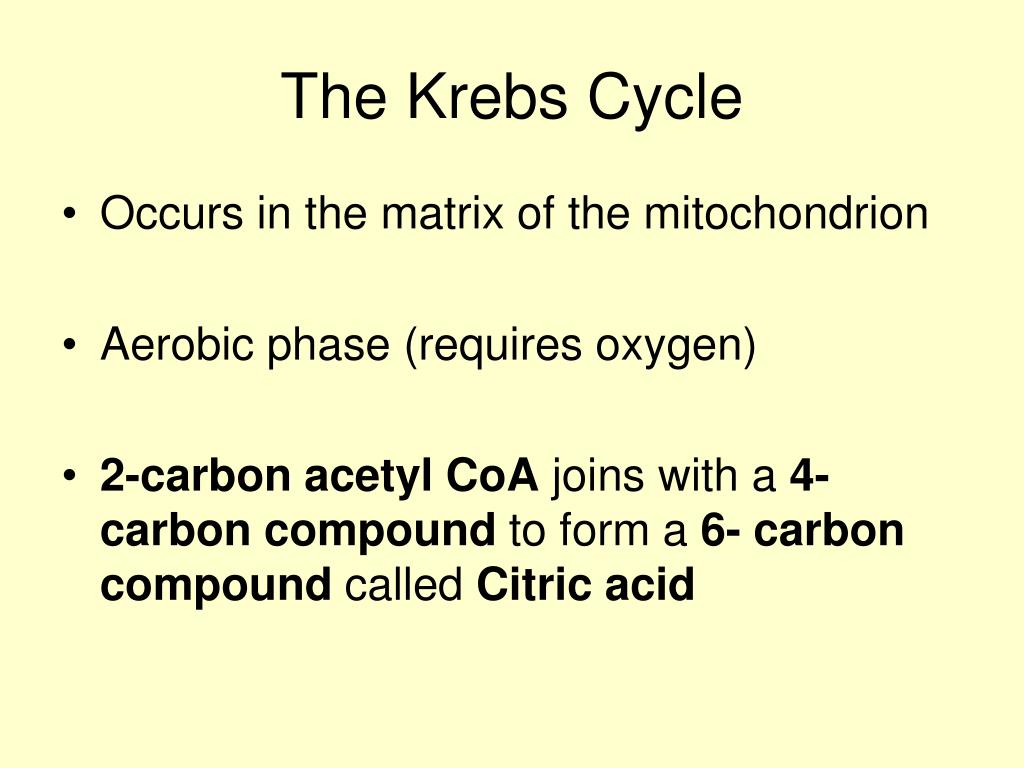

  1. The Krebs Cycle • Occurs in the matrix of the mitochondrion • Aerobic phase (requires oxygen) • 2-carbon acetyl CoA joins with a 4-carbon compound to form a 6- carbon compound called Citric acid

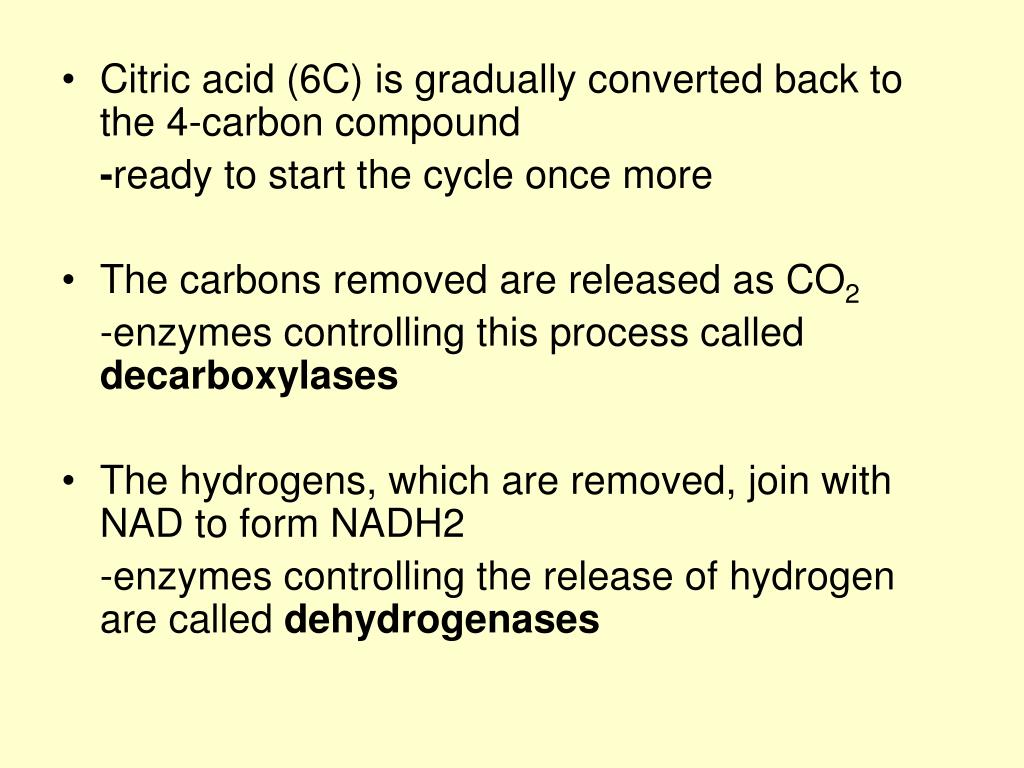

  2. Citric acid (6C) is gradually converted back to the 4-carbon compound -ready to start the cycle once more • The carbons removed are released as CO2 -enzymes controlling this process called decarboxylases • The hydrogens, which are removed, join with NAD to form NADH2 -enzymes controlling the release of hydrogen are called dehydrogenases

  3. The Cytochrome System • 6 points along pathway where hydrogen is released and temporarily bound to NAD • Reduced coenzyme NADH2 transfers hydrogen to a chain of hydrogen carriers called cytochrome system • These systems are attached to the cristate of every mitochondrion

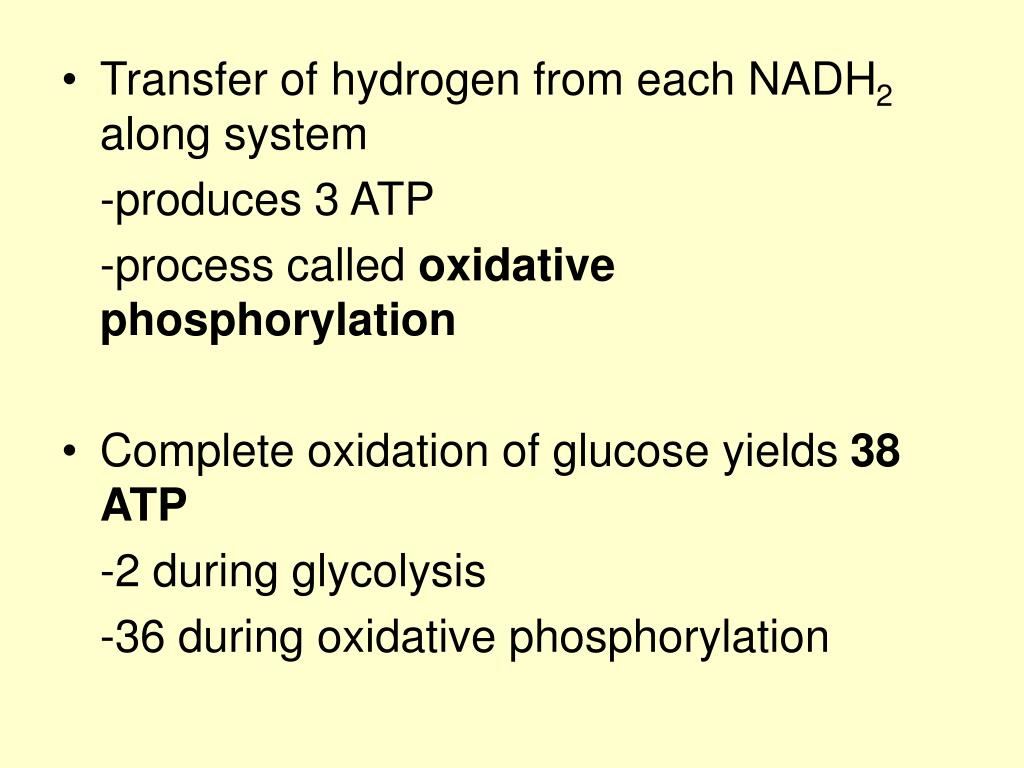

  4. Transfer of hydrogen from each NADH2 along system -produces 3 ATP -process called oxidative phosphorylation • Complete oxidation of glucose yields 38 ATP -2 during glycolysis -36 during oxidative phosphorylation

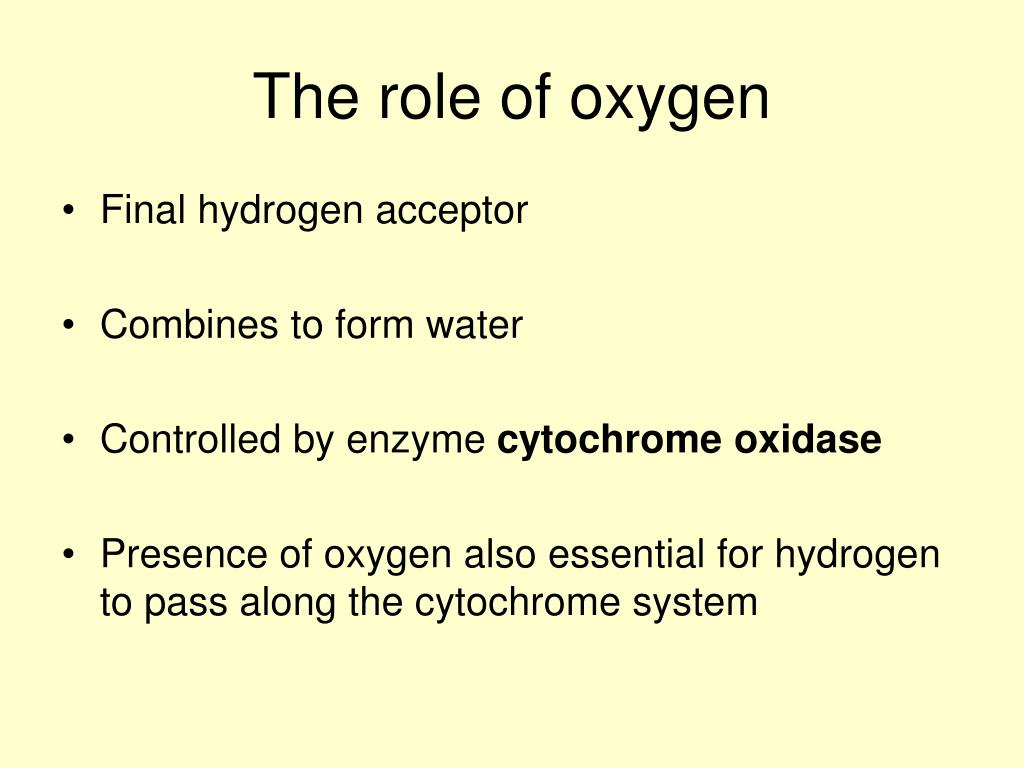

  5. The role of oxygen • Final hydrogen acceptor • Combines to form water • Controlled by enzyme cytochrome oxidase • Presence of oxygen also essential for hydrogen to pass along the cytochrome system

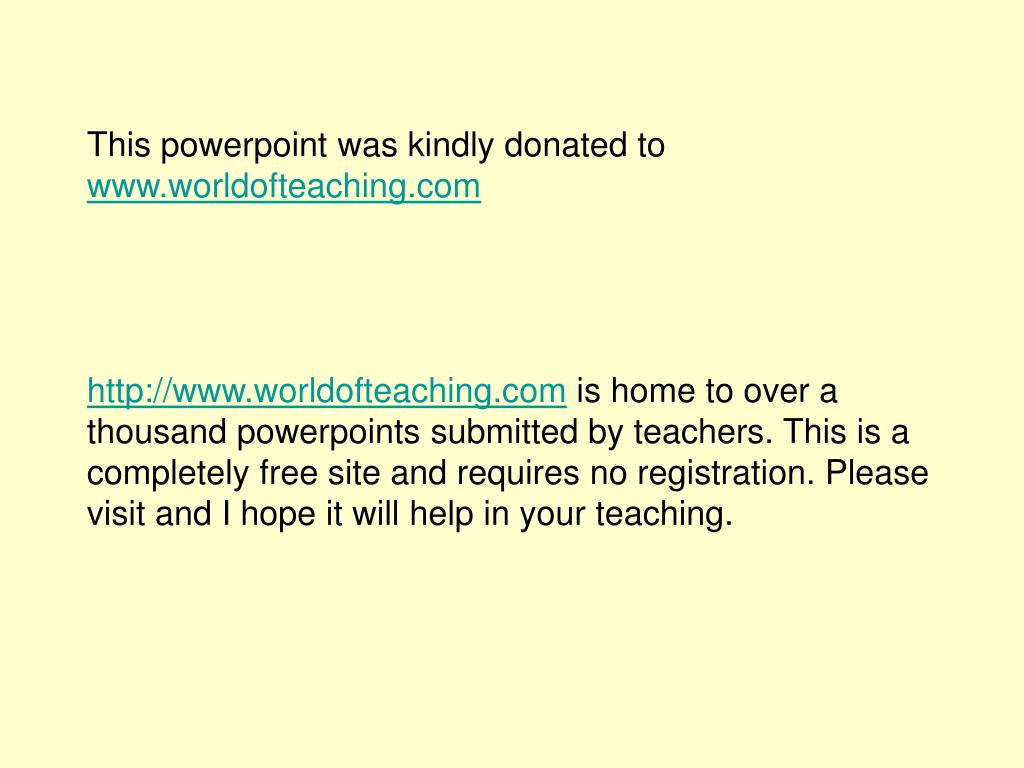

  6. This powerpoint was kindly donated to www.worldofteaching.com http://www.worldofteaching.com is home to over a thousand powerpoints submitted by teachers. This is a completely free site and requires no registration. Please visit and I hope it will help in your teaching.
