Presentation Transcript
understanding the linux kernel ch 13 i o architecture and device drivers

Understanding the Linux KernelCh.13 I/O Architecture and Device Drivers

Jung-chul Ahn

Embedded Software Laboratory

contents
Contents
  • I/O Architecture
  • The Device Driver Model
  • Device Files
  • Device Drivers
  • Character Device Drivers

Embedded Software Laboratory

i o architecture
I/O Architecture
  • PC’s I/O Architecture

CPU

I/O bus

…………

I/O Interface

I/O Port

I/O port

Values

Status

Command

values in the I/O ports to

command and data for the device

I/O Device

updates the status register

Device

Controller

-commands

-data

electrical signals

Embedded Software Laboratory

i o architecture4
I/O Architecture
  • I/O Ports
    • IBM PC architecture
      • I/O address space provides up to 65536 8-bit I/O ports
      • Four special assembly language instructions
        • in, ins, out, outs
        • allow the CPU to read from and write into an I/O port
      • I/O ports may also be mapped into addresses of the physical address space
        • can be combined with DMA
  • I/O Interfaces
    • I/O interface is a hardware circuit inserted between a group of I/O ports and the corresponding device controller
    • Translation
      • Values in the I/O ports -> command and data for the device
      • changes in the device state -> status register.

Embedded Software Laboratory

the device driver model
The Device Driver Model
  • Recent devices
    • Drivers should typically take care of:
      • Power management
      • Plug and play
      • Hot-plugging
    • Power management examples

hard disk

disk controller

Kernel

Battery powered

computer

status=standby

graphics card

standby

sound card

network card

Embedded Software Laboratory

the device driver model6
The Device Driver Model

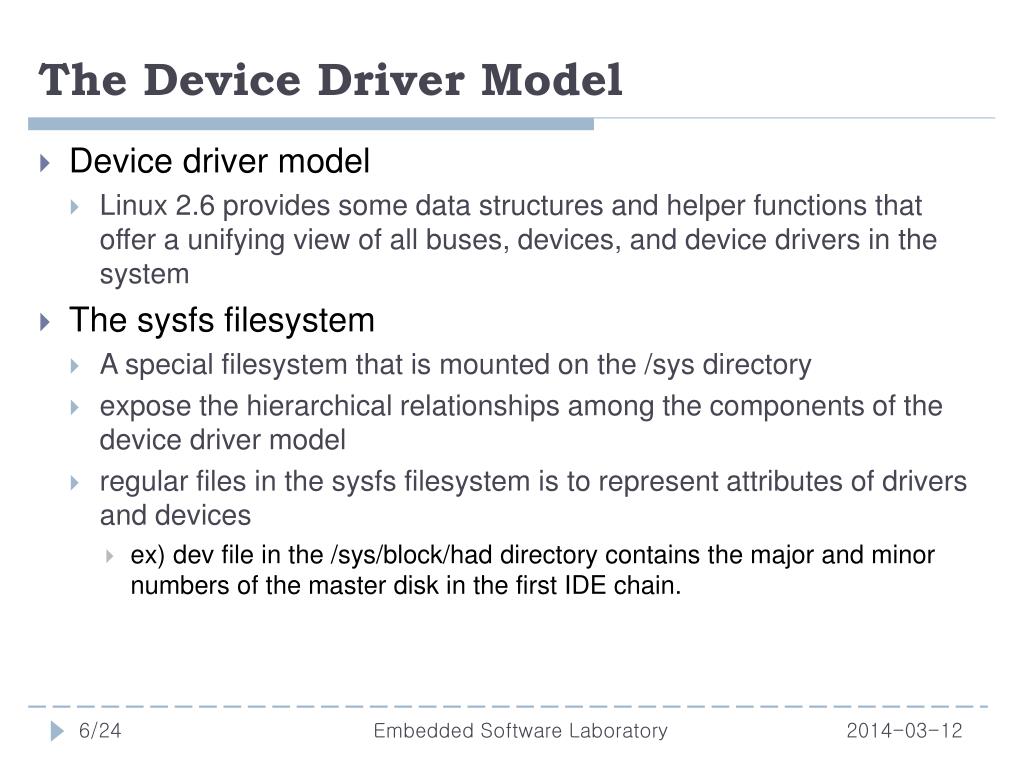

  • Device driver model
    • Linux 2.6 provides some data structures and helper functions that offer a unifying view of all buses, devices, and device drivers in the system
  • The sysfs filesystem
    • A special filesystem that is mounted on the /sys directory
    • expose the hierarchical relationships among the components of the device driver model
    • regular files in the sysfs filesystem is to represent attributes of drivers and devices
      • ex) dev file in the /sys/block/had directory contains the major and minor numbers of the master disk in the first IDE chain.

Embedded Software Laboratory

the device driver model7
The Device Driver Model

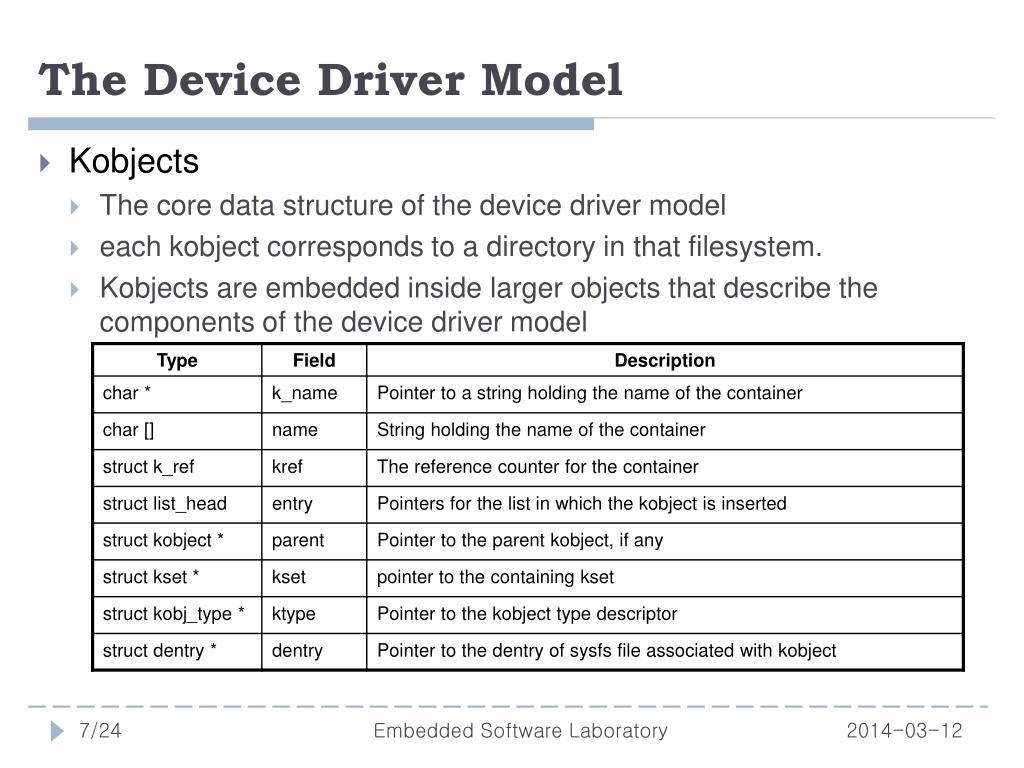

  • Kobjects
    • The core data structure of the device driver model
    • each kobject corresponds to a directory in that filesystem.
    • Kobjects are embedded inside larger objects that describe the components of the device driver model

Embedded Software Laboratory

the device driver model8
The Device Driver Model
  • kset
    • a collection of kobjects of the same type
  • subsystems
    • Collections of ksets
    • may include ksets of different types
  • Registering kobjects, ksets, and subsystems
    • kobject_register(), kobject_register()
    • kset_register(), kset_unregister()
    • subsystem_register(), subsystem_unregister()

Embedded Software Laboratory

the device driver model9
The Device Driver Model

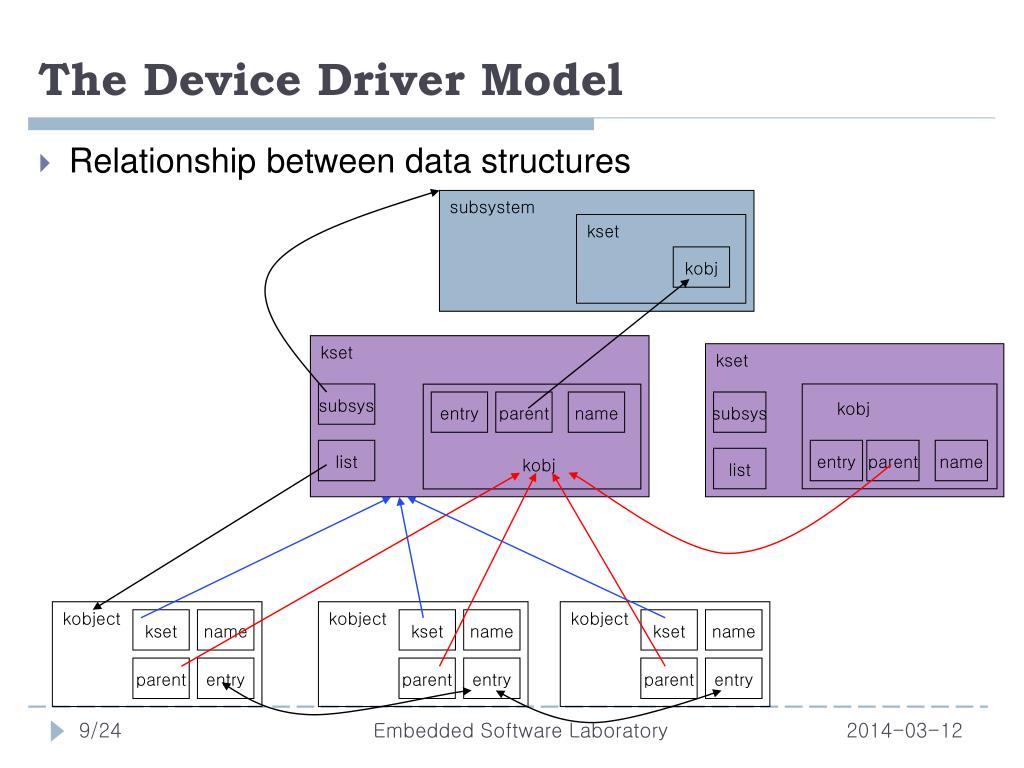

  • Relationship between data structures

subsystem

kset

kobj

kset

kset

subsys

entry

parent

name

subsys

kobj

list

entry

parent

name

list

kobj

kobject

kobject

kobject

kset

name

kset

name

kset

name

parent

entry

parent

entry

parent

entry

Embedded Software Laboratory

the device driver model10
The Device Driver Model
  • Device driver model hierarchy

/sys

bus

susbsystem

pci

usb

susbsystem

drivers

devices

kset

kobject

serial

device driver for the serial port

Embedded Software Laboratory

the device driver model11
The Device Driver Model
  • Components of the device driver model
    • device object
      • globally collected in the devices_subsys subsystem (/sys/devices)
    • Register functions
      • device_register(), device_unregister()

Embedded Software Laboratory

the device driver model12
The Device Driver Model
  • device_driver object
  • Register functions
    • driver_register(), driver_unregister()

Embedded Software Laboratory

the device driver model13
The Device Driver Model

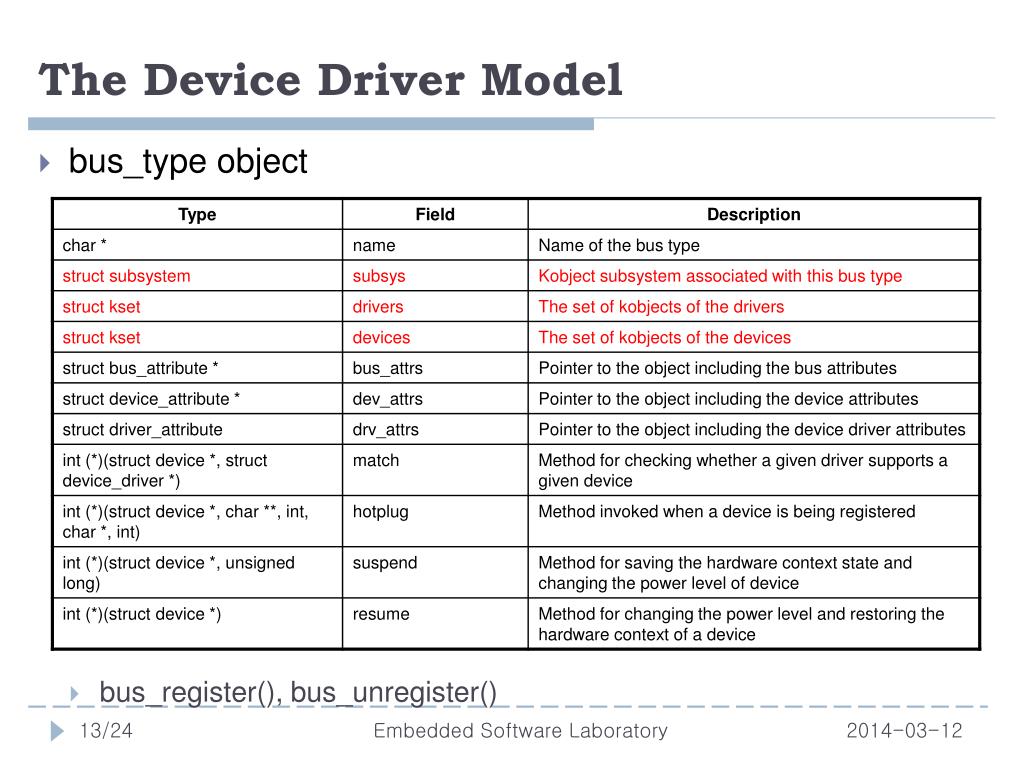

  • bus_type object
    • bus_register(), bus_unregister()

Embedded Software Laboratory

the device driver model14
The Device Driver Model
  • Bus registration

bus_subsys

819 int bus_register(struct bus_type * bus)

820{

821 int retval;

822

823 BLOCKING_INIT_NOTIFIER_HEAD(&bus->bus_notifier);

825 retval = kobject_set_name(&bus->subsys.kset.kobj, "%s",

bus->name);

..

829 subsys_set_kset(bus, bus_subsys);

830 retval = subsystem_register(&bus->subsys);

831 ..

834 kobject_set_name(&bus->devices.kobj, "devices");

835 bus->devices.subsys = &bus->subsys

836 retval = kset_register(&bus->devices);

..

840 kobject_set_name(&bus->drivers.kobj, "drivers");

841 bus->drivers.kobj.parent = &bus->subsys;

842 bus->drivers.ktype = &ktype_driver;

843 retval = kset_register(&bus->drivers);

846 ..

..

871 return retval;

872}

pci_bus->subsys

Embedded Software Laboratory

the device driver model15
The Device Driver Model
  • Bus registration

819 int bus_register(struct bus_type * bus)

820{

821 int retval;

822

823 BLOCKING_INIT_NOTIFIER_HEAD(&bus->bus_notifier);

825 retval = kobject_set_name(&bus->subsys.kset.kobj, "%s",

bus->name);

..

829 subsys_set_kset(bus, bus_subsys);

830 retval = subsystem_register(&bus->subsys);

831 ..

834 kobject_set_name(&bus->devices.kobj, "devices");

835 bus->devices.subsys = &bus->subsys

836 retval = kset_register(&bus->devices);

..

840 kobject_set_name(&bus->drivers.kobj, "drivers");

841 bus->drivers.kobj.parent = &bus->subsys;

842 bus->drivers.ktype = &ktype_driver;

843 retval = kset_register(&bus->drivers);

846 ..

..

871 return retval;

872}

pci_bus

pci_bus->devices

pci_bus->drivers

Embedded Software Laboratory

the device driver model16
The Device Driver Model
  • Bus registration(cont’d)

Embedded Software Laboratory

device files
Device Files
  • I/O devices are treated as special files called device files
    • Device files can be of two types : block or character
    • Major number : identifies the device type
    • Minor number : identifies a specific device among a group of devices

Embedded Software Laboratory

device files18
Device Files
  • VFS Handling of Device Files
    • open() system call on a device file
      • resolves the pathname to the device file
      • sets up the corresponding inode object, dentry object, file object
        • invokes init_special_inode()
        • dentry_open()
          • allocates new file object

inode object

device driver’s function table

i_rdev

def_chr_fops

or

def_blk_fops

i_fop

file object

f_op

Embedded Software Laboratory

device drivers
Device Drivers
  • A device driver is the set of kernel routines that makes a hardware device respond to the programming interface defined by the canonical set of VFS functions (open, read, lseek, ioctl…)
  • Device driver registration
    • allocate a new device_driver descriptor
    • inserting it in the data structures of the device driver model
    • linking it to the corresponding device file(s)

Embedded Software Laboratory

device drivers20
Device Drivers

device_driver

  • Device driver registration example
    • To properly handle a generic PCI device
      • allocate a descriptor of type pci_driver
      • initilize the descriptor
      • invokes pci_register_driver()
        • initilizes the fields of the embedded driver descriptor
        • invokes driver_register()
      • kernel looks for unsupported hardware
        • match method of the bus_type descriptor
        • probe method of the device_driver object
      • allocates a device object
      • invokes device_register()

pci_driver

pci_bus

kset

kset

kobj

devices

kobj

Device driver model

Embedded Software Laboratory

character device drivers
Character Device Drivers
  • cdev structure
    • A character device driver is described by a cdev structure
  • functions
    • cdev_alloc(), cdev_add()

Embedded Software Laboratory

character device drivers22
Character Device Drivers
  • Accessing a Character Device Driver
    • open() system call on a device file
      • resolves the pathname to the device file
      • sets up the corresponding inode object, dentry object, file object
      • invokes chardev_open() immediately

inode object

def_chr_fops

i_rdev

chrdev_open()

i_fop

file object

f_op

Embedded Software Laboratory

character device drivers23
Character Device Drivers
  • Accessing a Character Device Driver (cont’d)
    • chrdev_open() in def_chr_fops table
      • parameters : inode, file objects relative to the device file(filp)
        • invokes kboj_lookup(), computes the address of the cdev descriptor
        • sets the inode->i_dev fields to the address of the cdev descriptor
        • initializes the filp->f_ops file operations pointer with the contents of the ops field of the cdev descriptor
        • excutes filp->f_ops->open

chrdev_open()

kobj_map’s hash table

*probes[254]

file object

inode object

f_op

*probes[253]

i_rdev

i_fop

*probes[252]

i_cdev

…..

cdev descriptor

[list]

[ops]

inode object

inode->rdev

% 255

*probes[0]

[data]

Embedded Software Laboratory

references

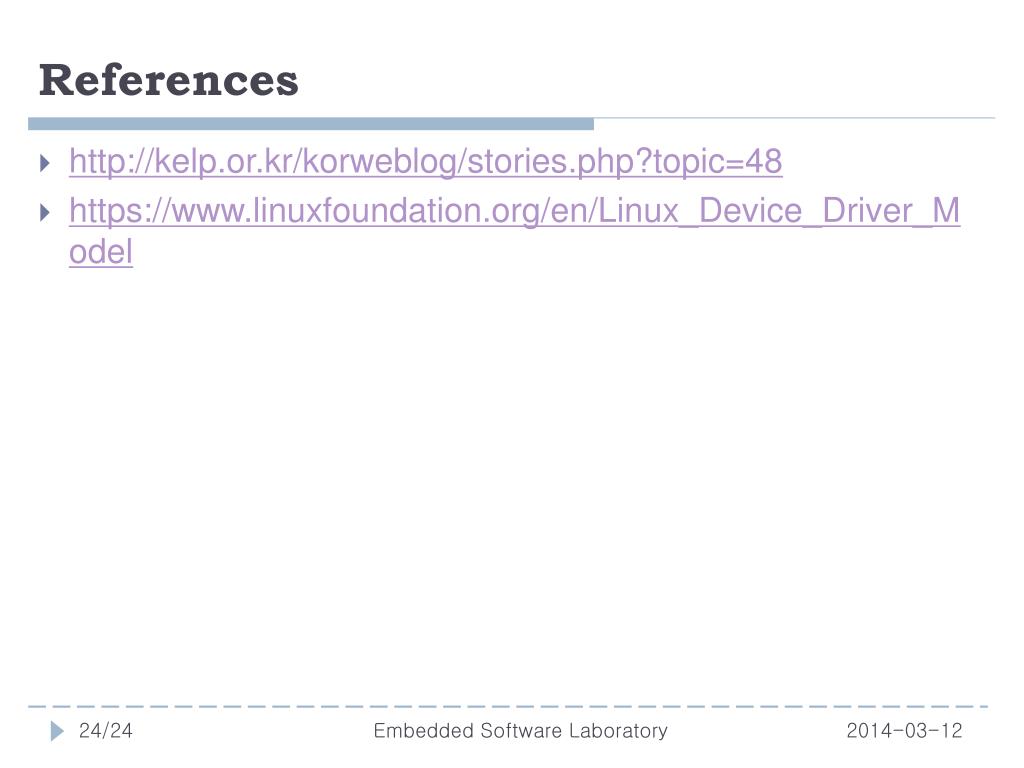

References
  • http://kelp.or.kr/korweblog/stories.php?topic=48
  • https://www.linuxfoundation.org/en/Linux_Device_Driver_Model
