  1. Electrical Circuits

  2. Electrical Circuits • Nearly all branches of electrical engineering are fundamentally based on circuit theory. • The only subject in electrical engineering that is more fundamental than circuit theory is electromagnetic field theory, which deals with the physics of electromagnetic fields and waves.

  3. Electrical Circuits

  4. SI base units • International System of Units • (SI from the French Système international d'unités)

  5. SI prefixes

  6. Electrical Circuits • Electrical circuits can be very simple. such as the circuit in a flashlight containing two batteries, a light bulb and a switch.

  7. Electrical Circuits • The “conductors” that interconnect these components are usually wires or metal pathways integrated on a printed circuit hoard.

  8. Electrical Circuits • Most electrical circuits. however, are much more complex than a flashlight. A standard television contains, among other things: power supplies, amplifiers speakers, and a cathode ray tube. • The microprocessor in a computer may contain the equivalent of millions of transistors interconnected in a single chip that is smaller than a fingernail

  9. Motherboard and CPU

  10. Pentium 4

  11. Electrical Circuits Examples

  12. http://www.google.com/imgres?client=firefox-a&rls=org.mozilla:en-US:official&biw=1280&bih=614&tbm=isch&tbnid=vQf0veq4azPJMM:&imgrefurl=http://alternativefuels.about.com/od/2008hybridvehicles/ig/2008-NY-Auto-Show---Hybrids/Ford-Hybrid-cutaway-inverter.htm&docid=NoR_DViTVB1EBM&imgurl=http://0.tqn.com/d/alternativefuels/1/0/M/E/-/-/Ford_Hybrid_engine-motor2.jpg&w=1285&h=854&ei=pbHeUeaVPPTi4AP3yoHIDQ&zoom=1&ved=1t:3588,r:1,s:0,i:82&iact=rc&page=1&tbnh=183&tbnw=258&start=0&ndsp=15&tx=152&ty=113#imgdii=vQf0veq4azPJMM%3A%3BSTfT9SCPeg7BQM%3BvQf0veq4azPJMM%3Ahttp://www.google.com/imgres?client=firefox-a&rls=org.mozilla:en-US:official&biw=1280&bih=614&tbm=isch&tbnid=vQf0veq4azPJMM:&imgrefurl=http://alternativefuels.about.com/od/2008hybridvehicles/ig/2008-NY-Auto-Show---Hybrids/Ford-Hybrid-cutaway-inverter.htm&docid=NoR_DViTVB1EBM&imgurl=http://0.tqn.com/d/alternativefuels/1/0/M/E/-/-/Ford_Hybrid_engine-motor2.jpg&w=1285&h=854&ei=pbHeUeaVPPTi4AP3yoHIDQ&zoom=1&ved=1t:3588,r:1,s:0,i:82&iact=rc&page=1&tbnh=183&tbnw=258&start=0&ndsp=15&tx=152&ty=113#imgdii=vQf0veq4azPJMM%3A%3BSTfT9SCPeg7BQM%3BvQf0veq4azPJMM%3A

  13. http://www.google.com/imgres?client=firefox-a&rls=org.mozilla:en-US:official&biw=1280&bih=614&tbm=isch&tbnid=vQf0veq4azPJMM:&imgrefurl=http://alternativefuels.about.com/od/2008hybridvehicles/ig/2008-NY-Auto-Show---Hybrids/Ford-Hybrid-cutaway-inverter.htm&docid=NoR_DViTVB1EBM&imgurl=http://0.tqn.com/d/alternativefuels/1/0/M/E/-/-/Ford_Hybrid_engine-motor2.jpg&w=1285&h=854&ei=pbHeUeaVPPTi4AP3yoHIDQ&zoom=1&ved=1t:3588,r:1,s:0,i:82&iact=rc&page=1&tbnh=183&tbnw=258&start=0&ndsp=15&tx=152&ty=113#imgdii=_http://www.google.com/imgres?client=firefox-a&rls=org.mozilla:en-US:official&biw=1280&bih=614&tbm=isch&tbnid=vQf0veq4azPJMM:&imgrefurl=http://alternativefuels.about.com/od/2008hybridvehicles/ig/2008-NY-Auto-Show---Hybrids/Ford-Hybrid-cutaway-inverter.htm&docid=NoR_DViTVB1EBM&imgurl=http://0.tqn.com/d/alternativefuels/1/0/M/E/-/-/Ford_Hybrid_engine-motor2.jpg&w=1285&h=854&ei=pbHeUeaVPPTi4AP3yoHIDQ&zoom=1&ved=1t:3588,r:1,s:0,i:82&iact=rc&page=1&tbnh=183&tbnw=258&start=0&ndsp=15&tx=152&ty=113#imgdii=_

  14. Electrical Circuits • The gravitational force is an attractive force that tends to move objects toward one another, the most common example being the earth’s gravitational force that attracts objects toward the center of the earth. • Gravitational forces govern the motions of planets. stars, galaxies. and other celestial objects in the universe, and yet it is the weakest of all the natural forces. A type of force that is much stronger than gravity is electrical in nature.

  15. Electric Charge • An electrical force is established between two charged particles. • The force between the particles is attractive if the charges are unlike (i.e.. if one charge is positive and the other is negative). • The force is repulsive if the charges are alike, that is. if both charges are either positive or negative. • This force is referred to as an electrostatic force because the charges are static or stationary. • The branch of electrical studies that deals with static charges is called electrostatics.

  16. Like charges repel, unlike charges attract. The electric force acting on a point charge q1 as a result of the presence of a second point charge q2 is given by Coulomb's Law: Coulomb's Law

  17. Electron Mass

  18. Electric Current • En electric circuit theory current is generally considered to he the movement of positive charges • This convention is based on the work of Benjamin Franklin (1706—1790), who conjectured that electricity flowed from positive to negative. • Today we know that electric current in wires and other conductors is due to the drift of free electrons (negatively charged particles) in the atoms of the conductor.

  19. Coulomb's Law

  20. Coulomb's Law

  21. Electrical Circuits • The Ideal Basic Circuit Element • Has Only two terminal • It is described mathematically in terms of current and/or voltage • It cannot be subdivided into other elements • An electrical circuit may be defined as two or more Basic Circuit Elements interconnected by conductors.

  22. Resistance • Electrical resistance may be defined as an impedance to current flow through a circuit element. • All circuit elements, including even the conductors (wires) that connect them impede the flow of current to some extent.

  23. The resistance element

  24. Different Types of Current • Direct Current (DC) • Alternating Current (AC) • Others • Electric current is measured by means of an instrument called an ammeter. There are basically two types of ammeters: • analog and • digital.

  25. Electric Potential Energy and Voltage • Potential energy can be defined as the capacity for doing work which arises from position or configuration. • Voltage is electric potential energy per unit charge, measured in joules per coulomb ( = volts). It is often referred to as "electric potential", which then must be distinguished from electric potential energy by noting that the "potential" is a "per-unit-charge" quantity.

  26. Voltage Difference • The word difference denotes that voltage is always taken between two points. • To speak of voltage “at a point is meaningless, unless a second point (reference point) is implied. • A voltage difference exists across the positive and negative terminals of a battery.

  27. Voltage

  28. Notation • Time varying quantities - lower case e.g. v(t), i(t) • sometimes assume time: v(t) = v • Time invariant quantities upper case e.g. V, R, • Remember to include units of measure e.g. 15 V, 7A

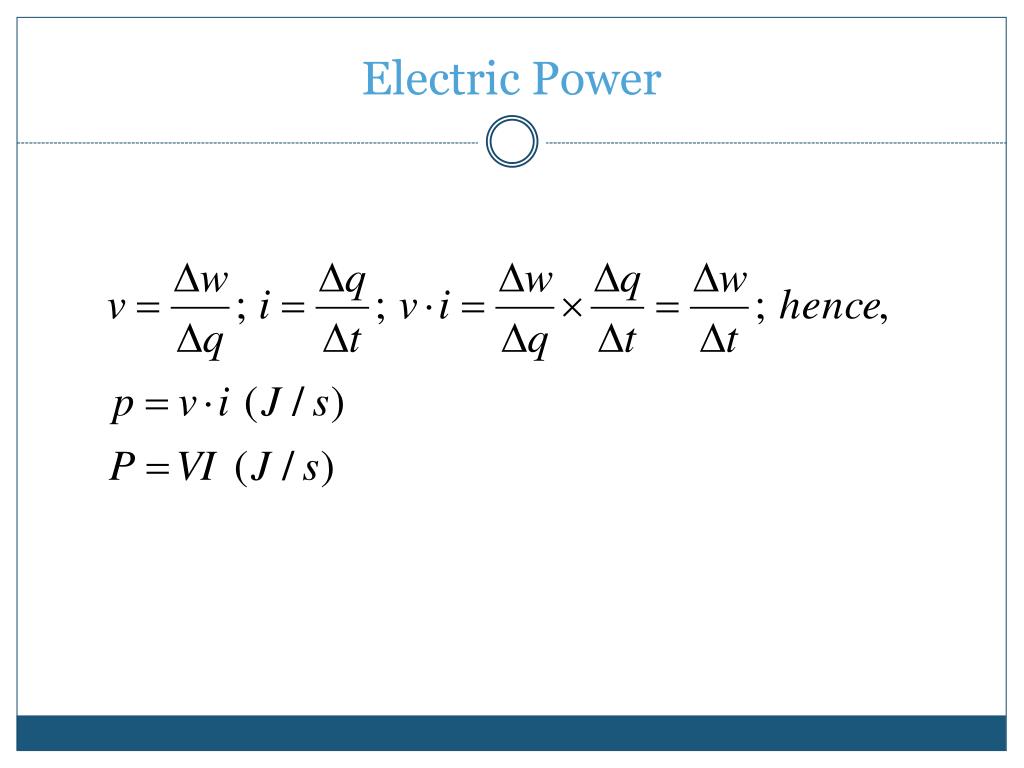

  29. Electric Power

  30. Resistors Combinations • Resistance is measured by means of an instrument called an ohmmeter. Like ammeters and voltmeters that measure current and voltage, there are basically two types of ohmmeters: analog and digital. • An analog ohmmeter provides a resistance reading by means of a needle or pointer that moves across a calibrated scale. • Digital ohmmeters provide a resistance reading by displaying numbers in a window.

  31. Example • Find the total resistance for the resistor circuit shown in the Figure

  32. Suppose that we are designing a power-supply circuit. Our circuit design calls for a resistor that carries a direct current of 800 mA and has a voltage drop of 24 V. • What is the resistance of the resistor? • What power rating must the resistor have?

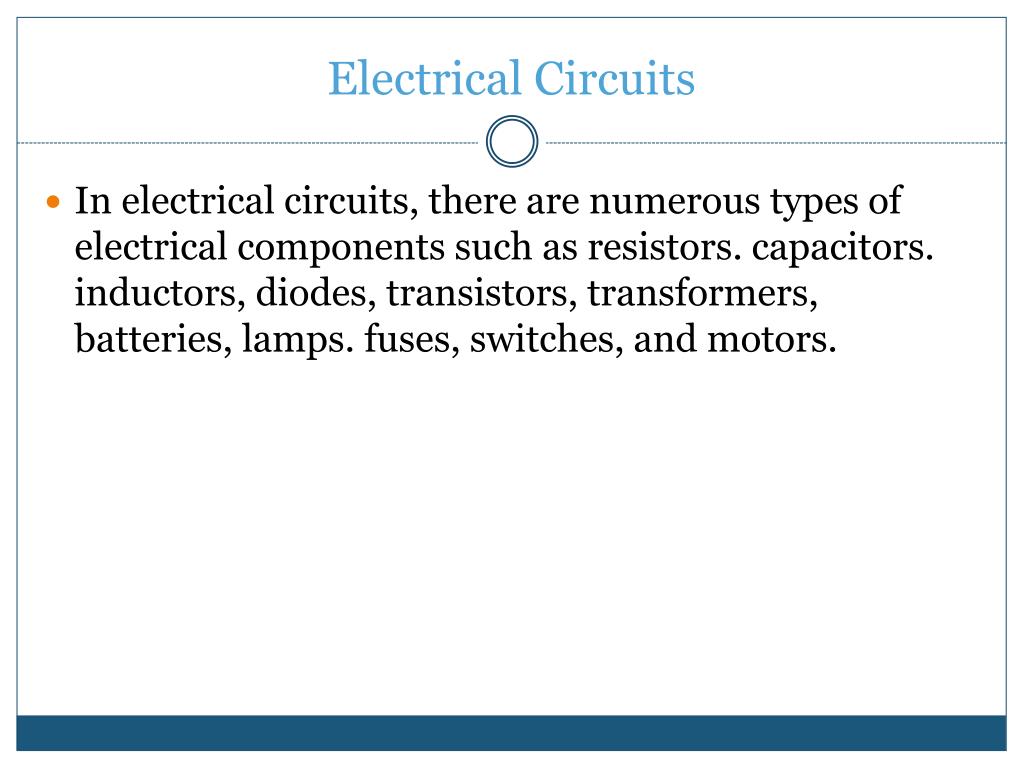

  33. Electrical Circuits • In electrical circuits, there are numerous types of electrical components such as resistors. capacitors. inductors, diodes, transistors, transformers, batteries, lamps. fuses, switches, and motors.

  34. Common circuit elements and their schematic symbols

  35. Independent Current and Voltage Sources

  36. Nodes and Branches • A node is defined as a point of connection of two or more circuit elements. • An essential node is defined as a point of connection of three or more circuit elements. • Branch, an open path in a circuit including one or more circuit elements and no essential nodes

  37. Kirchhoff's Circuit Laws

  38. Example: Kirchhoff's Voltage Law • The DC circuit shown in the Figure consists of a 10-V independent voltage source connected to two resistors in series. Find: • The current. • The voltage across each resistor, and • The power dissipated by each resistor.

  39. Example: Kirchhoff's Current Law • The DC circuit shown in the Figure consists of a 200-mA independent current source connected to two resistors in parallel. Find: • the voltage across the resistors and • the current in each resistor.

  40. Short and Open Circuits • Short Circuit. • Basic Circuit element whose voltage is always 0. (Resistance =0) • Symbol • Open Circuit • Basic Circuit element whose current is always 0. (Resistance = infinity) • Symbol

  41. Practice • Find the total resistance for the resistor circuit shown in the Figure. • For the DC circuit shown in the Figure, find the voltage across each resistor and the current in each resistor.

  42. Practice • For the DC circuit shown in the Figure, find the voltage across each resistor and the current in each resistor. Find the power dissipations in the 2 Ω, 5 Ω and 22 Ω resistors. • For the DC circuit shown in the Figure, find the voltage across each resistor and the current in each resistor.
