Presentation Transcript
Networked graphic production mark wilton global initiative manager kodak

Networked Graphic ProductionMark Wilton Global Initiative Manager, Kodak

MARKETING CHAIR, NGP Partners Association

MARKETING COMMITTEE, CIP4 Organization


Networked graphic production
Networked Graphic Production

Complimentary Focus

  • CIP4’s focus is writing the JDF specification

  • NGP Partners focus is integrating and testing partner solutions for production implementation

  • All NGP partners are CIP4 Partner/Full members

  • NGP is a CIP4 Associate Member


Ngp partners
NGP Partners

  • The partnership now has 58 members; driving membership towards 60 for IPEX’06

  • Networked Graphic Production Partners are leading industry vendors who are committed to working together to develop and implement solutions based on JDF and other open standards.

  • Together, we deliver seamlesslyintegrated solutions that maximize the efficiency and profitability of our joint customers.


How to identify an ngp partner

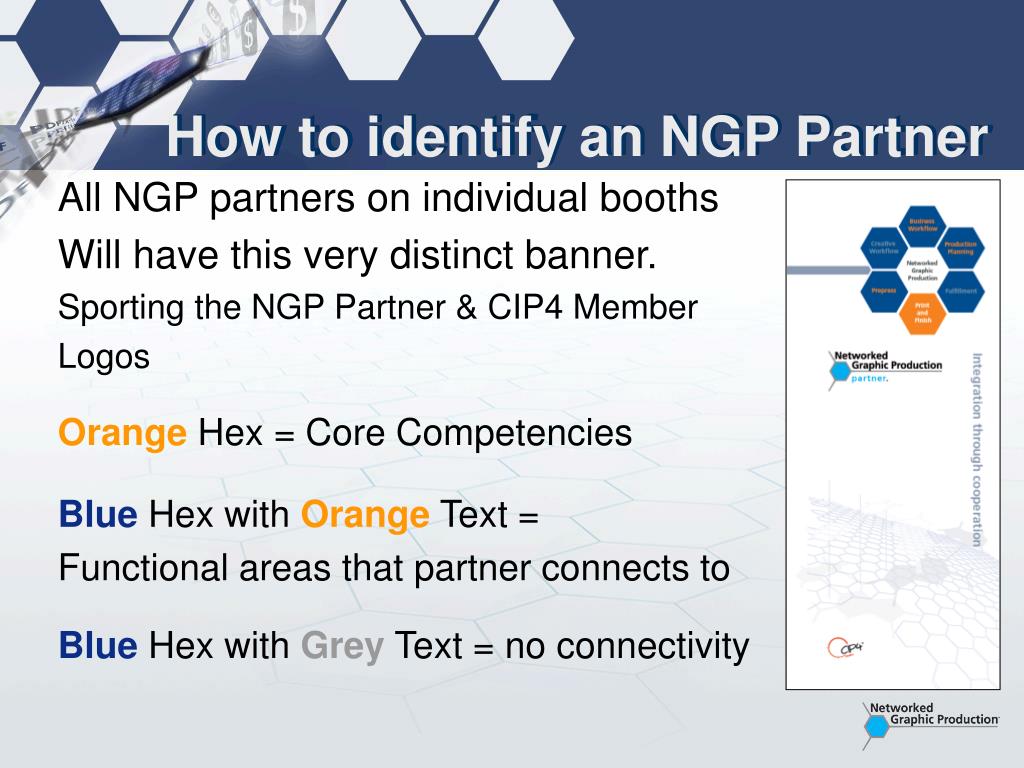

How to identify an NGP Partner

  • All NGP partners on individual booths

  • Will have this very distinct banner.

  • Sporting the NGP Partner & CIP4 Member

  • Logos

  • Orange Hex = Core Competencies

  • Blue Hex with Orange Text =

  • Functional areas that partner connects to

  • Blue Hex with Grey Text = no connectivity



Cippi awards cip4
CIPPI Awards – CIP4

  • 2 out of 3 CIPPI awards; were sites that were implemented by collaborative integration of multiple NGP Partners.

  • And the special “highly commended” was also.

  • ‘Integration through Cooperation’


Networked graphic production mark wilton global initiative manager kodak

Where’s Your ROI?

CIPPI Award Case Studies


Bauer
Bauer

Where’s Your ROI?

Winner: Most innovative use of process automation technology in an implementation

HIFLEX MIS integrated with MAN Roland sheetfed presses and Muller Martini saddle-stitcher

ROI: 220% in the first year

Net Present Value (NPV): $642,000


Networked graphic production mark wilton global initiative manager kodak

Where’s Your ROI?

Winner: Biggest improvement in efficiency and customer responsiveness as a result of process automation

HIFLEX MIS integrated with MAN Roland sheetfed pressesand Kodak Prinergy prepress workflow

ROI: 447% in five years

Net Present Value (NPV): $768,000


Networked graphic production mark wilton global initiative manager kodak

Where’s Your ROI?

Honorable Mention: Best cost/benefit realizationas a result of process automation implementation

HIFLEX MIS integrated with MAN Roland sheetfed presses

ROI: 991% in five years

Net Present Value (NPV): $2,090,000


Customer confirmed ngp
Customer Confirmed - NGP

  • What does it mean?

  • Customer Confirmed Program

  • Confirmed on the NGP integration matrix.

  • (Represented by a Green square with the letters ‘CC’)

  • These documents cover the following;

  • • Objectives of implementation

  • • Benefits of implementation

  • • Addition features or capabilities

  • • Related workflow integrations


The matrix jdf integration

CC

The Matrix – JDF Integration


Matrix milestone 0ver 200
Matrix Milestone – 0ver 200

  • The matrix represents the hard work

  • And efforts of the NGP Partners

  • And is the graphical representation

  • Of pairs of JDF integration partner connectivity.

  • NGP Partners release the “Hex Check Mark” to

  • Coincide with this great milestone.



Networked graphic production mark wilton global initiative manager kodak

MIS to Prepress Connectivity Kodak Link

  • Gather business information about the prepress workflowand provide reporting on the data

    • Eliminates re-keying of data and reduces errors

      • Records material usage, machine times, status, alterations(shop floor data collection)

      • Tracks work type: is this original work or due to an alteration?

      • Task info is used for billing and actual cost vs. estimated cost comparisons

      • Synapse InSite correction requests become alterations

    • The essential tool for end-to-end automation


Networked graphic production mark wilton global initiative manager kodak

CreativeKodak InSite

JDF Job Intent Support

  • Supports JDF & XML-based job intent data imports

  • in Job Information Sheets.

    Optimized file upload options

  • Two key integration options: one allows a direct file submission option into job context eliminating the need to log on to Synapse InSIte separately, the other allows use of a popular file transfer system.


Networked graphic production mark wilton global initiative manager kodak

Production Planning Kodak UpFront

JDF data import from MIS systems

  • Automates job planning

    Automates Imposition

  • Sends imposition template data to Preps to automate imposition creation

    JDF data export to Finishing

  • Sends cutting, bindery data to streamline finishing


Networked graphic production mark wilton global initiative manager kodak

Production Planning Kodak Preps

Sends data via JDF to prepress

  • Uses JDF to create Job Tickets sending imposition data to prepress workflows

    Sends data via JDF to Finishing

  • Uses JDF to create Job Tickets, sending cutting & bindery data to finishing systems


Networked graphic production mark wilton global initiative manager kodak

Prepress to Pressroom Connectivity

JDF-based Ink key Pre-setting

  • Uses CIP3 or CIP4 data to automate ink-keypresetting, reducing make-ready times & costs

    Relevant Options

  • Prinergy, Prinergy Evo -> PrintLink

  • Brisque -> InkPRO


Networked graphic production mark wilton global initiative manager kodak

Prepress to Digital Print Connectivity

JDF-based Integration Modules

  • Driving Digital Print devices from Prepress workflowusing JDF


Networked graphic production mark wilton global initiative manager kodak

Workflow

System

JDF

Link

Pandora

MIS

Preps

Digital & Offset Presses

Postpress

Prepare

InSite

JDF in Action

JDF

JDF

UpFront

JDF

JDF

JDF

JDF

Workflow

System

JDF


Kodak customer confirmed

Kodak Customer Confirmed


Customer confirmed kodak
Customer Confirmed - Kodak

  • Kodak Link Software – Connects MIS to Prepress

  • CustomerRegionMIS Vendor

  • Kraft Druck* Europe Hiflex

  • HBK Europe Compri

  • Konradin Druck Europe Print Plus

  • Hannanprint * Australia Prism

  • * Documentation returned


Kraft druck kodak hiflex
Kraft Druck (Kodak – Hiflex)

  • Connection: MIS – Prepress

  • Success: Increased Visibility & Control

  • “JDF integration streamlines operations beyond mere production processes. It helps us exploit cost-cutting opportunities that were previously inaccessible.”

  • Thomas Brickwedde, Head of IT

  • Kraft-Druck GmbHGermany


Hbk kodak compri

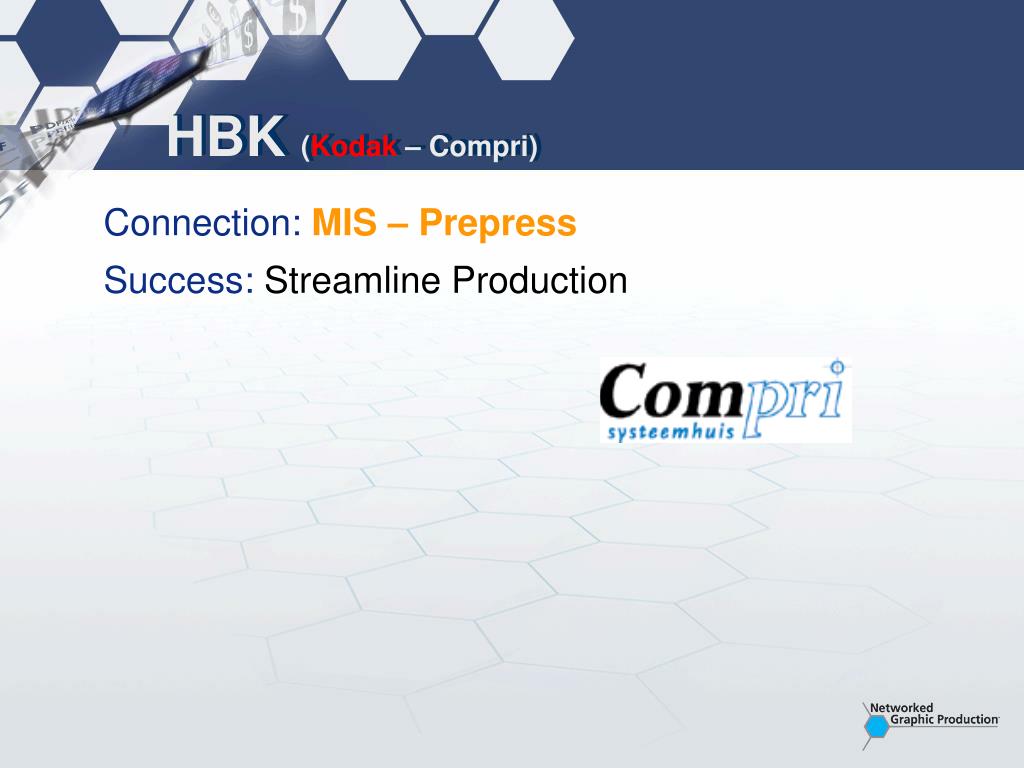

HBK (Kodak – Compri)

  • Connection: MIS – Prepress

  • Success: Streamline Production


Konradin druck kodak printplus
Konradin Druck (Kodak – PrintPlus)

  • Connection: MIS – Prepress

  • Success: Inter-system Flow


Hannanprint kodak prism
HannanPrint (Kodak – Prism)

  • Connection: MIS – Prepress

  • Success: Seamless Flow between systems


Customer confirmed kodak1
Customer Confirmed - Kodak

  • Kodak UpFront Software – Production Planning S/W

  • CustomerRegionVendor

  • Warners UK Shuttleworth

  • Taylor Bloxham UK Tharsten

  • BSPG New Zealand Prism

  • Other vendor connectivity;

  • Optimus, Muller Martini, MBO


Warners kodak shuttleworth
Warners (Kodak - Shuttleworth)

  • Connection: MIS – Production Planning

  • Success: Save time and money


Taylor bloxham kodak tharstern
Taylor Bloxham (Kodak – Tharstern)

  • Connection: MIS – Production Planning

  • Success: Reduced Wastage

  • “We are seeing a reduction

  • in planning costs and wastage”

  • due to the JDF link between

  • MIS & Production Planning.

  • Matthew Wennington, IT Director

  • Taylor BloxhamUnited Kingdom


Blue star print group kodak prism
Blue Star Print Group (Kodak – Prism)

  • Connection: MIS – Production Planning

  • Success: Streamline Business Flow


Thank you
Thank you

  • Questions?

  • Visit: www.ngppartners.org

  • Email: more-info@ngppartners.org

  • Contact Me: mark.wilton@creo.com
