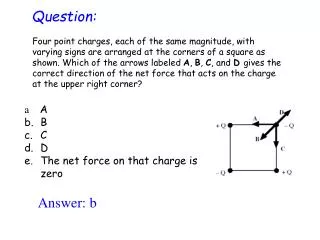

Question:. Four point charges, each of the same magnitude, with varying signs are arranged at the corners of a square as shown. Which of the arrows labeled A , B , C , and D gives the correct direction of the net force that acts on the charge at the upper right corner?. a A B C D

svea
Download Presentation

a A B C D The net force on that charge is zero

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Question: Four point charges, each of the same magnitude, with varying signs are arranged at the corners of a square as shown. Which of the arrows labeled A, B, C, and D gives the correct direction of the net force that acts on the charge at the upper right corner? • a A • B • C • D • The net force on that charge is zero Answer: b

  2. Object A has a charge of +2 µC, and object B has a charge of +6 µC. Which statement is true:(a) FAB = –3FBA, (b) FAB = –FBA, or (c) 3FAB = –FBA Question Answer (b)

  3. Electric charge always occurs in multiples ofe e 19 = 1.60 10 C × Q = ne (n =±0、1、2、3…)

  4. Question: A conducting sphere has a net charge of -4.8x10-17 C. What is the approximate number of excess electrons on the sphere? (a) 100 (c) 300(e) 500 (b) 200 (d) 400 Answer: c (-4.8x10-17 C/-1.6x10-19 C=300 electrons)

  5. Question:Two charges of +Q are 1 cm apart. If one of the charges is replaced by a charge of –Q, the magnitude of the force between them is • zero • smaller • the same • larger Answer: c

  6. Question:A charge of +q is placed 2 cm from a charge of –Q. A second charge of +q is then placed next to the first. The force on the charge of –Q • decreases to half its former magnitude • remains the same • increases to twice its former magnitude • increases to four times its former magnitude Answer: c

  7. Question: Two positive point charges Q and 2Q are separated by a distance R. If the charge Q experiences a force of magnitude F when the separation is R, what is the magnitude of the force on the charge 2Q when the separation is 2R ? (a) F/4(c) F (e) 4F (b) F/2 (d) 2F Answer: a

  8. Question:Two charges, one positive and the other negative, are initially 2 cm apart and are then pulled away from each other until they are 6 cm apart. The force between them is now smaller by a factor of • 9 • 3 • 27 • 3 Answer: a

  9. Outline for Today • Electric Field • Electric Field Lines

  10. Electric Field • Maxwell developed an approach to discussing fields • An electric field is said to exist in the region of space around a charged object • When another charged object enters this electric field, the field exerts a force on the second charged object

  11. Electric Field, cont. • A charged particle, with charge Q, produces an electric field in the region of space around it • A small test charge, qo, placed in the field, will experience a force

  12. Electric Field • Mathematically, • Use this for the magnitude of the field • The electric field is a vector quantity • The direction of the field is defined to be the direction of the electric force that would be exerted on a small positive test charge placed at that point

  13. Direction of Electric Field • The electric field produced by a negative charge is directed toward the charge • A positive test charge would be attracted to the negative source charge

  14. Direction of Electric Field, cont • The electric field produced by a positive charge is directed away from the charge • A positive test charge would be repelled from the positive source charge

  15. Electric Field Lines • A convenient aid for visualizing electric field patterns is to draw lines pointing in the direction of the field vector at any point • These are called electric field lines and were introduced by Michael Faraday

  16. Electric Field Lines, cont. • The field lines are related to the field by • The electric field vector, E, is tangent to the electric field lines at each point • The number of lines per unit area through a surface perpendicular to the lines is proportional to the strength of the electric field in a given region

  17. Electric Field Line Patterns • Point charge • The lines radiate equally in all directions • For a positive source charge, the lines will radiate outward

  18. Electric Field Line Patterns • For a negative source charge, the lines will point inward

  19. Electric Field Line Patterns • An electric dipole consists of two equal and opposite charges • The high density of lines between the charges indicates the strong electric field in this region
