  1. Impression Systems & Engineers Pvt. Ltd.

  2. THE GROUP

  3. MANAGEMENT

  4. BUSINESS SEGMENTS • AUTOMOTIVE • HEAVY ENGINEERING • BEVERAGES • APPLIANCES • INFRASTRUCTURE

  5. BUSINESS SEGMENTS

  6. MATERIAL HANDLING SOLUTIONS VERTICAL DROP LIFT Capacity :3T Height of lift :5m Position Accuracy :+/- 1mm (Designed by Comau manufactured by Impression)

  7. MATERIAL HANDLING SOLUTIONS COOLER ASSEMBLY LINE 200 m long line includes: • Assembly, • Vacuum generation • Testing • Packaging • Reporting System

  8. MATERIAL HANDLING SOLUTIONS TURNOVER DEVICE with SLAT CONVEYOR • Turnover Device 30T with synchronized lift • Transfer Trolley 30T • Slat Conveyor 300T

  9. MATERIAL HANDLING SOLUTIONS TURNOVER DEVICE with OPERATOR LIFT PLATFORM • Turnover Device 2T • Multi-axis rotation • Synchronized Operator lift platform.

  10. MATERIAL HANDLING SOLUTIONS PICK & PLACE • Pick & Place • Overhead Gantry System • Capacity : 4Ton • Length : 8Mtr • Accuracy : +/- 1mm

  11. MATERIAL HANDLING SOLUTIONS 100T SYNCRONIZED TROLLEY • Synchronized Trolley • Capacity: 50Tonne x 2 • Dimensions: 24 m x18m • PLC based controls • VFD for speed control • Master Slave Configuration

  12. MATERIAL HANDLING SOLUTIONS TROLLEY with TURN TABLE • Capacity : 30 T • Height: 300mm • Rail Guided Trolley

  13. ROBOTIC INTEGRATION & SOLUTIONS BODYSHOP AUTOMATION • Integration of spot and handling robots with fixture in body shop • Interface with production control system

  14. ROBOTIC INTEGRATION & SOLUTIONS INTEGRATION OF COMPLETE ROOF LINE. • Integration of robotic cell for glass gluing system • Interface with sealing system

  15. ROBOTIC INTEGRATION & SOLUTIONS CONTROL PANELS

  16. ROBOTIC INTEGRATION & SOLUTIONS CONTROL PANELS

  17. ROBOTIC INTEGRATION & SOLUTIONS CONTROL PANELS

  18. ROBOTIC INTEGRATION & SOLUTIONS CONTROL PANELS

  19. STORAGE & LOGISTICS AUTOMATION AUTO LOADING DOCK • Capable of handling 22 pallets (26 T) • Staging of 22 pallets on buffer conveyor for effective use • Various types of Signaling for smooth operation • Integration with SAP / other MIS • PLC based system • Report Generation • Adjustable height to cater to various trucks

  20. STORAGE & LOGISTICS AUTOMATION AUTO LOADING DOCK • Skates which load pallets into the truck  • Drive for Skates • Lifting mechanism for Dock • Alignment mechanism for Dock  • Pusher System • Side guide system Structure

  21. STORAGE & LOGISTICS AUTOMATION SUSPENDED FORK • Loads One/Two Pallets at a time. • Capacity : 4 Ton • Radio Remote Operated

  22. STORAGE & LOGISTICS AUTOMATION WAREHOUSE TRANSFER SYSTEM • OVERHEAD TRANSFER • AUTOMATED UP/DOWN LIFTERS • HEAVY PAYLOADS PRODUCTION WAREHOUSE

  23. CRANES EOT CRANESCapacity: 3T to 15T

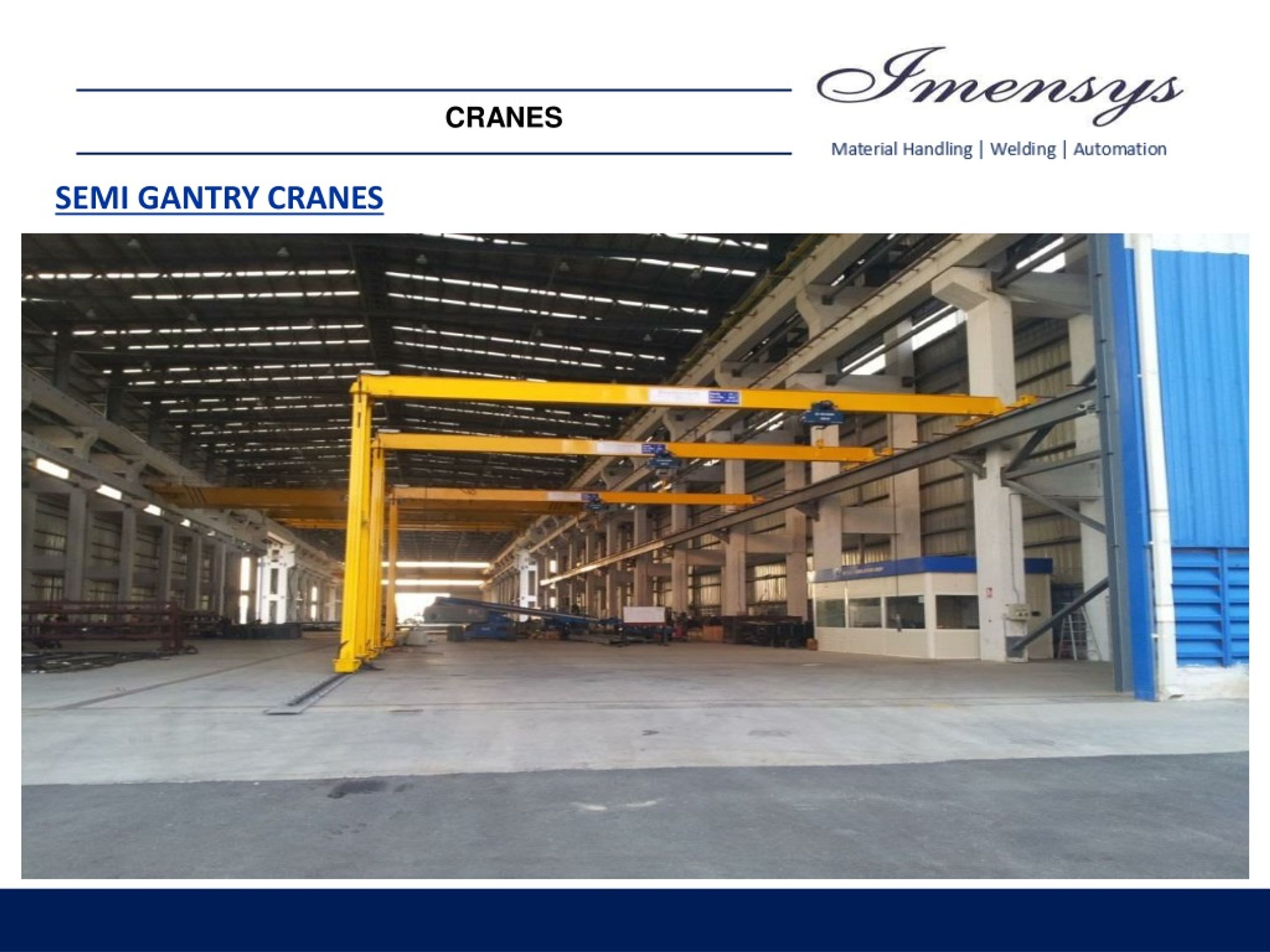

  24. CRANES SEMI GANTRY CRANES

  25. CRANES KBK SYSTEM FOR PLATE HANDLING KSPG BILLET HANDLING- SUPA

  26. INDUSTRY STANDARD 4.0

  27. INDUSTRY STANDARD 4.0

  28. CLIENT LIST

  29. CONTACT US Impression Systems & Engineers Pvt. Ltd. Office: BR-1, 450/51/52, Jai Ganesh Vision, Akurdi, Pune – 411 035 Maharashtra, India. Factory: Gat No. -357/68 /69, Waghjai Nagar, Kharabwadi, Chakan, Pune - 410 501, Maharashtra, India. Tel : +91- 20 - 48600867 Mobile : +91- 78755 54775 : +91- 7391060112 Website : www.imensys.net : www.imensyscranes.com : www.imensysconveyors.com Email : sales@imensys.net

  30. CONTACT US THANK YOU
