  1. Chapter 20: air pollution Pollution unit

  2. 20.1 Layers of the Atmosphere

  3. Atmospheric pressure (millibars) Temperature Pressure 0 200 400 600 800 1,000 120 Highlights: Pressure decreases with altitude until it reaches zero Troposphere is the layer we live in; mostly N and O; weather; colder as you go up Stratosphere: has the ozone layer; warmer as you go up Environmental science focuses mostly on those two layers 75 110 65 Thermosphere 100 90 55 80 Heating via ozone Mesosphere 45 70 Altitude (miles) 60 Altitude (kilometers) 35 50 Stratosphere 40 25 30 15 Ozone “layer” 20 Heating from the earth Troposphere 10 5 Pressure = 1,000 millibars at ground level 0 –80 –40 0 40 80 120 (Sea Level) Temperature (˚C)

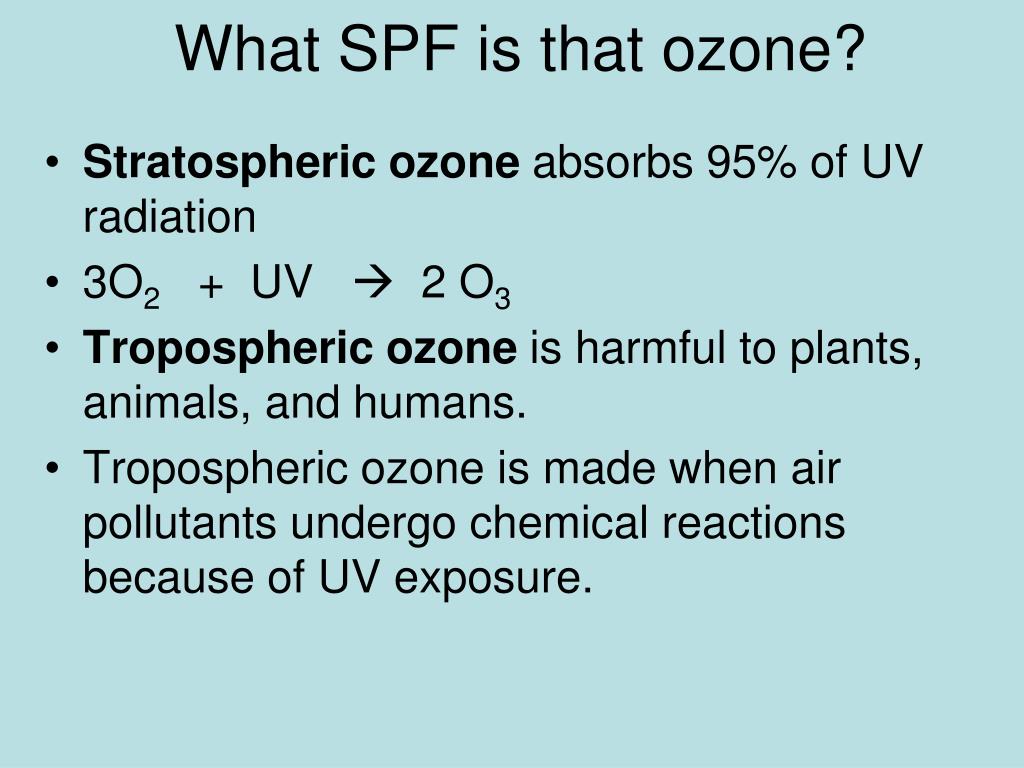

  4. What SPF is that ozone? • Stratospheric ozone absorbs 95% of UV radiation • 3O2 + UV  2 O3 • Tropospheric ozone is harmful to plants, animals, and humans. • Tropospheric ozone is made when air pollutants undergo chemical reactions because of UV exposure.

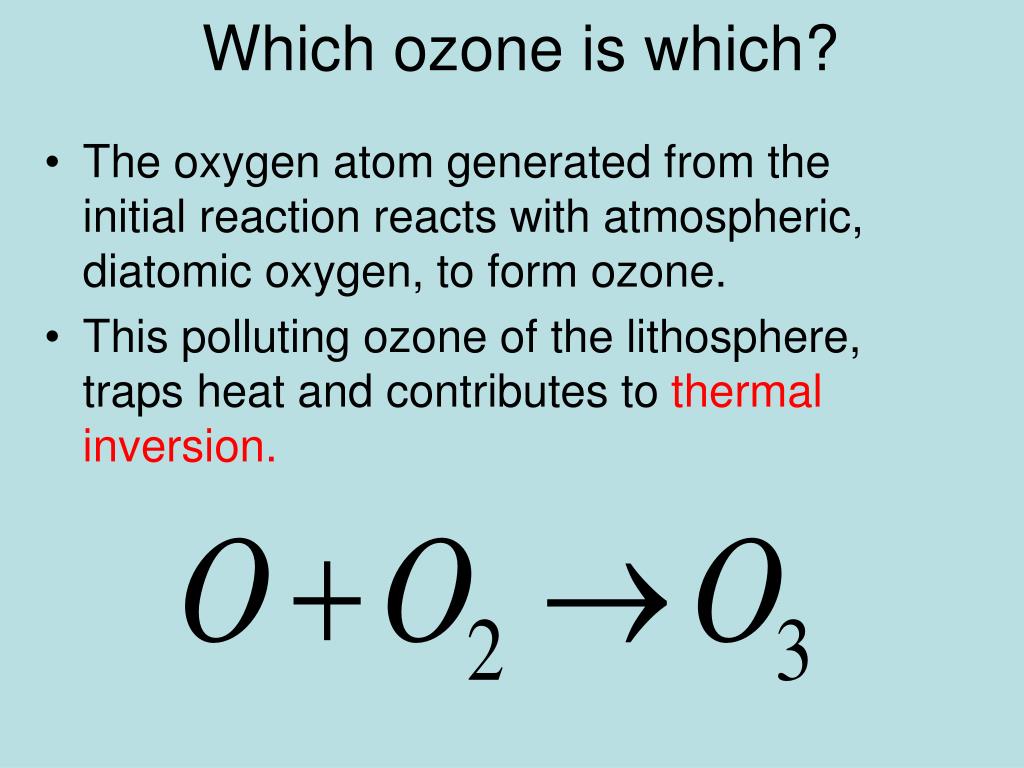

  5. Which ozone is which? • The oxygen atom generated from the initial reaction reacts with atmospheric, diatomic oxygen, to form ozone. • This polluting ozone of the lithosphere, traps heat and contributes to thermal inversion.

  6. 20.2 Outdoor Air Pollution .

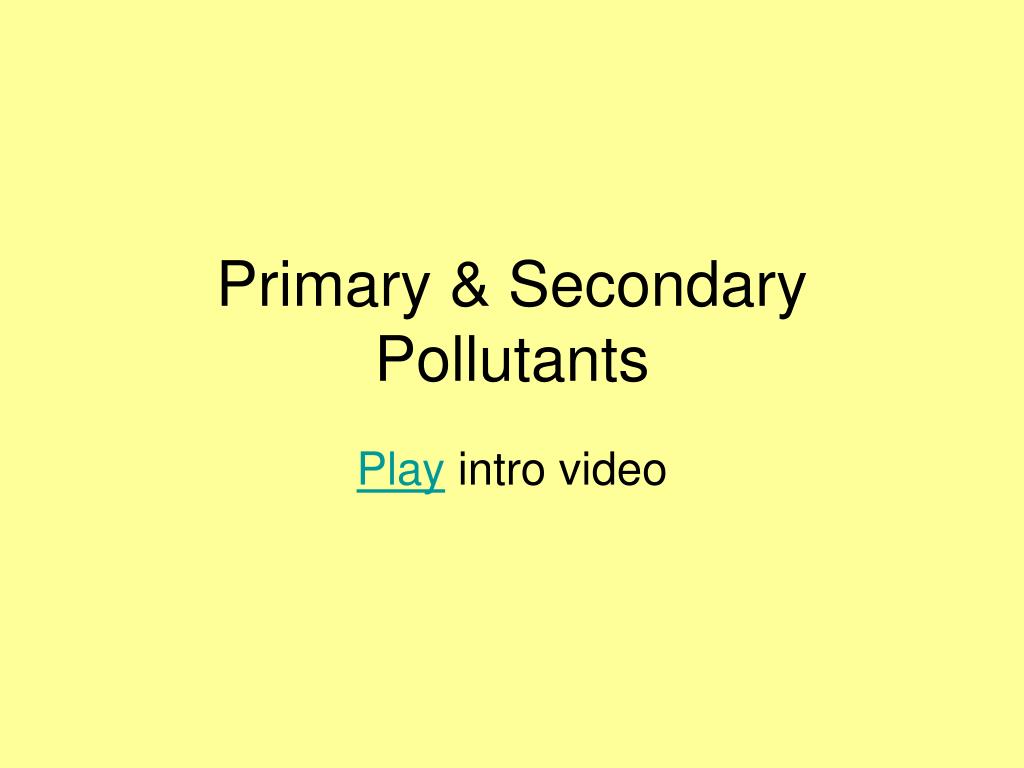

  7. Primary & SecondaryPollutants Play intro video

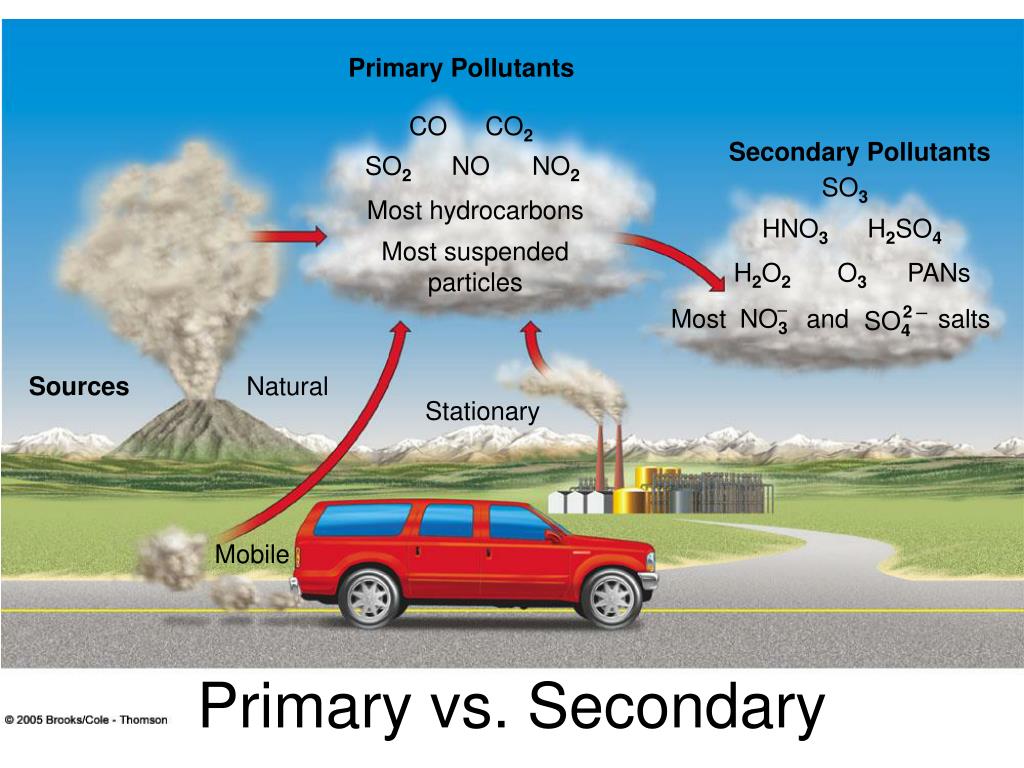

  8. Primary vs. Secondary 2 – SO4 NO3 – Primary Pollutants CO CO2 Secondary Pollutants SO2 NO NO2 SO3 Most hydrocarbons HNO3 H2SO4 Most suspended particles H2O2 O3 PANs Most and salts Sources Natural Stationary Mobile

  9. Tip – Can’t remember what organic compounds are??? View my PS (Chapter 9) PPT online for a quick refresher.

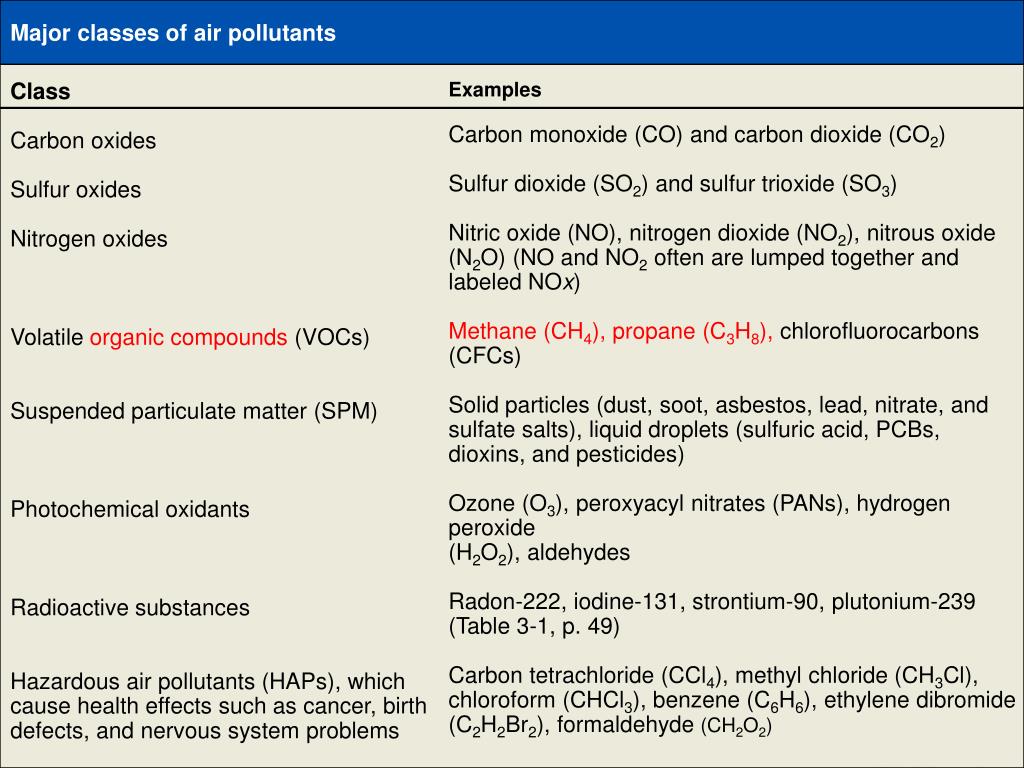

  10. Major classes of air pollutants Class Carbon oxides Sulfur oxides Nitrogen oxides Volatile organic compounds (VOCs) Suspended particulate matter (SPM) Photochemical oxidants Radioactive substances Hazardous air pollutants (HAPs), which cause health effects such as cancer, birth defects, and nervous system problems Examples Carbon monoxide (CO) and carbon dioxide (CO2) Sulfur dioxide (SO2) and sulfur trioxide (SO3) Nitric oxide (NO), nitrogen dioxide (NO2), nitrous oxide (N2O) (NO and NO2 often are lumped together and labeled NOx) Methane (CH4), propane (C3H8), chlorofluorocarbons (CFCs) Solid particles (dust, soot, asbestos, lead, nitrate, and sulfate salts), liquid droplets (sulfuric acid, PCBs, dioxins, and pesticides) Ozone (O3), peroxyacyl nitrates (PANs), hydrogen peroxide (H2O2), aldehydes Radon-222, iodine-131, strontium-90, plutonium-239 (Table 3-1, p. 49) Carbon tetrachloride (CCl4), methyl chloride (CH3Cl), chloroform (CHCl3), benzene (C6H6), ethylene dibromide (C2H2Br2), formaldehyde (CH2O2) Table 20-1Page 436

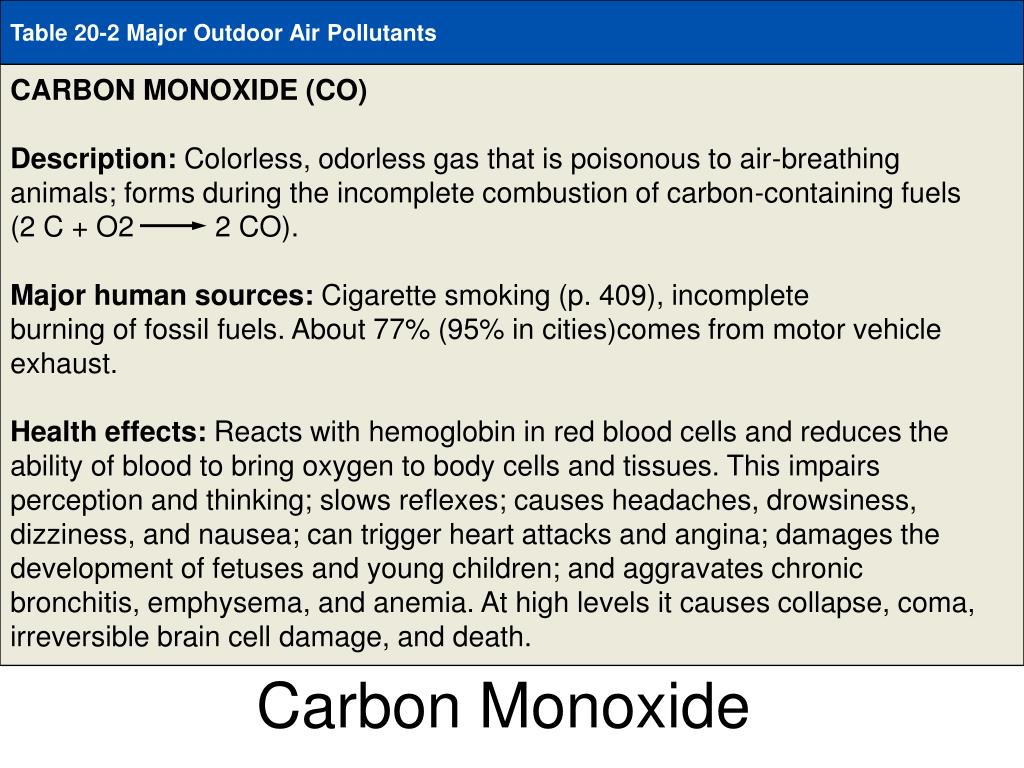

  11. Carbon Monoxide Table 20-2 Major Outdoor Air Pollutants CARBON MONOXIDE (CO) Description: Colorless, odorless gas that is poisonous to air-breathing animals; forms during the incomplete combustion of carbon-containing fuels (2 C + O2 2 CO). Major human sources: Cigarette smoking (p. 409), incomplete burning of fossil fuels. About 77% (95% in cities)comes from motor vehicle exhaust. Health effects: Reacts with hemoglobin in red blood cells and reduces the ability of blood to bring oxygen to body cells and tissues. This impairs perception and thinking; slows reflexes; causes headaches, drowsiness, dizziness, and nausea; can trigger heart attacks and angina; damages the development of fetuses and young children; and aggravates chronic bronchitis, emphysema, and anemia. At high levels it causes collapse, coma, irreversible brain cell damage, and death.

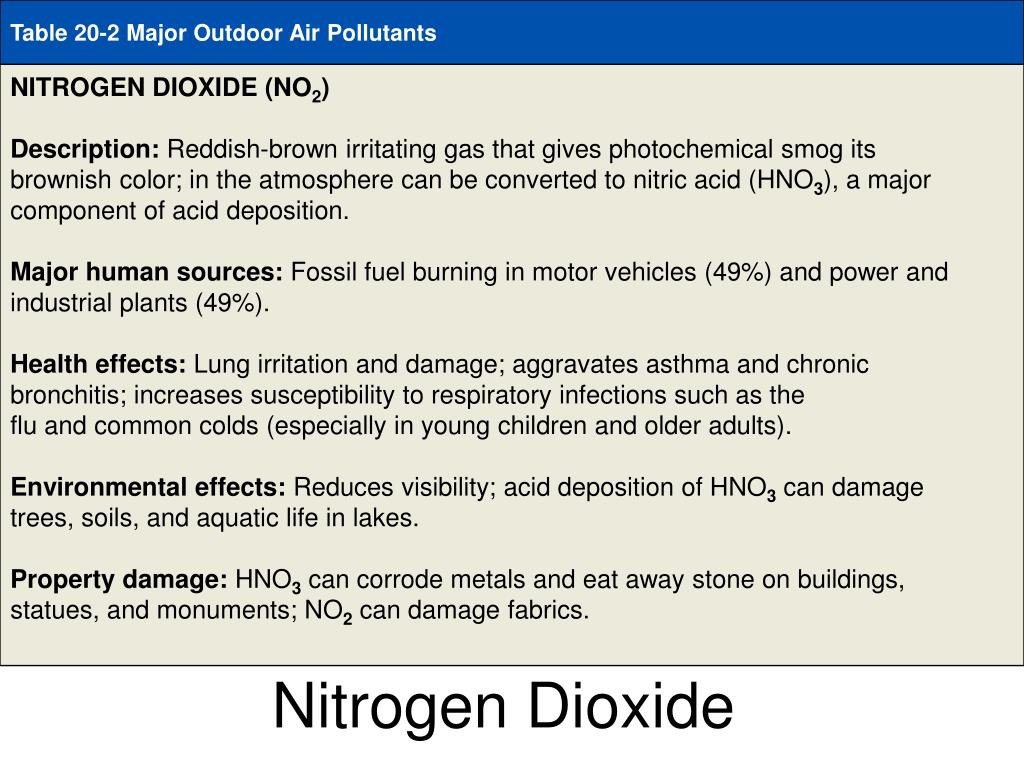

  12. Table 20-2Page 438 Table 20-2 Major Outdoor Air Pollutants NITROGEN DIOXIDE (NO2) Description: Reddish-brown irritating gas that gives photochemical smog its brownish color; in the atmosphere can be converted to nitric acid (HNO3), a major component of acid deposition. Major human sources: Fossil fuel burning in motor vehicles (49%) and power and industrial plants (49%). Health effects: Lung irritation and damage; aggravates asthma and chronic bronchitis; increases susceptibility to respiratory infections such as the flu and common colds (especially in young children and older adults). Environmental effects: Reduces visibility; acid deposition of HNO3 can damage trees, soils, and aquatic life in lakes. Property damage: HNO3 can corrode metals and eat away stone on buildings, statues, and monuments; NO2 can damage fabrics. Nitrogen Dioxide

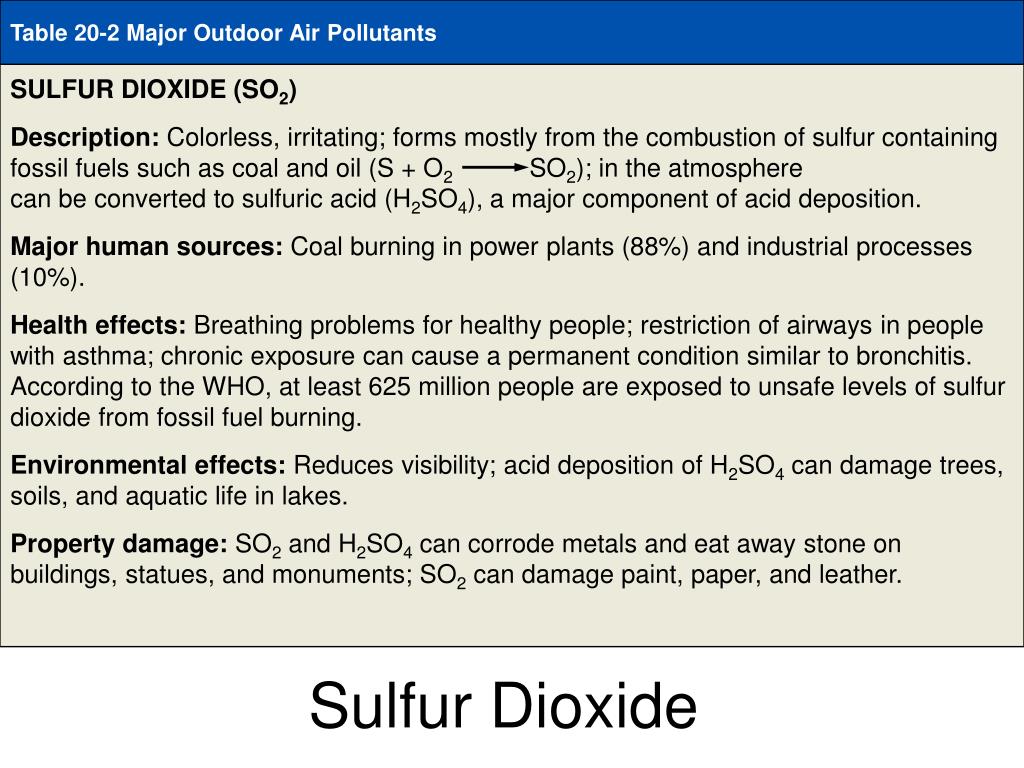

  13. Table 20-2Page 438 Table 20-2 Major Outdoor Air Pollutants SULFUR DIOXIDE (SO2) Description: Colorless, irritating; forms mostly from the combustion of sulfur containing fossil fuels such as coal and oil (S + O2 SO2); in the atmosphere can be converted to sulfuric acid (H2SO4), a major component of acid deposition. Major human sources: Coal burning in power plants (88%) and industrial processes (10%). Health effects: Breathing problems for healthy people; restriction of airways in people with asthma; chronic exposure can cause a permanent condition similar to bronchitis. According to the WHO, at least 625 million people are exposed to unsafe levels of sulfur dioxide from fossil fuel burning. Environmental effects: Reduces visibility; acid deposition of H2SO4 can damage trees, soils, and aquatic life in lakes. Property damage: SO2 and H2SO4 can corrode metals and eat away stone on buildings, statues, and monuments; SO2 can damage paint, paper, and leather. Sulfur Dioxide

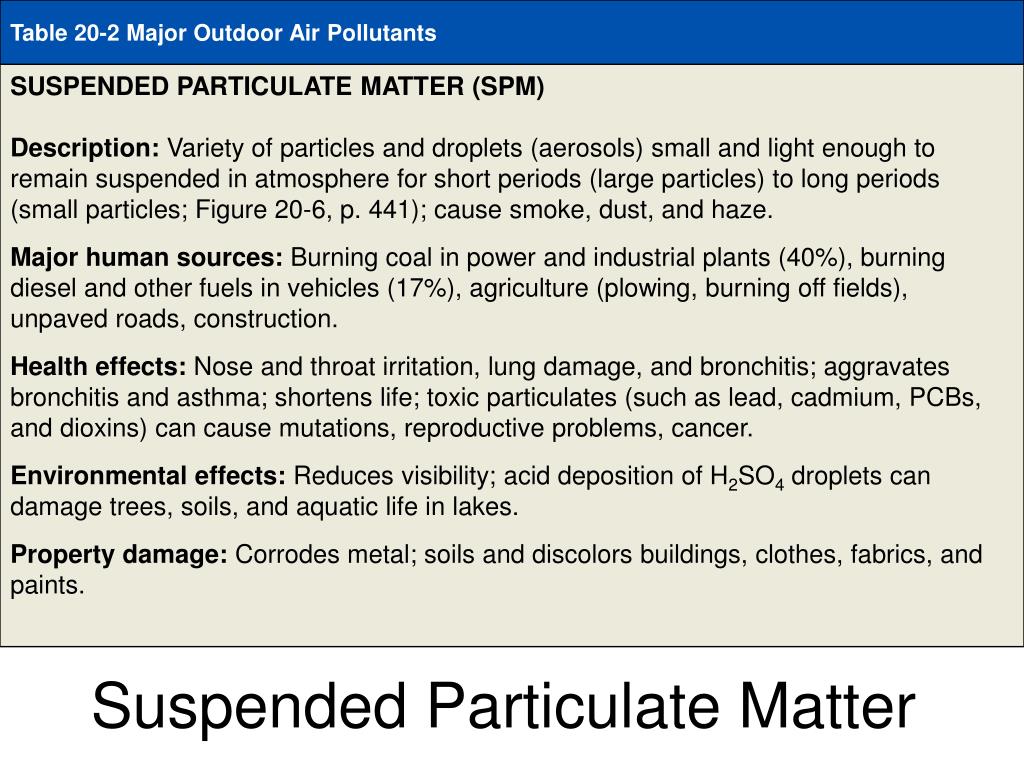

  14. Table 20-2Page 438 Table 20-2 Major Outdoor Air Pollutants SUSPENDED PARTICULATE MATTER (SPM) Description: Variety of particles and droplets (aerosols) small and light enough to remain suspended in atmosphere for short periods (large particles) to long periods (small particles; Figure 20-6, p. 441); cause smoke, dust, and haze. Major human sources: Burning coal in power and industrial plants (40%), burning diesel and other fuels in vehicles (17%), agriculture (plowing, burning off fields), unpaved roads, construction. Health effects: Nose and throat irritation, lung damage, and bronchitis; aggravates bronchitis and asthma; shortens life; toxic particulates (such as lead, cadmium, PCBs, and dioxins) can cause mutations, reproductive problems, cancer. Environmental effects: Reduces visibility; acid deposition of H2SO4 droplets can damage trees, soils, and aquatic life in lakes. Property damage: Corrodes metal; soils and discolors buildings, clothes, fabrics, and paints. Suspended Particulate Matter

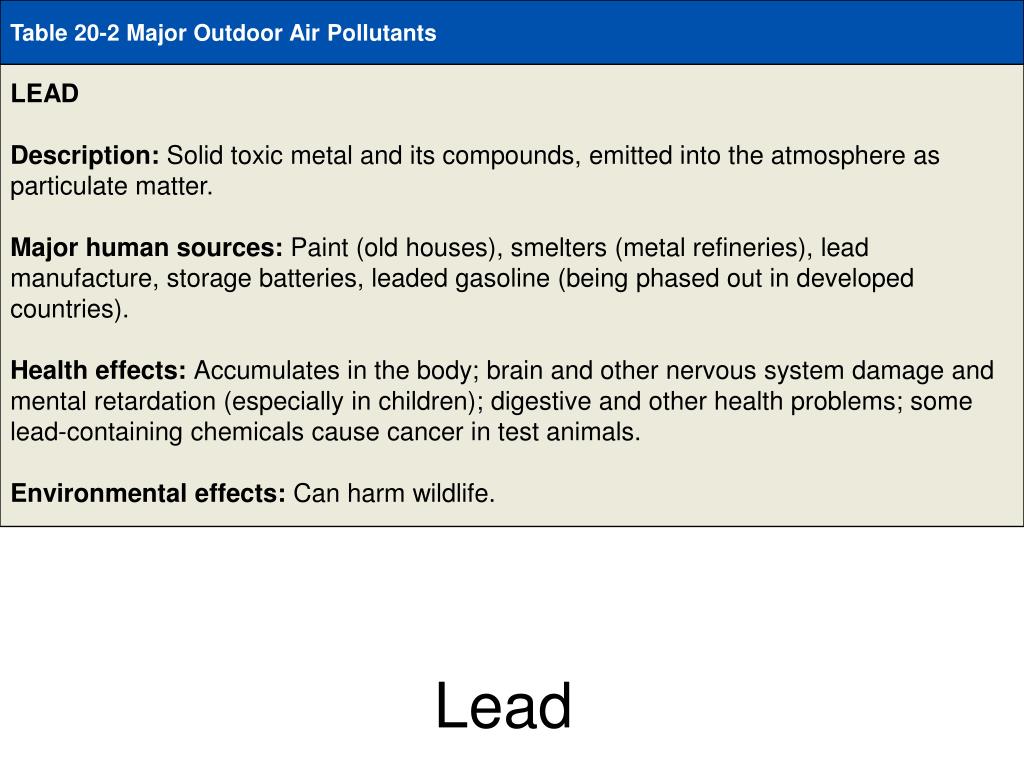

  15. Table 20-2Page 438 Table 20-2 Major Outdoor Air Pollutants LEAD Description: Solid toxic metal and its compounds, emitted into the atmosphere as particulate matter. Major human sources: Paint (old houses), smelters (metal refineries), lead manufacture, storage batteries, leaded gasoline (being phased out in developed countries). Health effects: Accumulates in the body; brain and other nervous system damage and mental retardation (especially in children); digestive and other health problems; some lead-containing chemicals cause cancer in test animals. Environmental effects: Can harm wildlife. Lead

  16. Table 20-2Page 438 Table 20-2 Major Outdoor Air Pollutants OZONE (O3) Description: Highly reactive, irritating gas with an unpleasant odor that forms in the troposphere as a major component of photochemical smog (Figures 20-3 and 20-5). Major human sources: Chemical reaction with volatile organic compounds (VOCs, emitted mostly by cars and industries) and nitrogen oxides to form photochemical smog (Figure 20-5). Health effects: Breathing problems; coughing; eye, nose, and throat irritation; aggravates chronic diseases such as asthma, bronchitis, emphysema, and heart disease; reduces resistance to colds and pneumonia; may speed up lung tissue aging. Environmental effects: Ozone can damage plants and trees; smog can reduce visibility. Property damage: Damages rubber, fabrics, and paints. Ozone

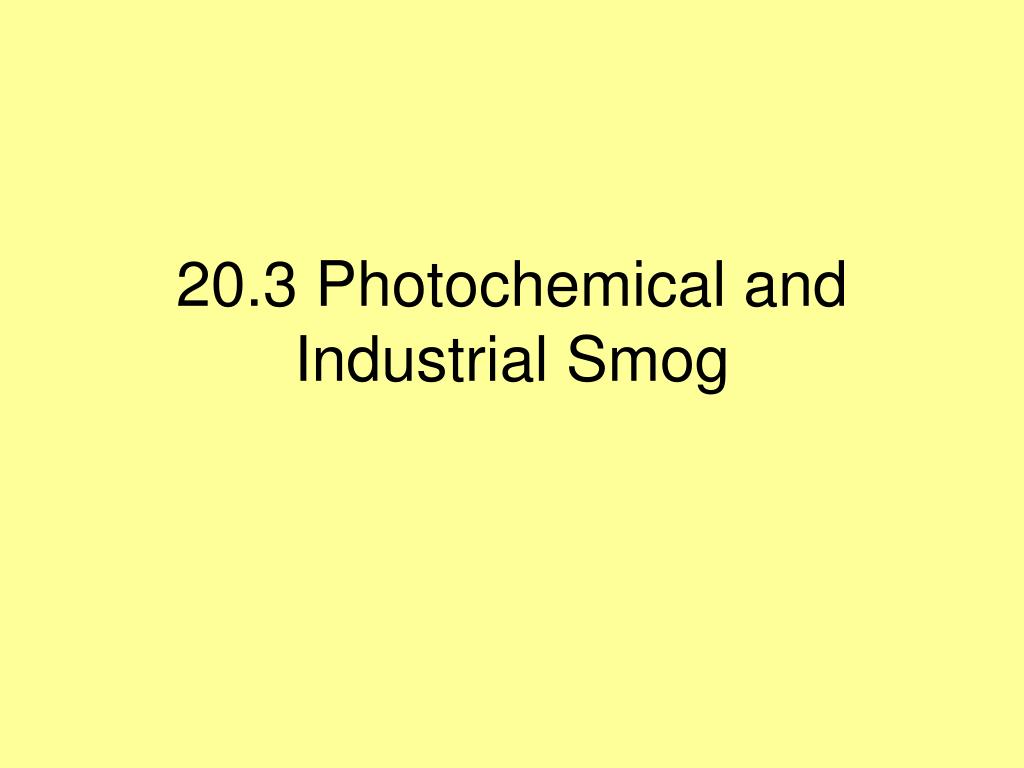

  17. 20.3 Photochemical and Industrial Smog

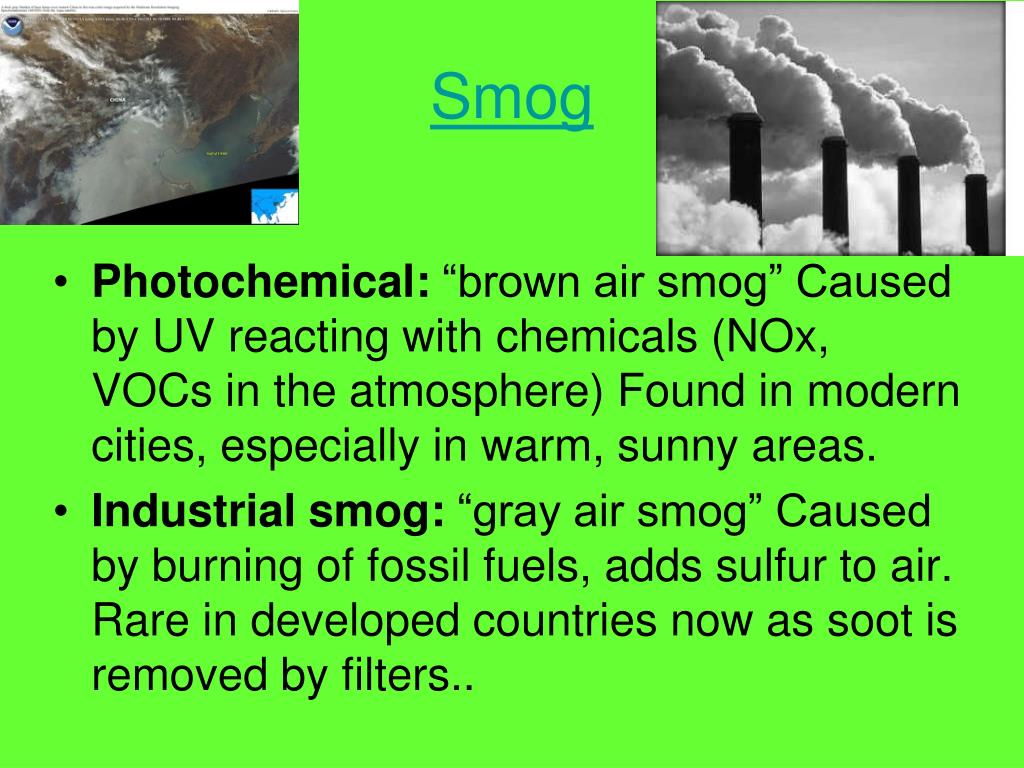

  18. Smog • Photochemical: “brown air smog” Caused by UV reacting with chemicals (NOx, VOCs in the atmosphere) Found in modern cities, especially in warm, sunny areas. • Industrial smog: “gray air smog” Caused by burning of fossil fuels, adds sulfur to air. Rare in developed countries now as soot is removed by filters..

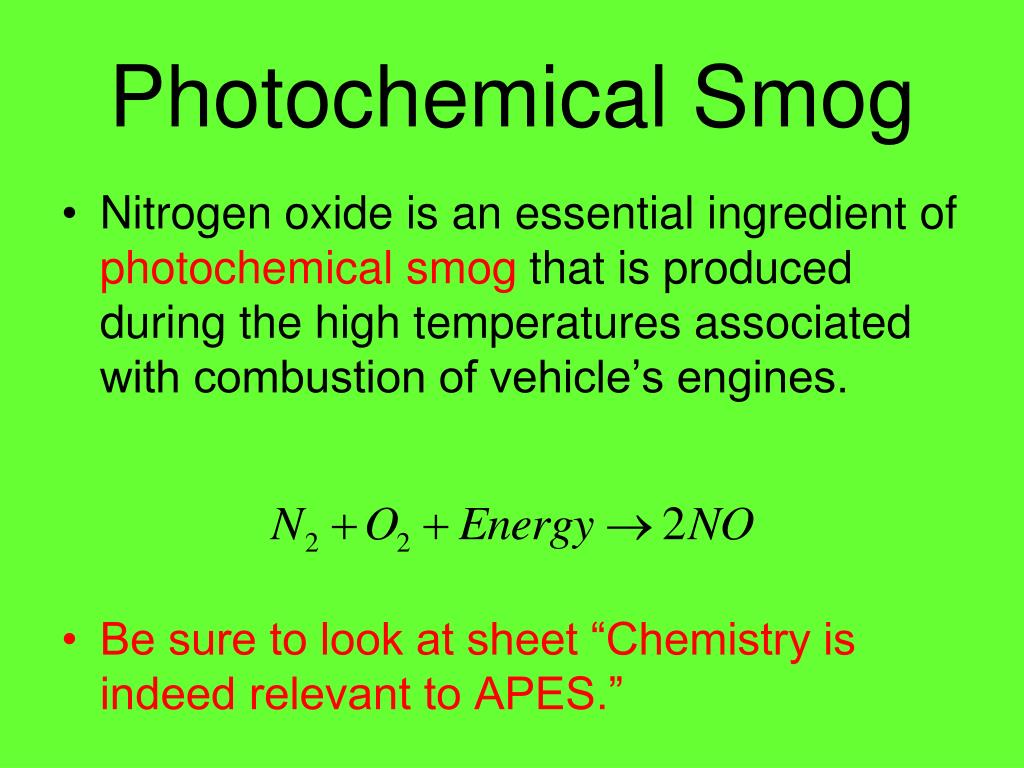

  19. Photochemical Smog • Nitrogen oxide is an essential ingredient of photochemical smog that is produced during the high temperatures associated with combustion of vehicle’s engines. • Be sure to look at sheet “Chemistry is indeed relevant to APES.”

  20. Initial reaction of nitrogen dioxide with sunlight

  21. Precipitation Salty sea spray Wind Reduce factory/car emissions Urban buildings Hills and mountains High temperatures “Grasshopper Effect” Factors in smog formation Decrease smog Increase smog

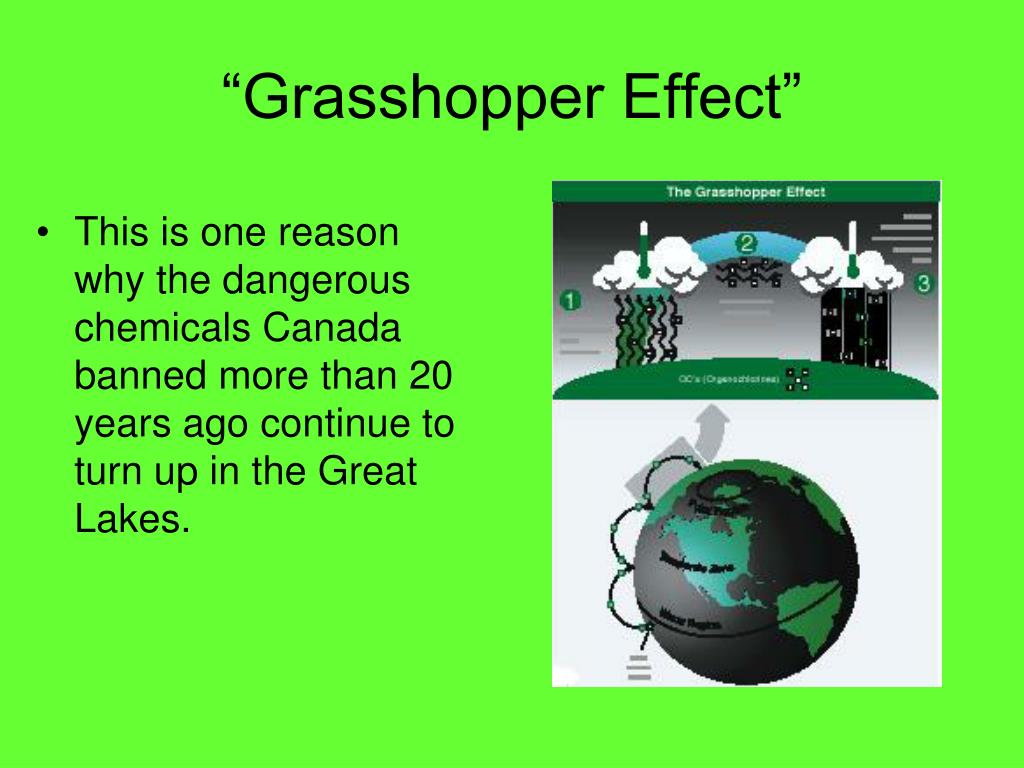

  22. “Grasshopper Effect” • This is one reason why the dangerous chemicals Canada banned more than 20 years ago continue to turn up in the Great Lakes.

  23. View “Chemistry is indeed relevant to APES.” • See equation – reactants and products of photochemical smog on sheet. • Hydrocarbons (including VOC’s), carbon monoxide, and nitrogen oxides from vehicle exhausts are irradiated by sunlight in the presence of oxygen gas. • The resulting reactions produce a potentially dangerous mixture that include other NOx, ozone, and irritating organic compounds (VOC’s), as well as CO2 and H2O vapor

  24. That’s just smoke out your…….

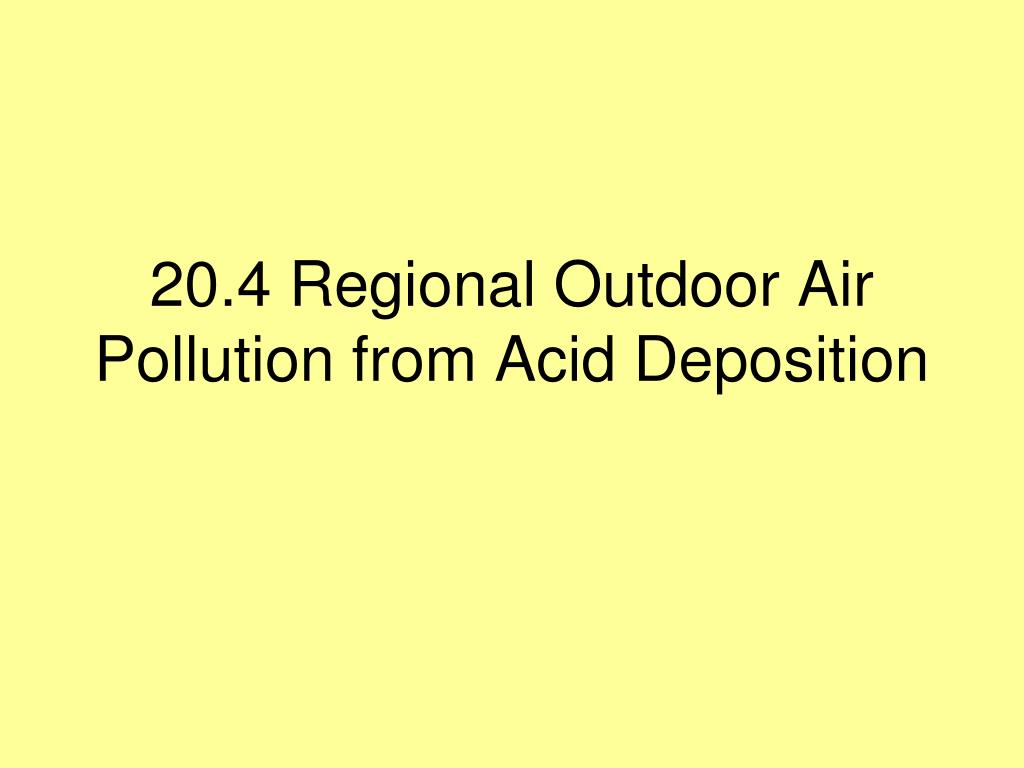

  25. 20.4 Regional Outdoor Air Pollution from Acid Deposition

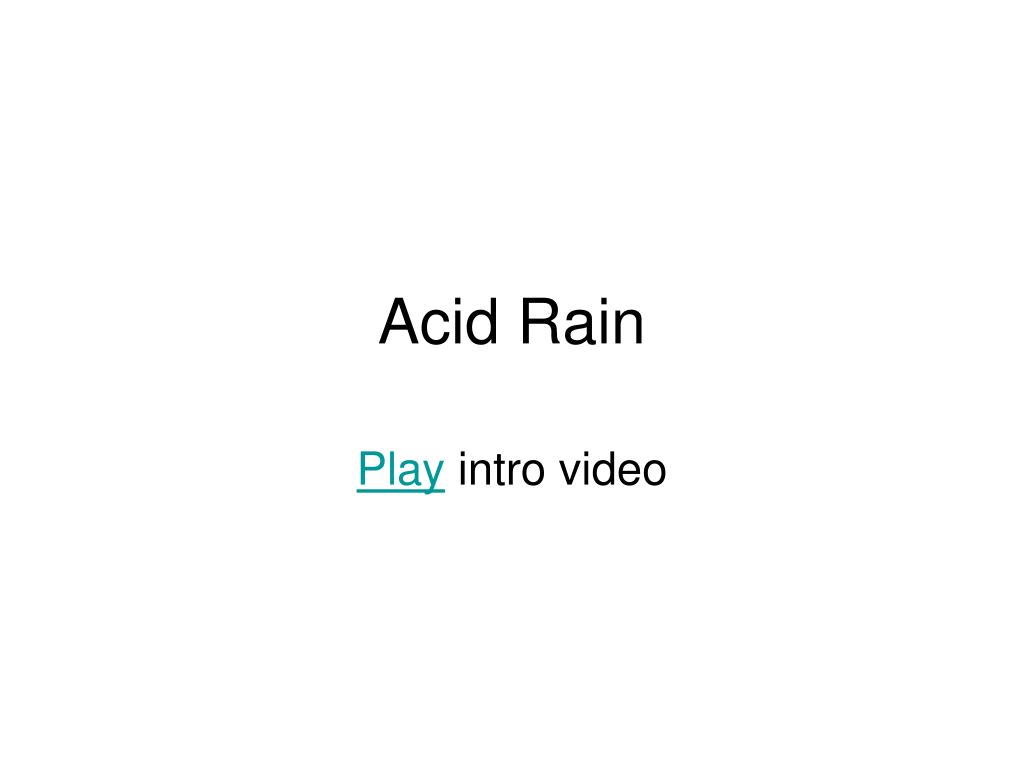

  26. Acid Rain Play intro video

  27. Chemistry and Acid Rain • The pH of rainwater is normally slightly acidic, at about 5.6, due mainly to reaction of carbon dioxide with water to form carbonic acid. Refer to “Chemistry is indeed relevant to APES.”

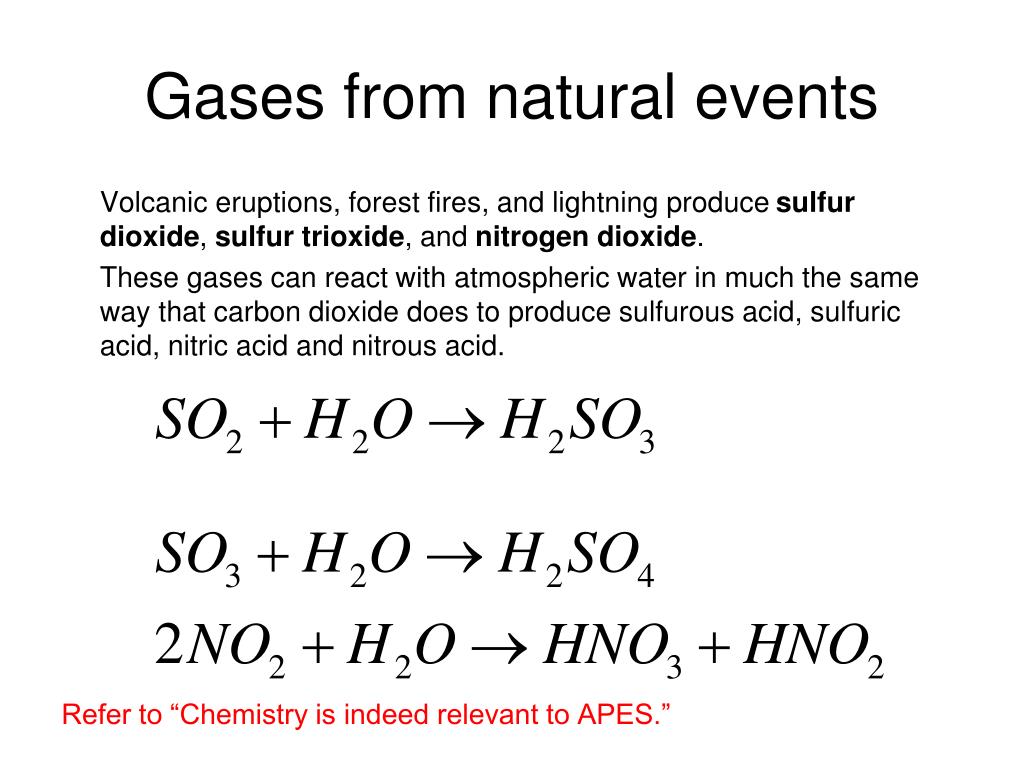

  28. Gases from natural events Volcanic eruptions, forest fires, and lightning produce sulfur dioxide, sulfur trioxide, and nitrogen dioxide. These gases can react with atmospheric water in much the same way that carbon dioxide does to produce sulfurous acid, sulfuric acid, nitric acid and nitrous acid. Refer to “Chemistry is indeed relevant to APES.”

  29. Acid Rain formation Wind Transformation to sulfuric acid (H2SO4) and nitric acid (HNO3) Windborne ammonia gas and particles of cultivated soil partially neutralize acids and form dry sulfate and nitrate salts Wet acid deposition (droplets of H2SO4 and HNO3 dissolved in rain and snow) Nitric oxide (NO) Dry acid deposition (sulfur dioxide gas and particles of sulfate and nitrate salts) Sulfur dioxide (SO2) and NO Acid fog Farm Lakes in shallow soil low in limestone become acidic Ocean Lakes in deep soil high in limestone are buffered

  30. Which location does sulfuric & nitric acids transform? Wind X Z Y Farm Ocean

  31. Identify the type of acid deposition at point Y Wind Transformation to sulfuric acid (H2SO4) and nitric acid (HNO3) Z Y Farm Ocean

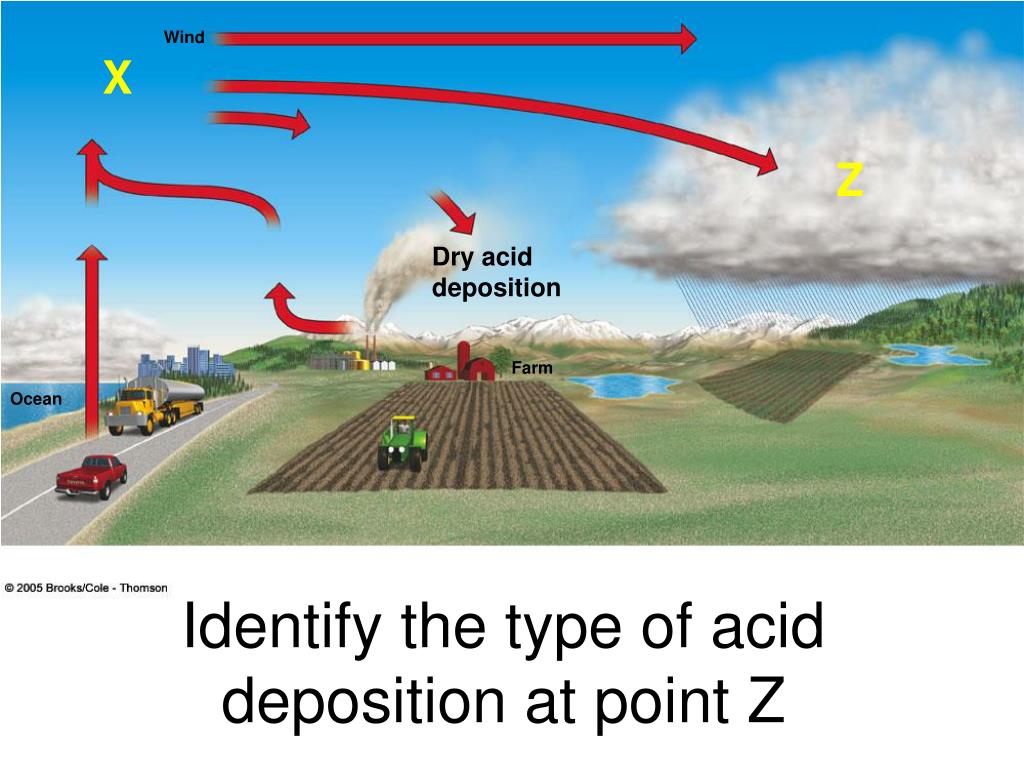

  32. Identify the type of acid deposition at point Z Wind X Z Dry acid deposition Farm Ocean

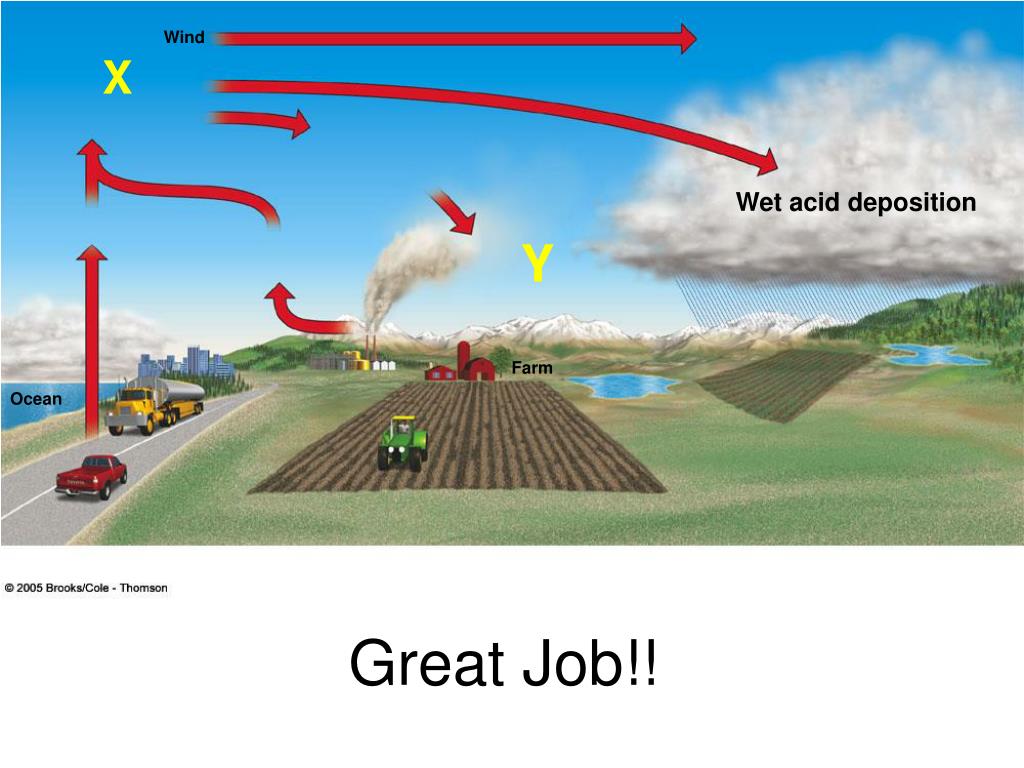

  33. Great Job!! Wind X Wet acid deposition Y Farm Ocean

  34. Which chemicals lower the pH of rain? 2 – SO4 NO3 – Primary Pollutants CO CO2 Secondary Pollutants SO2 NO NO2 SO3 Most hydrocarbons HNO3 H2SO4 Most suspended particles H2O2 O3 PANs Most and salts Sources Natural Stationary Mobile

  35. Secondary Pollutants in RED 2 – SO4 NO3 – Primary Pollutants CO CO2 Secondary Pollutants SO2 NO NO2 SO3 Most hydrocarbons HNO3 H2SO4 Most suspended particles H2O2 O3 PANs Most and salts Sources Natural Stationary Mobile

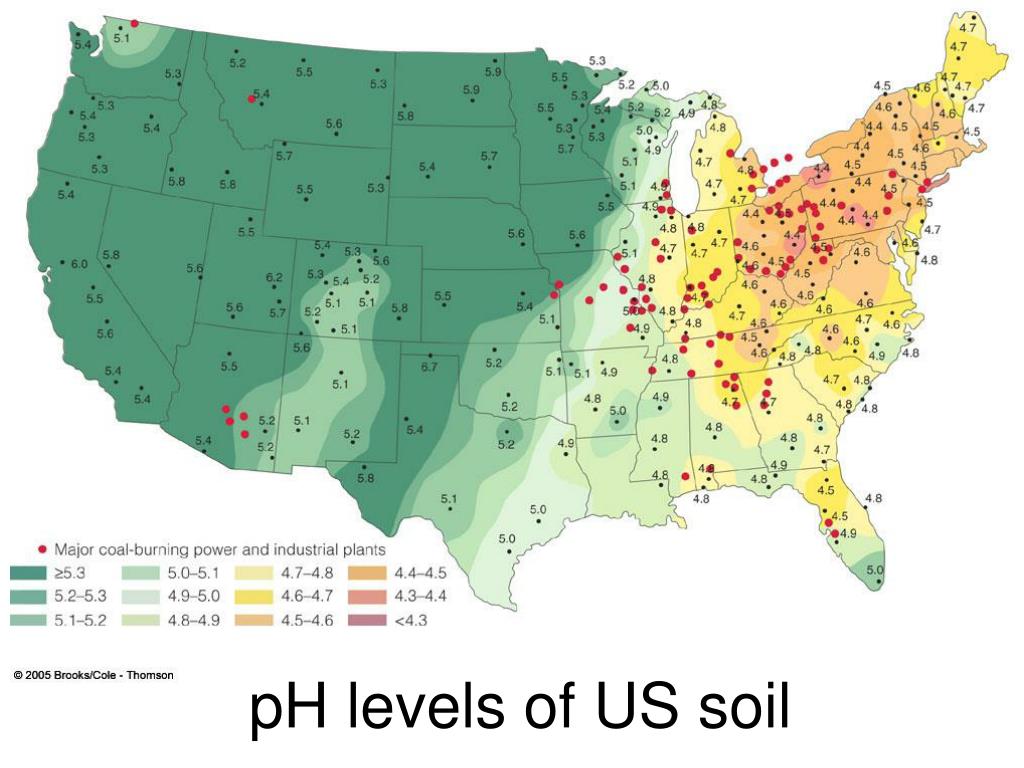

  36. pH levels of US soil

  37. Effects of Acid Rain • Decrease soil pH (more acidic) • Decrease pH of rivers, lakes, ponds, etc • Fish kills • Lung/respiratory problems • Degrade metal pipes, leading to water pollution • Plants become susceptible to disease, parasites, etc

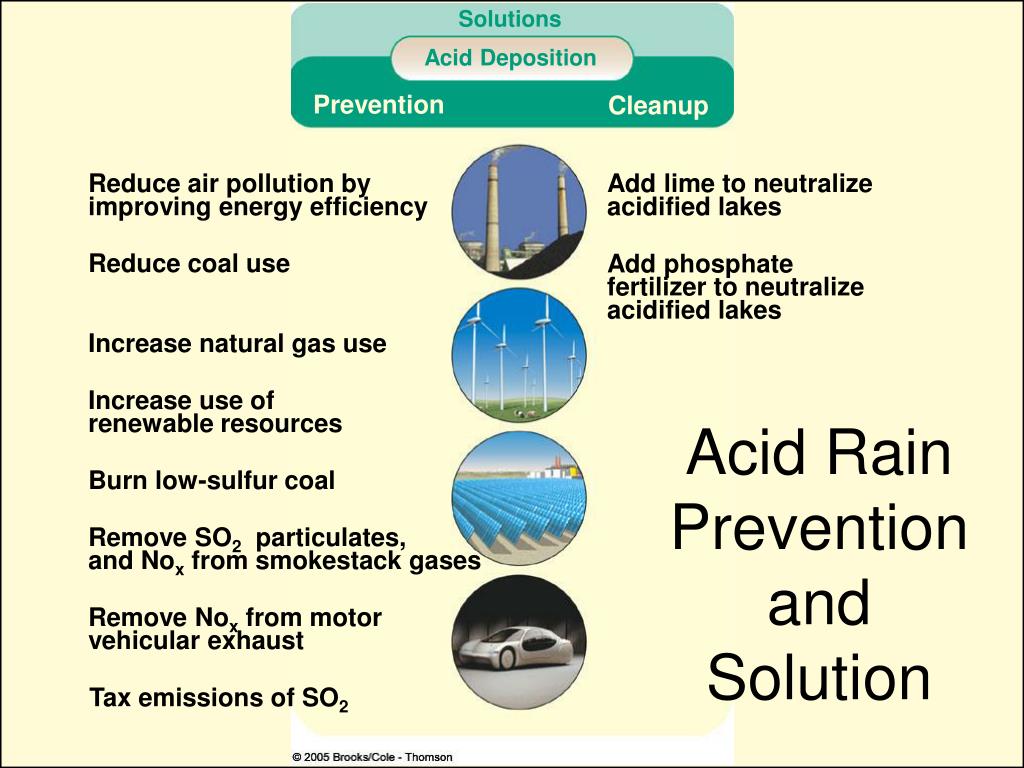

  38. Solutions Acid Rain Prevention and Solution Acid Deposition Prevention Cleanup Reduce air pollution by improving energy efficiency Add lime to neutralize acidified lakes Reduce coal use Add phosphate fertilizer to neutralize acidified lakes Increase natural gas use Increase use of renewable resources Burn low-sulfur coal Remove SO2 particulates, and Nox from smokestack gases Remove Nox from motor vehicular exhaust Tax emissions of SO2

  39. 20.5 Indoor Air Pollution

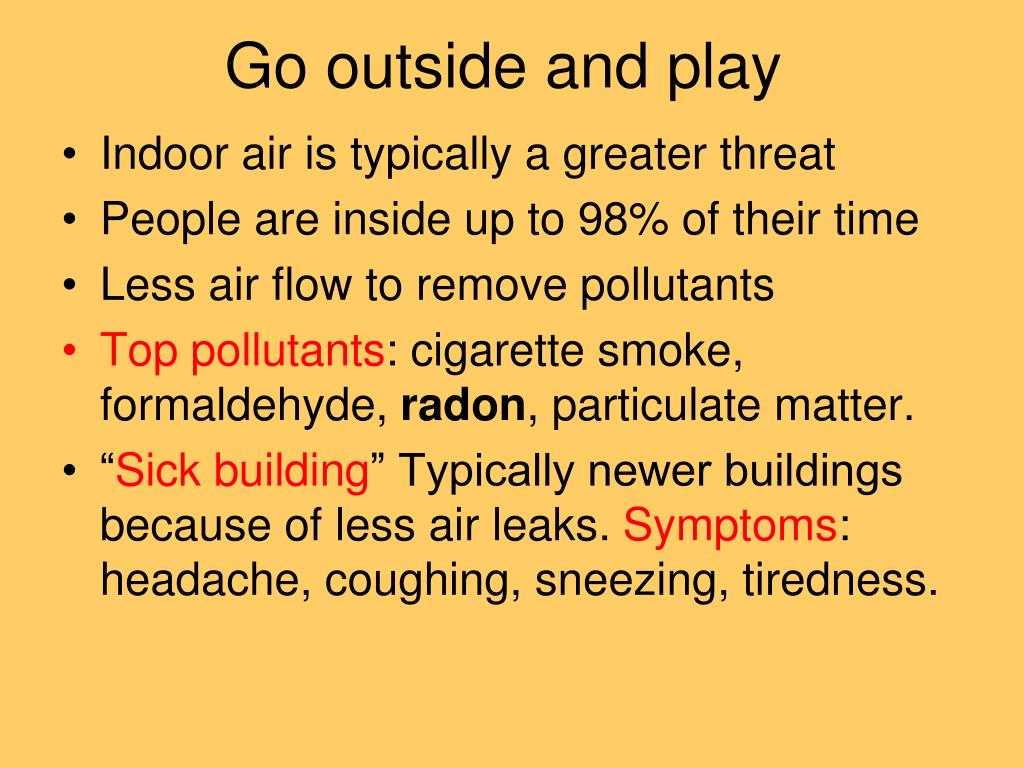

  40. Go outside and play • Indoor air is typically a greater threat • People are inside up to 98% of their time • Less air flow to remove pollutants • Top pollutants: cigarette smoke, formaldehyde, radon, particulate matter. • “Sick building” Typically newer buildings because of less air leaks. Symptoms: headache, coughing, sneezing, tiredness.

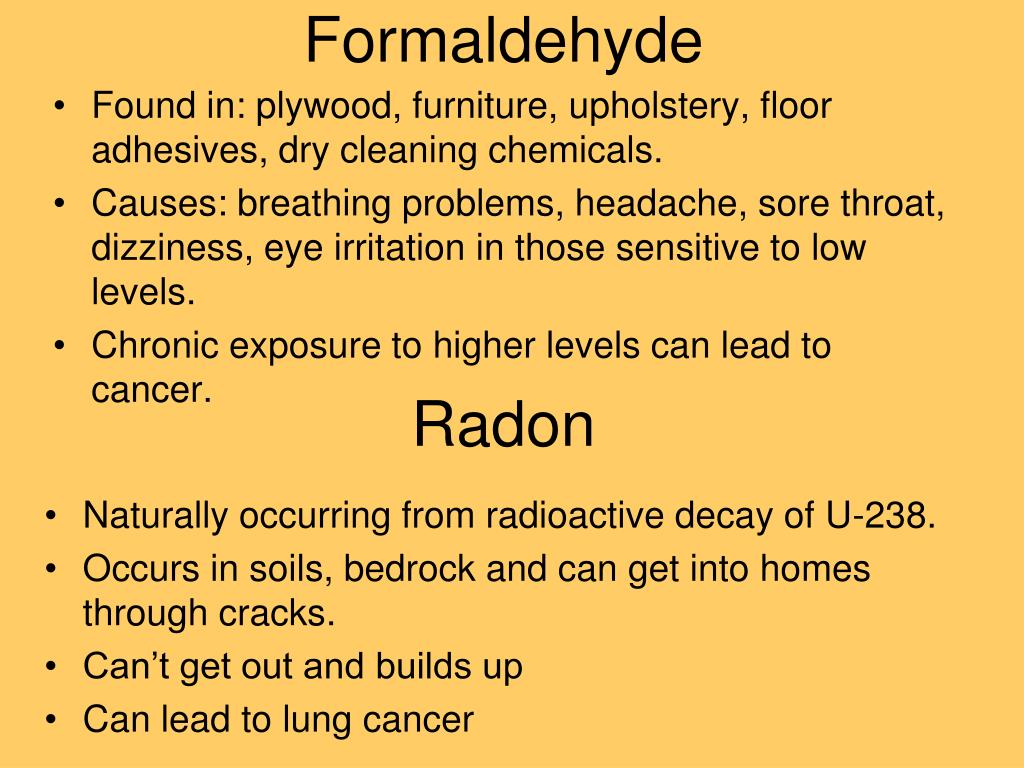

  41. Formaldehyde • Found in: plywood, furniture, upholstery, floor adhesives, dry cleaning chemicals. • Causes: breathing problems, headache, sore throat, dizziness, eye irritation in those sensitive to low levels. • Chronic exposure to higher levels can lead to cancer. Radon • Naturally occurring from radioactive decay of U-238. • Occurs in soils, bedrock and can get into homes through cracks. • Can’t get out and builds up • Can lead to lung cancer

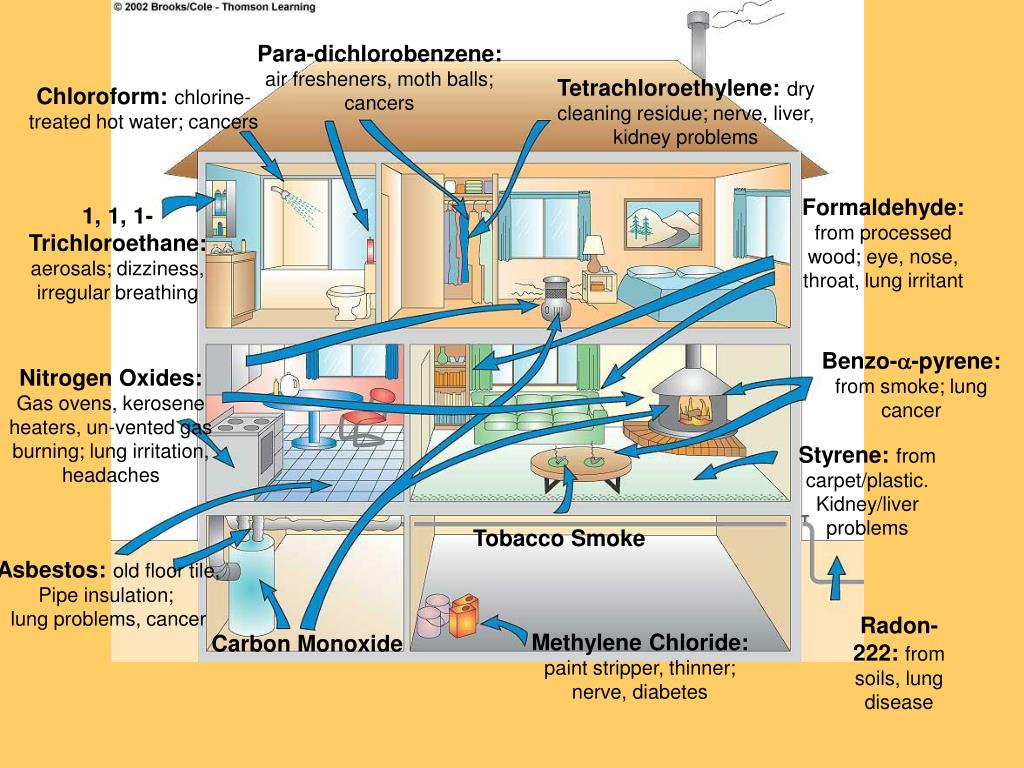

  42. Para-dichlorobenzene: air fresheners, moth balls; cancers Tetrachloroethylene: dry cleaning residue; nerve, liver, kidney problems Chloroform: chlorine-treated hot water; cancers Formaldehyde: from processed wood; eye, nose, throat, lung irritant 1, 1, 1- Trichloroethane: aerosals; dizziness, irregular breathing Benzo-a-pyrene: from smoke; lung cancer Nitrogen Oxides: Gas ovens, kerosene heaters, un-vented gas burning; lung irritation, headaches Styrene: from carpet/plastic. Kidney/liver problems Tobacco Smoke Asbestos: old floor tile, Pipe insulation; lung problems, cancer Radon-222: from soils, lung disease Methylene Chloride: paint stripper, thinner; nerve, diabetes Carbon Monoxide

  43. Solutions Indoor Air Pollution Prevention Cleanup Cover ceiling tiles and lining of AC ducts to prevent release of mineral fibers Use adjustable fresh air vents for work spaces Increase intake of outside air Ban smoking or limit it to well-ventilated areas Change air more frequently Set stricter formaldehyde emissions standards for carpet, furniture, and building materials Circulate building’s air through rooftop greenhouses Prevent radon infiltration Use exhaust hoods for stoves and appliances burning natural gas Use office machines in well-ventilated areas Use less polluting substitutes for harmful cleaning agents, paints, and other products Install efficient chimneys for wood-burning stoves

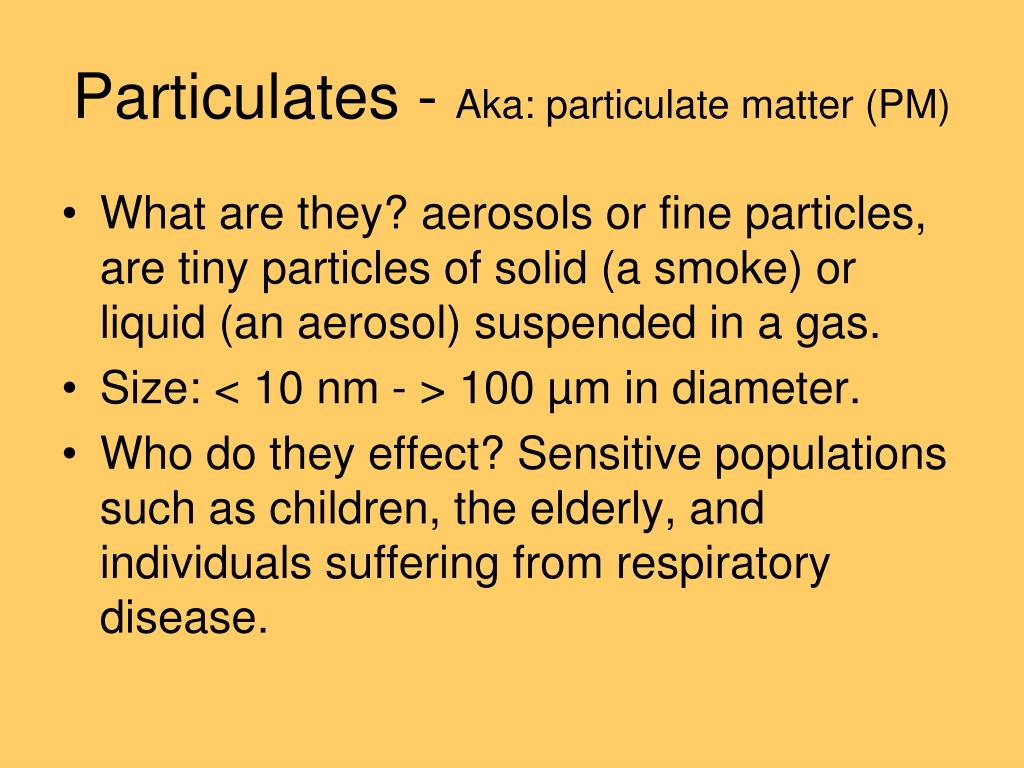

  44. Particulates - Aka: particulate matter (PM) • What are they? aerosols or fine particles, are tiny particles of solid (a smoke) or liquid (an aerosol) suspended in a gas. • Size: < 10 nm - > 100 µm in diameter. • Who do they effect? Sensitive populations such as children, the elderly, and individuals suffering from respiratory disease.

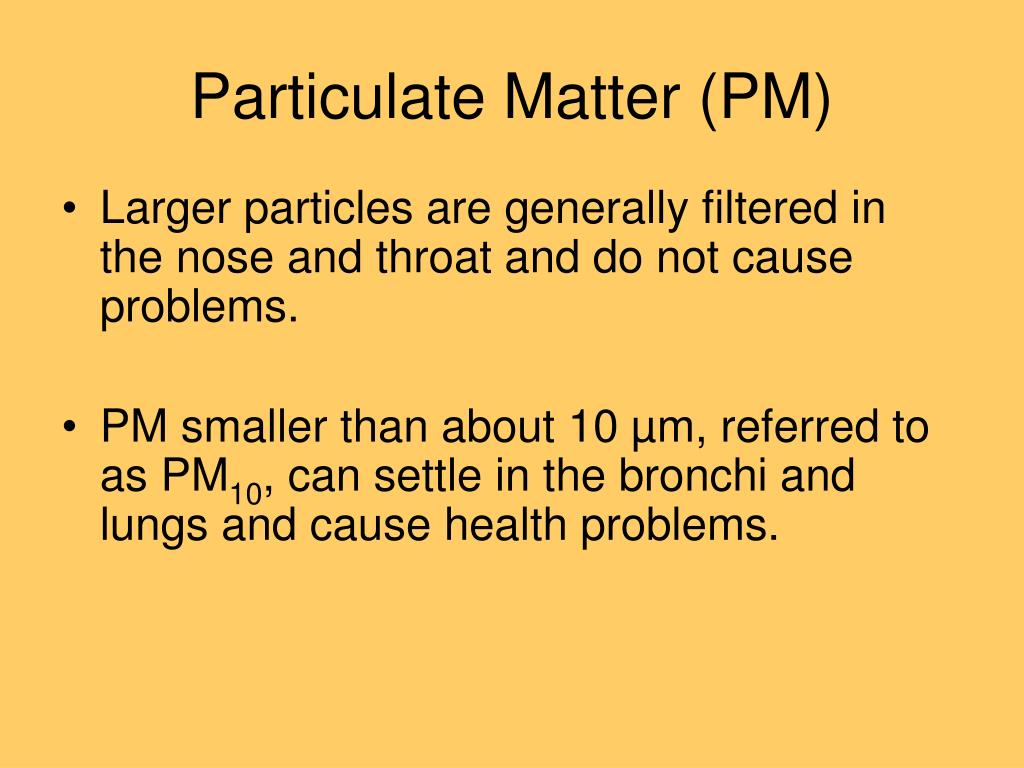

  45. Particulate Matter (PM) • Larger particles are generally filtered in the nose and throat and do not cause problems. • PM smaller than about 10 µm, referred to as PM10, can settle in the bronchi and lungs and cause health problems.

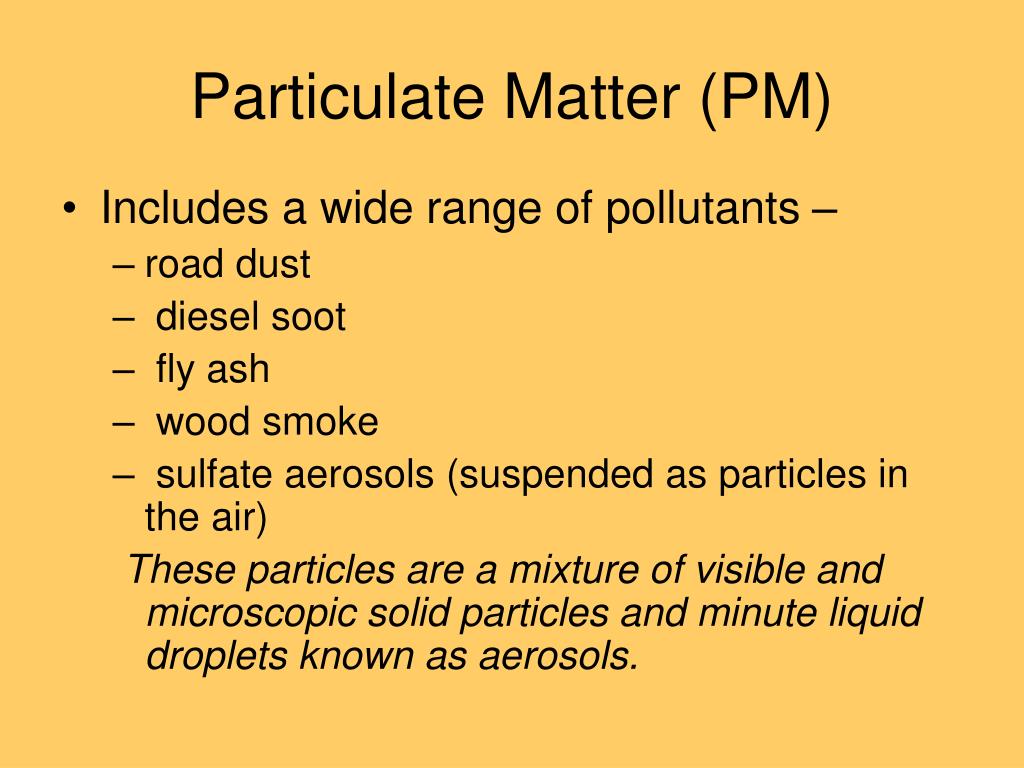

  46. Particulate Matter (PM) • Includes a wide range of pollutants – • road dust • diesel soot • fly ash • wood smoke • sulfate aerosols (suspended as particles in the air) These particles are a mixture of visible and microscopic solid particles and minute liquid droplets known as aerosols.

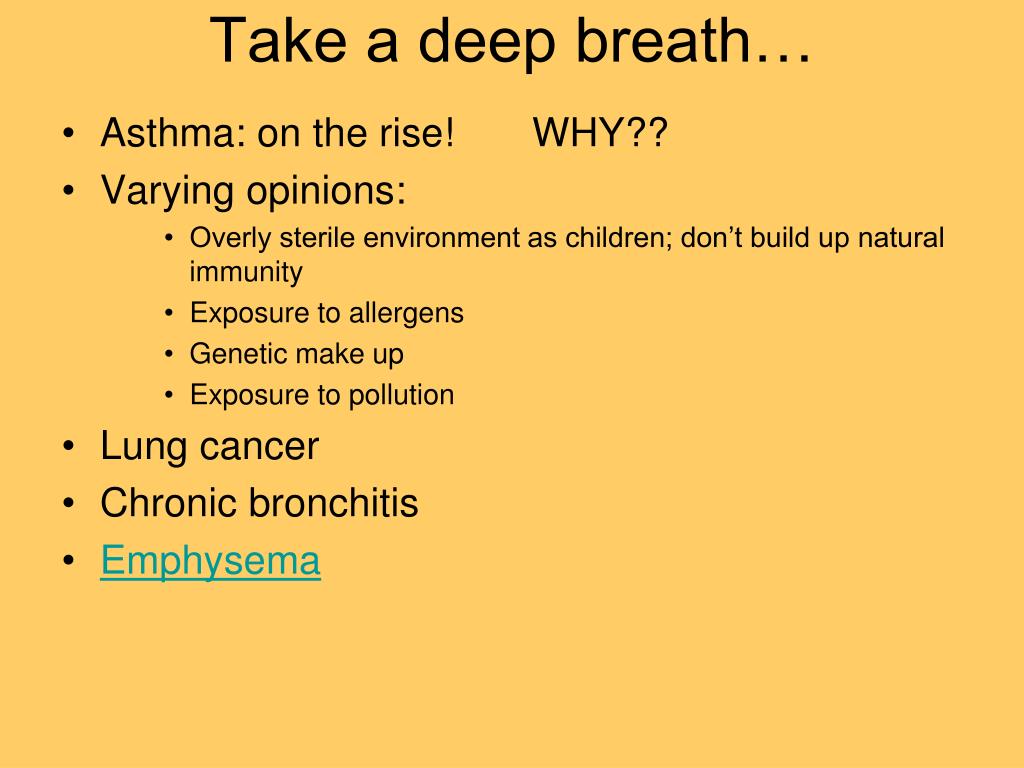

  47. Take a deep breath… • Asthma: on the rise! WHY?? • Varying opinions: • Overly sterile environment as children; don’t build up natural immunity • Exposure to allergens • Genetic make up • Exposure to pollution • Lung cancer • Chronic bronchitis • Emphysema

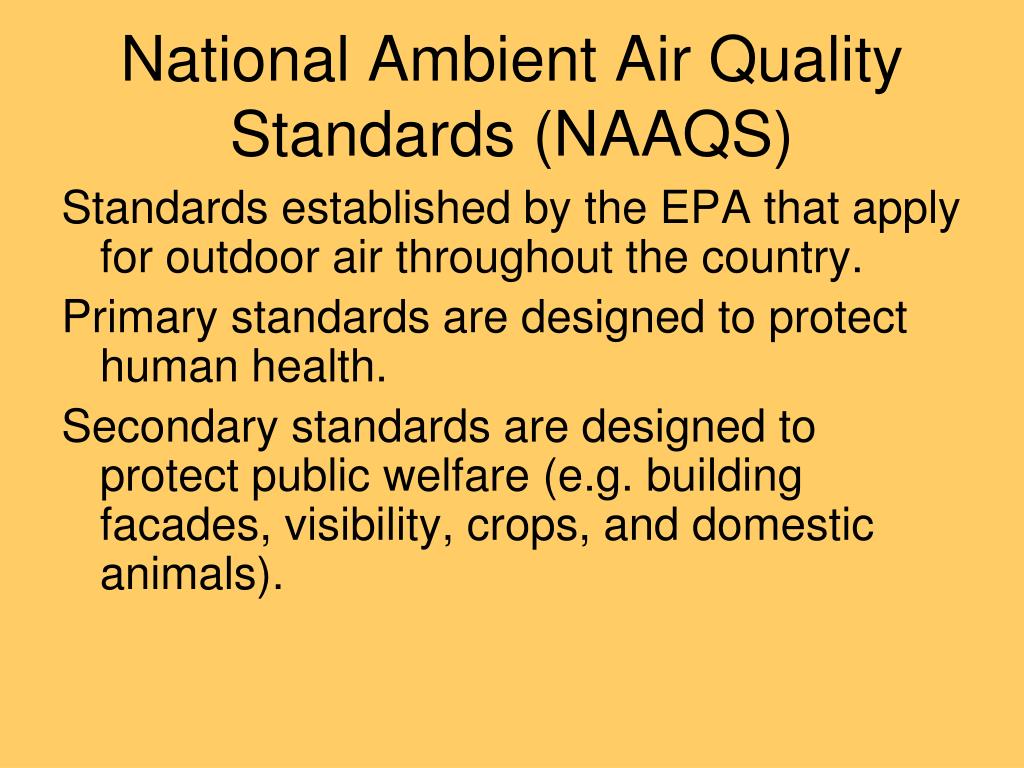

  48. National Ambient Air Quality Standards (NAAQS) Standards established by the EPA that apply for outdoor air throughout the country. Primary standards are designed to protect human health. Secondary standards are designed to protect public welfare (e.g. building facades, visibility, crops, and domestic animals).

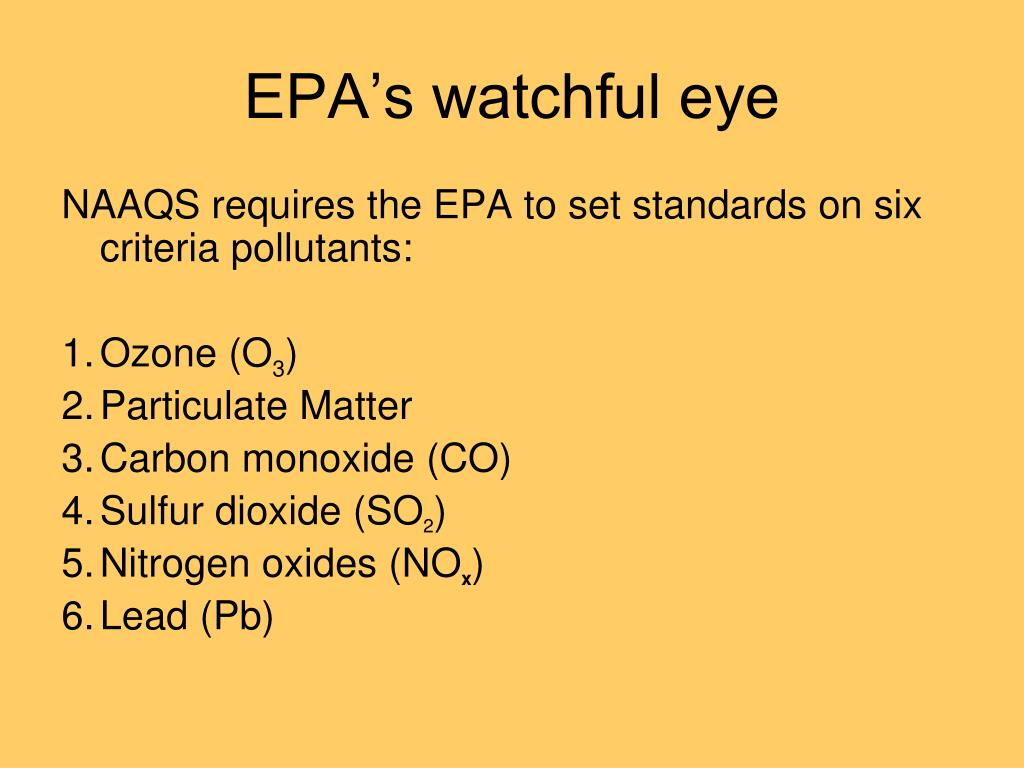

  49. EPA’s watchful eye NAAQS requires the EPA to set standards on six criteria pollutants: • Ozone (O3) • Particulate Matter • Carbon monoxide (CO) • Sulfur dioxide (SO2) • Nitrogen oxides (NOx) • Lead (Pb)

  50. Temperature Inversions (pg. 442)andHeat Islands (online activity)
