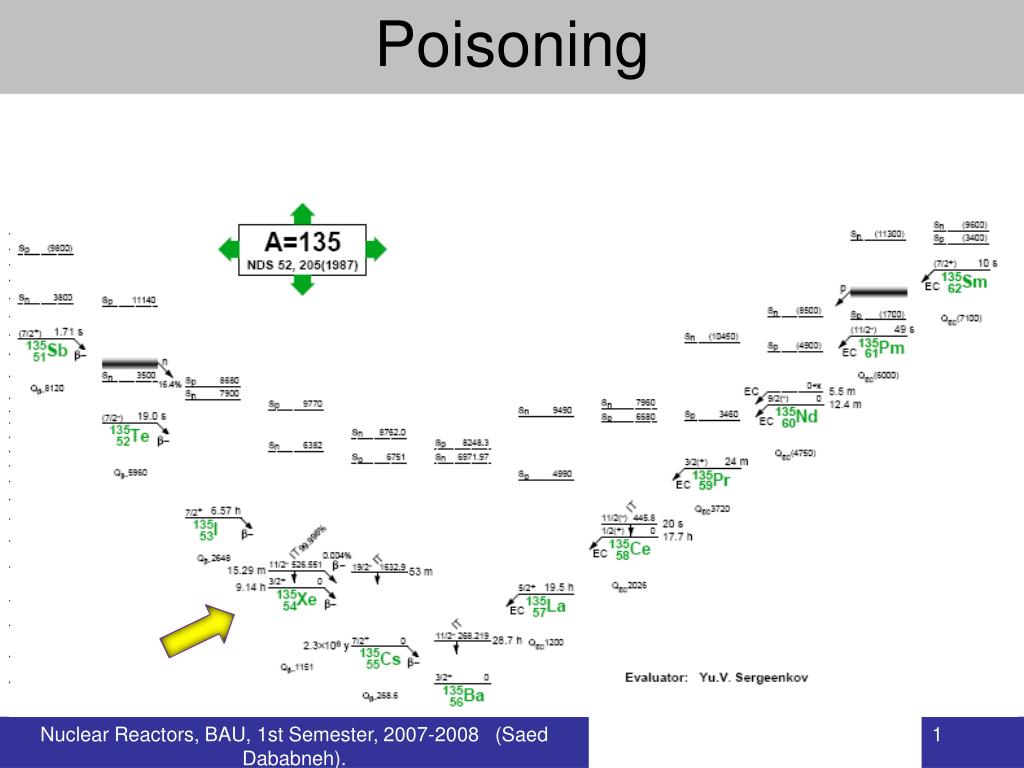

  1. Poisoning Nuclear Reactors, BAU, 1st Semester, 2007-2008 (Saed Dababneh).

  2. Poisoning Nuclear Reactors, BAU, 1st Semester, 2007-2008 (Saed Dababneh).

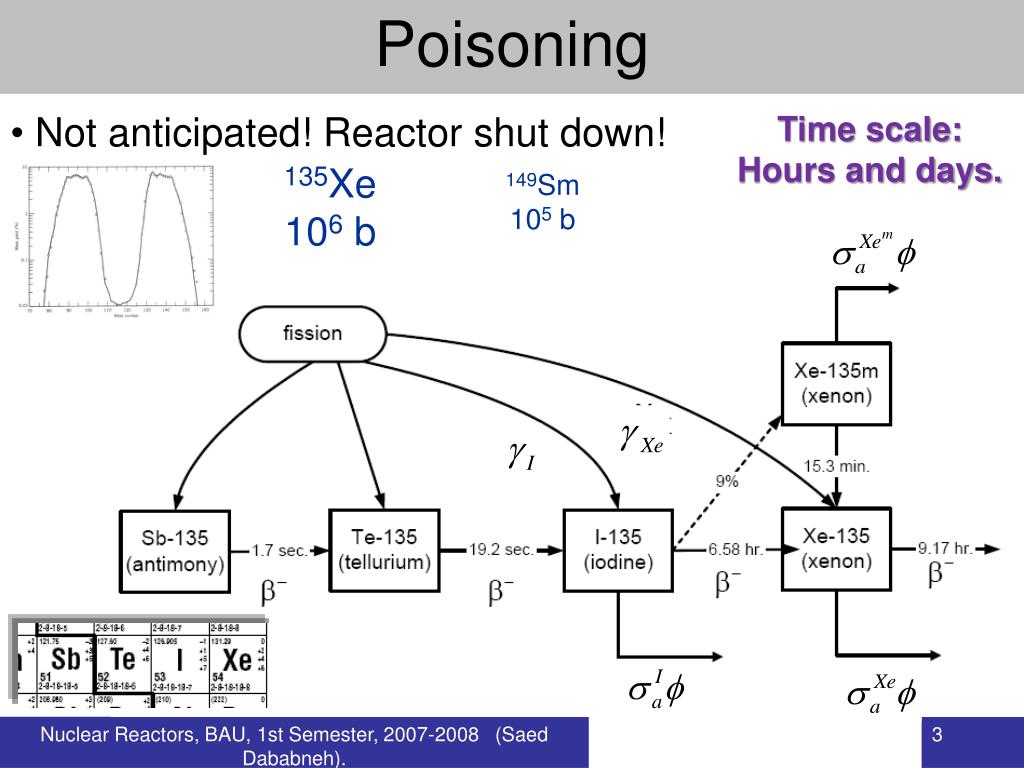

  3. Poisoning • Not anticipated! Reactor shut down! Time scale: Hours and days. 135Xe 106 b 149Sm 105 b Nuclear Reactors, BAU, 1st Semester, 2007-2008 (Saed Dababneh).

  4. Poisoning HW 28 Negative reactivity due to poison buildup. It is proportional to the amount of poison. Nuclear Reactors, BAU, 1st Semester, 2007-2008 (Saed Dababneh).

  5. Poisoning small • Initial conditions? • Clean Core Startup. • Shutdown (later). Assume no spacial dependence. Nuclear Reactors, BAU, 1st Semester, 2007-2008 (Saed Dababneh).

  6. Poisoning HW 29 Show that: and Nuclear Reactors, BAU, 1st Semester, 2007-2008 (Saed Dababneh).

  7. Poisoning • Now, we know Xe(t) Nuclear Reactors, BAU, 1st Semester, 2007-2008 (Saed Dababneh).

  8. Poisoning • Shutdown. After the reactor has been operating for a “long” time. Nuclear Reactors, BAU, 1st Semester, 2007-2008 (Saed Dababneh).

  9. Poisoning HW 30 Show that > 0 ? Height of the peak depends on I() and Xe(), i.e. depends on . Nuclear Reactors, BAU, 1st Semester, 2007-2008 (Saed Dababneh).

  10. Poisoning Shutdown  Xe   negative  move control rods out  try to add positive reactivity  need to have enough reserve  costly to do that. If, the available excess reactivity can compensate for less than 30 minutes of poison buildup, can’t startup again after ~30 minutes of shutdown, because you can’t achieve criticality. Need to wait some 40 hours (in this case) for Xe to decay down. Nuclear Reactors, BAU, 1st Semester, 2007-2008 (Saed Dababneh).

  11. Poisoning Nuclear Reactors, BAU, 1st Semester, 2007-2008 (Saed Dababneh).

  12. Poisoning • Strategies • If you plan to shut down for “short maintenance”, think about stepback. • Examine different scenarios using this code from • http://www.nuceng.ca/ • Prepare your own report, code, calculations, graphs, comments, conclusions etc….. • Be creative and use whatever experience you gained during your study in this program. 20% (10 marks) of the final exam. Nuclear Reactors, BAU, 1st Semester, 2007-2008 (Saed Dababneh).

  13. Poisoning • Xe Oscillations • (r,t) (spacial dependence)  flux  locally Xe burnup    (reactivity)   flux further   control rods globally in  flux  elsewhere Xe burnup   ….. Xe oscillation but limited by opposite effect due to increase (decrease) of I in the high (low) flux region. • In large reactors (compared to neutron diffusion length) local flux, power and temperature could reach unacceptable values for certain materials  safety issues. • Think of one sensor and one control rod  feel average flux  apparently OK  more sensors and control rods to locate and deal with local changes. Nuclear Reactors, BAU, 1st Semester, 2007-2008 (Saed Dababneh).

  14. Poisoning • Permanent Poisons • 149Sm has sizeable but lower cross section than 135Xe. • It does not decay. • Start from fresh fuel: • Thus: Nuclear Reactors, BAU, 1st Semester, 2007-2008 (Saed Dababneh).

  15. Your Thesis Proposal !! Nuclear Reactors, BAU, 1st Semester, 2007-2008 (Saed Dababneh).
