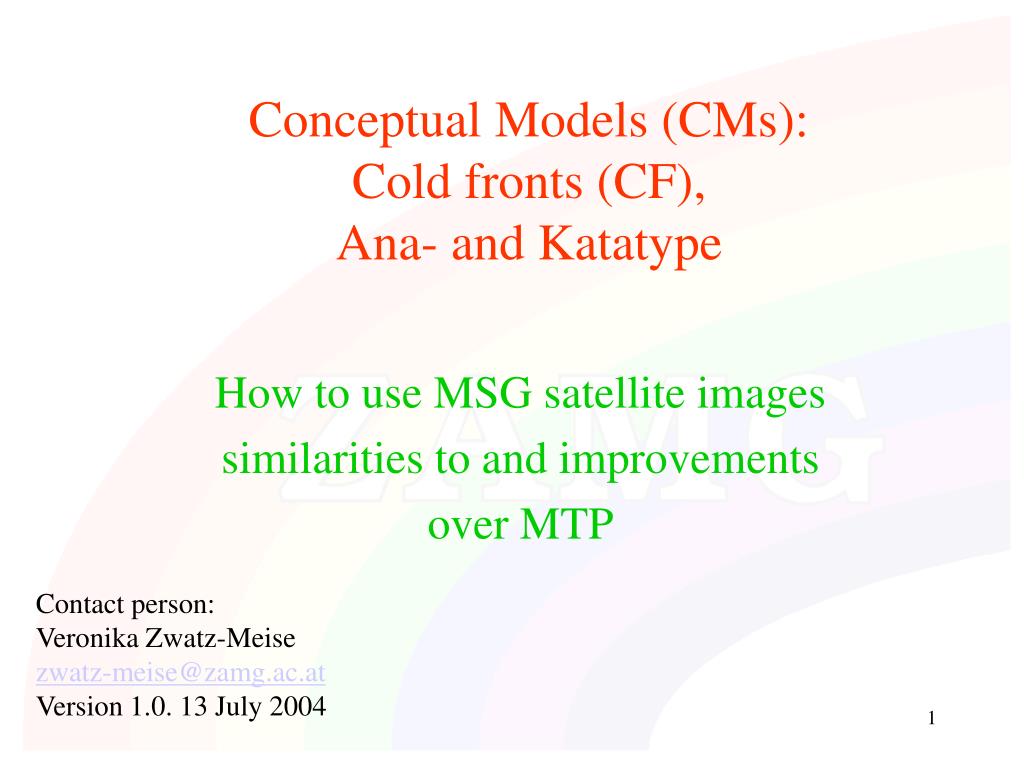

Conceptual Models (CMs):Cold fronts (CF), Ana- and Katatype How to use MSG satellite images similarities to and improvements over MTP Contact person: Veronika Zwatz-Meise zwatz-meise@zamg.ac.at Version 1.0. 13 July 2004
CMs:Cold Fronts (Ana-and Katatype) • MTP channels in comparison with the corresponding MSG channels • CM Cold Fronts: IR image + relevant NWP parameters • MSG additional channels + Channel combinations • (WV and WV difference images)
CM: Cold Fronts • Typical Anacoldfront
MTP: ir CF As the image time between MTP and MSG differs, a shift between the cloud systems can be noticed in the two images
MSG: Ch09 CF White: cold cloud tops Grey: warm cloud tops Sharper contours through improved space resolution

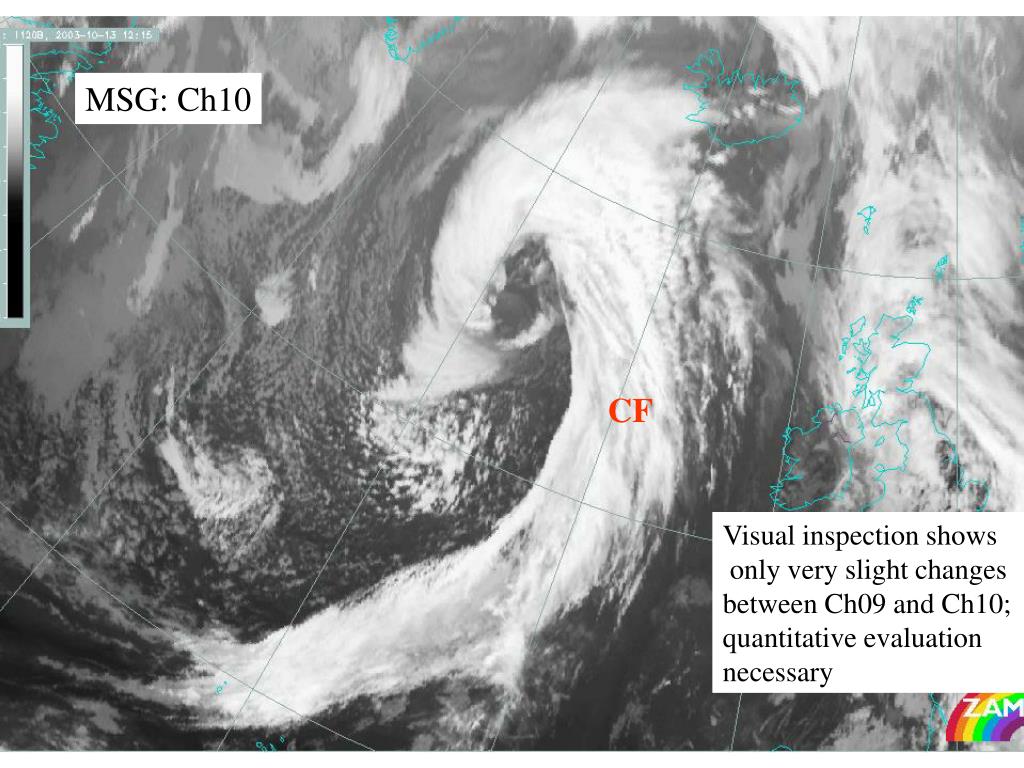

MSG: Ch10 CF Visual inspection shows only very slight changes between Ch09 and Ch10; quantitative evaluation necessary
MTP: vis CF
Looks relatively similar; but: somewhat coarser space resolution MSG: Ch01 CF Grey: transparent White: high albedo
Compared to Ch01: no strong differences in the cloud features over the ocean; but: much better land recognition MSG: Ch02 CF
Sharper contours and more detailed grey-shades through improved space resolution in IR and additional information from 2 different VIS channels MSG:129 CF blue: high White/grey/blue: multilevel
CM: Cold Fronts • Typical Katacoldfront

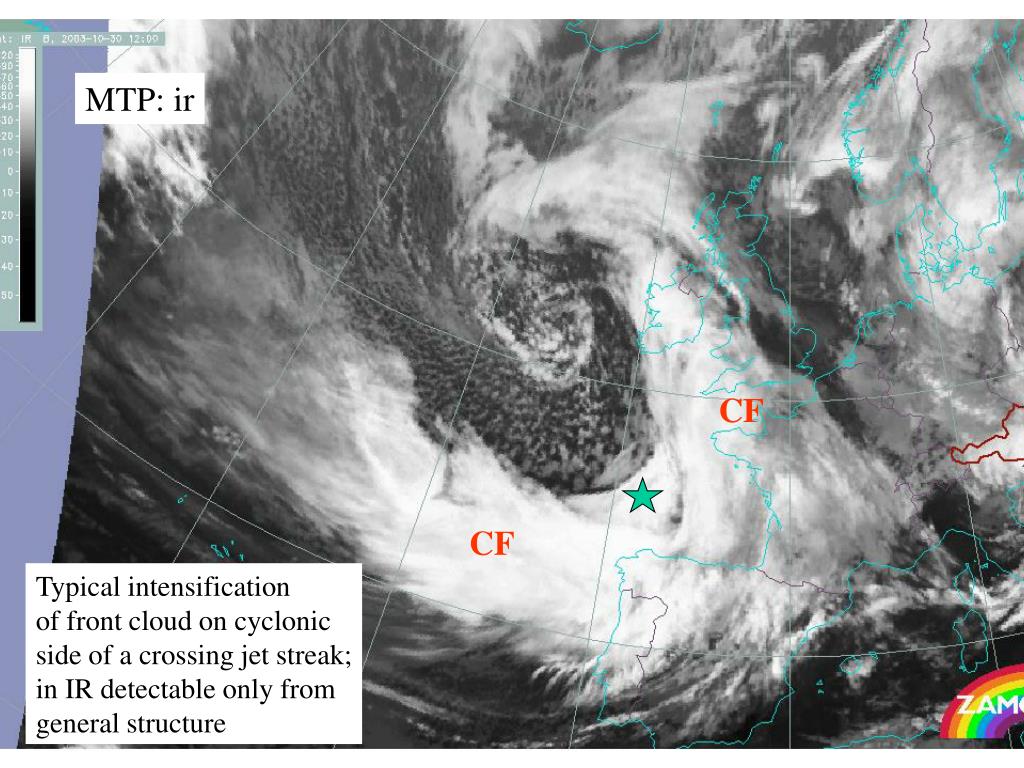

MTP: ir CF CF Typical intensification of front cloud on cyclonic side of a crossing jet streak; in IR detectable only from general structure
Typical intensification of front cloud on cyclonic side of a crossing jet streak; in IR detectable only from general structure MSG: Ch09 CF CF Sharper contours through improved space resolution
Typical intensification of front cloud on cyclonic side of a crossing jet streak; in vis differentiation between thick and transparent cloud parts possible MTP: vis CF CF
Looks relatively similar; but: somewhat coarser space resolution MSG: Ch01 CF CF Typical intensification of front cloud on cyclonic side of a crossing jet streak; in vis differentiation between thick and transparent cloud parts possible
Compared to Ch01: no strong differences in the cloud features over the ocean; but: much better land recognition MSG: Ch02 CF CF Typical intensification of front cloud on cyclonic side of a crossing jet streak; in vis differentiation between thick and transparent cloud parts possible
Typical intensification of front cloud on cyclonic side of a crossing jet streak; blue: high cloud on anticyclonic jet side grey: thick cloud parts MTP:VIS(2x)+IR CF CF
Sharper contours and more detailed grey-shades through improved space resolution in IR and additional information from 2 different VIS channels MSG:129 CF Typical intensification of front cloud on cyclonic side of a crossing jet streak; blue: high cloud on anticyclonic jet side grey: thick cloud parts line of lower cloud cells discernable CF
Typical intensification of front cloud on cyclonic side of a crossing jet streak; jet axis through dark stripe well recognisable MTP: wv CF CF
Typical intensification of front cloud on cyclonic side of a crossing jet streak; jet axis through dark stripe well recognisable MSG: Ch05 CF CF
Ch06: Signals from much lower down in tropopshere; black stripe crossing frontal cloud band less good but still recognisable MSG: Ch06 CF CF Typical intensification of front cloud on cyclonic side of a crossing jet streak;
CMs:Coldfronts(Ana- and Katatype) • MTP channels in comparison with the corresponding MSG channels • CM Coldfronts: IR image + relevant NWP parameters • MSG additional channels + Channel combinations • (WV and WV difference images)
CM: Cold Fronts • Typical Anacoldfront
Thickness (green)+ TFP (blue) High gradient of thickness at rearward edge of frontal cloud band; TFP close to the leading edge of the frontal cloud band
Thickness (green) + TA (red) CA Zeroline of TA close to rearward edge of frontal cloud band; CA at 700 within biggest part of frontal cloud
Isotachs 300 Jetaxis and jet streak along rearward side of frontal cloud band
MSG: Ch05 zeroline of shear vort 300 (yellow) Zeroline of shear vorticity 300 (jetaxis) fits to transition from wet to dry
MSG: Ch06 zeroline of shear vort 300 (yellow) Zeroline of shear vorticity 300 (jetaxis) fits to transition from wet to dry;no tilt between Ch05 and 06 recognisable
MSG:139 zeroline of shear vort. 300 (black) Zeroline of shear vorticity 300 (jetaxis) fits to the margenta fibre at the rear of the cloud band; high cold tops consisting of ice
CM: Cold Fronts • Typical Katacoldfront
Thickness (green)+ TFP (blue) High thickness gradient and TFP close to rear side of frontal cloud band as well as in the intensification area;
TA (red) Main part of the frontal cloud band is under WA at 700
Isotachs (yellow) + PVA (red) at 300 PVA max A jet streak crosses the front at the N-S oriented part; the intensification area is under strong PVA in the left exit region of the jet streak
MSG: Ch09 zeroline of shear vort 300 (black) The jet axis (zeroline of shear vort. At 300) crosses the cloud band at the N-S oriented part
MSG: Ch05 zeroline of shear vort 300 (black) The jet axis (zeroline of shear vort. at 300) is close to the dark stripe in WV
MSG: Ch06 zeroline of shear vort 300 (black) The jet axis (zeroline of shear vort. at 300) is close to the dark stripe in WV; but: it is drier than in the upper WV channel; some tilt between Ch05 and Ch06
CMs:Coldfronts(Ana- and Katatype) • MTP channels in comparison with the corresponding MSG channels • CM Cold Fronts: IR image + relevant NWP parameters • MSG additional channels + Channel combinations • (WV and WV difference images)
CM: Cold Fronts • Typical Anacoldfront
MSG:129 For reasons of comparison with analoge RGBs fron NOAA the IR ch09 is inverted CF Yellow/grey/blue: multilayered; transparent cold cloud line at the rearward edge
MSG: Ch03 CF Ice clouds are superimposed on water clouds; line of ice clouds along rearward edge of frontal cloud band
MSG:321 CF Grey shades: from Vis channels Cyan: represents the ice clouds from Ch03: line of ice clouds along rearward edge of frontal cloud band
MSG:139: The IR ch09 is inverted CF Blue: cold transparent cloud Magenta: ice cloud line of ice cloud along rearward edge
MSG:139: The IR ch09 is not inverted but used as original radiation CF Brown: thin cold ice cloud Brown-red:thick, multilayered cloud Yellow: thick water cloud
MSG:134 CF Brown/orange: cold cloud top; ice cloud
CM: Cold Fronts • Typical Katacoldfront
MSG:129: For reasons of comparison with analoge RGBs fron NOAA the IR ch09 is inverted Yellow/grey/blue: multilayered; transparent cold cloud; thick cloud in the intensification area
MSG: Ch03 Ice clouds are superimposed on water clouds; intensification area consists of ice and water cloud
MSG: Ch03 Ice clouds are superimposed on water clouds; intensification area consists of ice and water cloud
Grey shades: from Vis channels Cyan: represents the ice clouds from Ch03: intensification area shows ice on top of water cloud MSG:321
