  1. WELCOME ! Presentation of Ultrasound Machine Converter Box

  2. CALIFORNIA ELECTRONICS SALES & SERVICES www.ph.california-electronics.com Cebu Office: Queen Street, Doña Maria Village II, Punta, Cebu City Tel: (032)261-7949, 239-8908 Mobile 0908-444-5683, 0943-403-2850 Manila Office: TandangSora Ext CorQuirino Hi-way Baesa, Quezon City, Metro Manila Tel: (02)866-5599 Mobile 0943-434-0193 Established: 2000

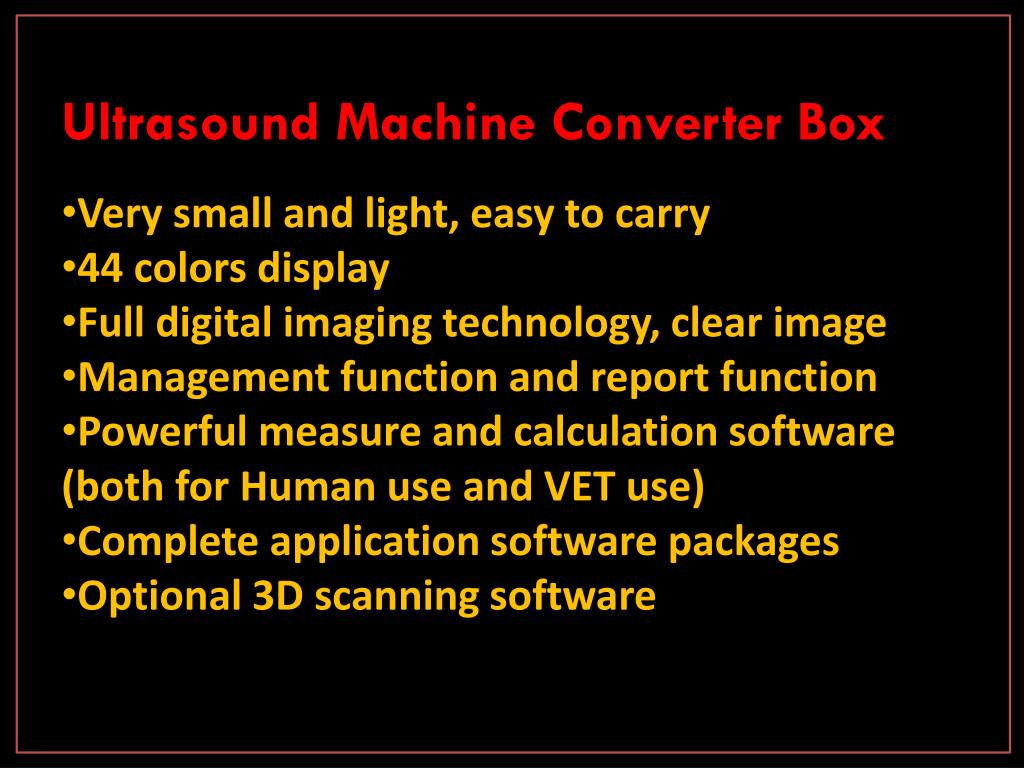

  3. Ultrasound Machine Converter Box • Very small and light, easy to carry • 44 colors display • Full digital imaging technology, clear image • Management function and report function • Powerful measure and calculation software (both for Human use and VET use) • Complete application software packages • Optional 3D scanning software

  4. PC based, powerful function such as information • Transform any Windows Laptop or PC into a Professional Color Ultrasound Scanner (for Human or Pets Use) • Use user’s computer, low cost to get ultrasound scanner

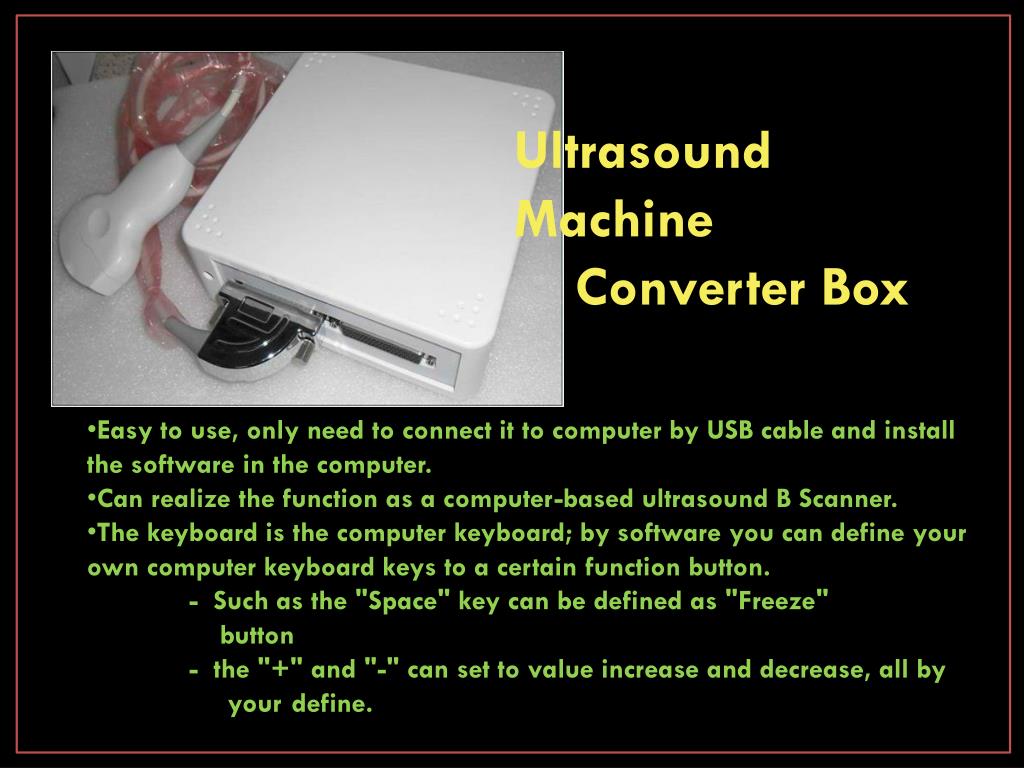

  5. Ultrasound Machine Converter Box • Easy to use, only need to connect it to computer by USB cable and install the software in the computer. • Can realize the function as a computer-based ultrasound B Scanner. • The keyboard is the computer keyboard; by software you can define your own computer keyboard keys to a certain function button. • - Such as the "Space" key can be defined as "Freeze" button • - the "+" and "-" can set to value increase and decrease, all by your define.

  6. * With complete application software packages * Broadband Multi-frequency probes * Full digital imaging technology, clear image * Large volume storage by computer hard disk or USB disk * Print by USB laser/inkjet printers * Pseudo-color printing with color video printer * Silica gel waterproof ultrasound keyboard (option) * Can work with external battery (option)

  7. Ultrasound Scanner Specifications: • Operation system: windows XP or windows 7 • D-Maximum Scanning Depth: max. 250mm • Multi-frequency: 5 segment frequencies • Zoom: 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0 • Image gray scale: 256 level gray scale • Cine Loop: max. 1024 frames • Scanning mode: • B, 2B, B/M, M, 4B, ZOOM • (Real-time zoom on B mode)

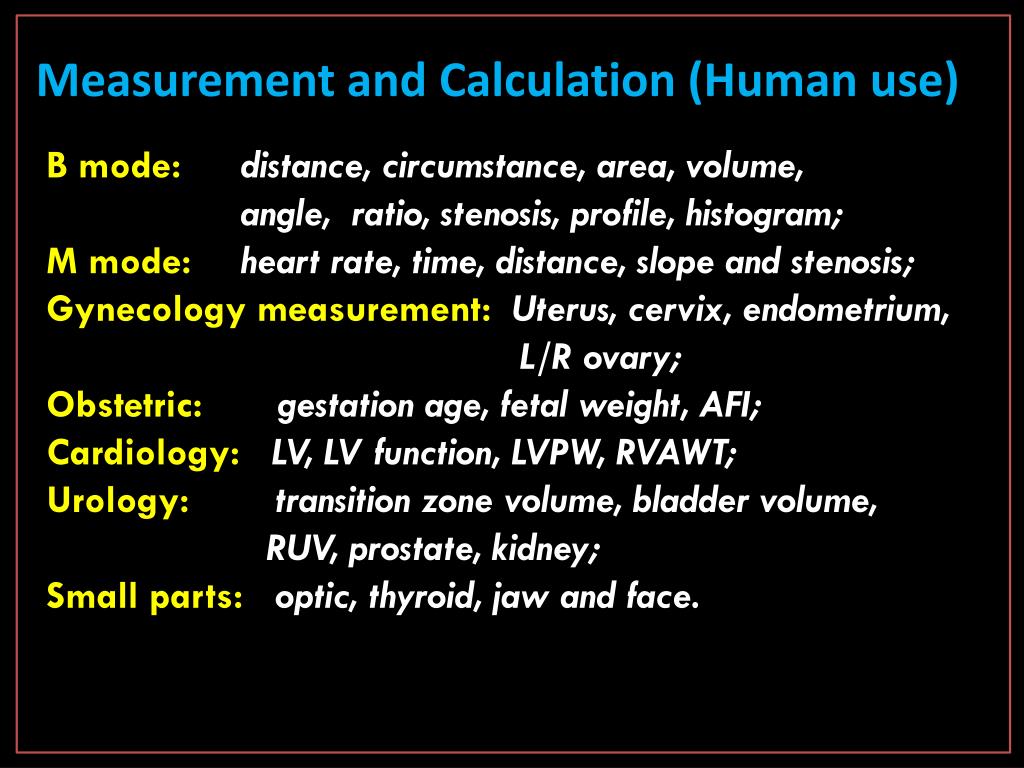

  8. Measurement and Calculation (Human use) B mode: distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram; M mode: heart rate, time, distance, slope and stenosis; Gynecology measurement: Uterus, cervix, endometrium, L/R ovary; Obstetric: gestation age, fetal weight, AFI; Cardiology: LV, LV function, LVPW, RVAWT; Urology: transition zone volume, bladder volume, RUV, prostate, kidney; Small parts: optic, thyroid, jaw and face.

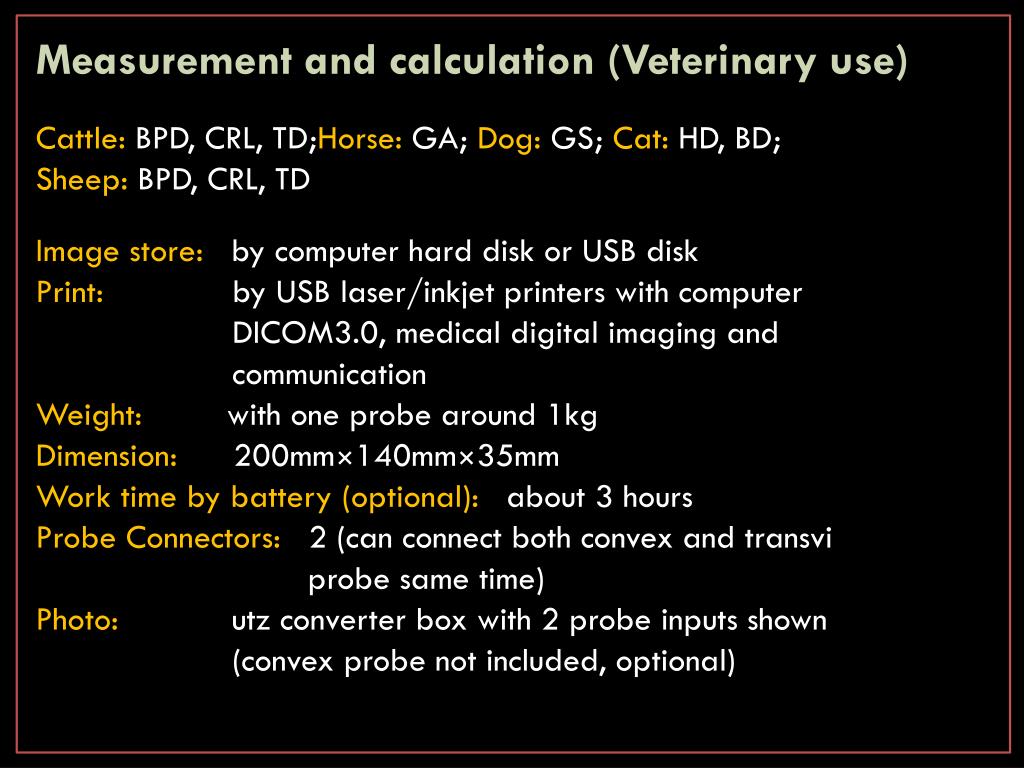

  9. Measurement and calculation (Veterinary use) Cattle: BPD, CRL, TD;Horse: GA; Dog: GS; Cat: HD, BD; Sheep: BPD, CRL, TD Image store: by computer hard disk or USB disk Print: by USB laser/inkjet printers with computer DICOM3.0, medical digital imaging and communication Weight: with one probe around 1kg Dimension: 200mm×140mm×35mm Work time by battery (optional): about 3 hours Probe Connectors: 2 (can connect both convex and transvi probe same time) Photo: utz converter box with 2 probe inputs shown (convex probe not included, optional)

  10. Package Contents: 1. Ultrasound Box 2. USB connection cable 3. Power adapter 4. CD with basic ultrasound software 5. English Manual

  11. Options: • Convex probe • Transvi probe • 3D software • Ultrasound Keyboard • External Battery
