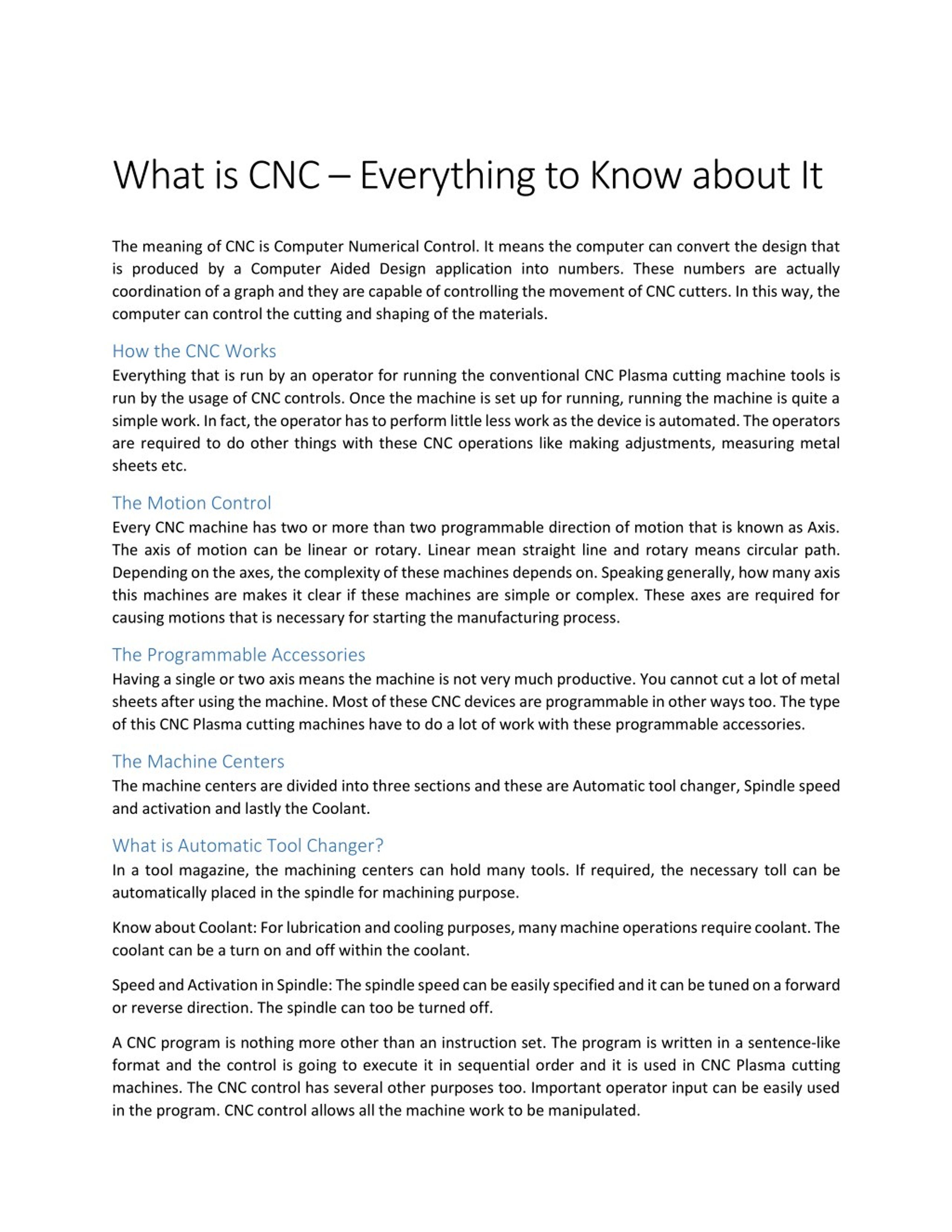

  1. What is CNC – Everything to Know about It The meaning of CNC is Computer Numerical Control. It means the computer can convert the design that is produced by a Computer Aided Design application into numbers. These numbers are actually coordination of a graph and they are capable of controlling the movement of CNC cutters. In this way, the computer can control the cutting and shaping of the materials. How the CNC Works Everything that is run by an operator for running the conventional CNC Plasma cutting machine tools is run by the usage of CNC controls. Once the machine is set up for running, running the machine is quite a simple work. In fact, the operator has to perform little less work as the device is automated. The operators are required to do other things with these CNC operations like making adjustments, measuring metal sheets etc. The Motion Control Every CNC machine has two or more than two programmable direction of motion that is known as Axis. The axis of motion can be linear or rotary. Linear mean straight line and rotary means circular path. Depending on the axes, the complexity of these machines depends on. Speaking generally, how many axis this machines are makes it clear if these machines are simple or complex. These axes are required for causing motions that is necessary for starting the manufacturing process. The Programmable Accessories Having a single or two axis means the machine is not very much productive. You cannot cut a lot of metal sheets after using the machine. Most of these CNC devices are programmable in other ways too. The type of this CNC Plasma cutting machines have to do a lot of work with these programmable accessories. The Machine Centers The machine centers are divided into three sections and these are Automatic tool changer, Spindle speed and activation and lastly the Coolant. What is Automatic Tool Changer? In a tool magazine, the machining centers can hold many tools. If required, the necessary toll can be automatically placed in the spindle for machining purpose. Know about Coolant: For lubrication and cooling purposes, many machine operations require coolant. The coolant can be a turn on and off within the coolant. Speed and Activation in Spindle: The spindle speed can be easily specified and it can be tuned on a forward or reverse direction. The spindle can too be turned off. A CNC program is nothing more other than an instruction set. The program is written in a sentence-like format and the control is going to execute it in sequential order and it is used in CNC Plasma cutting machines. The CNC control has several other purposes too. Important operator input can be easily used in the program. CNC control allows all the machine work to be manipulated.

  2. CNC Machines use machine ready CNC designs for the laser cutting. The DXF files from the CAD program with right G-Code is sent to the CNC machine for the laser cutting.
