Photosynthesis

http://www.youtube.com/watch?v=pdgkuT12e14. Photosynthesis. Energy Visible light. Cellular Respiration. Photosynthesis. C 6 H 12 O 6 + 6O 2 6CO 2 + 6H 2 O. 6CO 2 + 6H 2 O C 6 H 12 O 6 + 6O 2. Photosynthesis.

stephanie-ellison
Download Presentation

Photosynthesis

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

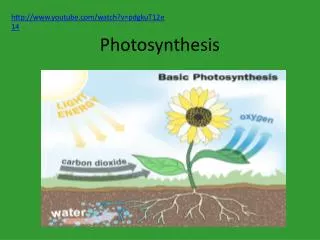

  1. http://www.youtube.com/watch?v=pdgkuT12e14 Photosynthesis

  2. Energy Visible light Cellular Respiration Photosynthesis C6H12O6 + 6O2 6CO2 + 6H2O 6CO2 + 6H2O C6H12O6 + 6O2

  3. Photosynthesis • Photosynthesis uses the energy of sunlight to convert water and carbon dioxide into high-energy sugars and oxygen 6CO2 + 6H2O C6H12O6 + 6O2 carbon dioxide + water sugars + oxygen light

  4. How plants capture sunlight • Use sunlight • Form of energy – Radiation • Travels in waves • Distance between crest of one wave and crest of another wave is the wavelength • Acts likes it is made up of particles

  5. Photon • massless particle traveling in a wave like pattern and moving at the speed of light • Vary in energy levels • Short wavelengths –high energy • Long wavelengths- low energy

  6. Electromagnetic Spectrum

  7. Electromagnetic Spectrum • Gamma, Xrays: do not reach the earth - are deflected • Ultraviolet (UV): most are absorbed by the ozone layer. (sunburn and skin cancer) • Visible light (ROYGBIV): violet= highest energy and red = lowest energy

  8. Electromagnetic Spectrum • Infared light ( heat): • Most light is absorbed by CO2 in atmosphere. It acts like a “blanket” which keeps the earth warm after the sun goes down. • Greenhouse effect- buildup of CO2 in atmosphere • Radio waves: the lowest energy photons; these tend to bounce

  9. Pigments • Substance that absorbs light is called a pigment • Light is either absorbed, reflected or passed through • Principle pigment is chlorophyll Chlorophylla and b=absorb red and violet/blue light and reflect green

  10. Absorption Spectrum • Graphs which plots absorbance of light against different wavelengths of light

  11. Photosynthesis • The process by which plants use light energy to make food from carbon dioxide (CO2) and water • The most important chemical process of Earth- supplies food for almost all organisms http://www.youtube.com/watch?v=pE82qtKSSH4

  12. Photosynthesis • Overall reaction occurs in the chloroplasts 6CO2 + 6H2O C6H12O6 + 6O2 carbon dioxide + water sugars + oxygen

  13. Photosynthesis • Completed through two main group of reactions: Light and dark reactions

  14. Organisms that photosynthesize • Autotrophs • Contain chloroplasts that produce glucose= photosynthetic autotrophs- plants and some bacteria and protists. • Also called producers- they produce the worlds food supply

  15. Parts of a plant that photosynthesize • All green parts have chloroplasts- photosynthesis occurs • Leaves are major sites • Stomata-”gates” on the underside of the leaf that allow the passage of gas into and out of the leaf. • Mesophyll- the green cells in the interior of the leaf, most often on the upper side- concentrated with chloroplasts • Chloroplasts contain chlorophyll and are specific sites of photosynthesis

  16. Structure of a Chloroplast • Inner and outer membrane separated by an intermembrane space. • Stroma- thick fluid inside the inner membrane – where sugars are made • Thylakoids – disk-like membranous sacs, suspended in the stroma • Contain fluid within membranes • Chlorophyll molecules built in the membrane • Grana- stack of thylakoid membranes

  17. How it works • Sunlight enters chloroplast

  18. 2. Light is absorbed by the chlorophyll – green is reflected • This occurs in photosystem II • Used to break up water molecules into energized electrons, hydrogen ions, and oxygen

  19. 3. ATP molecules are formed using light energy • ADP- adenosine diphosphate • Stored energy • Di – two • ATP – adenosine tri phosphate • Tri - three • Bond breaks and releases energy

  20. Light Dependent Reactions 4. Light energy is used to break bonds in water molecules • produce ATP, NADPH and oxygen These reactions take place in thylakoid membranes

  21. Light dependent Reactions • Photosystem II- Light absorbed by photosystem II is used to break up water molecules into energized electrons, hydrogen ions, and oxygen • Electron Transport Chain – High energy electrons from photosystems II move through the ETC to photosystem I

  22. Light Dependent Reactions • Photosystem I – Electrons released by photosystem II are energized again in photosystem I.

  23. Light Dependent 5. Hydrogen are fused to NADP molecules creating NADPH • Enzymes in the membrane use the electrons to form NADPH. NADPH is used to make sugar in the Calvin Cycle. 6. Oxygen is expelled as waste 7. NADPH and ATP are moved from granum to stroma

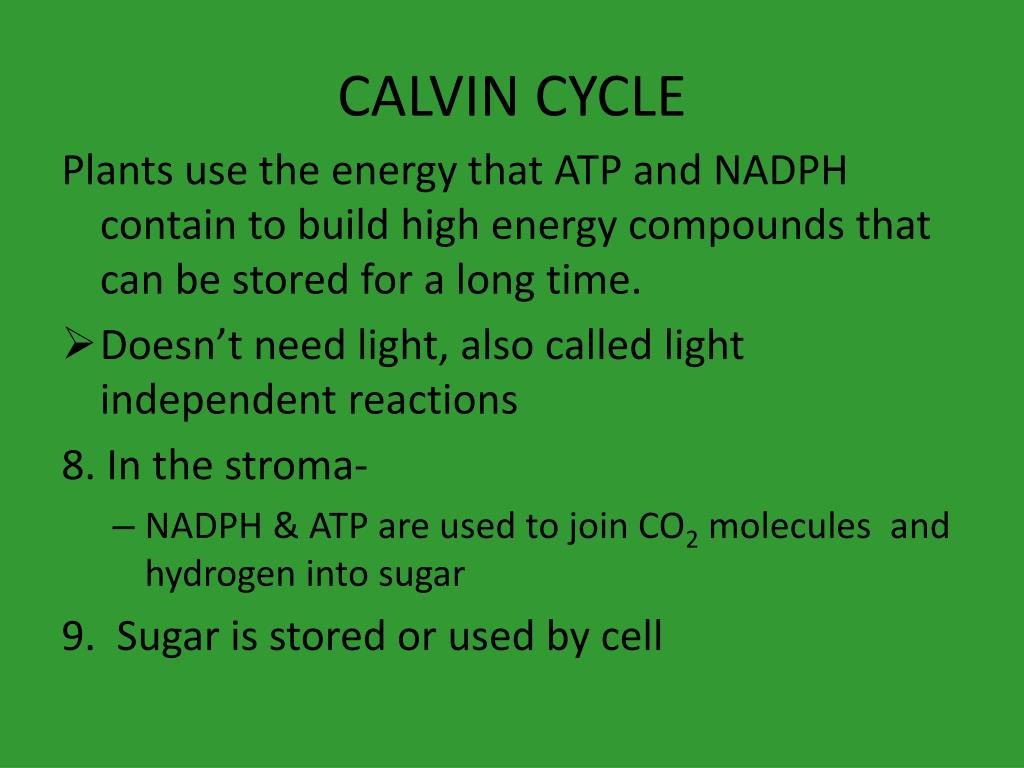

  24. CALVIN CYCLE Plants use the energy that ATP and NADPH contain to build high energy compounds that can be stored for a long time. • Doesn’t need light, also called light independent reactions 8. In the stroma- • NADPH & ATP are used to join CO2 molecules and hydrogen into sugar 9. Sugar is stored or used by cell

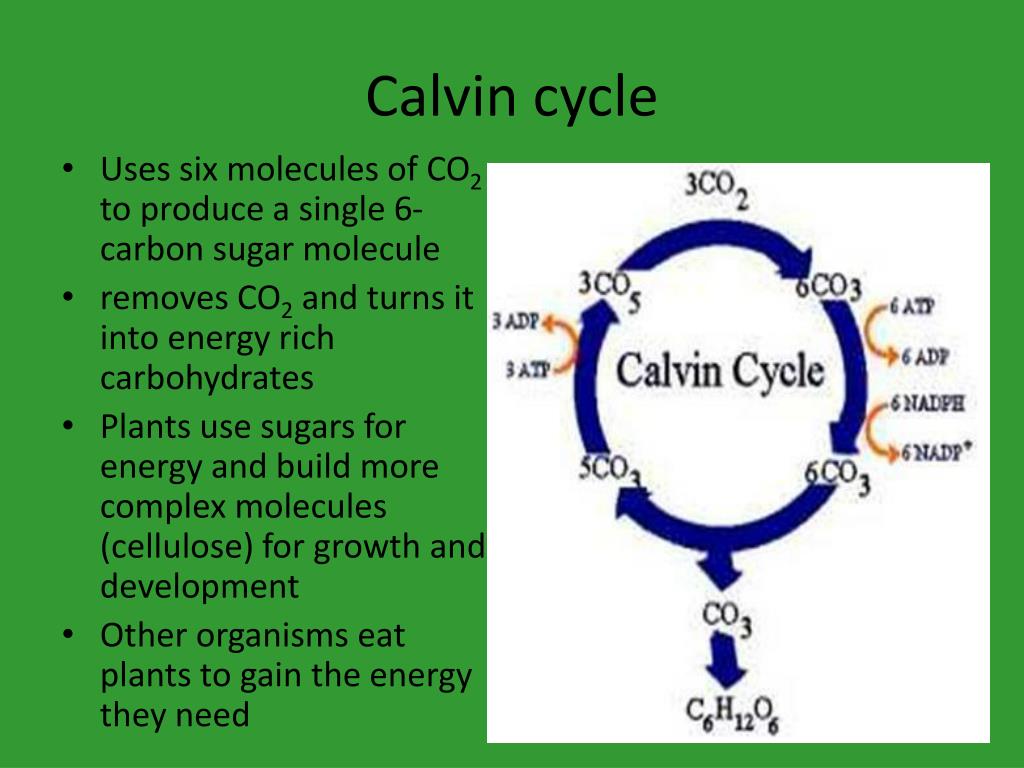

  25. Calvin cycle • Uses six molecules of CO2to produce a single 6-carbon sugar molecule • removes CO2 and turns it into energy rich carbohydrates • Plants use sugars for energy and build more complex molecules (cellulose) for growth and development • Other organisms eat plants to gain the energy they need

  26. 10. NADP & ADP are moved back into the granum and the process starts again
