  1. Introduction to Physical ScienceMonday, Wednesday, ThursdayTom Burbinetomburbine@astro.umass.edu

  2. Earth How do we determine the composition of the Earth’s interior?

  3. Planetary densities mass

  4. ρ = Mass/VolumeρEarth = 5.515 g/cm3

  5. What do these densities tell us? Density

  6. http://college.cengage.com/geology/resources/protected/physicallab/thelab/interior/index.htmhttp://college.cengage.com/geology/resources/protected/physicallab/thelab/interior/index.htm

  7. Earth’s Interior

  8. Earth’s crust • 46.6% O • 27.7% Si • 8.1% Al • 5.0% Fe • 3.6% Ca • 2.8% Na • 2.6% K • 2.1% Mg

  9. Earth is made of minerals

  10. How do we know what’s in the interior of the Earth?

  11. How do we know what’s in the interior of the Earth? • Seismic Waves – vibrations created by earthquakes

  12. Seismic Waves • P waves – primary waves – (pushing) – travel faster – can travel through anything • S waves – secondary – (side to side) – travel slower – only through solids

  13. http://alomax.free.fr/alss/examples/hodo/hodo_example.html

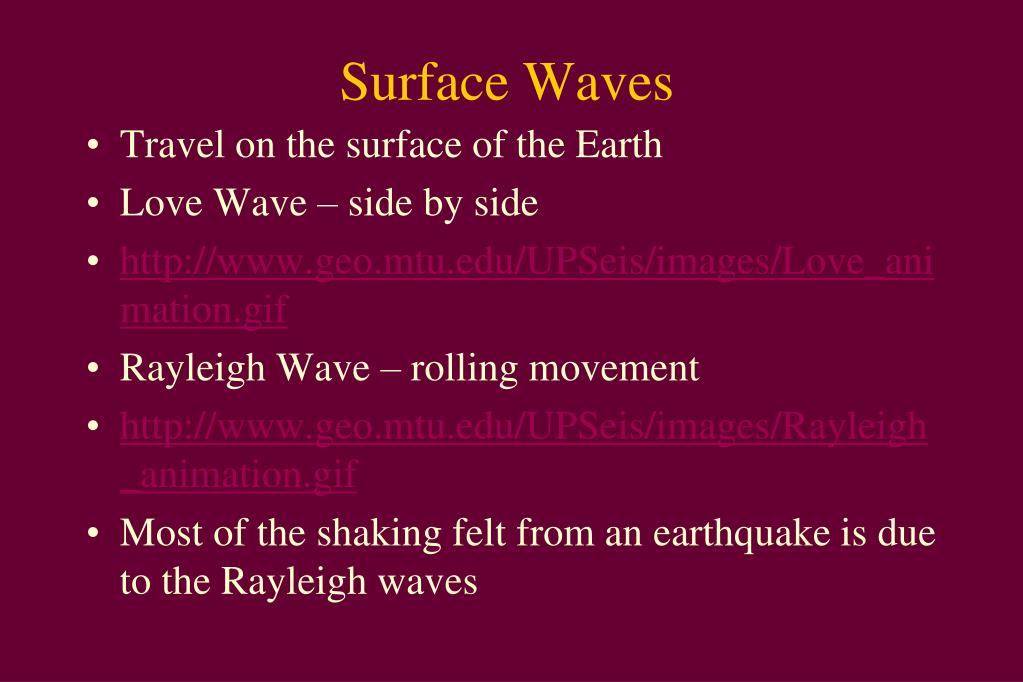

  14. Surface Waves • Travel on the surface of the Earth • Love Wave – side by side • http://www.geo.mtu.edu/UPSeis/images/Love_animation.gif • Rayleigh Wave – rolling movement • http://www.geo.mtu.edu/UPSeis/images/Rayleigh_animation.gif • Most of the shaking felt from an earthquake is due to the Rayleigh waves

  15. P (primary) waves S (secondary) waves Surface waves: Rayleigh and Love waves

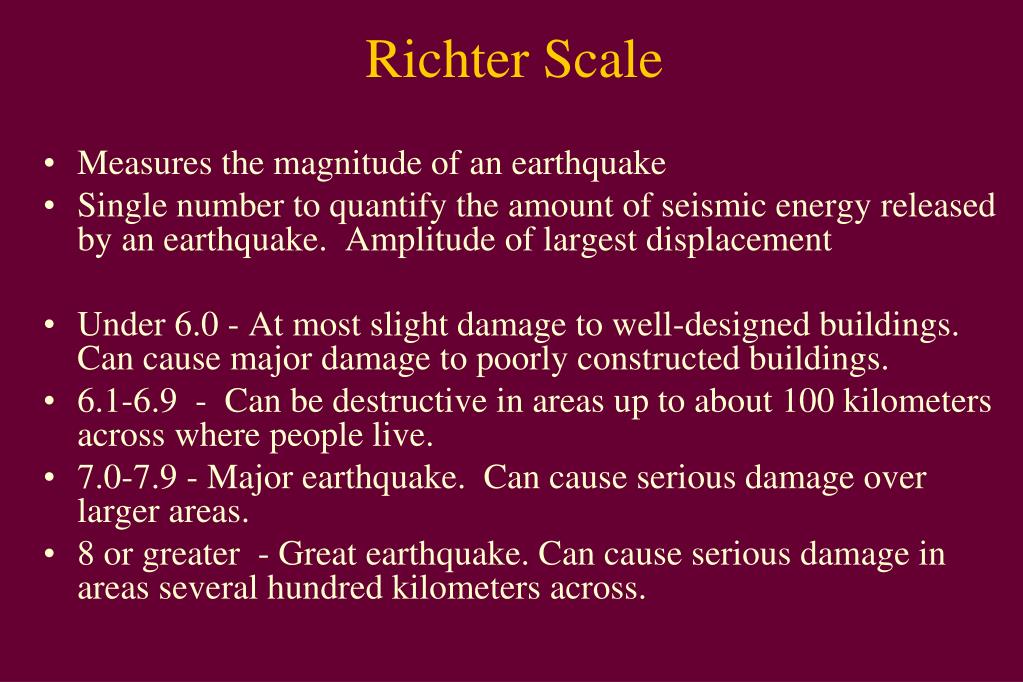

  16. Richter Scale • Measures the magnitude of an earthquake • Single number to quantify the amount of seismic energy released by an earthquake. Amplitude of largest displacement • Under 6.0 - At most slight damage to well-designed buildings. Can cause major damage to poorly constructed buildings. • 6.1-6.9 - Can be destructive in areas up to about 100 kilometers across where people live. • 7.0-7.9 - Major earthquake. Can cause serious damage over larger areas. • 8 or greater - Great earthquake. Can cause serious damage in areas several hundred kilometers across.

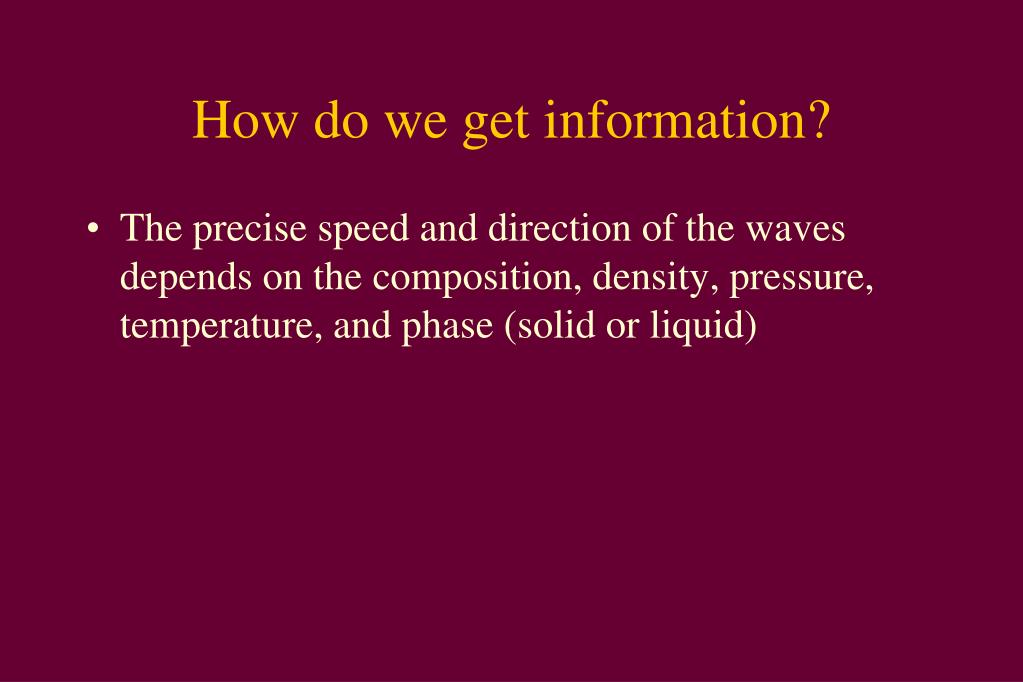

  17. How do we get information? • The precise speed and direction of the waves depends on the composition, density, pressure, temperature, and phase (solid or liquid)

  18. Which of these bodies have they used seismic waves to study?

  19. How can you study the interior of a planet?

  20. Density • Density = mass/volume • If the density is higher than the surface rock, there must be denser material in the interior

  21. Gravity • If you can measure gravity (force) with a spacecraft as it rotates around a body, you can determine how mass is distributed on the body

  22. Magnetic Field • Tells if a planet has a molten metal interior

  23. http://www.gcsescience.com/pme1.htm

  24. Earth’s magnetic field is believed to be caused by the convection of molten iron, within the outer liquid core along with the rotation of the planet Electrons flow http://geomag.usgs.gov/images/faq/Q6.jpg

  25. http://www.scifun.ed.ac.uk/card/images/left/earth-magfield.jpghttp://www.scifun.ed.ac.uk/card/images/left/earth-magfield.jpg

  26. Magnetic pole moves http://science.nasa.gov/headlines/y2003/29dec_magneticfield.htm

  27. http://science.nasa.gov/headlines/y2003/29dec_magneticfield.htmhttp://science.nasa.gov/headlines/y2003/29dec_magneticfield.htm

  28. North Magnetic Pole • However, the "north pole" of a magnet is defined as the one attracted to the Earth's North Magnetic Pole • By this definition, the Earth's North Magnetic Pole is physically a magnetic south pole

  29. Glatzmeier and Roberts simulations:

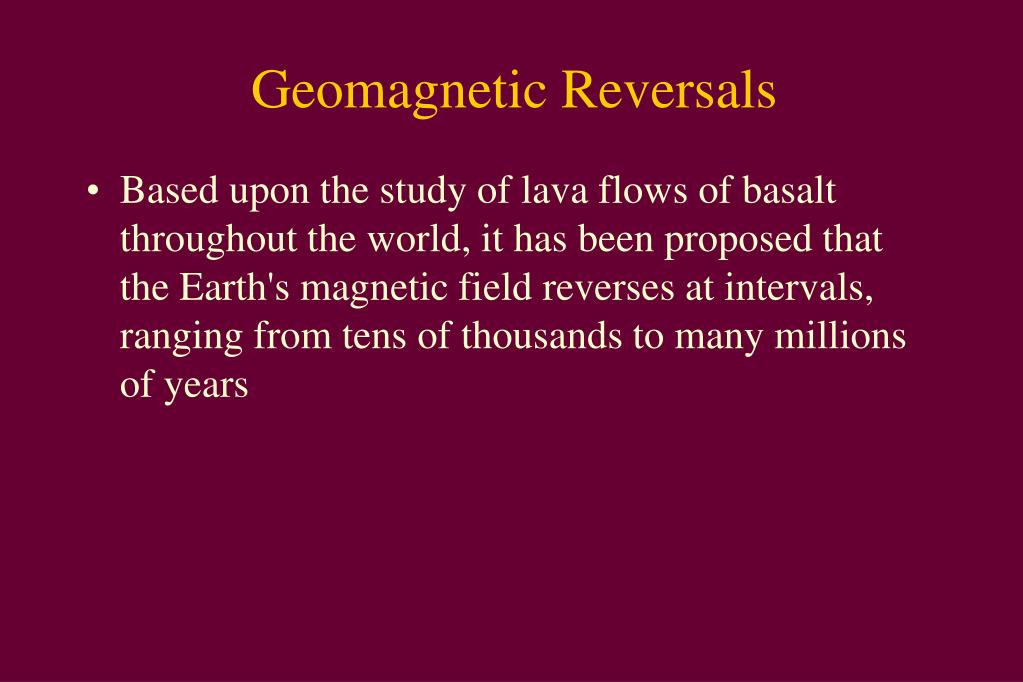

  30. Geomagnetic Reversals • Based upon the study of lava flows of basalt throughout the world, it has been proposed that the Earth's magnetic field reverses at intervals, ranging from tens of thousands to many millions of years

  31. What may happen during the reversal? • There may be a slight rise in the per capita cancer rate due to a weaker magnetic field. • We may also be able to see the northern lights at lower latitudes • If you own a compass, it will have difficulty finding north until the magnetosphere settles.
