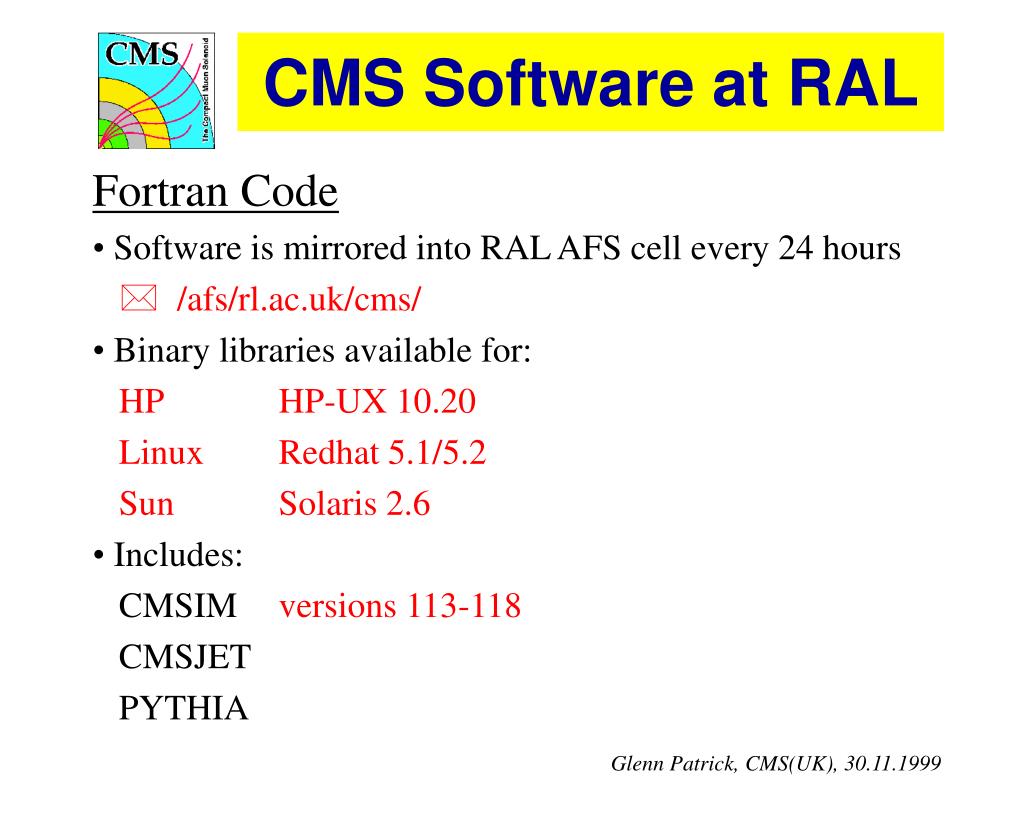

  1. CMS Software at RAL Fortran Code • Software is mirrored into RAL AFS cell every 24 hours  /afs/rl.ac.uk/cms/ • Binary libraries available for: HP HP-UX 10.20 Linux Redhat 5.1/5.2 Sun Solaris 2.6 • Includes: CMSIM versions 113-118 CMSJET PYTHIA Glenn Patrick, CMS(UK), 30.11.1999

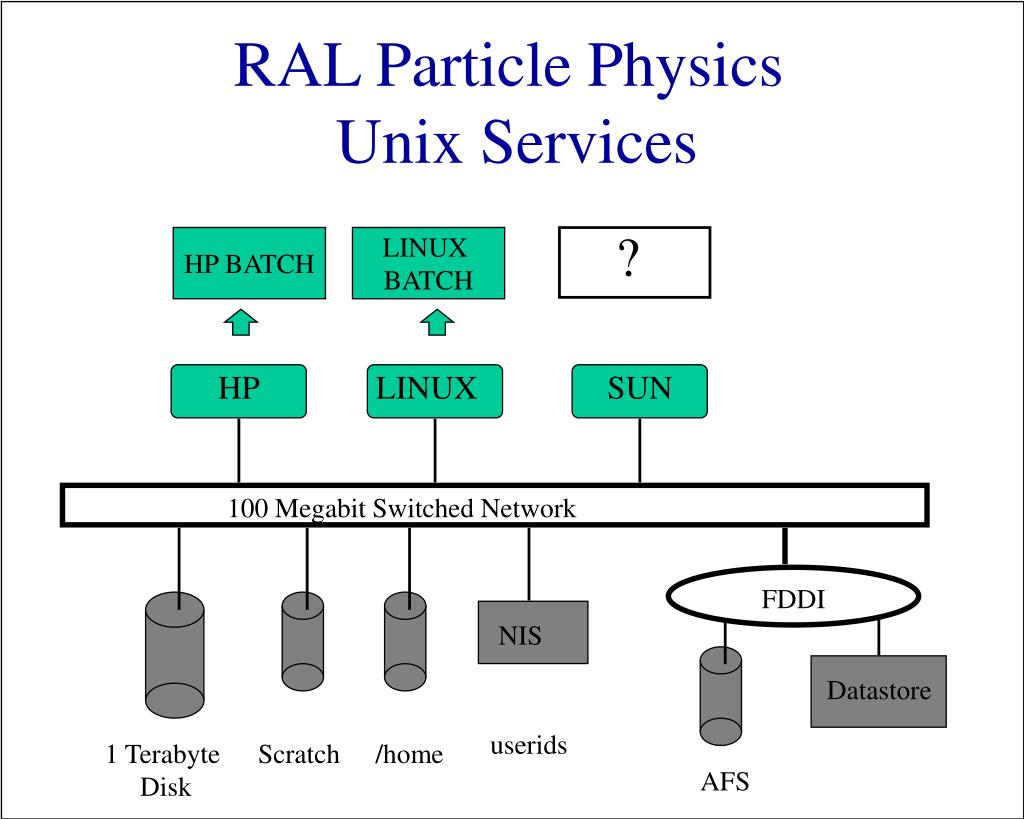

  2. HP BATCH LINUX BATCH HP LINUX SUN FDDI NIS Datastore userids 1 Terabyte Disk Scratch /home AFS RAL Particle Physics Unix Services ? 100 Megabit Switched Network

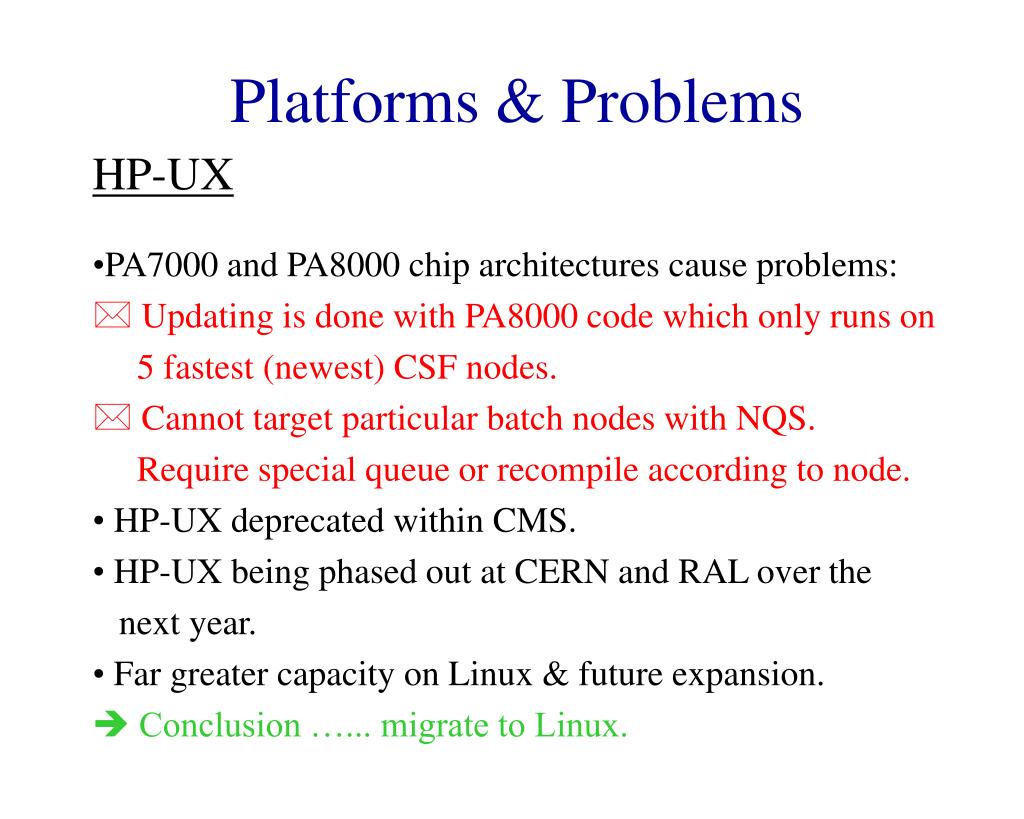

  3. Platforms & Problems HP-UX • PA7000 and PA8000 chip architectures cause problems: • Updating is done with PA8000 code which only runs on 5 fastest (newest) CSF nodes. • Cannot target particular batch nodes with NQS. Require special queue or recompile according to node. • HP-UX deprecated within CMS. • HP-UX being phased out at CERN and RAL over the next year. • Far greater capacity on Linux & future expansion.  Conclusion …... migrate to Linux.

  4. Predicted RAL-CSF Linux Profile

  5. Linux CMSIM successfully ported onto CSF Linux nodes. BUT • Have to take care to set PATH to pick correct compilers. System compilers are default and these appear in /usr/bin which usually comes before /usr/local/bin which contains the CERN versions of the compilers. • Sometimes differences between the CERN compiler versions on csflnx(egcs -1.1.1) & cmslx( egcs -1.1.2). • Sometimes the CERN library src directories disappear due to ASIS updating - need for GEANT. • Problems with old versions of CMSIM due to different FORTRAN libraries - what do CERN do?

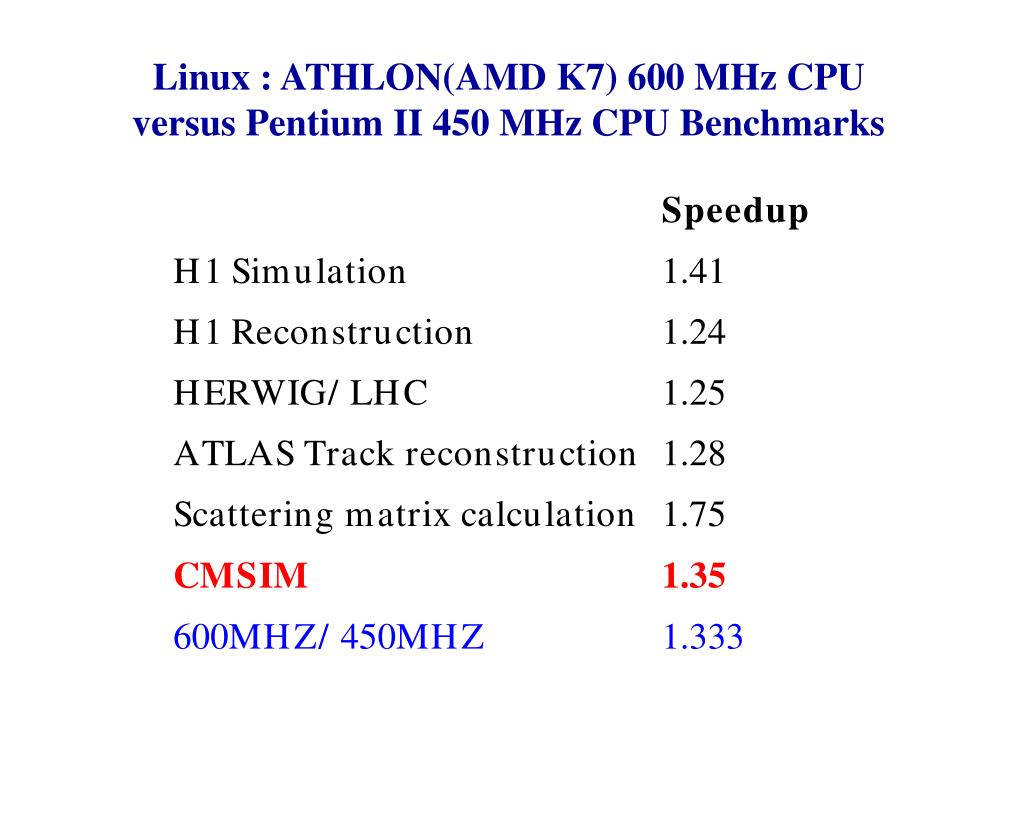

  6. Linux : ATHLON(AMD K7) 600 MHz CPU versus Pentium II 450 MHz CPU Benchmarks

  7. PYTHIA CMSIM116 GEANT3 EXISTS FORTRAN Pileup UNKNOWN Digitisation ORCA OO Objectivity Analysis

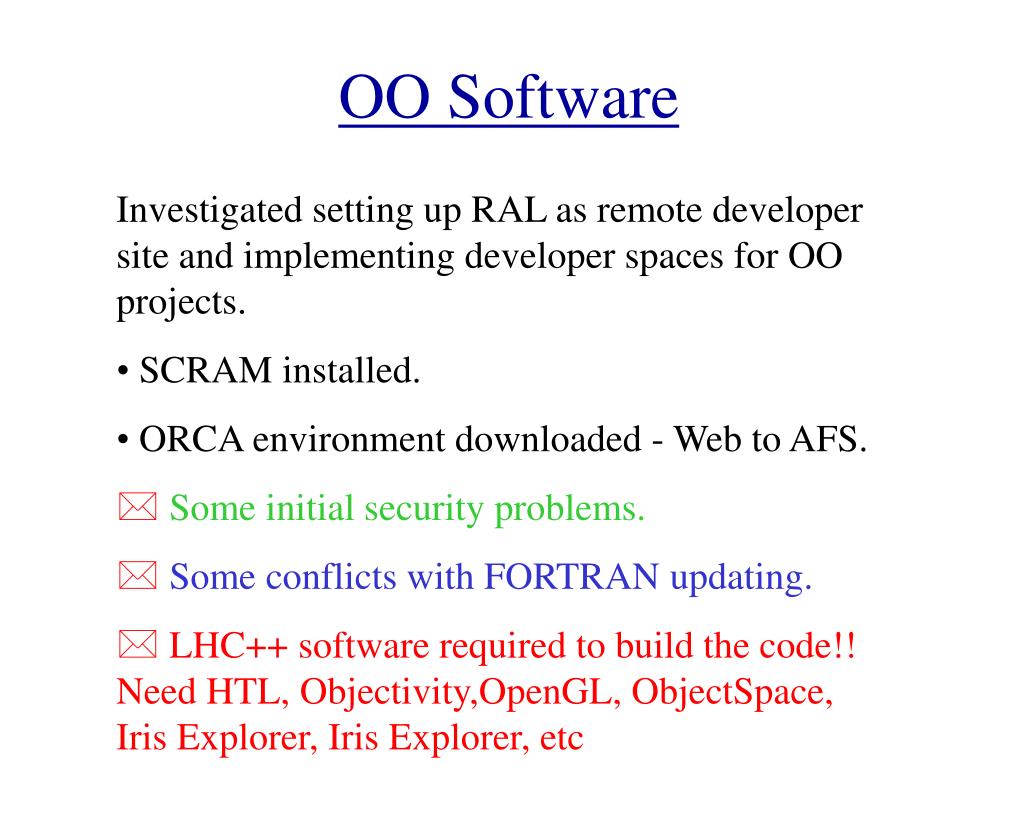

  8. OO Software • Investigated setting up RAL as remote developer site and implementing developer spaces for OO projects. • SCRAM installed. • ORCA environment downloaded - Web to AFS. • Some initial security problems. • Some conflicts with FORTRAN updating. • LHC++ software required to build the code!! Need HTL, Objectivity,OpenGL, ObjectSpace, Iris Explorer, Iris Explorer, etc

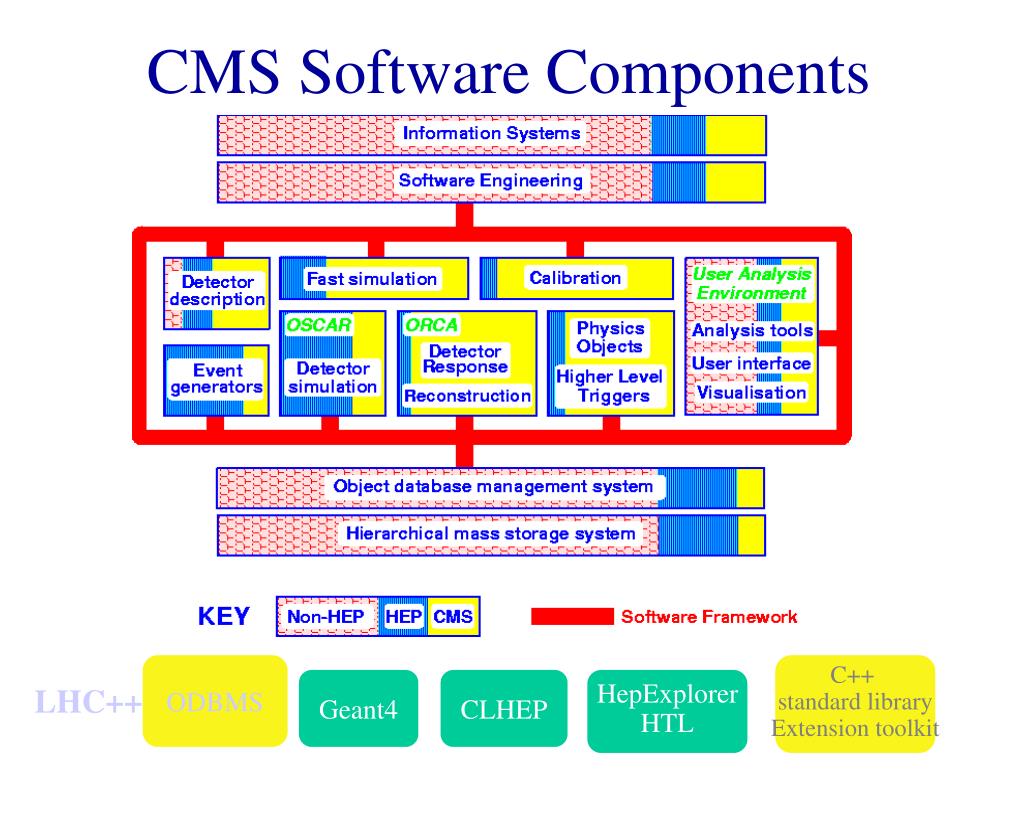

  9. ODBMS C++ standard library Extension toolkit Geant4 CLHEP HepExplorer HTL LHC++ CMS Software Components

  10. LHC++ • Of benefit to all experiments, so John Gordon took on main task of installing code in local AFS space: • Institute authority for commercial components • /afs/rl.ac.uk/sw/lhcxx • Various problems with operating systems. • Various problems with versions, Exceed, etc. • However, I got to the stage of setting up an LHC++ environment on Linux, defining an Objectivity federation and running Iris Explorer to produce histograms.

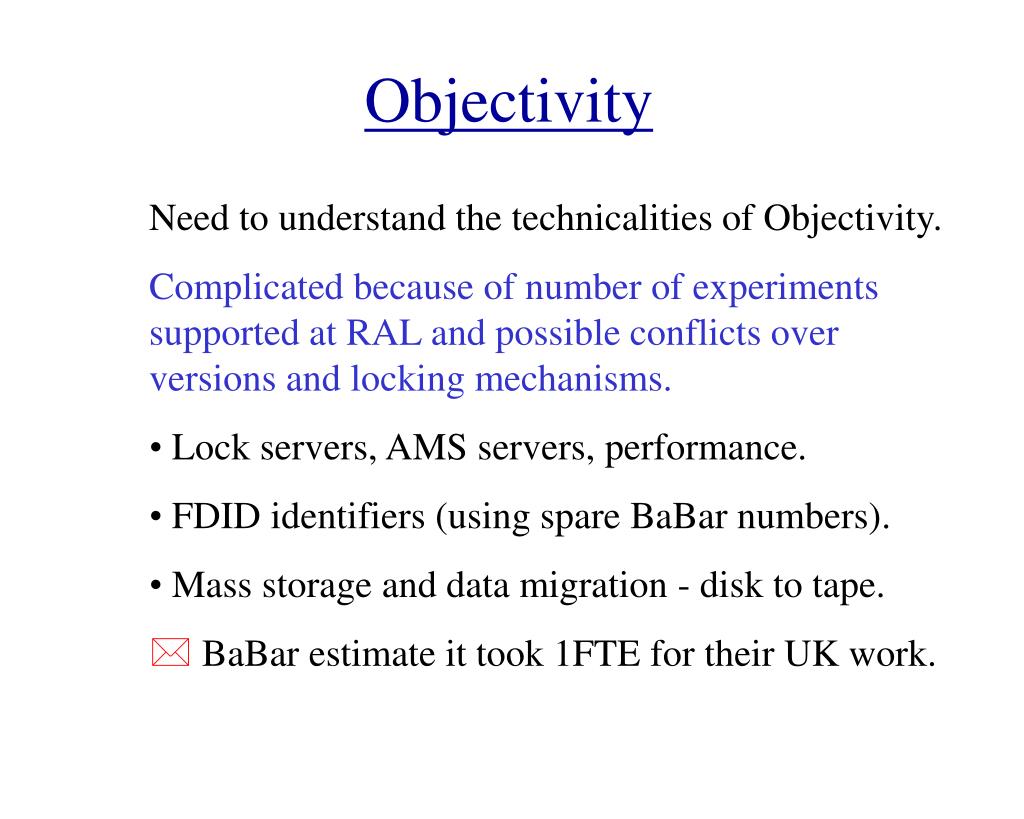

  11. Objectivity • Need to understand the technicalities of Objectivity. • Complicated because of number of experiments supported at RAL and possible conflicts over versions and locking mechanisms. • Lock servers, AMS servers, performance. • FDID identifiers (using spare BaBar numbers). • Mass storage and data migration - disk to tape. • BaBar estimate it took 1FTE for their UK work.

  12. Forwards? • Yet to emerge from the LHC++ diversion….. • What about GEANT4, OSCAR, IGUANA, etc? • What about user environment? • Only aiming for minimal system and capability. • Work exceeds available effort - not at all what I had in mind. • Need to see benefit by getting to stage of processing physics events beyond CMSIM. • JIF bid is needed if you want to do this seriously on a large-scale!
