Experiences Deploying Xrootd at RAL

1. Experiences Deploying Xrootd at RAL Chris Brew (RAL)

2. Contents • Introduction to xrootd • What is xrootd? • How does xrootd work? • What are xrootd’s advantages? • Deploying xrootd at RAL

3. What is xrootd? • xrootd (eXtended Root Daemon) was written at SLAC and INFN Padova as part of the work to migrate the BaBar event store from Objectivity to Root I/O • It’s a fully functional suite of tools for serving data, including server daemons and clients which take to each other using the xroot protocol • Since Sept 2004 (Root V4.01-02) it has been distributed as part of the Root distribution as well as being separately available from http://xrootd.slac.stanford.edu

4. Xrootd Goals • High Performance File-Based Access • Fault tolerance • Flexible Security • Simplicity • Generality

5. xrootd Architecture application Protocol Manager xrd xrootd Protocol Layer xroot Authentication Filesystem Logical Layer ofs Authorization optional Filesystem Physical Layer oss (included in distribution) Filesystem Implementation _fs mss

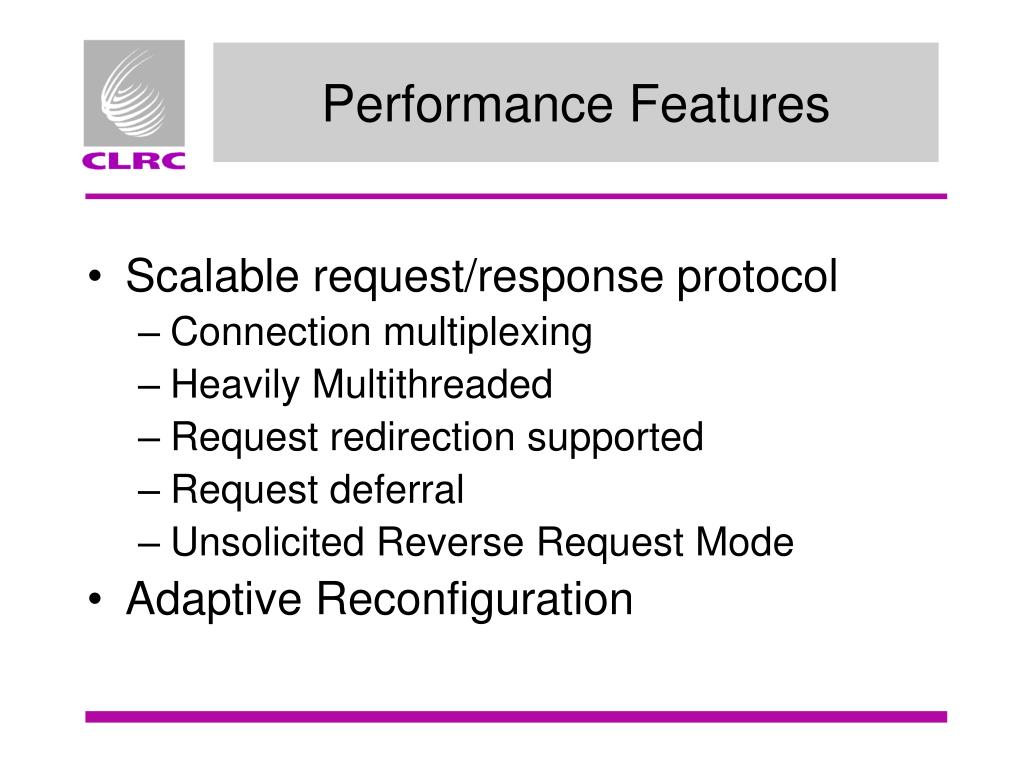

6. Performance Features • Scalable request/response protocol • Connection multiplexing • Heavily Multithreaded • Request redirection supported • Request deferral • Unsolicited Reverse Request Mode • Adaptive Reconfiguration

7. Server Clustering • Multiple xrootd servers can be clustered using olbd software supplied with the release • Architected as self-configuring structured peer-to-peer (SP2) network of data servers and managers • Servers can be added & removed at any time • Single namespace can be shared across many servers • Provides scalability and Fault Tolerance • Client library understands SP2 layout and handles redirection and failover seamlessly for Application

8. Data Server xroot daemon olb daemon Load Balancer olb daemon xrootd daemon Simple Multi-Server Example      Client

9. Simple Load Balanced Example     

10. Load Balanced Example with MSS     

11. The Cache File System • Xrootd allows us to span a single namespace across multiple servers • CacheFS allows us to span a single namespace across multiple disks on the same server • Distributed with xrootd but not a part of it • Provides scripts to manage namespace • Namespace served by xrootd is just a tree of links /some/file/path/… • Links point to /cacheNN/some%file%path%... • Links to the…

12. MPS (Migration, Purging and Staging) Tools • The MPS commands manage the interface between the disk cache and the MSS • Migration step copies new data from the disk to MSS* • Purge step deletes unused data from disk* • Stage step copies data back from MSS to disk when requested by xrootd† • Supports pre-staging and stage request queuing • Files can be pinned on disk for a set period or indefinitely • Calls user defined commands to interface to any MSS

13. Deploying Xrootd at RAL • Where we started • BaBar at RAL had 40TB increasing to 75TB of disk on 57 filesystems spread across 26 servers • Single namespace was implemented using a large directory tree containing links to files on the disks • Very difficult to maintain

14. Where we wanted to get to: • All BaBar data files server via xrootd • Files backed up in ADS • No single point of failure • Simple deployment

15. Server Layers • Xrootd/Olbd system serves files to clients • CacheFS aggregates multiple FS’s on each server • MPS manages the disk space, calls … ───────────────────────── • ADS link to put/retrieve files from … • Atlas Datastore, tape backup XROOTD RAL

16. BaBar RAL Data Model • Client’s locate data via two olb manager machines with one DNS alias • Disks are held at 95-97% full so if a server fails requests for the data files it held automatically cause files to be staged from the ADS to the spare space • Stage requests can also be triggered by excessive loads on a server • A purge process on each server will eventually delete these extra files returning us to the initial position • Daily catalogues of each filesystem should mean that we can rebuild lost filesystems from the ADS

17. Installation • Rpm from SLAC provides basic software plus some additional packages but does not include: • Configuration • Start up scripts • Interface to our MSS • These are provided by a local config rpm • Both rpms are installed/monitored by RAL’s Yum/YumIT infrastrucure

18. RAL Config rpm • Installs the ADS link software • Creates init.d entries for xrootd and olbd and registers them with chkconfig • Builds server config file from common and machine specific files • Sets up the CacheFS system across the disk • Starts, condrestarts or stops the services for install, upgrade or removal of the rpm

19. ADS Link • Locally written PERL module with wrapper utilities • Chains together sysreq path, datastore and tape commands to allow easy access to ADS entities by filename • Supported operations: • put • get • stat • rm

20. Benefits • For Users: • Jobs don’t crash if a disk/server goes down, they back off, contact the olb manager and get the data from somewhere else • Queues aren’t stopped just because 2% of the data is offline • For Admins: • No need for heroic efforts to recover damaged filesystems • Much easier to schedule maintenance

21. Where we are now? • Most of the above has been deployed very painlessly • xrootd/olbd and the CacheFS has been deployed on 26 servers with > 70TB of disk and > 65TB of data on it • The MPS ADS Link ADS system has been written and tested, it is in successful production on one server and will be deployed on more in the very near future
