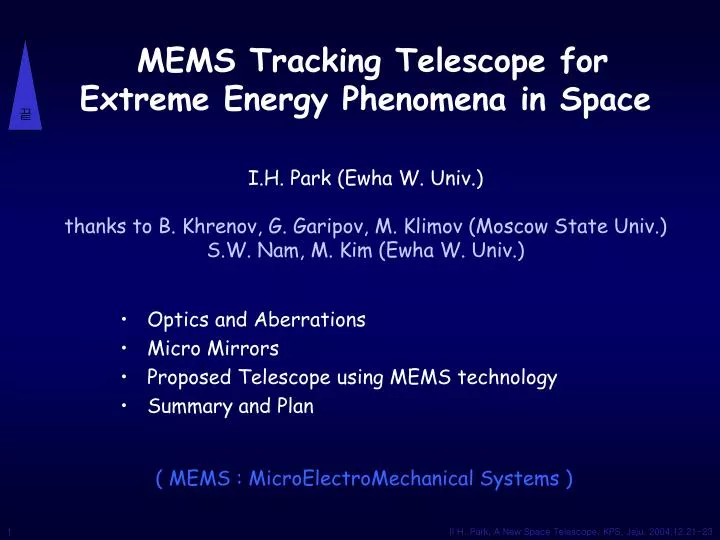

  1. 끝 MEMS Tracking Telescope for Extreme Energy Phenomena in SpaceI.H. Park (Ewha W. Univ.)thanks to B. Khrenov, G. Garipov, M. Klimov (Moscow State Univ.)S.W. Nam, M. Kim (Ewha W. Univ.) • Optics and Aberrations • Micro Mirrors • Proposed Telescope using MEMS technology • Summary and Plan ( MEMS : MicroElectroMechanical Systems ) Il H. Park, A New Space Telescope, KPS, Jeju, 2004.12.21-23

  2. Presentations • 2003 Int. Cosmic Ray Conf. (ICRC Proceedings) • 2003 SpacePart Conf. (will be published in Nucl. Phys. B. PS) • 2004 COSPAR Conf. (submitted to Adv. Space Res.) Il H. Park, A New Space Telescope, KPS, Jeju, 2004.12.21-23

  3. Detector ! Observe “from ABOVE” nitrogen fluorescence light Imaginative Idea (K.Greisen, J.Linsley …) Il H. Park, A New Space Telescope, KPS, Jeju, 2004.12.21-23

  4. EECR Space Experiments EUSO at ISS European Module in 2010 Double Fresnel Lens + PMT + Electronics TUS/KLYPVE at satellite/ISS Russian Module in ~2010 Fresnel Mirror + PMT + Electronics • Complex lens optics • Wide FOV (60o) • Fixed size of pupil window • Simple mirror telescope • Large pupil window • Modules assembly in space • Limit in FOV • Larger FOV requires shorter Focal Distance • Butaberrations and distortions become larger Il H. Park, A New Space Telescope, KPS, Jeju, 2004.12.21-23

  5. EUSOExtreme Universe Space Observatory for EHECR Observations Aperture ~ 105 km2 sr Il H. Park, A New Space Telescope, KPS, Jeju, 2004.12.21-23

  6. First Order Optics (Paraxial Optics) Lens maker’s formula Il H. Park, A New Space Telescope, KPS, Jeju, 2004.12.21-23

  7. Lens maker’s formula 3rd order Paraxial rays Peripheral rays Third Order Optics The paraxial approximation, sin q ~ q, is somewhat unsatisfactory if rays from the periphery of a lens are considered Il H. Park, A New Space Telescope, KPS, Jeju, 2004.12.21-23

  8. What Kinds of Aberrations? • Monochromatic Aberration • Seidel Aberrations • Spherical Aberration • Coma • Astigmatism • Field Curvature • Distortion • Wave Aberrations (adaptive optics) • Defocus • Higher order • Chromatic Aberration (337, 357,391nm) • Longitudinal • Transverse Il H. Park, A New Space Telescope, KPS, Jeju, 2004.12.21-23

  9. Size of image spot Incident angle (zenith angle) Spot Diagram of Ideal Fresnel Mirror 2D-simulation q = 0 deg q = 6 deg q : zenith angle q = 12 deg Il H. Park, A New Space Telescope, KPS, Jeju, 2004.12.21-23

  10. Ray Tracing & Aberration of Fresnel Mirror full-simulation Il H. Park, A New Space Telescope, KPS, Jeju, 2004.12.21-23

  11. Fresnel Mirror : 20 deg of Incident angle Spot diagram Il H. Park, A New Space Telescope, KPS, Jeju, 2004.12.21-23

  12. Spot Diagram of Fresnel Mirror q : zenith angle q = 6 deg q = 0 deg q = 12 deg Il H. Park, A New Space Telescope, KPS, Jeju, 2004.12.21-23

  13. Aberration Free Optics ? • No mirror such that rays from all directions (wide FOV) are well focused simultaneously • Not the case for astronomical telescope where FOV is always small • Solution would be real time focus to a given object or trigger Archimedes’ Mirror Il H. Park, A New Space Telescope, KPS, Jeju, 2004.12.21-23

  14. EAS Photo Detector Micro Mirror Conrol VLSI How to remove Aberrations Mirror segmented & each mirror segment controlled independently -> Focusing of the sun at any incident angles -> Tracking of object(sun, EAS) at any angles allows an aberration free optics Archimedes’ Mirror Il H. Park, A New Space Telescope, KPS, Jeju, 2004.12.21-23

  15. Tracking : aberration free imaging 1D-simulation mmirror Detector -0.5m 0 0.5m Air -200km 0 80 200km Il H. Park, A New Space Telescope, KPS, Jeju, 2004.12.21-23

  16. 자료 M2N 제공 What is Silicon Micro Mirror ? • MEMS (MicroElectroMechanical Systems) • Recent technological advance in si industry • Originally developed for optical communication & display industry • Cost effectiveness due to standard silicon fab available • 100x100 mm2 in size or less • Each cell controlled independently • Types • DMD : Digital, electrostatic actuator, TI • TMA : Analog, PZT actuator, Daewoo • Others (thermal, membrane, …) Il H. Park, A New Space Telescope, KPS, Jeju, 2004.12.21-23

  17. DMD mMirror : Electrostatic Actuation Texas Instrument Digital -> Two preset directions only Il H. Park, A New Space Telescope, KPS, Jeju, 2004.12.21-23

  18. mirror y top electrode x piezoelectric layer bottom electrode supporting layer anchor • contraction to x-direction • expansion to y-direction q d V TMA mMirror : PZT(Piezoelectric) Actuation Daewoo Electronics Analog -> Variable direction Il H. Park, A New Space Telescope, KPS, Jeju, 2004.12.21-23

  19. Linear Response of Tilting Angle Mirror Switching Speed T = 26.5 ms fr = 38kHz Performance of TMA mMirror • Max. tilting angle: 10 degree • Linear response • Switching speed: ~ 1 msec / 1o Il H. Park, A New Space Telescope, KPS, Jeju, 2004.12.21-23

  20. MEMS Tracking Mirror (full Simulation) MEMS micromirror array Photo detector array Required angle for each cell Il H. Park, A New Space Telescope, KPS, Jeju, 2004.12.21-23

  21. Zenith angle = 10 MEMS Tracking Mirror (full Simulation) Zenith angle = 0 Il H. Park, A New Space Telescope, KPS, Jeju, 2004.12.21-23

  22. MEMS Mirror Photo detector array (40x40 cells) 1. Field resolution = 9.6x9.6 km2 • Trigger at Wide FOV • Zoom x4 • Zoom x16 • Tracking & event recording (or reset trigger, latency time=10 msec) • Trigger at Wide FOV • Zoom x4 • Zoom x16 • Tracking & event recording (or reset trigger, latency time=10 msec) • Trigger at Wide FOV • Zoom x4 • Zoom x16 • Tracking & event recording (or reset trigger, latency time=10 msec) • Trigger at Wide FOV • Zoom x4 • Zoom x16 • Tracking & event recording (or reset trigger, latency time=10 msec) Field of Air watch (160,000 km2 = 40x40 divisions) 2. Field resolution = 2.4x2.4 km2 3. Field resolution = 0.6x0.6 km2 4. Tracking Concept of Zoom & Tracking • “Zoom” -> “Adjustable Field Resolution” -> Wide FOV • “Tracking” -> Aberrations Free Image and Only Small No. of Detector Channels Il H. Park, A New Space Telescope, KPS, Jeju, 2004.12.21-23

  23. Zoom-like Feature • Real time focusing -> aberration free optics, wide FOV • Image relocation -> zoom feature (like human eye), small no. of ch. (Ex) move an image captured on outer pixels of the detector toward the fine segmented center with 2-step trigger Relative error(%) in source zenith angleas increasing trigger stage Il H. Park, A New Space Telescope, KPS, Jeju, 2004.12.21-23

  24. Requirements of mmirror for EECR Telescope • High Tilting Speed • 1 degree/msec possible at present technology, but factor 10 improvement is foreseen • Smaller size of pixel gives higher speed, but no. of ch. Increases • Large Tilting Angle • Close to 10 degrees, but factor 2 is foreseen • Also smaller size of pixel helps • Linearity (Tilting Angle .v. Applied Voltage) : Good linearity shown • Angle accuracy : 0.1o of resolution at present • Stability : Feed back approach as a solution • High Fill Factor : Depending on design. > 90% is preferred • Low power consumption : < 1 mW per 200mm cell, so ~25 W/m2 • Light Weight : 10 kg/m2 including electronics • Low Production Cost : $30/cm2, so $300,000/m2 Il H. Park, A New Space Telescope, KPS, Jeju, 2004.12.21-23

  25. Advantage of MEMS Telescope (Summary) • Proposed Telescope for EECR study • Zoom-in feature -> large FOV • Tracking feature -> Aberration free system, large mirror size, only small no. of photo detector channels required -> significant reduction of cost, power, weight • Silicon allowsLight weight, thin, large mirror • Experience of ~1m2 silicon detector shows • 10 kg including electronics and support • 1.5 cm height • In situ calibration: improve focusing accuracy • Sun shield: protect photo detectors • Power generation: direct lights to solar cells • Other measurements: direct to 2nd photo detector Il H. Park, A New Space Telescope, KPS, Jeju, 2004.12.21-23

  26. Parameters of MEMS Tracking Telescope Il H. Park, A New Space Telescope, KPS, Jeju, 2004.12.21-23

  27. Plan • Tracking mirror R&D possibly funded in Nov. 2004 • 1st Prototype of micro mirror (6x6 cells) by mid 2005 • Test and prove the idea in 2005 • Tracking mirror telescope on satellite in 2007-2009 • Attached payload at ISS in future TUS-II TUS-I Tracking Mirror EECR (1020 eV) fluorescence Cerenkov Earth Il H. Park, A New Space Telescope, KPS, Jeju, 2004.12.21-23

  28. Il H. Park, A New Space Telescope, KPS, Jeju, 2004.12.21-23

  29. Aberration in Simple Fresnel Mirror simulation Mirror Photo Detector Array -0.5m 0 0.5m 400 km -200km 0 200km Field of Air -200km 0 200km Il H. Park, A New Space Telescope, KPS, Jeju, 2004.12.21-23

  30. Trigger (Initial) Configuration of mmirrors • Multi-focus with 5 sections of mirrors • Max. variance in rotation angle = +-6O • FOV ~ 70O with >40% of photo efficiency Il H. Park, A New Space Telescope, KPS, Jeju, 2004.12.21-23

  31. Il H. Park, A New Space Telescope, KPS, Jeju, 2004.12.21-23

  32. Spot Diagram of Fresnel Mirror q : zenith angle q = 0 deg q = 6 deg q = 12 deg q = 20 deg Il H. Park, A New Space Telescope, KPS, Jeju, 2004.12.21-23

  33. Spot Diagram of Fresnel Mirror q : zenith angle q = 0 deg q = 6 deg q = 12 deg q = 20 deg Il H. Park, A New Space Telescope, KPS, Jeju, 2004.12.21-23

  34. TUS-II TUS-I Tracking Mirror EECR (1020 eV) fluorescence Cerenkov Earth TUS Russian Satellite in 2006 Fresnel Mirror + PMT • Stereo Eyes • Two fold detection • Aperture double • tau n measurement mirrors Il H. Park, A New Space Telescope, KPS, Jeju, 2004.12.21-23

  35. Lens Curvature : f d Retina How to Focus : Proposed Telescope • Telescope for Astronomy, EUSO … : f and d both fixed • Camera : f fixed while d varied (zoom feature) • Human Eye : f varied while d fixed (zoom & tracking) • Our telescope : “like Human Eye” Il H. Park, A New Space Telescope, KPS, Jeju, 2004.12.21-23

  36. t=1 Trigger & Zoom_1 mmirror array photo receiver (40 x 40 cells) 40 40 2.4 x 2.4 km2 9.6 x 9.6 km2 EAS on air 40 40 How Tracking Mirror Works? DEMO t=0 Wide FOV with poor resolution Il H. Park, A New Space Telescope, KPS, Jeju, 2004.12.21-23

  37. t=3 Direction Finding & EAS tracking 0.6 x 0.6 km2 EAS direction continued t=2 Zoom_2 & Set fine resolution Il H. Park, A New Space Telescope, KPS, Jeju, 2004.12.21-23

  38. Il H. Park, A New Space Telescope, KPS, Jeju, 2004.12.21-23
