  1. CS536– Introduction to CompilersSpring 1991James LarusLecture 22 – Code Generation

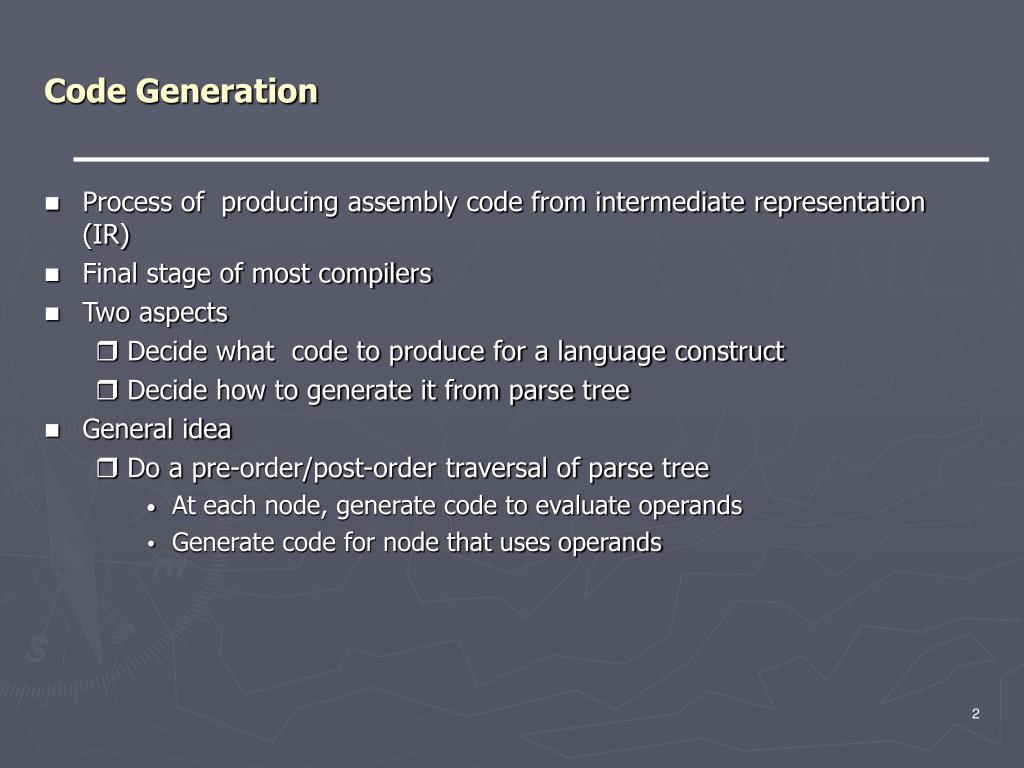

  2. Code Generation • Process of producing assembly code from intermediate representation (IR) • Final stage of most compilers • Two aspects • Decide what code to produce for a language construct • Decide how to generate it from parse tree • General idea • Do a pre-order/post-order traversal of parse tree • At each node, generate code to evaluate operands • Generate code for node that uses operands

  3. Example: Arithmetic Expressions + x • Use the stack to evaluate expressions • e.g x+2*y • gen_plus (AST *n) { generate (n->left); generate (n->right); gen (“ lw st0, 0($sp)” ); /* Pop right operand */ gen ("lw st1, 4($sp)"); /* Pop left */ gen ("addiu $sp, $sp, 8"); gen ("addu $t3, $t0, $t1"); /* Add operands */ gen ("addu $sp, $sp, -4"); /* Push sum */ gen ("sw $t3, 4($sp)"); } • gen_var (AST *n) { gen ("lw $t0, %d($fp) ", stack_offset (n0); gen("addiu $sp, $sp, -4"); gen ("sw $t0, 4($sp) "); } var int var x y 2

  4. Example, cont’d + • gen_plus(+) • gen_var(x) lw $t0, 4($fp) addiu $sp, $sp, -4 sw $t0, 4($sp) • gen_times(*) • gen_lit(2) li $t0, 2 addiu $sp, $sp, -4 sw $t0, 4($sp) • gen_var (y) lw $t0, 8($fp) addiu $sp, $sp, -4 sw $t0, 4($sp) • lw $t0, 0($sp) lw $t1, 4($sp) addiu $sp, $sp, 8 addu $t3, $t0, $t1 addu $sp, $sp, -4 sw $t3, 4($sp) x var int var x y 2

  5. Example, cont’d • Terrible code • Doesn’t make effective use of machine registers or instructions • Contains many redundant moves • Easy to generate • Each code generation routine operates in isolation • Produce code assuming operands are on stack and leave result on stack • Alternative is to worry where operands should be placed and where they are stored • Easy to extend stack-based code to rest of language

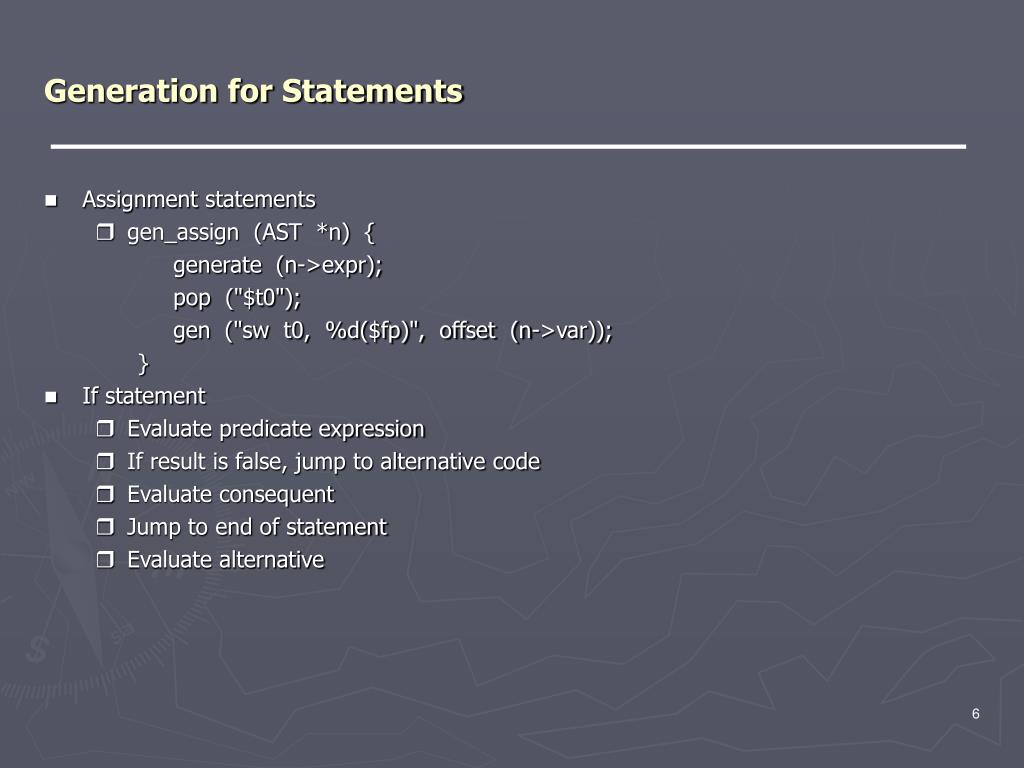

  6. Generation for Statements • Assignment statements • gen_assign (AST *n) { generate (n->expr); pop ("$t0"); gen ("sw t0, %d($fp)", offset (n->var)); } • If statement • Evaluate predicate expression • If result is false, jump to alternative code • Evaluate consequent • Jump to end of statement • Evaluate alternative

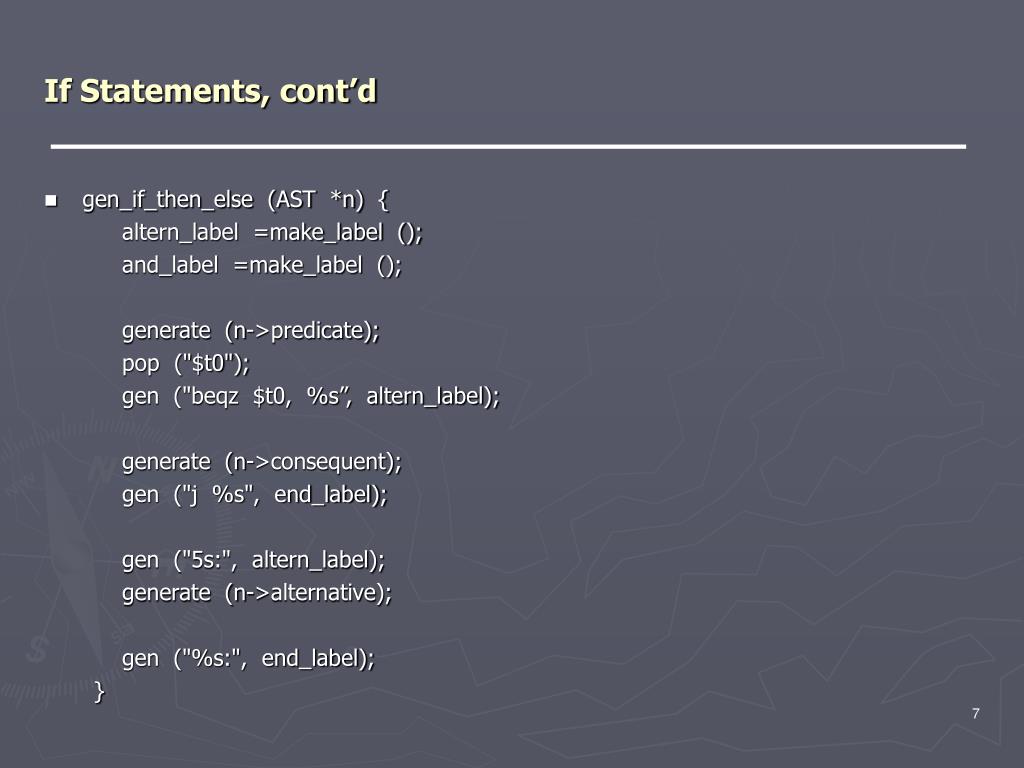

  7. If Statements, cont’d • gen_if_then_else (AST *n) { altern_label =make_label (); and_label =make_label (); generate (n->predicate); pop ("$t0"); gen ("beqz $t0, %s”, altern_label); generate (n->consequent); gen ("j %s", end_label); gen ("5s:", altern_label); generate (n->alternative); gen ("%s:", end_label); }

  8. Example: If Statement • If x = 2 then y := 1 else y := 2; lw $t0, 4($fp) addiu $sp, $sp, -4 sw $t0, 4($sp) push (2) lw $t0, 8($sp) lw $t1, 4($sp) addiu $sp, $sp, 8 seq $t2, $t0, $t1 push ($t2) pop ($t0) beqz $t0,L1 push (1) pop ($t0) sw $t0, 8($fp) I L2 ….

  9. Example, cont’d • Real compiler would eliminate push/pop and keep values in registers • li $t0, 2 lw $t1, 4($fp) seq $t2, $t0, $t1 beqz $t2, L1 li $t0, l sw $t0, 8($fp) j L2 L1: li $t0, 2 sw $t0, 8($fp) L2: • Evaluate predicate for control, not value • li $t0, 2 lw $t1, 4($fp) bneq $t0, $t1, L1 …..

  10. Evaluation for Control • Many machined do not have comparison instructions that produce values • Only have compare-and-branch instructions • To produce value, generate sequence of instructions cmp_br_eq $t0, $t1, L3 push (0) j L4 L3: push (1) L4: • Need more complex generation routine • Generate_for-control (AST *n, char *true_label, char *false_label0 • Becomes complex for elaborate expressions

  11. Code Generation for Loops • while predicate do body od • Produced code to evaluate predicate • If predicate is false jump to end of loop • Evaluate body • Jump to 1 • for i := n to m do body od • Evaluate lower bound and save in I • Evaluate upper bound and save in tmp • Evaluate predicate I <= tmp • If predicate is false, jump to end of loop • Evaluate body • Jump to 3
