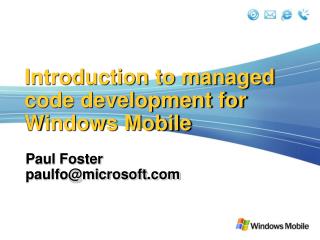

Introduction to managed code development for Windows Mobile. Paul Foster paulfo@microsoft.com. Event agenda. 18.00 Registration 18:30 Introduction to managed code application development for Windows Mobile 19:30 Break / Refreshments 20:00 Session continued 20:50 Q&A 21:00 Close. Agenda.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Introduction to managed code development for Windows Mobile' - yetta


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
event agenda
Event agenda

18.00 Registration

18:30 Introduction to managed code application development for Windows Mobile

19:30 Break / Refreshments

20:00 Session continued

20:50 Q&A

21:00 Close

agenda
Agenda
  • Smart Client design
  • Introduction to managed code
    • .Net Compact Framework – overview
    • Design and performance tips
    • Deployment
  • Windows Mobile 2003 2nd Edition
    • Orientation support
    • DPI support
momentum continues to build

Mobile Device Shipments

600

500

400

300

200

100

PC Shipments

Unit Shipments (M)

2001 2002 2003 2004 2005 2006 2007

Source: Gartner Dataquest (Dec. 2003)

For Mobile Applications:

  • $5.8 billion market for ISVs by 2006 (source: Forrester, 2002)
  • Customers demand more mobile applications(source: Handango, 2003)
  • Mobile Operators report monthly ARPU increases of 25% on Windows Mobile-based devices
  • 700 applications added to Mobile Application Catalog since launch of Mobile2Market program last year

58% want more Personal productivity apps58% want more Business and professional apps54% want more Games44% want more Utilities

Momentum Continues To Build…

For Mobile Devices:

  • Mobile device adoption continues to grow
  • Growing Pocket PC market share
  • Smartphones launching, 37+ leading OEMs and 50+ Mobile Operators partners
  • New form factors for landscape, high DPI
windows mobile roadmap

MoreDevice Choices

2000

2002

2003

2003Second Edition

FutureWindows Mobile

Core OS

WinCE 3.0

WinCE 3.0

WinCE 4.2

WinCE 4.2

WinCE “Macallan”

BetterDevelopment

eVC 3 (C++)eVB 3 (VB)

eVC 3 (C++)eVB 3 (VB)

eVC 3 (C++)eVC 4 (C++)

VS.NET 2003(C#, VB.NET)

eVC 3 (C++)eVC 4 (C++)

VS.NET 2003 (C#, VB.NET)

VS “Whidbey”(C#, VB.NET, C++)

MFC Win32, POOM

MFC, ATL Active SyncConnection MgrMAPIOBEXTelephony

ATL 4.2, .NET CFEnhanced Emulator Configuration Mgr,Bluetooth, SMS

.NET CF SP2VGA (PPC)QVGA (SP)SquareLandscape

.NET CF “Whidbey”MFC 8.0, ATL 8.0

Broad managed code support Notification broker, Location, Camera, Watson, D3DM,

Richer Platform Capabilities

Windows Mobile Roadmap
smart client design

Smart Client design

For .Net Compact Framework

the mobile device universe
The Mobile Device Universe

Clients

User Experiences & Solutions

Web services

Tools

Authentication SMS Voice CallsSubscriber DB MMS Data CallsPersonalization Billing etc…

Infrastructure Servers, e.g. Network Operators

police force case study
Police Force case study
  • Business driver
    • Need to improve officer productivity
  • Goal
    • Improve productivity to eqv. 100 additional officers
  • Very public project
    • Council tax contribution to fund project
  • Results
    • PNC search results ~4 seconds back on device
the need for a smart client
The need for a Smart Client
  • Application supports key business activities
  • User needs to ‘fire and forget’ tasks
  • Device security requires code on the client
what is a smart client design
What is a Smart Client design?
  • Client installed app using local CPU
  • Works in both connect and disconnected network states
  • In-built application change management
smart client architecture
Smart Client architecture
  • Why consciously factor code?
    • Increased abstraction
    • Decreased complexity
    • Increase reusability
  • How to factor code?
    • Move code (functions, classes, assemblies)
    • Change code visibility
    • Share or Split implementations
specific factoring opportunities
Specific Factoring Opportunities
  • The .NET Compact Framework has additional opportunities to gain value by factoring
  • Divide them into two key sub-groups:
    • Cross-tier factoring
    • Intra-tier (on-device) factoring
multi tier factoring
Multi-tier Factoring
  • How much can you put on a server?
  • How will you handle being unable to reach the server?
  • Duplication of sending (idempotence)
  • Mobile apps must be able to continue running while mobile 
  • Client data stores: XML, SQLCE, flat files…
cross tier factoring
Cross-tier factoring

Device application functionality

Unreliable wireless connectivity

Server application functionality

intra tier factoring
Intra-tier Factoring
  • Strict separation of UI and client-side logic (UI Processing code)
    • User interface code handles the specifics of the screen drawing
    • All logic associated with client validation, logic, rules, etc., should be considered UI Processing
  • Allows reuse of the maximum possible subset of code
device variety
Device Variety
  • .NET Compact Framework allows for unified API for many devices
  • The underlying form factors can be quite diverse, though.
  • This means input methods may be different
  • Consider factoring to allow for additional devices to be supported later.
n tier application architecture
N-tier application architecture

Users

Communication

Operational Management

Security

UI Components

UI Process Components

Service Interfaces

Business Workflows

Business Components

Business Entities

Data Access Logic Components

Service Agents

Data Sources

Services

windows mobile development platform today

Managed

Managed

Server side

Server side

Native

Native

ASP .NETMobile Controls

ASP .NETMobile Controls

MFC

MFC

ATL

ATL

.NET Compact

Framework

.NET Compact

Framework

Win32

Win32

Software Platform (APIs)

Data Access

Device Management

Communication

Presentation

Multimedia

Remote APIConfigurationBluetooth

Security

Connection ManagerTAPISMS MAPI POOM ActiveSync

ADO CEXMLCE DBOLE DB

Home ScreenUser Interface/ShellHTML Control

GAPI

Windows Mobile

CE DBActiveSync

Pocket OutlookPocket Internet ExplorerWindows Media Player

Windows CE

Device Hardware

Radio

ProcessorMemory

GSM/GPRSCDMA/1xRTT

WiFiBluetooth

DisplayUSB or Serial

Windows Mobile Development Platform:Today

Visual Studio .NET

Embedded VC++

Drivers

this session will focus on

Managed

Server side

Native

ASP .NETMobile Controls

MFC

ATL

.NET Compact

Framework

Win32

Software Platform (APIs)

Data Access

Device Management

Communication

Presentation

Multimedia

Remote APIConfiguration*Bluetooth

Statsor*

Pocket Watson

Connection ManagerTAPI*SMS*MAPI*POOM*

SQL CEADO CEXMLCE DBOLE DB

Home ScreenUser Interface/ShellHTML ControlDOM

GAPICameraD3DMLocation*

Windows Mobile

CE DBActiveSync

SQL CE

Pocket OutlookPocket Internet ExplorerWindows Media Player

Windows CE

Device Hardware

Radio

ProcessorMemory

GSM/GPRSCDMA/1xRTT

WiFiBluetooth

DisplayUSB or Serial

This Session Will Focus On …

Visual Studio “Whidbey”

Drivers

Orange = Added/Enhanced in Future Windows Mobile Platform* = Managed wrappers

net compact framework today
.NET Compact Framework Today…
  • Service Pack 2 Improvements
    • Download it today from MSDN
    • Performance Gains over RTM
      • ~ 40% faster XML
      • ~ 20% faster ADO.NET
    • ForeColor and BackColor!!!
    • Keyboard Events
    • Support for Future Devices
  • Developer Adoption
    • Fourth most active .NET newsgroup
    • Developer Focused Web sites like
      • http://www.OpenNetCF.org
      • http://www.dotnetdn.com/
      • http://www.pocketPCDN.com
    • http://msdn.microsoft.com/mobility/
      • Information direct from product team members
net compact framework today third party controls and libraries
.NET Compact Framework Today…Third Party Controls and Libraries
  • ComponentOne Studio for Mobile Devices
  • /n Software’s IP*Works for .NET Compact Framework
  • InstallShield Developer Mobile Edition
  • Odyssey CFCom
  • Preemptive Dotfuscator
  • And More!
framework size
Framework Size
  • Framework size (RAM or ROM)
    • ~1.5 MB
  • Running RAM needs
    • 1 MB+ (depends on app)
  • Typical application sizes
    • 5 - 100 KB
    • Apps often smaller due to use of platform features in the framework
the net compact framework
The .NET Compact Framework

System.Web

System.Windows.Forms

Services

Design

ComponentModel

Description

Discovery

System.Drawing

Protocols

Drawing2D

Security

Text

System.Data

System.Xml

ADO.NET

SqlClient

XmlDocument

Reader/Writers

SqlServerCe

System

Collections

IO

common languageruntime

Security

Net

InteropServices

Text

Reflection

Diagnostics

Globalization

Resources

Threading

the net common language runtime
The .NET Common Language Runtime

System.Web

System.Windows.Forms

Services

Design

ComponentModel

Description

Discovery

System.Drawing

Protocols

Drawing2D

Security

Text

System.Data

System.Xml

ADO.NET

SqlClient

XmlDocument

SqlServerCe

Reader/Writers

System

Collections

IO

common languageruntime

  • Core functionality for execution
  • No worries about initialized pointers!
  • Provides garbage collection services
  • Good performance through JIT compilation
  • Straightforward error handling with exceptions
  • Support for Win32 APIs through platform invocation
  • All these benefits, and you can pick your development favourite language too!

Security

Net

InteropServices

Text

Reflection

Diagnostics

Remoting

Serialization

Globalization

Resources

Threading

common language runtime

Compiler

Assembly

Common Language Runtime

DEVELOPMENT

public static void Main(String[] args )

{ String usr; FileStream f; StreamWriter w;

try {

usr=Environment.GetEnvironmentVariable("USERNAME");

f=new FileStream(“C:\\test.txt",FileMode.Create);

w=new StreamWriter(f);

w.WriteLine(usr);

w.Close();

} catch (Exception e){

Console.WriteLine("Exception:"+e.ToString());

}

}

public static void Main(String[] args )

{ String usr; FileStream f; StreamWriter w;

try {

usr=Environment.GetEnvironmentVariable("USERNAME");

f=new FileStream(“C:\\test.txt",FileMode.Create);

w=new StreamWriter(f);

w.WriteLine(usr);

w.Close();

} catch (Exception e){

Console.WriteLine("Exception:"+e.ToString());

}

}

Source code

C#

J#

VB

Cobol

MSIL

Metadata

Resources

common language runtime1

DEVELOPMENT

DEVELOPMENT

public static void Main(String[] args )

{ String usr; FileStream f; StreamWriter w;

try {

usr=Environment.GetEnvironmentVariable("USERNAME");

f=new FileStream(“C:\\test.txt",FileMode.Create);

w=new StreamWriter(f);

w.WriteLine(usr);

w.Close();

} catch (Exception e){

Console.WriteLine("Exception:"+e.ToString());

}

}

GlobalAssemblyCache (GAC)

public static void Main(String[] args )

{ String usr; FileStream f; StreamWriter w;

try {

usr=Environment.GetEnvironmentVariable("USERNAME");

f=new FileStream(“C:\\test.txt",FileMode.Create);

w=new StreamWriter(f);

w.WriteLine(usr);

w.Close();

} catch (Exception e){

Console.WriteLine("Exception:"+e.ToString());

}

}

Compiler

Assembly

Assembly

Source code

C#

J#

VB

Cobol

MSIL

Metadata

Resources

ApplicationDirectory

Download Cache

Install

Common Language Runtime

DEPLOYMENT

Setup

Copy

Browser

common language runtime2

DEVELOPMENT

Assemblyon Target Machine

GlobalAssemblyCache (GAC)

Assembly

Setup

Copy

Browser

ApplicationDirectory

Class Loader

Security

Assembly

Loader

IL to NativeCompiler

Download Cache

Garbage Collection

Code Manager

Exception Manager

Native .exe + GC table

Thread Support

COM Interop

Install

Debug Engine

Common Language Runtime

DEPLOYMENT

Policy

<?xml version="1.0" encoding="utf-8" ?>

<configuration>

<mscorlib>

<security>

<policy>

<PolicyLevel version="1">

<CodeGroup class="UnionCodeGroup"

version="1"

PermissionSetName="Nothing"

Name="All_Code"

Description="Code group grants no permissions and forms the root of the code group tree.">

<IMembershipCondition class="AllMembershipCondition"

version="1"/>

<CodeGroup class="UnionCodeGroup"

version="1"

PermissionSetName="FullTrust"

EXECUTION

networking support system net
Networking SupportSystem.Net

System.Web

System.Windows.Forms

Services

Design

ComponentModel

Description

Discovery

System.Drawing

Protocols

Drawing2D

Security

Text

System.Data

System.Xml

ADO.NET

SqlClient

XmlDocument

SqlServerCe

Reader/Writers

System

  • Sockets
    • Provides synchronous and asynchronous
    • Multiple protocols
  • Streams
    • Built on top of sockets
    • Synchronous and asynchronous
  • HTTP request and response
    • Use stream model
    • Requires no user knowledge of HTTP

Collections

IO

common languageruntime

Security

Net

InteropServices

Text

Reflection

Diagnostics

Remoting

Serialization

Globalization

Resources

Threading

web service support system web

System.Web

System.Windows.Forms

Web Service SupportSystem.Web

Services

Design

ComponentModel

Description

Discovery

System.Drawing

Protocols

Drawing2D

Security

Text

System.Data

System.Xml

ADO.NET

SqlClient

XmlDocument

SqlServerCe

Reader/Writers

System

Collections

IO

common languageruntime

  • Calling Web services
  • All encoding types
  • Synchronous and asynchronous invocation
  • Basic and Digest authentication
  • Secure Sockets Layer support for encryption (SSL)
  • Custom SOAP headers
  • Read more about it!
    • Consuming XML Web Services with the Microsoft .NET Compact Framework http://msdn.microsoft.com/mobility/understanding/articles/default.aspx?pull=/library/en-us/dnnetcomp/html/netcfwebservices.asp

Security

Net

InteropServices

Text

Reflection

Diagnostics

Remoting

Serialization

Globalization

Resources

Threading

data support system data

System.Web

System.Windows.Forms

Data SupportSystem.Data

Services

Design

ComponentModel

Description

Discovery

System.Drawing

Protocols

Drawing2D

Security

Text

System.Data

System.Xml

ADO.NET

SqlClient

XmlDocument

SqlServerCe

Reader/Writers

System

Collections

IO

common languageruntime

  • Handling data offline with DataSet
  • Common data model from server to PC to device
  • Extensible ADO.NET provider model
  • SQL Server (System.Data.SqlClient)
  • SQL Server CE (System.Data.SqlServerCe)
    • Managed access to rich, robust device database
    • Efficient, complex querying
    • Enables online/offline applications
    • Data synchronization to SQL Server with server and client tracking

Security

Net

InteropServices

Text

Reflection

Diagnostics

Remoting

Serialization

Globalization

Resources

Threading

data best practices
DataBest Practices
  • If data is local…instead of DataSet…
    • Leverage SQL Server CE native in-proc database
    • Query data using DataReader
    • Use TableDirect command type for fast index searches
      • Equivalent to “SELECT * FROM foo WHERE bar > 3”
    • Limit open SqlCeCommand/DataReaders
      • Dispose when complete
  • If data is remote…
    • Use SQL Server CE replication
    • When using Web Services
      • Use DiffGrams to read and write DataSets to limit data transfer
      • Save data locally in SQL Server CE for faster access and storage
    • Don’t save remote DataSets as XML to device
      • If you do, save Schema as well
xml best practices for managing large xml data files
XMLBest Practices for Managing Large XML Data Files
  • Use XmlTextReader and XmlTextWriter
    • Smaller memory footprint than using XmlDocument
    • XmlTextReader is a pull model parser which only reads a “window” of the data
  • Design XML schema first, then code
    • Understand the structure of your XML document
    • Use elements to group
      • Allows use of Skip() in XmlTextReader
    • Use attributes to reduce size
xml best practices for serialization
XMLBest Practices for Serialization
  • Use XmlTextReader and XmlTextWriter
    • XmlDocument builds a generic, untyped object model using a tree
      • Type stored as string
    • Use XmlConvert to convert each element to appropriate managed type for efficiency
      • e.g. Int32
  • Design XML schema first, then code
    • Use elements for objects and arrays
    • Use attributes for simple properties and fields
xml and data net compact framework 2 0 performance
XML And Data.NET Compact Framework 2.0 Performance
  • Vastly improved XmlTextReader (SP2) and XmlTextWriter
  • XmlSerializer
  • Improved ADO.NET performance with SQL Server CE 3.0
    • SqlCeResultSet
      • Direct access to scrollable, updatable cursor
user interface design

System.Web

System.Windows.Forms

User Interface Design

Services

Design

ComponentModel

Description

Discovery

System.Drawing

Protocols

Drawing2D

Security

Text

System.Data

System.Xml

ADO.NET

SqlClient

XmlDocument

SqlServerCe

Reader/Writers

System

Collections

IO

common languageruntime

  • Wide range of controls
  • Supported controls are tailored to each device
  • Rich designer support in Visual Studio .NET
  • Some desktop functionality isn’t supported
    • ActiveX Controls
    • Printing
    • Drag and Drop
    • GDI+ (transparency)

Security

Net

InteropServices

Text

Reflection

Diagnostics

Remoting

Serialization

Globalization

Resources

Threading

supported controls system windows forms
Button

CheckBox

ComboBox

ContextMenu

DataGrid

DomainUpDown

FileOpenDialog

Supported ControlsSystem.Windows.Forms
  • Supported controls

FileSaveDialog

HScrollBar

ImageList

Input Panel

Label

ListBox

ListView

MainMenu

NumericUpDown

Panel

PictureBox

ProgressBar

RadioButton

StatusBar

TabControl

TextBox

Timer

ToolBar

Track Bar

TreeView

VScrollBar

  • Unavailable controls

ToolTip

Splitter

FontDialog

HelpProvider

LinkLabel

NotifyIcon

CheckedListBox

ColorDialog

ErrorProvider

control extensibility system windows forms
Control ExtensibilitySystem.Windows.Forms
  • Add functionality to existing controls
    • Create a text box that only supports numeric text entry
    • Add additional properties specific to your application
  • Create your own new controls
    • Many 3rd party examples, such as a signature capture control
  • Article with source code:
    • Microsoft® .NET Compact Framework-based DateTimePicker Control http://msdn.microsoft.com/mobility/understanding/articles/default.aspx?pull=/library/en-us/dnnetcomp/html/netcfdatetimepicker.asp
windows forms best practices
Windows FormsBest Practices
  • Load and cache Forms in the background
    • Populate data separate from Form.Show()
      • Pre-populate data, or
      • Load data async to Form.Show()
  • Parent controls top-down
    • e.g. Form  panels  controls
  • Use BeginUpdate/EndUpdate when it is available
    • e.g. ListView, TreeView
  • Use SuspendLayout/ResumeLayout when repositioning controls
  • Keep event handling code tight
    • Process bigger operations asynchronously
    • Blocking in event handlers will affect UI responsiveness
form management
Form Management
  • The Form Flow Challenge
    • No Multiple Document Interface
    • Multi form input more common
    • Which form to display next?
    • Hide or destroy current form?
  • Solutions
    • Dynamic form construction
    • Forms manager
    • Wizard based input (e.g. tight scripting of forms)
form management1
Form Management

Main Form

Collect

Form

Inspect

Form

Truck Form

Form Manager

Application Kernel

Main

Web Service Interface

Local Store (SQL CE )

identifying the top pitfalls the most common problems
Identifying The Top PitfallsThe most common problems
  • Putting synchronous code in Form_Load
  • Putting too much code in Form_Load
  • Assuming connectivity (implicitly)
  • Mixing user interface code and processing
  • Architecting based on incomplete or non-representative tests
  • Accepting default timeouts
  • Misapplying UI metaphors (desktop to mobile)
crm mobile architecture

Web Services for

Connected Scenarios

SQL CE RDA for async reliable messaging

Metadata

Driven UI

Dynamic WinForms

Metadata

Driven

Biz Logic

Metadata

Driven

Wire Formats

Dataset to message

transforms are

metadata driven

C# Code for

Offline

Business Logic

Metadata

driven

Data Access

Metadata and

Data Sync

Metadata changes are

downloaded on the fly

SQL CE schemas are

altered on the fly

Data is downloaded

without replication using

Standard XML messages

Datasets and

Data Readers

Wrapped with our

Metadata APIs

Dynamic

Offline

Store

SQL CE

Store

CRM Mobile Architecture
interoperability
Interoperability
  • Platform Invocation (P/Invoke)
    • Allows users to call custom native code and Windows APIs
    • Declare statement in Visual Basic
    • DLLImport Attribute in C#
  • Callbacks
    • No support for direct native to managed function calls
    • Use MessageWindow
      • Part of Microsoft.WindowsCE.Forms
  • COM Interoperability
    • Not directly supported in this version
    • Need to create native wrapper
    • Partner solutions available (Odyssey Software)
interoperability get more information
InteroperabilityGet More Information!
  • Articles
    • An Introduction to P/Invoke and Marshaling on the Microsoft .NET Compact Frameworkhttp://msdn.microsoft.com/mobility/understanding/articles/default.aspx?pull=/library/en-us/dnnetcomp/html/netcfintrointerp.asp
    • Advanced P/Invoke on the Microsoft .NET Compact Frameworkhttp://msdn.microsoft.com/mobility/understanding/articles/default.aspx?pull=/library/en-us/dnnetcomp/html/netcfadvinterop.asp
performance principles in general
Performance PrinciplesIn general…
  • Less code is faster code
  • Fewer objects are better for performance
  • Recycle and re-use expensive resources
  • Batch work where possible
  • Initialize lazily
  • Do work in the background to affect “perceived” performance
    • Use threads and async calls
  • Understand what the APIs are doing
application deployment

Application deployment

A mobile Smart Client example

application deployment1
Application Deployment
  • Visual Studio .NET provides auto-generation of simple CAB files for ActiveSync
    • Include application and dependant references
    • Does not include the runtime
    • Does not include other products that the app requires (e.g. SQL Server CE)
  • Temporary files are kept if user wants to customize the cab file contents
self updating applications
Self-updating applications
  • Application event triggers update enquiry
  • Updater applet calls web service with version and platform data
  • Web service indicates new version and location
  • Updater asynchronously acquires cab
  • Updater executes cab causing install
  • New application version installed
self updating architecture
Self-updating architecture

Web Service

XML

Spec

Application

V1.0

Updater

CAB

CAB

CAB executed

CAB

CAB

\downloads

Async download

CAB

Application

V1.1

New version

CAB

CAB

http://msdn.microsoft.com/library/default.asp

Creating Self-Updating Applications With the .NET Compact Framework

By Alex FeinmanOpenNETCF.org

windows mobile 2003 2 nd edition1
Windows Mobile 2003 2nd edition
  • Screen orientation
  • High DPI support
  • ActiveSync programming model
  • Today screen selection API
  • .Net Compact Framework SP2 in ROM
developer resources
Developer resources
  • Windows Mobile developer downloads
  • http://www.microsoft.com/windowsmobile/resources/downloads/developer/default.mspx
  • Developer Resource kit
    • White papers
    • Samples
  • Windows Mobile 2003 2nd Edition emulators for PPC and Smartphone
  • eVC V4 SP3
types of orientations screens
Types Of Orientations & Screens

Portrait

240x320

Landscape

320x240

Square 240x240

application impact
Application Impact
  • Fit content to the window
  • Change the content
  • Change layout
  • Design for square
fit content to window
Fit Content To Window

Portrait

Landscape

change the content
Change The Content
  • Content may need to change when orientation changes

Portrait

Landscape

change the layout
Change The Layout

Portrait

Landscape

design for square

Square

Design For Square

Portrait

Landscape

what happens
What Happens?
  • Pocket PC OS actions:
    • Call to ChangeDisplaySettingsEx() occurs
    • The display driver and touch screen driver are notified of the orientation change
    • The shell is notified of the orientation change
supporting orientation change
Supporting Orientation Change
  • Full Screen application
    • Resize done by the shell
    • Respond to Resize event (WM_SIZE) and resize child windows
  • Dialogs
    • Design new dialogs for square screen
    • Consider using property pages
    • Re-layout content
    • Use Replacement controls
  • Menus
    • Design for square screen
    • Fit without scrolling in all orientations
displays and layout
Displays And Layout
  • .NET Compact Framework 1.0 Service Pack 2 (today)
    • Automatically provides scrolling Form contents for non-portrait displays
    • Form.Resize event
    • Automatically provides pixel doubling for high resolution
    • White paper on MSDN:Developing Screen Orientation-Aware Applications

Future Device

  • Orientations
  • Resolutions
re layout content
Re-layout content
  • Create layout Classes from Designer
    • Design Portrait -> capture InitializeComponent
    • Design Landscape - > capture InitializeComponent
  • Handle orientation in methods
  • Keep designer forms for future modification
  • Full designer support in VS 2005
auto scrollbars in dialogs
Auto Scrollbars In Dialogs
  • Existing apps (version <=4.20)
    • automatic vertical scroll bar for Landscape and Square
  • New apps (version >=4.21)
    • Call SHInitDialog() with SHIDIF_WANTSCROLLBAR

80 pixels

layout tips
Layout Tips
  • Re-layout is expensive
    • relayout only when the width changes (not all WM_SIZE)
    • Use DeferWindowPos for child windows
  • Off-screen controls
    • To the left or above the window
    • Hide them!
  • Ensure select item is visible
    • Scroll into view if necessary
  • Hardware buttons move!
    • May not lie where you expect
update your install script
Update Your Install Script
  • Subsystem .EXE version <=4.20
  • Update .INF file:

[CEDevice]

BuildMax=0xE0000000 ; support for square screens and screen rotation

resolution aware apps
Resolution aware apps
  • What’s new?
  • NOTE: this is a DPI change, NOT a screen size change!
    • Same physical size
    • Designed to enable high quality screens
goals
Goals
  • Keep one app for both DPI settings
  • Support existing applications
    • Provide DPI “emulation” for existing apps
    • Best effort experience
    • Pocket PC only
  • Allow new applications to be DPI aware
    • Use hires graphics
    • Better customer experience
what is dpi awareness
What Is DPI Awareness?
  • More detail per element
  • NOT tiny text
migrating to hidpi
Migrating to HiDPI
  • Run your app on 96DPI
    • Take a screen snapshot
  • Run your app on 192DPI
    • Take a screen snapshot
  • Compare the output:

pWord, 96 DPI

pWord, 192 DPI

migrating to hidpi1
Migrating to HiDPI
  • Why so similar?
    • Legacy emulation layer
    • App believes it is running on 96 DPI
    • Layer stretches app to screen pixels
  • Main Difference:
    • Text looks sharper/better

96 DPI 192 DPI

so are we done
So, Are We Done?
  • No – true Hi-DPI support means:
    • Better images
    • Better performance

96 DPI

192 DPI

disabling emulation layer
Disabling Emulation Layer
  • Creating “manifest” resource:
    • Resource type: CEUX (custom data)
    • Resource Name: “HI_RES_AWARE”Quotes important (or will be defined as numeric)
    • Value: 01 00
    • In .rc file:HI_RES_AWARE CEUX BEGIN 0x0001END
  • Now app will see the real DPI
looking for problems
Looking For Problems
  • Compare screenshots

Obvious bugs

Subtle bugs

LoDPI

HiDPI

net compact framework
.NET Compact Framework
  • Emulation layer works
  • No designer support
  • Manifest resource
    • Res2exe –c –r hidpi.res MyApp.exe
summary
Summary
  • Visual Studio .NET 2003 is the development environment
  • Add on a Pocket PC or Smartphone SDK
  • .NET Compact Framework is in ROM!
windows mobile developer resources
Windows Mobile Developer Resources

Get Tools & Resources:

Windows Mobile

Developer Portal

More Support:Windows Mobile Solution Partner Program

Go To Market:Mobile2Market andCertification

Technical Support:

  • “Designed for Windows Mobile” certification testing
  • Free technical support incident

Marketing Support:

  • “Designed for Windows Mobile” logo on packaging & promotions
  • Increased promotion to retailers and distribution partners

Technical Support:

  • Tools and SDKs with emulators
  • Technical articles and whitepapers

Marketing Support:

  • Monthly newsletters
  • Case studies

Technical Support:

  • Exclusive expert columns
  • Early access to SDKs
  • Access to beta programs

Marketing Support:

  • PR support
  • Ongoing promotionsfor devices

Go to: http://www.microsoft.com/windowsmobile/developer
