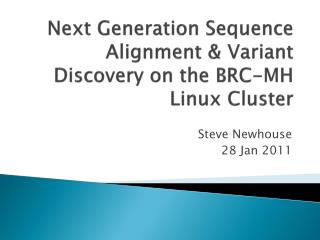

Next Generation Sequence Alignment & Variant Discovery on the BRC-MH Linux Cluster

Steve Newhouse

28 Jan 2011

overview
Overview
  • Practical guide to processing next generation sequencing data
  • No details on the inner workings of the software/code & theory
  • Based on the 1KG pipeline from the Broad Institute using their Genome Analysis Tool Kit (GATK).
  • Focus on Illumina paired-end sequence data
  • Alignment with BWA or Novoalign
  • SNP & Indel calling with GATK
  • NB: This is one way processing the data that works well
main tools resources
Main Tools/Resources
  • BRC Cluster Software : http://compbio.brc.iop.kcl.ac.uk/cluster/software.php
  • Maq: http://maq.sourceforge.net/
  • Fastqc : http://www.bioinformatics.bbsrc.ac.uk/projects/fastqc/
  • Fastx: http://hannonlab.cshl.edu/fastx_toolkit/
  • cmpfastq.pl : http://compbio.brc.iop.kcl.ac.uk/software/cmpfastq.php
  • BWA: http://bio-bwa.sourceforge.net/bwa.shtml
  • Novoalign: http://www.novocraft.com
  • Genome Analysis Toolkit: http://www.broadinstitute.org/gsa/wiki/index.php/The_Genome_Analysis_Toolkit
  • PICARD TOOLS: http://picard.sourceforge.net/
  • SAMTOOLS: http://samtools.sourceforge.net/
  • VCFTOOLS: http://vcftools.sourceforge.net/
  • FASTQ Files : http://en.wikipedia.org/wiki/FASTQ_format,
  • SAM/BAM Format : http://samtools.sourceforge.net/SAM1.pdf
  • PHRED Scores: http://en.wikipedia.org/wiki/Phred_quality_score
  • Next Generation Sequencing Library: http://ngslib.genome.tugraz.at
  • http://seqanswers.com
  • http://www.broadinstitute.org/gsa/wiki/index.php/File:Ngs_tutorial_depristo_1210.pdf
analysis pipeline
Analysis Pipeline
  • Convert IlluminaFastq to sangerFastq
  • QC raw data
  • Mapping (BWA, QC-BWA, Novoalign)
  • Convert Sequence Alignment/Map (SAM) to BAM
  • Local realignment around Indels
  • Remove duplicates
  • Base Quality Score Recalibration
  • Variant Discovery
work flow
Work flow

Illumina Raw fastq

Convert IlluminaFastq to sangerFastq

QC raw data

Mapping (BWA, QC-BWA, Novoalign)

Convert SAM to BAM

Local realignment around Indels

Remove duplicates

Base Quality Score Recalibration

Analysis-ready

reads

Indels & SNPs

what does the raw data look like
What does the raw data look like?
  • Fastq Format :*_sequence.txt;
    • s_1_1_sequence.txt = lane 1, read 1
    • s_1_2_sequence.txt = lane 1, read 2
  • Text file storing both nucleotide sequence and quality scores.
  • Both the sequence letter and quality score are encoded with a single ASCII character for brevity.
  • Standard for storing the output of high throughput sequencing instruments such as the Illumina Genome Analyzer
  • http://en.wikipedia.org/wiki/FASTQ_format
fastq format
FASTQ Format
  • Raw Data :-

@315ARAAXX090414:8:1:567:552#0

TGTTTCTTTAAAAAGGTAAGAATGTTGTTGCTGGGCTTAGAAATATGAATAACCATATGCCAGATAGATAGATGGA

+

;<<=<===========::==>====<<<;;;:::::99999988887766655554443333222211111000//

  • @315ARAAXX090414: the unique instrument name
  • 8: flowcell lane
  • 1: tile number within the flowcell lane
  • 567: 'x'-coordinate of the cluster within the tile
  • 552: 'y'-coordinate of the cluster within the tile
  • # :index number for a multiplexed sample (0 for no indexing)
  • 0 :the member of a pair, /1 or /2 (paired-end or mate-pair reads only)
  • http://en.wikipedia.org/wiki/FASTQ_format
slide8

Illumina Raw fastq

Convert IlluminaFastq to sangerFastq

Convert IlluminaFastq to sangerFastq

QC raw data

QC raw data

Mapping (BWA, QC-BWA, Novoalign)

Convert SAM to BAM

Local realignment around Indels

Remove duplicates

Base Quality Score Recalibration

Analysis-ready

reads

Indels & SNPs

quality control pre alignment processing 1
Quality Control & Pre-Alignment Processing.1
  • Convert IlluminaFastq to sangerFastq

$: maq ill2sanger s_1_1_sequence.txt foo.1.sanger.fastq

$: maq ill2sanger s_1_2_sequence.txt foo.2.sanger.fastq

quality control pre alignment processing 2
Quality Control & Pre-Alignment Processing.2
  • FastQC: Provides a simple way to do some quality control checks on raw sequence data.
    • Quick impression of whether the data has problems.
    • Import of data from BAM, SAM or FastQ
    • Summary graphs and tables to quickly assess your data
    • Export of results to an HTML based permanent report
    • Offline operation to allow automated generation of reports without running the interactive application

$: fastqc foo.1.sanger.fastq;

$: fastqc foo.2.sanger.fastq;

http://www.bioinformatics.bbsrc.ac.uk/projects/fastqc/

slide12

Illumina Raw fastq

Convert IlluminaFastq to sangerFastq

QC raw data

Mapping (BWA, QC-BWA, Novoalign)

Mapping (BWA, QC-BWA, Novoalign)

Convert SAM to BAM

Convert SAM to BAM

Local realignment around Indels

Remove duplicates

Base Quality Score Recalibration

Analysis-ready

reads

Indels & SNPs

reference genomes
Reference genomes
  • Available genomes
    • Homo_sapiens_assembly18.fasta
    • human_b36_both.fasta
    • human_g1k_v37.fasta (1000 genomes)
  • Indexed for use with BWA or Novoalign
  • Location: /scratch/data/reference_genomes/human
  • Human reference sequences and dbSNP reference metadata are available in a tarball:
    • ftp://ftp.broadinstitute.org/pub/gsa/gatk_resources.tgz
bwa burrows wheeler aligner
BWA: Burrows-Wheeler Aligner

## Align with BWA

$: REF=/scratch/data/reference_genomes/human/human_g1k_v37.fasta

$: bwaaln -t 8 $REF foo.1.sanger.fastq > foo.1.sai;

$: bwaaln -t 8 $REF foo.2.sanger.fastq > foo.2.sai;

## Generate alignment in the SAM format

$: bwasampe $REF foo.1.sai foo.2.sai foo.1.sanger.fastq foo.2.sanger.fastq > foo.bwa.raw.sam;

## Sort bwa SAM file using PICARD TOOLS SortSam.jar - this will also produce the BAM file

$: java -jar SortSam.jar SORT_ORDER=coordinate VALIDATION_STRINGENCY=SILENT \

INPUT= foo.bwa.raw.sam OUTPUT= foo.bwa.raw.bam;

## samtools index

$: samtools index foo.novo.raw.bam;

  • Use option -q15 if the quality is poor at the 3' end of reads
  • http://bio-bwa.sourceforge.net/bwa.shtml
bwa with pre alignment qc 1
BWA : with pre-alignment QC.1
  • Fastx: http://hannonlab.cshl.edu/fastx_toolkit
    • QC filter raw sequence data
    • always use -Q 33 for sangerphred scaled data (-Q 64)

$: cat foo.1.sanger.fastq | \

fastx_clipper -Q 33 -l 20 -v -a ACACTCTTTCCCTACACGACGCTCTTCCGATCT | \

fastx_clipper -Q 33 -l 20 -v -a CGGTCTCGGCATTCCTACTGAACCGCTCTTCCGATCT | \

fastx_clipper -Q 33 -l 20 -v -a ATGATACGGCGACCACCGAGATCTACACTCTTTCCCTACACGACGCTCTTCCGATC | \

fastx_clipper -Q 33 -l 20 -v –a CAAGCAGAAGACGGCATACGAGATCGGTCTCGGCATTCCTGCTGAACCGCTCTTCCGATC | \

fastq_quality_trimmer -Q 33 -t 20 -l 20 -v | \

fastx_artifacts_filter -Q 33 -v | \

fastq_quality_filter -Q 33 -q 20 -p 50 -v -o foo.1.sanger.qc.fastq;

$: cat foo.2.sanger.fastq | \

fastx_clipper -Q 33 -l 20 -v -a ACACTCTTTCCCTACACGACGCTCTTCCGATCT | \

fastx_clipper -Q 33 -l 20 -v -a CGGTCTCGGCATTCCTACTGAACCGCTCTTCCGATCT | \

fastx_clipper -Q 33 -l 20 –v -a ATGATACGGCGACCACCGAGATCTACACTCTTTCCCTACACGACGCTCTTCCGATC | \

fastx_clipper -Q 33 -l 20 -v –a CAAGCAGAAGACGGCATACGAGATCGGTCTCGGCATTCCTGCTGAACCGCTCTTCCGATC | \

fastq_quality_trimmer -Q 33 -t 20 -l 20 -v | \

fastx_artifacts_filter -Q 33 -v | \

fastq_quality_filter -Q 33 -q 20 -p 50 -v -o foo.2.sanger.qc.fastq;#

bwa with pre alignment qc 2
BWA : with pre-alignment QC.2
  • Compare QCdfastq files
    • One end of each read could be filtered out in QC
    • BWA cant deal with mixed PE & SE data
    • Need to id reads that are still paired after QC
    • Need to id reads that are no longer paired after QC

$: perl cmpfastq.pl foo.1.sanger.qc.fastq foo.2.sanger.qc.fastq

  • Reads matched on presence/absence of id's in each file :
    • foo.1.sanger.qc.fastq : @315ARAAXX090414:8:1:567:552#1
    • foo.2.sanger.qc.fastq : @315ARAAXX090414:8:1:567:552#2
  • Output: 2 files for each *QC.fastq file
    • foo.1.sanger.qc.fastq-common-out (reads in foo.1.* == reads in foo.2.*)
    • foo.1.sanger.qc.fastq-unique-out (reads in foo.1.* not in foo.2.*)
    • foo.2.sanger.qc.fastq-commont-out
    • foo.2.sanger.qc.fastq-unique-out

http://compbio.brc.iop.kcl.ac.uk/software/cmpfastq.php

bwa with pre alignment qc 3
BWA : with pre-alignment QC.3
  • Align with BWA

$: REF=/scratch/data/reference_genomes/human/human_g1k_v37.fasta

$: bwaaln -t 8 $REF foo.1.sanger.qc.fastq-common-out > foo.1.common.sai;

$: bwaaln -t 8 $REF foo.2.sanger.qc.fastq-common-out > foo.2.common.sai;

$: bwaaln -t 8 $REF foo.1.sanger.qc.fastq-unique-out > foo.1.unique.sai;

$: bwaaln -t 8 $REF foo.1.sanger.qc.fastq-unique-ou > foo.2.unique.sai;

  • Multi threading option : -t N
  • http://bio-bwa.sourceforge.net/bwa.shtml
bwa with pre alignment qc 4
BWA : with pre-alignment QC.4
  • Generate alignments in the SAM/BAM format

$: REF=/scratch/data/reference_genomes/human/human_g1k_v37.fasta

## bwasampe for *common*

$: bwasampe $REF foo.1.common.sai foo.2.common.sai foo.1.sanger.qc.fastq-common-out foo.2.sanger.qc.fastq-common-out > foo.common.sam;

## bwasamse for *unique*

$: bwasamse $REF foo.1.unique.sai foo.1.sanger.qc.fastq-unique-out > foo.1.unique.sam;

$: bwasamse $REF foo.2.unique.sai foo.2.sanger.qc.fastq-unique-out > foo.2.unique.sam;

## merge SAM files using PICARD TOOLS MergeSamFiles.jar - this will also sort the BAM file

$: java -jar MergeSamFiles.jar INPUT=foo.common.sam INPUT=foo.1.unique.sam INPUT=foo.2.unique.sam ASSUME_SORTED=false VALIDATION_STRINGENCY=SILENT OUTPUT=foo.bwa.raw.bam;

## samtools index

samtools index foo.bwa.raw.bam;

  • Details SAM/BAM Format : http://samtools.sourceforge.net/SAM1.pdf
novoalign quality aware gapped aligner 1
Novoalign : quality aware gapped aligner.1
  • Has options for adaptor stripping and quality filters – and much more
  • More accurate than BWA but slower unless running MPI version
  • $1,990/year for full set of tools – worth it!

$: REF=/scratch/data/reference_genomes/human/human_g1k_v37

$: novoalign -d $REF -F STDFQ -f foo.1.sanger.fastq foo.2.sanger.fastq \

-a GATCGGAAGAGCGGTTCAGCAGGAATGCCGAG ACACTCTTTCCCTACACGACGCTCTTCCGATCT \

-r Random -i PE 200,50 -c 8 --3Prime -p 7,10 0.3,10 -k -K foo.novo.test \

-o SAM $'@RG\tID:foo\tPL:Illumina\tPU:Illumina\tLB:tumour\tSM:foo' \

> foo.novo.stats > foo.novo.raw.sam;

  • http://www.novocraft.com
novoalign quality aware gapped aligner 2
Novoalign : quality aware gapped aligner.2
  • Novoalign produces a name sorted SAM file which needs to be co-ordinate sorted for downstream processing

## Sort novo SAM file using PICARD TOOLS SortSam.jar - this will also produce the BAM file

$: java -jar SortSam.jar SORT_ORDER=coordinate VALIDATION_STRINGENCY=SILENT \ INPUT= foo.novo.raw.sam OUTPUT= foo.novo.raw.bam;

## samtools index

$: samtools index foo.novo.raw.bam;

post aligment processing of bam files
Post Aligment processing of BAM files
  • Local realignment around Indels
  • Remove duplicate reads
  • Base Quality Score Recalibration
  • GATK: http://www.broadinstitute.org/gsa/wiki/index.php/The_Genome_Analysis_Toolkit
  • PICARD TOOLS: http://picard.sourceforge.net
  • SAMTOOLS: http://samtools.sourceforge.net
  • Many other quality stats/options for processing files using these tools : see web documentation
slide22

Illumina Raw fastq

Convert IlluminaFastq to sangerFastq

QC raw data

Mapping (BWA, QC-BWA, Novoalign)

Convert SAM to BAM

Local realignment around Indels

Local realignment around Indels

Remove duplicates

Base Quality Score Recalibration

Analysis-ready

reads

Indels & SNPs

local realignment around indels 1
Local realignment around Indels.1
  • Sequence aligners are unable to perfectly map reads containing insertions or deletions
    • Alignment artefacts
    • False positives SNPs
  • Steps to the realignment process:
    • Step 1: Determining (small) suspicious intervals which are likely in need of realignment
    • Step 2: Running the realigner over those intervals
    • Step 3: Fixing the mate pairs of realigned reads

http://www.broadinstitute.org/gsa/wiki/index.php/Local_realignment_around_indels

local realignment around indels 2
Local realignment around Indels.2

Original BAM file

RealignerTargetCreator (GATK)

forRealigner.intervals (interval file)

IndelRealigner (GATK)

Realigned BAM file

SortSam (PICARD)

Co-ordinate sorted Realigned BAM file

FixMateInformation (PICARD)

Co-ordinate sorted Realigned fixed BAM file

local realignment around indels 3
Local realignment around Indels.3

$: REF=/scratch/data/reference_genomes/human/human_g1k_v37.fasta

$: ROD=/scratch/data/reference_genomes/human/dbsnp_131_b37.final.rod

$: TMPDIR=~/scratch/tmp

$: GATK=/share/apps/gatk_20100930/Sting/dist/GenomeAnalysisTK.jar

## 1. Creating Intervals : RealignerTargetCreator

$: java –Xmx5g -jar $GATK -T RealignerTargetCreator -R $REF -D $ROD \

-I foo.novo.bam -o foo.novo.bam.forRealigner.intervals;

## 2. Realigning : IndelRealigner

$: java -Djava.io.tmpdir=$TMPDIR –Xmx5g -jar $GATK -T IndelRealigner \

-R $REF -D $ROD -I foo.novo.bam -o foo.novo.realn.bam \

-targetIntervalsfoo.novo.bam.forRealigner.intervals;

## samtools index

$: samtools index foo.novo.realn.bam;

local realignment around indels 31
Local realignment around Indels.3

## 3. Sort realigned BAM file using PICARD TOOLS SortSam.jar

## GATK IndelRealigner produces a name sorted BAM

$: java –Xmx5g -jar SortSam.jar \

INPUT= foo.novo.realn.bam OUTPUT=foo.novo.realn.sorted.bam \

SORT_ORDER=coordinate TMP_DIR=$TMPDIR VALIDATION_STRINGENCY=SILENT;

## samtools index

$: samtools index foo.novo.realn.soretd.bam;

## 4. Fixing the mate pairs of realigned reads using Picard tools FixMateInformation.jar

$: java -Djava.io.tmpdir=$TMPDIR -jar -Xmx6g FixMateInformation.jar \

INPUT= foo.novo.realn.sorted.bam OUTPUT= foo.novo.realn.sorted.fixed.bam \

SO=coordinate VALIDATION_STRINGENCY=SILENT TMP_DIR=$TMPDIR;

## samtools index

samtools index foo.novo.realn.sorted.fixed.bam ;

slide27

Illumina Raw fastq

Convert IlluminaFastq to sangerFastq

QC raw data

Mapping (BWA, QC-BWA, Novoalign)

Convert SAM to BAM

Local realignment around Indels

Remove duplicates

Remove duplicates

Base Quality Score Recalibration

Analysis-ready

reads

Indels & SNPs

remove duplicate reads
Remove duplicate reads
  • Examine aligned records in the supplied SAM or BAM file to locate duplicate molecules and remove them

$: TMPDIR=~/scratch/tmp

## Remove duplicate reads with Picard tools MarkDuplicates.jar

$: java -Xmx6g –jar MarkDuplicates.jar \

INPUT= foo.novo.realn.sorted.fixed.bam \

OUTPUT= foo.novo.realn.duperemoved.bam \

METRICS_FILE=foo.novo.realn.Duplicate.metrics.file \

REMOVE_DUPLICATES=true \

ASSUME_SORTED=false TMP_DIR=$TMPDIR \

VALIDATION_STRINGENCY=SILENT;

## samtools index

samtools index foo.novo.realn.duperemoved.bam;

slide29

Illumina Raw fastq

Convert IlluminaFastq to sangerFastq

QC raw data

Mapping (BWA, QC-BWA, Novoalign)

Convert SAM to BAM

Local realignment around Indels

Remove duplicates

Base Quality Score Recalibration

Base Quality Score Recalibration

Analysis-ready reads

Analysis-ready

reads

Indels & SNPs

base quality score recalibration 1
Base Quality Score Recalibration.1
  • Correct for variation in quality with machine cycle and sequence context
  • Recalibrated quality scores are more accurate
  • Closer to the actual probability of mismatching the reference genome
  • Done by analysing the covariation among several features of a base
    • Reported quality score
    • The position within the read
    • The preceding and current nucleotide (sequencing chemistry effect) observed by the sequencing machine
    • Probability of mismatching the reference genome
    • Known SNPs taken into account (dbSNP 131)
  • Covariates are then used to recalibrate the quality scores of all reads in a BAM file

http://www.broadinstitute.org/gsa/wiki/index.php/Base_quality_score_recalibration

base quality score recalibration 2
Base Quality Score Recalibration.2

Co-ordinate sorted Realigned fixed BAM file

CountCovariates

AnalyzeCovariates

Pre-recalibration

analysis plots

Covariates table (.csv)

TableRecalibraion

Final Recalibrated BAM file

CountCovariates

AnalyzeCovariates

Post-recalibration

analysis plots

Recalibrated covariates

table (.csv)

base quality score recalibration 3
Base Quality Score Recalibration.3

## set env variables

$: GATK=/share/apps/gatk_20100930/Sting/dist/GenomeAnalysisTK.jar

$: REF=/scratch/data/reference_genomes/human/human_g1k_v37.fasta

$: ROD=/scratch/data/reference_genomes/human/dbsnp_131_b37.final.rod

## 1. GATK CountCovariates

java -Xmx8g -jar $GATK -T CountCovariates -R $REF --DBSNP $ROD \

-I foo.novo.realn.duperemoved.bam\

-recalFilefoo.novo.realn.duperemoved.bam.recal_data.csv \

--default_platformIllumina \

-covReadGroupCovariate \

-covQualityScoreCovariate \

-covCycleCovariate \

-covDinucCovariate \

-covTileCovariate \

-covHomopolymerCovariate \

-nback 5;

http://www.broadinstitute.org/gsa/wiki/index.php/Base_quality_score_recalibration

base quality score recalibration 4
Base Quality Score Recalibration.4

## set env variables

$: GATK=/share/apps/gatk_20100930/Sting/dist/GenomeAnalysisTK.jar

$: GATKacov=/share/apps/gatk_20100930/Sting/dist/AnalyzeCovariates.jar

$: GATKR=/share/apps/gatk_20100930/Sting/R

$: REF=/scratch/data/reference_genomes/human/human_g1k_v37.fasta

$: ROD=/scratch/data/reference_genomes/human/dbsnp_131_b37.final.rod

$: Rbin=/share/apps/R_current/bin/Rscript

## 2. GATK AnalyzeCovariates

java -Xmx5g –jar $GATKacov \

-recalFilefoo.novo.realn.duperemoved.bam.recal_data.csv \

-outputDirfoo.novo.realn.duperemoved.bam.recal.plots \

-resources $GATKR \

-Rscript $Rbin;

http://www.broadinstitute.org/gsa/wiki/index.php/Base_quality_score_recalibration

base quality score recalibration 5
Base Quality Score Recalibration.5
  • Generate the final analysis ready BAM file for Variant Discovery and Genotyping

## set env variables

$: GATK=/share/apps/gatk_20100930/Sting/dist/GenomeAnalysisTK.jar

$: REF=/scratch/data/reference_genomes/human/human_g1k_v37.fasta

$: ROD=/scratch/data/reference_genomes/human/dbsnp_131_b37.final.rod

## 3. GATK TableRecalibration

$: java –Xmx6g -jar $GATK -T TableRecalibration -R $REF \

-I foo.novo.realn.duperemoved.bam \

--out foo.novo.final.bam \

-recalFilefoo.novo.realn.duperemoved.bam.recal_data.csv \

--default_platformIllumina;

##samtools index

$: samtools index foo.novo.final.bam;

http://www.broadinstitute.org/gsa/wiki/index.php/Base_quality_score_recalibration

slide35

Illumina Raw fastq

Convert IlluminaFastq to sangerFastq

QC raw data

Mapping (BWA, QC-BWA, Novoalign)

Convert SAM to BAM

Local realignment around Indels

Remove duplicates

Base Quality Score Recalibration

Analysis-ready

reads

SNP & Indel calling with GATK

Indels & SNPs

snp indel calling with gatk
SNP & Indel calling with GATK

Final Recalibrated BAM file

IndelGenotyperV2

UnifiedGenotyper

filterSingleSampleCalls.pl

gatk.raw.indels.verbose.output.bed

gatk.raw.indels.detailed.output.vcf

gatk.indels.filtered.bed

gatk.raw.indels.bed

gatk.raw.snps.vcf

gatk.filtered.indels.simple.bed

...

chr1 556817 556817 +G:3/7

chr1 3535035 3535054 -TTCTGGGAGCTCCTCCCCC:9/21

chr1 3778838 3778838 +A:15/48

...

makeIndelMask.py

indels.mask.bed

VariantFiltration

gatk.filtered.snps.vcf

short indels gatk indelgenotyperv2
Short Indels (GATK IndelGenotyperV2)

## set env variables

$: GATK=/share/apps/gatk_20100930/Sting/dist/GenomeAnalysisTK.jar

$: GATKPERL=/share/apps/gatk_20100930/Sting/perl

$: GATKPYTHON=/share/apps/gatk_20100930/Sting/python

$: REF=/scratch/data/reference_genomes/human/human_g1k_v37.fasta

$: ROD=/scratch/data/reference_genomes/human/dbsnp_131_b37.final.rod

## Generate raw indel calls

$: java -Xmx6g -jar $GATK -T IndelGenotyperV2 -R $REF --DBSNP $ROD \

-I foo.novo.final.bam \

-bed foo.gatk.raw.indels.bed \

-o foo.gatk.raw.indels.detailed.output.vcf \

--metrics_filefoo.gatk.raw.indels.metrics.file \

-verbose foo.gatk.raw.indels.verbose.output.bed \

-minCoverage 8 -S SILENT –mnr 1000000;

## Filter raw indels

$: perl $GATKPERL/filterSingleSampleCalls.pl --calls foo.gatk.raw.indels.verbose.output.bed \

--max_cons_av_mm 3.0 --max_cons_nqs_av_mm 0.5 --mode ANNOTATE > foo.gatk.filtered.indels.bed

http://www.broadinstitute.org/gsa/wiki/index.php/Indel_Genotyper_V2.0

creating an indel mask file
Creating an indel mask file
  • The output of the IndelGenotyper is used to mask out SNPs near indels.
  • “makeIndelMask.py” creates a bed file representing the masking intervals based on the output of IndelGenotyper.

$: GATKPYTHON=/share/apps/gatk_20100930/Sting/python

## Create indel mask file

$: python $GATKPYTHON/makeIndelMask.py foo.gatk.raw.indels.bed 5 indels.mask.bed

  • The number in this command stands for the number of bases that will be included on either side of the indel.

http://www.broadinstitute.org/gsa/wiki/index.php/Indel_Genotyper_V2.0

snp calling gatk unifiedgenotyper
SNP Calling (GATK UnifiedGenotyper)

## set env variables

$: GATK=/share/apps/gatk_20100930/Sting/dist/GenomeAnalysisTK.jar

$: REF=/scratch/data/reference_genomes/human/human_g1k_v37.fasta

$: ROD=/scratch/data/reference_genomes/human/dbsnp_131_b37.final.rod

## SNP Calling

$: java -Xmx5g -jar $GATK -T UnifiedGenotyper -R $REF -D $ROD \

-baq CALCULATE_AS_NECESSARY -baqGOP 30 -nt 8 \

-A DepthOfCoverage -A AlleleBalance -A HaplotypeScore -A HomopolymerRun -A MappingQualityZero -A QualByDepth -A RMSMappingQuality -A SpanningDeletions \

-I foo.novo.final.bam -o foo.gatk.raw.snps.vcf \

-verbose foo.gatk.raw.snps.vcf.verbose -metrics foo.gatk.raw.snps.vcf.metrics;

  • This results in a VCF (variant call format) file containing raw SNPs.
    • VCF is a text file format. It contains meta-information lines, a header line, and then data lines each containing information about a position in the genome (SNP/INDEL calls).

http://www.1000genomes.org/wiki/Analysis/Variant%20Call%20Format/vcf-variant-call-format-version-40

http://www.broadinstitute.org/gsa/wiki/index.php/Unified_genotyper

snp filtering annotation gatk variantfiltration
SNP Filtering & annotation (GATK VariantFiltration)
  • VariantFiltration is used annotate suspicious calls from VCF files based on their failing given filters.
  • It annotates the FILTER field of VCF files for records that fail any one of several filters:
    • Variants that lie in clusters, using the specified values to define a cluster (i.e. the number of variants and the window size).
    • Any variant which overlaps entries from a masking rod.
    • Any variant whose INFO field annotations match a specified expression (i.e. the expression is used to describe records which should be filtered out).

## set env variables

$: GATK=/share/apps/gatk_20100930/Sting/dist/GenomeAnalysisTK.jar

$: REF=/scratch/data/reference_genomes/human/human_g1k_v37.fasta

$: ROD=/scratch/data/reference_genomes/human/dbsnp_131_b37.final.rod

## VariantFiltration & annotation

$: java –Xmx5g -jar $GATK -T VariantFiltration -R $REF -D $ROD \

-o foo.gatk.VariantFiltration.snps.vcf \

-B variant,VCF,foo.gatk.raw.snps.vcf\

-B mask,Bed,indels.mask.bed--maskNameInDel \

--clusterSize 3 --clusterWindowSize 10 \

--filterExpression "DP <= 8" --filterName "DP8" \

--filterExpression "SB > -0.10" --filterName "StrandBias" \

--filterExpression "HRun > 8" --filterName "HRun8" \

--filterExpression "QD < 5.0" --filterName "QD5" \

--filterExpression "MQ0 >= 4 && ((MQ0 / (1.0 * DP)) > 0.1)" --filterName "hard2validate";

  • More information on the parameters used can be found in: http://www.broadinstitute.org/gsa/wiki/index.php/VariantFiltrationWalkerhttp://www.broadinstitute.org/gsa/wiki/index.php/Using_JEXL_expressions
snp filtering vcftools
SNP Filtering: VCFTOOLS
  • VCFTOOLS: methods for working with VCF files: filtering,validating, merging, comparing and calculate some basic population genetic statistics.
  • Example of some basic hard filtering:

## filter poor quality & suspicious SNP calls

vcftools --vcffoo.gatk.VariantFiltration.snps.vcf\

--remove-filtered DP8 --remove-filtered StrandBias--remove-filtered LowQual \

--remove-filtered hard2validate --remove-filtered SnpCluster \

--keep-INFO AC --keep-INFO AF --keep-INFO AN --keep-INFO DB \

--keep-INFO DP --keep-INFO DS --keep-INFO Dels --keep-INFO HRun --keep-INFO HaplotypeScore --keep-INFO MQ --keep-INFO MQ0 --keep-INFO QD --keep-INFO SB --out foo.gatk.good.snps ;

  • this produces the file " foo.gatk.good.snps.recode.vcf"
vcftools for snp qc and statistics
VCFTOOLS for SNP QC and statistics
  • VCFTOOLS can be used to generate useful QC measures, PLINK ped/map, Impute input and more....

## QC & info

$: for MYQC in missing freq2 counts2 depth site-depth site-mean-depth geno-depth het hardy singletons;do

vcftools --vcffoo.gatk.good.snps.recode.vcf --$MYQC \

--out foo.gatk.good.snps.QC;

done

## write genotypes, genotype qualities and genotype depth to separate files

$: for MYFORMAT in GT GQ DP;do

vcftools--vcffoo.gatk.good.snps.recode.vcf \

--extract-FORMAT-info $MYFORMAT --out foo.gatk.good.snps;

done

## make PLINK ped and map files

vcftools --vcffoo.gatk.good.snps.recode.vcf --plink --out foo.gatk.good.snps

http://vcftools.sourceforge.net/

picard tools post alignment summary reports
Picard Tools : Post Alignment Summary reports
  • See : http://www.broadinstitute.org/files/shared/mpg/nextgen2010/nextgen_fennell.pdf
questions
Questions?
  • Email : stephen.newhouse@kcl.ac.uk
  • More useful links:
    • http://www.broadinstitute.org/gsa/wiki/index.php/Prerequisites
    • http://www.broadinstitute.org/gsa/wiki/index.php/Building_the_GATK
    • http://www.broadinstitute.org/gsa/wiki/index.php/Downloading_the_GATK
    • http://www.broadinstitute.org/gsa/wiki/index.php/Input_files_for_the_GATK
    • http://www.broadinstitute.org/gsa/wiki/index.php/Preparing_the_essential_GATK_input_files:_the_reference_genome
    • http://www.broadinstitute.org/gsa/wiki/index.php/The_DBSNP_rod
