Metamorphic Phase Diagrams

Differ from Igneous Phase Diagrams

Show a snapshot of all compositions at given T,P

Rock remains at same point but diagram changes



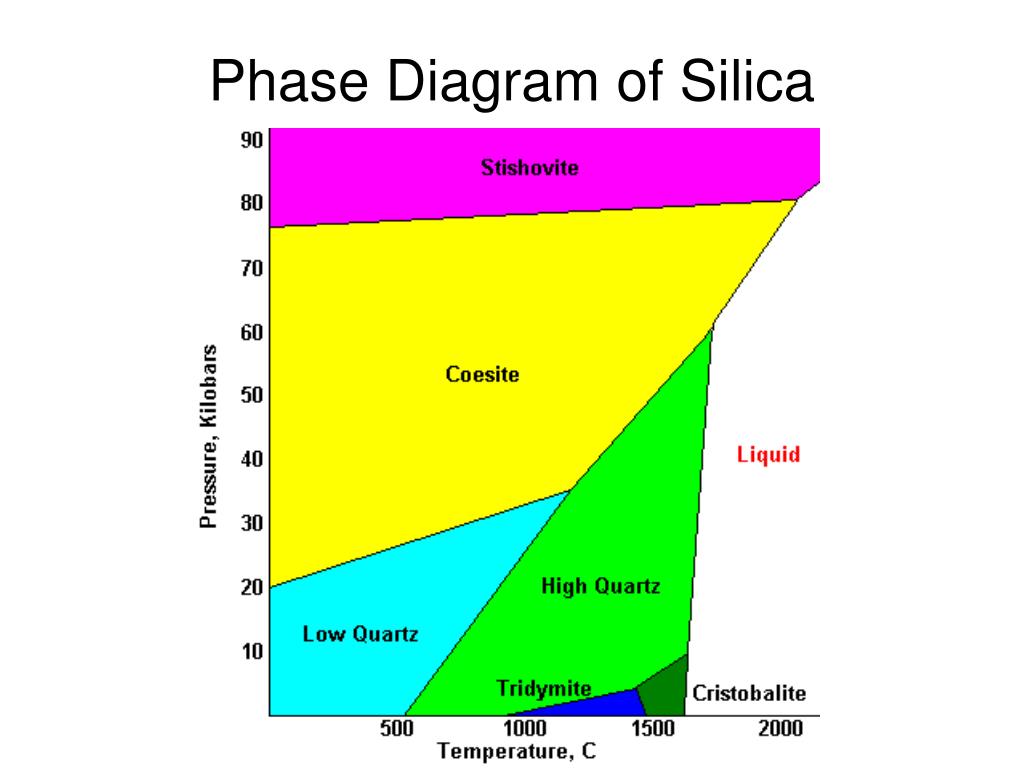

The phase rule gibbs 1928 l.jpg

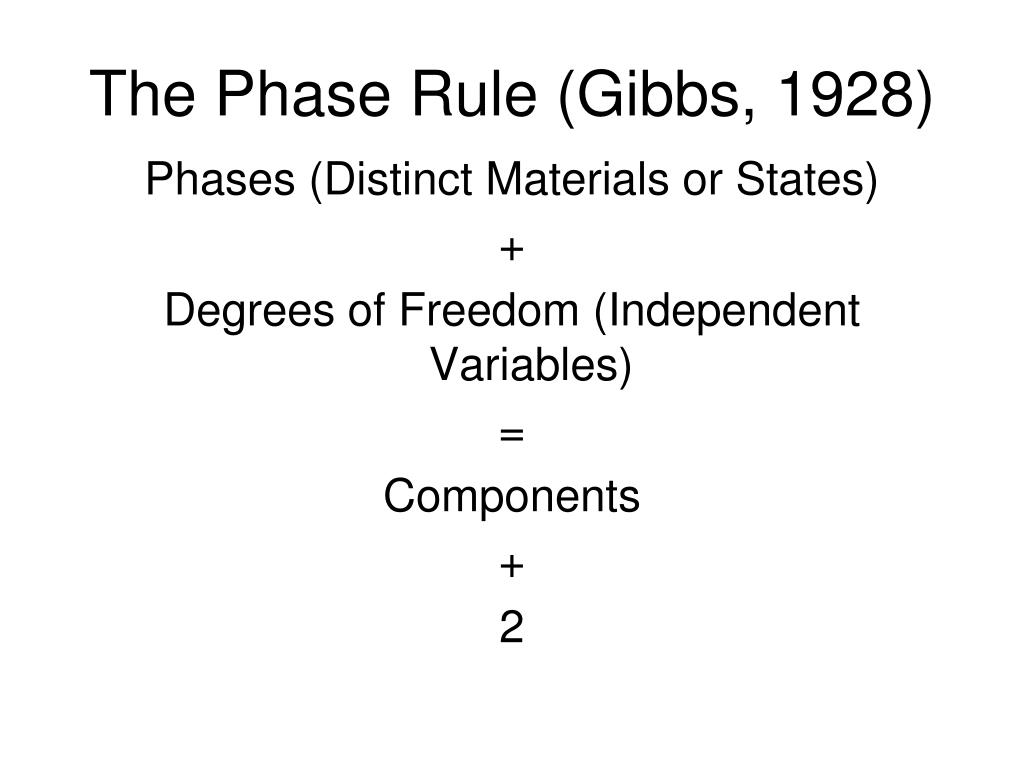

The Phase Rule (Gibbs, 1928)

Phases (Distinct Materials or States)

+

Degrees of Freedom (Independent Variables)

=

Components

+

2






Degrees of freedom l.jpg
Degrees of Freedom

  • Pressure

  • Temperature

  • PH2O

  • PCO2

  • pH

  • Oxygen fugacity

  • Eh


Simplifying degrees of freedom l.jpg
Simplifying Degrees of Freedom

  • Generally ignore pH, Eh, Oxygen fugacity for most rocks

    • Important for sulfide systems

  • Usually care about T,P

    • Assume PH2O = Ptotal for silicates, PCO2 = 0

    • Assume PCO2 = Ptotal for carbonates, PH2O = 0

    • Assume PH2O = 0 and PCO2 = 0 in some cases


Simplifying degrees of freedom10 l.jpg

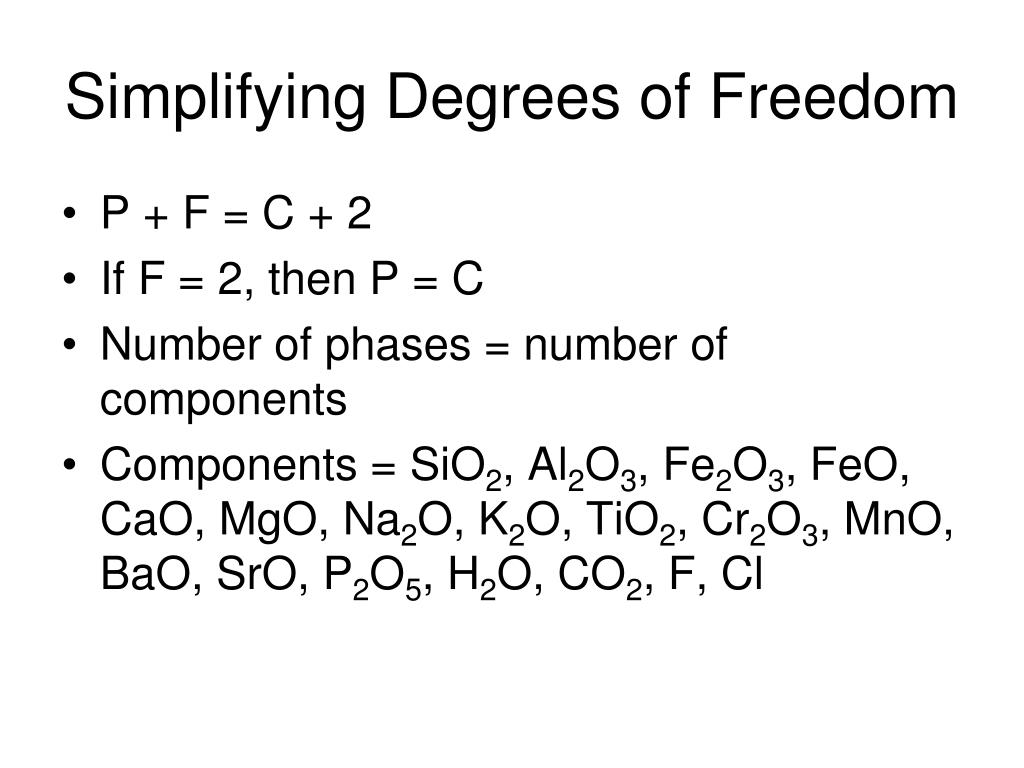

Simplifying Degrees of Freedom

  • P + F = C + 2

  • If F = 2, then P = C

  • Number of phases = number of components

  • Components = SiO2, Al2O3, Fe2O3, FeO, CaO, MgO, Na2O, K2O, TiO2, Cr2O3, MnO, BaO, SrO, P2O5, H2O, CO2, F, Cl


Simplifying components l.jpg

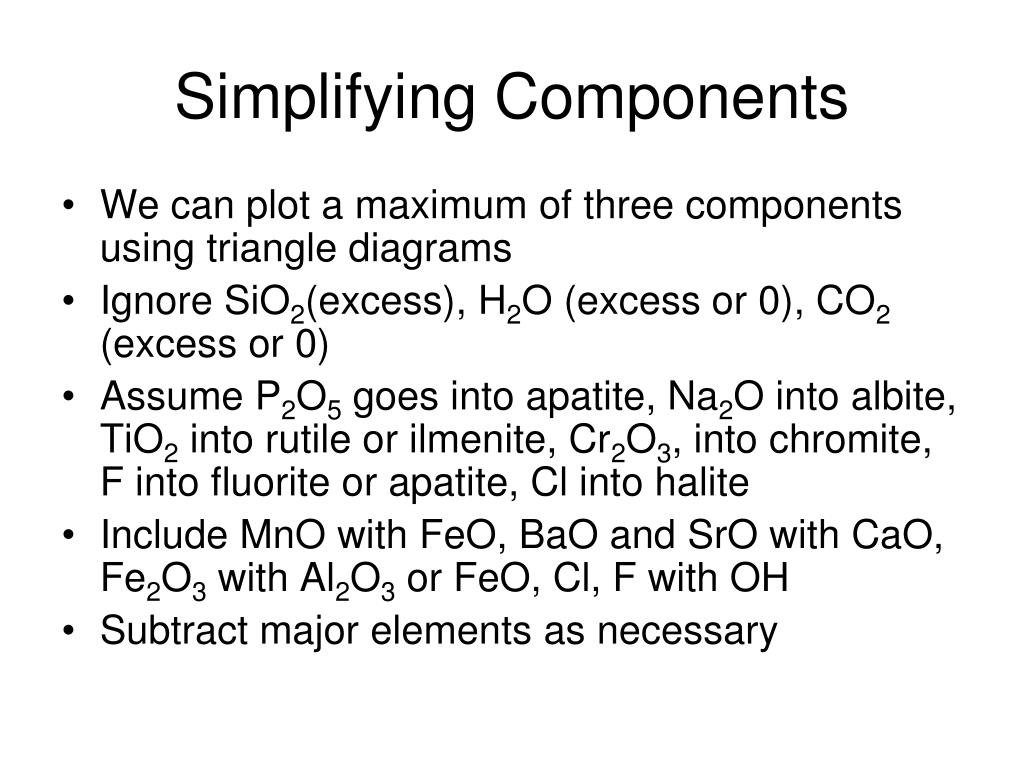

Simplifying Components

  • We can plot a maximum of three components using triangle diagrams

  • Ignore SiO2(excess), H2O (excess or 0), CO2 (excess or 0)

  • Assume P2O5 goes into apatite, Na2O into albite, TiO2 into rutile or ilmenite, Cr2O3, into chromite, F into fluorite or apatite, Cl into halite

  • Include MnO with FeO, BaO and SrO with CaO, Fe2O3 with Al2O3 or FeO, Cl, F with OH

  • Subtract major elements as necessary


Simplifying components12 l.jpg

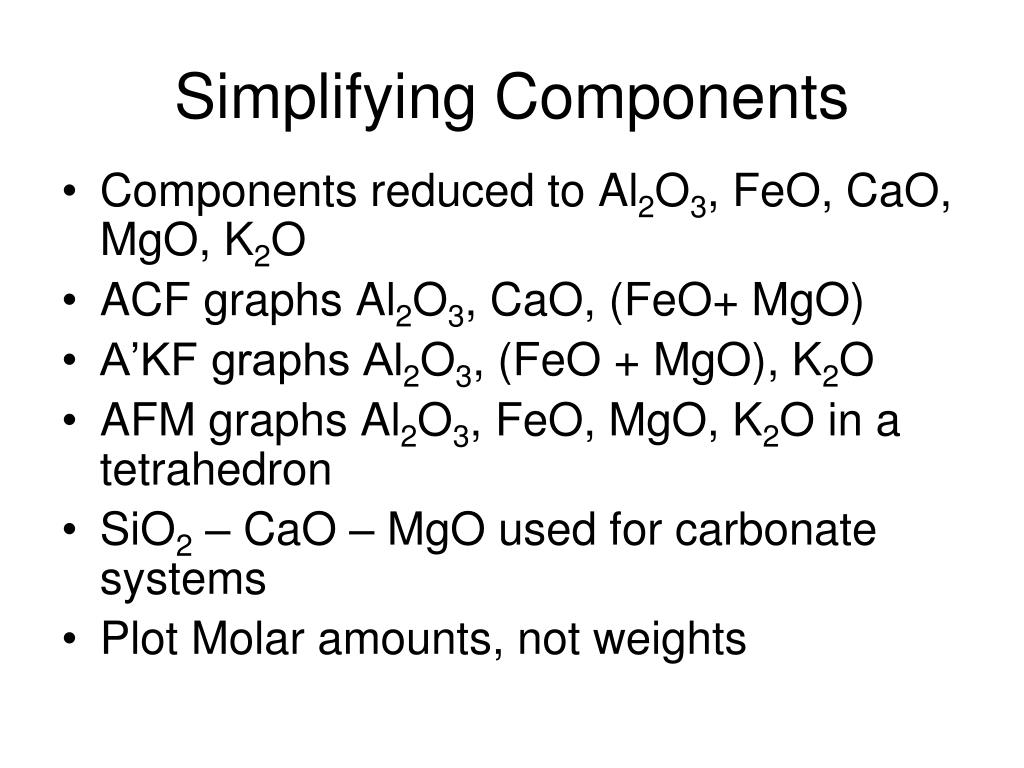

Simplifying Components

  • Components reduced to Al2O3, FeO, CaO, MgO, K2O

  • ACF graphs Al2O3, CaO, (FeO+ MgO)

  • A’KF graphs Al2O3, (FeO + MgO), K2O

  • AFM graphs Al2O3, FeO, MgO, K2O in a tetrahedron

  • SiO2 – CaO – MgO used for carbonate systems

  • Plot Molar amounts, not weights


Metamorphic phase diagrams13 l.jpg
Metamorphic Phase Diagrams

  • Tie lines denote two coexisting phases

  • Triangular subfields denote three coexisting phases

  • Phase Diagram is snapshot of mineral combinations under given T,P conditions

  • Evolution tracked by changes in diagrams

  • Not really interested in amounts



Metamorphic phase diagrams15 l.jpg
Metamorphic Phase Diagrams

  • Normally F = 2, C = 3, P = 3

  • On a reaction curve, F = 1, P = 4

  • How to get 4 Phases Together:

    • New Phase Appears in Middle of Field

    • New Phase Appears on Tie Line

    • Tie Line Breaks and New One Forms

  • Changes in Metamorphism

    • New Minerals Appear

    • Old Minerals Disappear

    • Compatibilities Shift



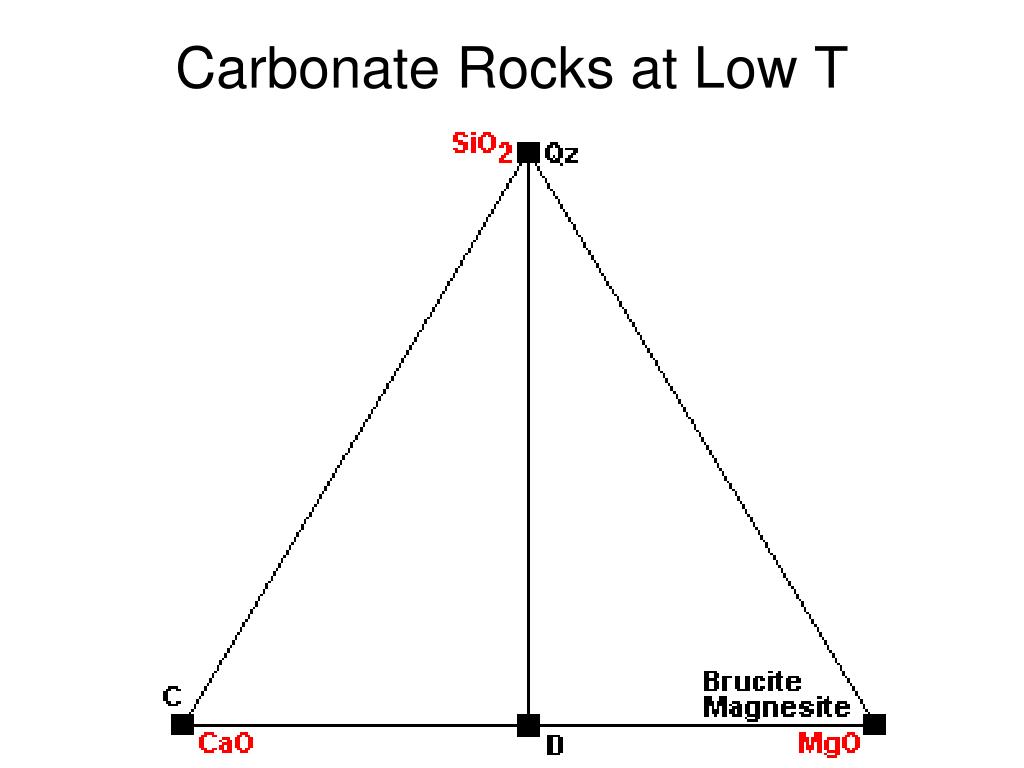

400 c new phase on tie line quartz brucite talc l.jpg
400 C: New Phase on Tie Line(Quartz + Brucite -> Talc)


450 c one tie line replaced by another quartz dolomite calcite talc l.jpg

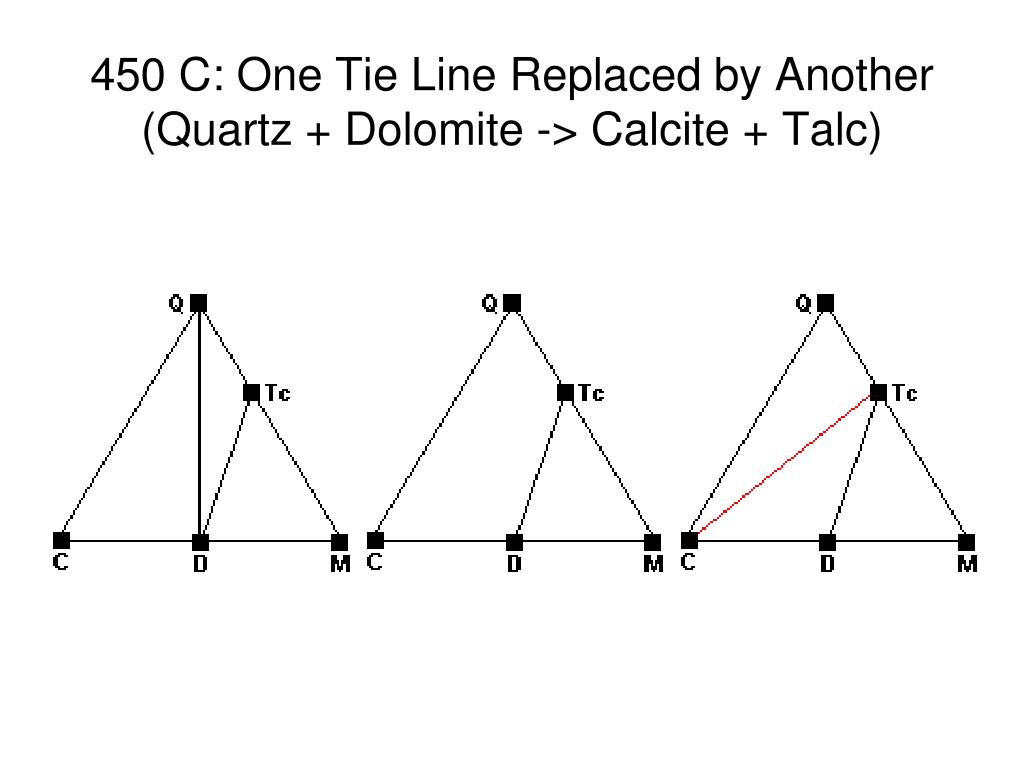

450 C: One Tie Line Replaced by Another(Quartz + Dolomite -> Calcite + Talc)


500 c new phase in middle of field quartz talc calcite tremolite l.jpg
500 C: New Phase in Middle of Field(Quartz + Talc + Calcite -> Tremolite)


Acf diagram l.jpg

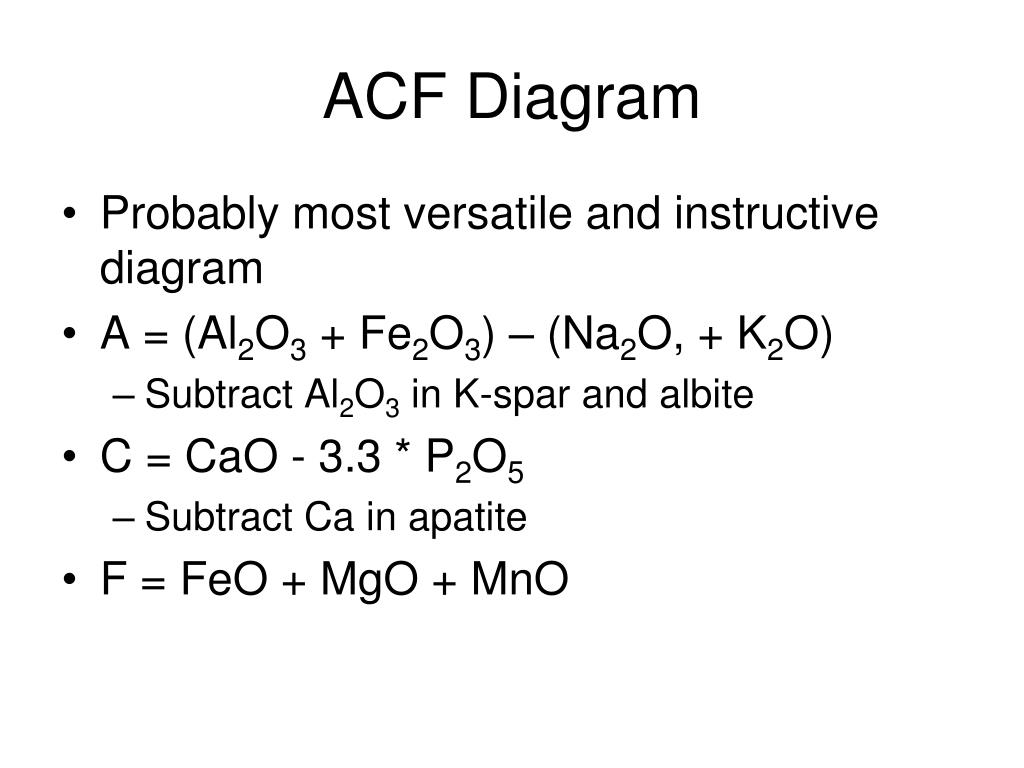

ACF Diagram

  • Probably most versatile and instructive diagram

  • A = (Al2O3 + Fe2O3) – (Na2O, + K2O)

    • Subtract Al2O3 in K-spar and albite

  • C = CaO - 3.3 * P2O5

    • Subtract Ca in apatite

  • F = FeO + MgO + MnO



A kf diagram l.jpg
A’KF Diagram

  • A’ = (Al2O3 + Fe2O3) – (Na2O, + K2O) – variable Ca (epidote, garnet, anorthite)

  • K = K2O

  • F = FeO + MgO + MnO – amount in diopside or hornblende

  • Distinguishes K-feldspar and micas




Afm diagram l.jpg
AFM Diagram

  • Graphs Al2O3, FeO, MgO, K2O

  • Cross-section through a tetrahedron

  • Used where MgO and FeO don’t fully substitute

  • Must include K2O because of micas

  • A = (Al2O3-3K2O)/(Al2O3-3K2O+FeO+MgO)

  • M = MgO/ (FeO + MgO)

  • F = FeO/ (FeO + MgO)




Cao mgo sio 2 diagram l.jpg
CaO-MgO-SiO2 Diagram
