Phase Diagrams

Phase Diagrams. Show the ranges of temperatures (and/or P) and composition over which phases or mixtures of phases of a compound or compounds are stable. Can also show existence of allotropes or polymorphism (solids having same composition, but different structure).

oke
Download Presentation

Phase Diagrams

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Phase Diagrams • Show the ranges of temperatures (and/or P) and composition over which phases or mixtures of phases of a compound or compounds are stable. • Can also show existence of allotropes or polymorphism (solids having same composition, but different structure). • Each phase occupies an area of the diagram.

  2. Phase Diagrams • Phase Rule: P + F = C + 2 • P = # of phases present in equilibrium. • C = # of components needed to describe system. • F = degrees of freedom = # of independent variables that can be varied without changing the # or composition of the existing phases. • e.g. to right is 1 component (H2O) phase diagram. P + F = 1 + 2 = 3 • A – at that point one phase (gas), so 2 degrees of freedom; can change T or P. • B – at interface of liquid and vapor there are two phases, so 1 degree of freedom; if change T, must also change P. • C – triple point, so no degrees of freedom; changing either T or P changes composition. • D – critical point; δ(vapor) = δ (liquid). • D • B • A • C

  3. Phase Diagrams • First-order phase transition. • Move from liquid to vapor; temperature will stop changing at this point until all of the liquid becomes vapor and only then will continue to increase.

  4. Binary Phase Diagram • Phase diagram for two similar components; aka “Solid Solution”. • Assume Pressure = 1 atm, so 2D rather than 3D plot. • Two components, so F + P = 2 + 2 = 4 • Composition = mole fraction; 100% B to 100% A. • Tm(B) = melting point of pure B. • Tm(A) = melting point of pure A. • Liquidous = boundary between liquid and mixed phase; gives liquid composition. • Solidous = boundary between solid and mixed phase; gives solid composition. Tm(B) Tm(A)

  5. Binary Phase Diagram • Heat mixture of A & B (at mole fraction indicated) to temperature 1. Then cool. • At temperature 1, liquid phase has composition = mole fraction. • At temperature 2, solid begins to ppt out; solid is mostly B mixed crystal (composition b1). • At temperature 3, solid has composition b2 and liquid has composition a’2; note different mole fractions! • at a given temperature, the liquid and solid that are in equilibrium with each other have different compositions. • At temperature 4, solid formed has composition = b3 = original mole fractions. 1 2 3 4

  6. Binary Phase Diagram • Note that on cooling, the solid will change composition from almost pure B to more and more A composition. • Coring: freeze in tube from outside; core will have different composition. • Heat & Beat: heat above liquidous, cool below solidous (but not too far), then beat (to make deformities), then reheat almost to solidous (increase diffusion), beat and repeat. Like? Blacksmith. liquidous solidous B mole fraction A

  7. Binary Phase Diagram • Example of a system involving the formation of mixed crystals with temperature minimum: special point for which the compositions of the solid and liquid are the same. • It is possible to have the special point at a temperature maximum. liquid (1-phase) liquid composition special point solid composition solid (1-phase)

  8. Eutectic Phase Diagram • What if two substances are NOT similar at all? They won’t want to mix in the solid state, but will in the liquid; e.g. NaF & PbF2. Eutectic Point (cusp) -eutectic mixture has lower mp than either of the pure components or any other mixture. Tm(NaF) liquid Tm(PbF2) liquidous curve -highest temp. at which crystals can exist. NaF(s) + liquid PbF2(s) + liquid NaF(s) + PbF2(s) don’t mix solidous curve = Eutectic Temperature -lowest temp. at which liquids can exist. NaF mole fraction PbF2

  9. Eutectic Phase Diagram • Heat above liquidous and cool; first solid is pure NaF; below Eutectic Temperature both solids appear. Tm(NaF) liquid solid is pure NaF Tm(PbF2) liquid has increasing PbF2 fraction NaF(s) + liquid PbF2(s) + liquid NaF(s) + PbF2(s) don’t mix solid PbF2 begins to ppt particles of NaF & PbF2 • • • • • • • • • NaF mole fraction PbF2 pure NaF

  10. Phase Diagrams • Have seen two extremes: solid solution, where the two compounds “like” each other & eutectic mixture, where the two compounds “hate” each other. • What happens as the two compounds get away from these extremes? Solid Solution Eutectic Mixture

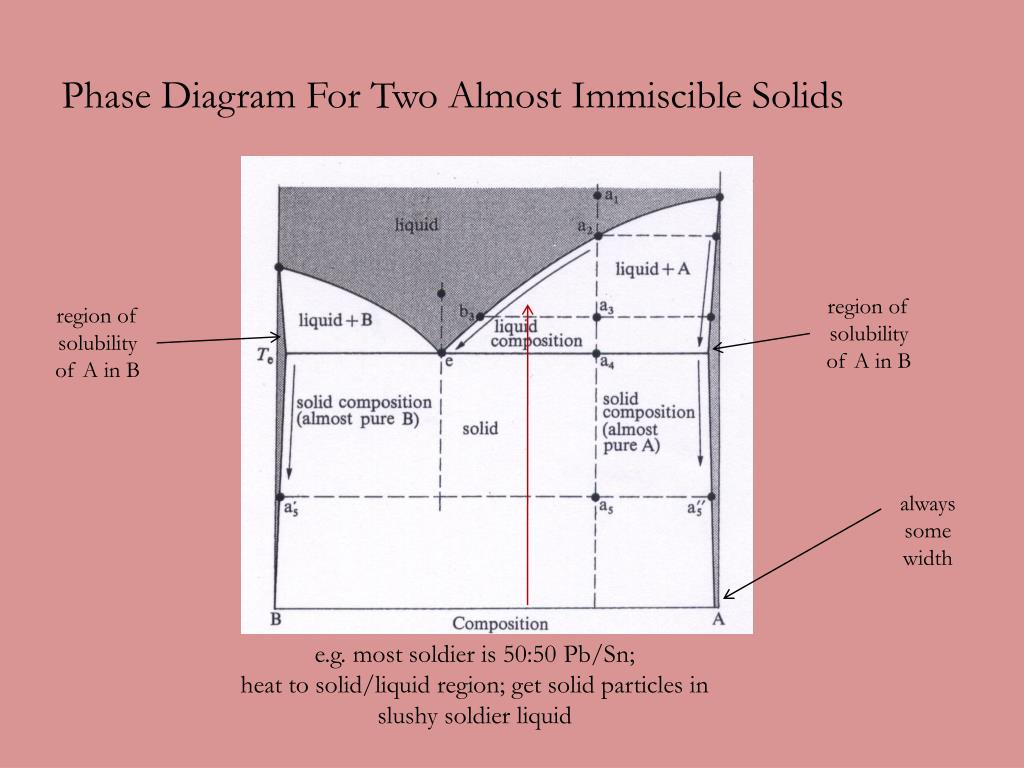

  11. Phase Diagram For Two Almost Immiscible Solids region of solubility of A in B region of solubility of A in B always some width e.g. most soldier is 50:50 Pb/Sn; heat to solid/liquid region; get solid particles in slushy soldier liquid

  12. Phase Diagram If Two Components Form 3rd Compound • Looks like two Eutectic Diagrams next to each other. new compound melts congruently Two Eutectic Points Compound Forms; called line compound
