MS Plate

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

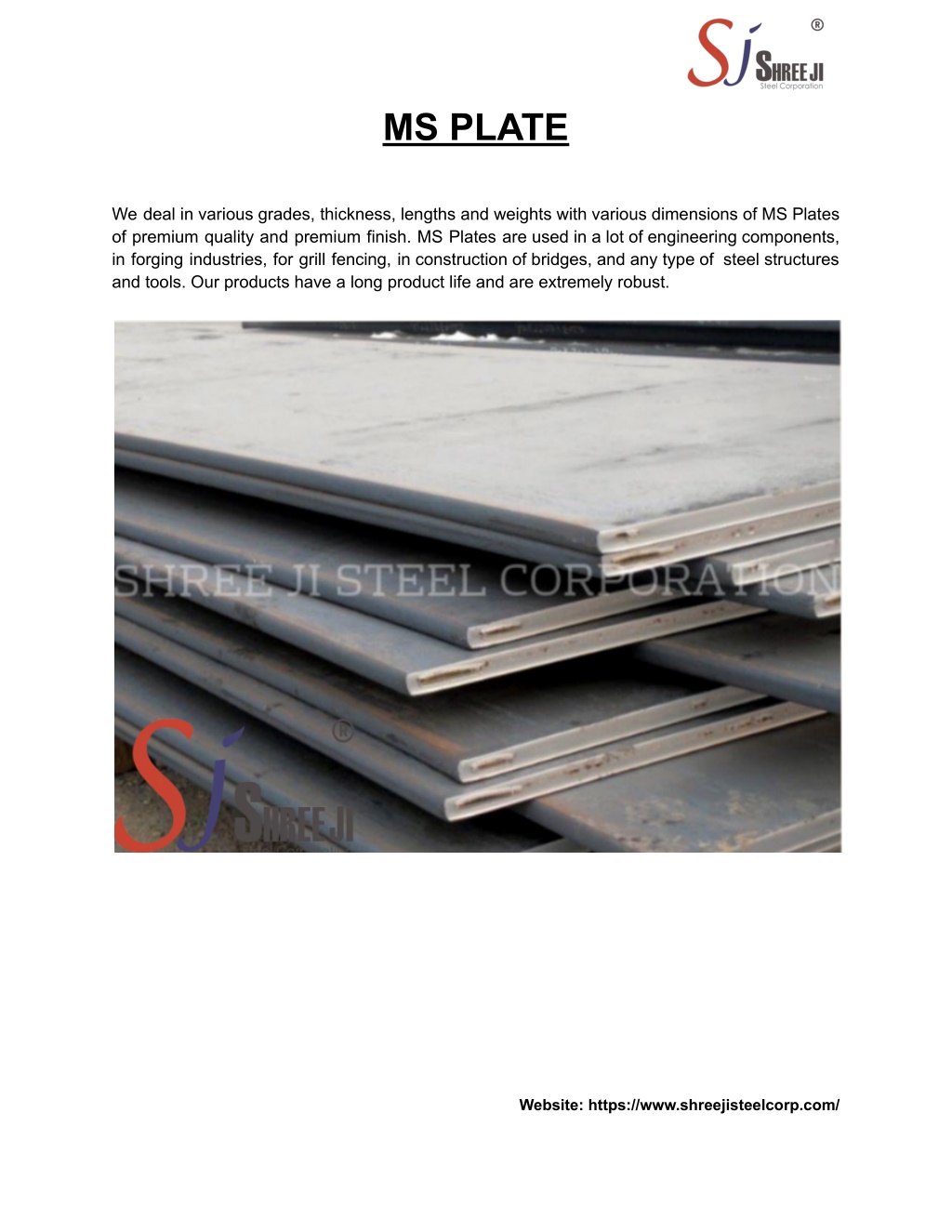

  1. MS PLATE We deal in various grades, thickness, lengths and weights with various dimensions of MS Plates of premium quality and premium finish. MS Plates are used in a lot of engineering components, in forging industries, for grill fencing, in construction of bridges, and any type of steel structures and tools. Our products have a long product life and are extremely robust. Website: https://www.shreejisteelcorp.com/

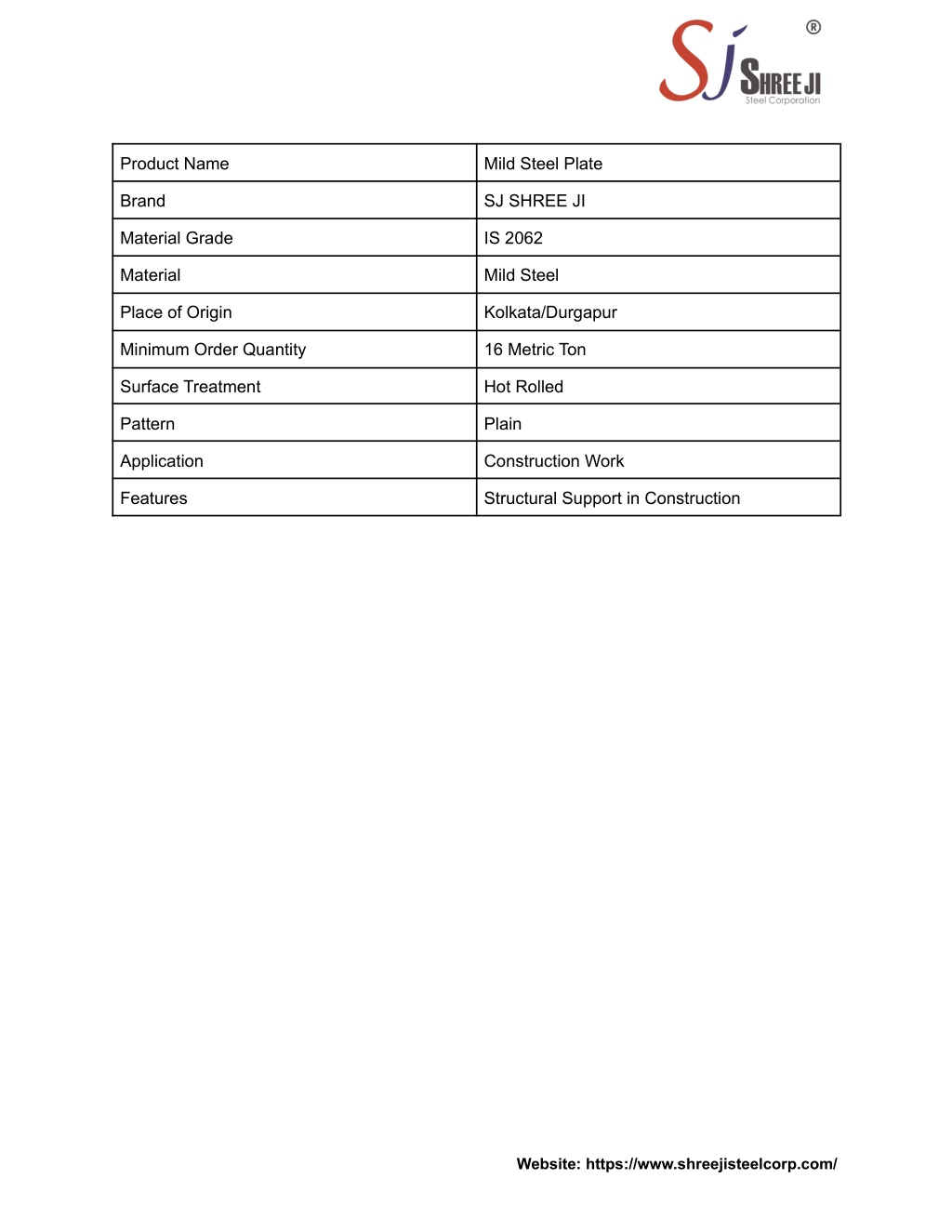

  2. Product Name Mild Steel Plate Brand SJ SHREE JI Material Grade IS 2062 Material Mild Steel Place of Origin Kolkata/Durgapur Minimum Order Quantity 16 Metric Ton Surface Treatment Hot Rolled Pattern Plain Application Construction Work Features Structural Support in Construction Website: https://www.shreejisteelcorp.com/

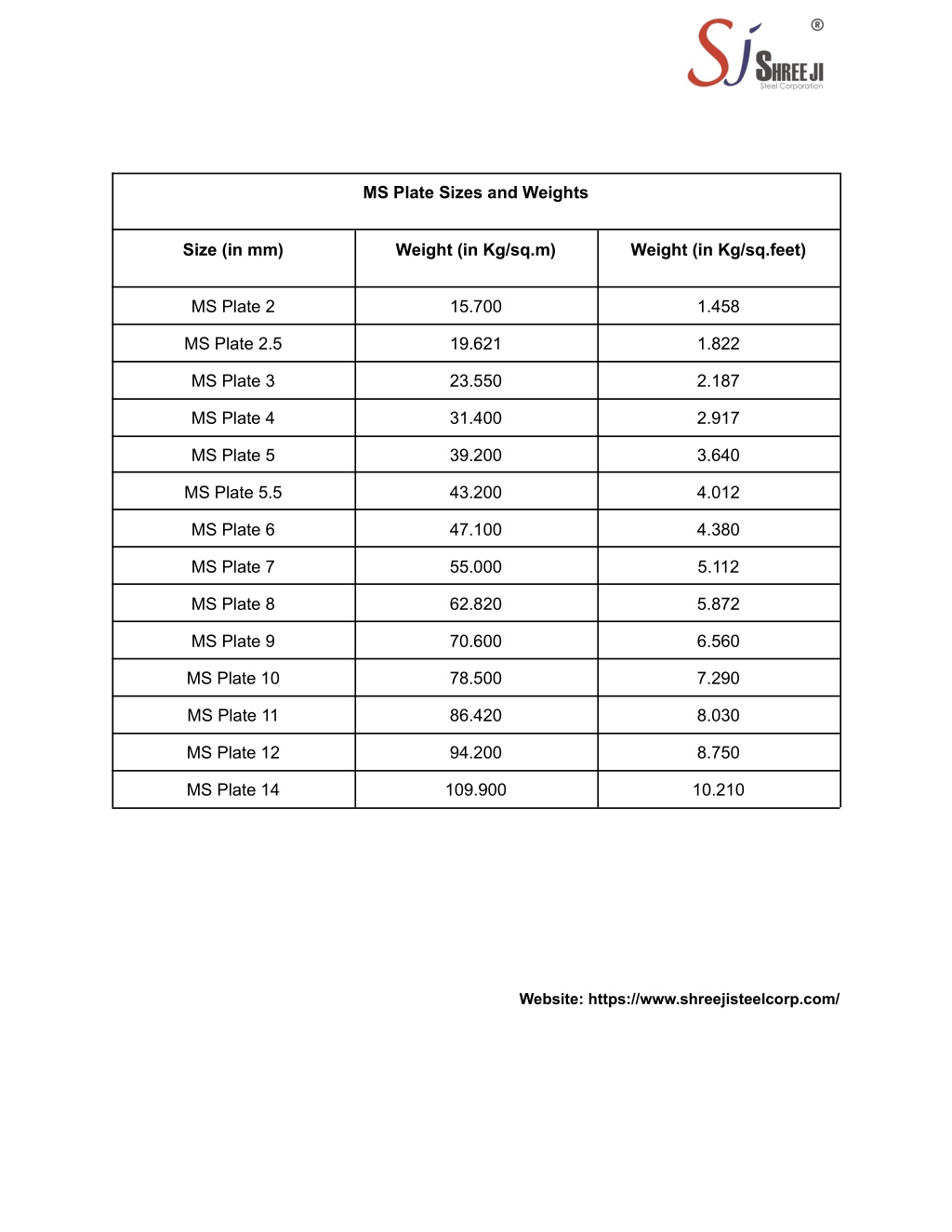

  3. MS Plate Sizes and Weights Size (in mm) Weight (in Kg/sq.m) Weight (in Kg/sq.feet) MS Plate 2 15.700 1.458 MS Plate 2.5 19.621 1.822 MS Plate 3 23.550 2.187 MS Plate 4 31.400 2.917 MS Plate 5 39.200 3.640 MS Plate 5.5 43.200 4.012 MS Plate 6 47.100 4.380 MS Plate 7 55.000 5.112 MS Plate 8 62.820 5.872 MS Plate 9 70.600 6.560 MS Plate 10 78.500 7.290 MS Plate 11 86.420 8.030 MS Plate 12 94.200 8.750 MS Plate 14 109.900 10.210 Website: https://www.shreejisteelcorp.com/

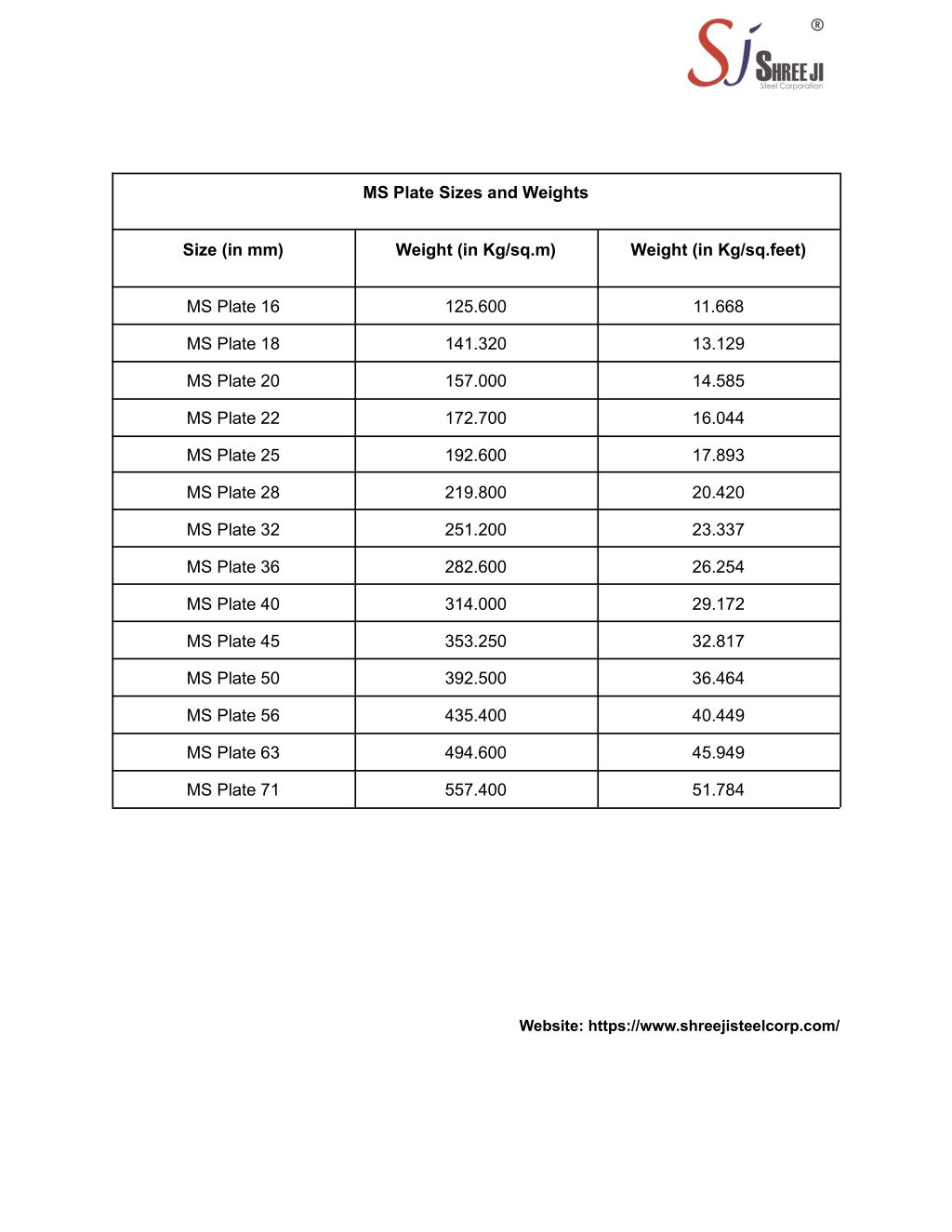

  4. MS Plate Sizes and Weights Size (in mm) Weight (in Kg/sq.m) Weight (in Kg/sq.feet) MS Plate 16 125.600 11.668 MS Plate 18 141.320 13.129 MS Plate 20 157.000 14.585 MS Plate 22 172.700 16.044 MS Plate 25 192.600 17.893 MS Plate 28 219.800 20.420 MS Plate 32 251.200 23.337 MS Plate 36 282.600 26.254 MS Plate 40 314.000 29.172 MS Plate 45 353.250 32.817 MS Plate 50 392.500 36.464 MS Plate 56 435.400 40.449 MS Plate 63 494.600 45.949 MS Plate 71 557.400 51.784 Website: https://www.shreejisteelcorp.com/

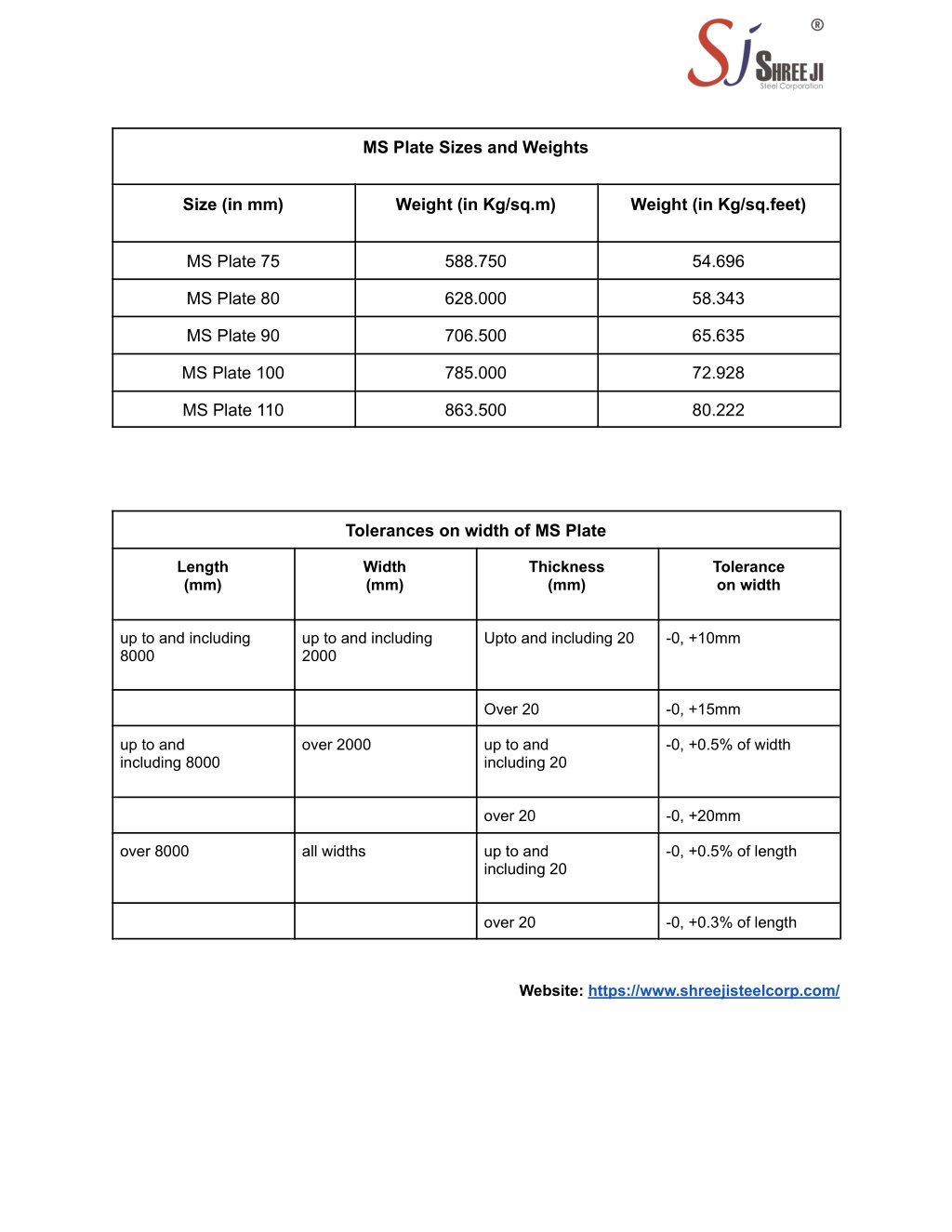

  5. MS Plate Sizes and Weights Size (in mm) Weight (in Kg/sq.m) Weight (in Kg/sq.feet) MS Plate 75 588.750 54.696 MS Plate 80 628.000 58.343 MS Plate 90 706.500 65.635 MS Plate 100 785.000 72.928 MS Plate 110 863.500 80.222 Tolerances on width of MS Plate Length (mm) Width (mm) Thickness (mm) Tolerance on width up to and including 8000 up to and including 2000 Upto and including 20 -0, +10mm Over 20 -0, +15mm up to and including 8000 over 2000 up to and including 20 -0, +0.5% of width over 20 -0, +20mm over 8000 all widths up to and including 20 -0, +0.5% of length over 20 -0, +0.3% of length Website: https://www.shreejisteelcorp.com/

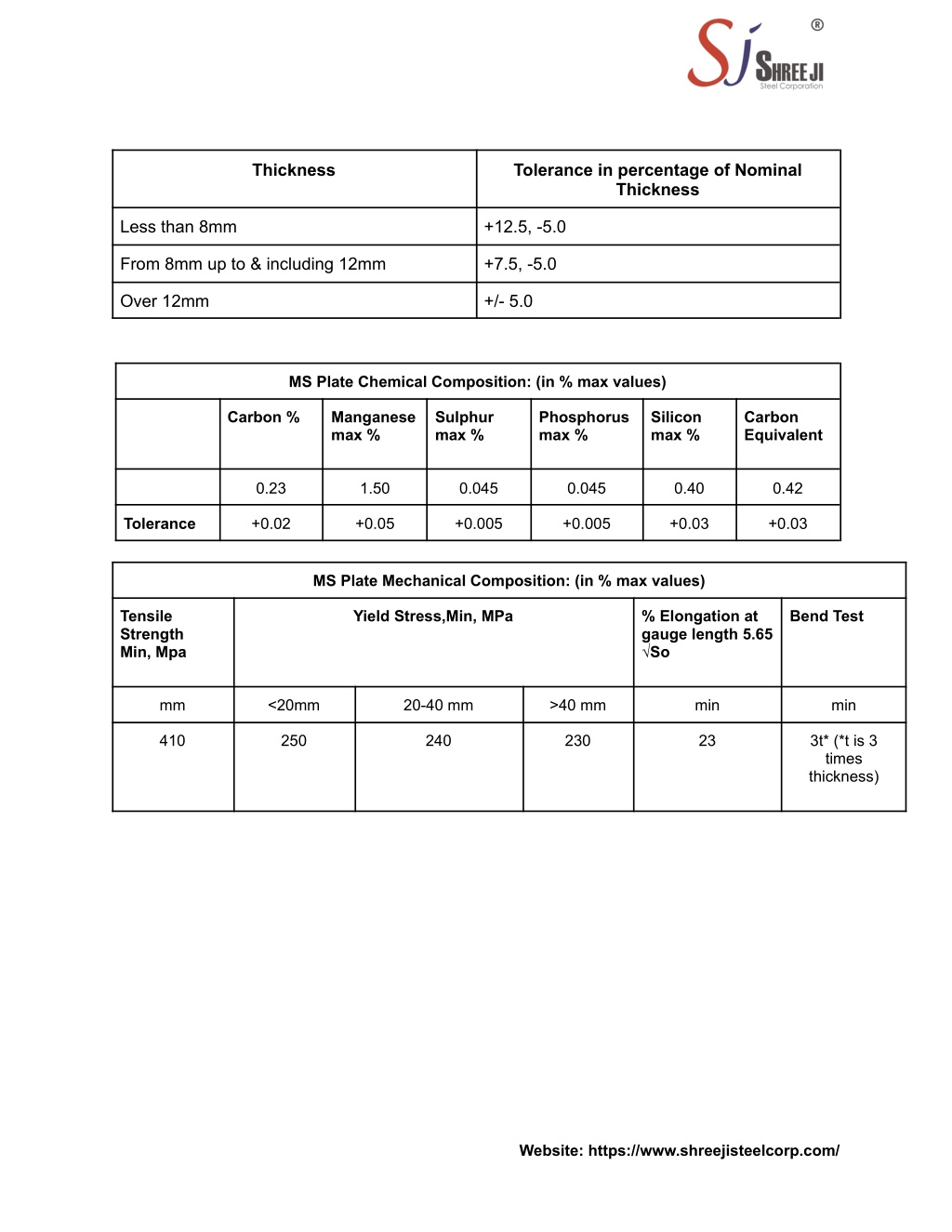

  6. Thickness Tolerance in percentage of Nominal Thickness Less than 8mm +12.5, -5.0 From 8mm up to & including 12mm +7.5, -5.0 Over 12mm +/- 5.0 MS Plate Chemical Composition: (in % max values) Carbon % Manganese max % Sulphur max % Phosphorus max % Silicon max % Carbon Equivalent 0.23 1.50 0.045 0.045 0.40 0.42 Tolerance +0.02 +0.05 +0.005 +0.005 +0.03 +0.03 MS Plate Mechanical Composition: (in % max values) Tensile Strength Min, Mpa Yield Stress,Min, MPa % Elongation at gauge length 5.65 √Ѕo Bend Test mm <20mm 20-40 mm >40 mm min min 410 250 240 230 23 3t* (*t is 3 times thickness) Website: https://www.shreejisteelcorp.com/
